PG400A サーボウェブガイドシステム 400mm ローラー超音波センサー付き

$1,053.62 USD

~~$0.00 USD~~ $1,053.62 USD

セール売り切れ

税込。配送料はチェックアウト時に計算されます。

取り付け方向オプション 1 オプション2

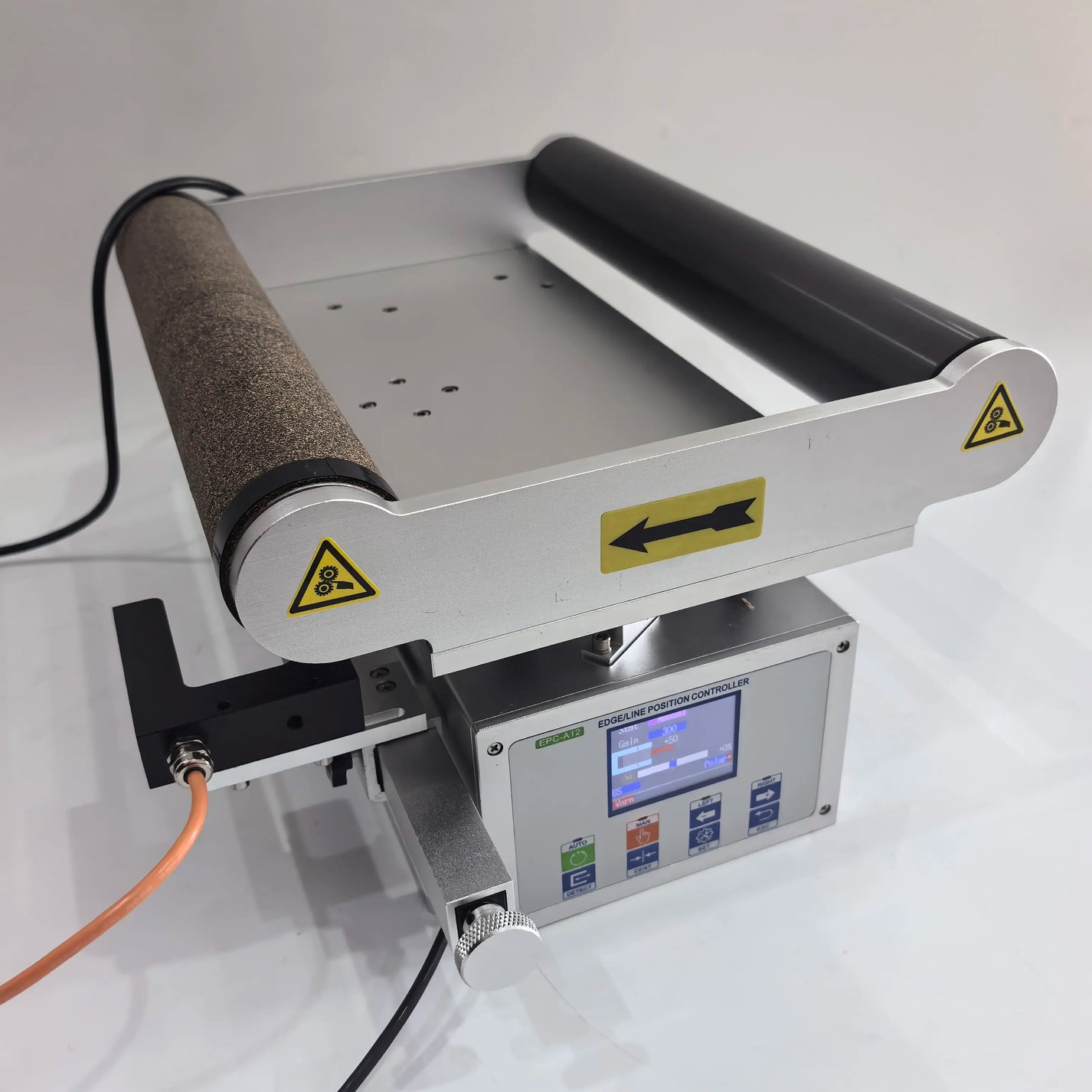

PG400A Servo Web Guiding System with 400mm Roller

The PG400A is an all-in-one servo web guiding system for EPC/LPC edge and line position control. It is listed with a 400mm roller and ultrasonic sensor for web control applications where narrow web materials need automatic guiding and correction.

Main Functions

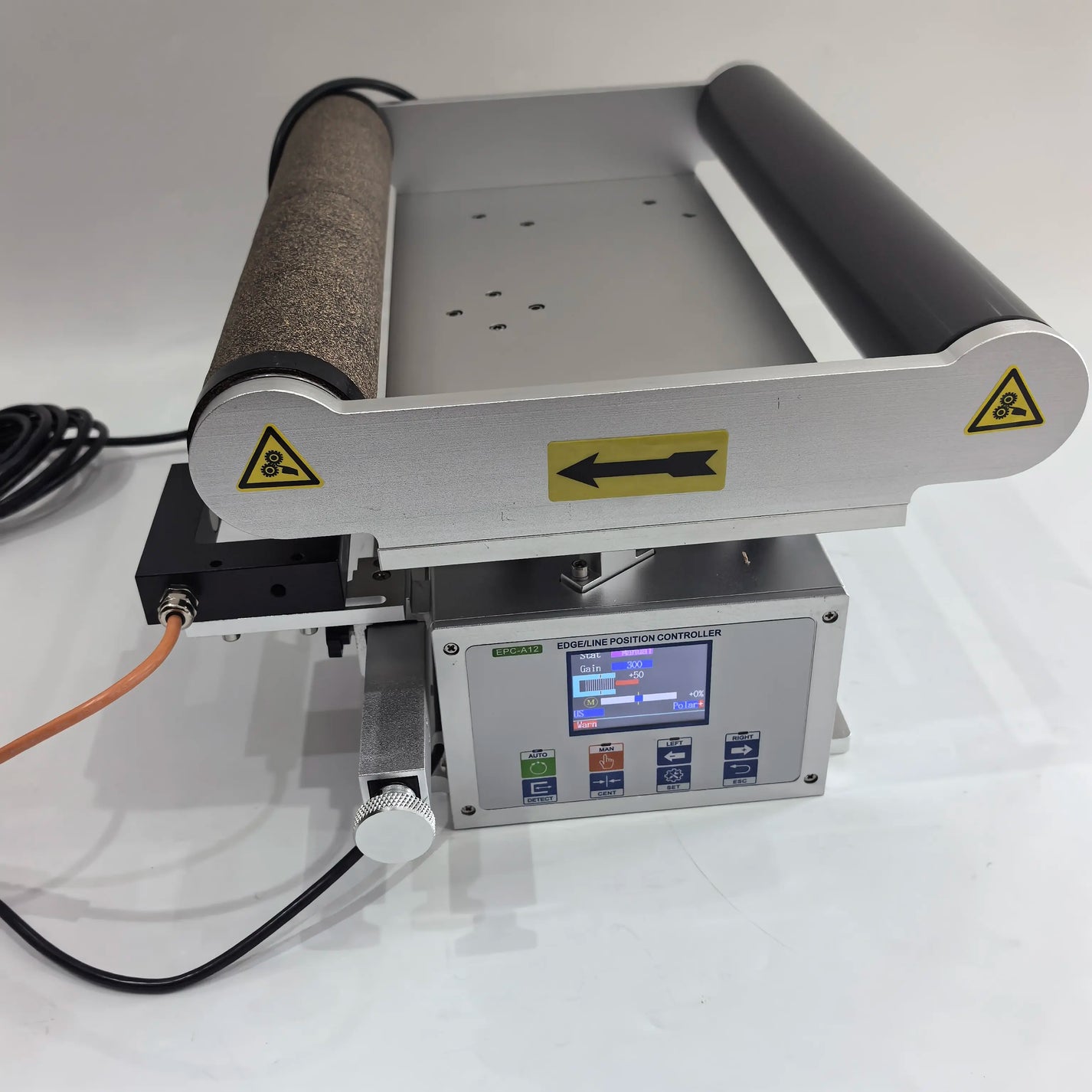

All-in-one web guide controller for accurate guiding of narrow web materials.

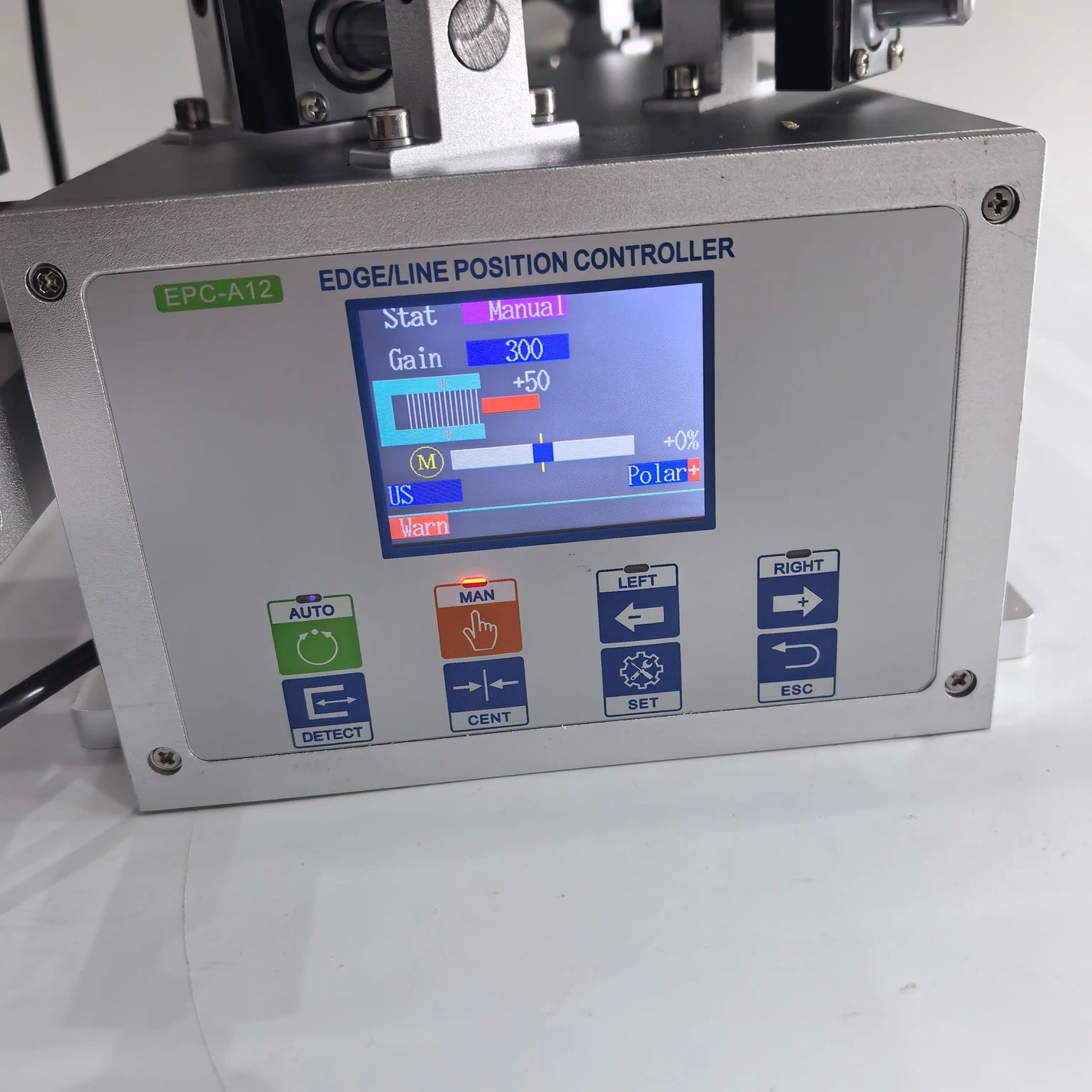

Integrated controller, driver, and detector to simplify installation and debugging.

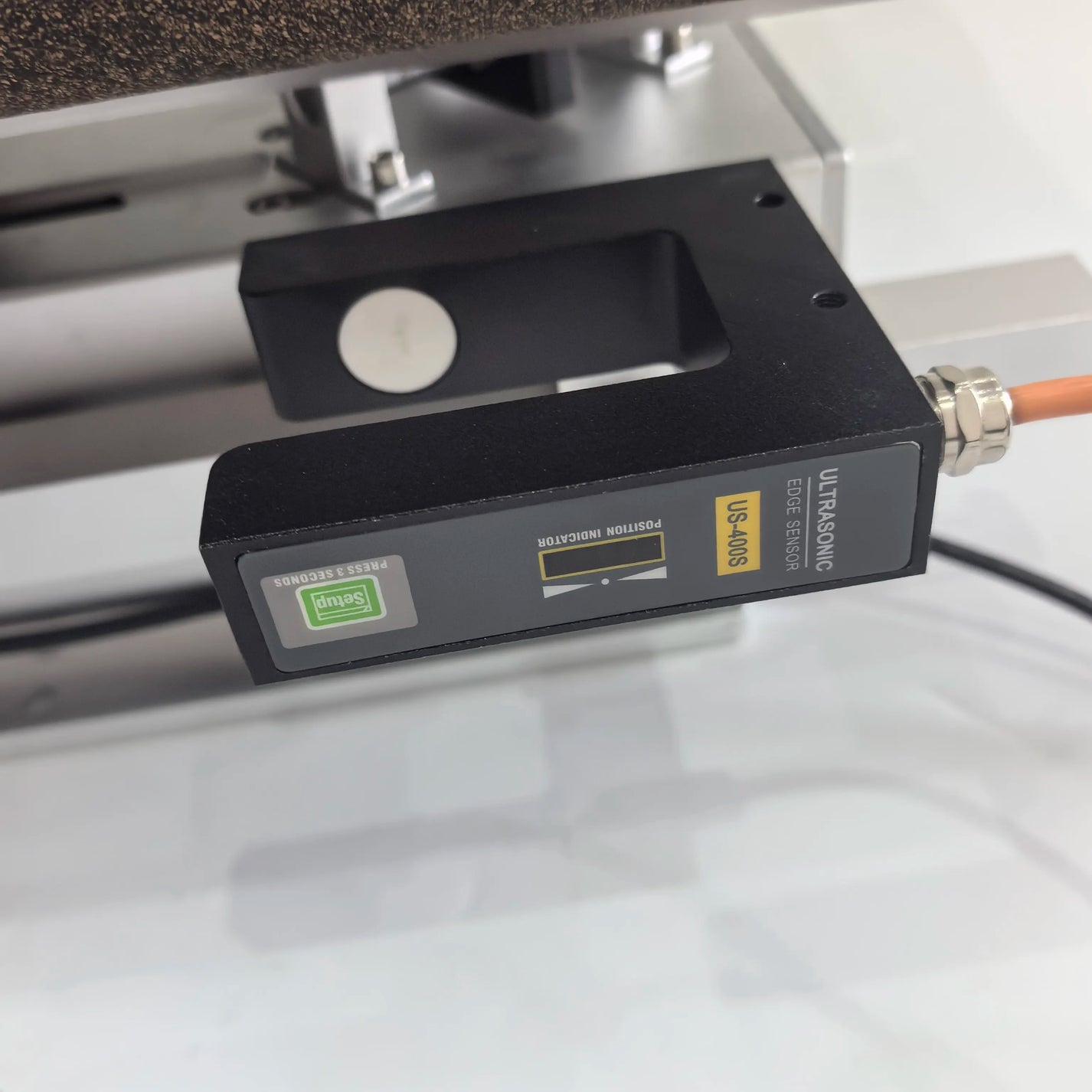

Ultrasonic sensor configuration for web position detection.
Brushless DC servo motor drive, listed as maintenance-free.
Precision ball screw mechanism for accurate positioning.
Large guiding travel for web control applications.
Roller length and width can be custom-made based on application requirements.
Optional cutting-station fixture: manual or pneumatic.

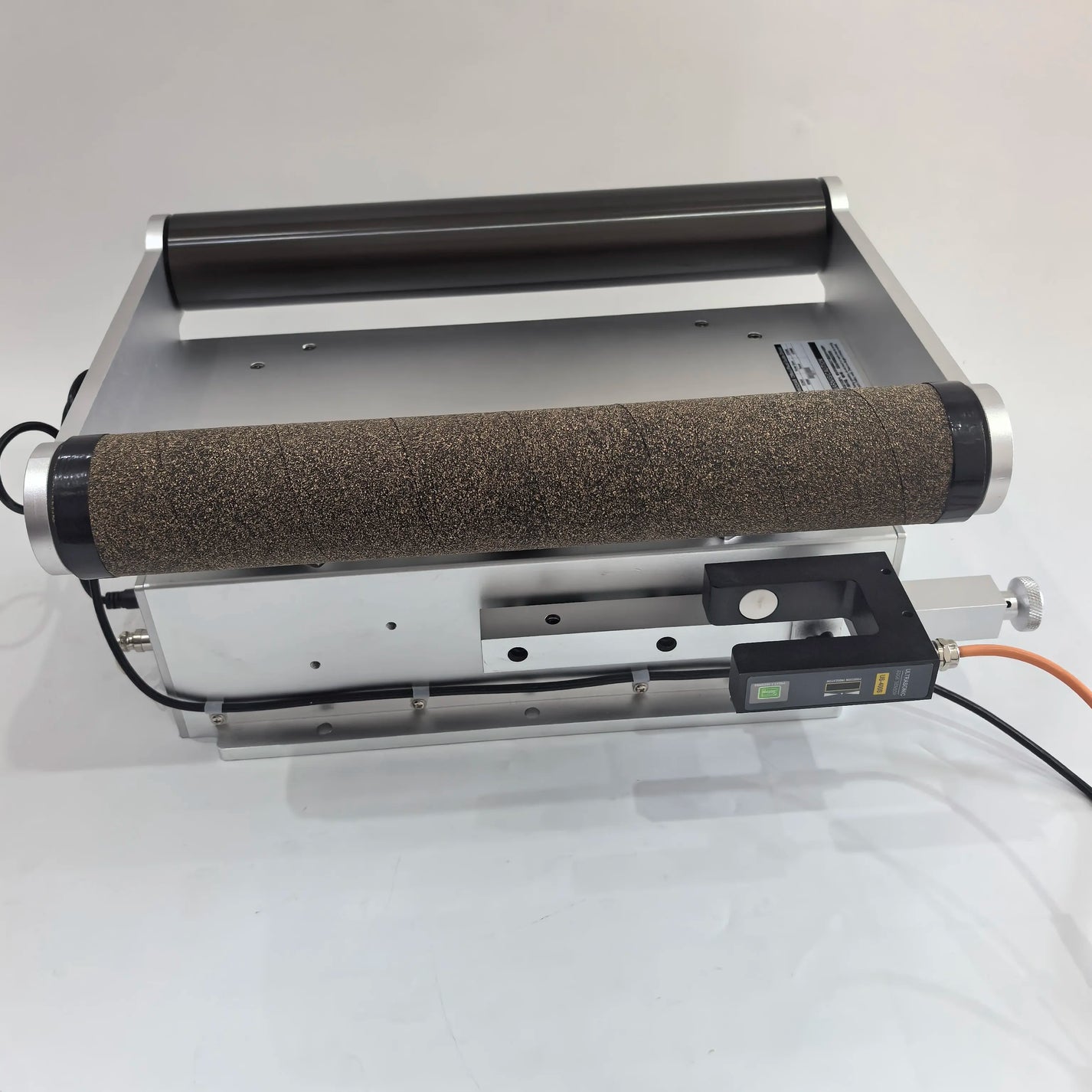

Installation Direction Options

Option	Verified direction note	SKU

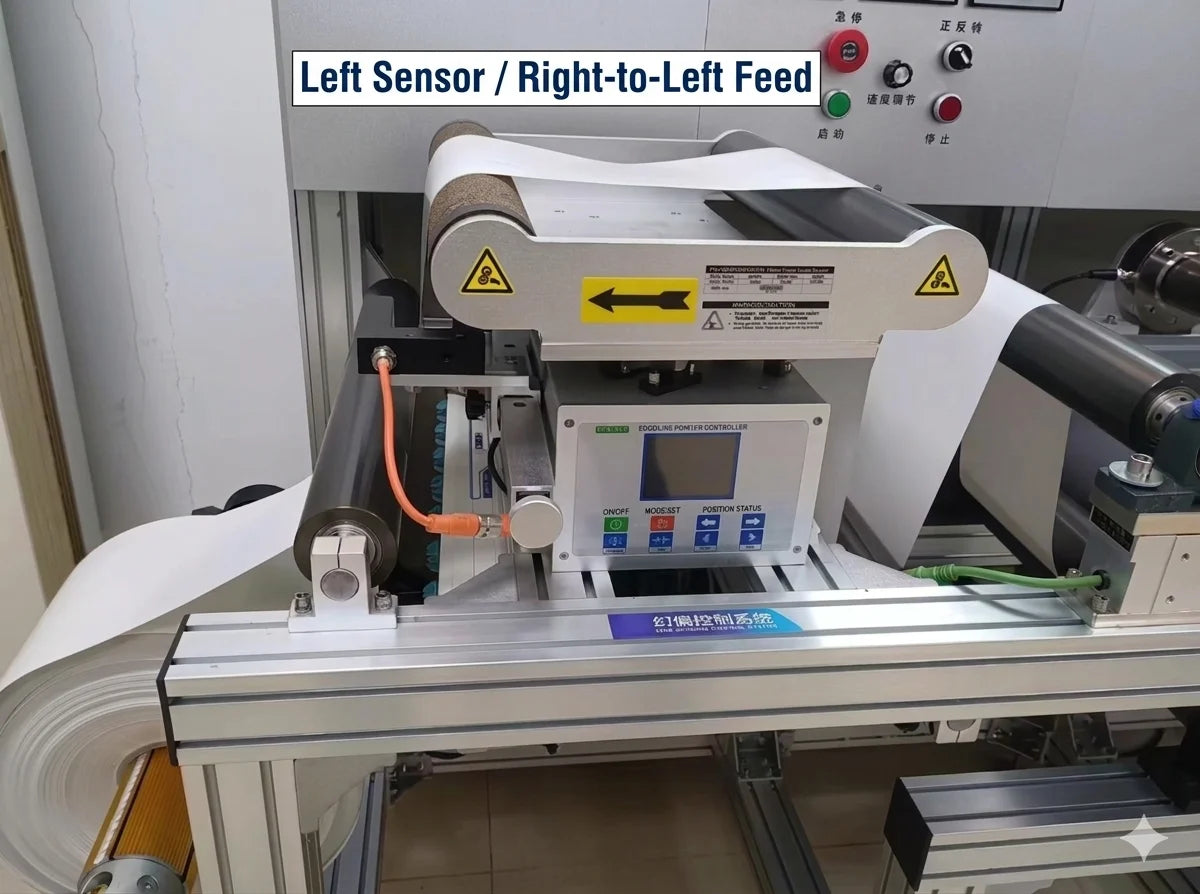

Option 1	Left-side sensor installation; material feeding direction shown as right to left	FMF-PG400A-30809-OPTION-1

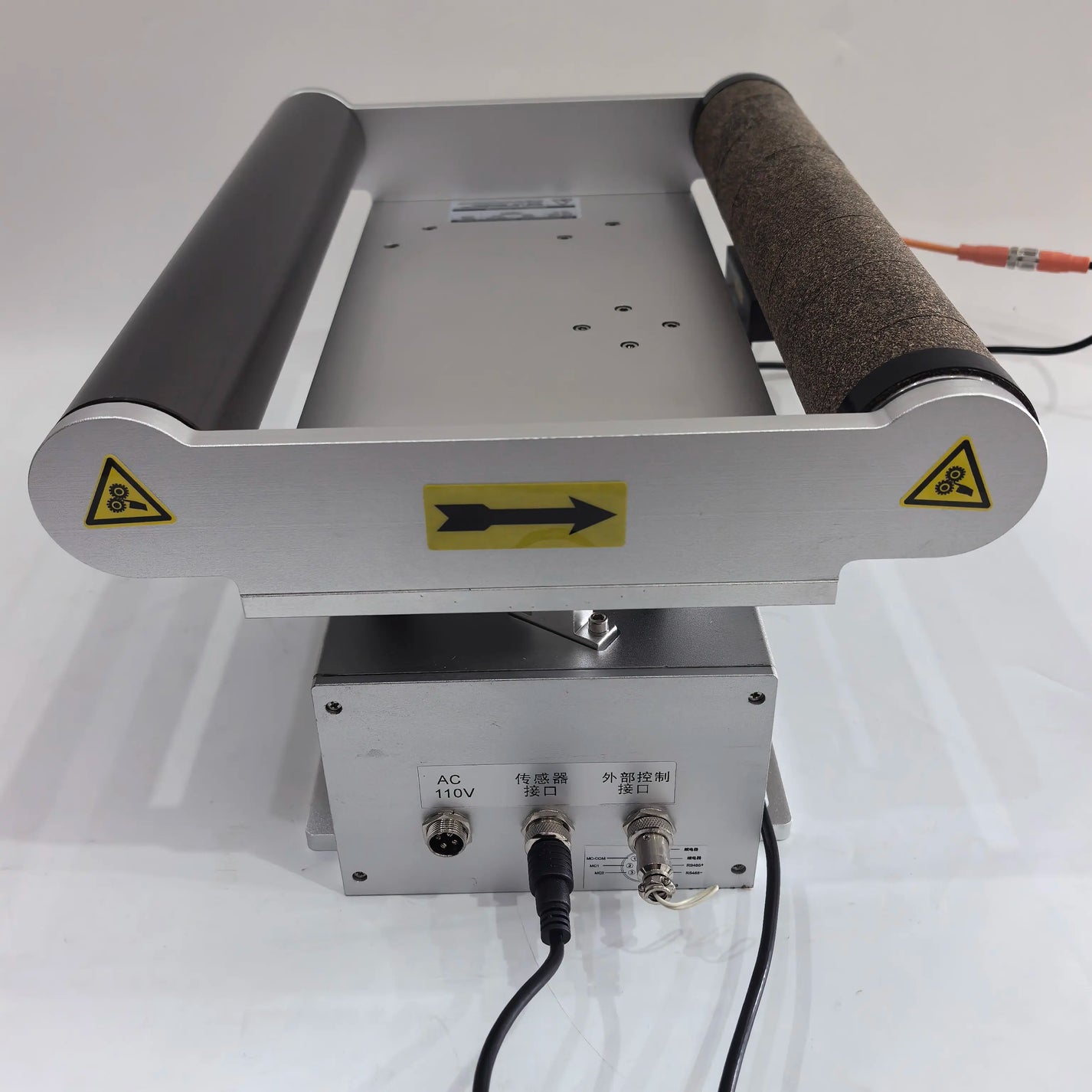

Option 2	Material feeding direction shown as left to right	FMF-PG400A-30809-OPTION-2

Verified Details

Model	PG400A
System type	All-in-one servo web guiding system
Control mode	EPC/LPC edge and line position control
Sensor wording	Ultrasonic sensor for web control
Roller	400mm roller listed in product title
Variant SKUs	FMF-PG400A-30809-OPTION-1 / FMF-PG400A-30809-OPTION-2

Selection Notes

Select the installation direction that matches the sensor side and material feeding direction shown in your machine layout.
Confirm the roller size, web path, mounting space, fixture style, and any custom roller requirements before ordering.
If your application requires a specific voltage, web width range, guide angle, maximum tension, cable set, or sensor accuracy, confirm those details before purchase because they are not verified in the current listing data.

FAQ

What is the PG400A used for?

It is used for automatic web guiding, helping correct edge or line position in web control applications.

What is integrated in the PG400A system?

The listing describes an integrated controller, driver, and detector with brushless DC servo motor driving and a precision ball screw mechanism.

What is the difference between Option 1 and Option 2?

The options relate to installation and material feeding direction. Option 1 is listed for left-side sensor installation with material feeding shown as right to left; Option 2 is listed with material feeding shown as left to right.
