PG200A オールインワンサーボウェブガイド（超音波センサー付き）

$979.94 USD

~~$0.00 USD~~ $979.94 USD

セール売り切れ

税込。配送料はチェックアウト時に計算されます。

Product Overview

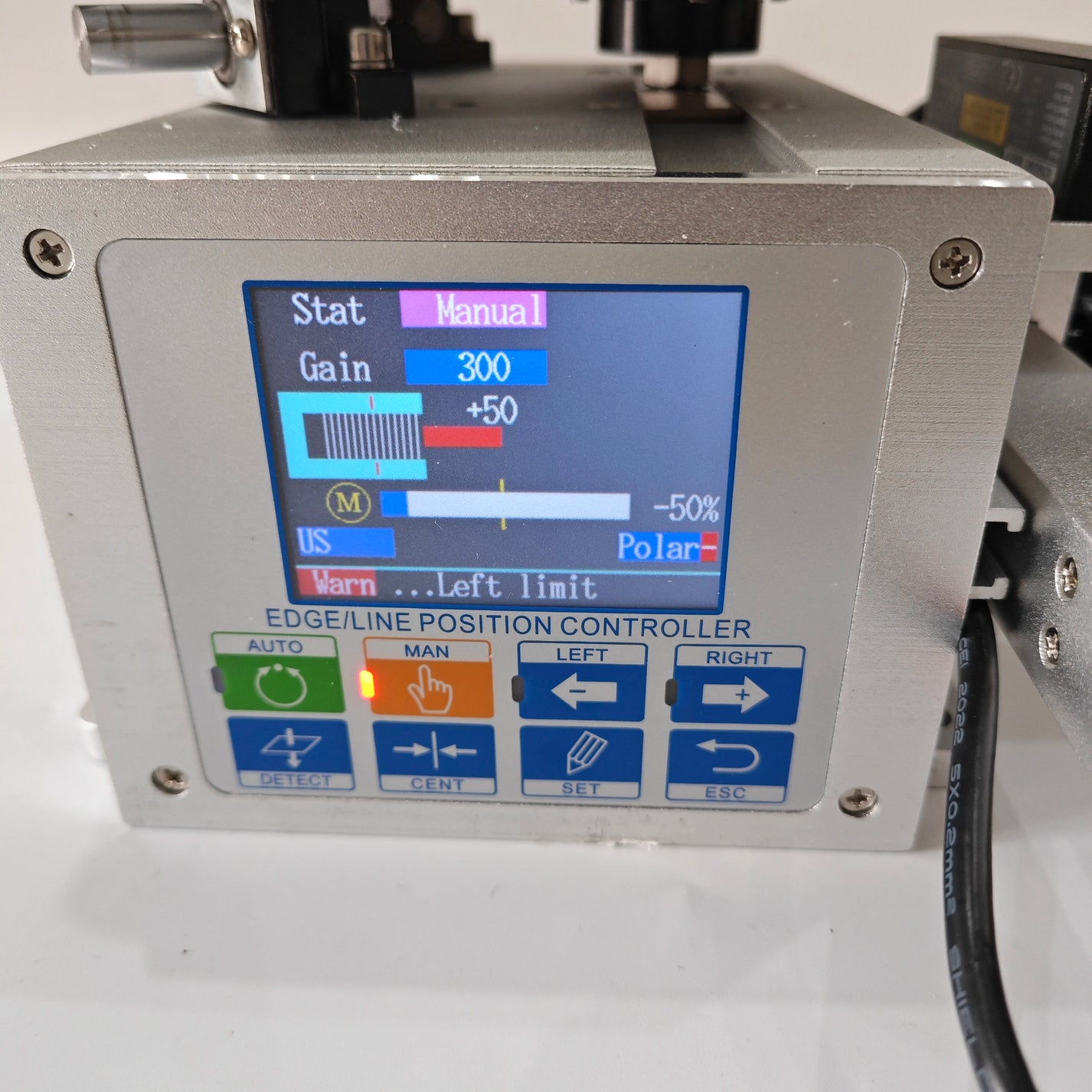

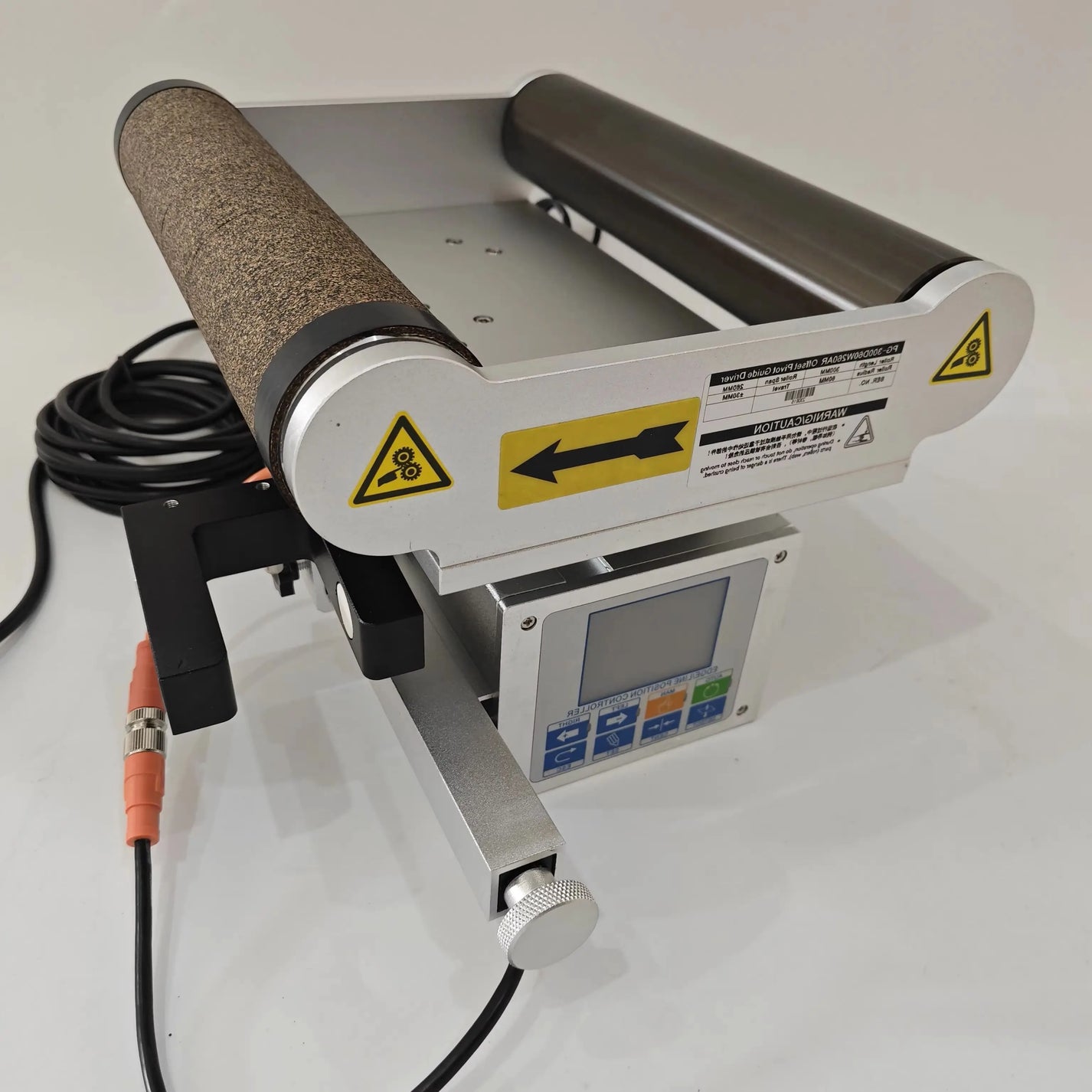

The PG200A is an all-in-one servo web guiding system for edge and line position control on narrow web materials. It integrates the controller, driver, detector, and servo guide structure in a compact unit, with the default configuration including a US-400S ultrasonic sensor.

Package Includes

1 set PG200A all-in-one web guide system
US-400S ultrasonic sensor in the default configuration

If another sensor type is required, confirm the configuration before ordering.

Key Details

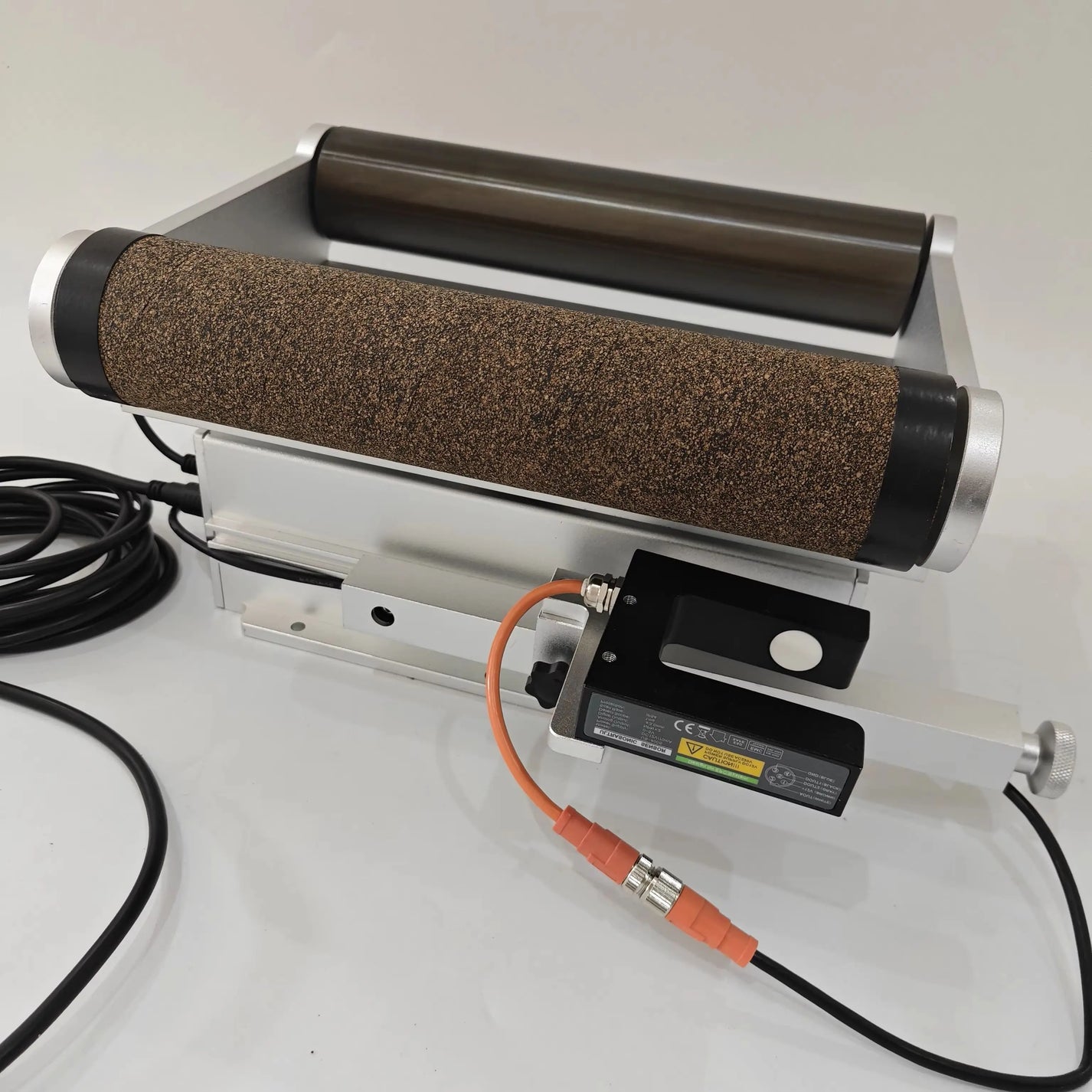

Designed for accurate correction of narrow web materials.
Suitable for label printing, packaging, and non-woven material guiding applications.
Brushless DC servo motor drive for low-maintenance operation.
Precision ball screw mechanism for accurate positioning.
Compact integrated design helps save installation space and reduce setup work.

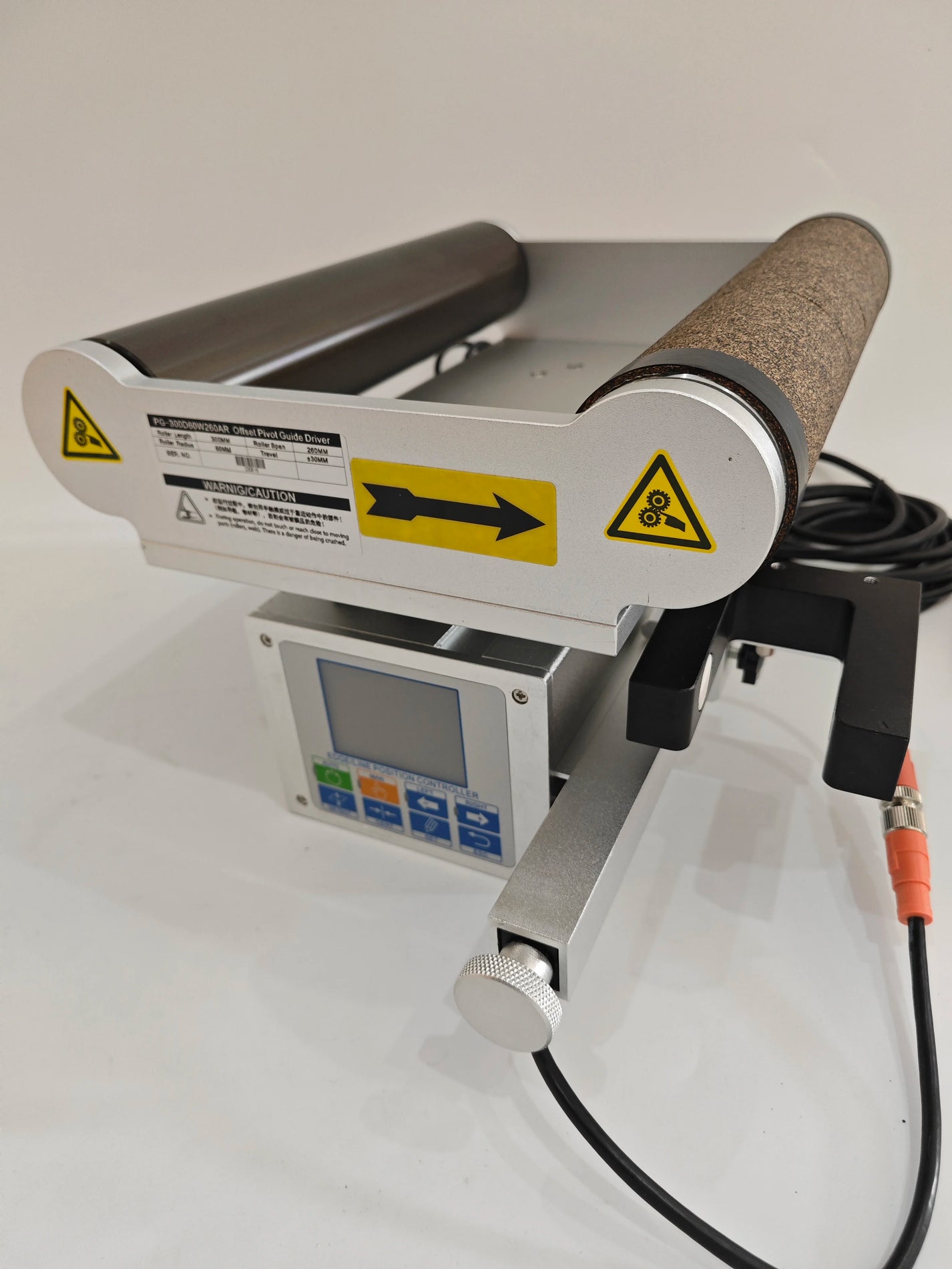

Roller length, width, and surface treatment can be customized for the application.

PG200A Technical Specifications

Item	Specification
Model	PG-200A / PG200A
Voltage	AC220V / AC110V, 80W
Drive	Brushless DC servo
Roller length A	200 mm
Roller diameter B	50 mm
Roller width C	230 mm
Base length D	255 mm
Web guide range	+/-12 degrees
Max. tension	300 N
Max. speed	40 mm/s
Environment	-10 to 60 degree C, below RH 90%

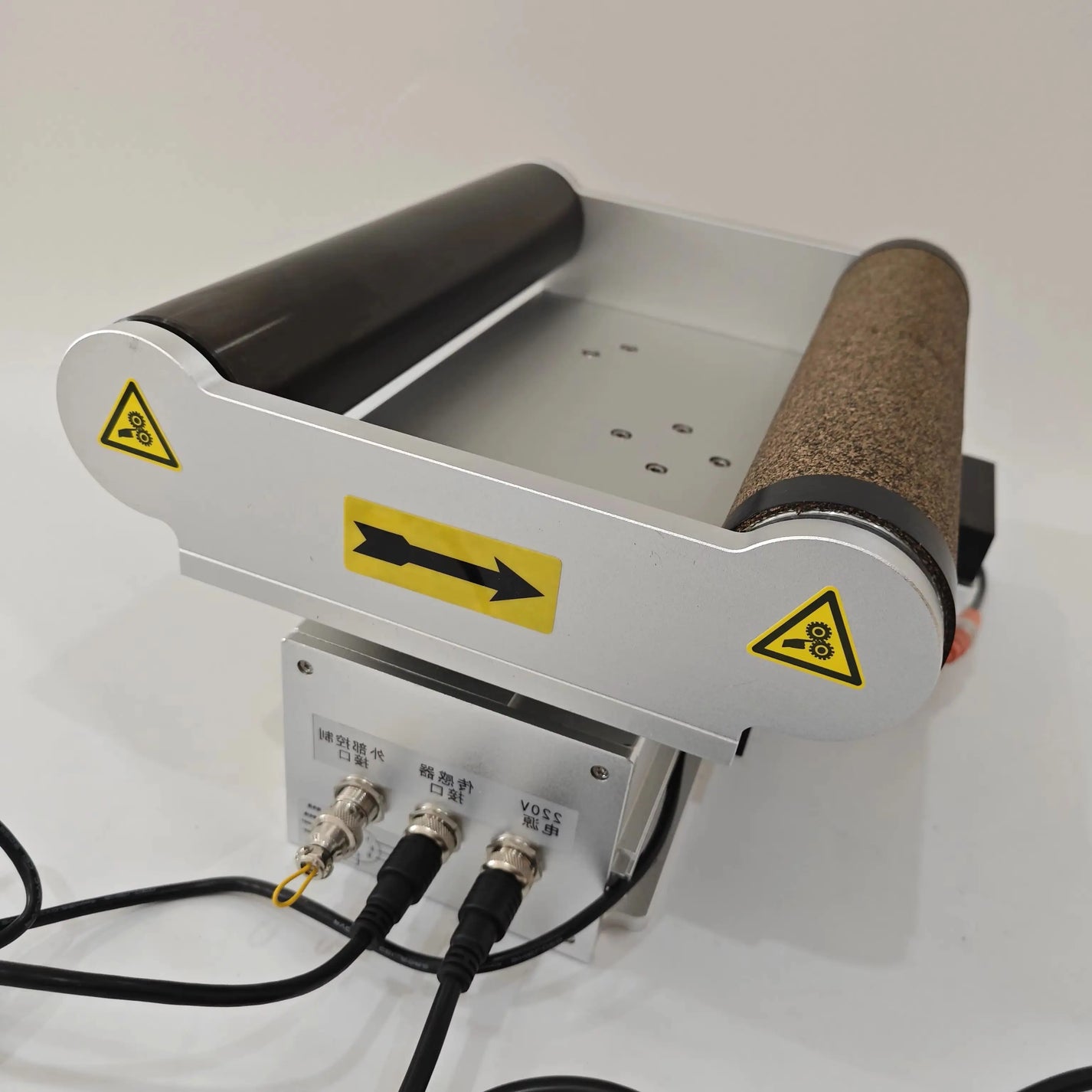

US-400S Ultrasonic Sensor Parameters

Item	Specification
Sensor model	US-400S
Power supply	DC 12V
Output signal	DC 0-5V
Detection range	8 mm (+/-4 mm)
Detection accuracy	0.1 mm
Detection method	Ultrasonic reflection
Frequency	100 kHz
Housing material	Aluminum alloy

Selection Notes

Use PG200A when the 200 mm roller length, 230 mm roller width, and 300 N maximum tension match the web material and machine layout.
Choose an ultrasonic sensor when edge detection needs to work with materials where optical contrast may be limited.
Confirm voltage, web width, roller surface, installation space, and sensor type before ordering.

FAQ

What does the PG200A system include?

The default configuration is one PG200A all-in-one servo web guide system with a US-400S ultrasonic sensor.

What materials is it intended for?

It is intended for narrow web material guiding, including label printing, packaging, and non-woven material applications when the machine requirements match the listed specifications.
