KTC838A 自動張力コントローラー（TS200-50 検出器付き）

$508.39 USD

~~$0.00 USD~~ $508.39 USD

セール売り切れ

税込。配送料はチェックアウト時に計算されます。

Product Overview

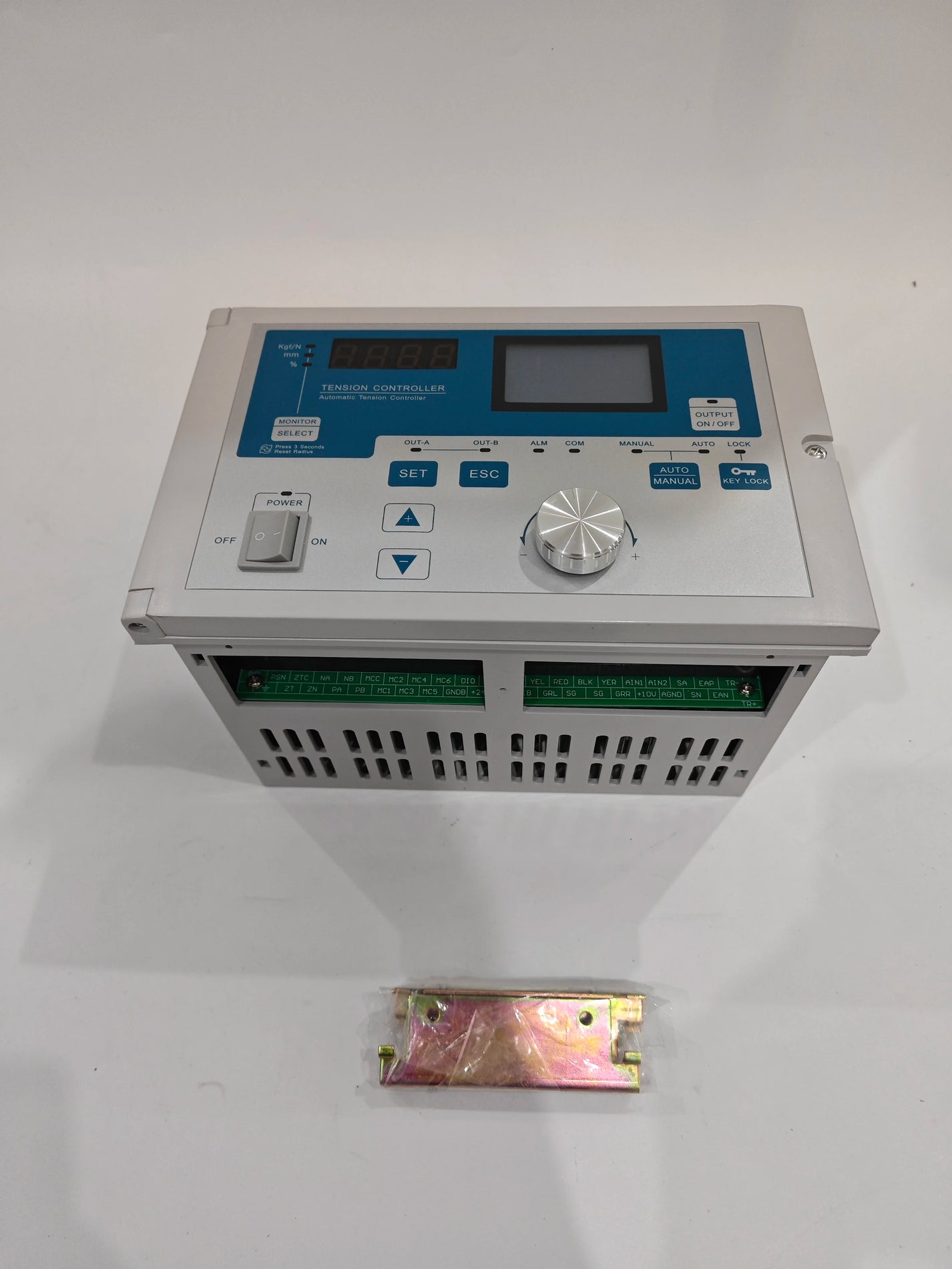

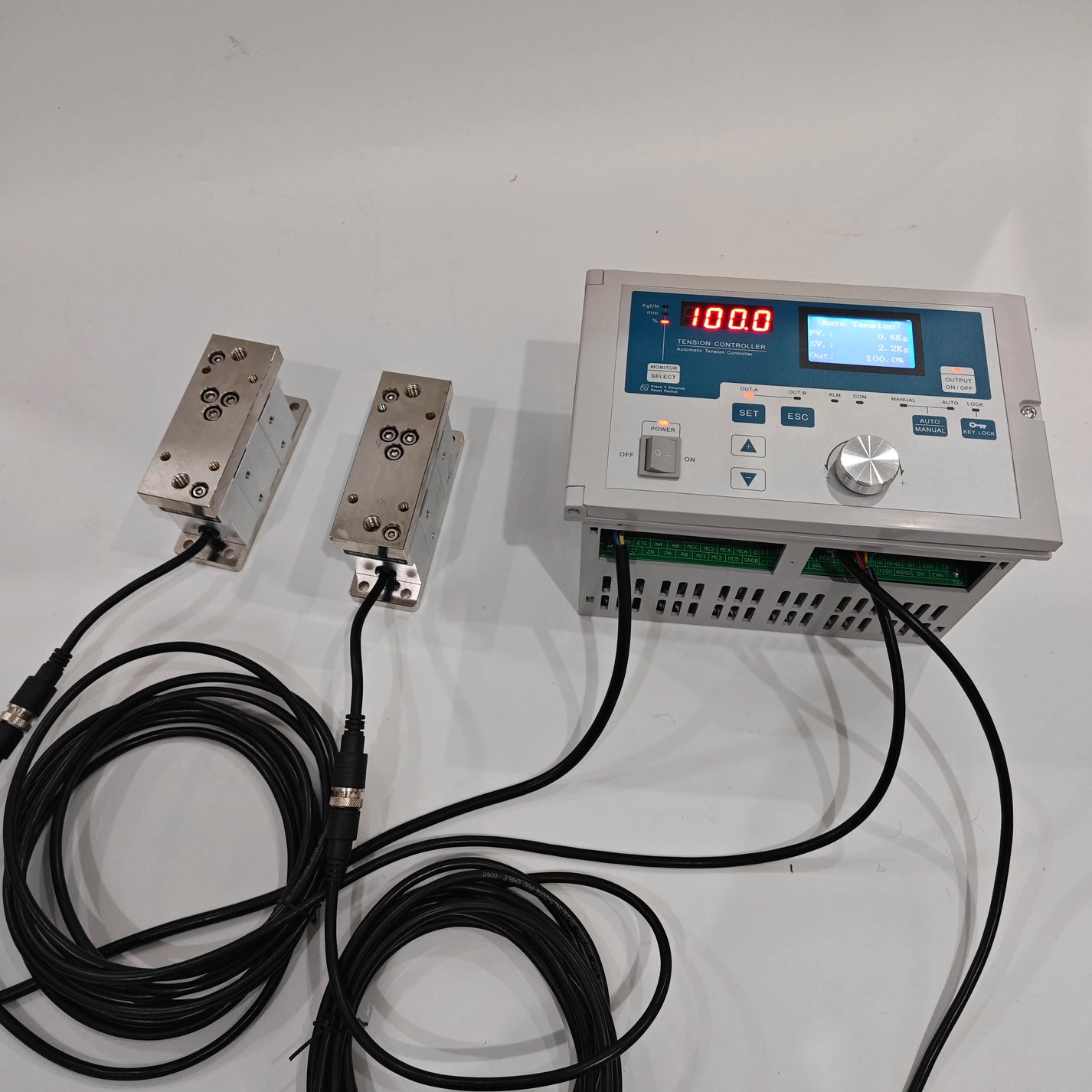

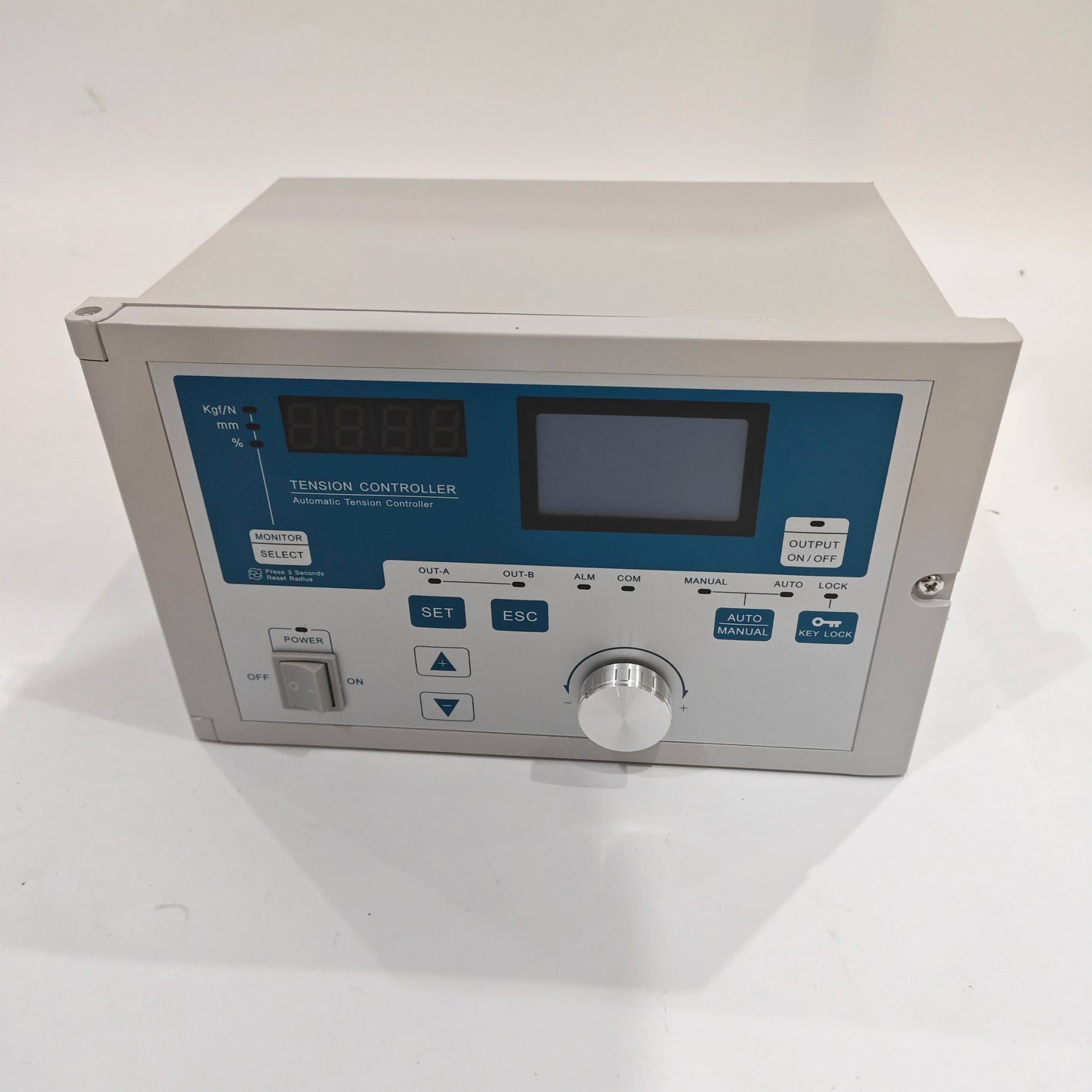

The KTC838A automatic tension controller is a digital web tension controller for coil-material equipment. This kit includes one KTC838A controller, two TS200-50 50kg tension detectors, and cables for building a tension control setup around magnetic powder brakes, magnetic powder clutches, inverters, servo motors, or other compatible actuators.

Package Includes

1 pc KTC838A automatic tension controller

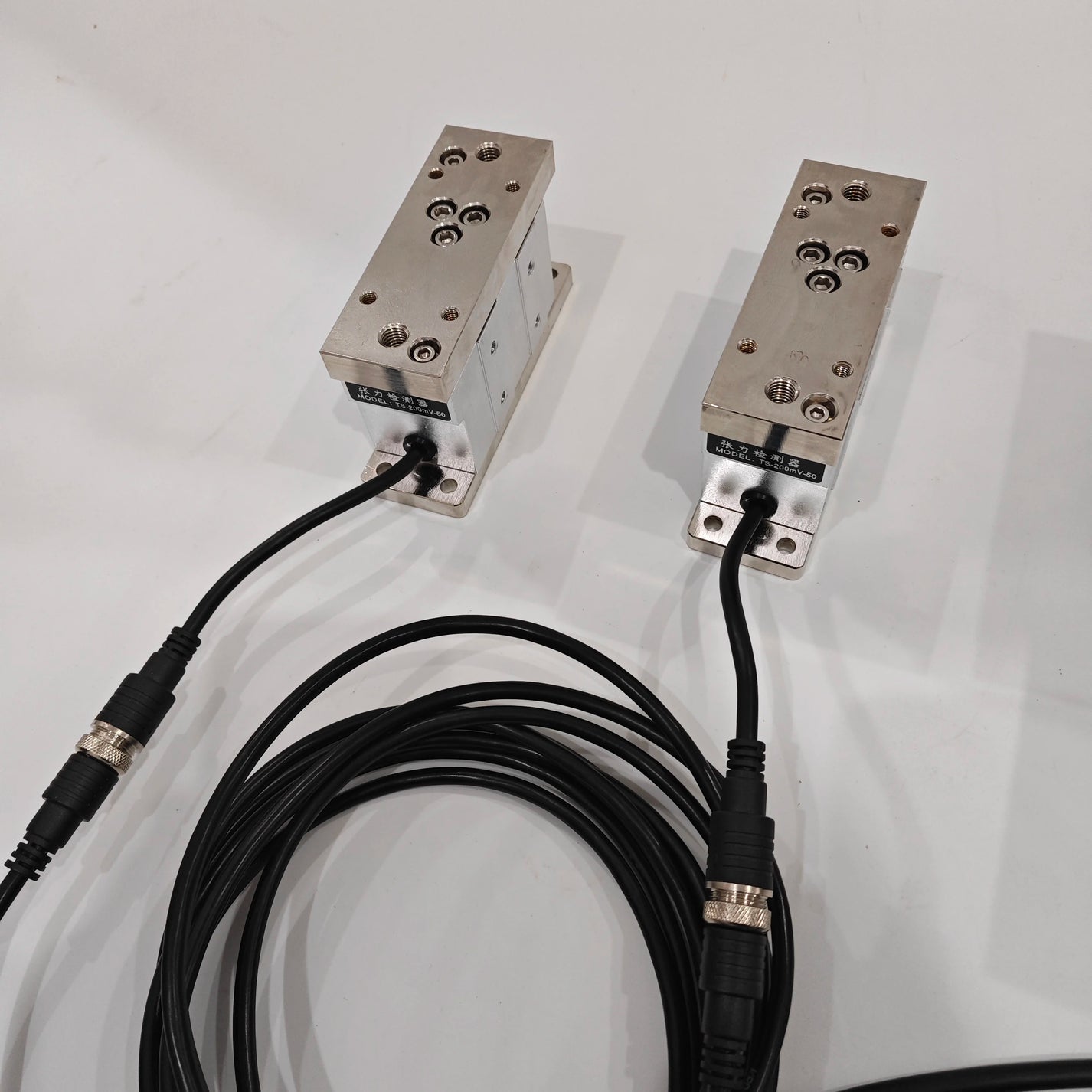

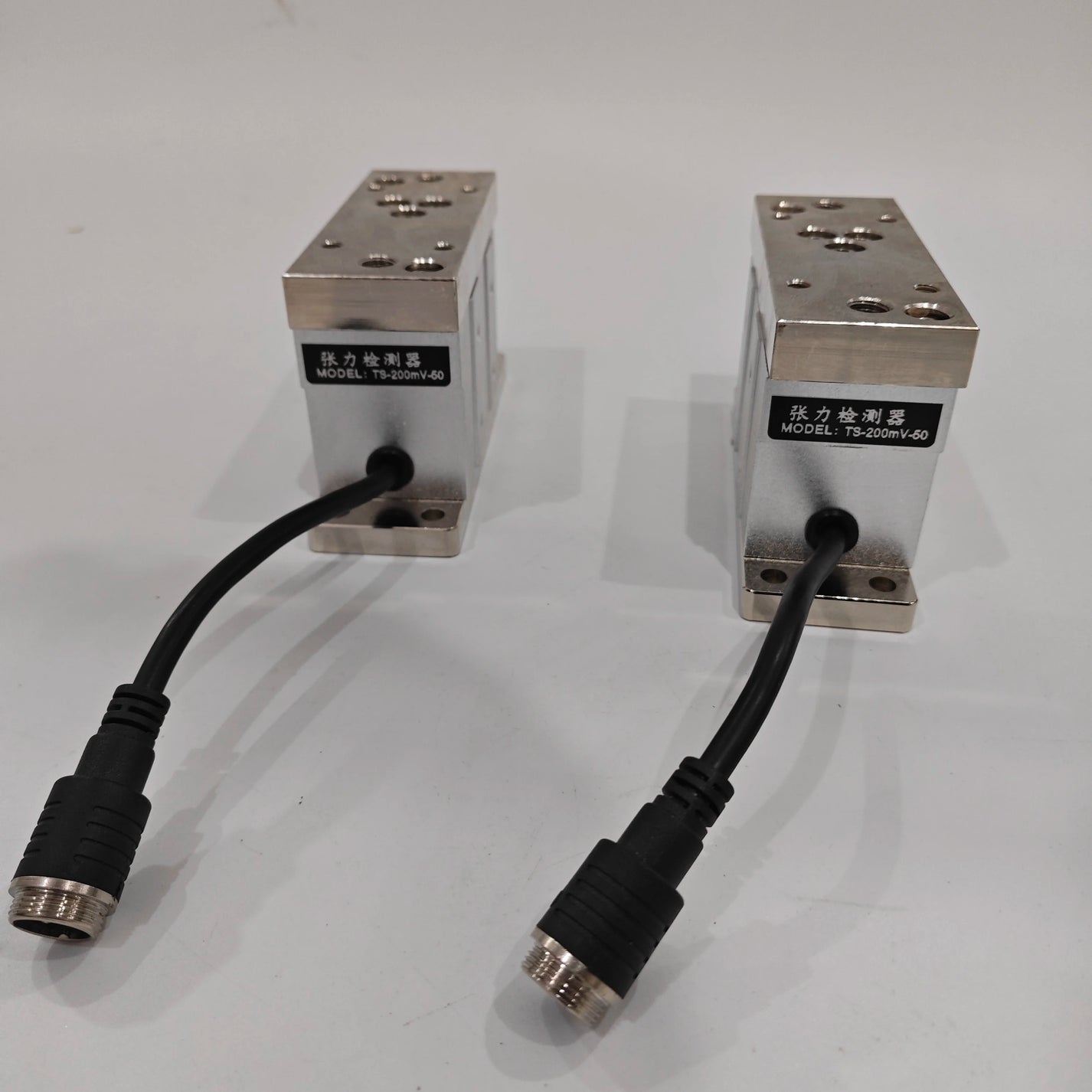

2 pcs TS200-50 50kg tension detectors
Cables

Key Details

Supports closed-loop tension control with tension detector feedback.
Supports open-loop radius calculation through proximity switch or encoder input.
Provides radius tension control and taper tension control functions for winding and unwinding processes.

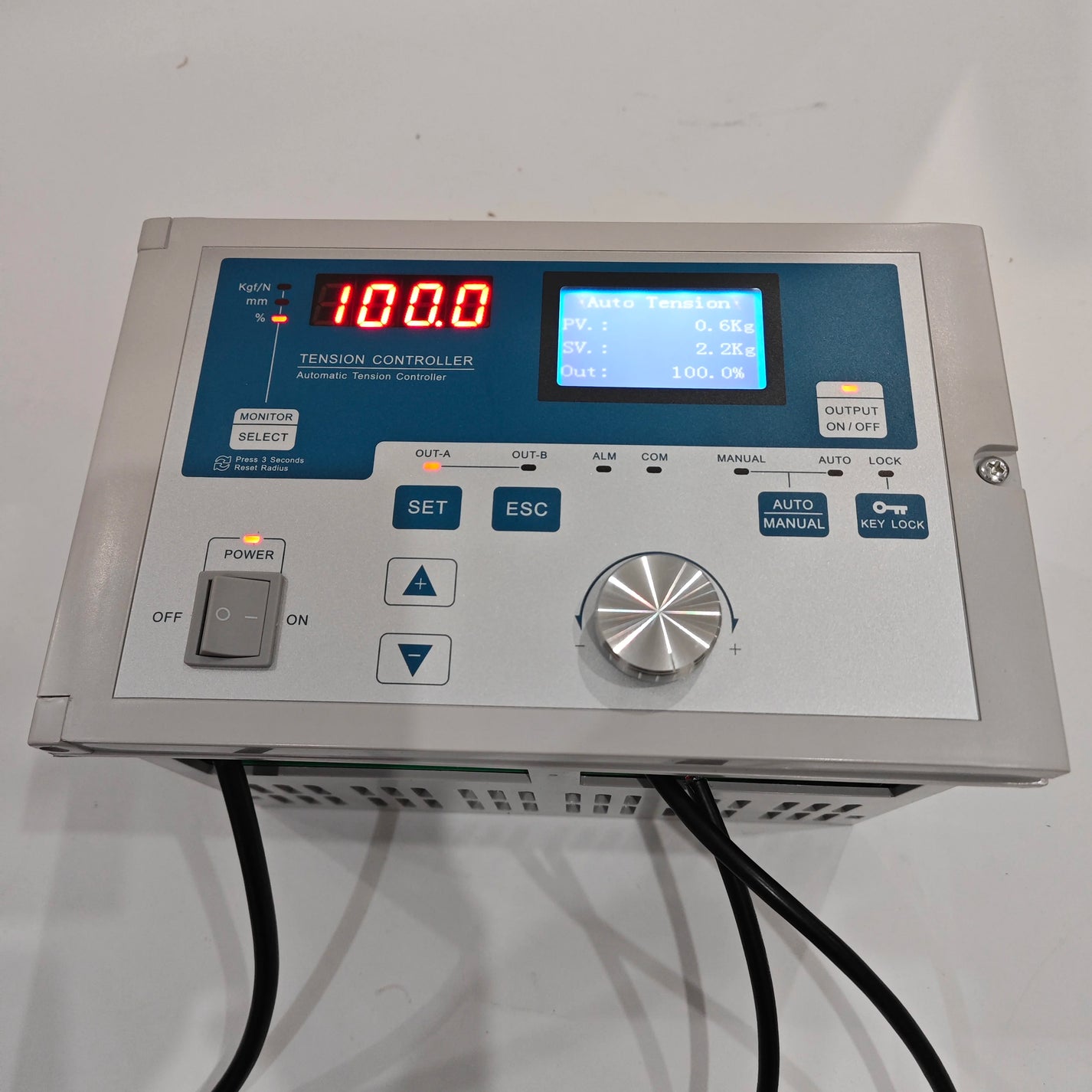

Uses a graphic LCD display with Chinese and English display support.
Supports automatic/manual control switching, dual-axis switching, and acceleration/deceleration compensation.
Supports standard Modbus communication for PLC or touch screen integration when wired and configured for the application.

Technical Specifications

Item	Specification
Controller model	KTC838A
Included detectors	2 pcs TS200-50 50kg tension detectors
Work input	100-264VAC, 50/60Hz, 100W
Detector power output	DC 10V
Detector input	Two tension detector signal inputs
Control output	DC 0-10V for inverter, servo, amplifier, or compatible actuator control
Brake/clutch output	DC 0-24V, less than 4A, for compatible magnetic powder brake or clutch control
Analog output	4-20mA output for compatible drive or actuator control
Ambient temperature	-10 to 40 degree C
Humidity	35-85% RH, no condensation
Communication	Standard Modbus communication protocol

Application Notes

Use the TS200-50 detectors when the web tension range matches the 50kg detector configuration.
Use closed-loop control when direct tension feedback is required from sensors or load cells.
Use radius or taper tension control when the machine needs tension compensation as the roll diameter changes.
Confirm the required actuator output before ordering: magnetic powder brake or clutch, inverter, servo motor, amplifier, or another compatible control device.

FAQ

What is included with this KTC838A listing?

This listing includes one KTC838A automatic tension controller, two TS200-50 50kg tension detectors, and cables.

Can it be used for both closed-loop and open-loop tension control?

Yes. The controller can work with tension detector feedback for closed-loop control, or calculate tension through a proximity switch or encoder for open-loop radius control when the machine is configured that way.

What should I confirm before ordering?

Confirm the web tension range, detector capacity, brake or clutch current, actuator control signal, wiring method, and whether your machine requires radius, taper, closed-loop, or open-loop tension control.
