KTC800A 磁粉ブレーキクラッチ用テンションコントローラー

$40.93 USD

~~$0.00 USD~~ $40.93 USD

セール売り切れ

税込。配送料はチェックアウト時に計算されます。

Product Overview

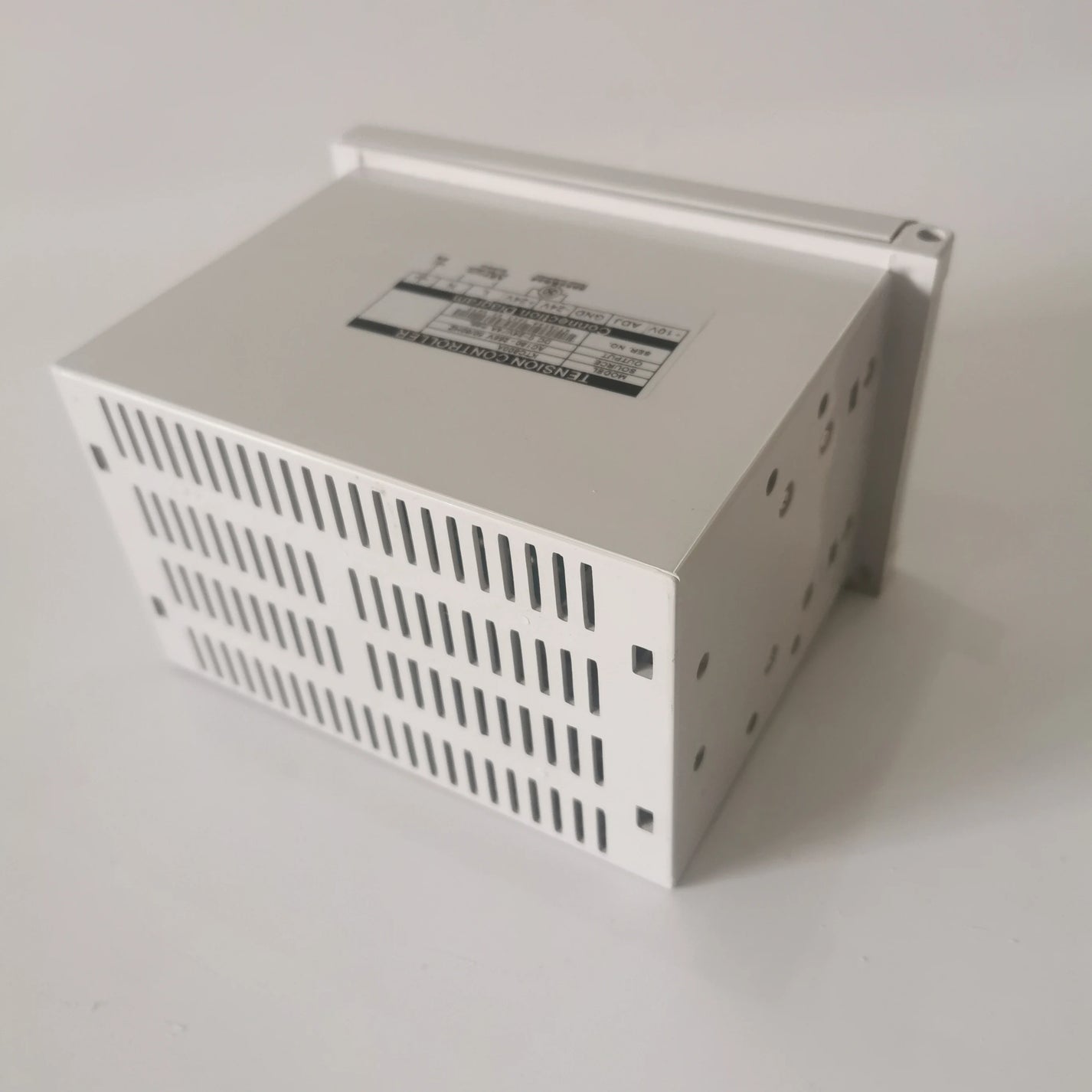

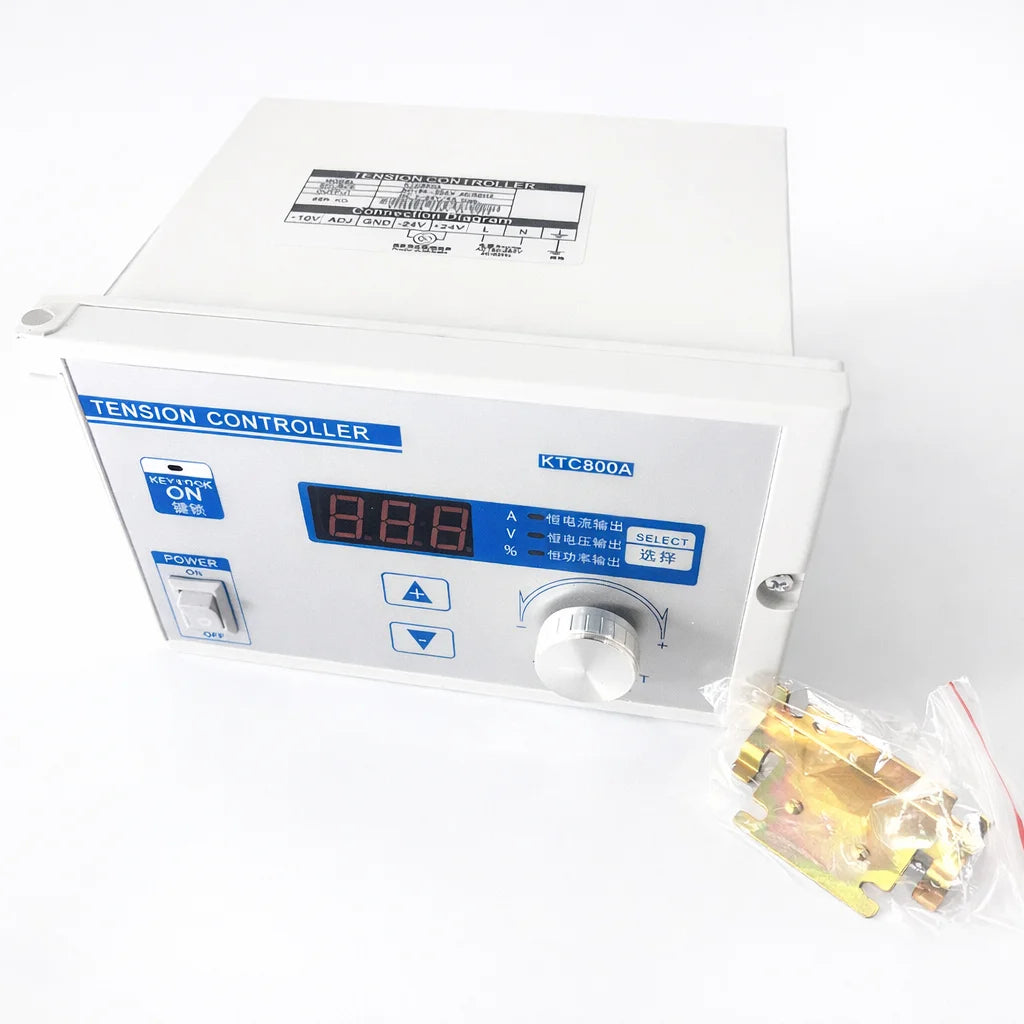

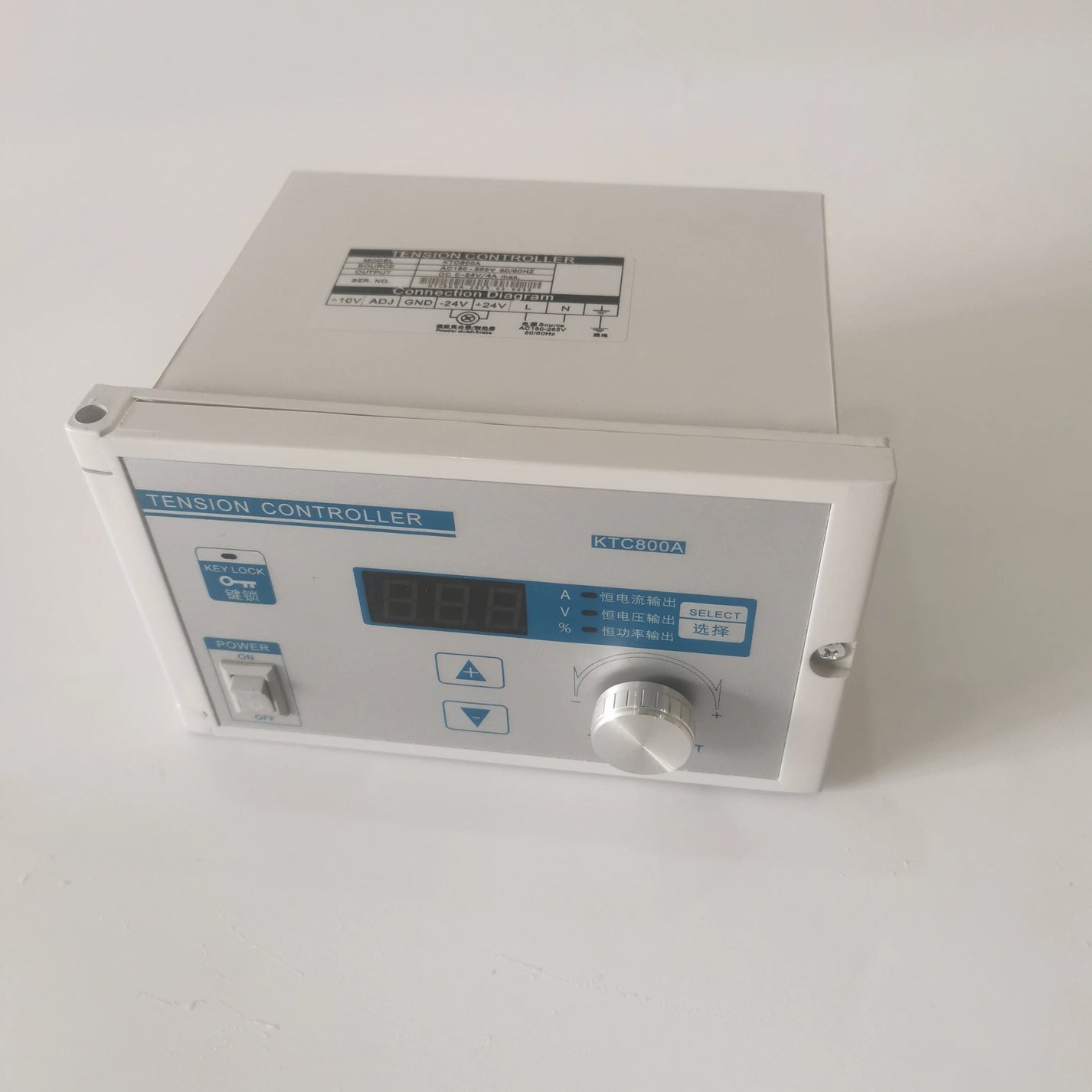

The KTC800A tension controller is a manual controller for web tension systems using a magnetic powder brake or magnetic powder clutch. It provides adjustable DC 0-24V output up to 4A and uses pulse width modulation for efficient brake or clutch control.

Key Details

Model: KTC800A
Application: web tension control with magnetic powder brake or magnetic powder clutch equipment

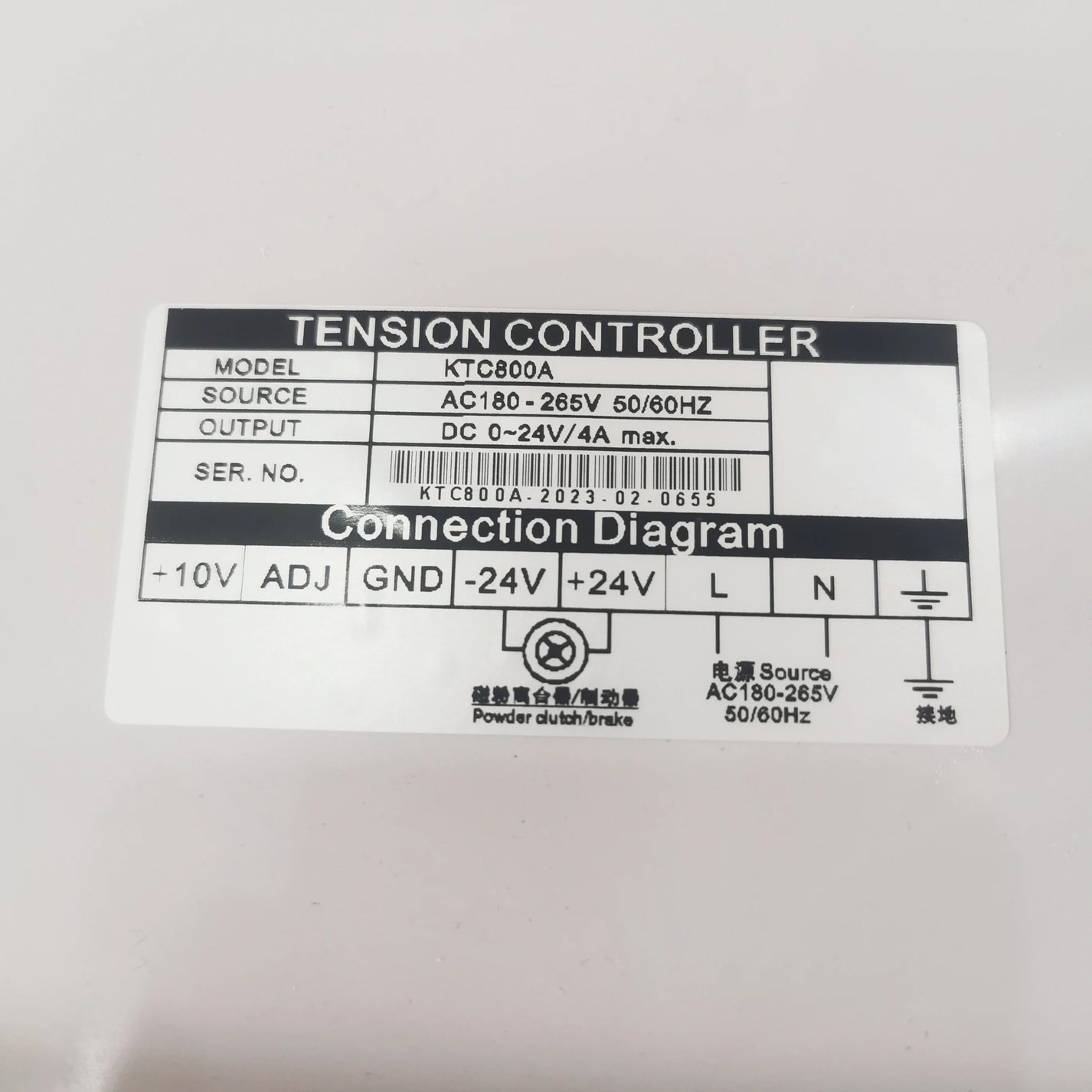

Input power: AC 185-264V
Output: DC 0-24V, up to 4A
Control method: pulse width modulation (PWM)
Control modes: constant current, constant voltage, constant power, or external potentiometer
SKU reference: FMF-KTC800A-99129

Technical Specifications

Item	Specification
Model	KTC800A
Input power	AC 185-264V
Output voltage/current	DC 0-24V / 4A
Current setting range	0.00-4.00A
Current adjustment step	0.01A
Output control	PWM pulse width modulation
Operating modes	Constant current, constant voltage, constant power, external potentiometer

Mode Notes

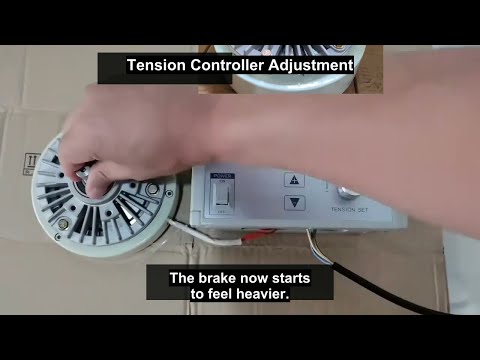

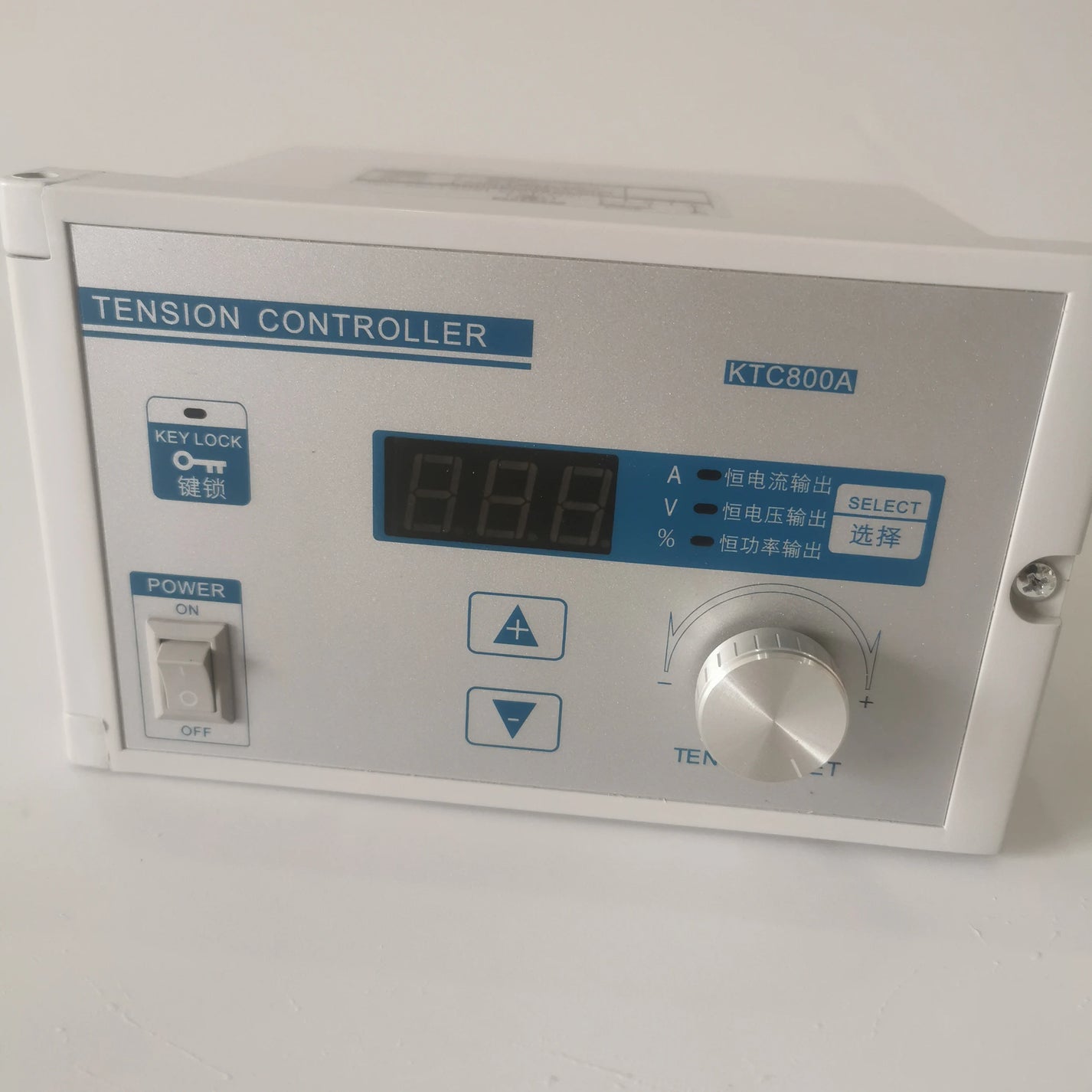

In constant current mode, the panel constant-current indicator is on and the knob adjusts the set current.
If the connected clutch or brake has a lower rated power, the actual current may be lower than the controller setting.
For example, a 12Nm magnetic powder clutch marked 24V/1.2A should be matched to its rated current instead of simply using the maximum output.
Before using constant power mode, calibrate the connected clutch or brake.

Selection Notes

Confirm that the magnetic powder brake or clutch requires DC 24V control and is within the 4A output range.
Check the machine wiring method, desired control mode, and mounting space before ordering.
Use an external potentiometer only when your machine control layout requires remote manual adjustment.

FAQ

What does the KTC800A control?

It adjusts the output to a magnetic powder brake or magnetic powder clutch so the machine can control web tension during unwinding, rewinding, or related material handling processes.

What should I confirm before ordering?

Confirm the brake or clutch voltage and current rating, wiring method, control mode, and whether the equipment requires constant current, constant voltage, constant power, or external potentiometer adjustment.
