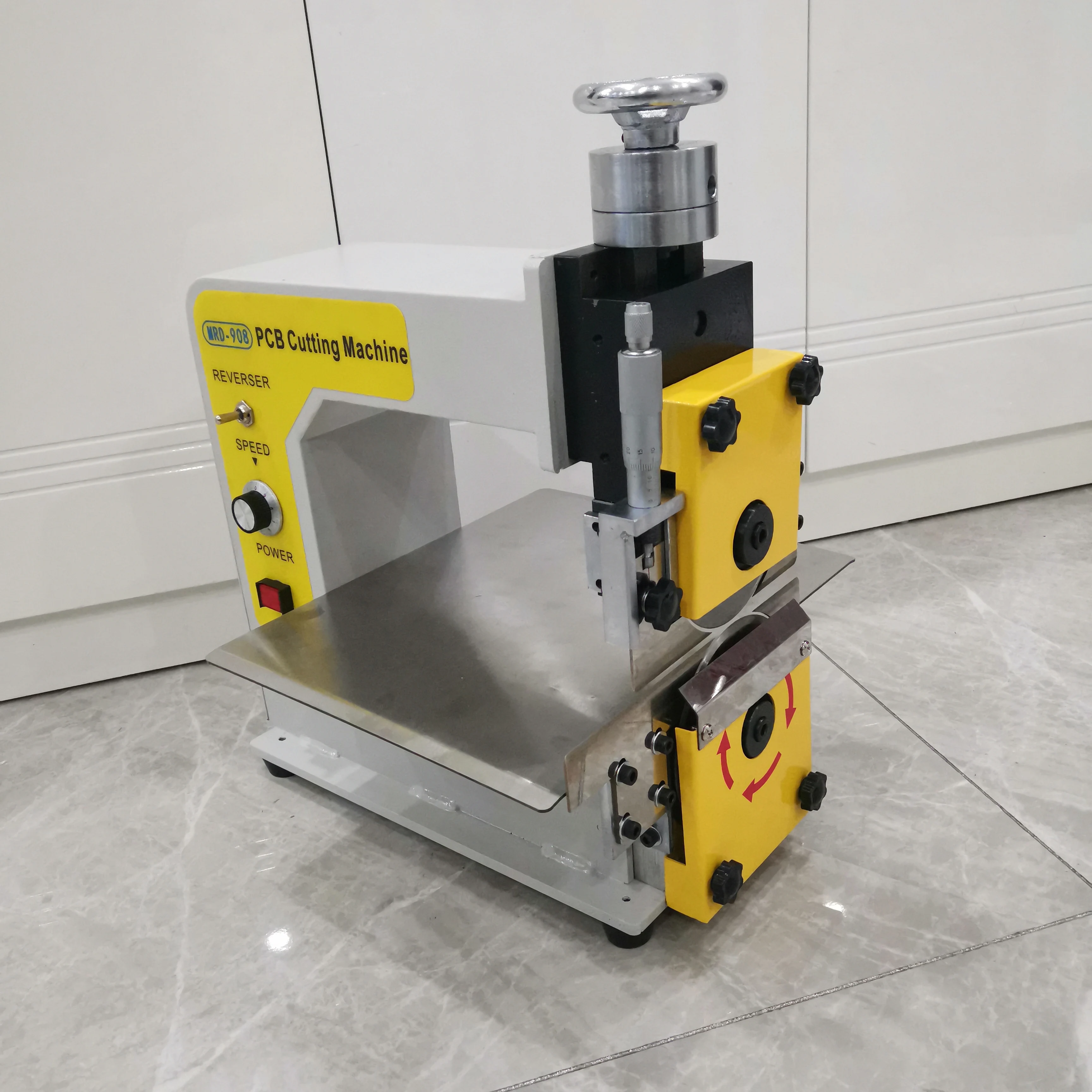

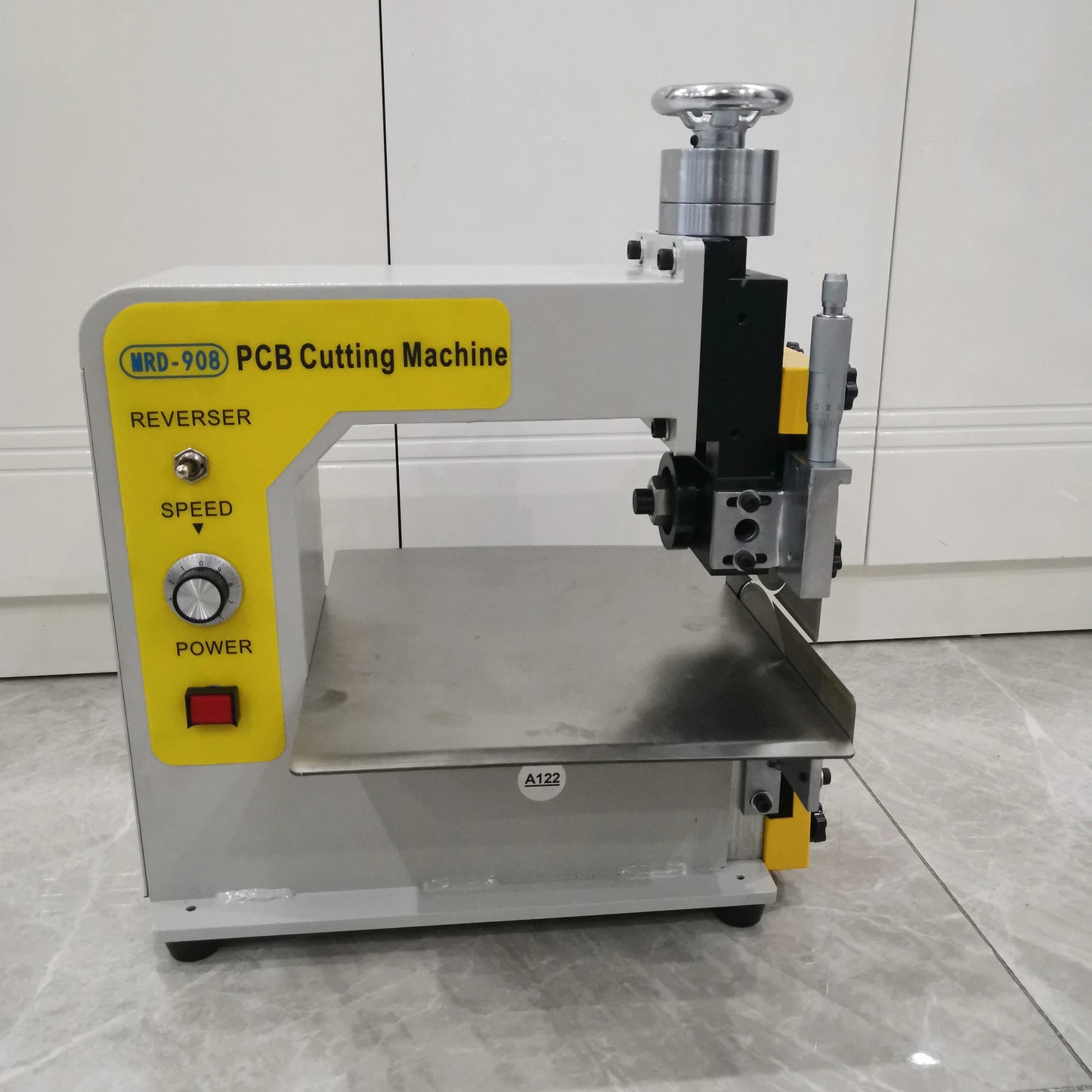

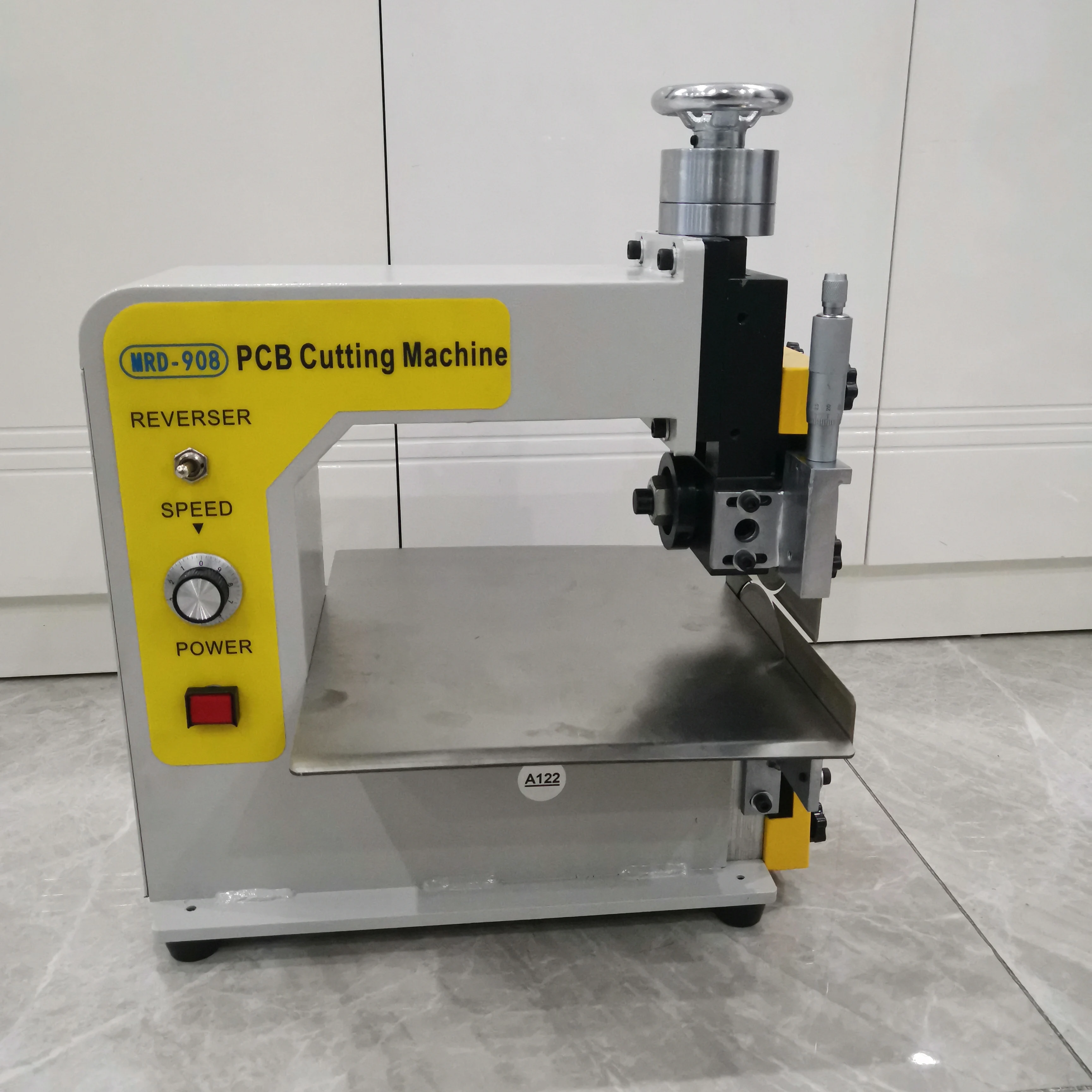

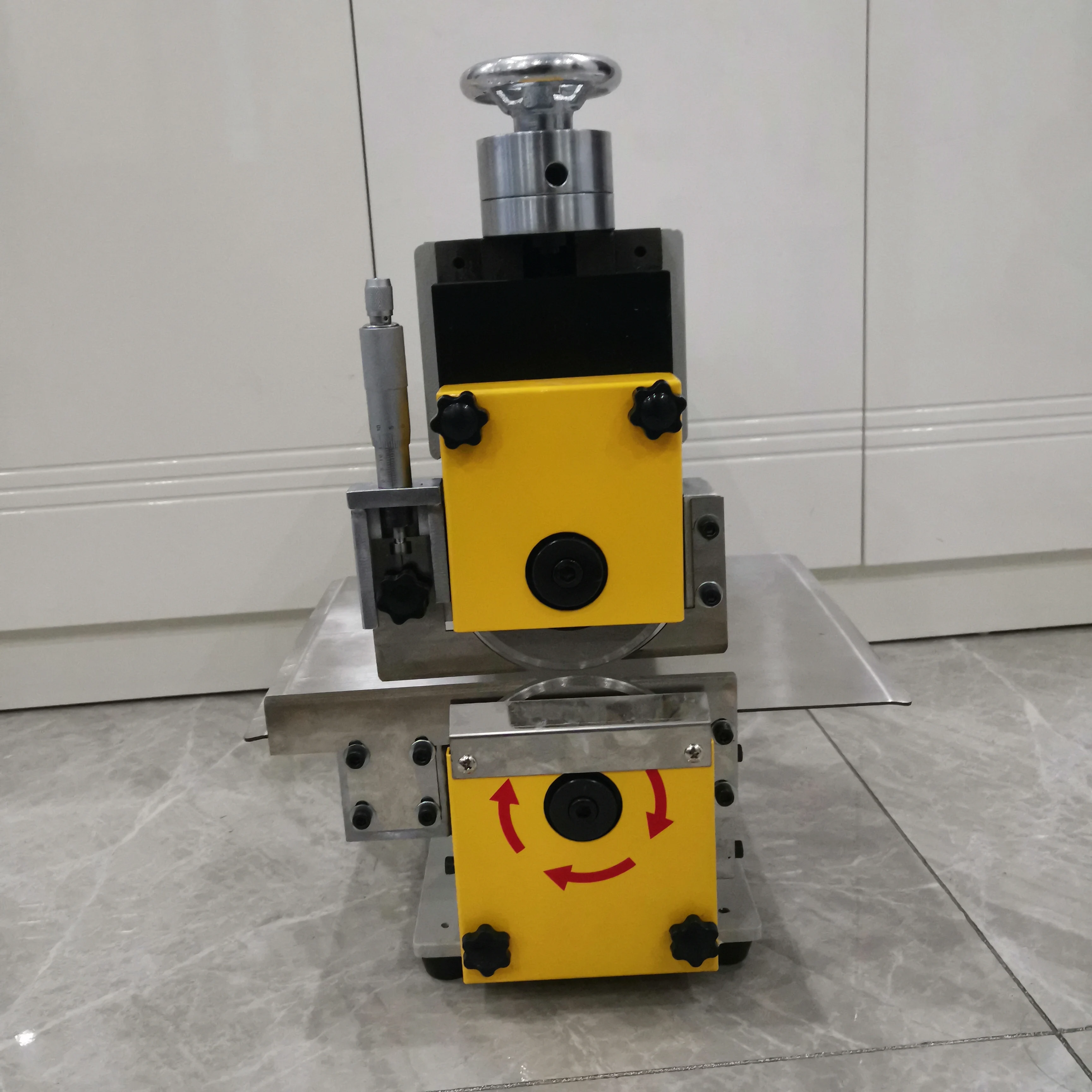

FMFPAX V-Cut PCB Separator MRD-908, Electric Board-Feed PCB Depaneling Machine for LED & Aluminum PCB, 0.6-1.6 mm, 110V/220V

The FMFPAX MRD-908 is a V-cut PCB separator machine that splits pre-scored V-groove PCB panels with a motor-driven round blade, reducing bending stress so solder joints do not crack. It cuts boards 0.6-1.6 mm thick at an adjustable 0-200 mm/s, for SMT, LED and electronics assembly lines.

Specifications

Key Benefits

• Low-stress cutting: machine separation along the V-groove reduces board stress and helps prevent solder joint cracks.
• Handles uneven V-CUT depth: the upper guard height is set by hand, so shallow and deep grooves both separate cleanly.
• V-groove guiding: the board follows its V-groove for a straight, repeatable cut.
• Fast and adjustable: speed up to 200 mm/s, set with a speed knob.
• Room for components: up to 30 mm above and 10 mm below the board.
• Compact and easy to maintain: small footprint, simple operation, factory-set blade gap of 0.05-0.1 mm.

Use Cases

• Depaneling PCB panels that already have a V-CUT / V-groove line.
• FR4, LED light boards and aluminum base boards with V-grooves.
• SMT and electronics assembly lines replacing manual board breaking.
• Boards with tall components, within the 30 mm top / 10 mm bottom limits.

Not Suitable For

• Boards without a V-CUT groove (use a router or laser depaneler).
• Boards thinner than 0.6 mm or thicker than 1.6 mm.
• Components taller than 30 mm (top) or 10 mm (bottom), unless a custom modification is agreed before ordering.
• Boards wider than 240 mm on the inner side of the machine.

Setup and Operation

1. Place the machine on a flat, stable workbench.

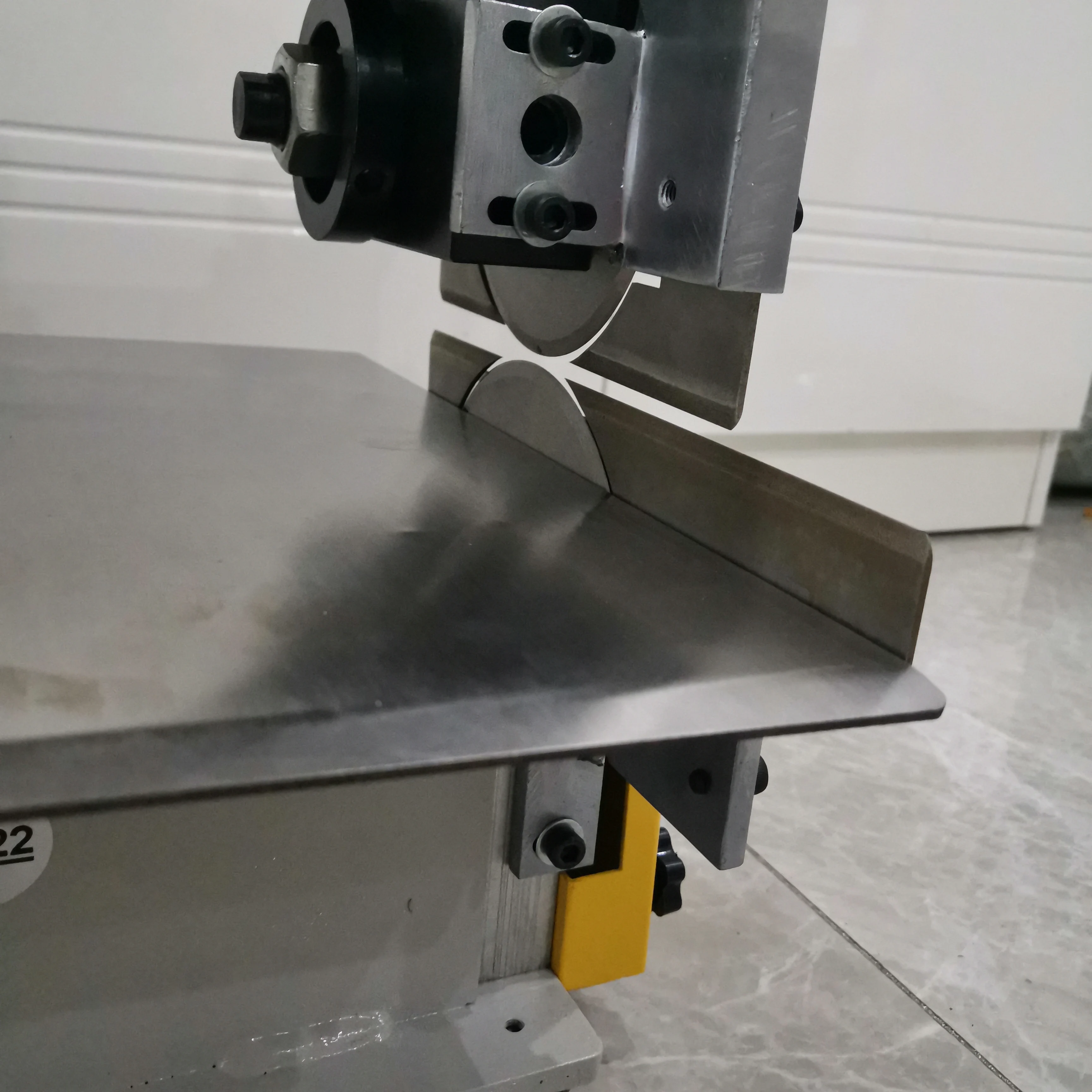

2. Loosen the lift knob to open the blades fully, then fit the platform slightly below the lower blade edge and fix its screws.
3. Lower the lift knob until the driven lower blade just turns the upper blade.
4. Set the micrometer so the board slides along its V-groove left and right but not back and forth; tighten the lift knob a little more if the board does not separate.

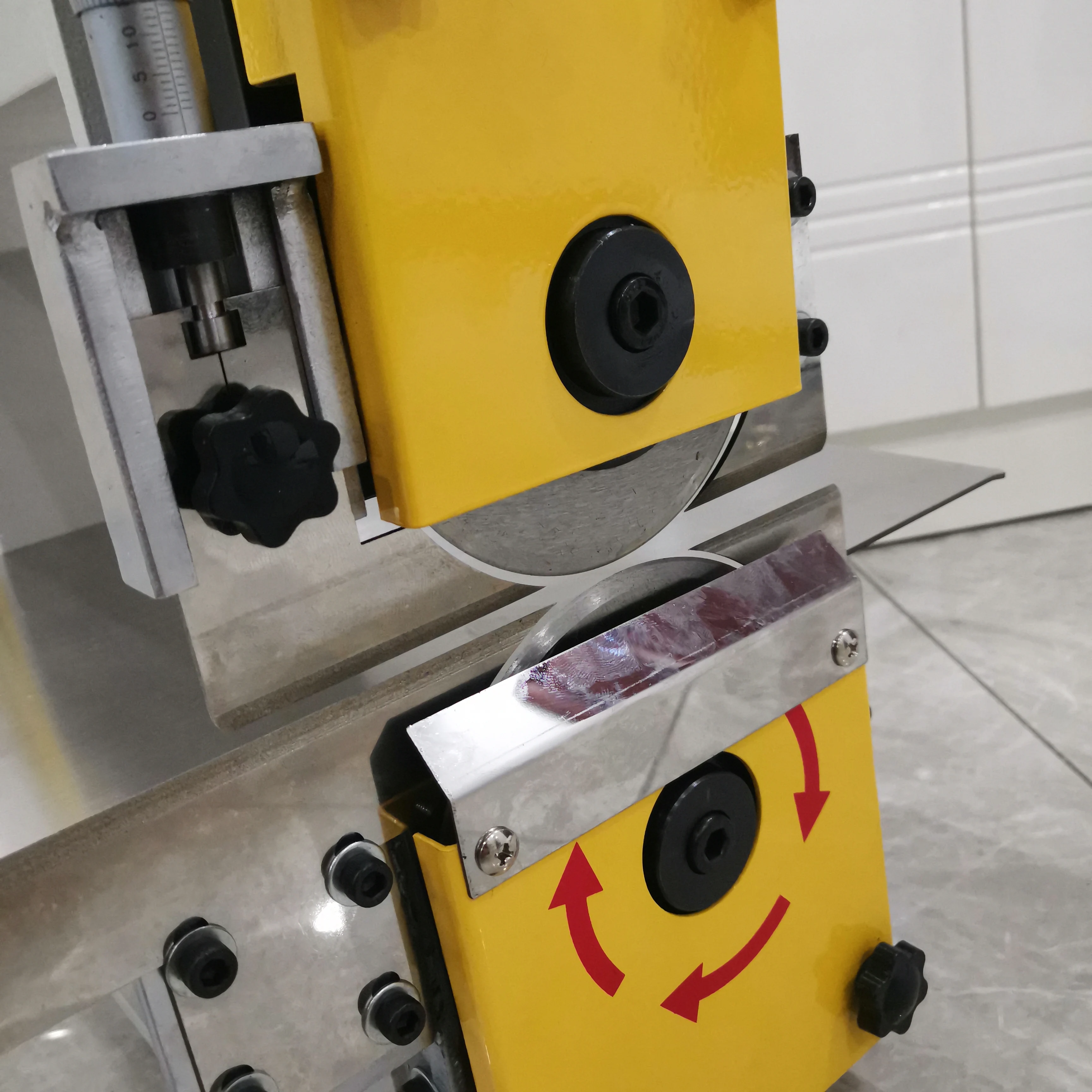

5. Align the V-CUT with the upper and lower guards; set the lower guard tip 0.2-0.3 mm below the lower blade.
6. Switch on the rocker power switch, then the toggle switch, start at low speed and feed the board by hand; increase speed only after a clean test cut.
7. Catch the separated board by hand before it falls, to protect components.

Full step-by-step instructions with diagrams: 908 / 908S V-Cut PCB Separator User Manual (online) or download the PDF manual.

Safety Notes

• The electrical system must be grounded.
• Before connecting, confirm the machine version (AC 110V or AC 220V) matches your local mains supply.
• Operation by trained personnel only.
• Never let the upper and lower blades touch vertically; they must stay offset side by side to avoid blade damage.
• The blade side gap (0.05-0.1 mm) is preset at the factory and normally needs no adjustment.
• Do not loosen the motor mounting screws, the blade seat or unlisted screws above it; misalignment can damage blades, boards, the motor or the coupling.

Maintenance

• Clean off chips and debris after each use.
• Protect the blade edges and guards from impact at all times.
• For long storage, remove the blades and guards and coat them with machine oil; wipe off before use.
• Check that all screws are tight regularly.

FAQ

Is this machine for PCB depaneling?

Yes. The MRD-908 separates PCB panels that have a V-CUT or V-groove. It is not a router or laser cutter.

What PCB thickness can it cut?

0.6 mm to 1.6 mm.

What is the maximum cutting width?

240 mm on the inner side of the machine; the other side is unlimited.

How tall can components be?

Up to 30 mm on the top side and 10 mm on the bottom side. Special boards or taller parts can be handled with a custom modification; confirm before ordering.

Which voltage should I choose?

The machine is available in AC 110V and AC 220V versions. Choose 110V for North America and other 110V regions, and confirm the voltage matches your mains before connecting.

Do I need to adjust the blade gap?

Normally no. The side gap between the upper and lower blades is set to 0.05-0.1 mm at the factory.

Is there a user manual?

Yes. Read the online user manual or download the English PDF (5 pages) covering specifications, platform installation, blade and limit guard adjustment, precautions and maintenance.
