Stormer Viscometer KU-3, LCD 200 r/min, for Paint Coating and Ink Viscosity | FMFPAX

Product Details

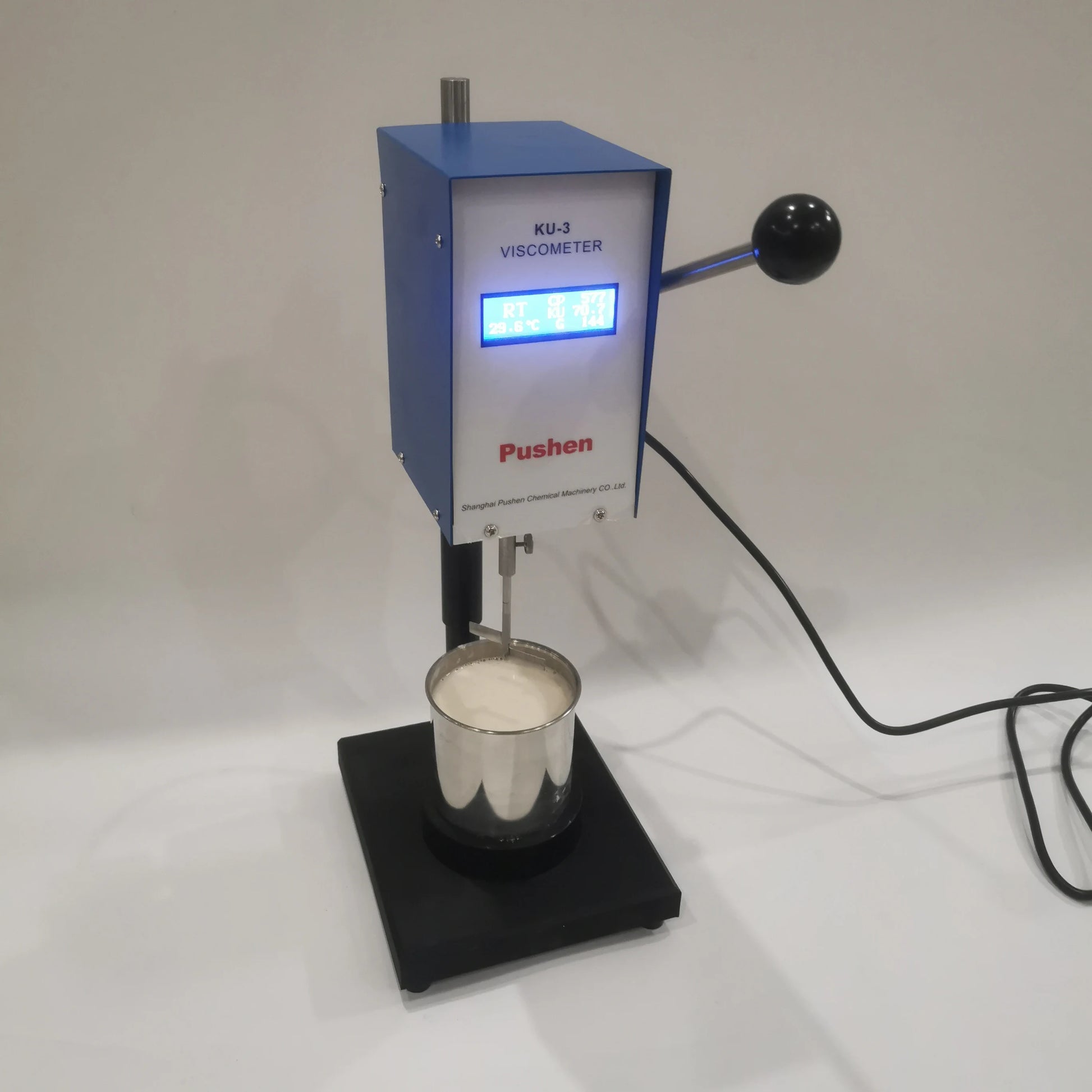

The FMFPAX KU-3 is a Stormer-type (Krebs) viscometer for measuring the viscosity of paints and other coatings in Krebs Units (KU); the product title also names ink. It is controlled by a microcomputer and shows the result of the test sample as a KU value, a cP value and a g value on the LCD display.

The agitating disc rotates in the sample at a constant 200 r/min, and the resistance acting on the disc is converted into a KU value. The instrument is designed in accordance with ASTM D562 and GB/T 9269.

Specifications (from the user manual)

• Model: KU-3.
• Measuring range: 40.2–141.0 KU; 32–1099 g; 27–5250 cP.
• Measuring accuracy: ±1.5% FSR. Repeatability: ±1.5% FSR.
• Agitating shaft speed: 200 r/min ± 1 r/min.
• Vessel capacity: approx. 500 ml.
• Input power stated in the manual: 220 V, 50 Hz; power: 10 W.
• Overall size: 180 × 210 × 470 mm (L × W × H).
• Shipping weight: 9 kg.
• Laboratory temperature: 23℃ ± 2℃; relative humidity: ≤75%; sample temperature: 23℃ ± 0.2℃.
• SKU: FMF-KU-3-91193.

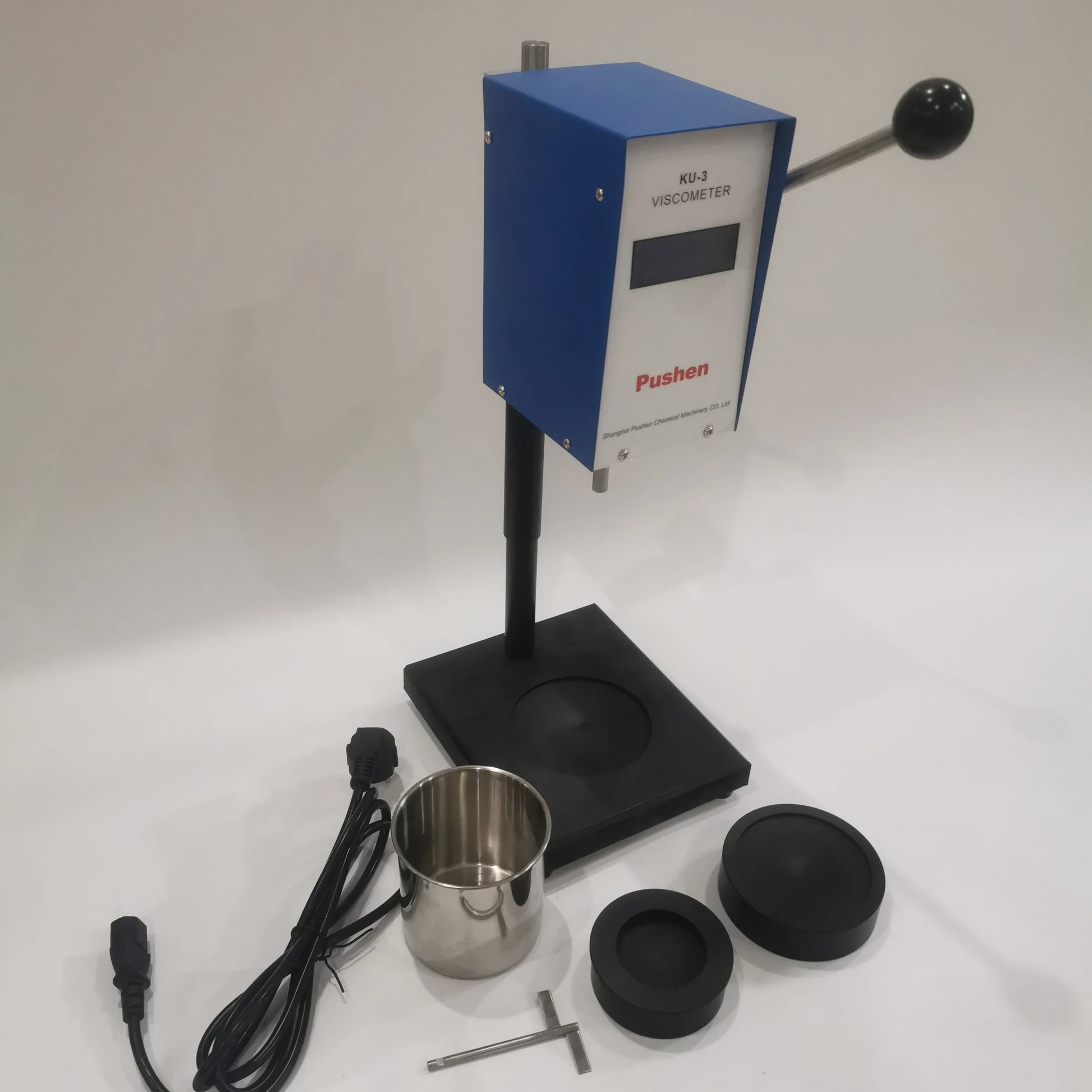

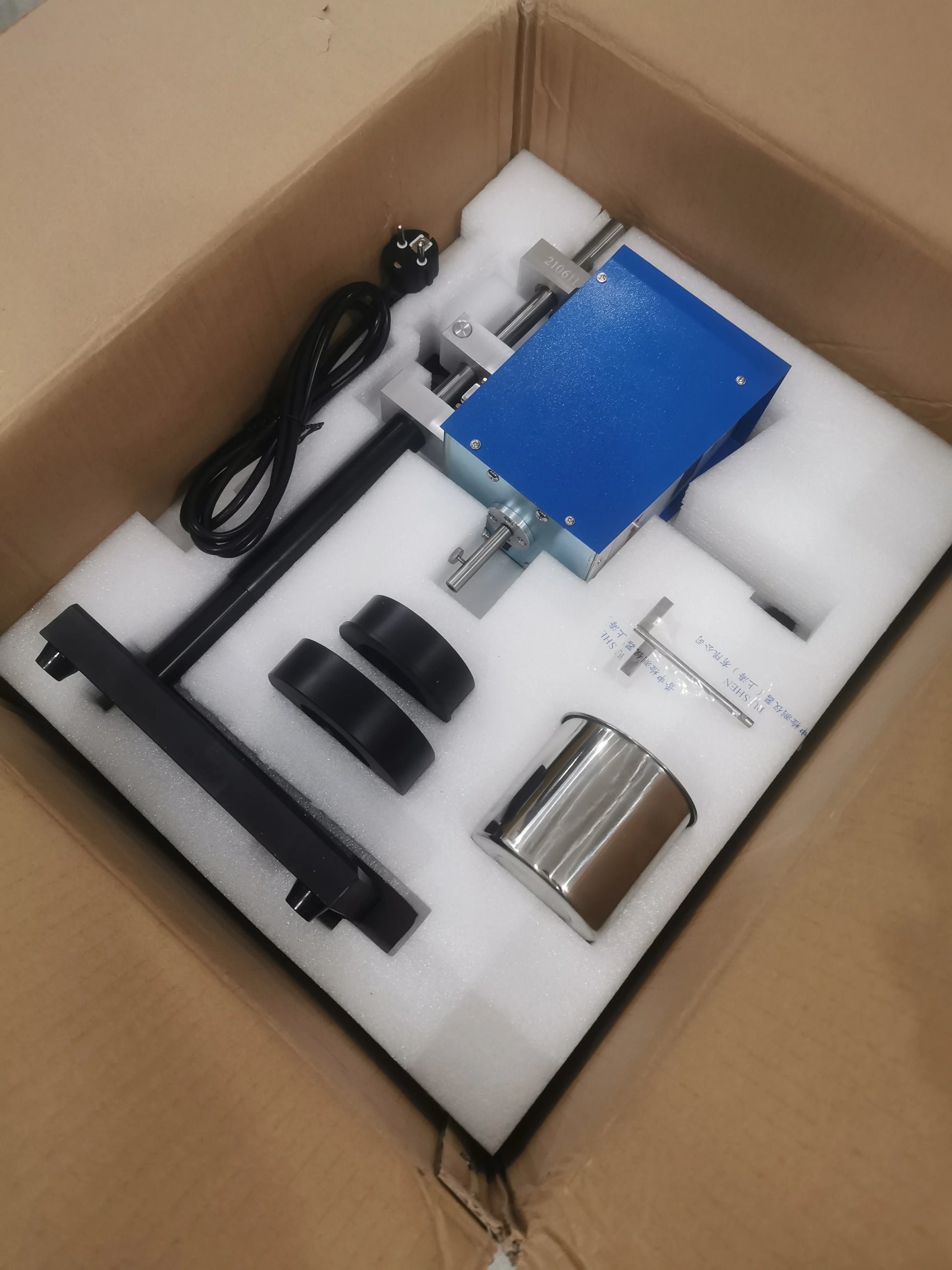

Packing List

• Host (main unit) × 1
• Blade (agitating disc) × 1
• Stainless steel cup × 1
• Cup cushion disk × 2
• Power cord × 1
• Manual × 1
• Certificate × 1

How to Use

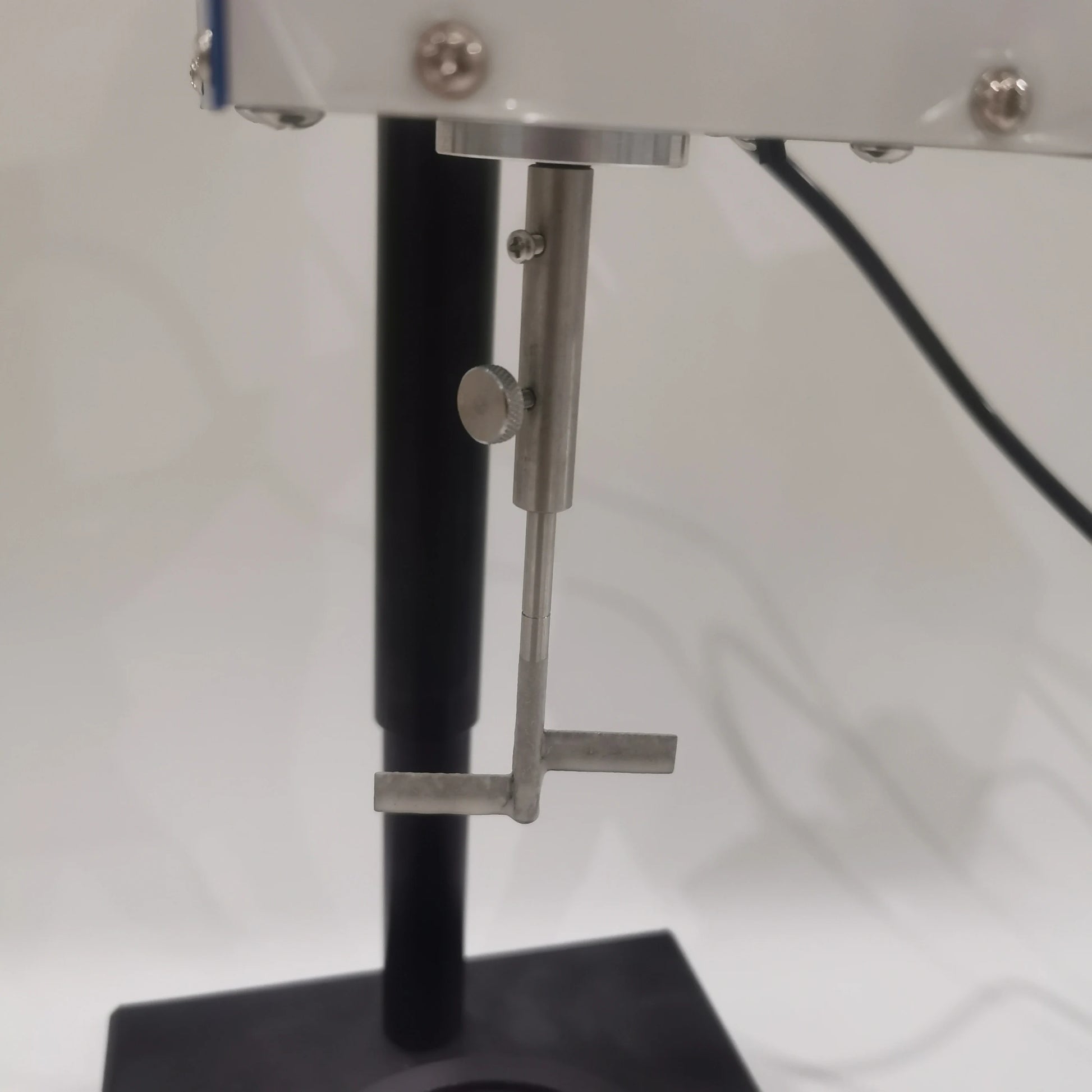

1. Fix the agitating disc in the shaft sleeve with the screw; the screw must bear against the flat face of the disc shaft.
2. Switch on at the back of the machine; after the self-check the display reads 0 for KU, cP and g.
3. Fill the vessel to 10 mm below the rim and place it on the vessel seat.

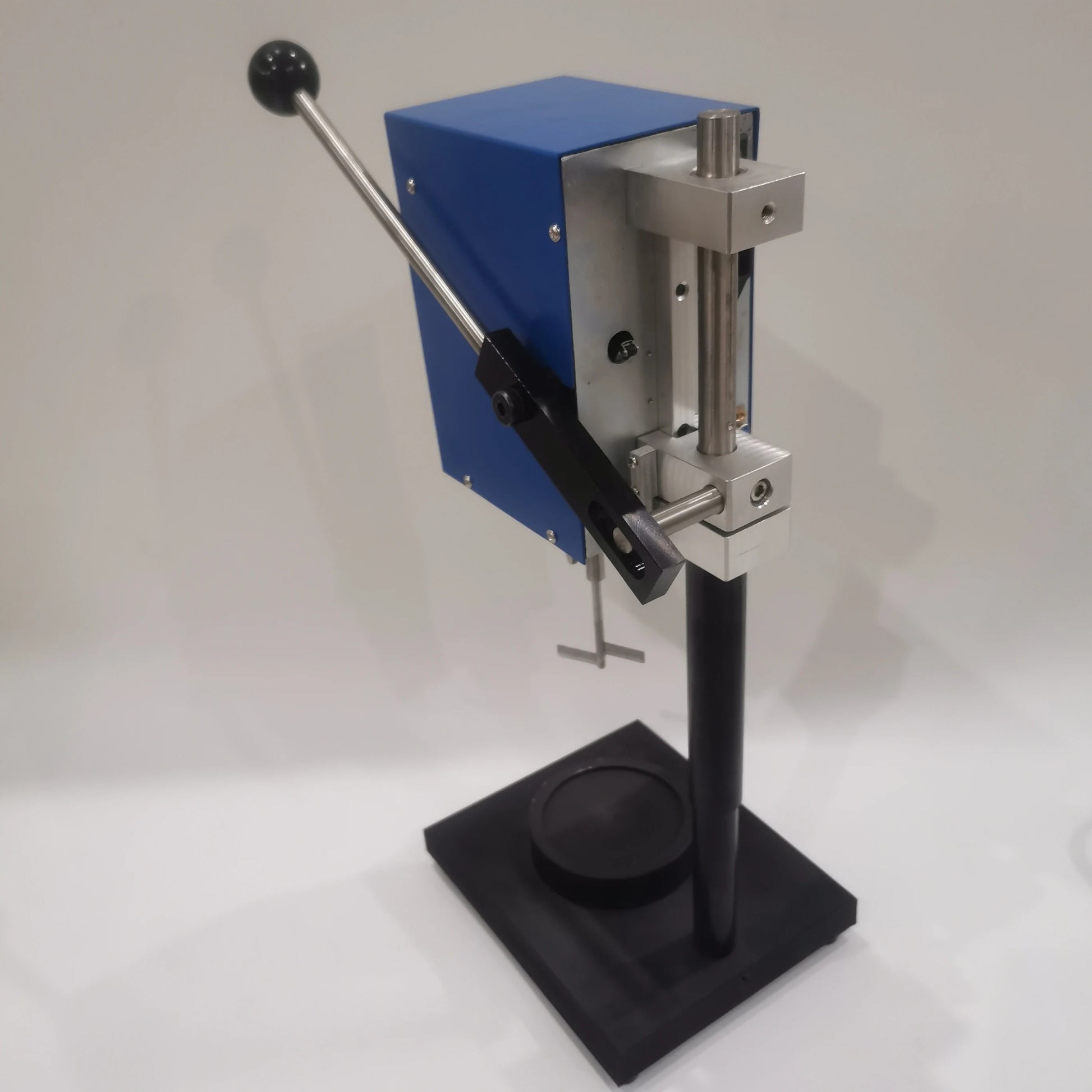

4. Choose the unit, then press the lift handle down until the mark on the disc shaft is level with the liquid surface; measuring starts automatically.
5. Read KU, cP and g after a few seconds, use the Hold switch to record, then lift the handle to the top limit stop.

Full step-by-step instructions are in the FMFPAX KU-3 Krebs Viscometer user manual. You can also download the PDF manual.

Selection Notes

• Choose this instrument when your workflow requires a Stormer-type viscometer for KU viscosity checks on paint and coating samples.
• The user manual states 220 V, 50 Hz input power, while the product title lists 110V/220V. Confirm your voltage requirement with sales@fmfpack.com before ordering.
• Place the instrument on a firm, level table away from strong airflow and magnetic or electric fields, and use a reliably grounded power socket.
• The manual recommends annual inspection by the supplier or calibration by a metrology department.

FAQ

What is the KU-3 Stormer viscometer used for?

It measures the viscosity of paints and other coatings; the product title also names ink.

What values can the display show?

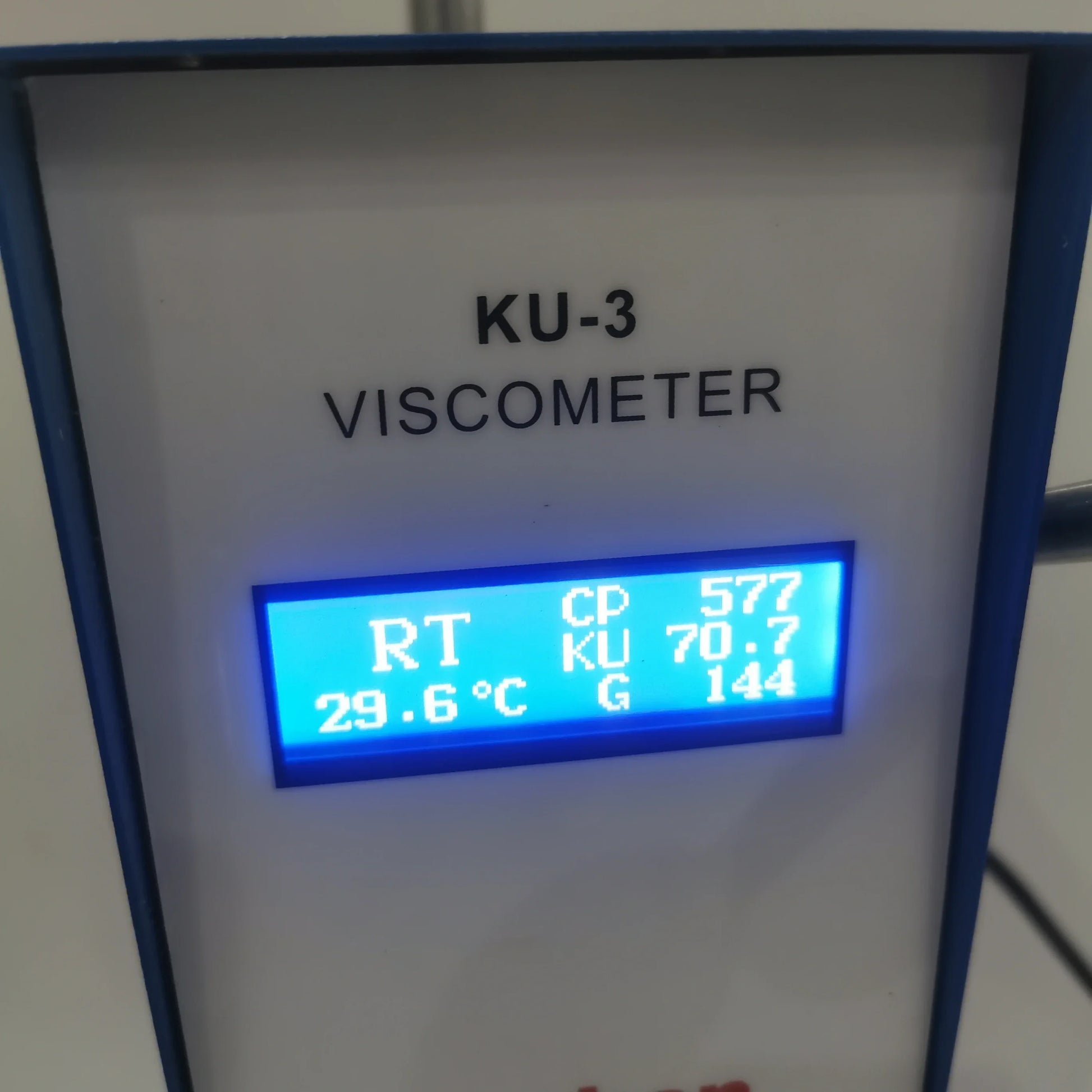

KU values, cP values and g values.

What is the measuring range?

40.2–141.0 KU, 32–1099 g and 27–5250 cP, with ±1.5% FSR accuracy.

What is the disc speed?

200 r/min ± 1 r/min.

What voltage does it use?

The user manual states 220 V, 50 Hz. The product title lists 110V/220V, so please confirm the voltage you need with sales@fmfpack.com before ordering.

What testing environment is listed?

Laboratory temperature 23℃ ± 2℃, relative humidity ≤75%, and sample temperature 23℃ ± 0.2℃.

Is there a user manual?

Yes. Read the KU-3 Krebs Viscometer user manual online or download the PDF.
