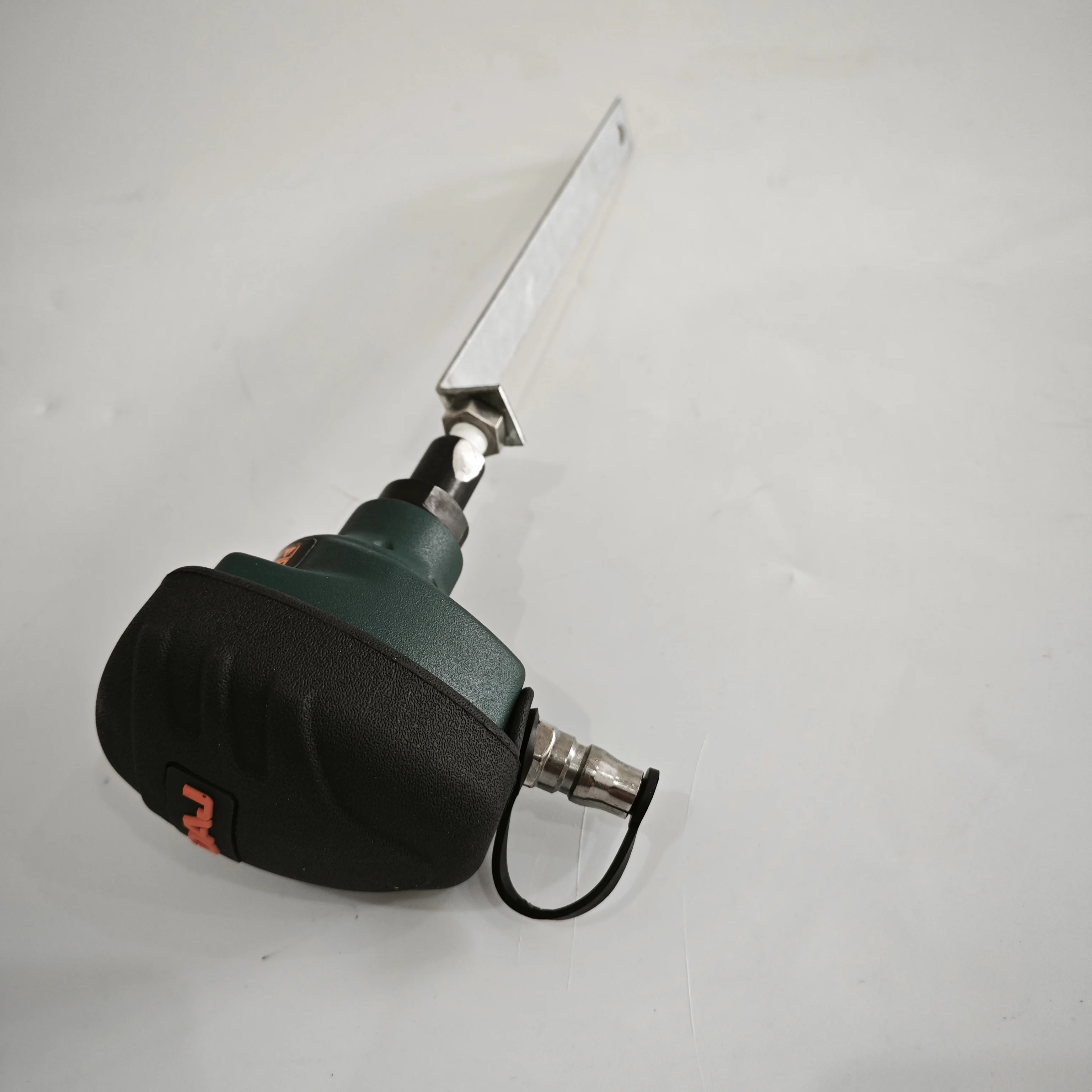

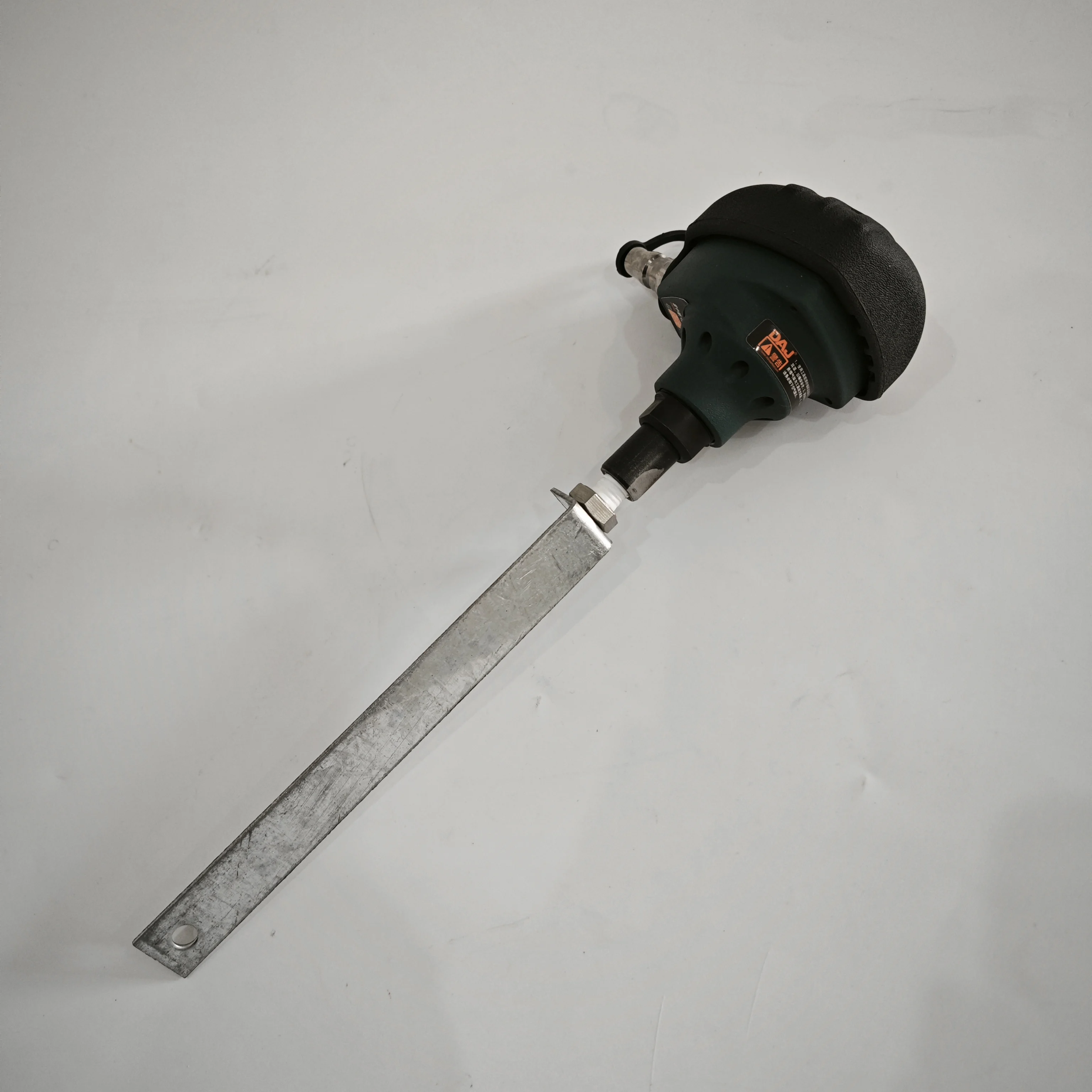

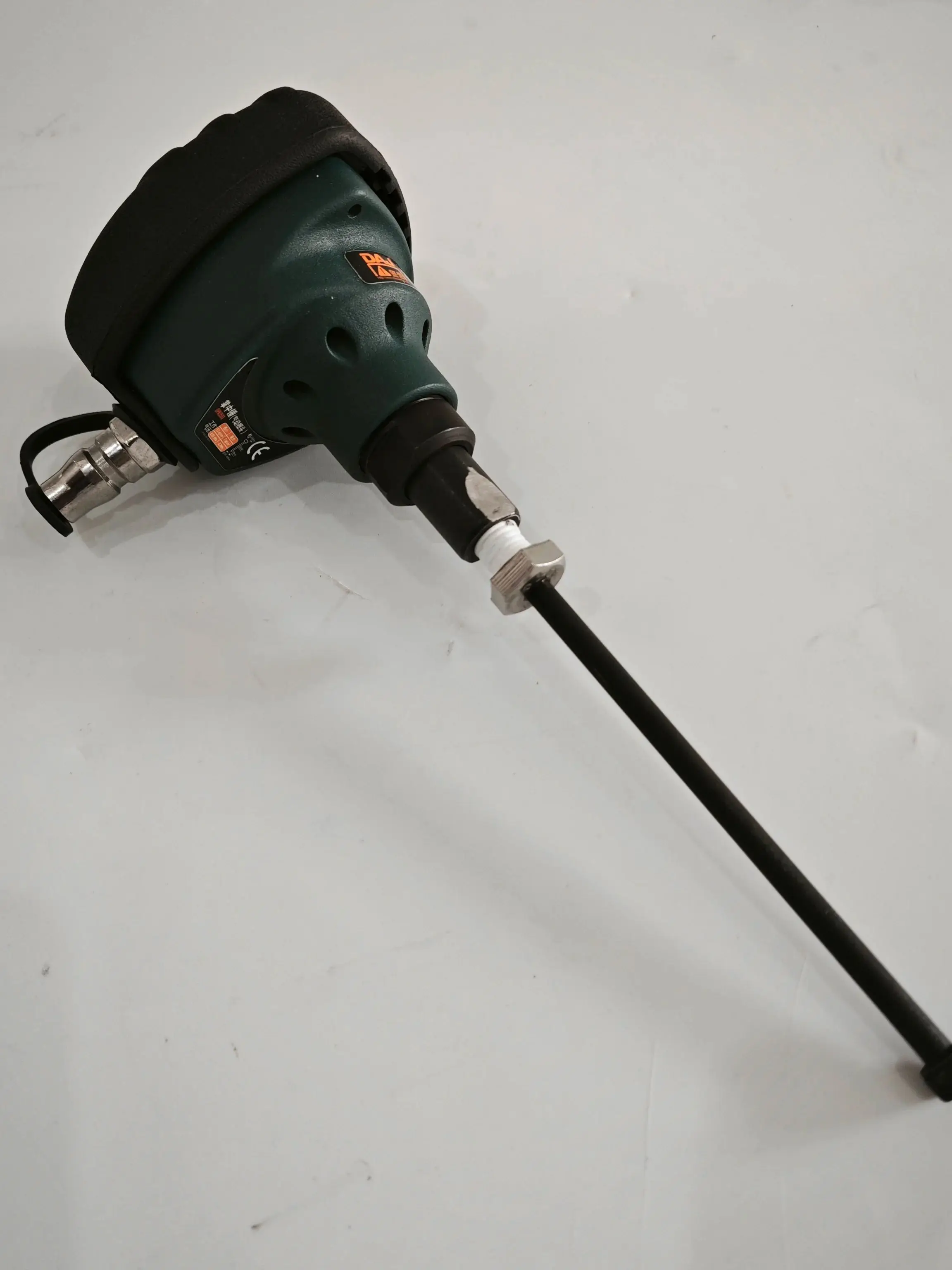

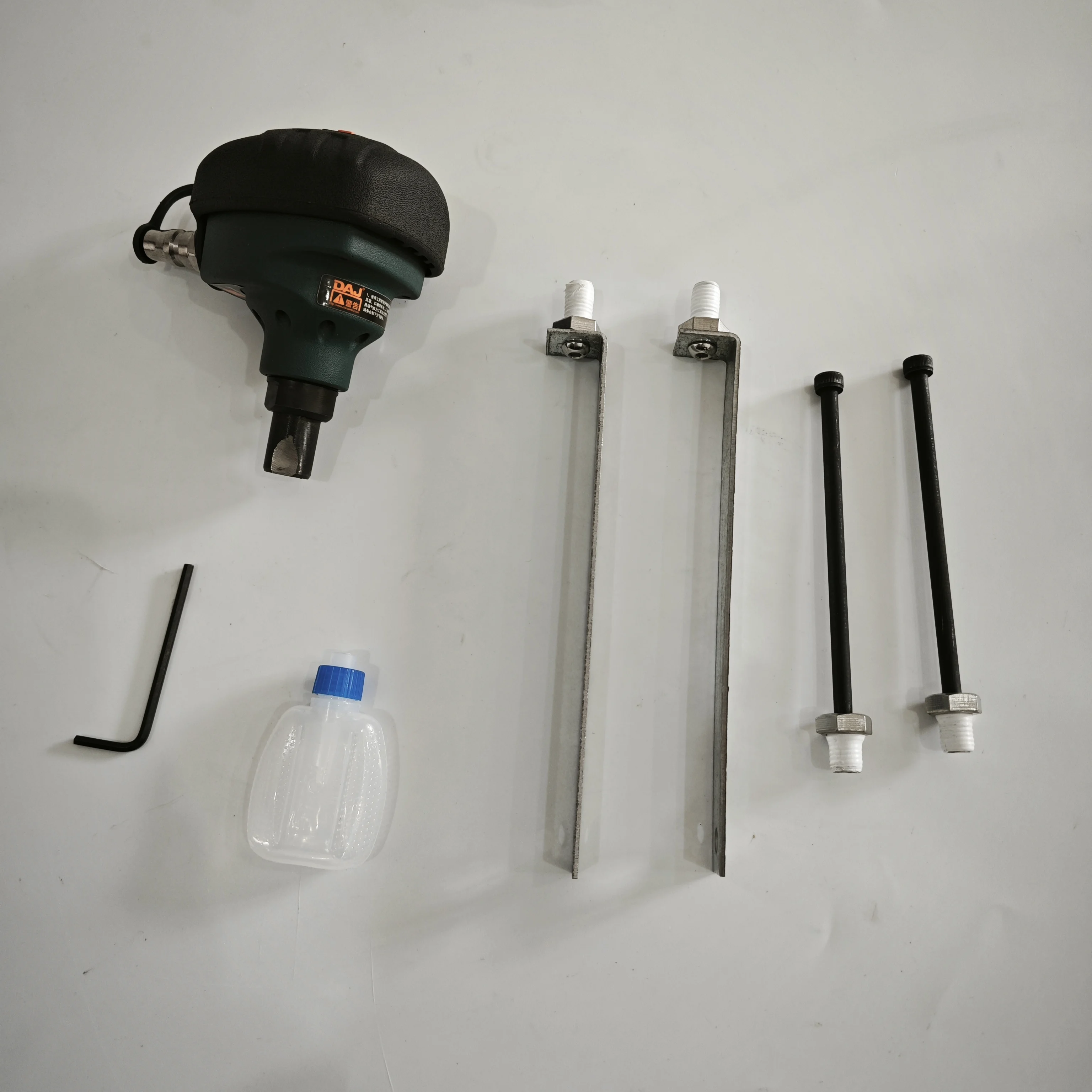

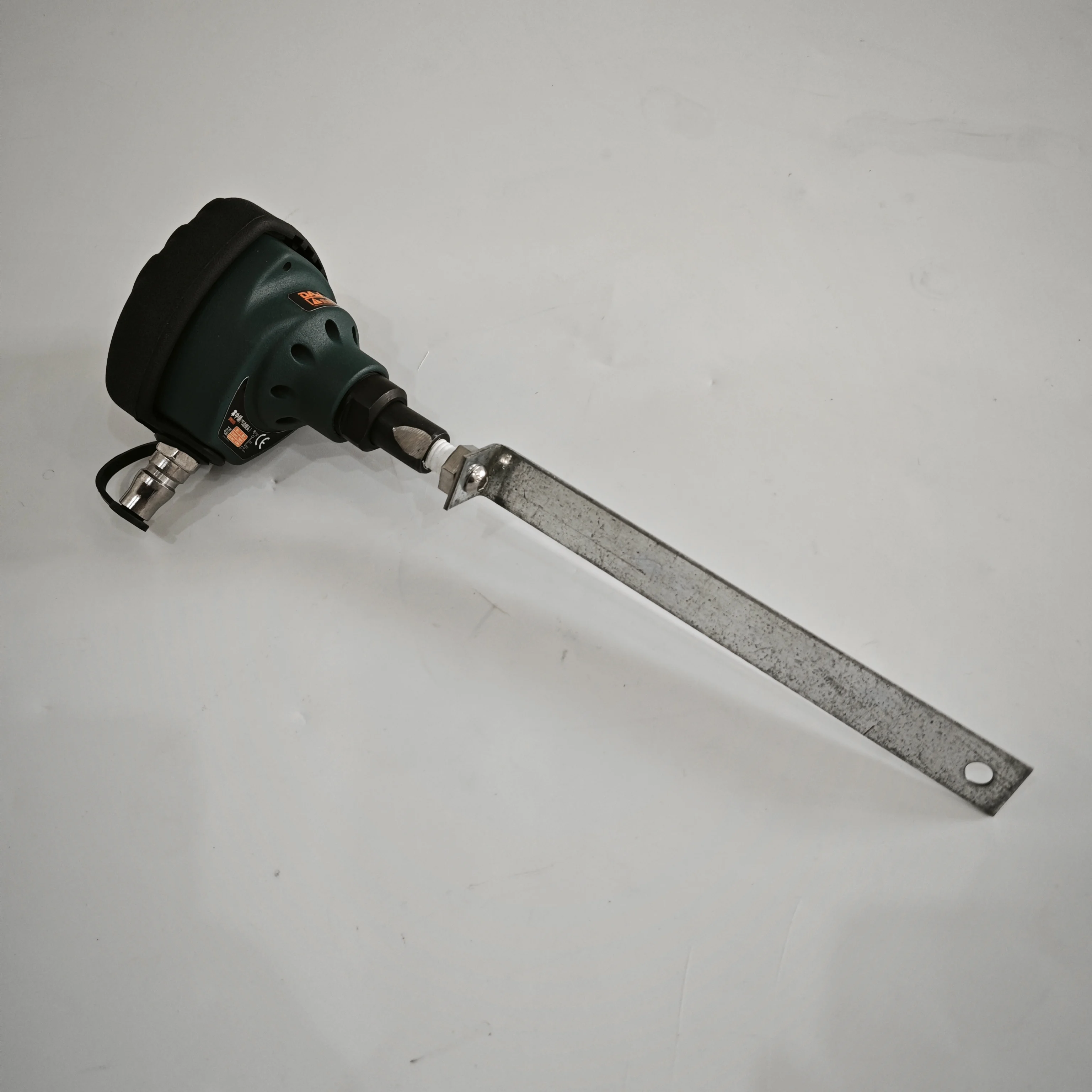

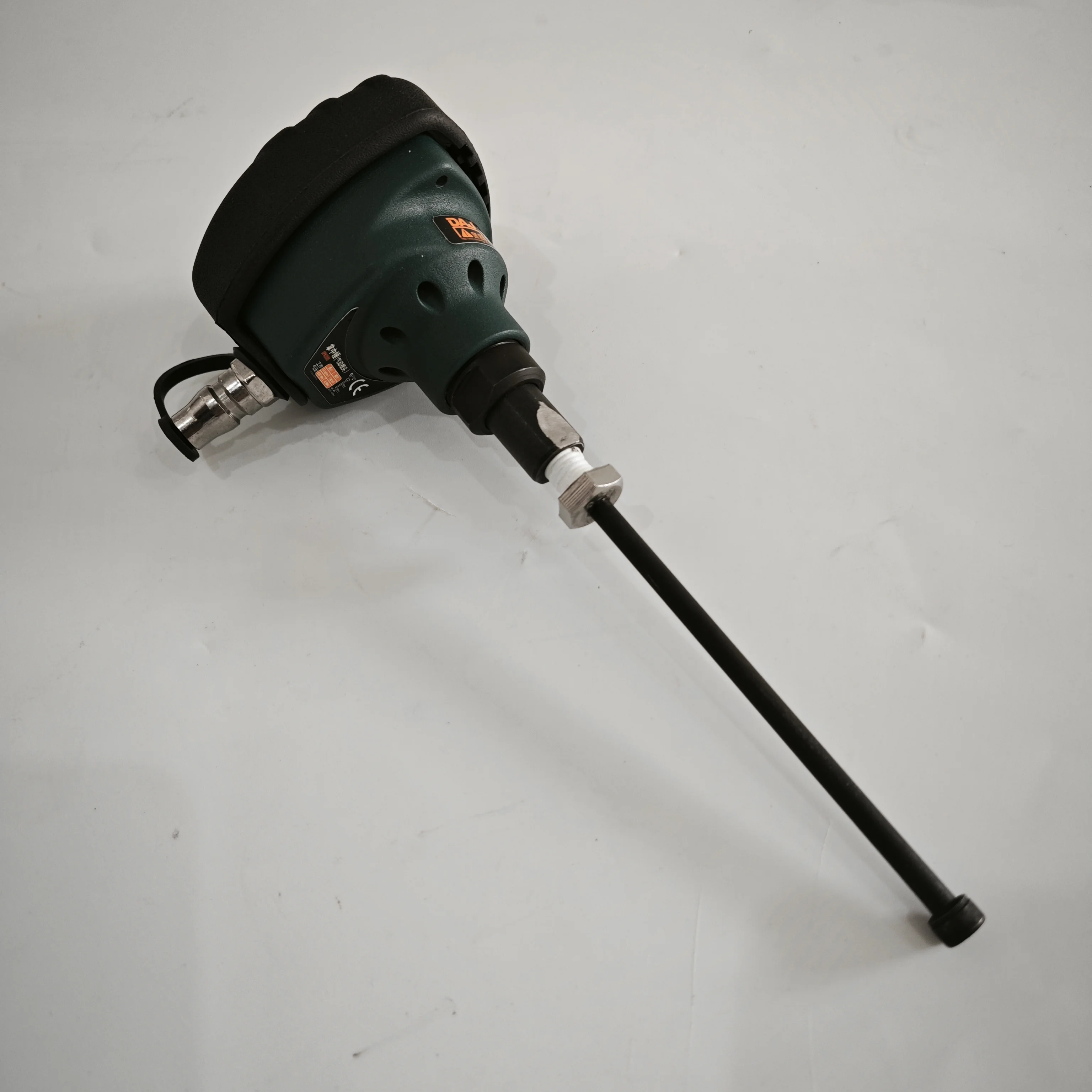

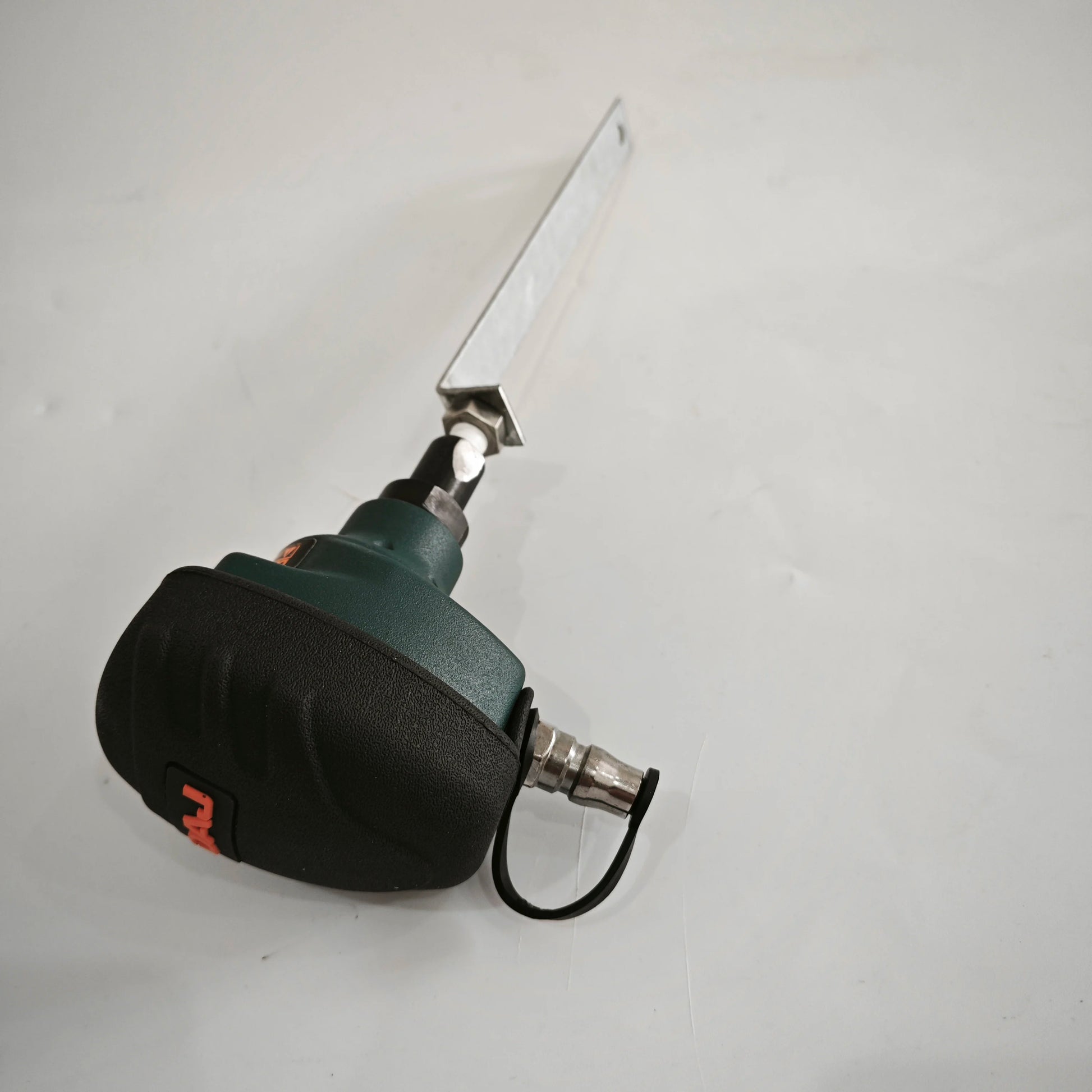

Handheld Pneumatic Inner Hole Waste Stripping Machine for Cartons

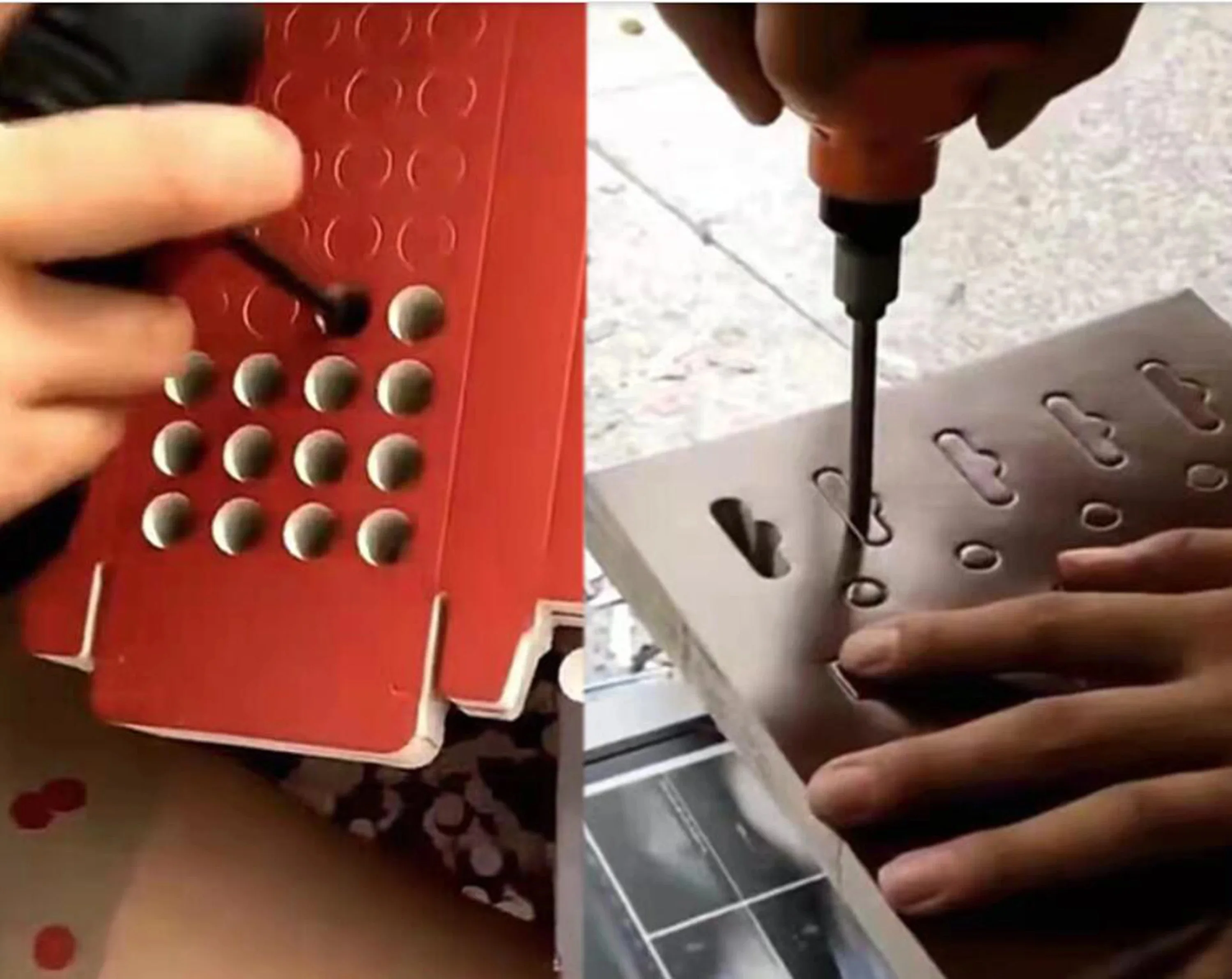

This handheld pneumatic inner hole waste stripping machine is used to remove waste paper from die-cut holes in color boxes and cartons. It is intended for packaging and color-printing workflows where round holes, square holes, long holes and similar inner openings need to be cleared after die cutting.
The tool uses compressed air and provides 1000 impacts per minute according to the current product data. It is a handheld waste stripper for carton hole clearing, not a complete die-cutting machine.
Key Features
- Handheld pneumatic waste stripping tool for carton inner holes.
- Used after die cutting to remove waste paper from color box and carton holes.
- Suitable for round holes, square holes, long holes and similar punched openings.
- 1000 impacts per minute listed speed.
- Works with 6-8 kg compressed air pressure.
- Compact 220 mm total length for handheld operation.
Specifications
| Product type | Pneumatic carton waste stripping machine |
|---|---|
| Application | Inner hole waste paper removal after carton or color box die cutting |
| Total length | 220 mm |
| Strike length | 120 mm |
| Stroke rod diameter | 5 mm |
| Speed | 1000 impacts per minute |
| Compressed air pressure | 6-8 kg |
| Net weight | 6 kg |
| SKU | FMF-CWSM-75257 |
Use Notes
Use this tool after die cutting, when the waste sections inside carton or color box holes need to be knocked out. Confirm that your air supply can meet the listed 6-8 kg pressure requirement before ordering.
FAQ
What is this pneumatic waste stripper used for?
It is used to remove waste paper from inner holes after die cutting color boxes and cartons.
What hole shapes are listed?
The current product data lists round holes, square holes, long holes and similar inner openings.
What air pressure does it require?
The listed compressed air pressure requirement is 6-8 kg.
What is the impact speed?
The listed speed is 1000 impacts per minute.
Is this a complete die-cutting machine?
No. It is a handheld pneumatic waste stripping tool used after die cutting, not a complete die-cutting machine.
