FMFPAX RY-2S Desktop Electronic Capsule & Tablet Counting Machine

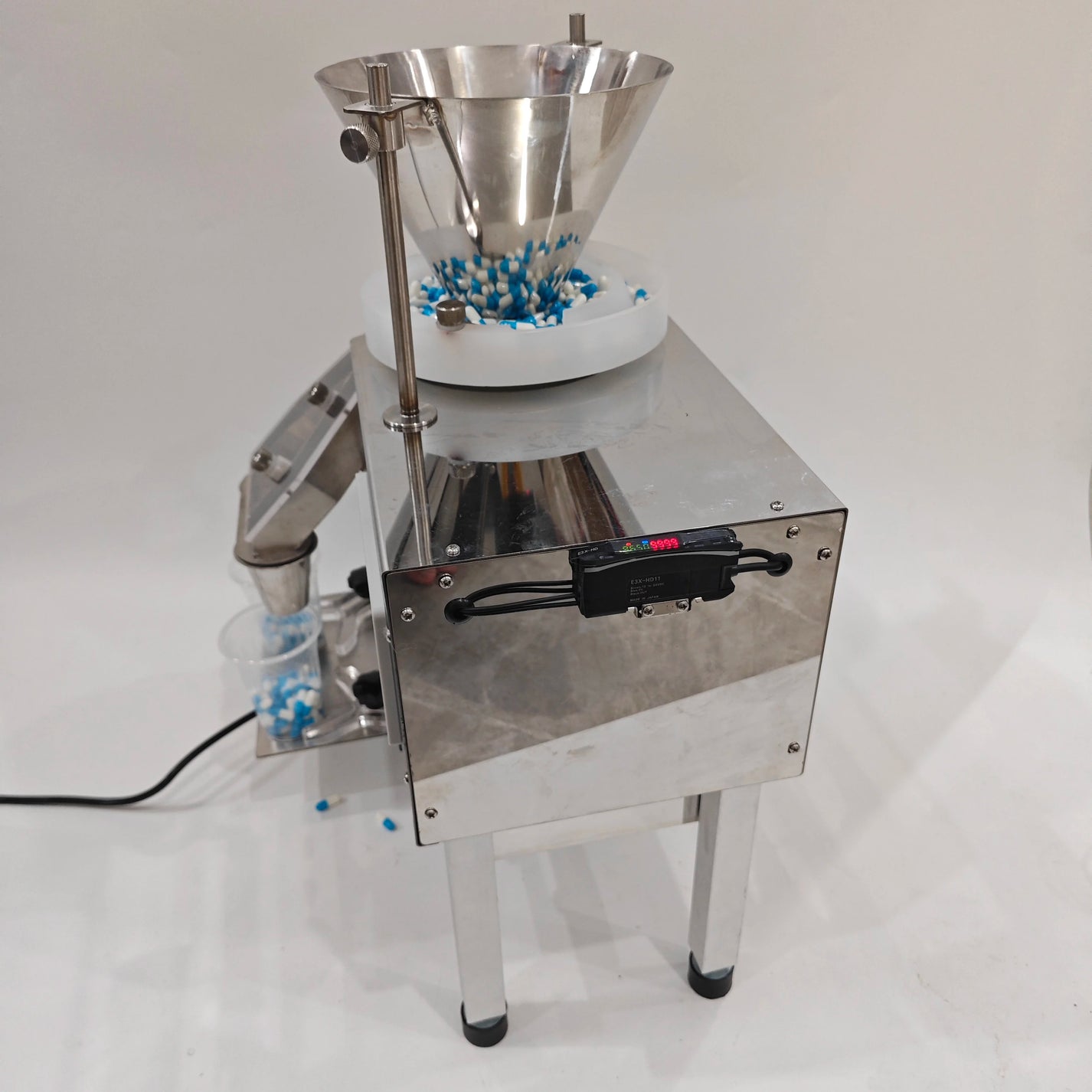

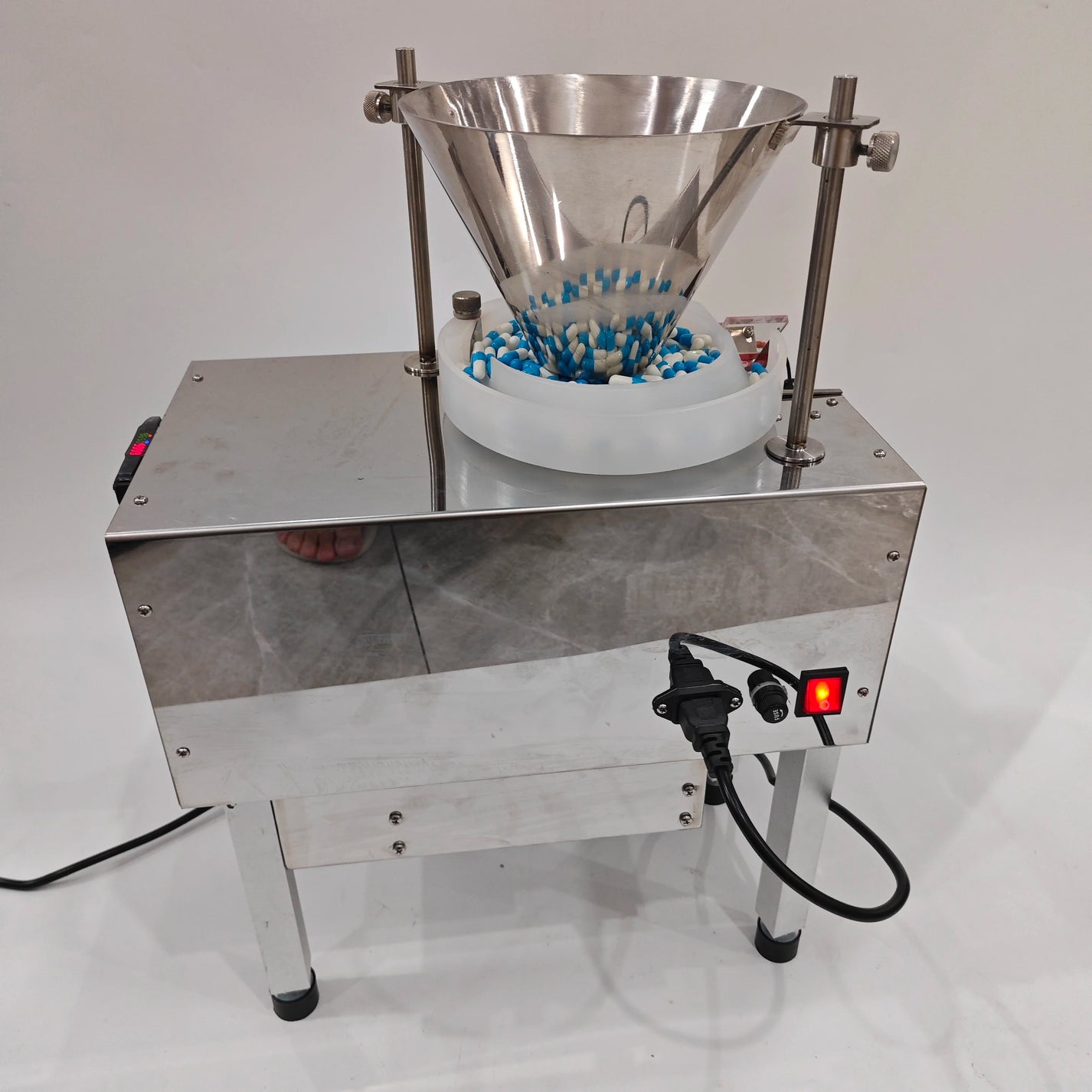

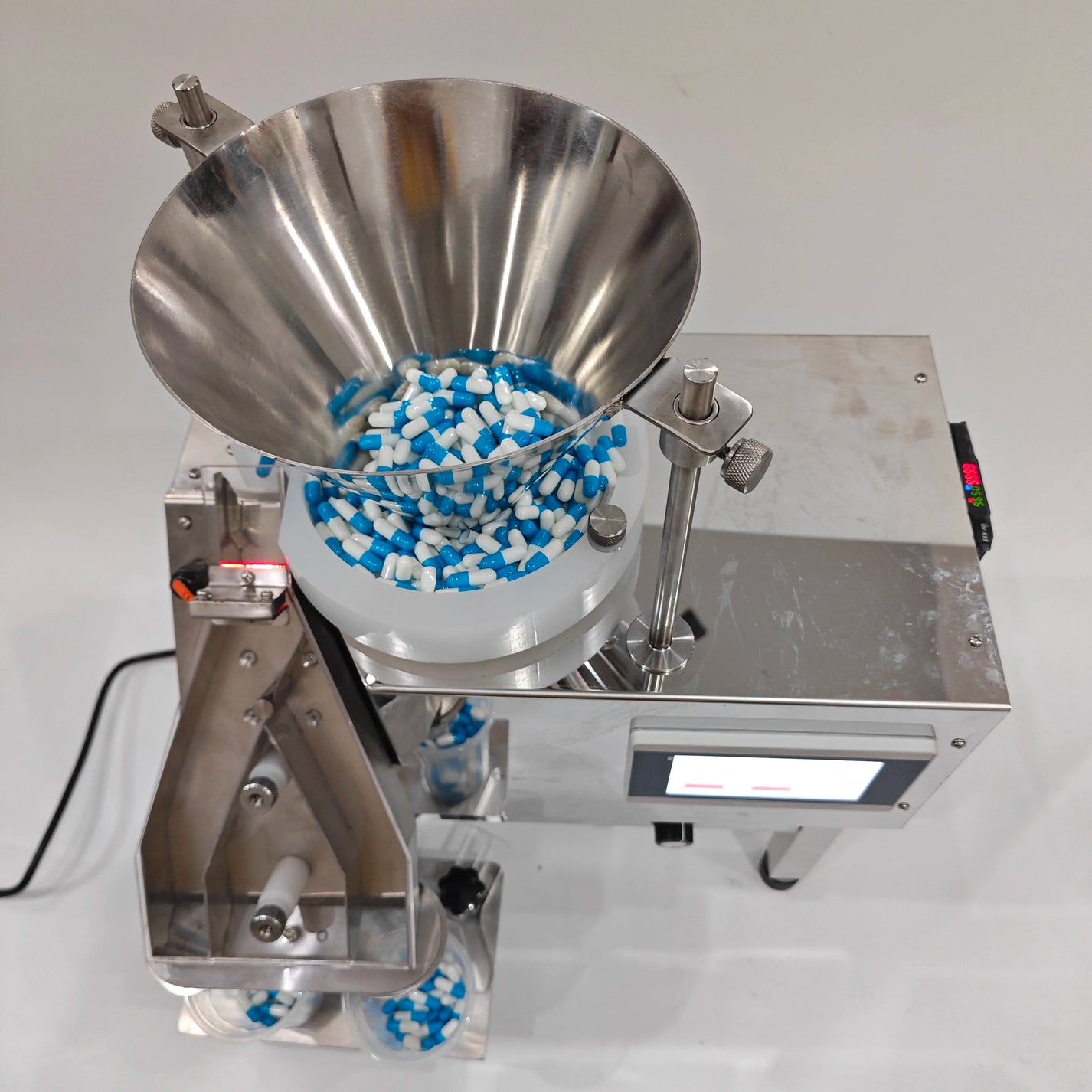

The FMFPAX RY-2S is a compact desktop electronic counting machine engineered for precise, high-speed counting of capsules, tablets, pills, nutritional gummies, agricultural seeds, and small hardware components before filling them into bottles, bags, or containers. Constructed with a stainless steel body, the unit integrates an electromagnetic vibrating feed path, photoelectric sensor detection, an adjustable rotary cutting gate, dual alternating discharge outlets, and an intuitive color touchscreen interface.

Key Features

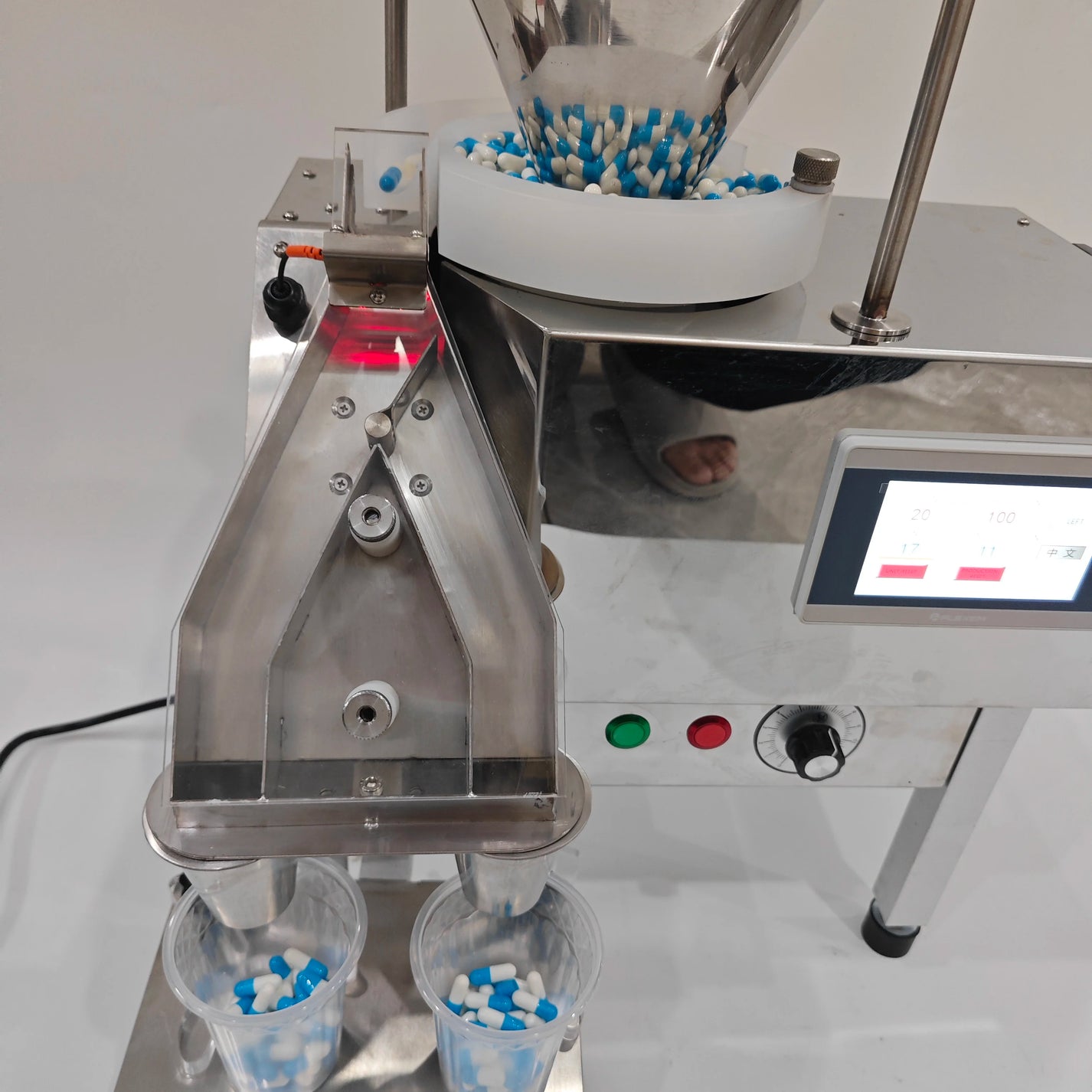

• Photoelectric Sensing Accuracy: Uses high-sensitivity optical sensors and an adjustable rotary gate to detect and count individual items reliably without mechanical pinching or damage.

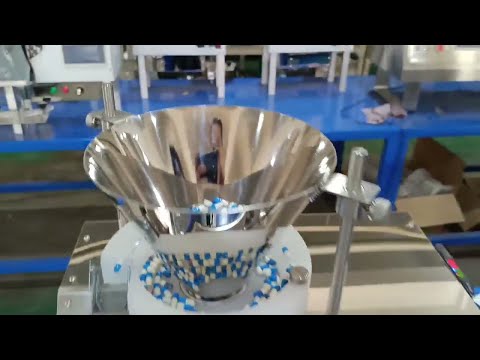

• Electromagnetic Vibrating Feeder: Evenly spreads and aligns bulk materials from the hopper along the vibratory channel to maintain consistent single-file feeding.

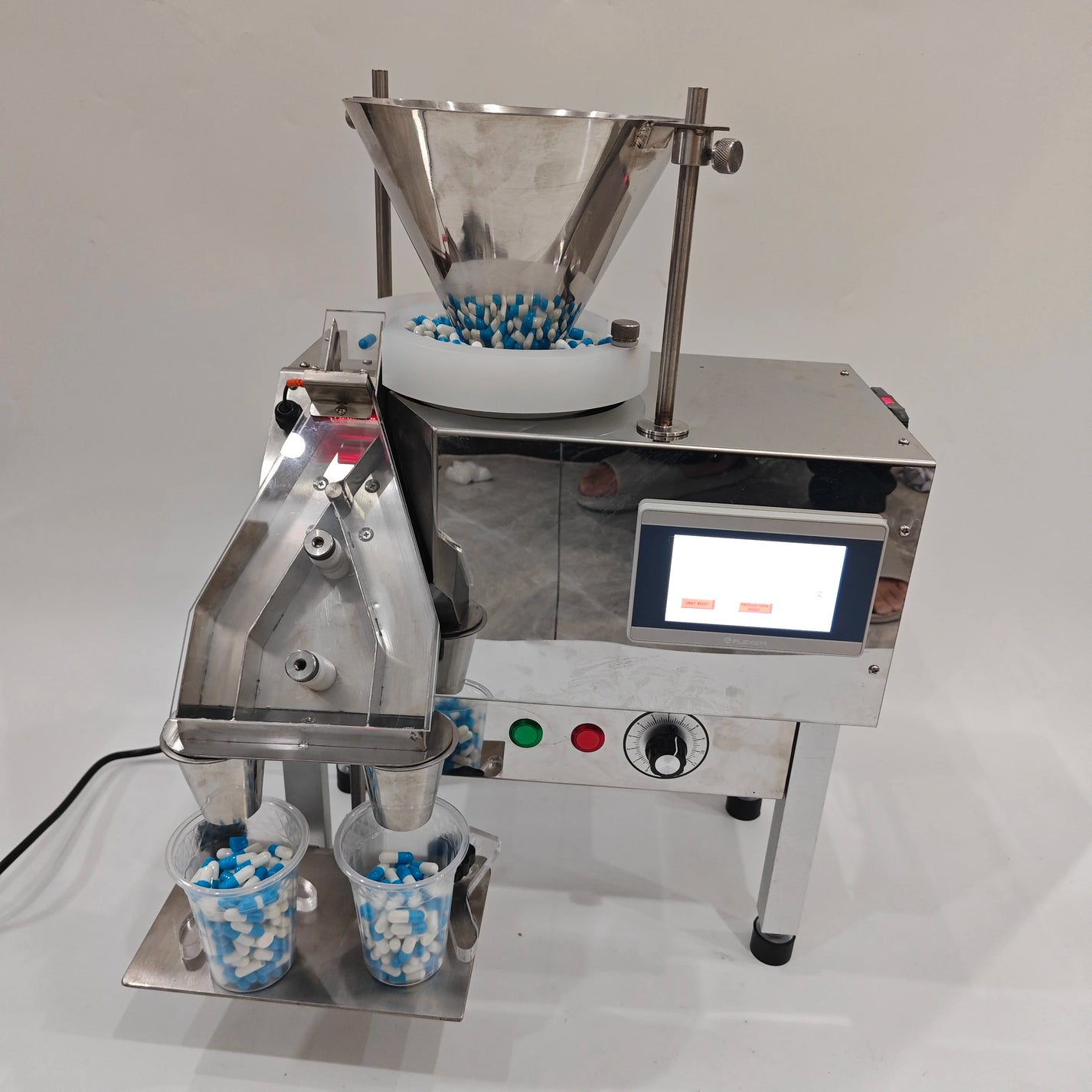

• Dual-Outlet Bottling Design: Features dual alternating delivery spouts, allowing operators to continuously replace and fill bottles without interrupting machine operation.

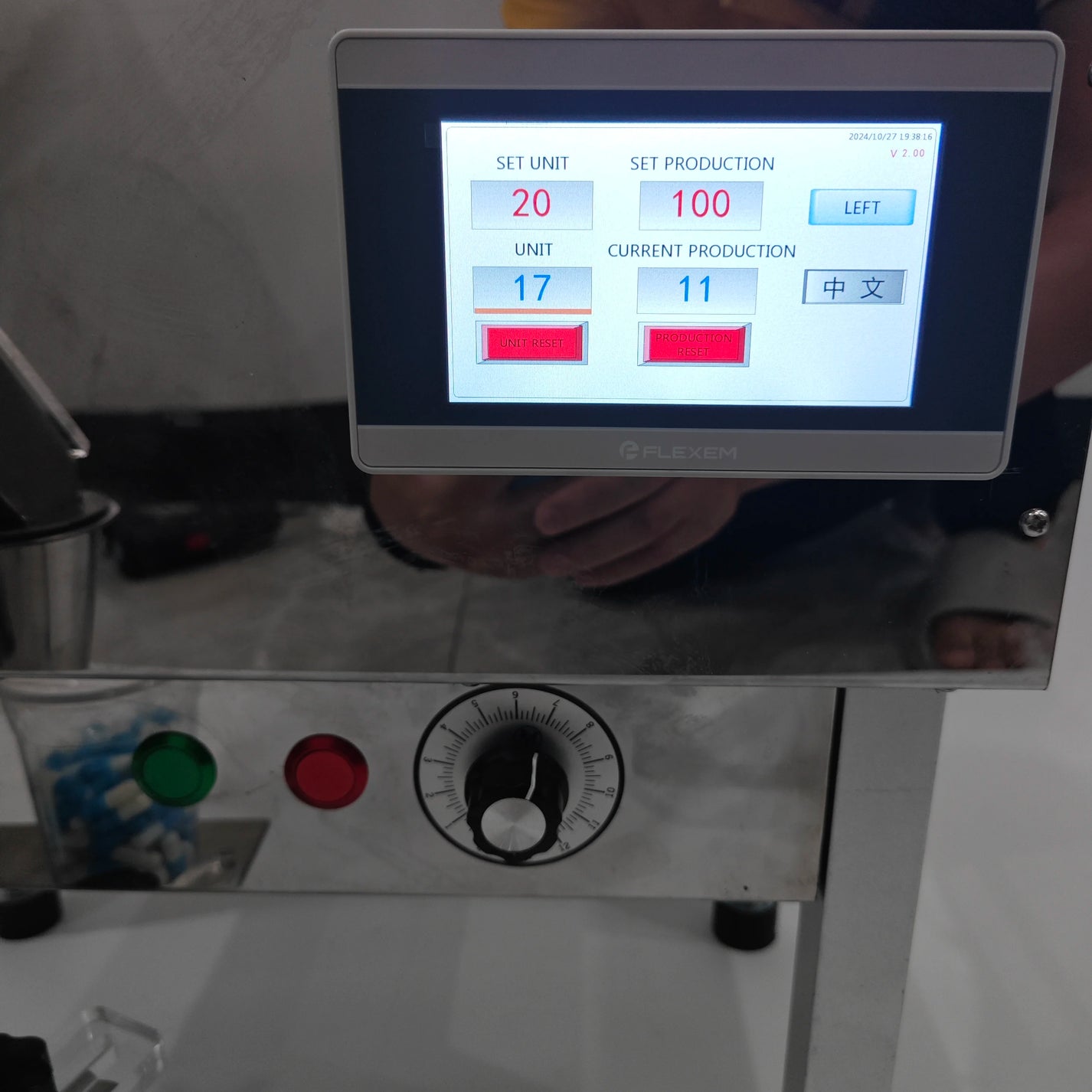

• Color Touchscreen Controls: Digital interface allows operators to set target batch counts (1–9999 pieces), monitor total production quantities, and adjust vibration speed settings in real time.
• Tool-Free Adjustment: Quick-adjust hopper clearance and channel guides accommodate small solid objects ranging from 1 mm to 15 mm in size.

Specifications

Suitable Materials & Applications

• Pharmaceuticals & Supplements: Hard gelatin and vegetarian capsules (sizes 000, 00, 0, 1, 2, 3, 4, 5), round and oblong tablets, compressed pills, softgels, and chewable gummies.
• Agriculture & Research: Agricultural seeds, grain kernels, botanical pellets, and laboratory test specimens.
• Hardware & Manufacturing: Precision screws, nuts, small plastic injection moldings, electronic hardware terminals, and craft components within the 1–15 mm range.

Power & Setup Notes

The plug and voltage are configured according to the customer's shipping country by default (110V 60Hz for North America; 220V 50Hz for international destinations). For irregular, highly sticky, soft, or oily items, run sample tests to determine optimal vibration feed frequency and gate opening height.

Frequently Asked Questions

What sizes of capsules and tablets does the RY-2S handle?
The machine handles standard capsule sizes from 000 down to 5, as well as round, flat, or coated tablets and pills between 1 mm and 15 mm across.

How does the dual-outlet system speed up bottling?
When the first preset count is reached, the rotary gate automatically diverts the flow to the second nozzle. The operator can remove the filled bottle and place an empty bottle underneath the first spout with zero machine downtime.

Is the machine fully automatic or semi-automatic?
The counting and dispensing cycle is fully automatic via the photoelectric sensor and rotary divider. Bottle placement and changeover are performed manually by the station operator, making it an ideal benchtop semi-automatic packaging workstation.

Important Notes

No GMP, certification, pharmacy compliance, medical-use approval or legal-for-trade claim is included unless separately confirmed by official documentation. Counting speed and performance can vary by item shape, surface condition and machine setup.
