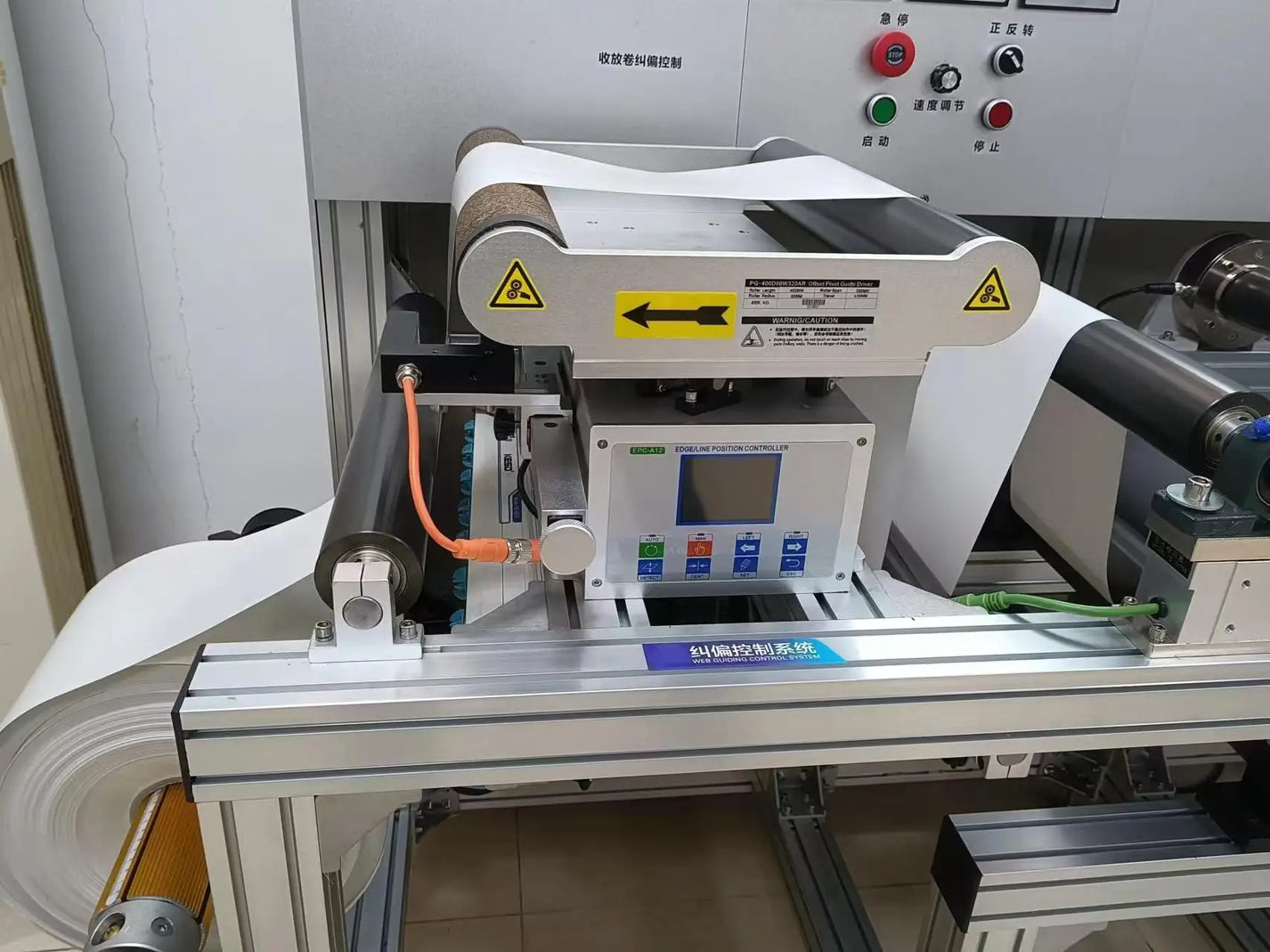

PG350A All-in-One Servo Web Guiding System

The PG350A is an integrated servo web guiding system for EPC/LPC edge and line position control on narrow web materials. The controller, driver, and detector are built into one compact web guide unit to simplify installation and adjustment.

Main Functions

  • Automatic web guide for edge and line position correction.
  • Integrated controller, driver, and detector for faster installation and debugging.
  • Ultrasonic sensor configuration for web position detection.
  • Brushless DC servo motor drive, listed as maintenance-free.
  • Precision ball screw mechanism for accurate positioning.
  • Large guiding travel for roll-to-roll material handling applications.
  • Roller length and width can be custom-made based on application requirements.
  • Optional cutting-station fixture: manual or pneumatic.

Specifications

Model PG350A
System type All-in-one servo web guiding system
Control mode EPC/LPC edge and line position control
Power AC220V / 110V, 80W
Roller diameter 60 mm / custom-made
Roller length 350 mm / custom-made
Roller width 260 mm / custom-made
Maximum speed 40 mm/s
Environment -10 to 60°C, below RH 90%
SKU FMF-PG350A-74905

Selection Notes

  • Use this listing when matching a PG350A all-in-one automatic web guide for narrow web guiding.
  • Confirm the required roller length, roller width, web path, voltage, and mounting space before ordering.
  • If your application requires a specific web width range, guide angle, maximum tension, cable set, or fixture style, confirm those details before purchase.

FAQ

What is the PG350A used for?

It is used to guide narrow web materials by correcting edge or line position during roll-to-roll handling and converting processes.

What is integrated in the system?

The listing describes an integrated controller, driver, and detector, with a brushless DC servo motor and precision ball screw mechanism.

Does this listing include ultrasonic sensing?

Yes. The verified product title identifies this PG350A web guiding system with an ultrasonic sensor.

What should I confirm before ordering?

Confirm voltage, roller dimensions, web path, mounting space, and any custom roller or cutting-station fixture requirements.
