Electric PE Pipe Scraper for Oxide Layer Removal

This electric PE pipe scraper removes the outer oxide layer from PE pipe before welding, connection, installation, or maintenance work. The sleeve-type rotary scraper keeps the cutter aligned around the pipe surface, helping prepare PE gas pipe, plastic pipe, and steel wire skeleton plastic pipe in the 20-110 mm range.

Key Features

Designed for PE pipe surface scraping and oxide layer removal before welding or connection work.

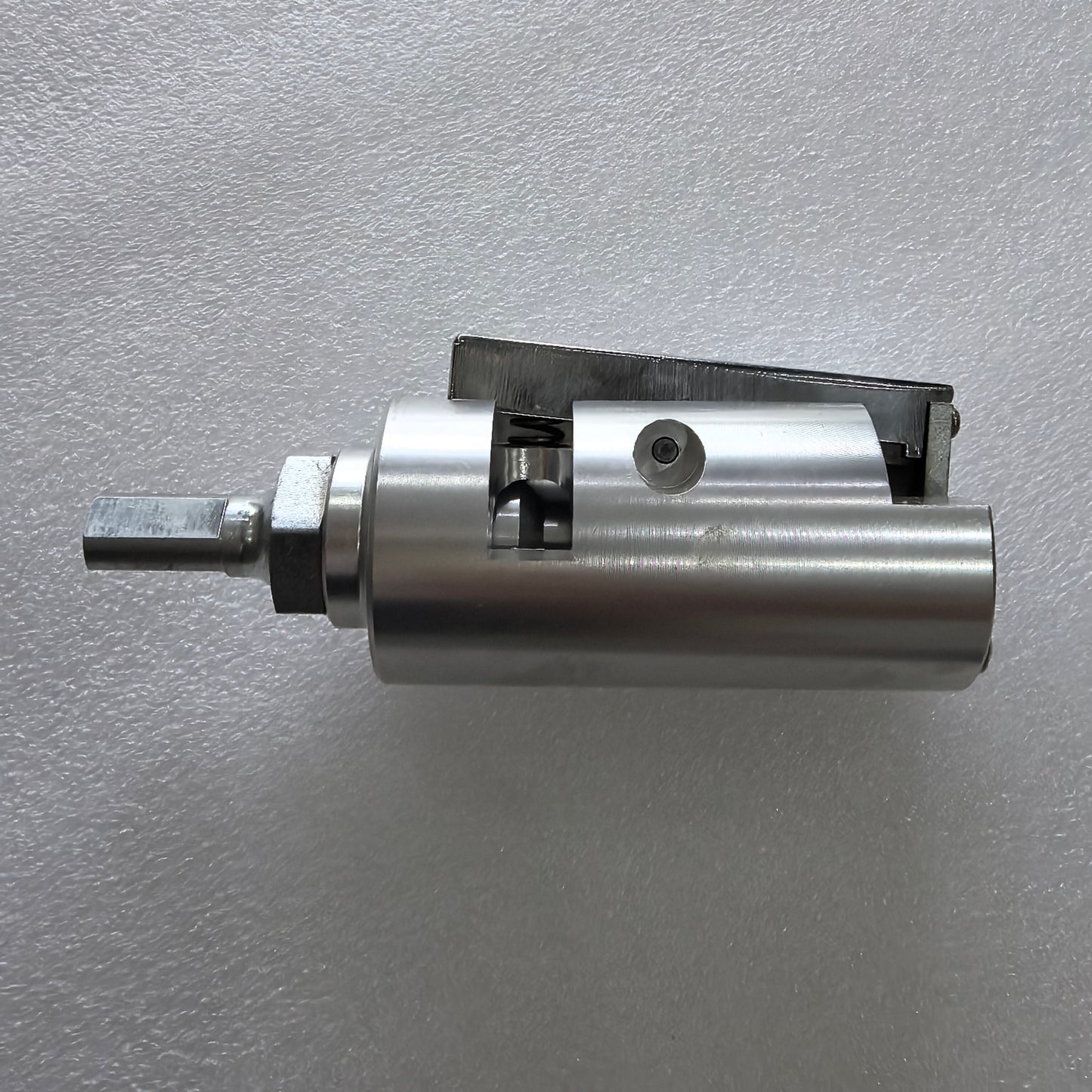

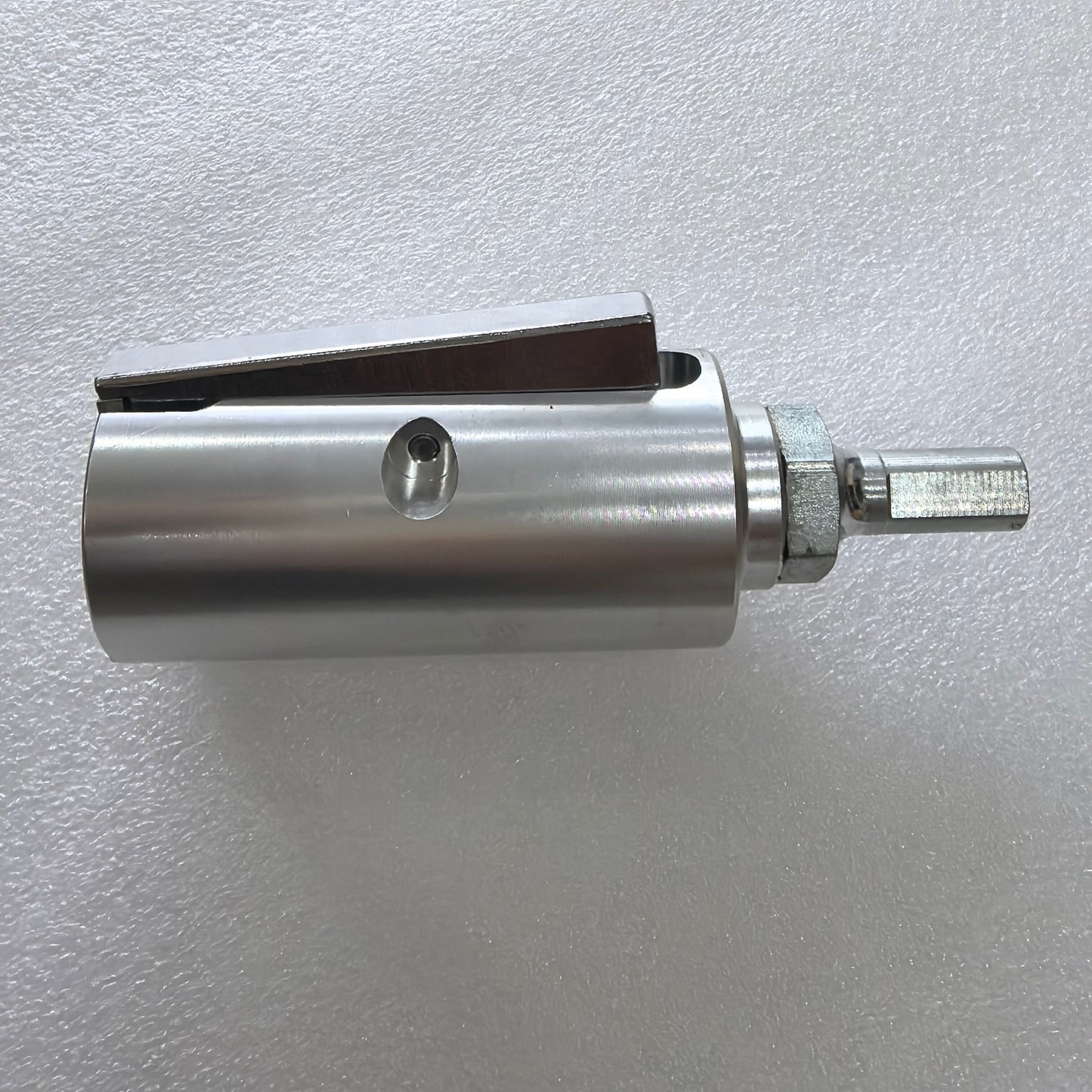

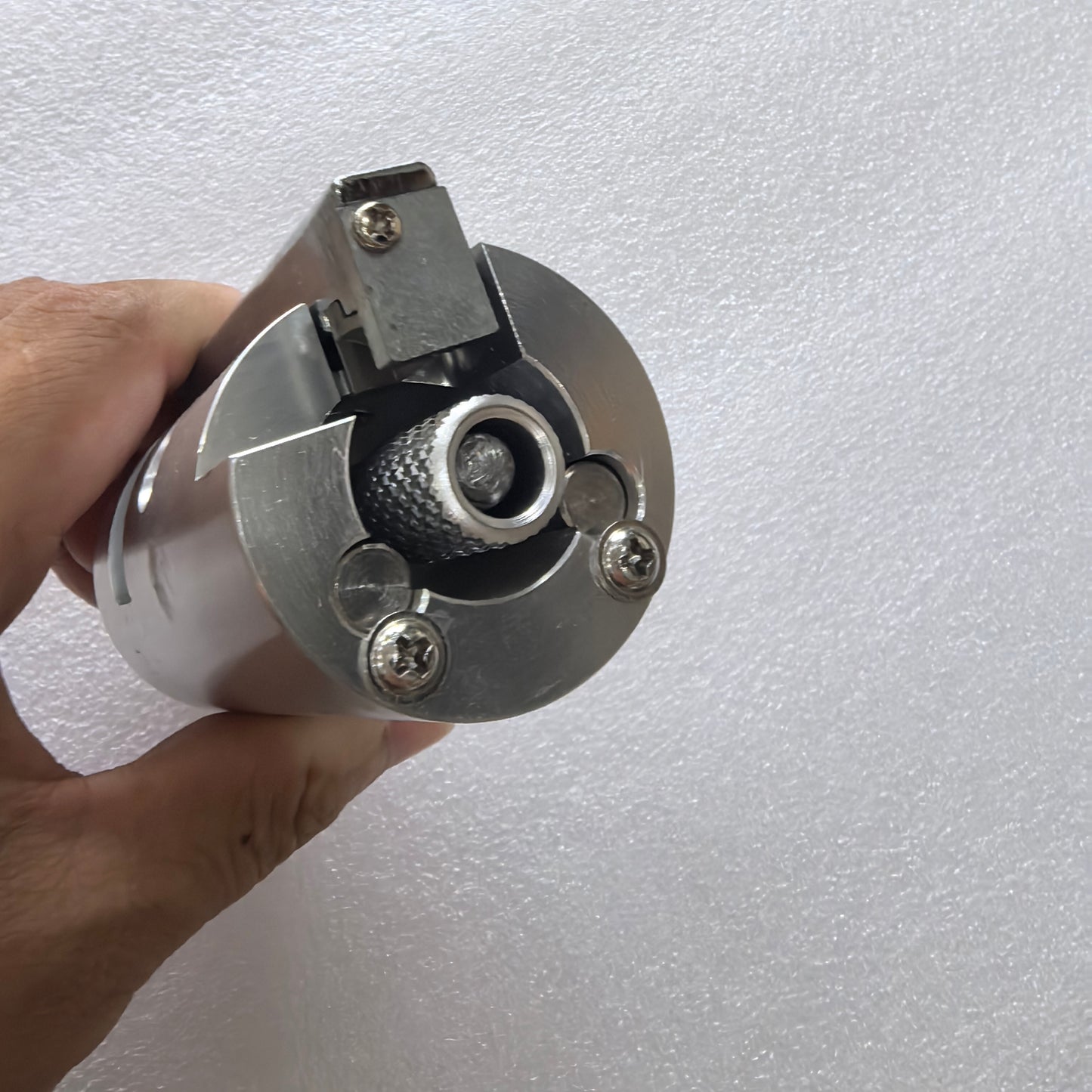

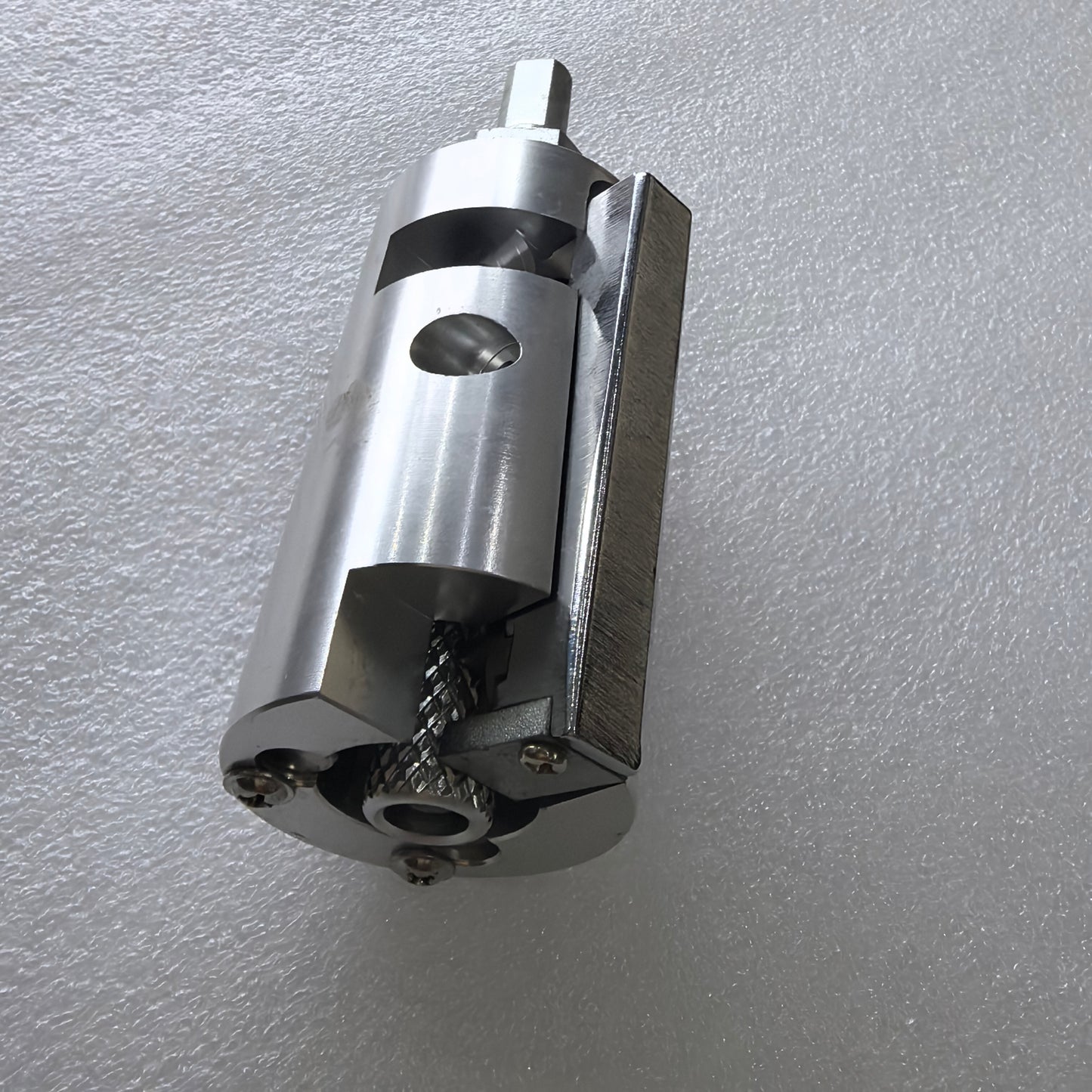

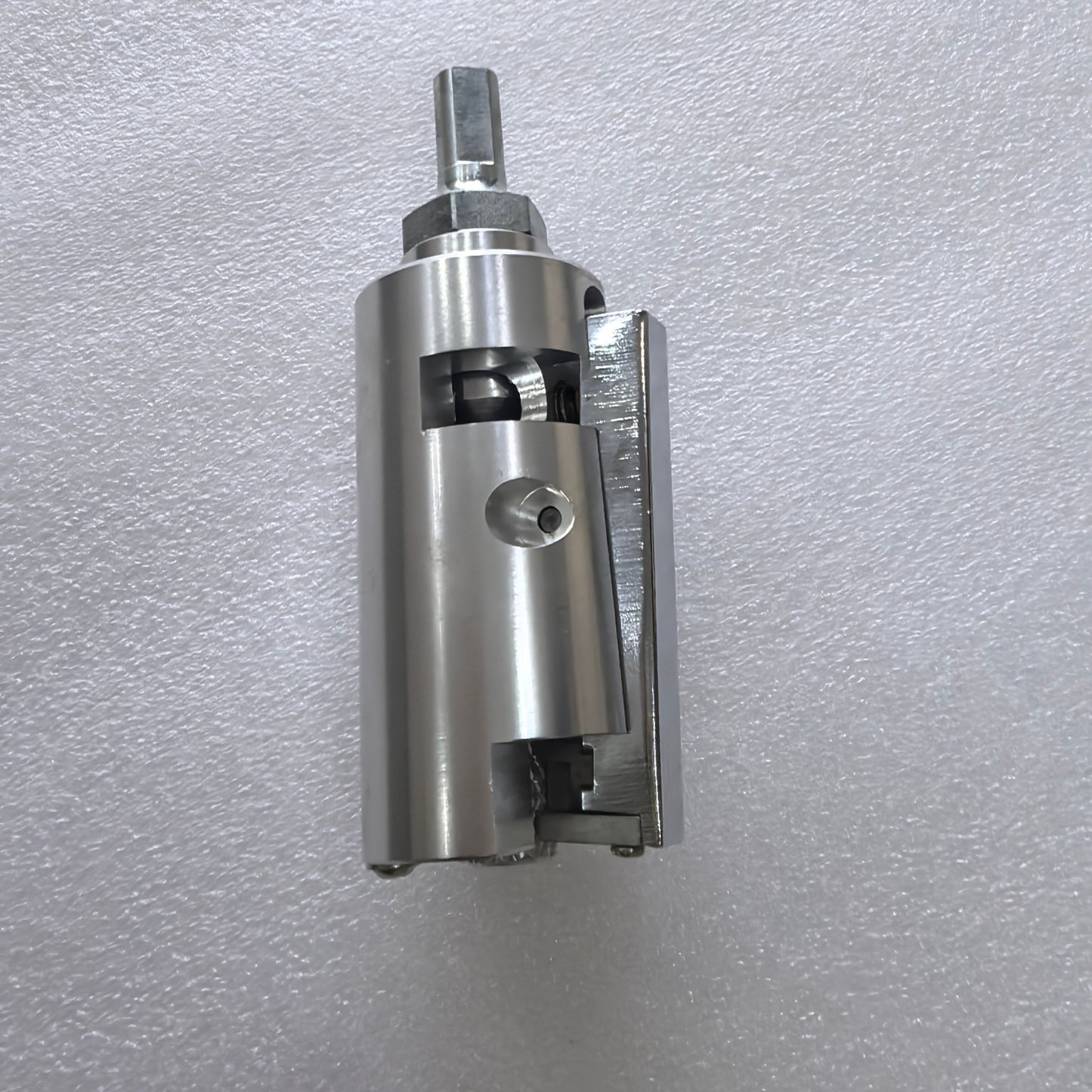

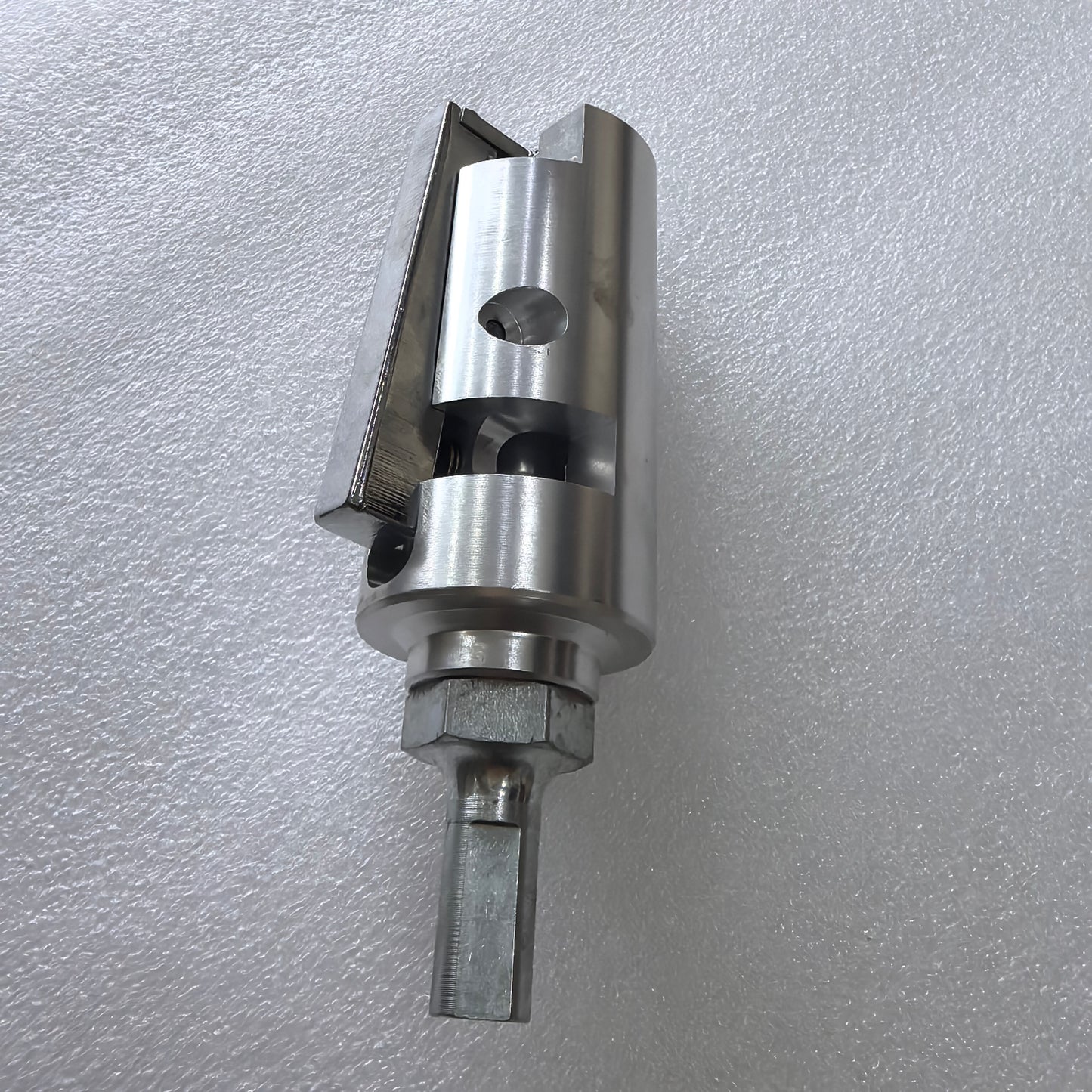

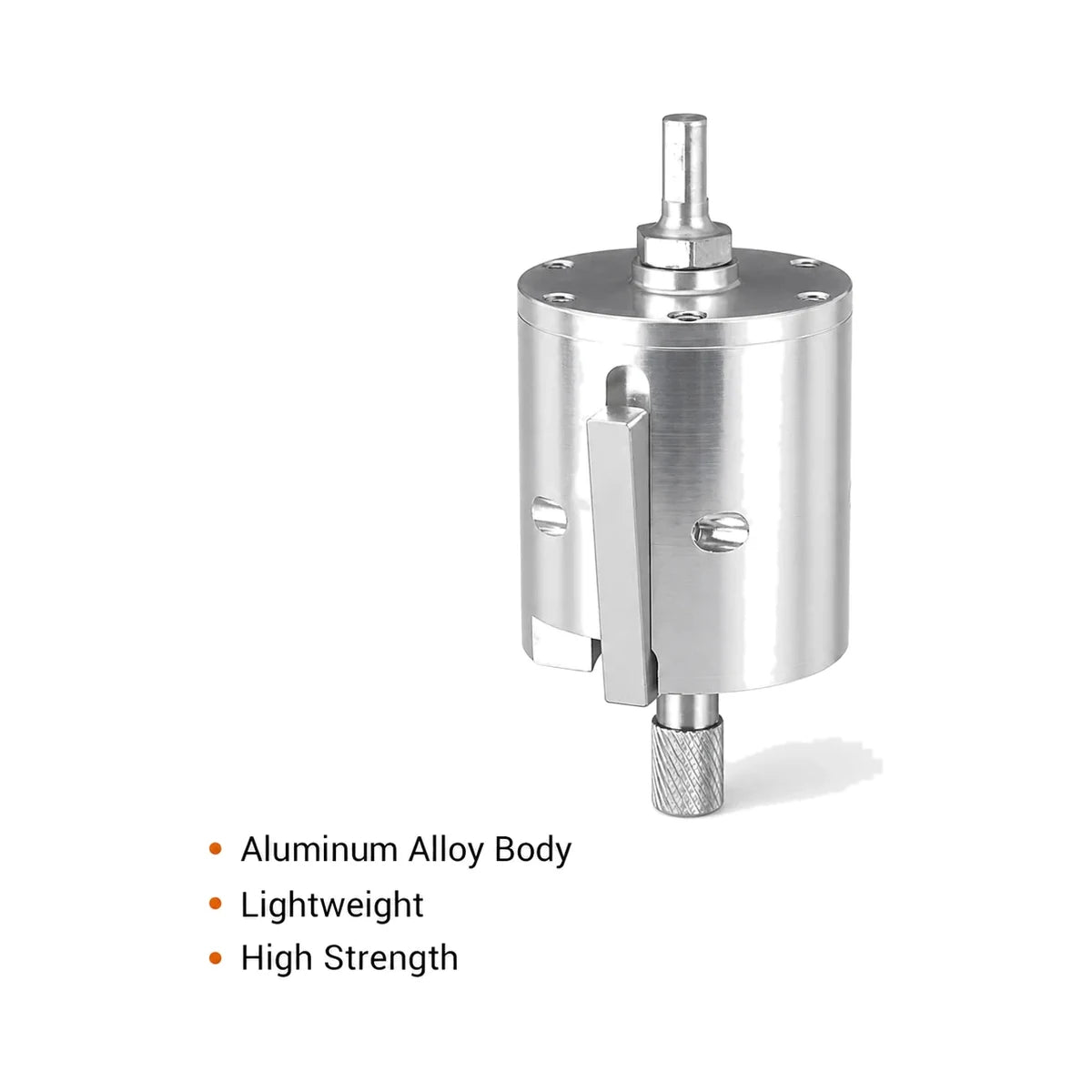

Sleeve-type cylindrical scraper structure helps keep the cutter stable around the pipe surface.
Alloy blade supports clean pipe-surface removal on the selected sleeve size.

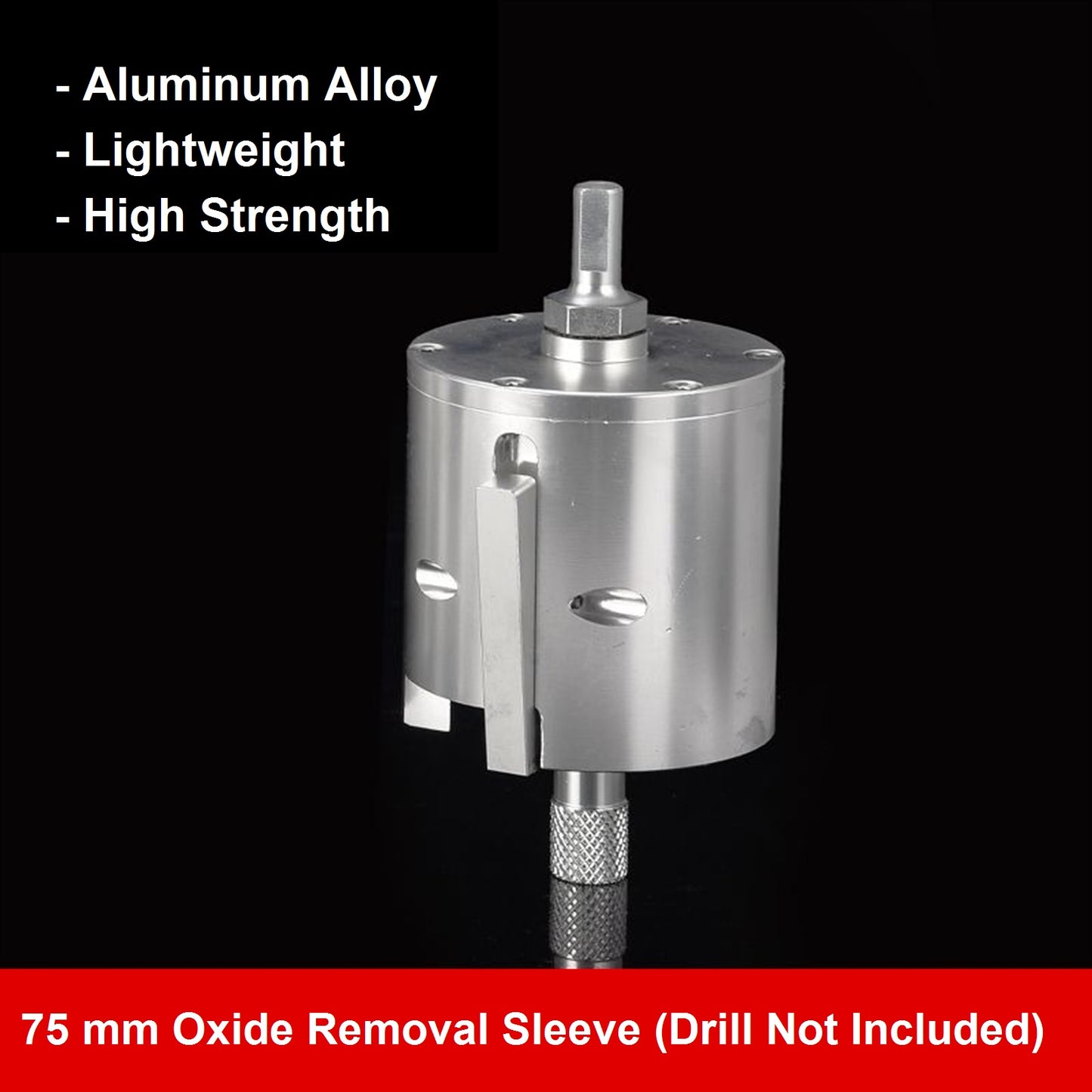

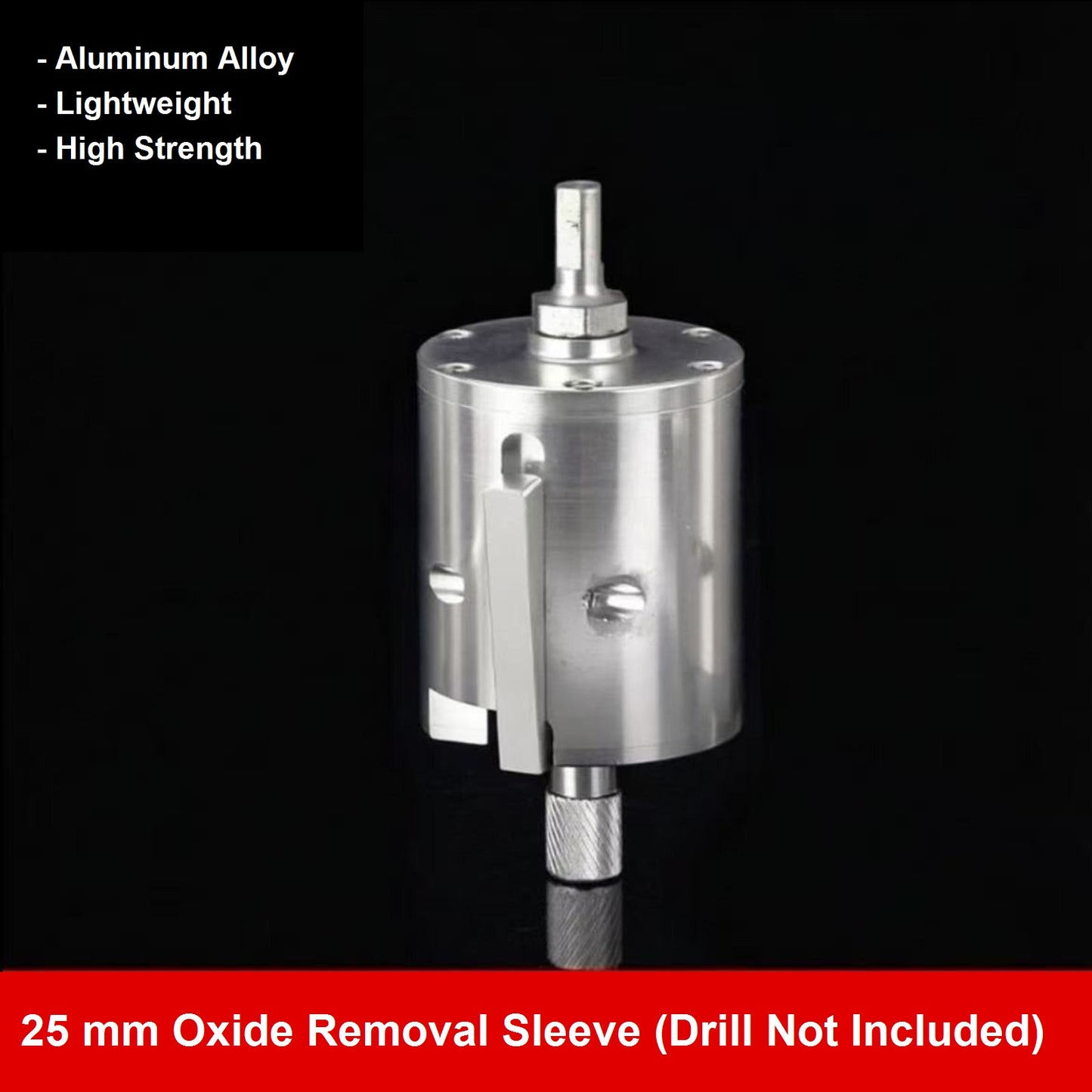

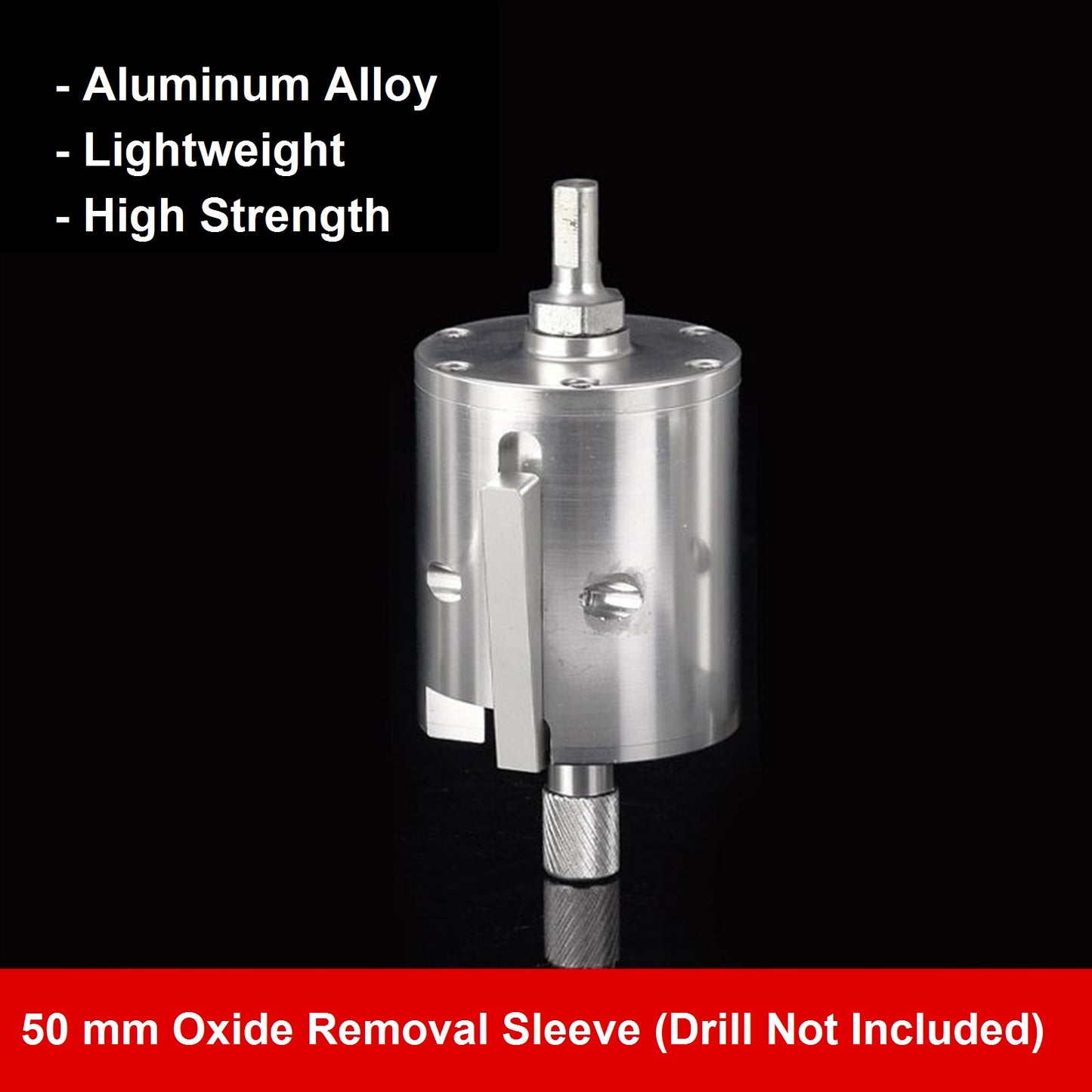

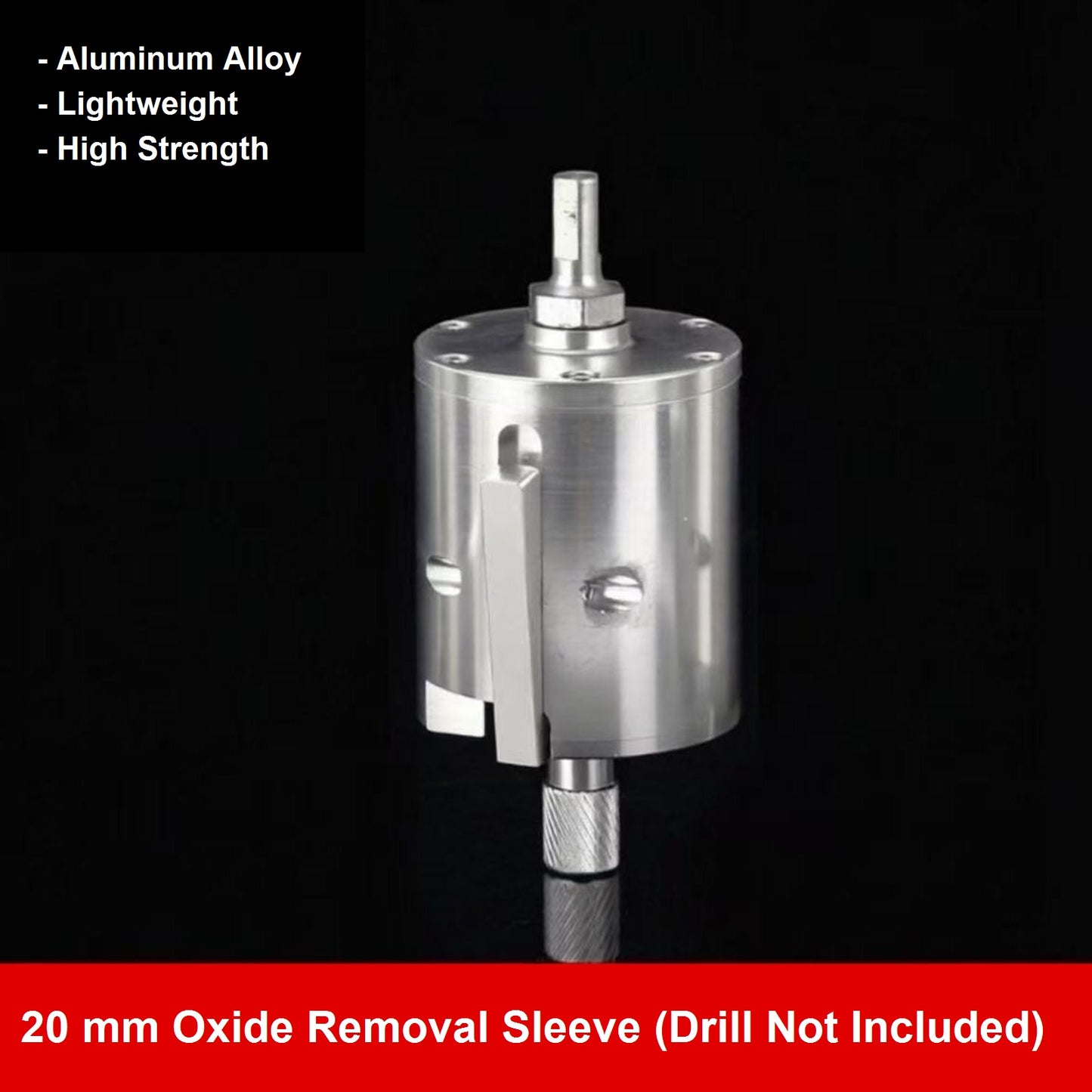

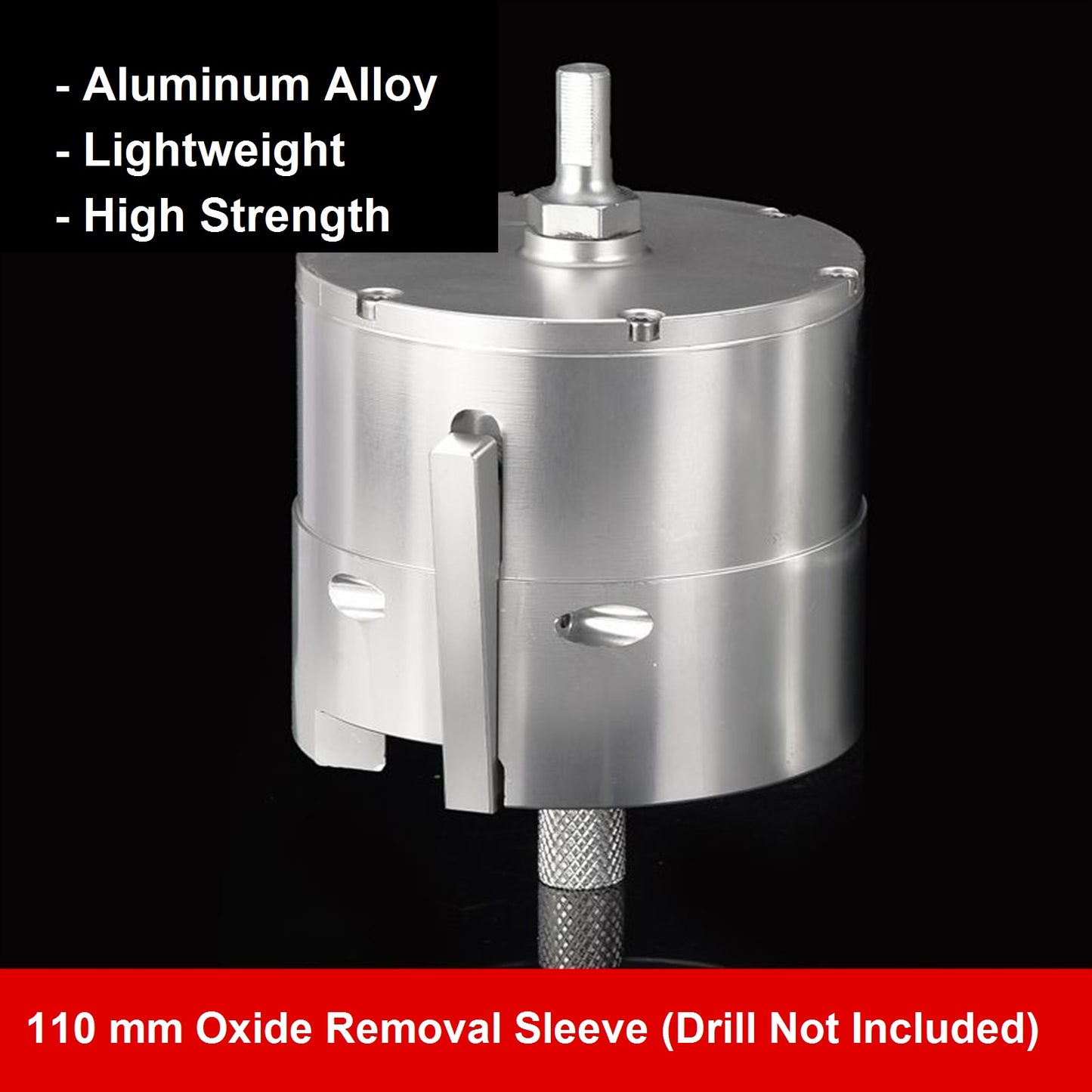

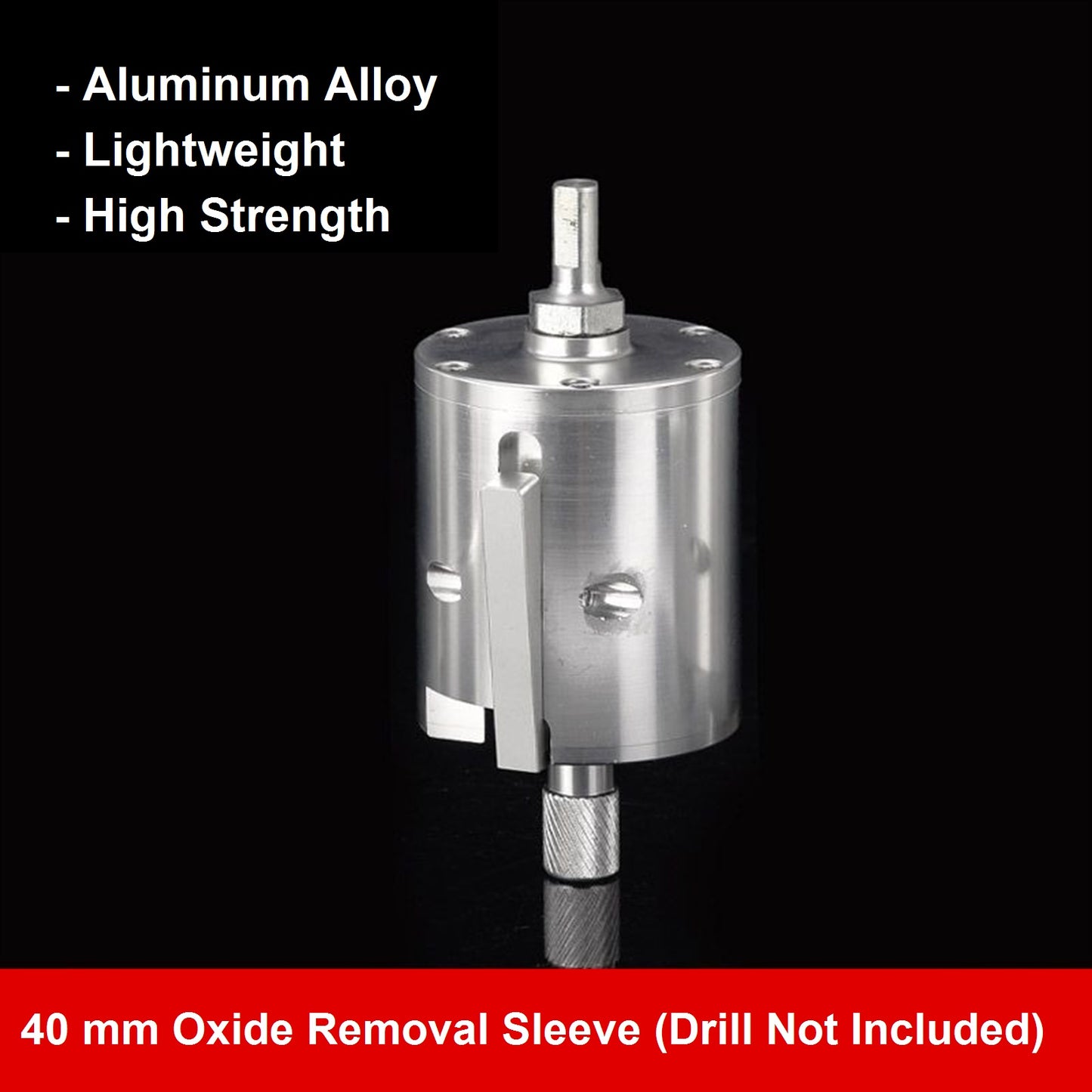

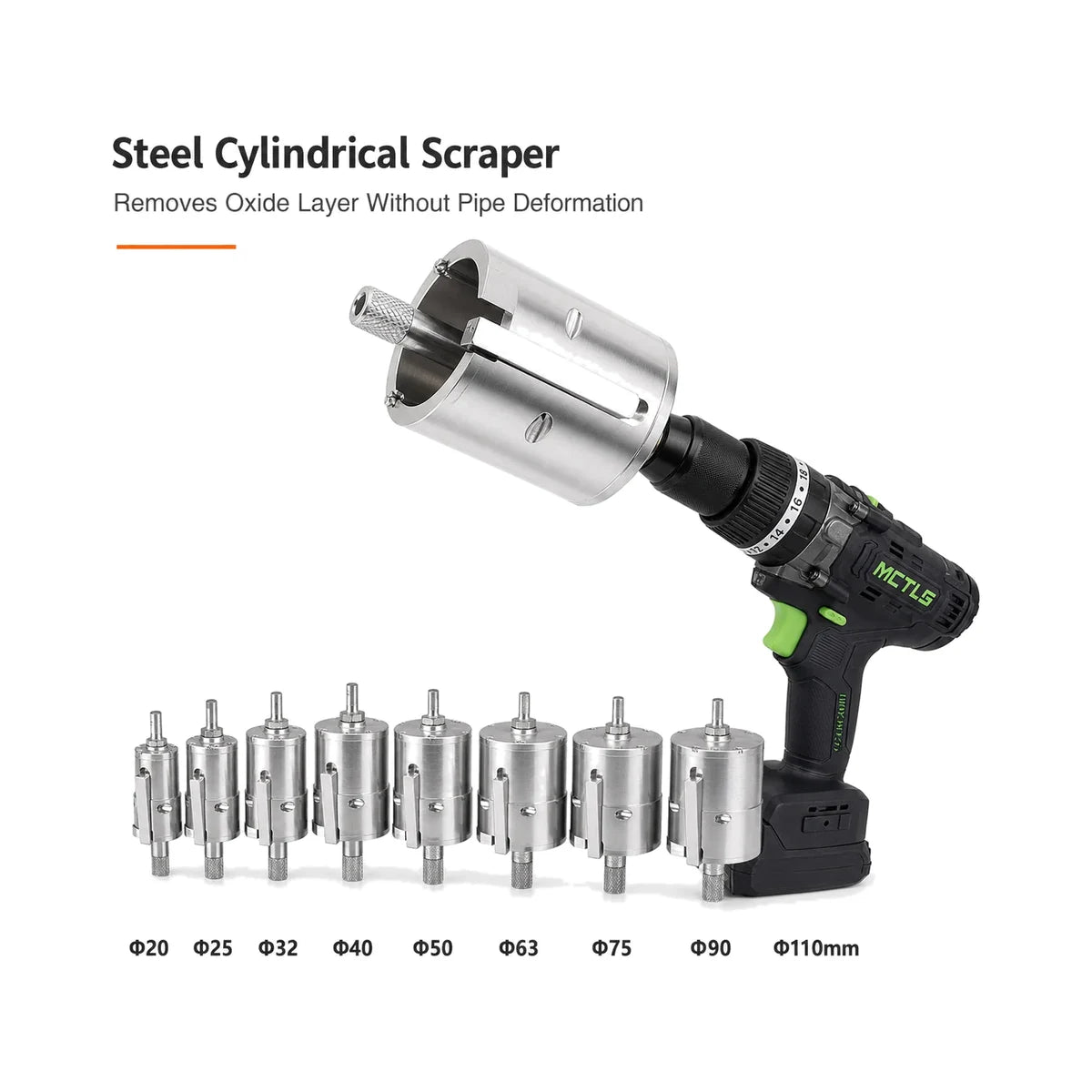

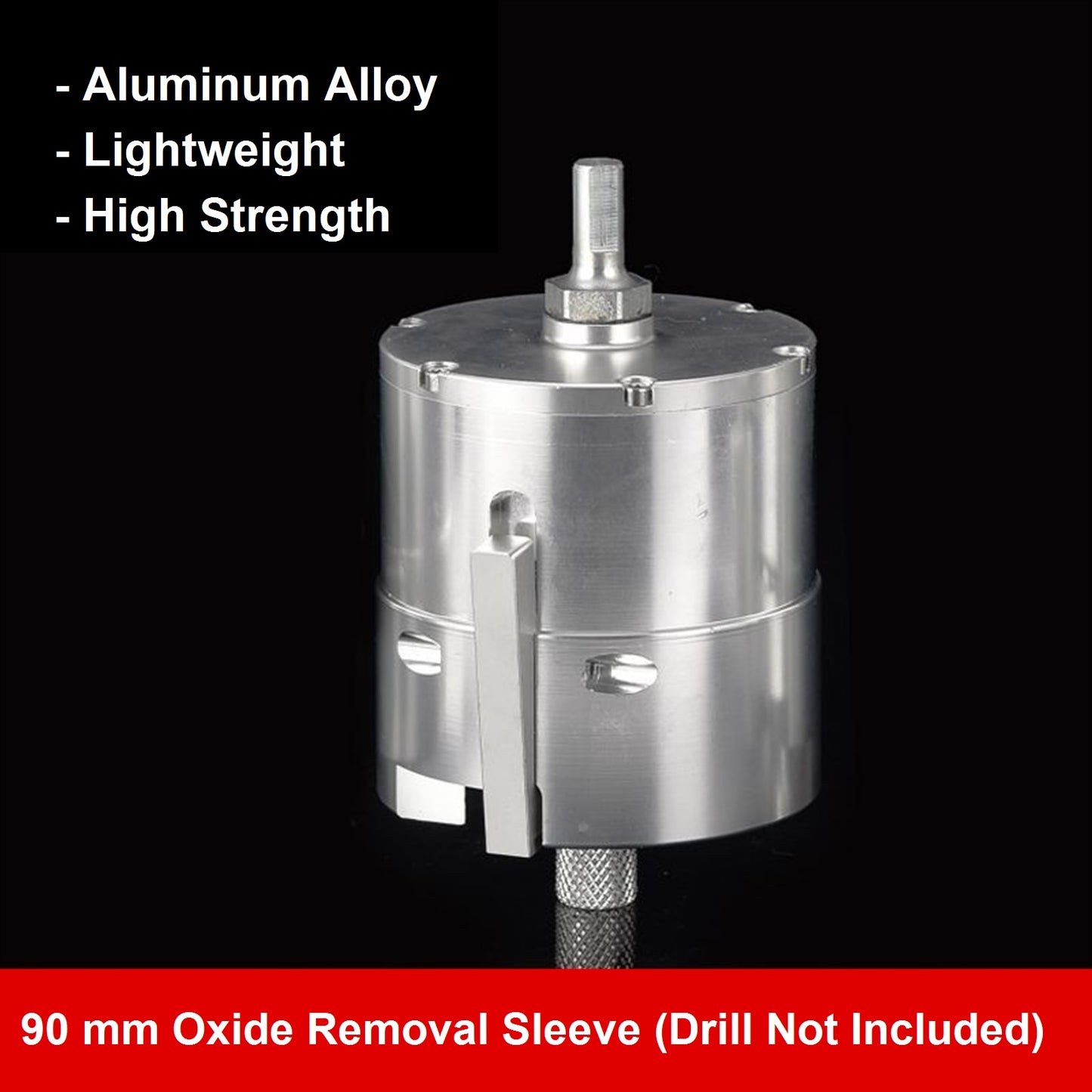

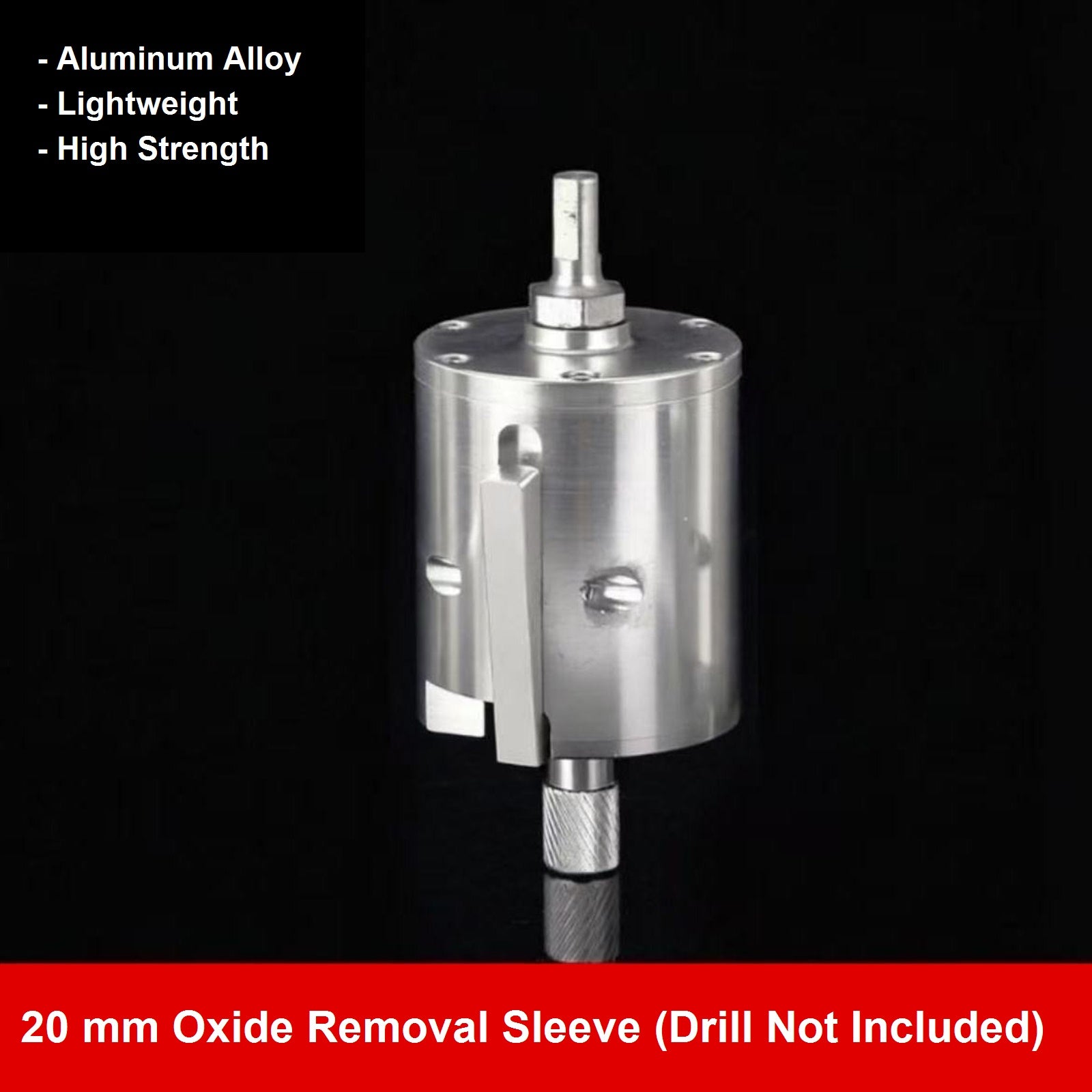

Available scraper sizes: 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, and 110 mm.

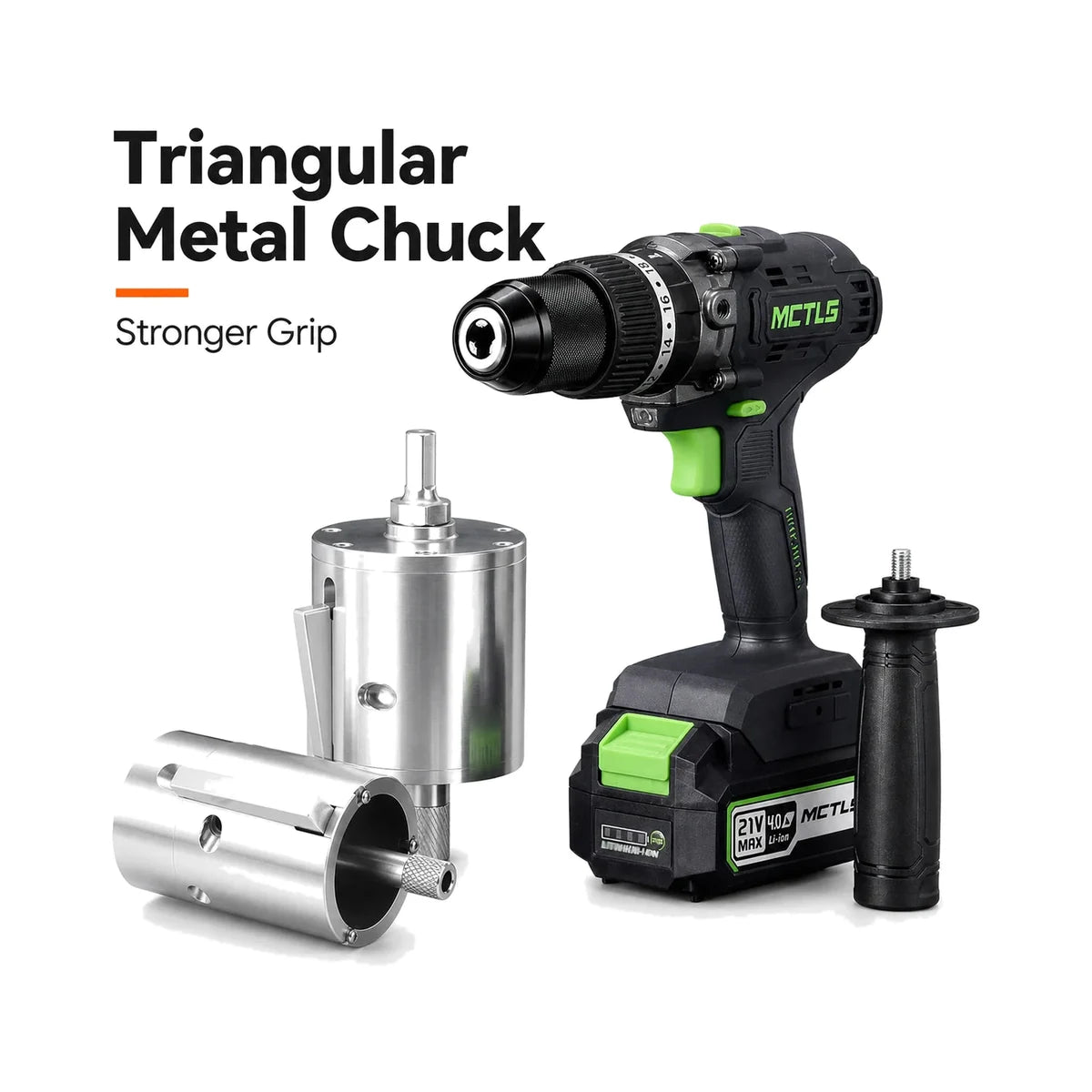

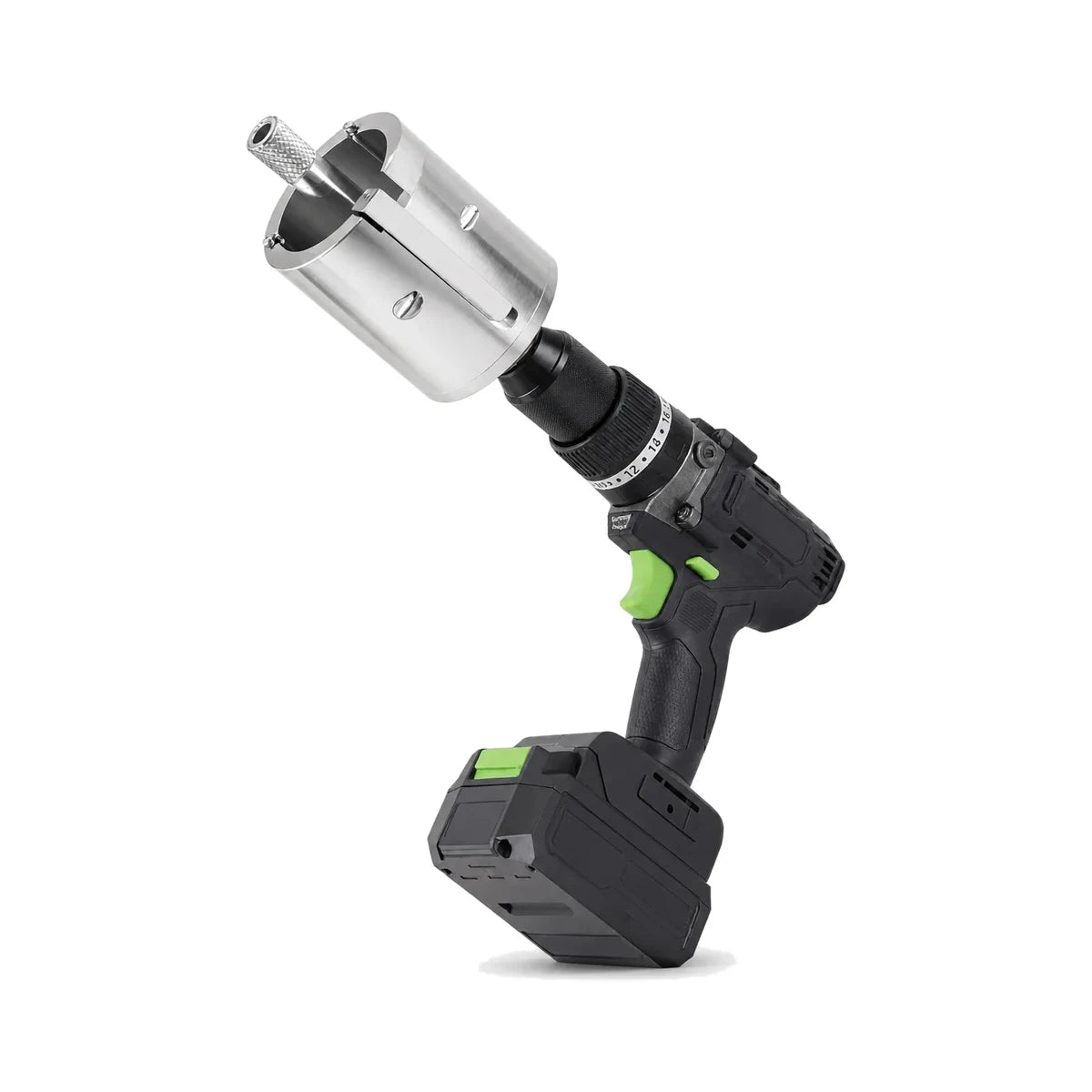

Electric lithium-battery drive with 10 mm chuck and 0-1200 r/min no-load speed.

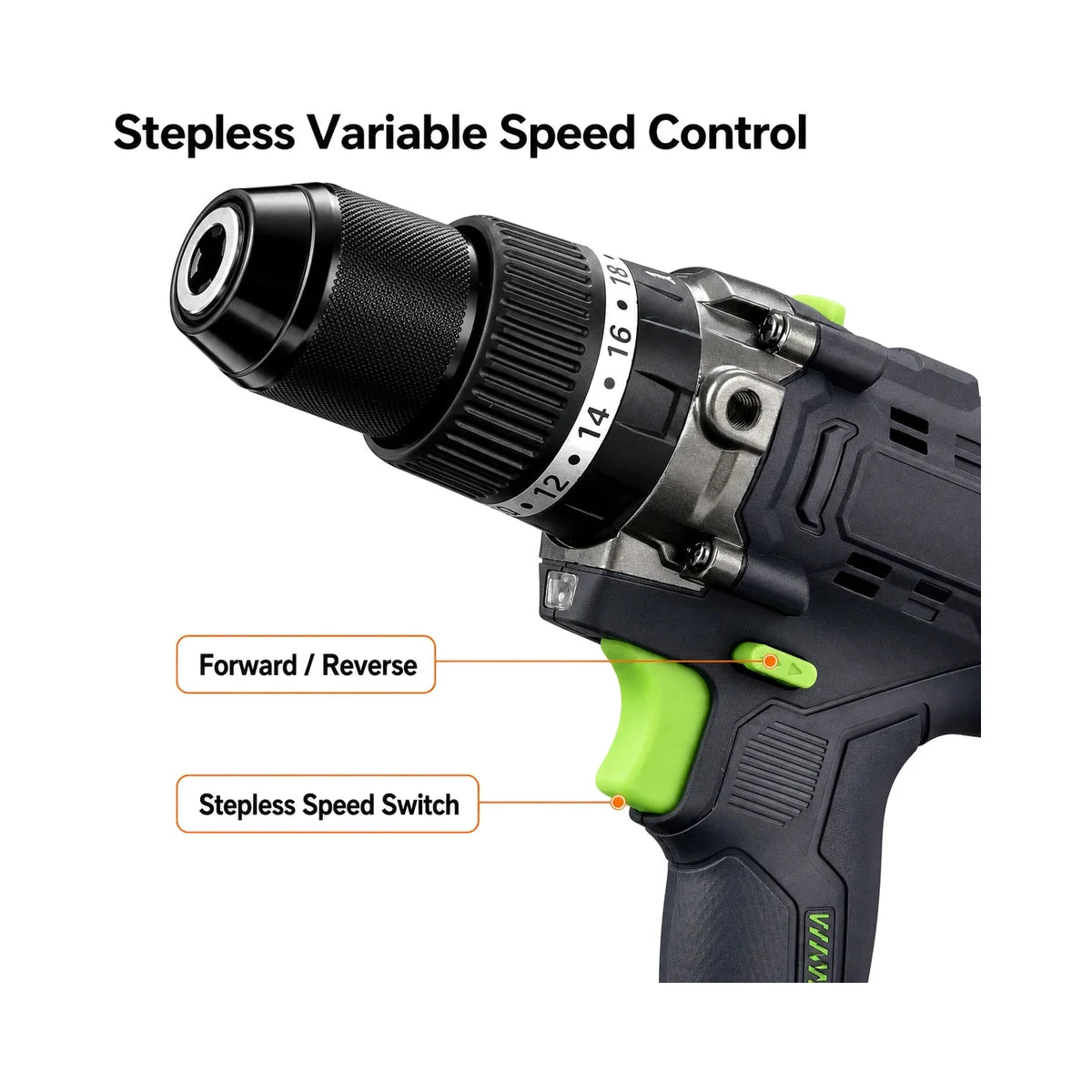

Two-speed regulation, variable speed switch, forward/reverse control, and LED lighting support on-site pipe work.

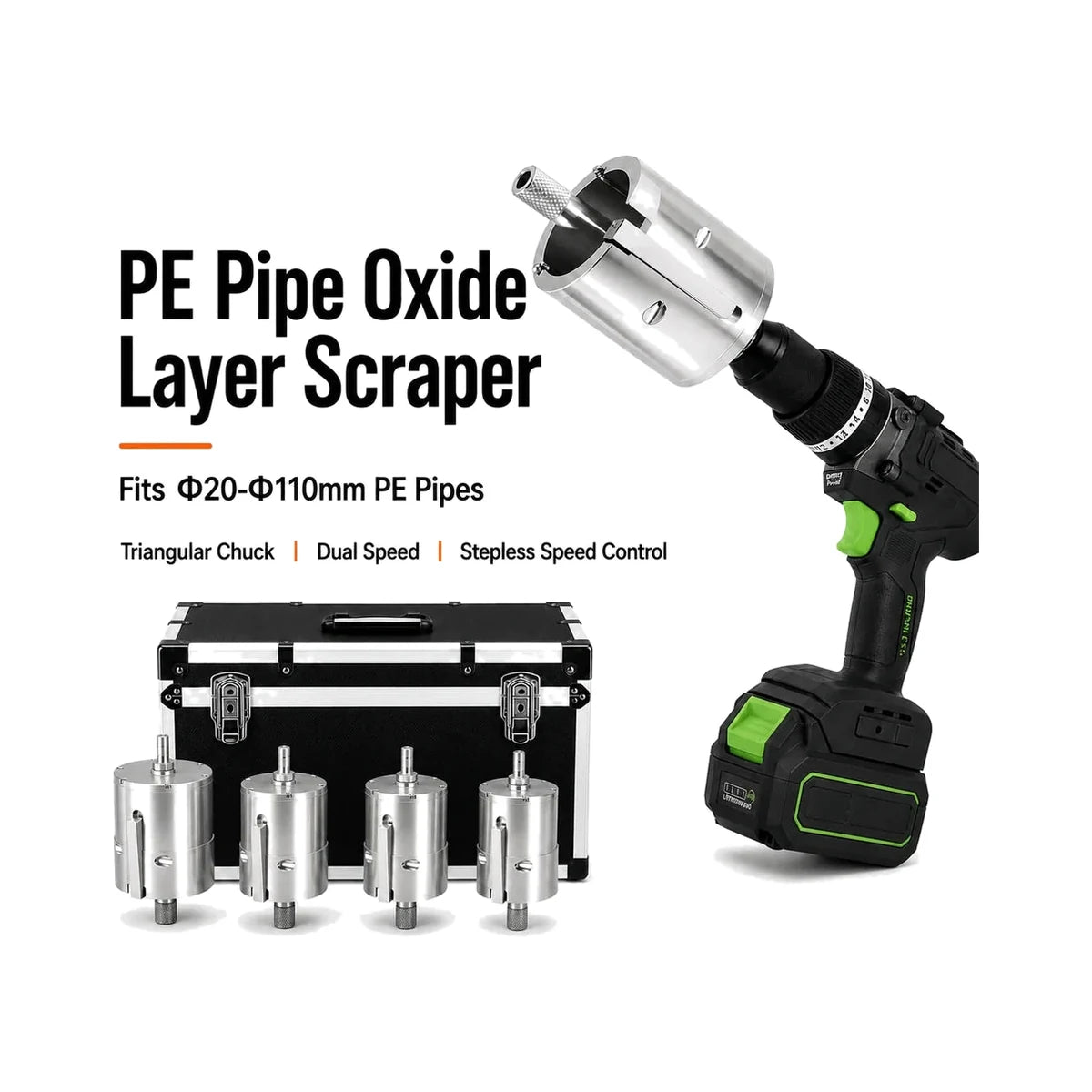

Choose an individual scraper sleeve or the Drill Set 63-110mm option according to the job.

Suitable Applications

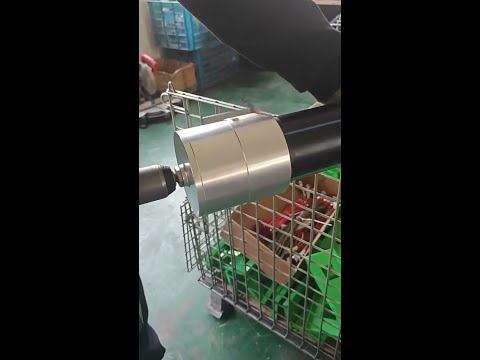

PE pipe oxide layer removal
Gas pipe surface preparation
Plastic pipe welding preparation
Steel wire skeleton plastic pipe surface scraping
Pipe installation and maintenance work

Specifications

Product Name	Electric PE Pipe Scraper
Applicable Pipe Diameter	20 mm / 25 mm / 32 mm / 40 mm / 50 mm / 63 mm / 75 mm / 90 mm / 110 mm
Chuck Diameter	10 mm
No-load Speed	0-1200 r/min
Speed Adjustment	Two-speed regulation / variable speed switch
Battery Type	Lithium battery
Direction Control	Forward / reverse switch

Scraper Size Reference

Scraper Size	Approx. Weight
20 mm	0.5 kg
25 mm	0.6 kg
32 mm	0.7 kg
40 mm	0.9 kg
50 mm	1.0 kg
63 mm	1.2 kg
75 mm	1.4 kg
90 mm	1.7 kg
110 mm	2.2 kg

Selection Notes

Select the scraper sleeve that matches the pipe outside diameter.
For repeated 63-110 mm pipe work, choose the Drill Set 63-110mm option if you need the multi-size set instead of one sleeve.
Keep the pipe stable during scraping and prepare the required welding or connection area before starting the joint work.

FAQ

Which scraper size should I choose?

Choose the sleeve size that matches the pipe outside diameter: 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, or 110 mm.

Is this tool suitable for PE pipe oxide layer removal?

Yes. It is made for PE pipe surface scraping and oxide layer removal before welding, connection, installation, or maintenance work.

Can it be used for gas pipe surface preparation?

Yes. The product is positioned for PE gas pipe and plastic pipe surface treatment before connection work.

What drive setup does the scraper use?

It uses an electric lithium-battery drive with a 10 mm chuck, 0-1200 r/min no-load speed, two-speed regulation, variable speed control, forward/reverse switching, and LED lighting.

What is the Drill Set 63-110mm option for?

The Drill Set 63-110mm option is for buyers who need the larger-size scraper set instead of ordering only one individual scraper sleeve.
