Digital Insulation Resistance Tester YH511, 1000V 2GOhm, for Insulation Checks | FMFPAX

$142.73 USD
$142.73 USD
Price includes duties & taxes. Shipping calculated at checkout.
  • 1-year warranty on machinery core parts. Free replacement parts shipped to you — no need to return the machine.
  • Duties and import taxes included for delivery to United States (DDP). No extra customs charges on arrival. Details
  • Ships within 2 business days. Air express 7–15 days, land freight 20–30 days, sea freight 30–50 days after dispatch.
  • Questions before you buy? WhatsApp +86 158 1830 7991 or sales@fmfpack.com

Secure checkout with PayPal, major credit cards or bank transfer. PayPal Buyer Protection

Accepted secure payment methods

Mastercard Visa American Express PayPal Discover JCB Bank Transfer

Product Details

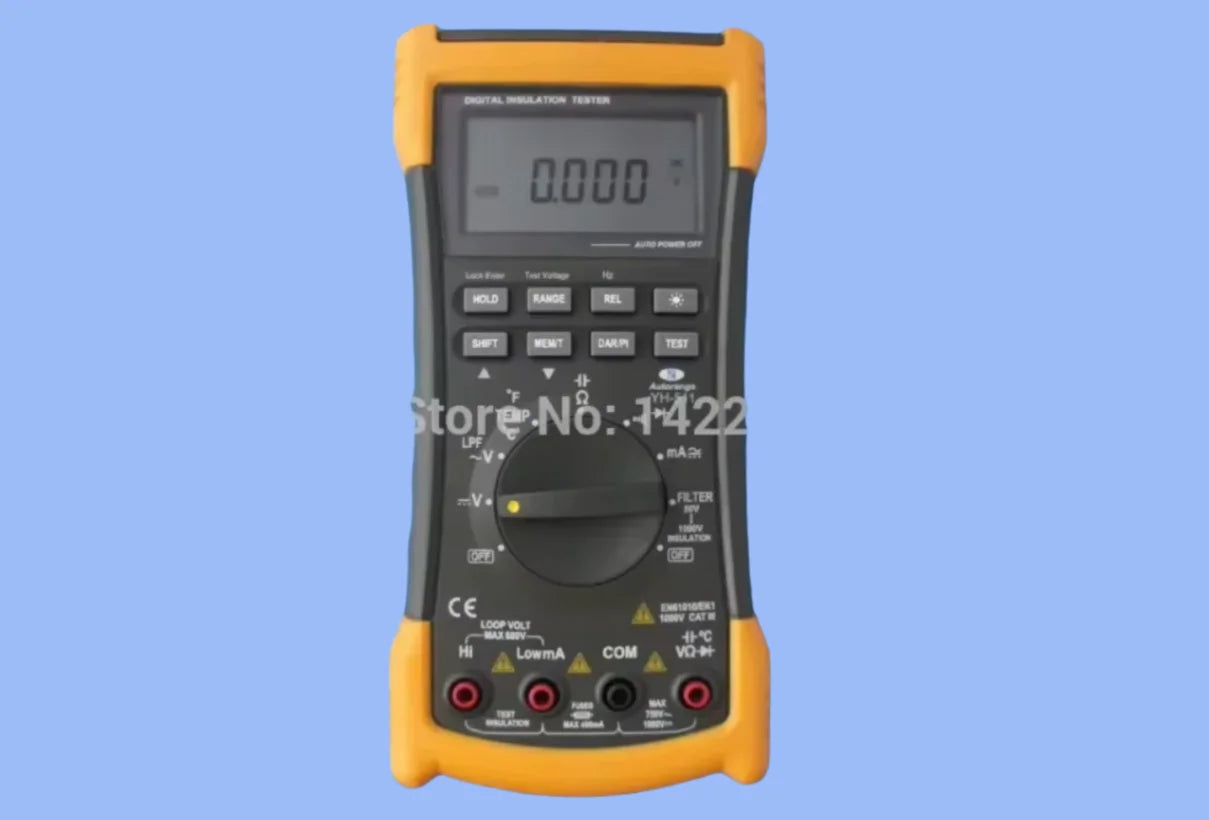

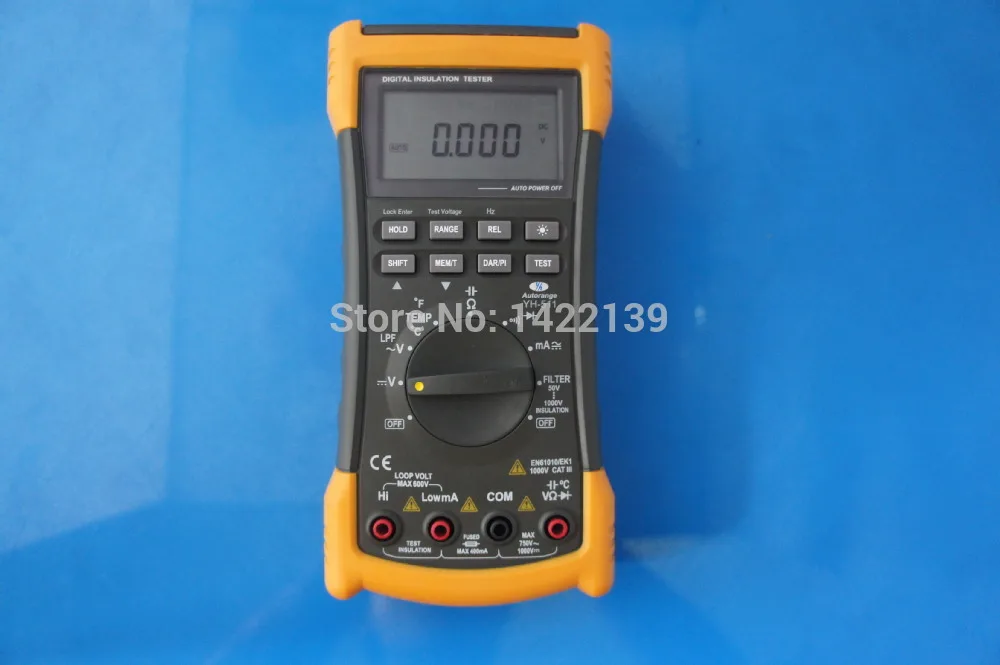

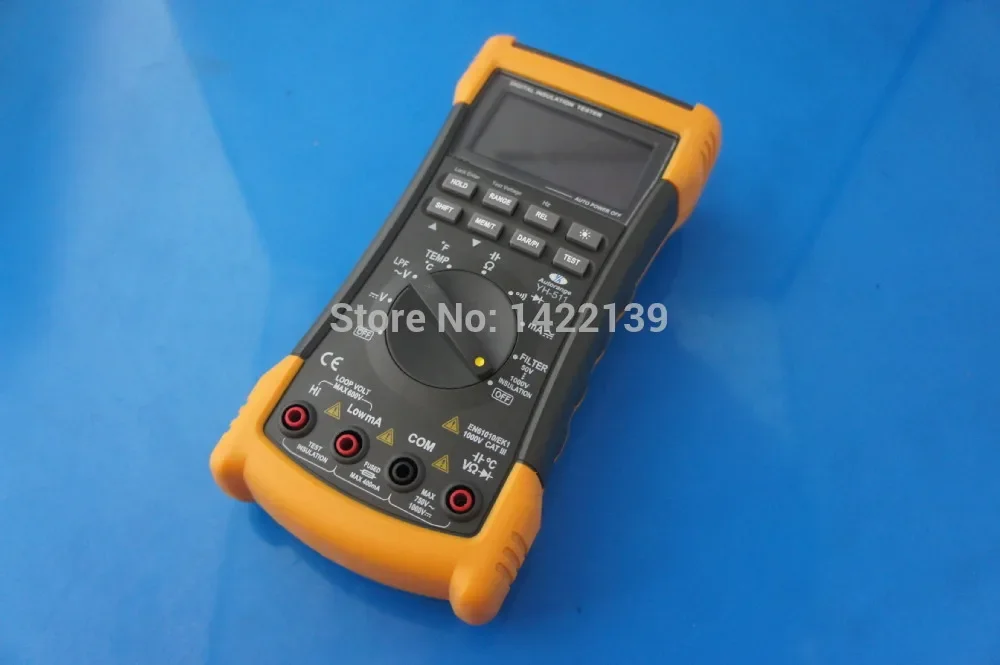

The YH511 is a portable digital insulation resistance tester and megohmmeter with multimeter functions. It is built for insulation resistance checks, high-voltage insulation testing, and general electrical measurement work in electrician and lab environments.

Key Features

  • Digital insulation resistance tester with portable megohmmeter function.
  • Insulation test voltages: 50V, 100V, 250V, 500V, and 1000V.
  • Insulation measurement range from 0.01MOhm to 2GOhm.
  • 6600-count LCD display for general multimeter readings.
  • True RMS AC voltage and current measurement.
  • Live circuit detection, timer, PI and DAR functions, and auto power off.
  • Record functions for max, min, average, and up to 100 data records.

Specifications

Model YH511
Product Type Digital insulation resistance tester / portable megohmmeter
Insulation Test Voltage 50V / 100V / 250V / 500V / 1000V
Insulation Resistance Range 0.01MOhm to 2GOhm
DC Voltage Range 600mV / 6.6V / 66V / 660V / 1000V
AC Voltage Range 660mV / 6.6V / 66V / 660V / 750V
Current Range 60mA / 400mA AC or DC
Resistance Range 600Ohm to 60MOhm
Capacitance Range 6nF to 60mF
Temperature Range -30C to 1000C
Operating Temperature 0C to 40C
Size 205 x 102 x 58 mm
Weight Approx. 390 g
SKU FMF-YH511-45337

Applications

Use the YH511 for insulation resistance checks and electrical measurement work where a portable megohmmeter with multimeter functions is required. The test-voltage steps and measurement ranges help buyers match the tester to electrician, maintenance, and lab workflows.

FAQ

What is the YH511?

It is a portable digital insulation resistance tester and megohmmeter with multimeter functions.

What insulation test voltages does it support?

The insulation test voltages are 50V, 100V, 250V, 500V and 1000V.

What insulation resistance range is listed?

The insulation resistance range is 0.01MOhm to 2GOhm.

Does it have multimeter functions?

Yes. Its multimeter functions cover DC voltage, AC voltage, current, resistance, capacitance and temperature measurement.

What is the size and weight?

The size is 205 x 102 x 58 mm, and the weight is approximately 390 g.
