OWON AG1022 25MHz DDS Arbitrary Waveform Generator, 2-Channel 125MS/s

$442.08 USD

Price includes duties & taxes. Shipping calculated at checkout.

1-year warranty on machinery core parts. Free replacement parts shipped to you — no need to return the machine.
Duties and import taxes included for delivery to United States (DDP). No extra customs charges on arrival. Details
Ships within 2 business days. Air express 7–15 days, land freight 20–30 days, sea freight 30–50 days after dispatch.
Questions before you buy? WhatsApp +86 158 1830 7991 or sales@fmfpack.com

Secure checkout with PayPal, major credit cards or bank transfer. PayPal Buyer Protection

Accepted secure payment methods

Product Overview

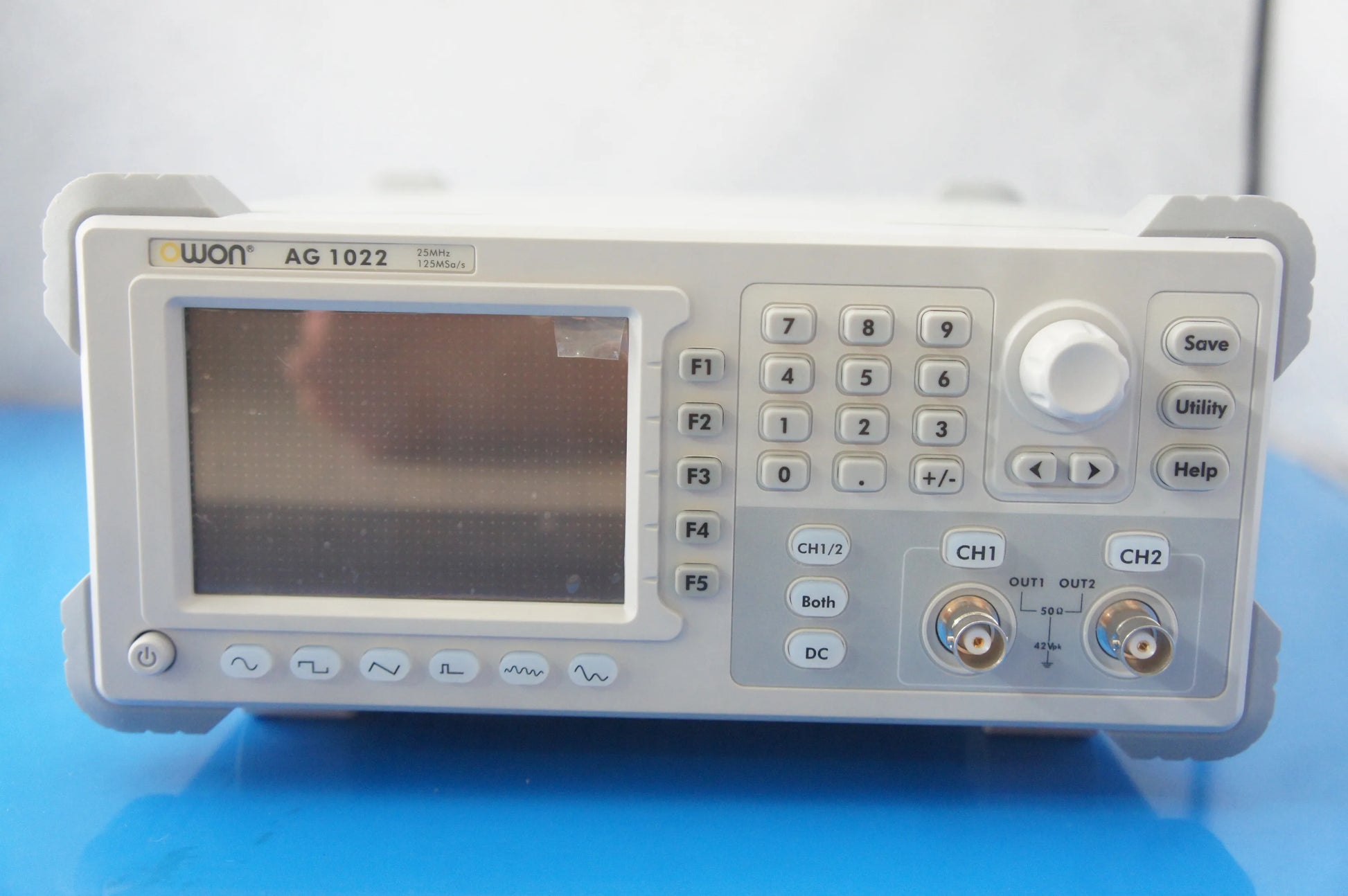

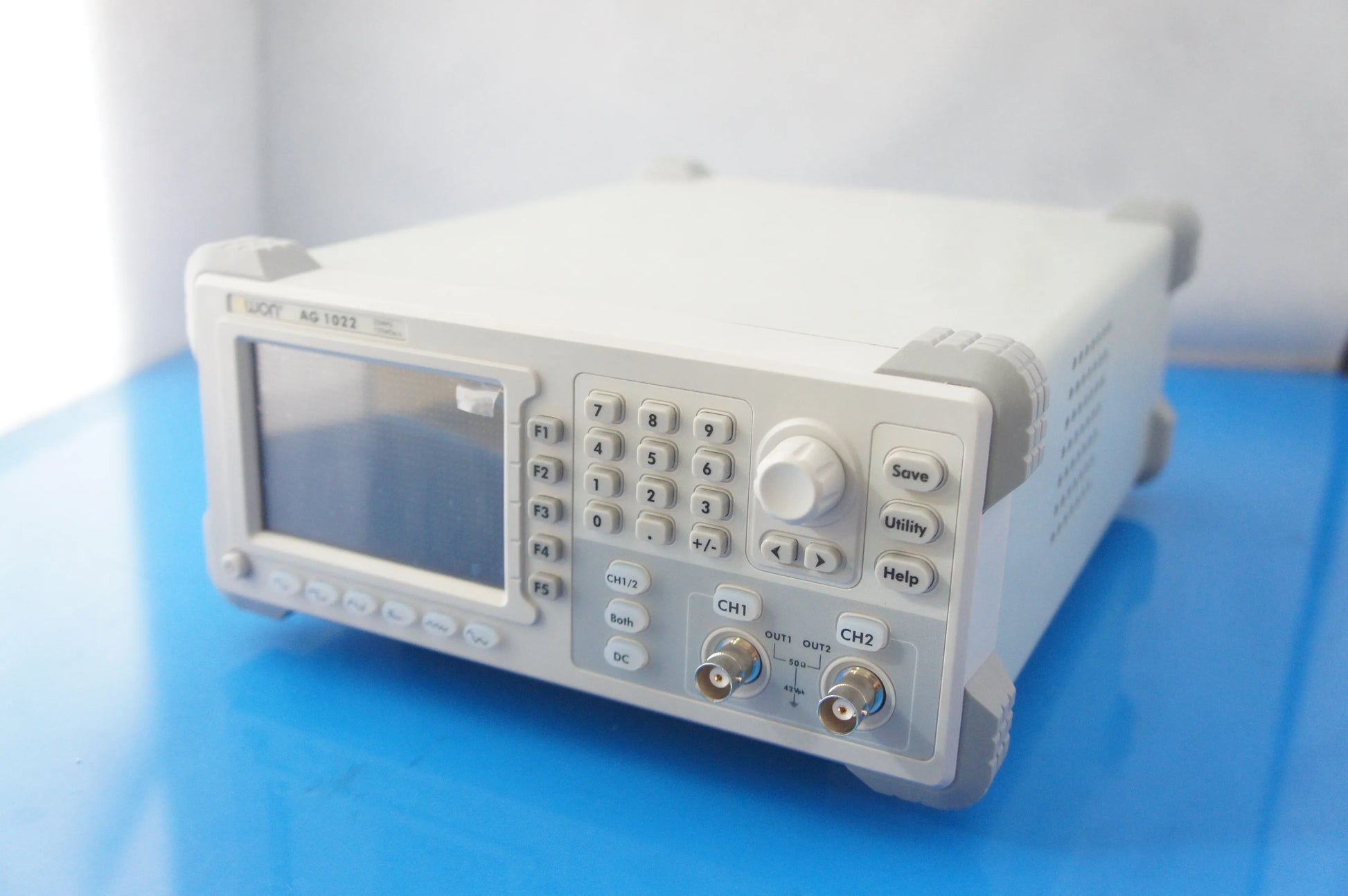

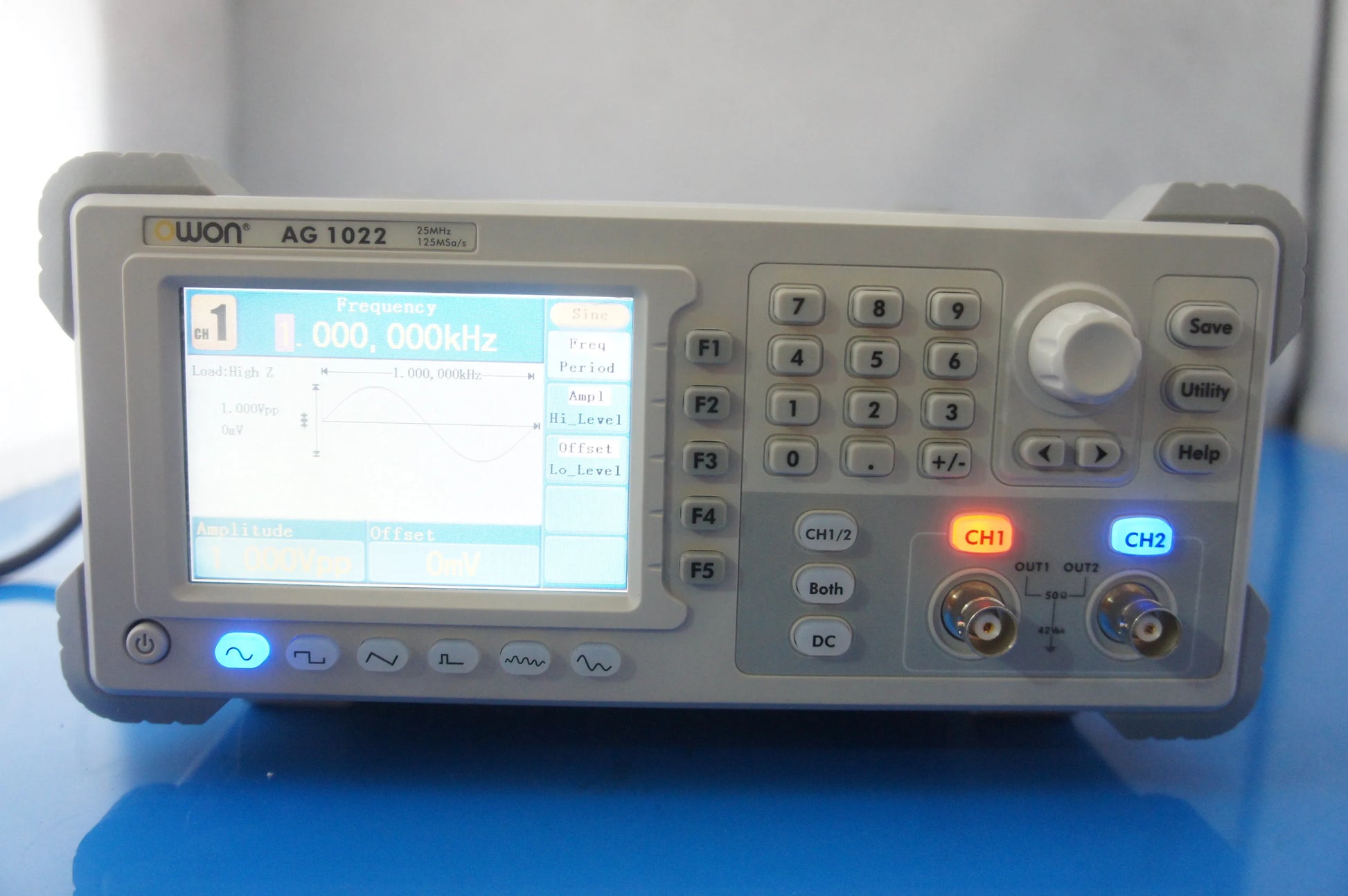

The OWON AG1022 is a 2-channel DDS arbitrary waveform generator for electronics testing, signal simulation, circuit debugging, and bench signal output. The front panel is marked AG1022, 25MHz, 125MSa/s, with CH1 and CH2 BNC outputs for dual-channel function generator work.

Specifications

Model	OWON AG1022
Instrument type	DDS arbitrary waveform generator / function signal generator
Channels	2 channels
Frequency output	25MHz for AG1022
Sample rate	125MS/s / 125MSa/s
Vertical resolution	14 bits
Standard waveforms	Sine, square, pulse, ramp, and noise
Arbitrary waveforms	45 built-in arbitrary waveforms plus user-defined waveform support
Arbitrary waveform length	2 pts to 8K pts
Output impedance marking	50 ohm front-panel output marking
Display	4-inch 480 x 320 LCD

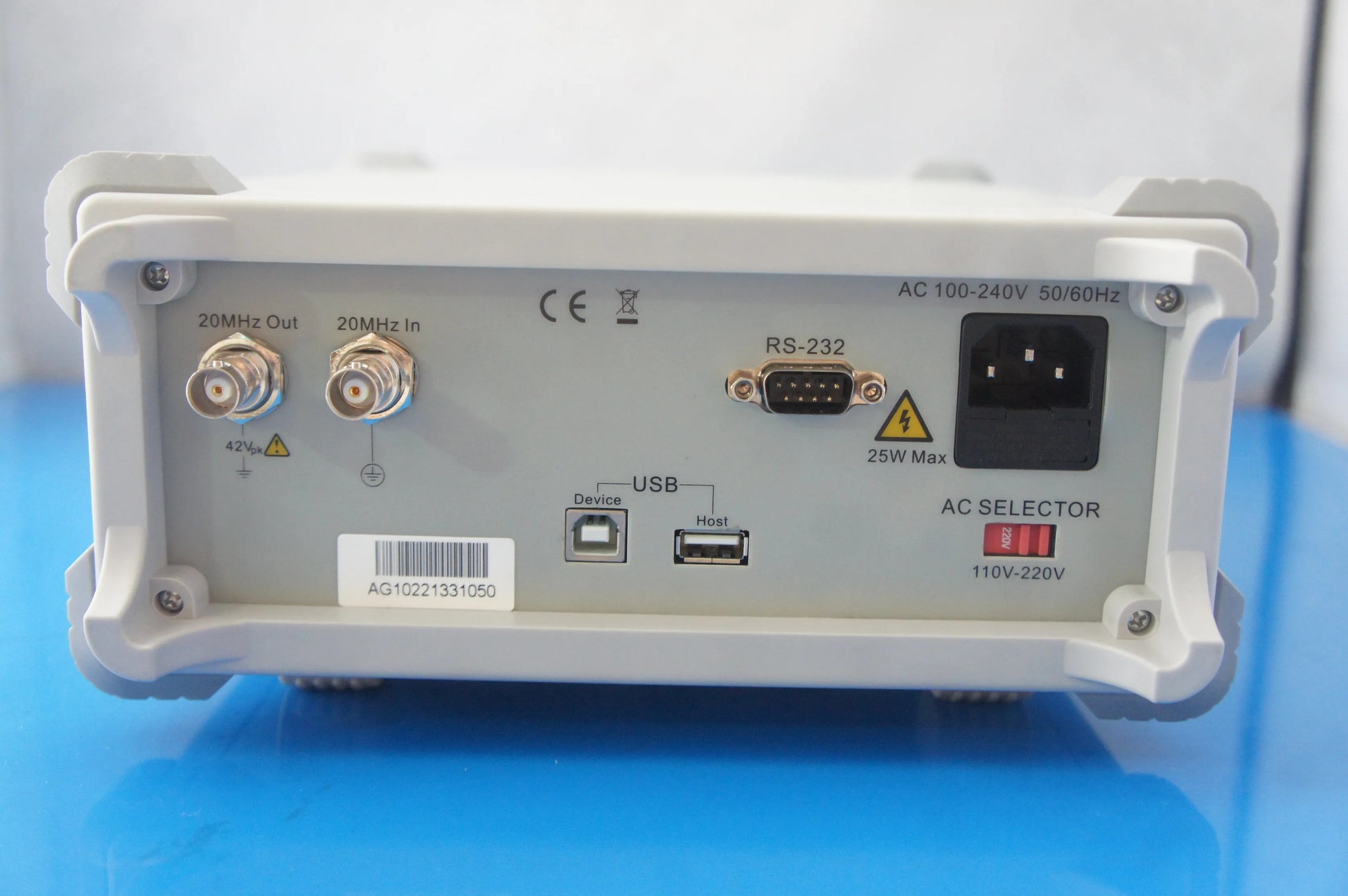

Rear-panel interfaces	USB Device, USB Host, RS-232, 20MHz In, 20MHz Out
Power marking	AC 100-240V, 50/60Hz, 25W Max; rear AC selector marked 110V-220V
SKU	FMF-AG1022-60793

Bench Use Notes

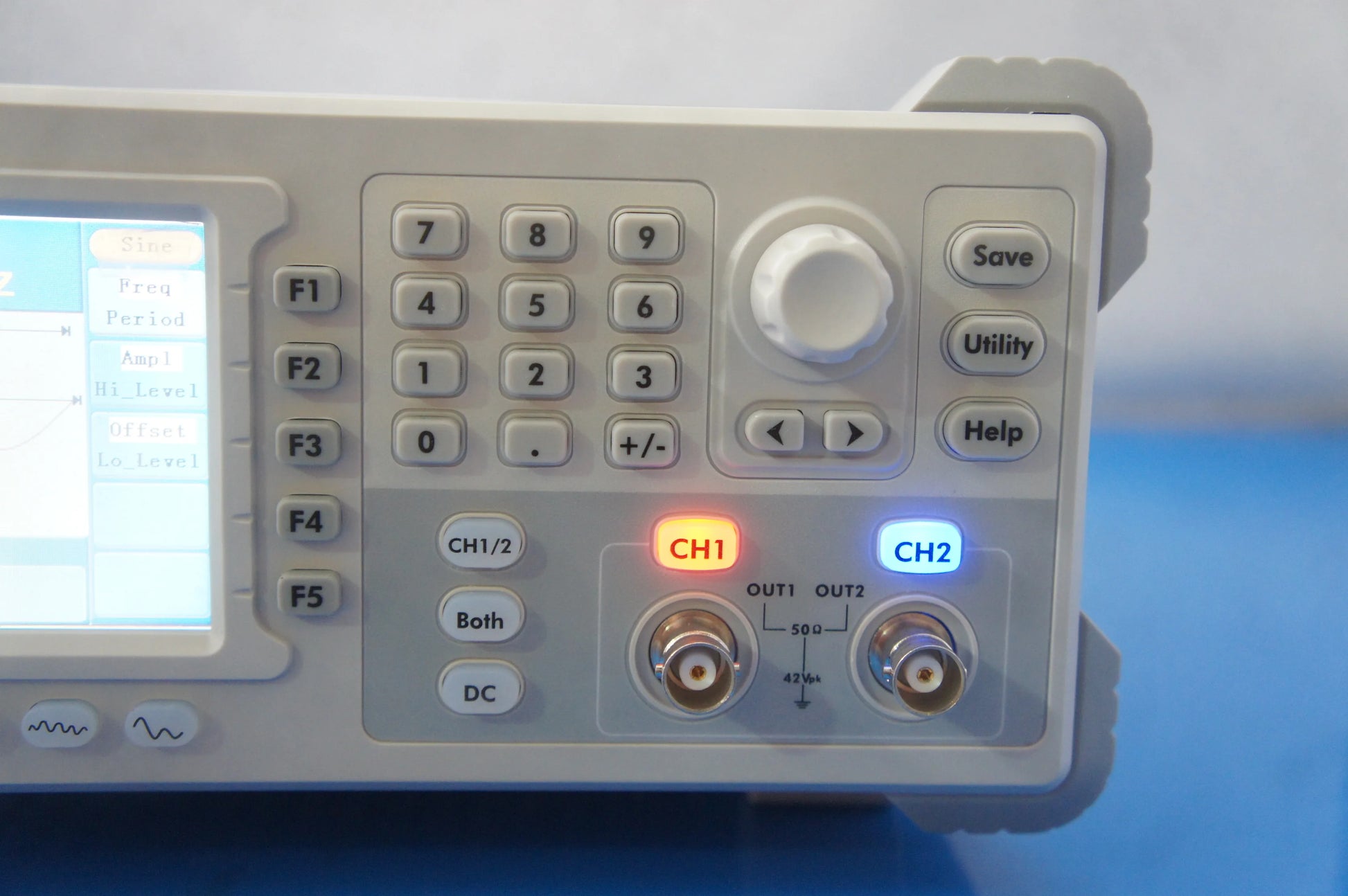

Use CH1 and CH2 for dual-channel waveform output, with front-panel controls for channel selection, waveform mode, amplitude, offset, frequency, and period settings.
The unit supports common function-generator waveforms plus arbitrary waveform output for more flexible electronics test setups.
USB Device / USB Host and the visible RS-232 rear port give the instrument practical bench connectivity options.
Before powering the instrument, check the rear AC selector and local power input requirement.

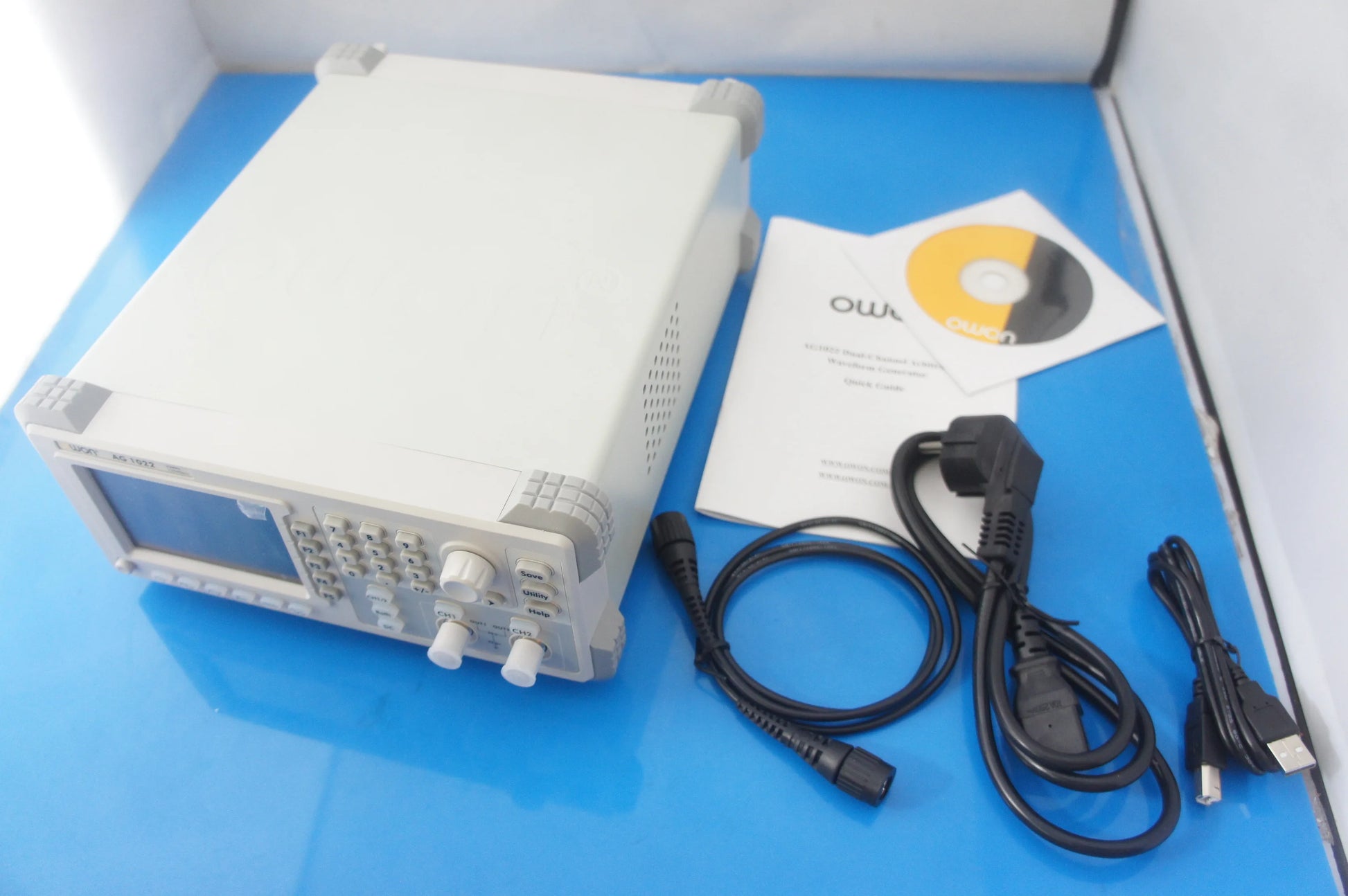

Included Items Shown

OWON AG1022 waveform generator
Power cord
USB cable
BNC cable
Quick guide and software CD shown in the product image

FAQ

What is the maximum frequency output for the AG1022?

The AG1022 specification lists 25MHz frequency output.

Is this a single-channel or dual-channel generator?

It is a 2-channel waveform generator with CH1 and CH2 outputs on the front panel.

What sample rate is designed for this model?

The AG1022 is listed with a 125MS/s sample rate, and the front panel is marked 125MSa/s.

Which interfaces are visible on the rear panel?

The rear panel shows USB Device, USB Host, RS-232, 20MHz In, and 20MHz Out connections.

What should I verify before ordering?

Confirm that the 25MHz frequency range, 2-channel output, 50 ohm output setup, rear interface layout, and local AC power setting match your test bench requirements.
