FMFPAX Dial Push Pull Force Gauge NK Series 10N-500N (1-50KG), Analog Tension Compression Tester with Peak Hold, Optional Test Stand

The FMFPAX NK Series is a mechanical dial push pull force gauge for measuring tension and compression from 10 N to 500 N (1 to 50 kgf). It is for QC inspectors, labs and production lines that need a quick force reading without batteries, software or charging.

Specifications

Models

Key Benefits

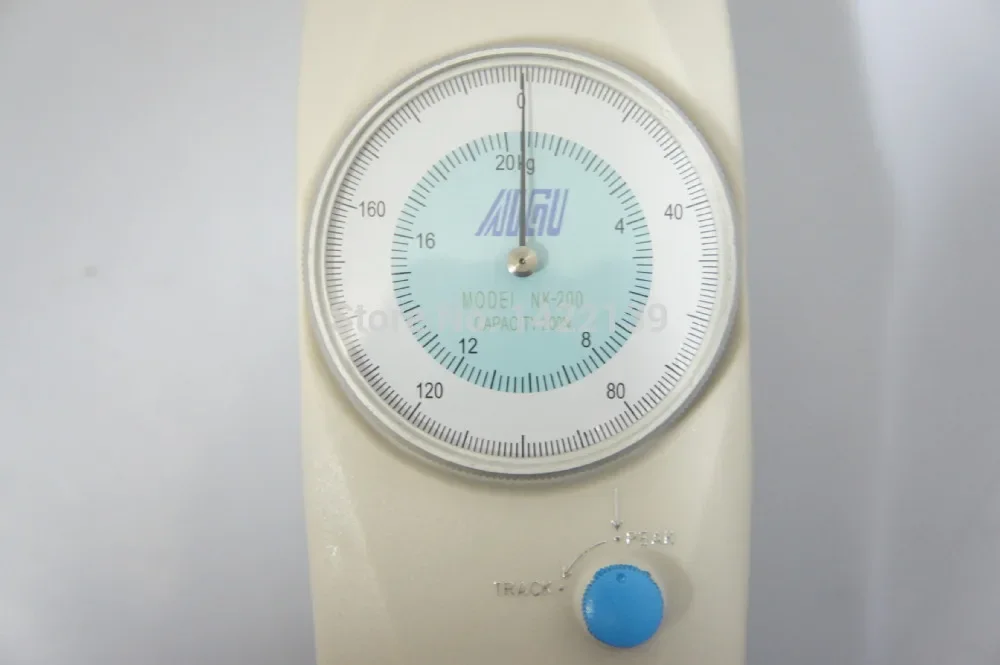

• Two scales on one dial: N outer ring and kgf inner ring, so you read either unit with zero conversion.
• PEAK and TRACK modes: one mode dial switches between holding the maximum and following the load in real time, so break and peel tests are captured in a single pull.
• Eight capacities, 10 N to 500 N: resolution from 0.05 N to 2.5 N lets you match the gauge to light springs or heavier fasteners.
• No power needed: the mechanical movement requires 0 batteries and 0 charging, so it is ready on the line or in the field.

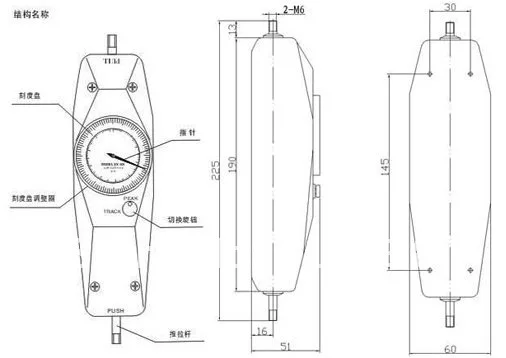

• Mount on a stand: M6 shaft and 4 × M3 rear holes let you fix the gauge to the optional horizontal or vertical stand for repeatable tests.

What's in the Box (gauge variants)

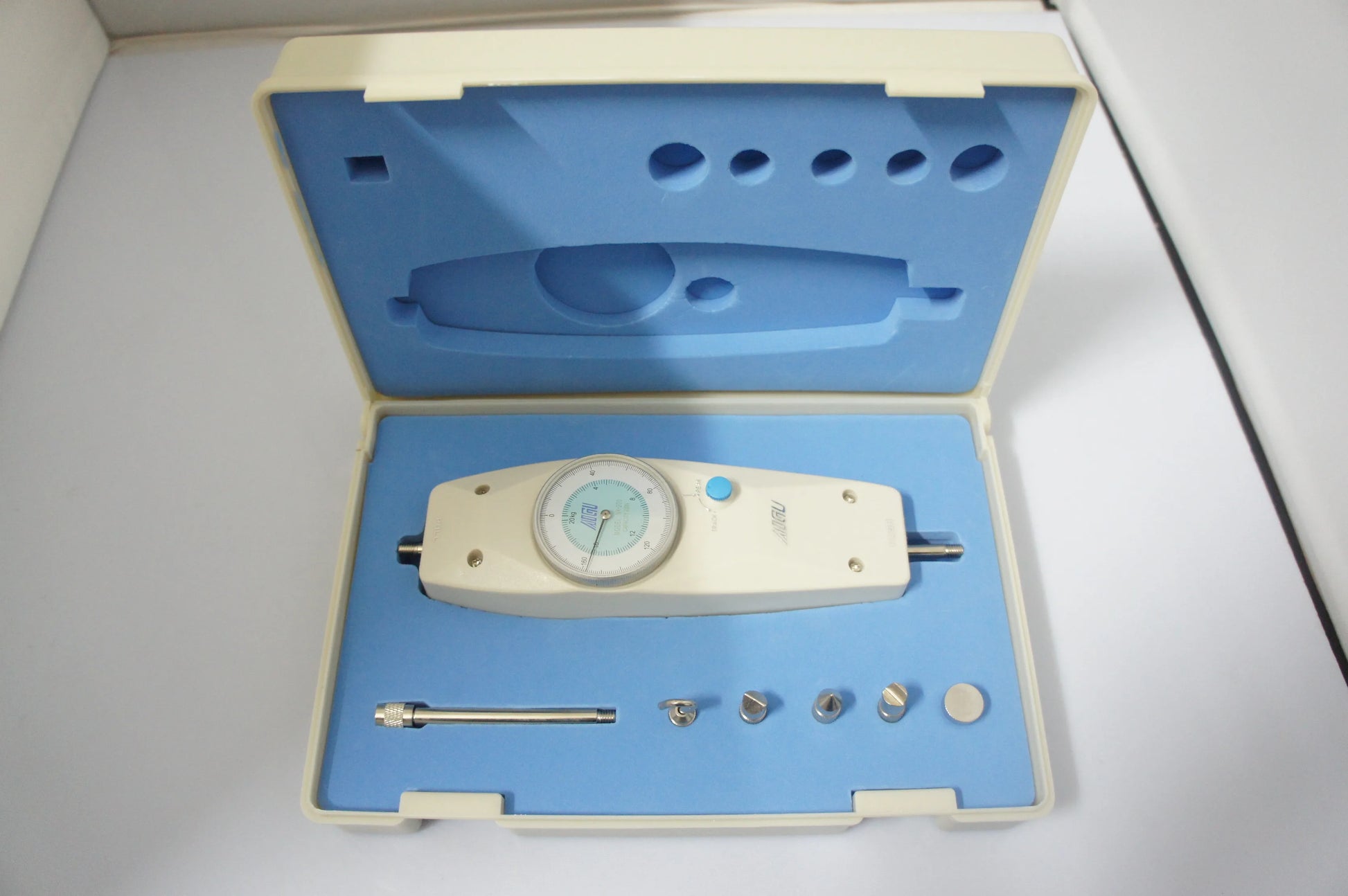

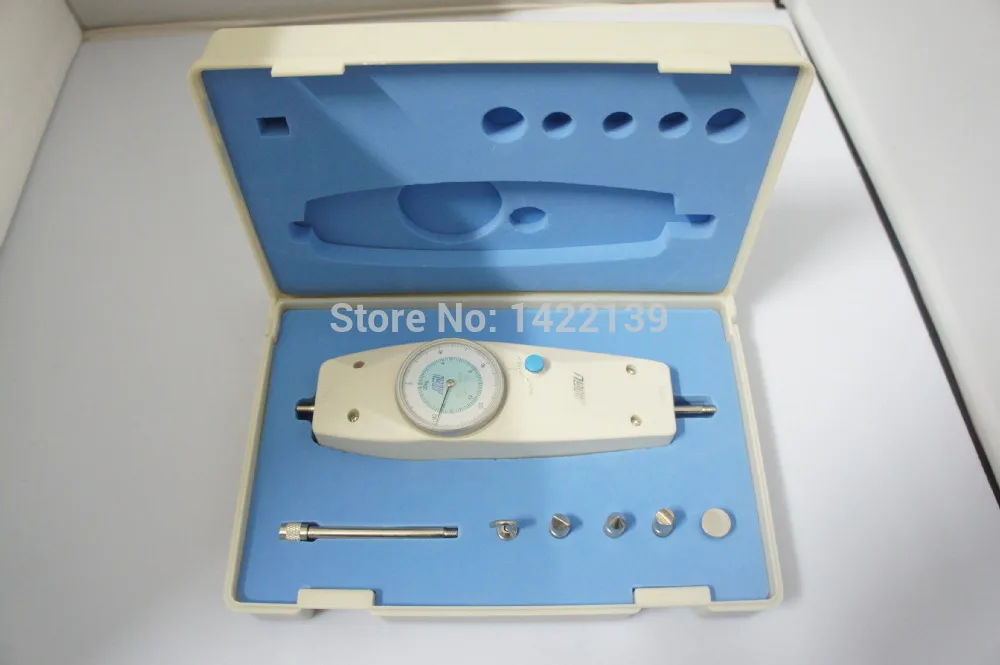

• 1 × NK dial push pull force gauge (selected capacity)
• 1 × extension rod

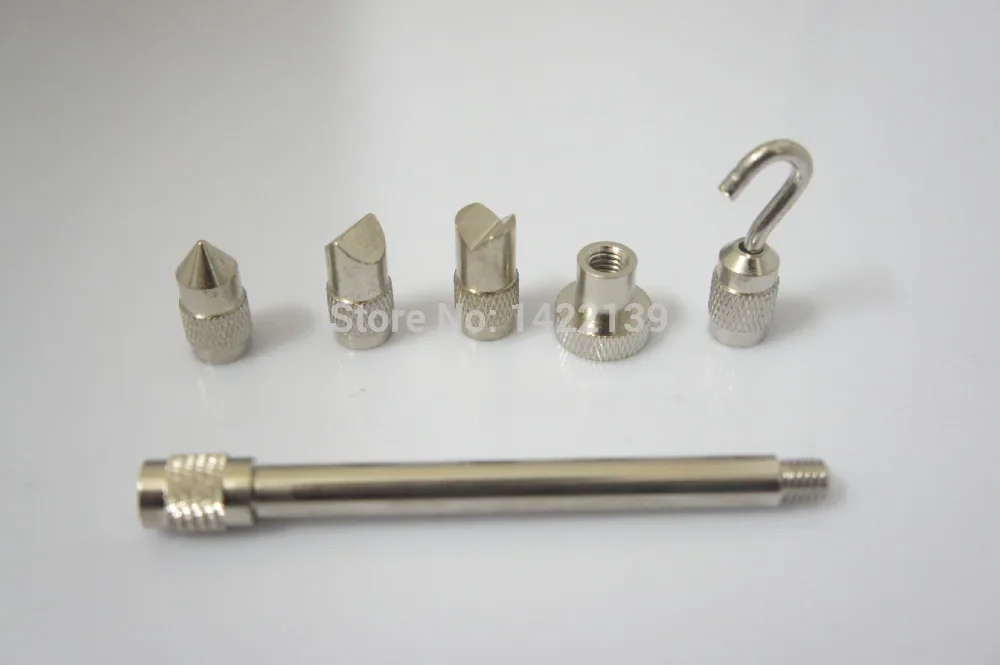

• 5 × test heads: hook, cone, flat, chisel, V-notch
• 1 × plastic carrying case

Use Cases

• Pull-off and peel tests on textiles, labels, tapes and packaging
• Spring, button and switch force checks in electronics and labs
• Insertion and pull-out checks on automotive and robot components
• Incoming inspection in warehouses and on production lines
• Building a simple test rig with the horizontal or vertical test stand

Not suitable for

• Loads above 500 N (50 kgf)
• Torque, bending or off-axis force measurement
• Applications needing digital data output, logging or PC connection
• Work needing a calibration certificate unless confirmed with us before order

Setup and Maintenance

1. Pick the model whose capacity exceeds your maximum load; never overload the gauge.
2. Screw the required test head onto the M6 shaft, using the extension rod if needed.
3. Set PEAK or TRACK on the mode dial and zero the pointer before each test.
4. Apply force in line with the shaft; do not bend, twist or load it sideways.
5. Do not disassemble the gauge. Store it in its case, clean and dry.

FAQ

What force ranges are available?

Eight ranges are available: 10 N, 20 N, 30 N, 50 N, 100 N, 200 N, 300 N and 500 N (1 to 50 kgf). Choose a model whose full scale is above your highest expected load.

What is the resolution of each model?

Resolution runs from 0.05 N on the NK-10 to 2.5 N on the NK-500. The full list is in the model table above.

Does the gauge need batteries or charging?

No. It is fully mechanical and works without any power source.

Can it hold the maximum reading?

Yes. Turn the mode dial to PEAK to hold the maximum value, or to TRACK for real-time reading, then press zero to reset.

Does it measure both push and pull?

Yes. It measures tension (pull, upper scale direction) and compression (push), using the hook or the push heads.

Is a gauge included with the test stand?

No. The horizontal and vertical test stands are sold separately and do not include a gauge.

Which test heads are included with a gauge?

Each gauge variant includes an extension rod plus hook, cone, flat, chisel and V-notch heads, packed in a carrying case.
