KTC838A Automatic Tension Controller/ Radius Taper Tension control with Communication Function+2pcs TS200-50 Tension Detector
package list:

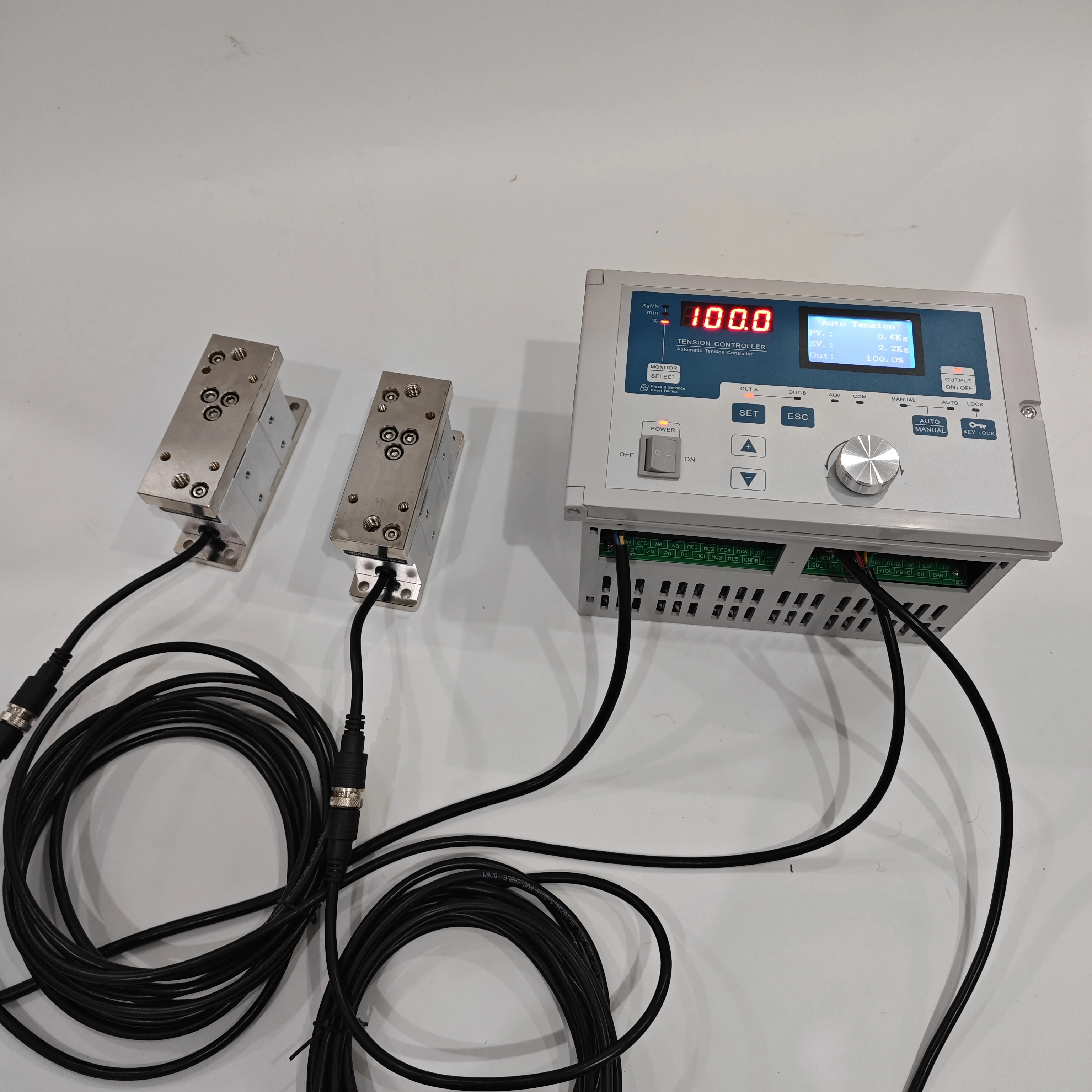

1 pcs KTC838A Automatic Tension Controller

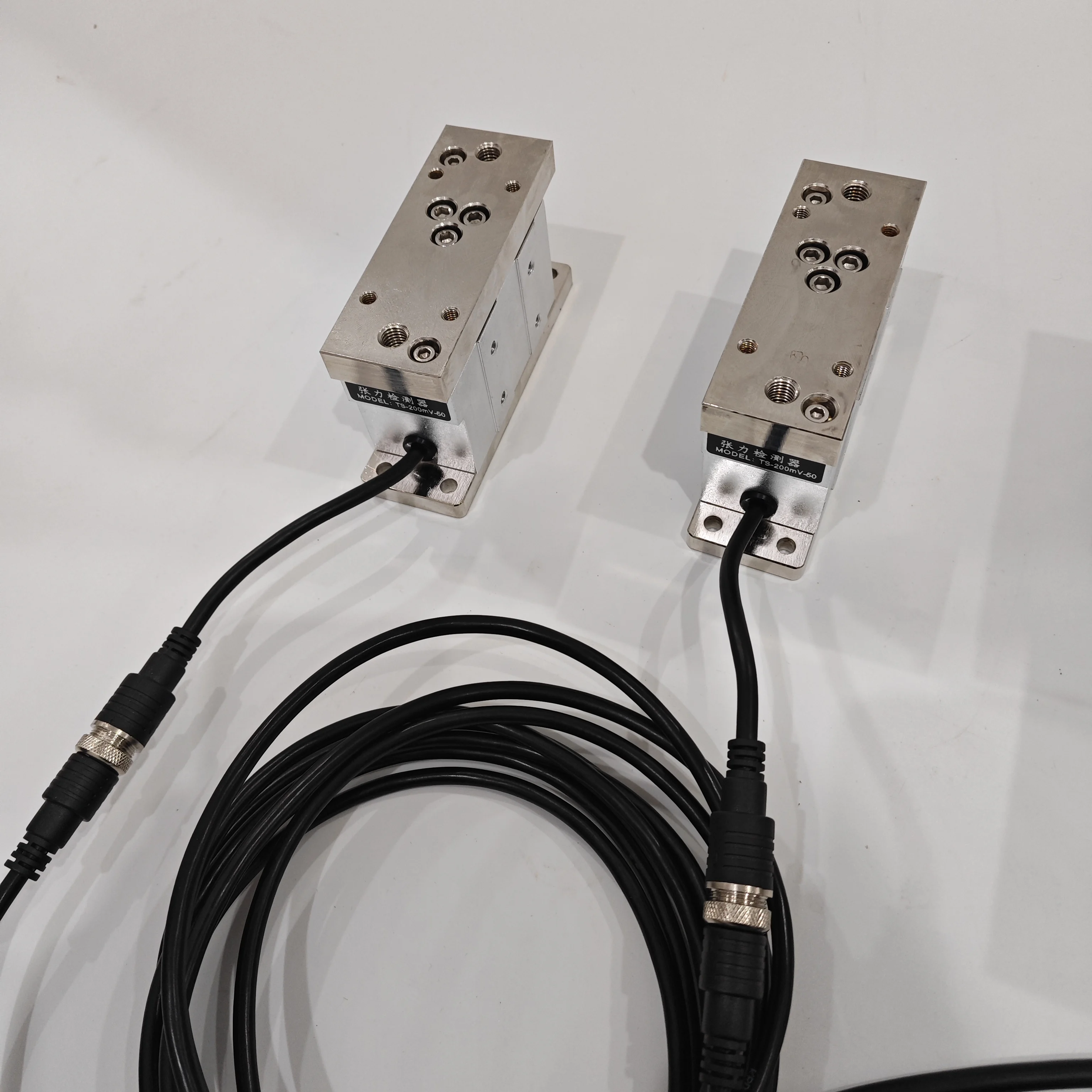

2pcs TS200-50 50KG Tension Detector（15Kg 30Kg 100Kg 200Kg Tension Detector is Optional）
cables

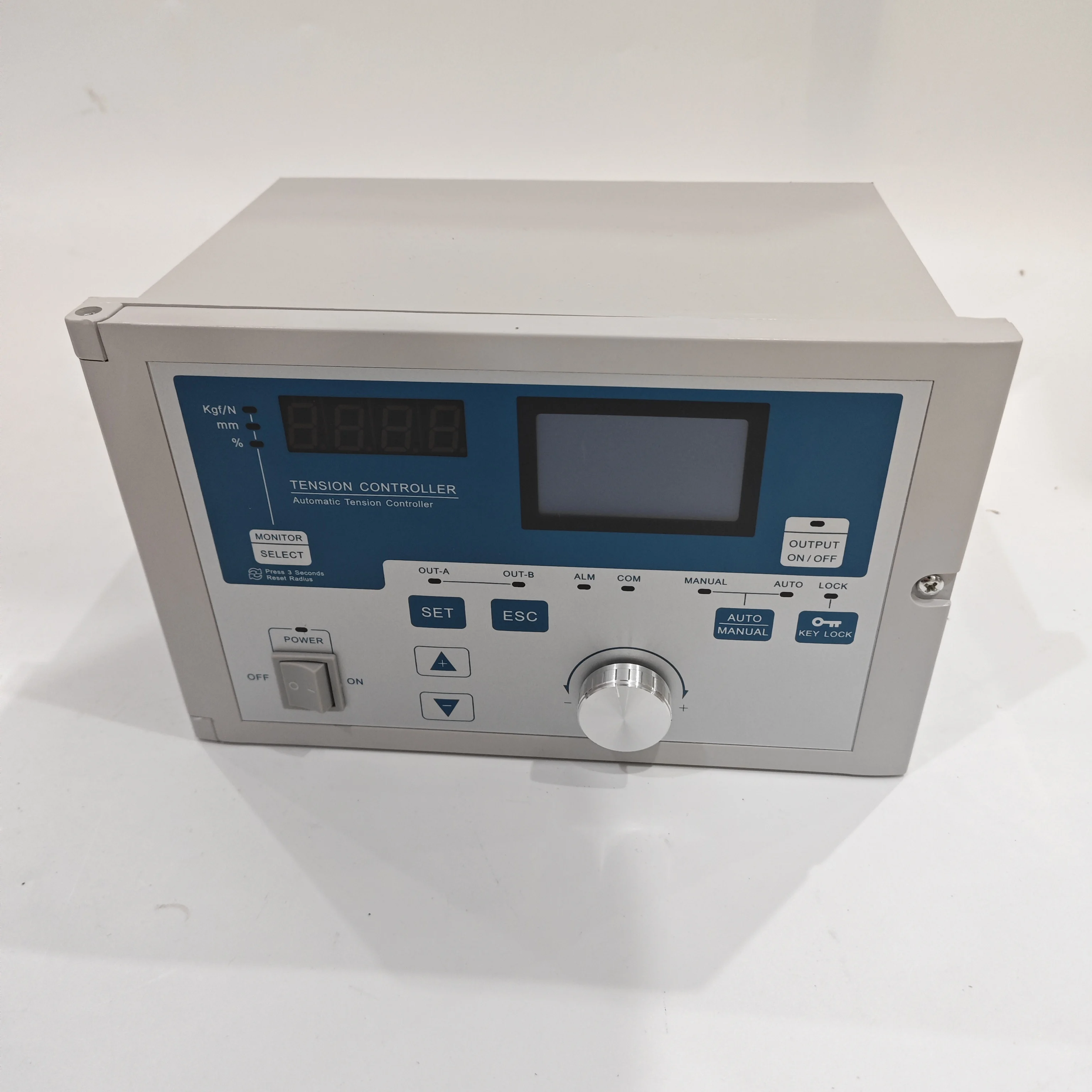

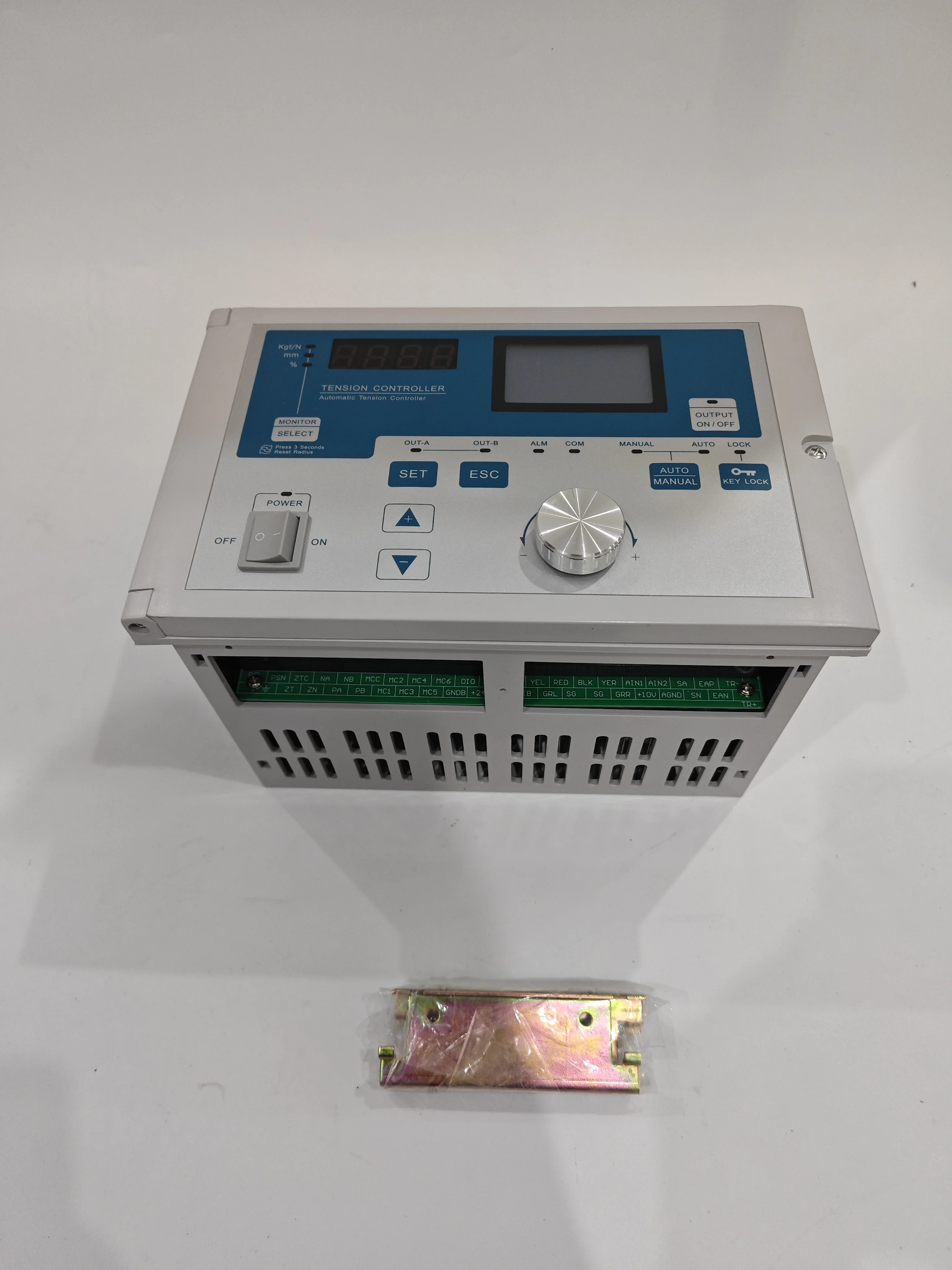

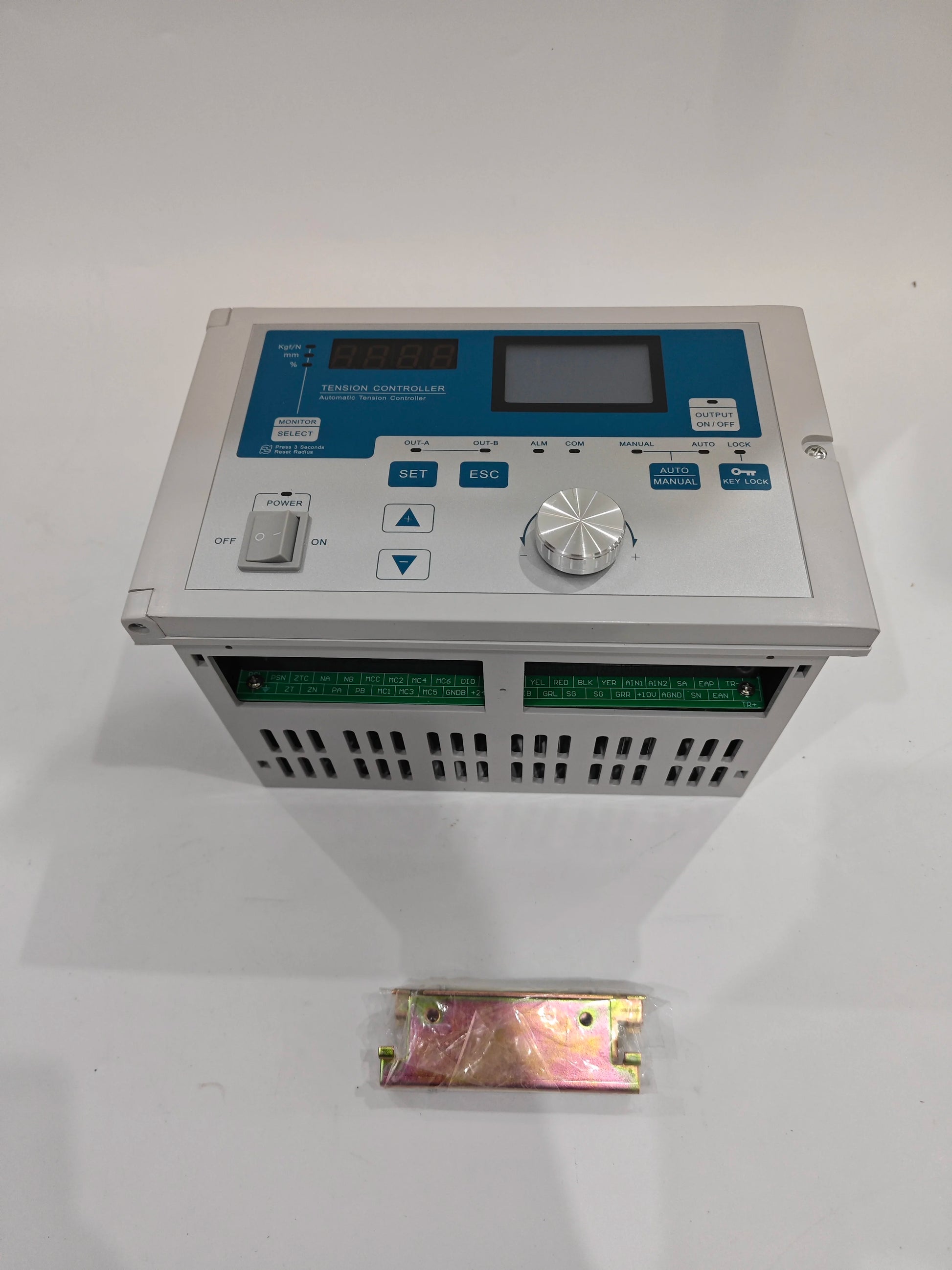

KTC838A Automatic Tension Controller
The tension controller KTC-838A is a high-precision, multi-function, all-digital intelligent tension controller that can be combined with a tension detector to form a closed-loop tension control system, or an automatic calculation of tension through a proximity switch/encoder to form an open-loop tension control system. It has the functions of KTC818A and KTC828A at the same time, providing users with more free choices.

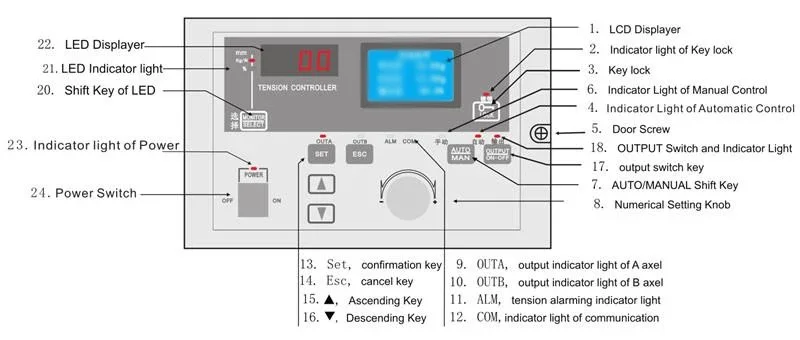

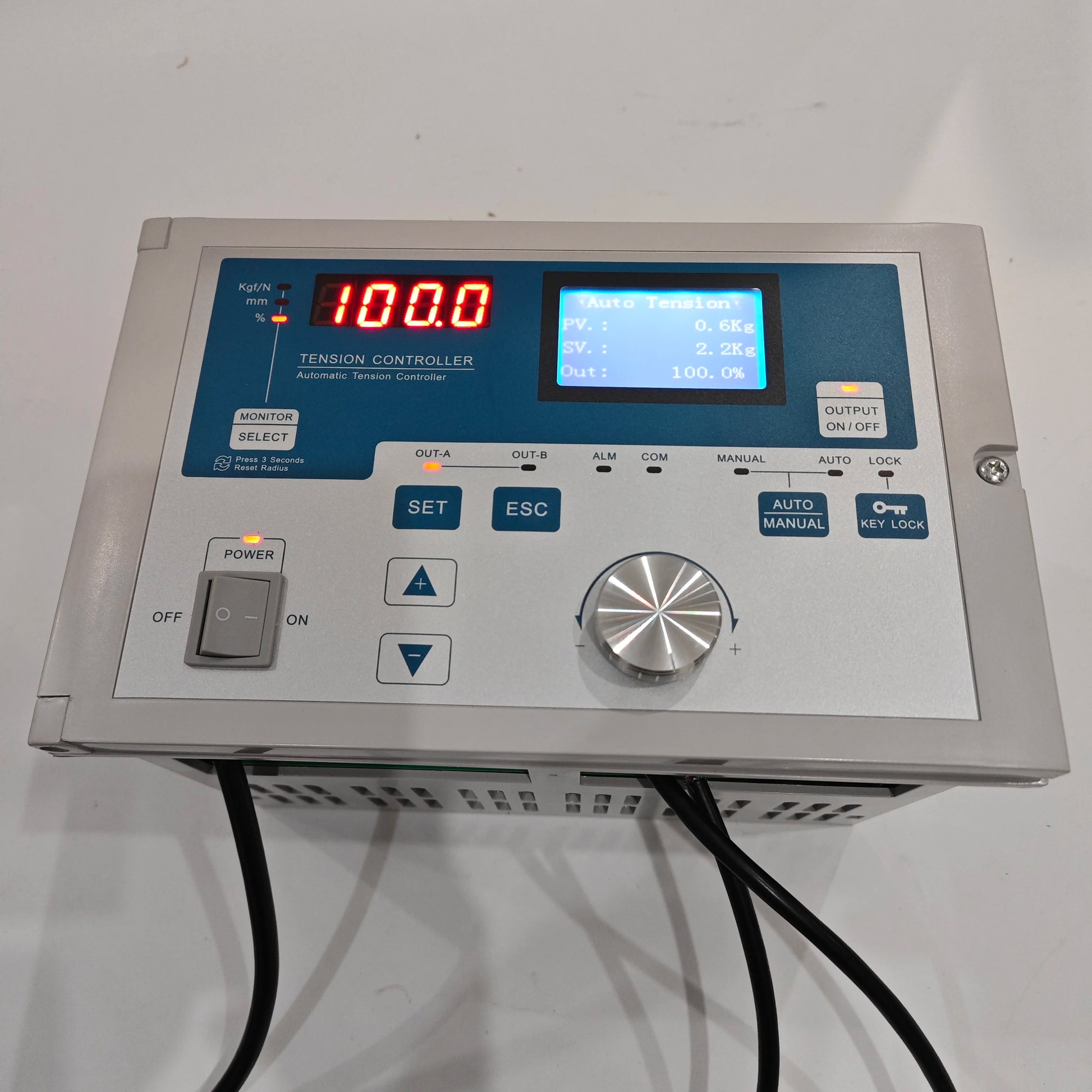

KTC-838A tension controller adopts a new graphic liquid crystal display, which shows clearer in Chinese and English. It also outputs 0~24VDC control voltage command for magnetic powder clutch/brake, and can also output 0~10V voltage signal to control inverter, servo motor or other actuators perform high-precision tension control on the coil material. Widely used in printing, packaging, paper, cable, rubber, electronic battery, textile printing and dyeing industries.

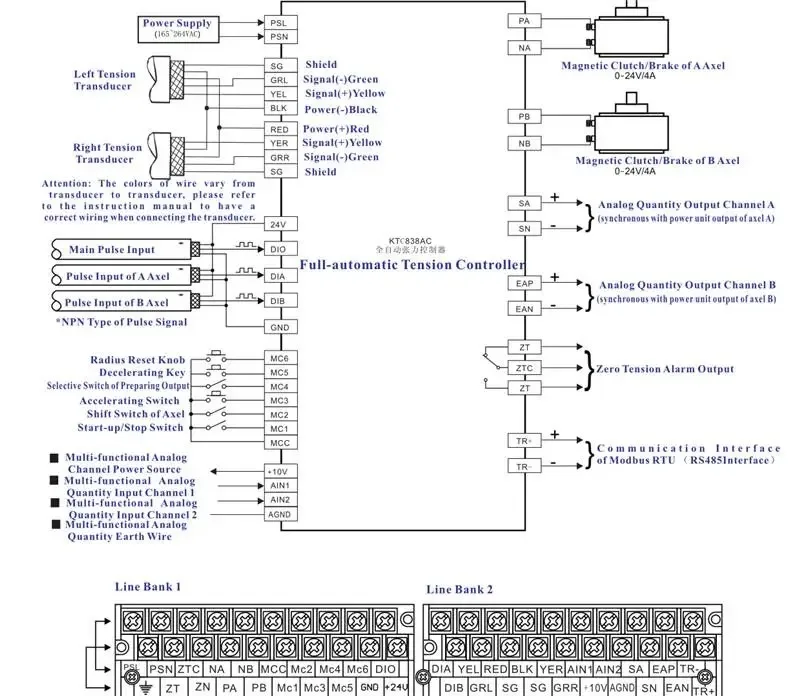

Wiring Diagram:
Parameter:
Work Input |
100-264VAC 50/60HZ 100W |
Work Output |
DC10V,the tension examination power source |
Simulation Input Signal |
Two group tension detector signal input |
Simulation Output Signal |
Control output DC0-10V to use in serving controls and so on amplifier. |
Input signal |
Each numeral quantities and so on coupling brake all to use the Photoelectrictiy isolation electric circuit to input, all digital quantity input only DIO DIA DIB. |
Use Ambient Temperature |
-10~40degree |
Use Environment Humidity |
35~85% RH( No condensation) |
Use Environment |
Non-corrosiveness, not flammable gas,non-conductive dust, dust few |
Earths |
D kind of earth (It is prohibition of the strong electricity electric wire earths together) |
1. using 32-bit high-speed CPU, graphic LCD display, user-friendly design, easy to operate

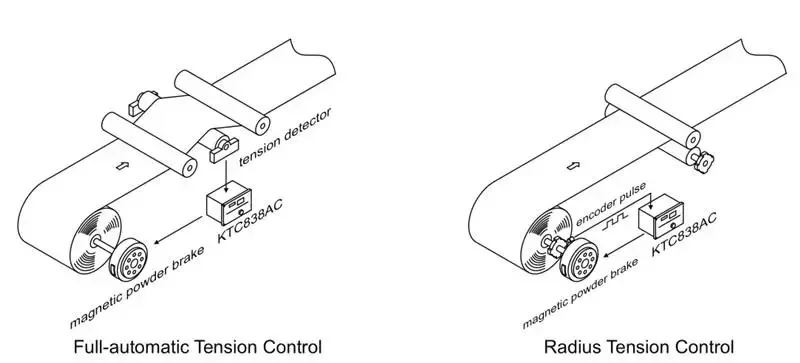

2. can choose automatic closed-loop tension control or coil diameter open loop tension control
3. using no over-modulation PI algorithm, tension control is fast and stable
4. support thickness accumulation, ratio method to measure the diameter
5. double station switching, acceleration and deceleration compensation
6. dual 24V / 4A output, can directly drive two brakes / clutch
7. can output 0-10V, 4-20mA drive inverter / servo motor
8. simple installation and commissioning, tension calibration process is simple
9. support standard Modbus communication protocol, all parameters open, connected to PLC / touch screen is very convenient
10. parameter password protection to prevent misuse
11. tension measurement is high stability, no temperature drift
Installation:

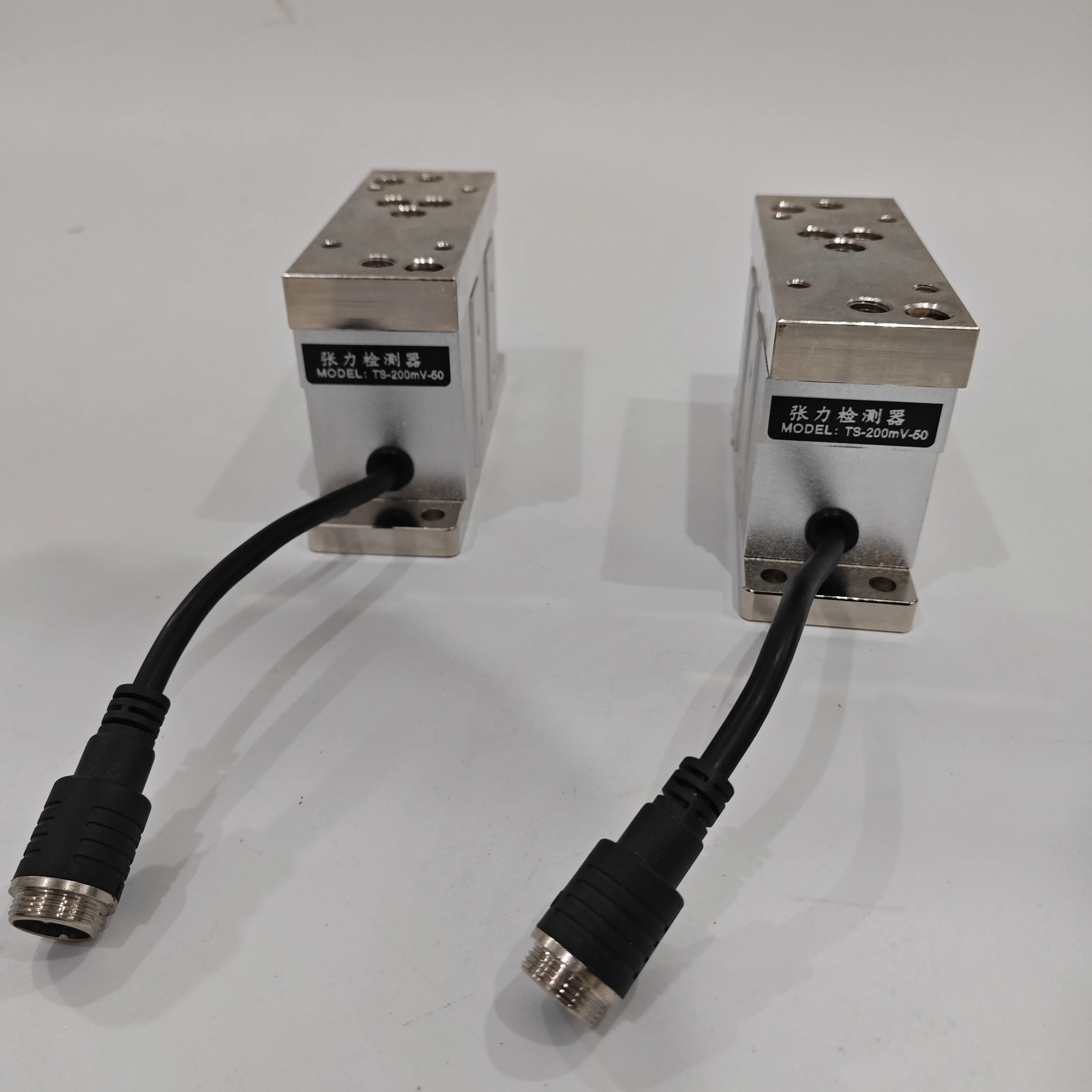

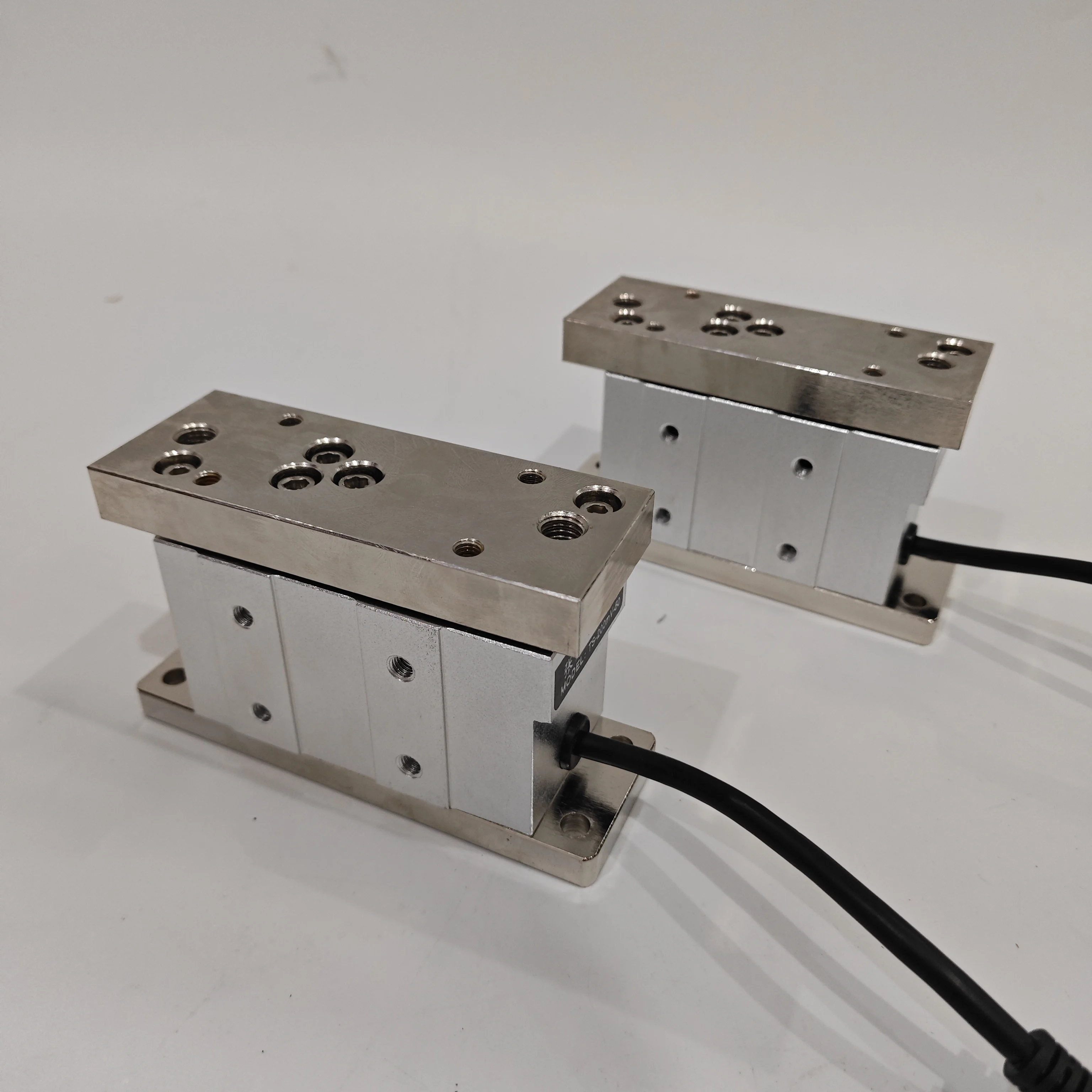

TS200-50 Tension Detector :
LX series tension sensors are detected by full bridge strain gauge and processed by integrated circuit, so as to detect the tension, high stability value and good linearity.

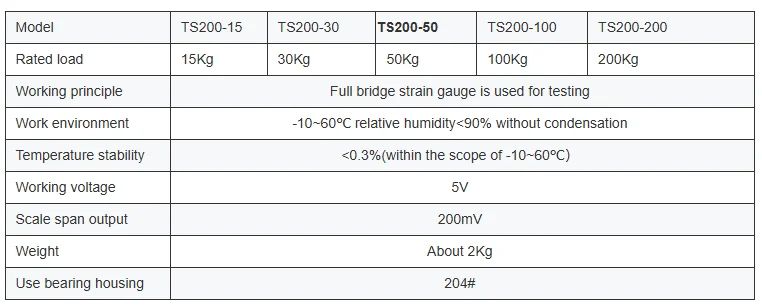

Technical Parameters

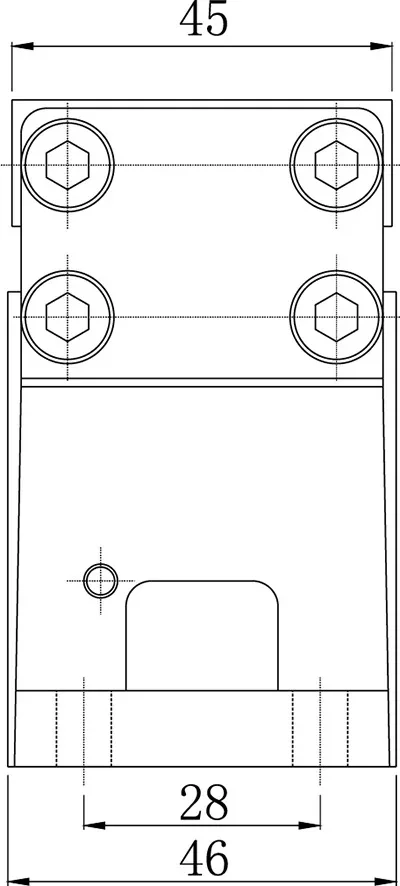

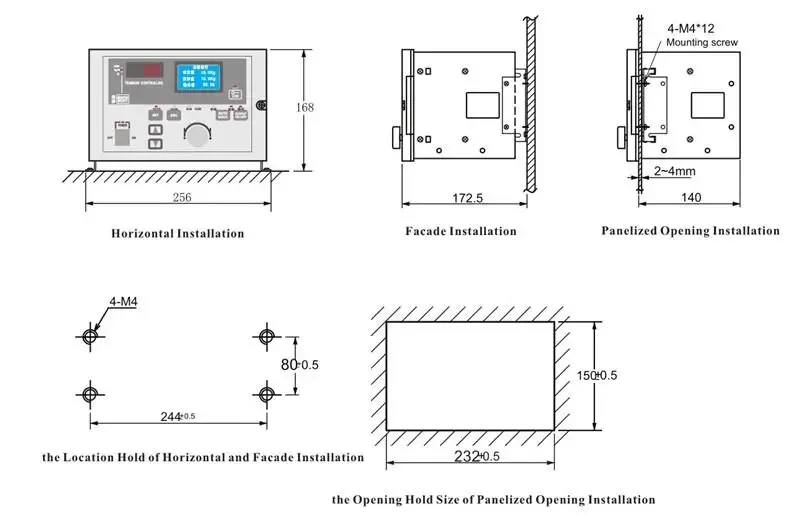

Dimensions

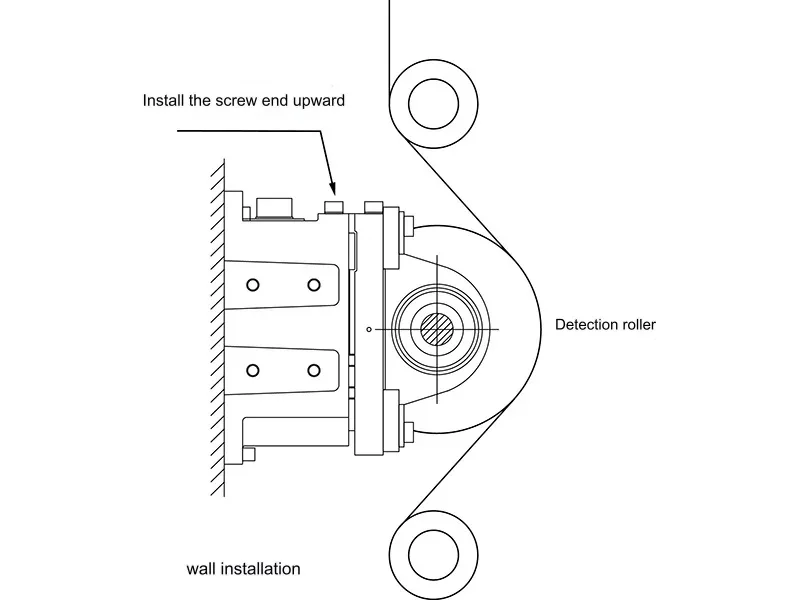

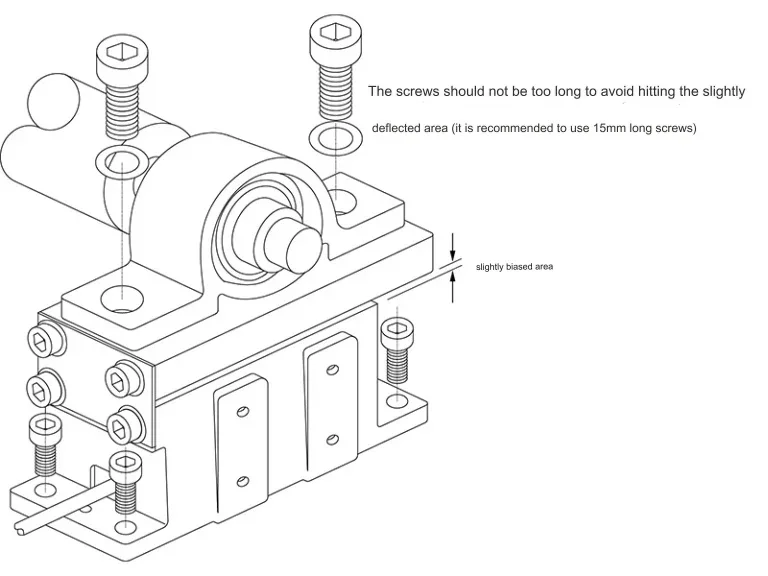

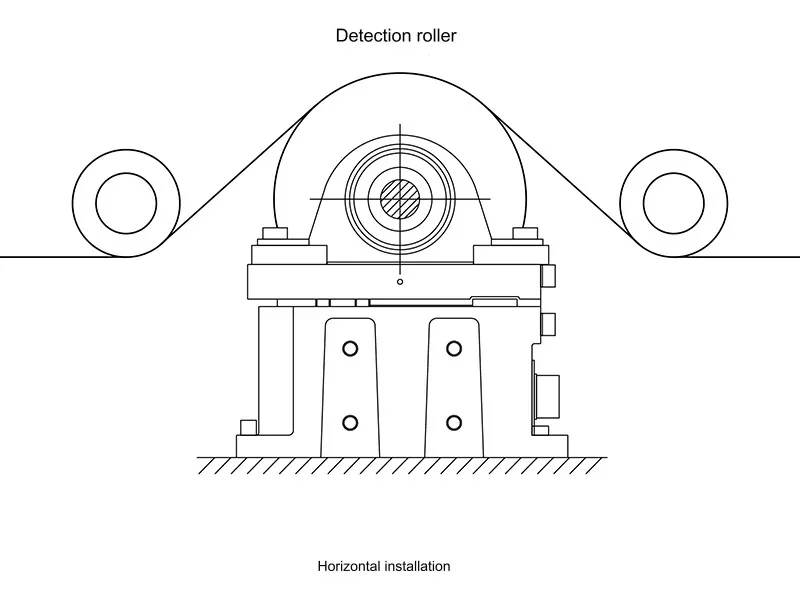

Installation method:
