KT50 Visual Radius Angle Grinding Wheel Dresser
The KT50 is a visual radius angle grinding wheel dresser for surface grinders and universal tool grinders. It is used to dress grinding wheels into straight, angled, convex-radius, and concave-radius profiles for precision grinding work.

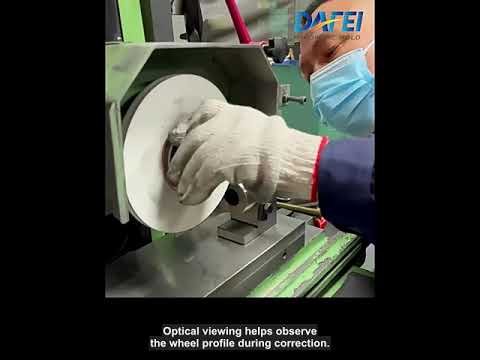

Through the optical viewing lens, the operator can sight the contact point between the dresser tip and the grinding wheel surface. This makes small arcs and angle forms easier to set up than with a blind dresser, especially when profile accuracy and repeatability matter.
Key Features
- Visual radius angle dresser for grinding wheel profile dressing.
- Suitable for surface grinding machines and universal tool grinders.
- 0.01 mm precision scale for fine manual adjustment.
- Dresses angled wheel profiles through a 95 degree - 0 degree - 95 degree angle range.
- Supports convex R dressing from 0 to 12 mm and concave R dressing from 0 to 25.4 mm.
- Minimum dressing arc size is 0.5 mm for small-radius work.
- Compact 230 x 75 x 97 mm body for workshop and tool-room use.
Specifications
| Model | KT50 |
| Product Type | Visual radius angle grinding wheel dresser |
| Precision | 0.01 mm |
| Center Height | 65 mm |
| Dressing Grinding Wheel Diameter | 200 mm |
| Minimum Dressing Arc Size | 0.5 mm |
| Convex R Trim Range | 0-12 mm |
| Concave R Trim Range | 0-25.4 mm |
| Slide Finishing Stroke | 22.5 mm |
| Trim Angle | 95 degree - 0 degree - 95 degree |
| Through Hole Diameter | 30 mm |
| Size | 230 x 75 x 97 mm |
| Weight | 3.8 kg |
Typical Applications
- Radius and angle dressing for precision grinding wheels.
- Profile grinding setup on surface grinders and universal tool grinders.
- Tool-room work where small arcs, tangent forms, and wheel profile control are required.
- Convex and concave R dressing before grinding curved or formed surfaces.
Use Notes
- Mount and align the dresser according to your grinder setup before contacting the wheel.
- Use the viewing lens to check the contact between the dresser tip and the wheel surface.
- Confirm wheel diameter, center height, and required radius range before ordering.
- This is a machine-tool dressing accessory, not a grinding wheel.
Package Includes
- 1 x KT50 visual radius angle grinding wheel dresser
FAQ
What machines is the KT50 dresser used with?
It is intended for surface grinding machines and universal tool grinders.
Can it dress both radius and angle profiles?
Yes. The KT50 can be used for straight, angled, convex-radius, and concave-radius wheel profiles within the listed adjustment ranges.
What is the minimum arc size?
The listed minimum dressing arc size is 0.5 mm.
Is this product a grinding wheel?
No. It is a grinding wheel dresser used to shape or true a grinding wheel profile.
