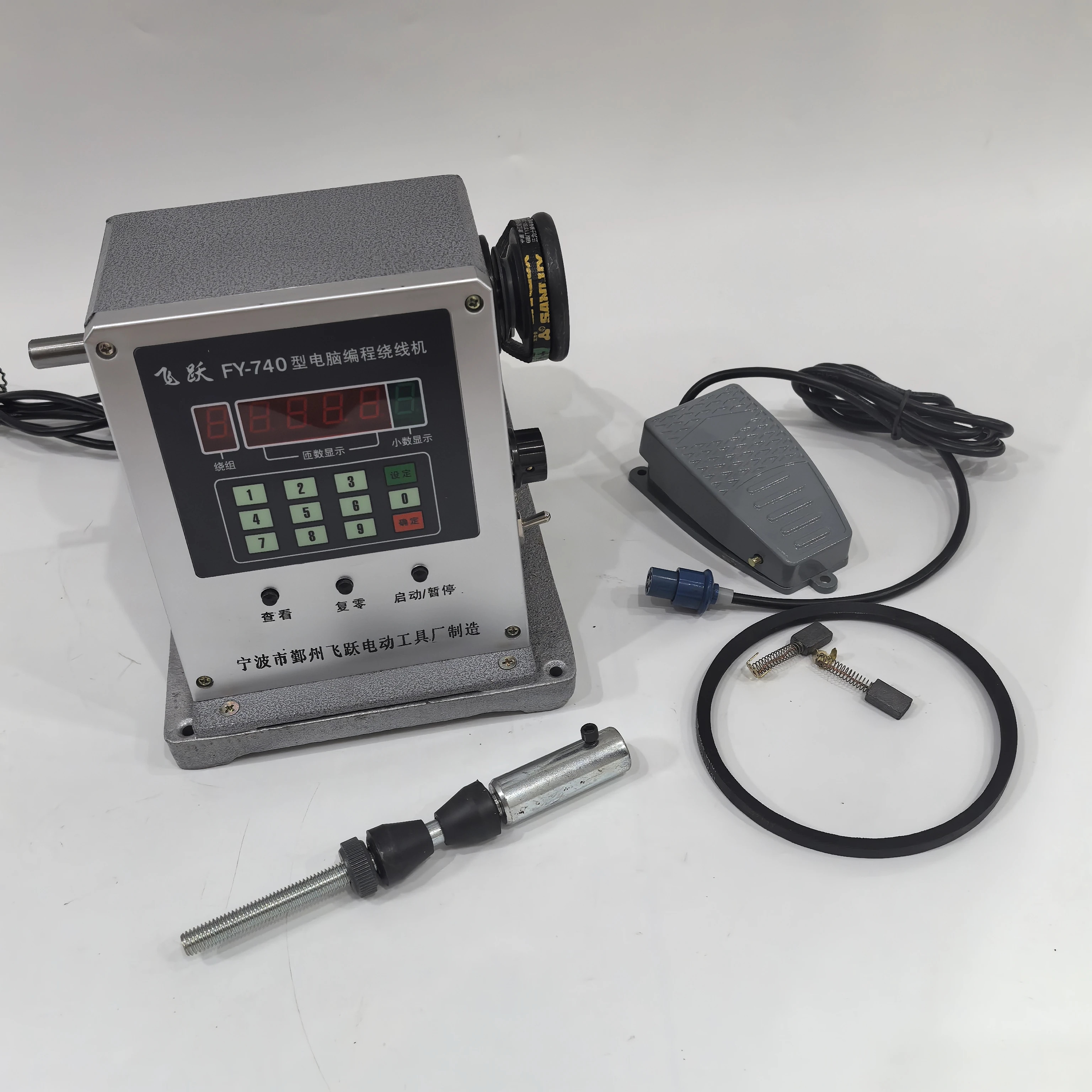

  • FY730 FY740 automatic coil winder machine 220V for transformer winding

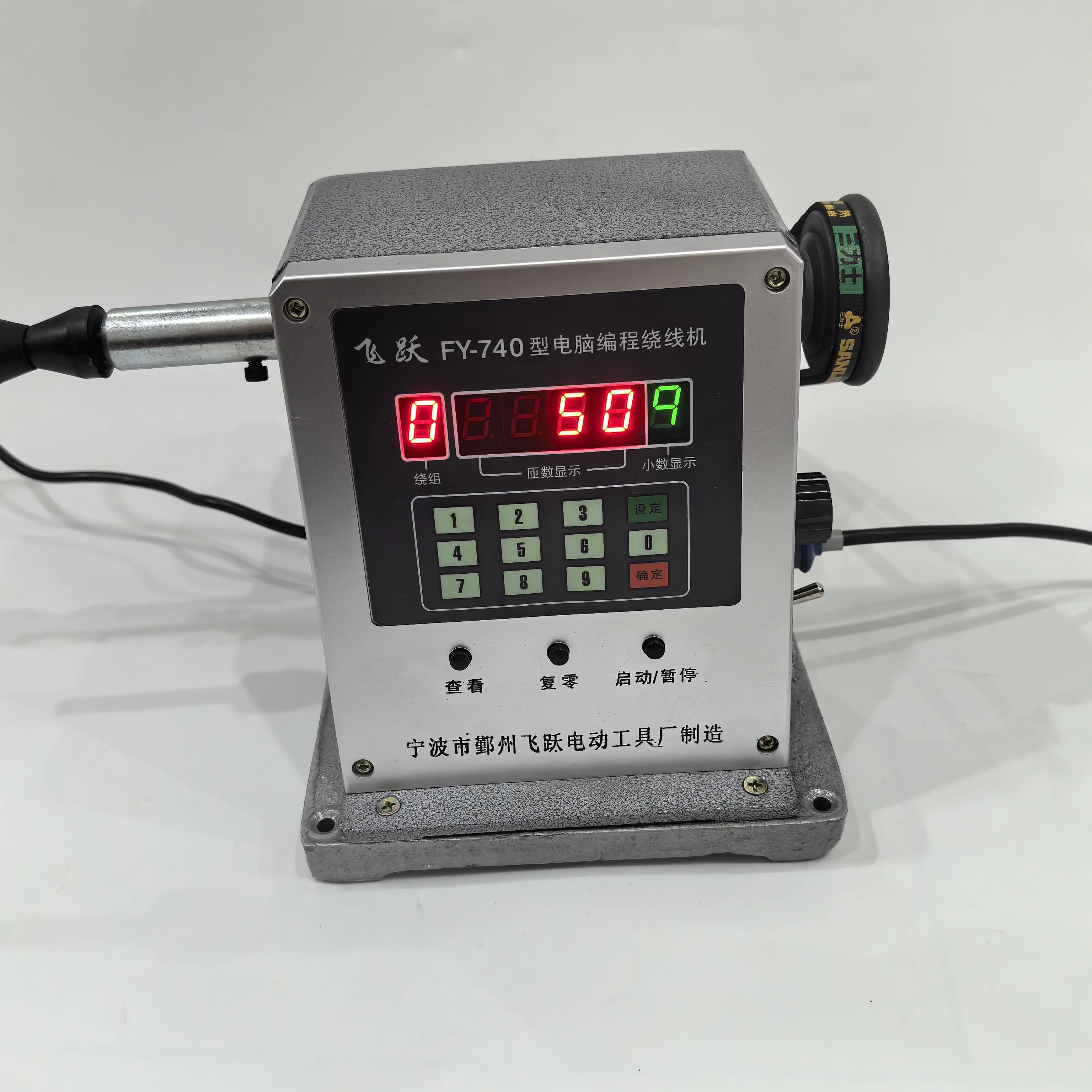

  • Automatic coil winding machine control panel for 0.03-1.8mm wire

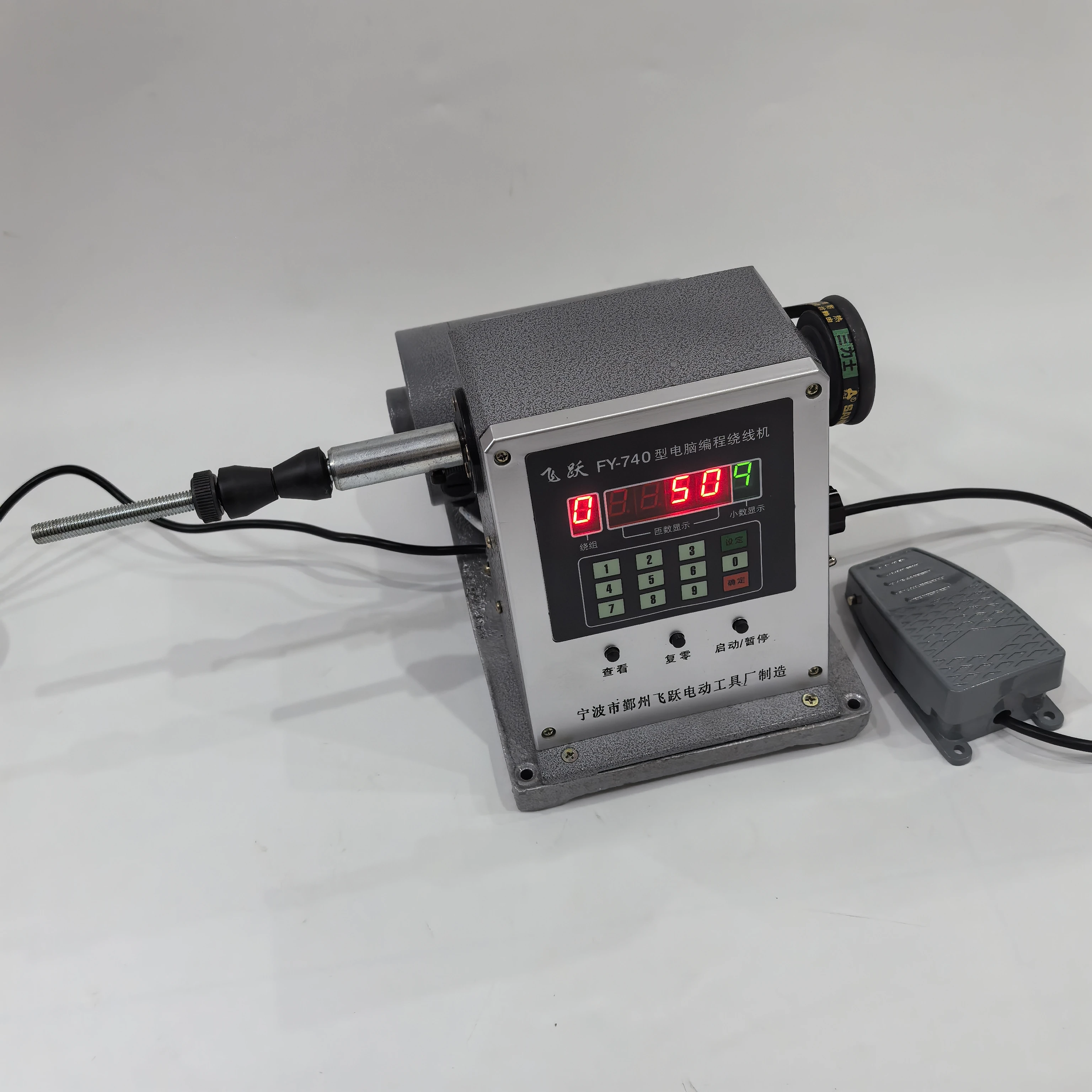

  • FY730 FY740 programmable coil winder with 300W and 500W options

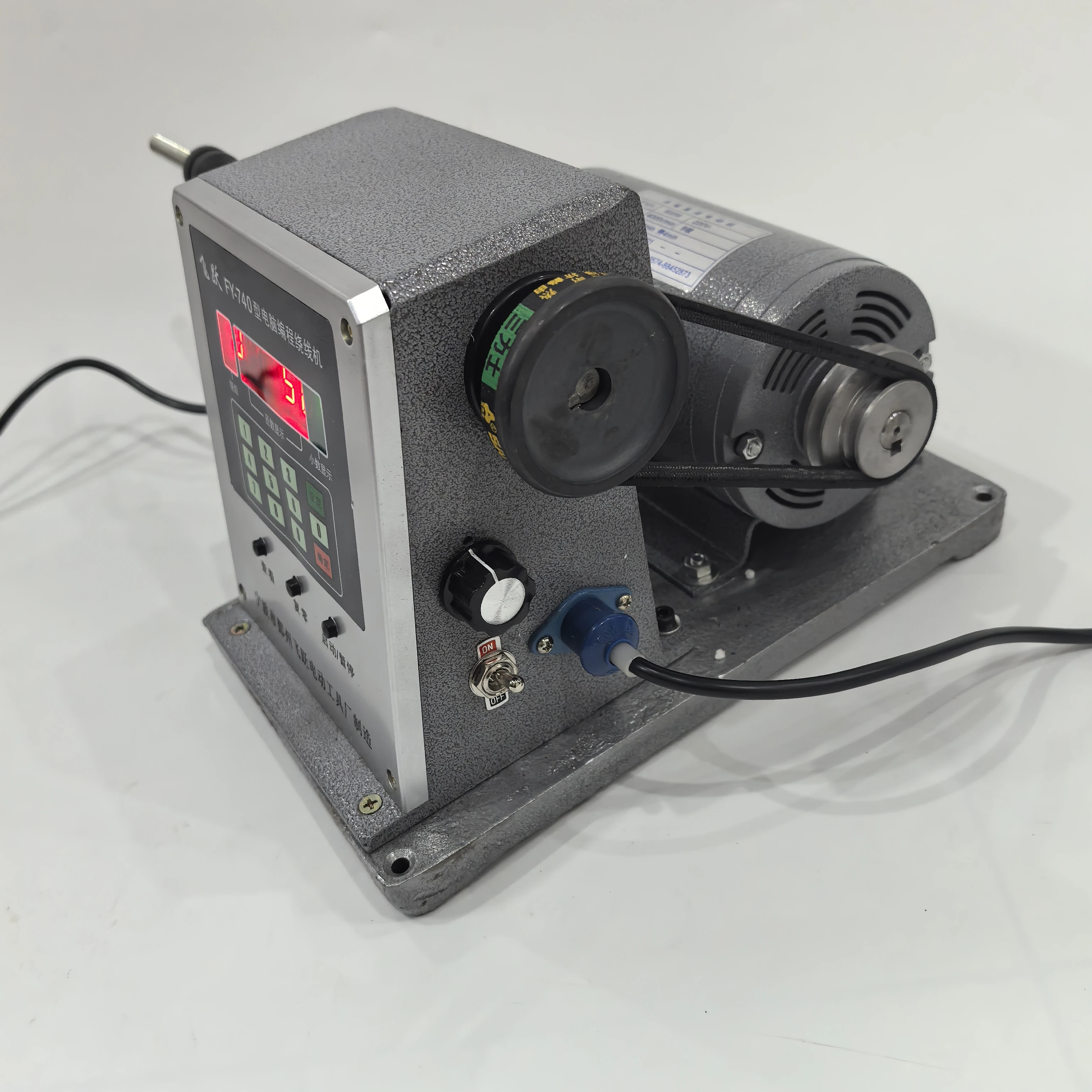

  • Transformer winding machine detail for electronic coils and micro motor winding
1 4

FMFPAX

Automatic Coil Winding Machine FY730 FY740, 0.03-1.8mm for Transformer Winding | FMFPAX

$312.75 USD
$312.75 USD
Price includes duties & taxes. Shipping calculated at checkout.
Color
  • 1-year warranty on machinery core parts. Free replacement parts shipped to you — no need to return the machine.
  • Duties and import taxes included for delivery to United States (DDP). No extra customs charges on arrival. Details
  • Ships within 2 business days. Air express 7–15 days, land freight 20–30 days, sea freight 30–50 days after dispatch.
  • Questions before you buy? WhatsApp +86 158 1830 7991 or sales@fmfpack.com

Secure checkout with PayPal, major credit cards or bank transfer. PayPal Buyer Protection

Accepted secure payment methods

Mastercard Visa American Express PayPal Discover JCB Bank Transfer

FY730 FY740 Automatic Coil Winder Machine for Transformer Winding

The FY730 and FY740 are automatic coil winder machines for transformer winding, electronic coils, micro-motor winding, and similar sequential coil winding work. The machine supports 220V power, programmable winding groups, preset coil counts, stepless speed adjustment, reverse counting, real-time display, and automatic stop.

Use this product when the winding job needs programmable coil counts from 0 to 99999 turns per group and 1 to 10 winding groups on the same frame. The listed applicable wire diameter range is 0.03-1.80mm.

Key Features

  • Automatic coil winding machine for transformer and electronic coil work.
  • Programmable 1-10 winding groups for sequential winding operations.
  • 0-99999 turns programmable coil count per group.
  • Applicable wire diameter range: 0.03-1.80mm.
  • Maximum wire frame width: 120mm.
  • Maximum wire frame diameter: 100mm.
  • Maximum speed: 2000 RPM on A-axis and 3000 RPM on B-axis.
  • Power-off memory listed as more than 12 hours.
  • Real-time display, automatic stop, stepless speed adjustment, and reverse counting.

Specifications

Model family FY730 / FY740
Machine type Automatic coil winder machine
Power supply 220V
Motor power options 300W / 500W
Applicable wire diameter 0.03-1.80mm
Maximum wire frame width 120mm
Maximum wire frame diameter 100mm
Maximum speed 2000 RPM A-axis / 3000 RPM B-axis
Programmable coil count 0-99999 turns per group
Programmable groups 1-10 groups
Power-off memory More than 12 hours

Model Options

Option Motor power Power supply
FD730 / FY730 300W 220V
FD740 / FY740 500W 220V

Applications

  • Transformer coil winding.
  • Telecommunication equipment coil winding.
  • Electrical appliance and electronics winding work.
  • Instrumentation, circuit breaker, timer, and micro-motor winding applications.
  • General coil winding jobs within the listed wire and frame range.

Selection Notes

  • Choose the 300W option for lighter winding work within the listed range.
  • Choose the 500W option when the listed winding job needs the higher motor power option.
  • Confirm that your wire diameter, coil frame width, and coil frame diameter are within the listed limits before ordering.
  • Confirm that 220V power is suitable for your workshop setup.

FAQ

What wire diameter can the FY730/FY740 wind?

The listed applicable wire diameter range is 0.03-1.80mm.

How many turns can be programmed?

The listed programmable coil count is 0-99999 turns per group.

How many winding groups are supported?

The machine supports 1-10 programmable winding groups.

What is the difference between the two options?

The listed options are 300W and 500W motor power versions, both for 220V power.
