FMF

FMF-3 Automatic Tablet & Capsule Deblistering Machine, PTP Blister Pack Opener, 40 Cards/Min for Pharmacies & Healthcare Facilities

$1,714.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model FMF-3

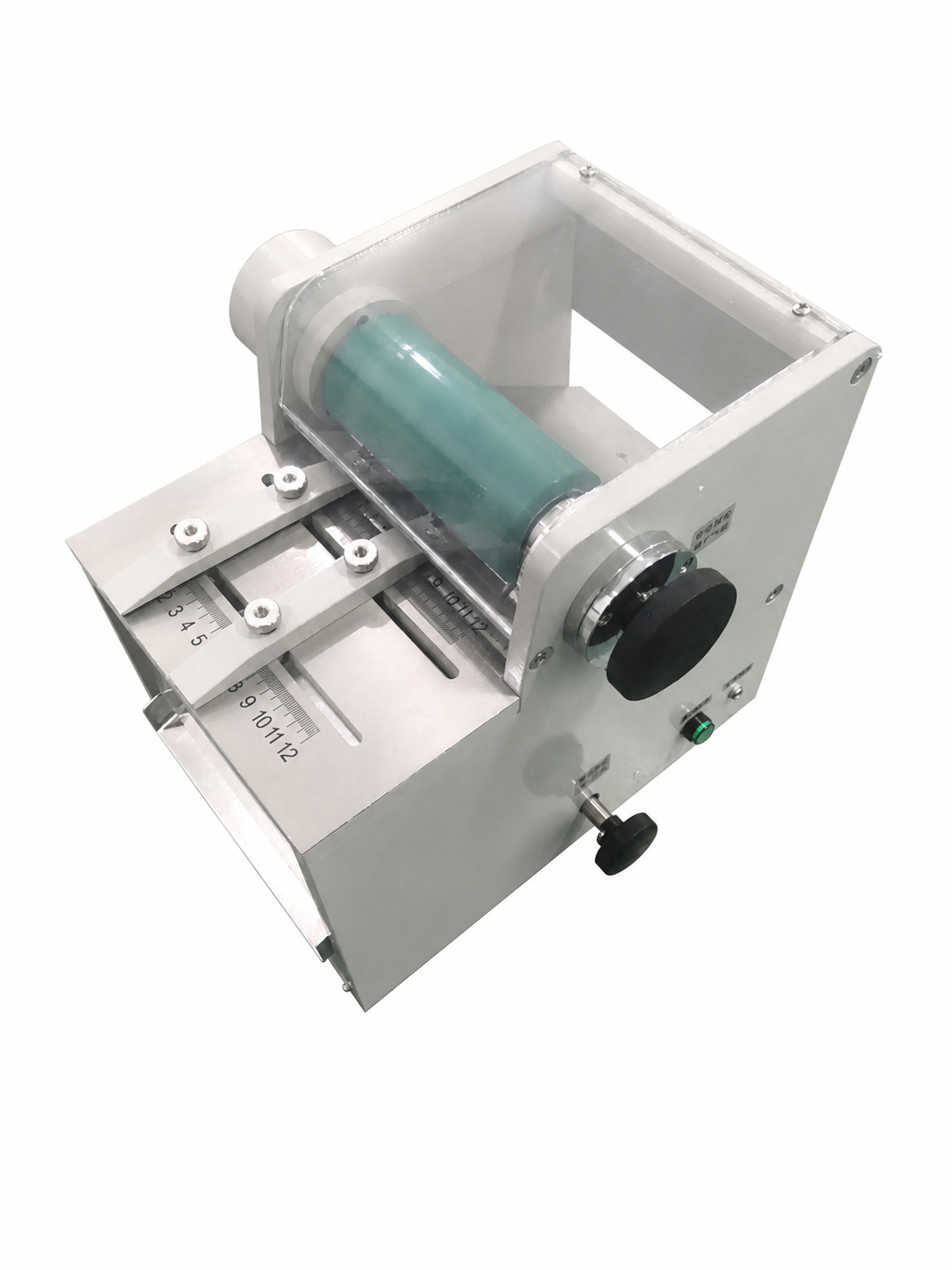

Automatic Deblistering Machine for PTP Blister Packs

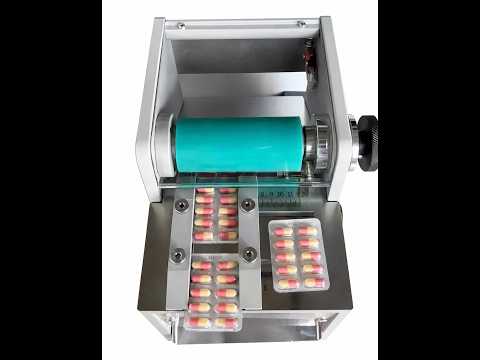

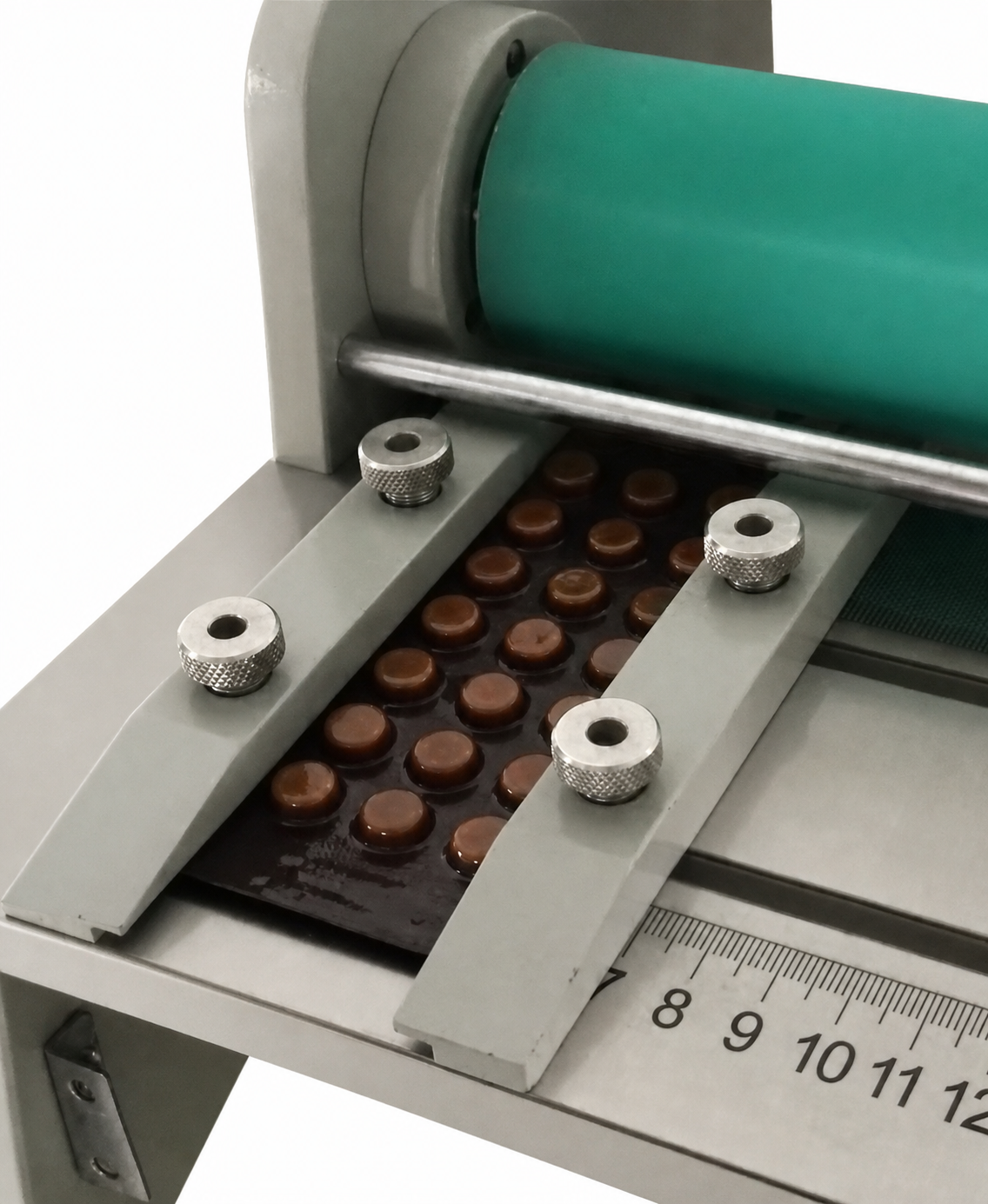

The FMF-3 automatic deblistering machine removes tablets and capsules from PTP blister cards. Adjustable press plates align with different pill layouts, positioning blocks guide the blister sheet, and a rubber roller feeds each card through the stripping area. Rated stripping speed is up to 40 blister cards per minute.

Key Features

Processes PTP blister cards containing tablets or capsules.
Adjustable press-plate spacing for different pill layouts.
Blister-sheet positioning blocks help hold and guide each card.
Adjustment knob changes press-plate engagement depth for different pill sizes.
Acrylic safety cover with an interlock that disconnects power when opened.
DC 24 V machine supplied with an AC 100-240 V universal input power adapter.

Technical Specifications

Model / SKU	FMF-3
Equipment type	Automatic deblistering machine / pill stripping machine
Compatible packaging	PTP blister packs for tablets and capsules
Machine input	DC 24 V
Included power adapter	AC 100-240 V universal input to DC 24 V output
Rated power	35 W
Stripping speed	Up to 40 blister cards per minute
Minimum adjustable spacing	20 mm
Press plates supplied	10
Safety system	Acrylic cover with power interlock

Pharmacy and Medication Dispensing Applications

The FMF-3 is suitable for pharmacies, hospital pharmacies, and medication dispensing rooms that remove tablets or capsules from PTP blister cards. Its adjustable press plates and positioning blocks support blister formats with different pill spacing.

Package Contents

FMF-3 automatic pill stripping machine
AC 100-240 V universal input power adapter
10 press plates

Setup and Operation

Open the safety cover and loosen the press plates away from the rubber roller.
Remove the roller and position the press plates according to the pill spacing on the blister sheet.
Reinstall and secure the roller without overtightening.
Adjust the press plates to engage approximately 0.5 mm into the roller surface.
Close the safety cover, connect the DC 24 V supply, switch on the machine, and feed the blister sheet slowly along the positioning blocks.

Selection and Safety

Adjust the press-plate spacing and engagement depth gradually for each blister format. Always close the safety cover before starting. Disconnect the DC 24 V supply before installing, removing, or adjusting the rubber roller or press plates.

Frequently Asked Questions

Where can the FMF-3 deblistering machine be used?

It can be used in pharmacies, hospital pharmacies, and medication dispensing rooms for removing tablets or capsules from PTP blister cards.

What blister packs can the FMF-3 process?

It is designed for PTP blister cards containing tablets or capsules. The positioning blocks and press plates can be adjusted for different card layouts and pill spacing.

What is the rated stripping speed?

The rated speed is up to 40 blister cards per minute.

What power supply does it use?

The machine operates on DC 24 V and includes an AC 100-240 V universal input power adapter.

What is included with the machine?

The package includes the FMF-3 machine, a universal input power adapter, and 10 press plates.

How does the safety interlock work?

Opening the acrylic safety cover disconnects power. Closing the cover restores the electrical connection.

Setup and Maintenance Guides

Read the FMF-3 setup and adjustment guide for step-by-step guide plate, separator press plate, rubber roller, and PTP blister pack alignment instructions.

Use the FMF-3 maintenance and troubleshooting guide to diagnose power, safety-interlock, drive-belt, rubber-roller, pressure-plate, and adjustment-knob problems.
