Programmable Spin Coater EZ4 / SC4, 9999 RPM Touch Screen for 4 Inch Wafers | FMFPAX

$1,429.39 USD
$1,429.39 USD
Price includes duties & taxes. Shipping calculated at checkout.
Model and Housing
  • 1-year warranty on machinery core parts. Free replacement parts shipped to you — no need to return the machine.
  • Duties and import taxes included for delivery to United States (DDP). No extra customs charges on arrival. Details
  • Ships within 2 business days. Air express 7–15 days, land freight 20–30 days, sea freight 30–50 days after dispatch.
  • Questions before you buy? WhatsApp +86 158 1830 7991 or sales@fmfpack.com

Secure checkout with PayPal, major credit cards or bank transfer. PayPal Buyer Protection

Accepted secure payment methods

Mastercard Visa American Express PayPal Discover JCB Bank Transfer

Product Overview

The EZ4 / SC4 is a benchtop vacuum spin coater for photoresist coating, thin-film coating, wafer coating, glass slide coating, ITO conductive glass coating, and small sample preparation workflows. The two selectable models share the same spin-coating function and control platform; the ordering difference is the outer housing material.

Model Options

Variant Housing material SKU
EZ4-PP PP plastic housing EZ4-PP
SC4-AL Aluminum alloy housing SC4-AL

Key Features

  • Compact laboratory spin coater / spin coating machine for substrates up to 4 inches.
  • Adjustable spin speed up to 9999 RPM with 1 RPM speed resolution.
  • Programmable single-step and multi-step operation with speed, time, and acceleration settings.
  • Maximum spin time of 3000 s with 1 s time resolution.
  • Maximum acceleration setting of 9999 RPM/s.
  • Vacuum spin chuck with 4 mm ID / 6 mm OD vacuum tubing connection.
  • Transparent hinged lid, front control panel, run button, vacuum button, and rear VAC / power interfaces.
  • Chinese and English menu display with switchable language setting.
  • Compact benchtop body suitable for glove-box installation when the operating environment fits the equipment requirements.

Specifications

Models EZ4-PP, SC4-AL
Equipment type Laboratory spin coater / compact spin processor
Processable substrate size Up to 4 inches
Maximum spin speed 9999 RPM (no-load)
Speed resolution 1 RPM
Maximum spin time 3000 s
Time resolution 1 s
Maximum ramp rate 9999 RPM/s (no-load)
Substrate and chuck fit Use with compatible samples up to a standard 4-inch wafer; confirm sample depth and chuck fit before operation.
Overall size 215 mm (W) x 285 mm (D) x 222 mm (H)
Weight 6 kg
Power input 100-120V single-phase, 150W / 200-230V single-phase, 150W
Required vacuum 0.06-0.09 MPa, minimum 1.5 L/min flow rate
Vacuum tubing 4 mm ID, 6 mm OD
Standard package Spin coater equipment, 10 mm chuck, 25 mm carrying plate, 2 inch chuck, power line, and insert

Controls and Setup

  • The front interface supports parameter setup for speed, time, and acceleration, plus quick-run and multi-step operation modes.
  • The rear side includes the fuse, power cable socket, and vacuum pipe interface.

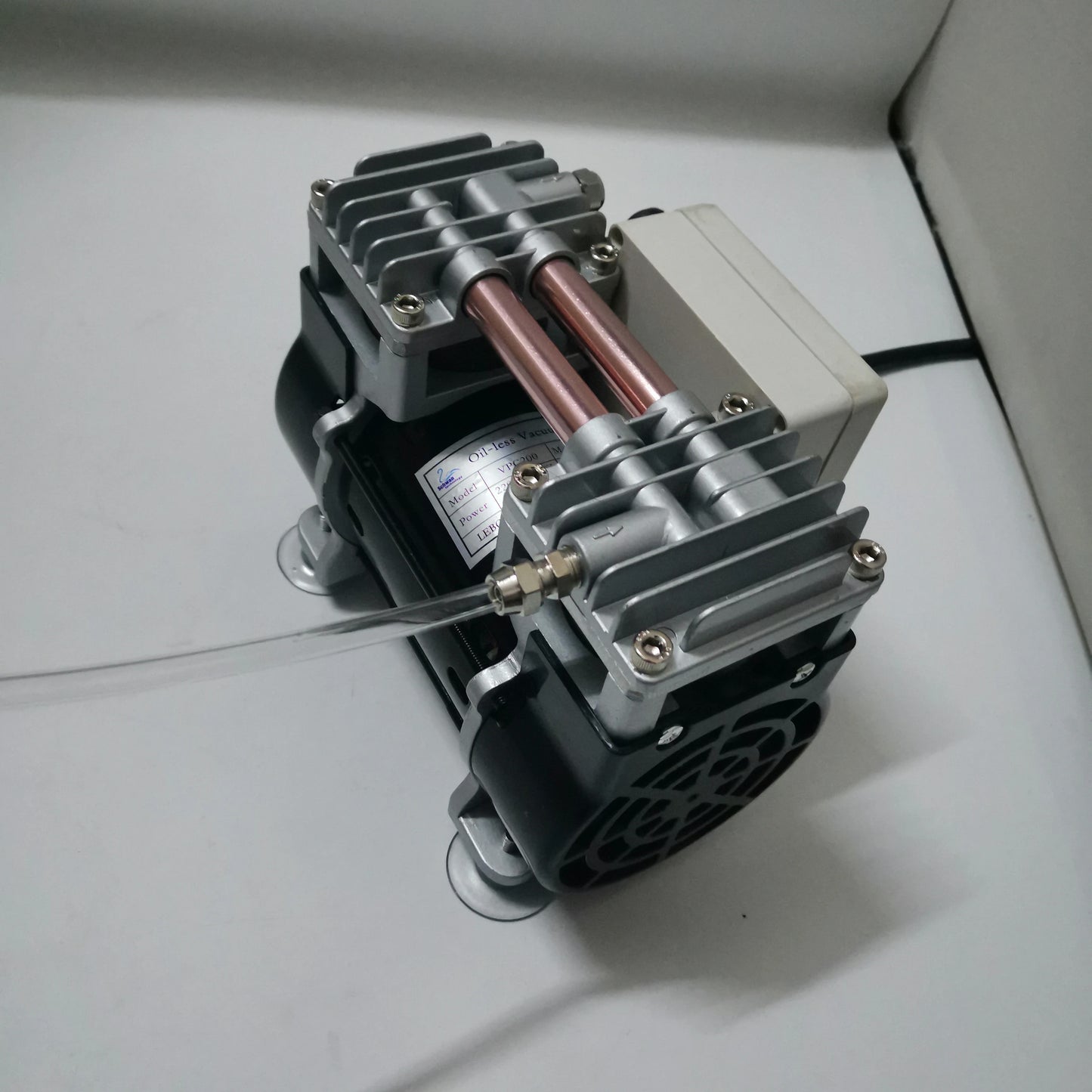

  • The vacuum line connects the external vacuum pump and chuck so the sample can be held by vacuum during spin coating.
  • Place the equipment on a flat, stable surface with good ventilation before operation.

Selection Notes

Choose EZ4-PP when a PP plastic housing is preferred, or choose SC4-AL when an aluminum alloy housing is preferred. Confirm substrate size, chuck fit, voltage version, plug type, and vacuum setup before ordering.

FAQ

What is the difference between EZ4 and SC4?

The listed difference is the outer housing material: EZ4-PP uses a PP plastic housing, while SC4-AL uses an aluminum alloy housing.

What substrate size can this spin coater handle?

The listed processable substrate size is up to 4 inches.

What is the maximum speed?

The listed maximum spin speed is 9999 RPM with 1 RPM resolution.

Can it run multi-step programs?

Yes. The interface supports single-step and multi-step operation with speed, time, and acceleration settings.

Does the menu support English?

Yes. The instrument supports Chinese and English menu display, and the language can be switched as needed.
