PF9811 DIGITAL POWER METER(HARMONIC MODEL)

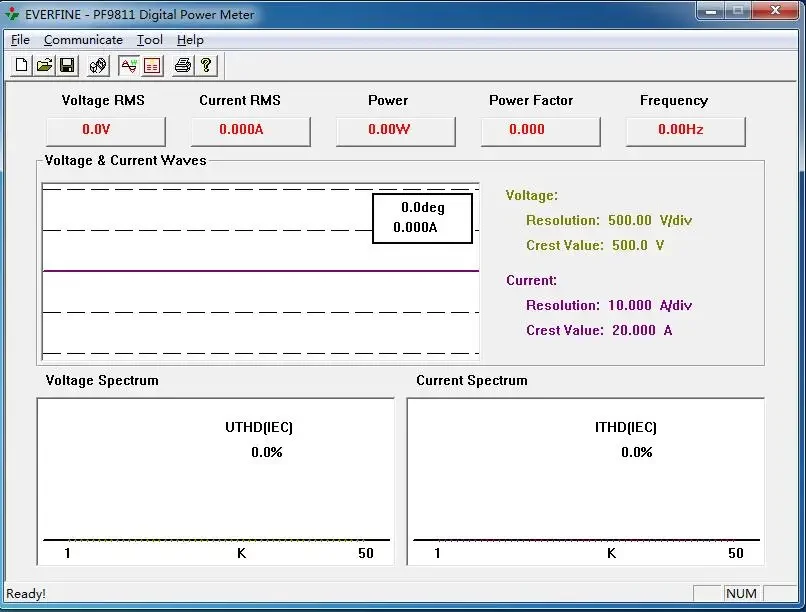

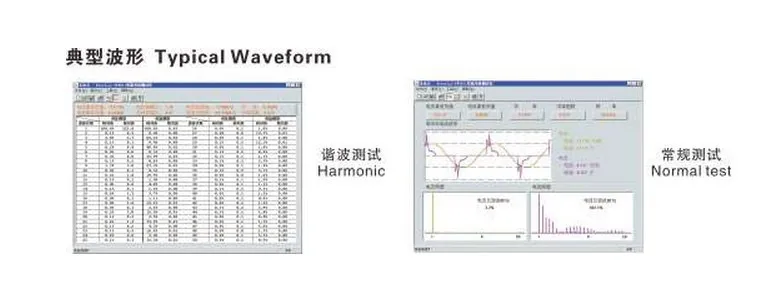

Besides the fundamental measuring function, PF9810 & PF9811 can realize the THD (Total Harmonic Distortion) analysis. By adopting the advanced PLL (Phase-Locked Loop) technology, it can calculate THD and sub-harmonic of voltage and current that meet the requirements of IEC61000-3-2. The actual waveform and frequency spectrogram can be observed on the computer.
|
Model |
PF9810 |
PF9811 |
|

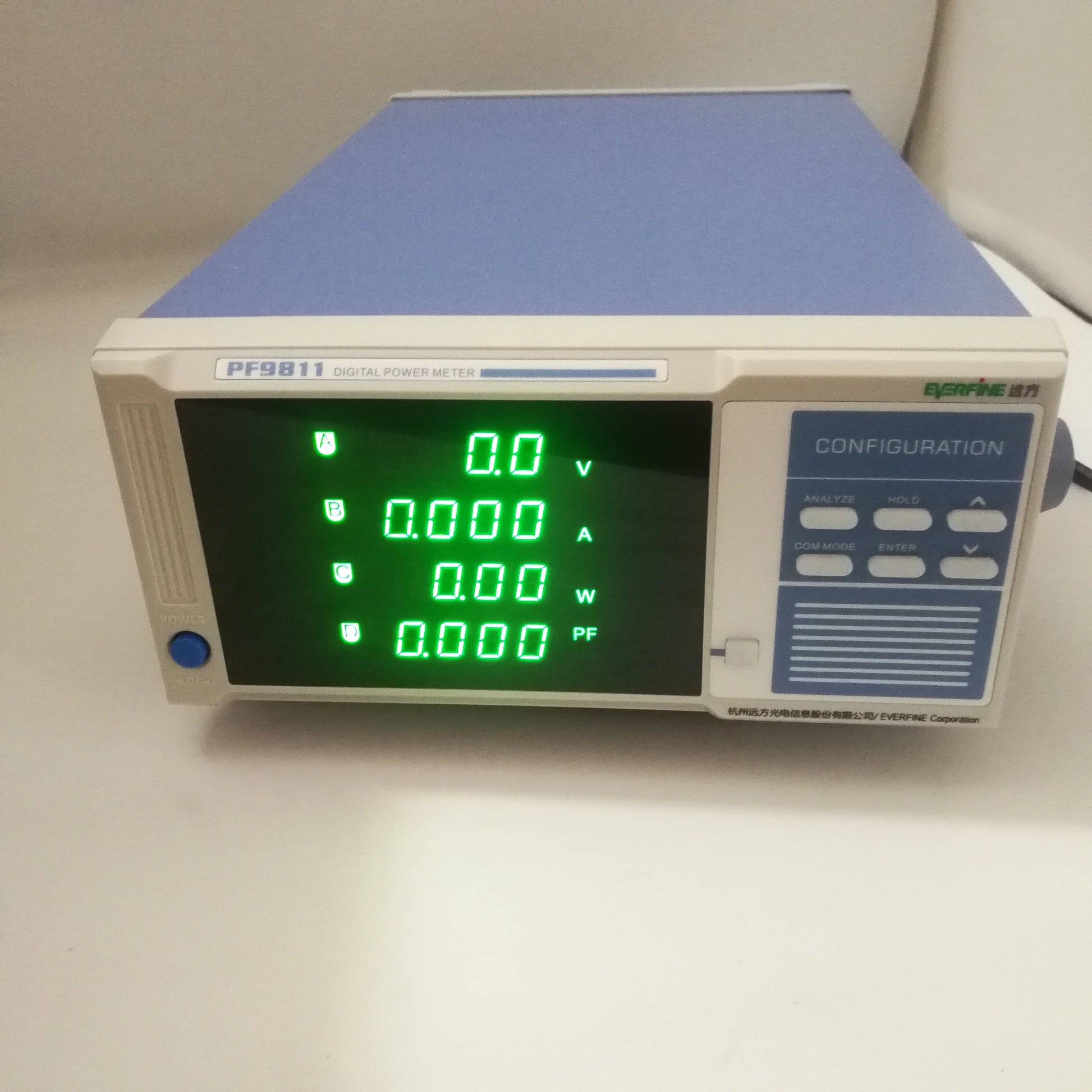

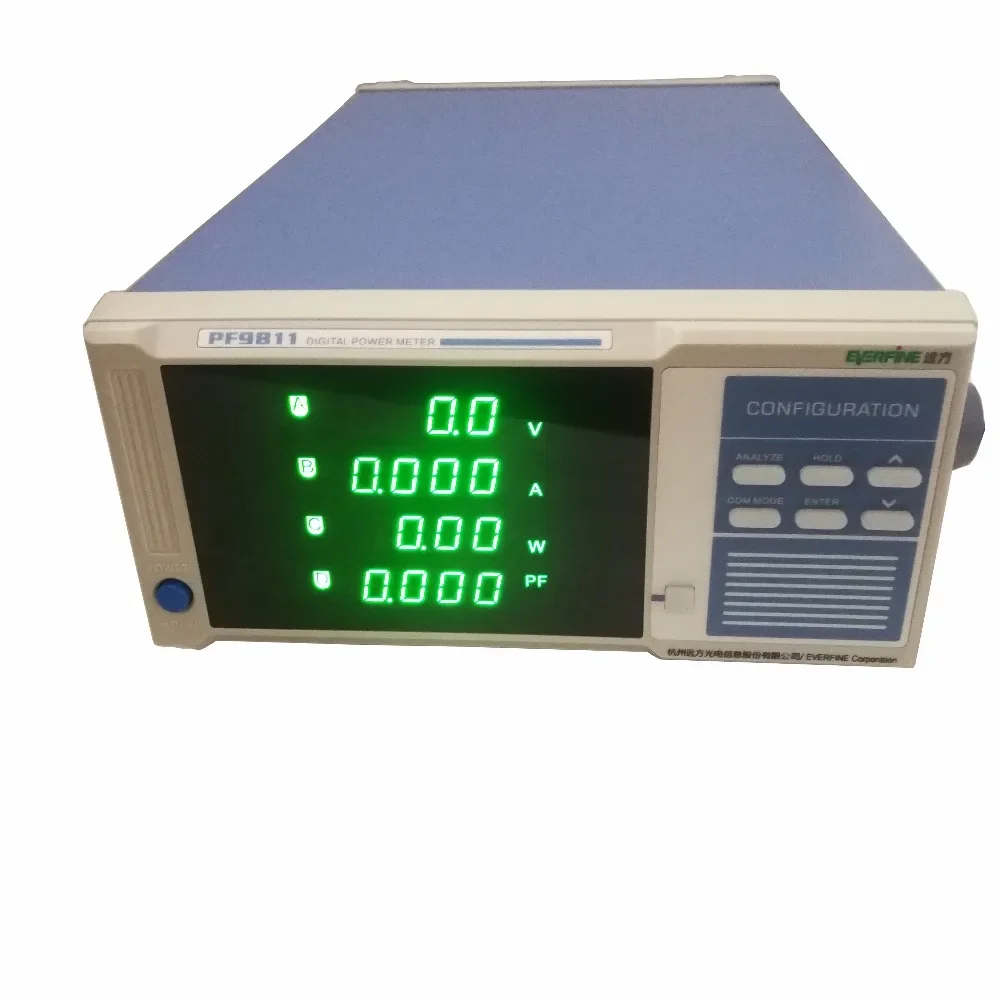

4 displays |
V, A, W, PF/ Hz/THD/CF |
|
|
Voltage |
3.0V~600V |
3.0V~600V |
|
Current |
0.5mA~2000mA |
5mA~20A |
|
Range switch |
Auto |
|
|
PF |
-1.000~+1.000 |
|
|
Frequency |
AC:45Hz~65 Hz, Band 5kHz |
|
|
Accuracy |
(0.4%reading+0.1%range+1digit) |
|
|
Harmonic analysis |
Measure the THD and 2nd~50th sub-harmonic of Voltage and Current |
|
|

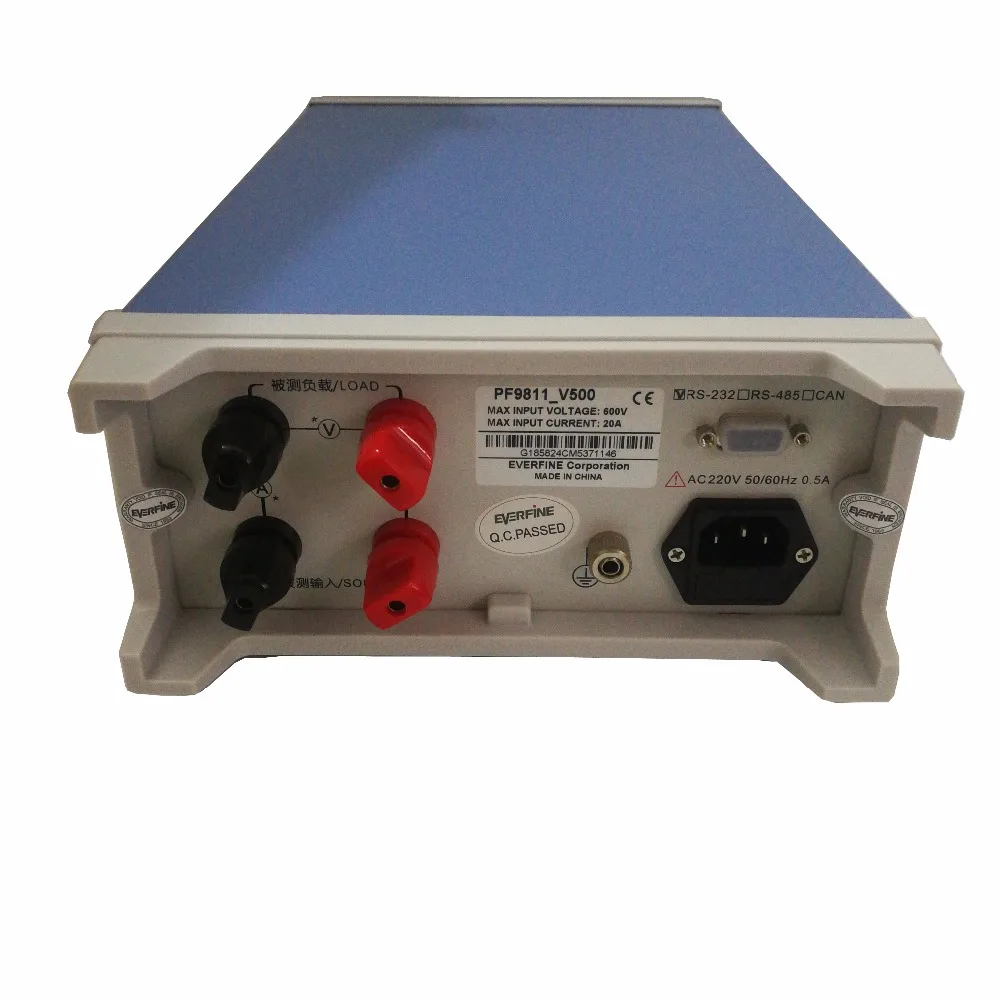

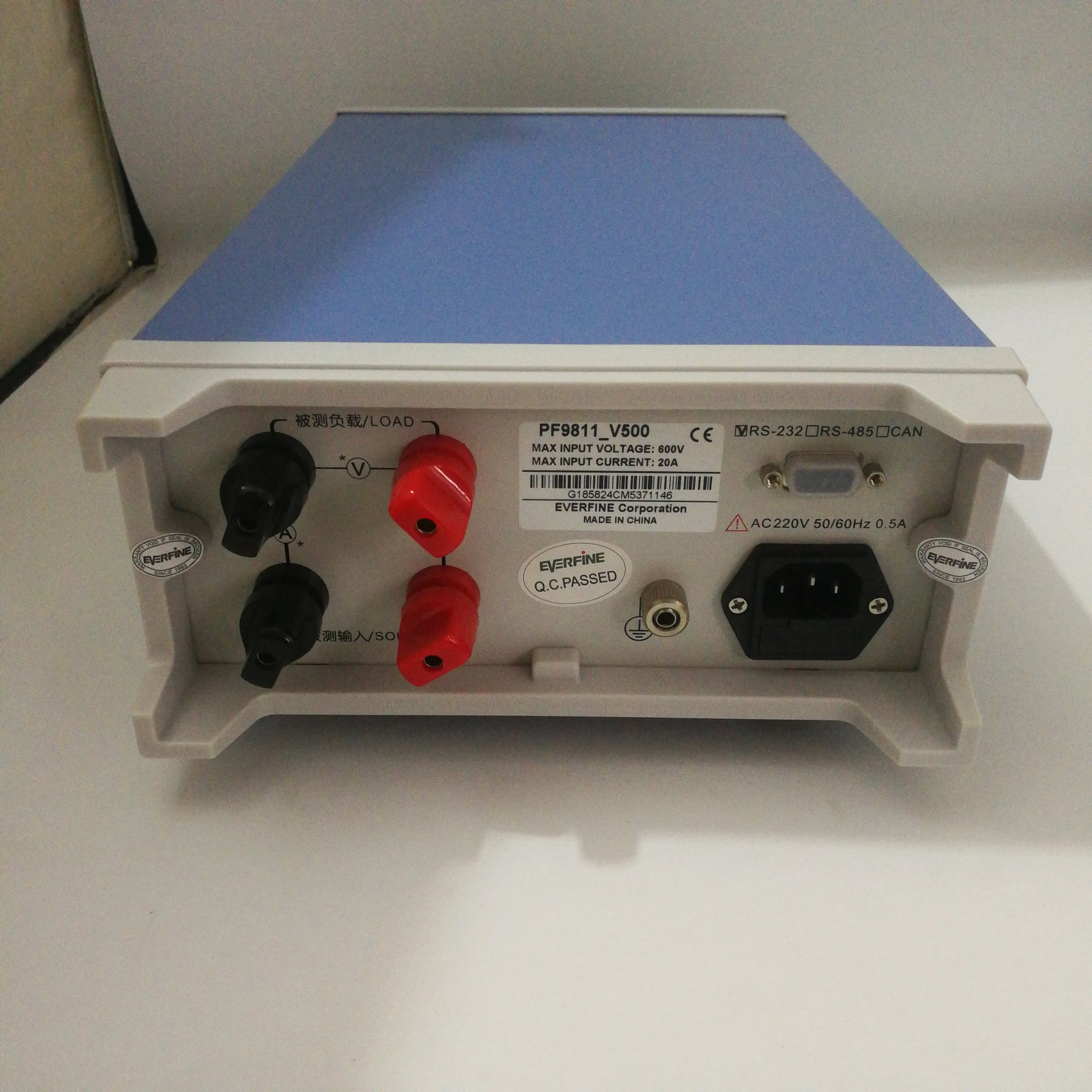

Communication |
RS-232, RS485 interface (optional) |
|
|
Holding function |
Easy to read |
|
USER'S MANUAL:
https://drive.google.com/file/d/1oVXPyfvHzOXN_LoH6nwkTLGJIwgJ0P7o/view?usp=sharing
