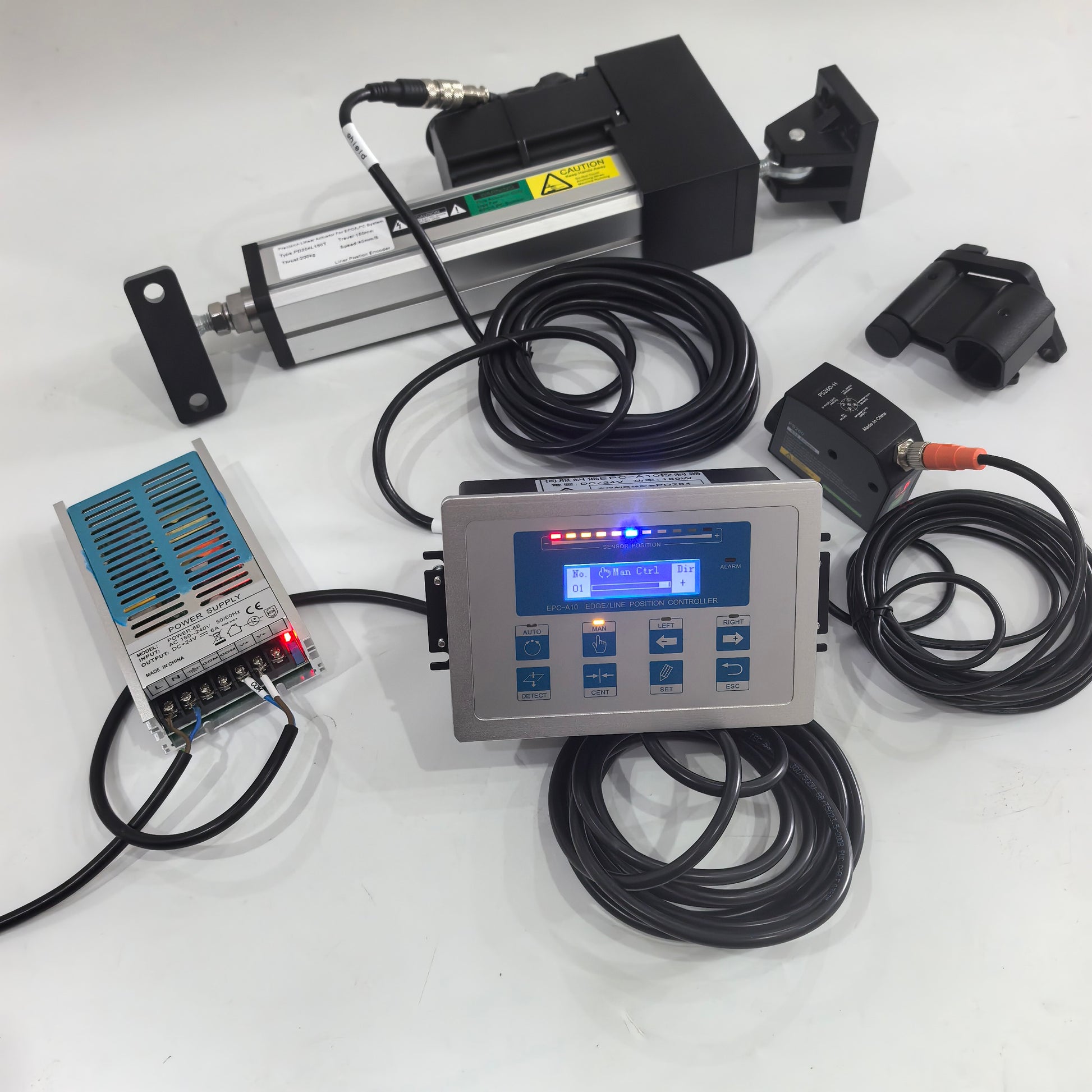

  • EPC-A10 web guiding system kit with controller sensor actuator and power supply

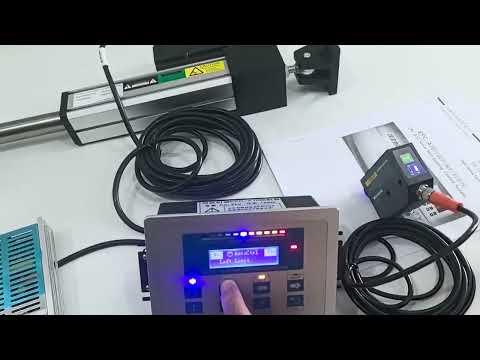

  • EPC-A10 web guiding system kit PS260 sensor PD204L150T actuator operation demo video

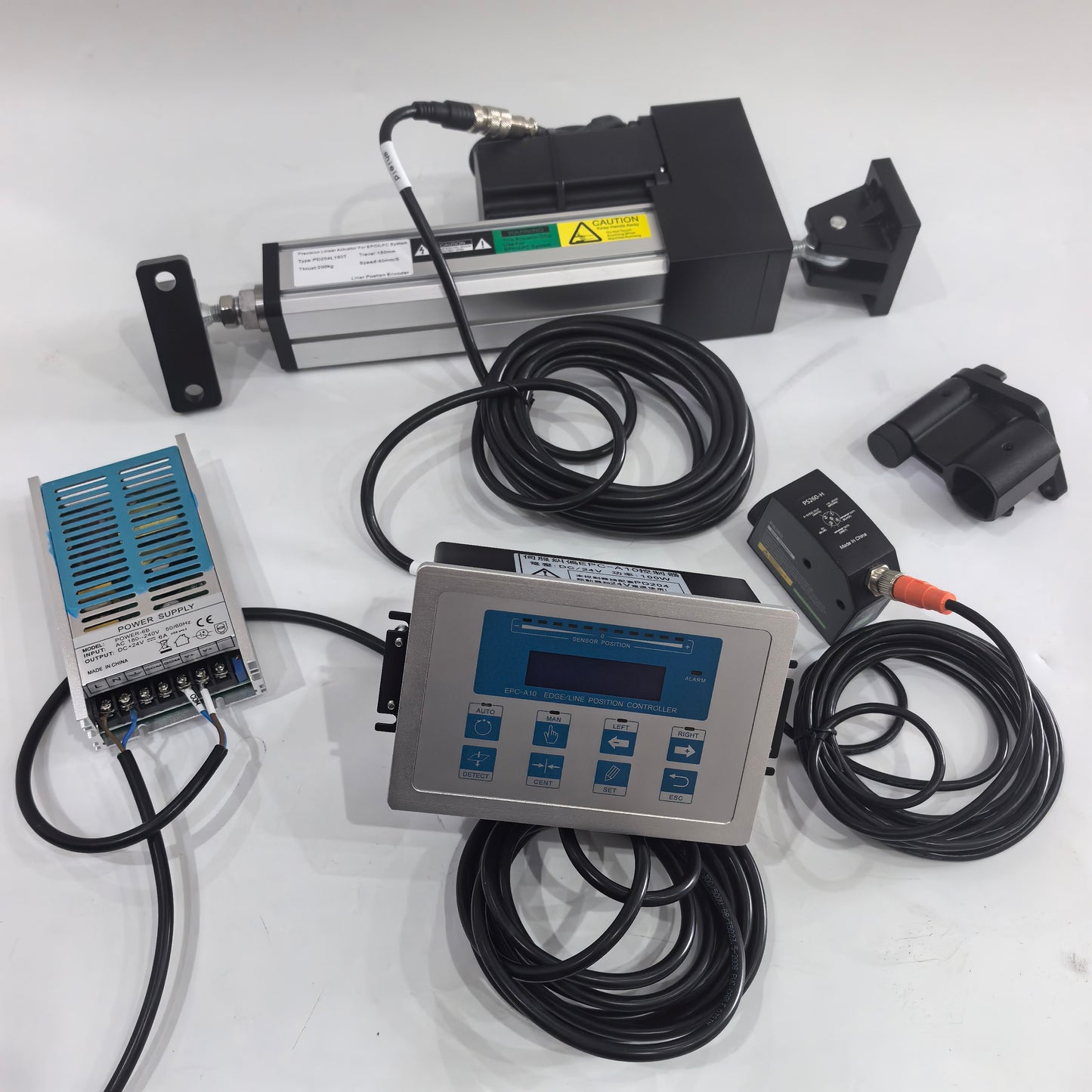

  • EPC-A10 web guiding system kit components with PS260 sensor and PD204L150T actuator

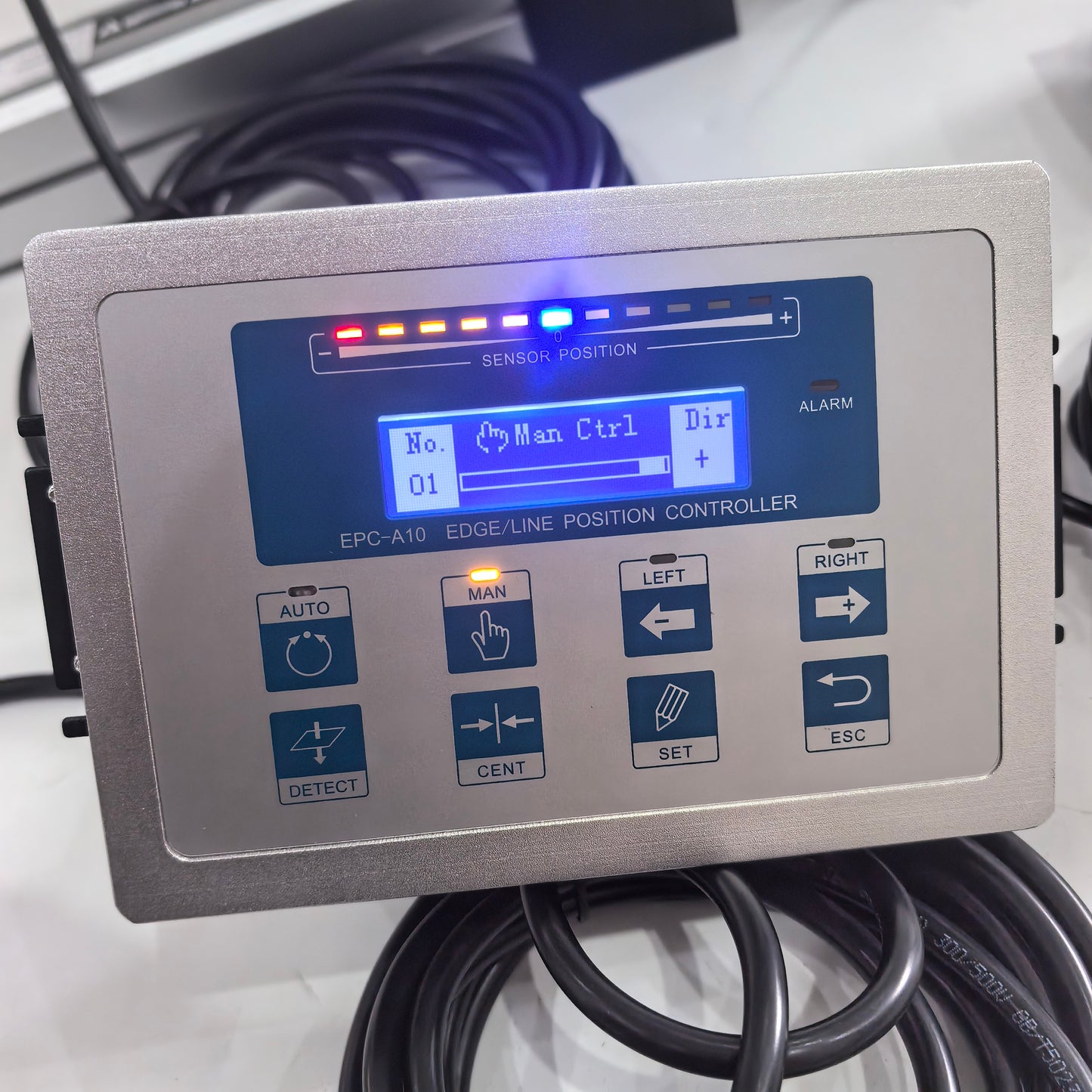

  • EPC-A10 edge line position controller front panel with sensor position display

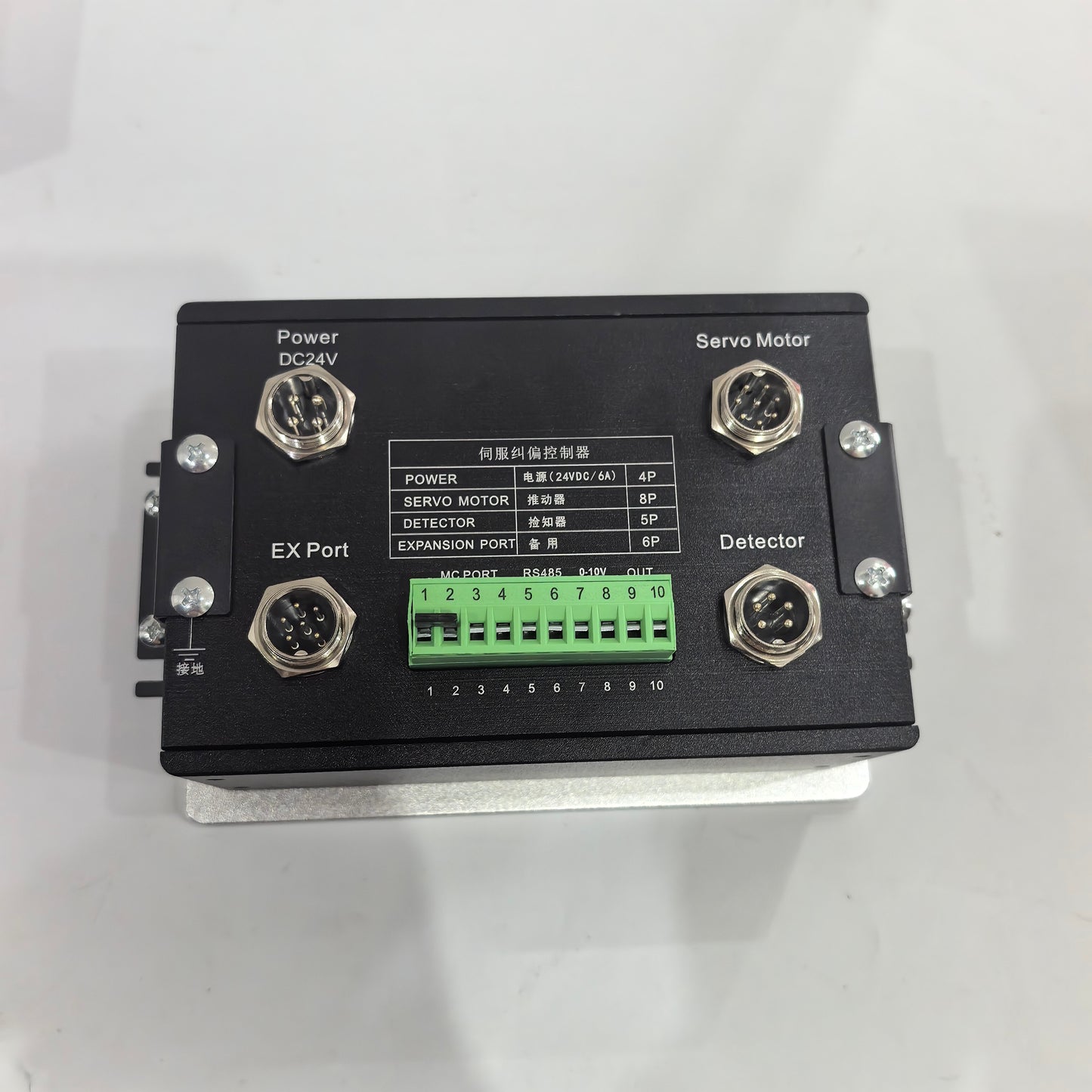

  • EPC-A10 controller rear ports with DC24V power servo motor detector RS485 0-10V and OUT terminals

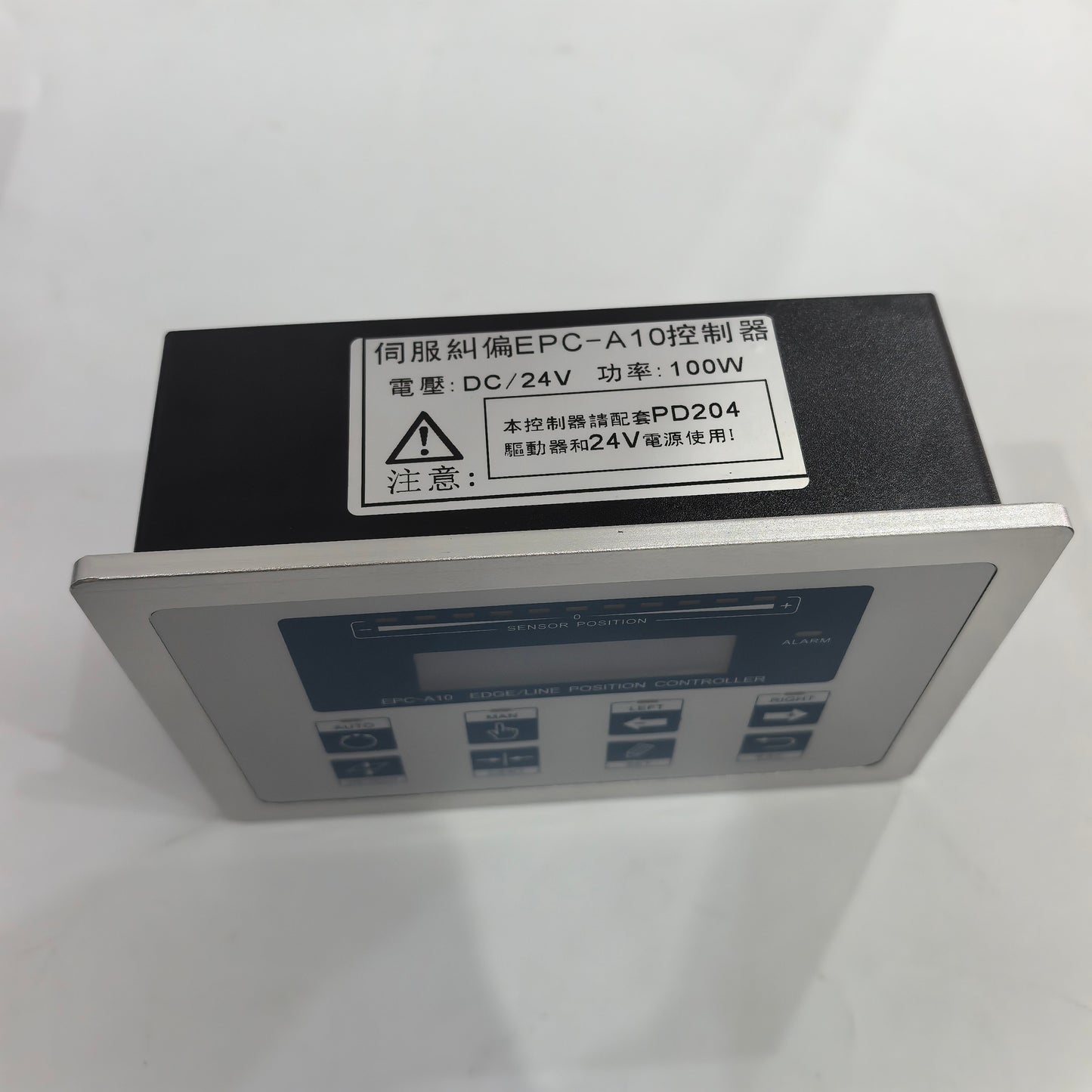

  • EPC-A10 controller label with DC24V input and 100W power

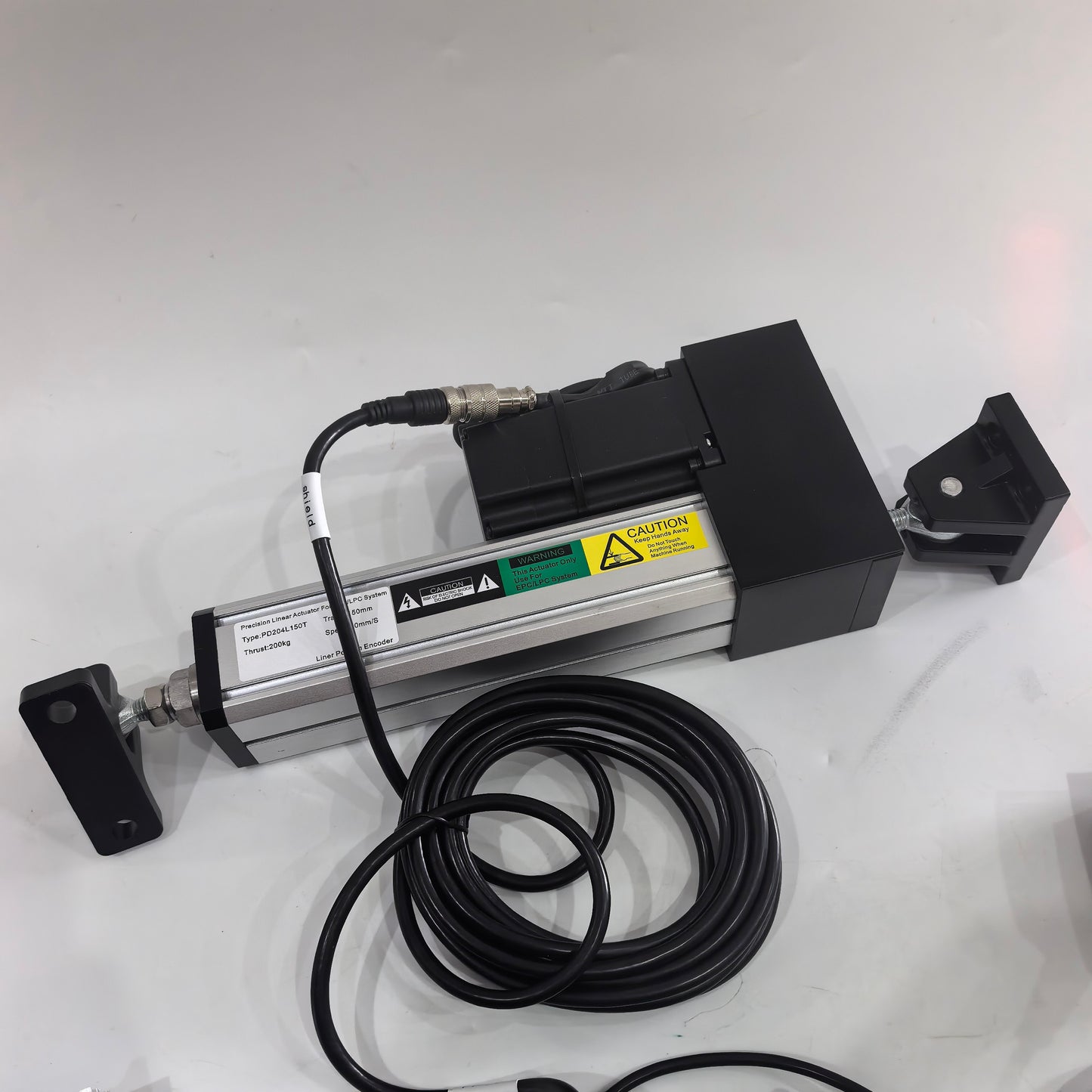

  • PD204L150T servo linear actuator for EPC LPC system with cable and mounting ends

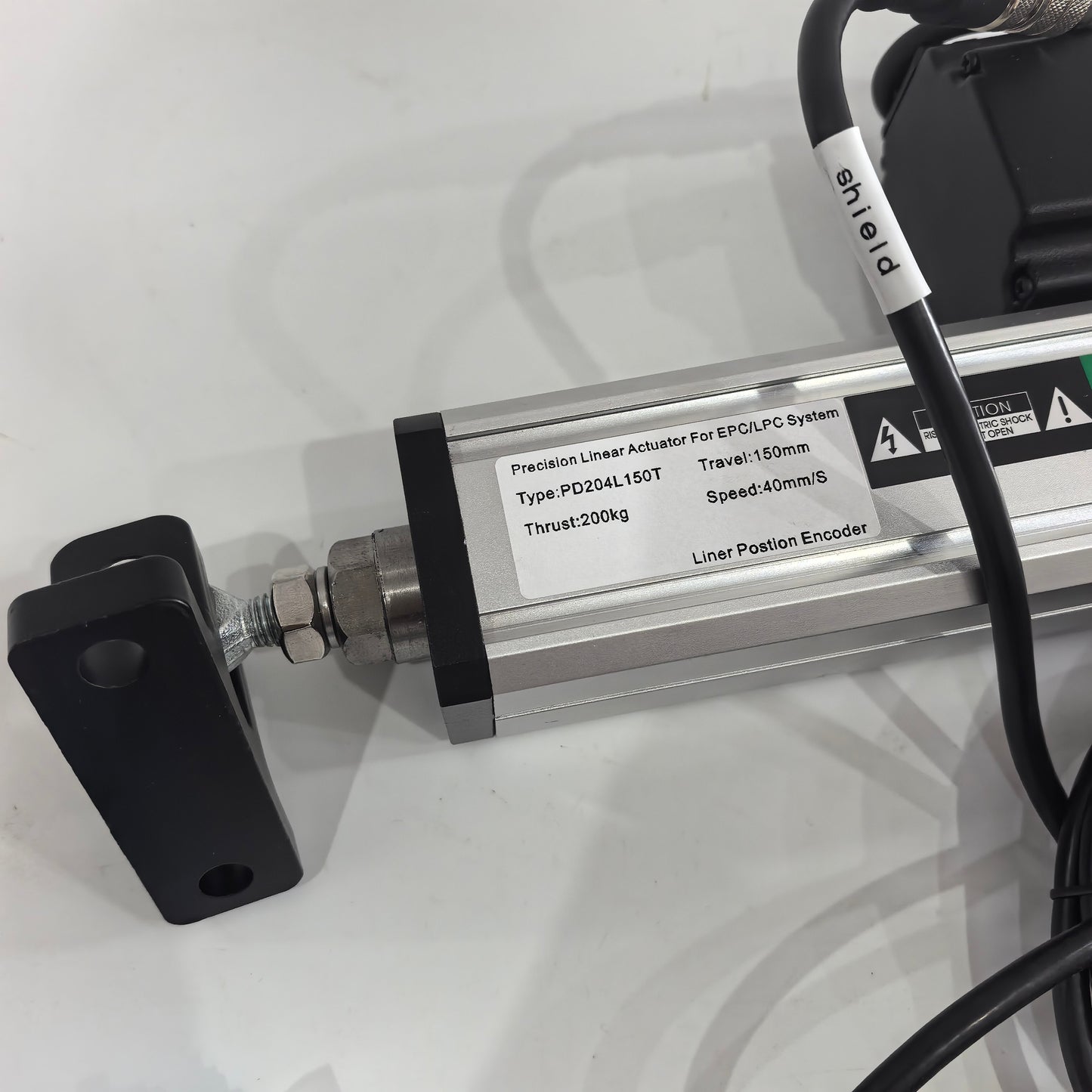

  • PD204L150T actuator label with 150 mm travel 200 kg thrust and 40 mm per second speed

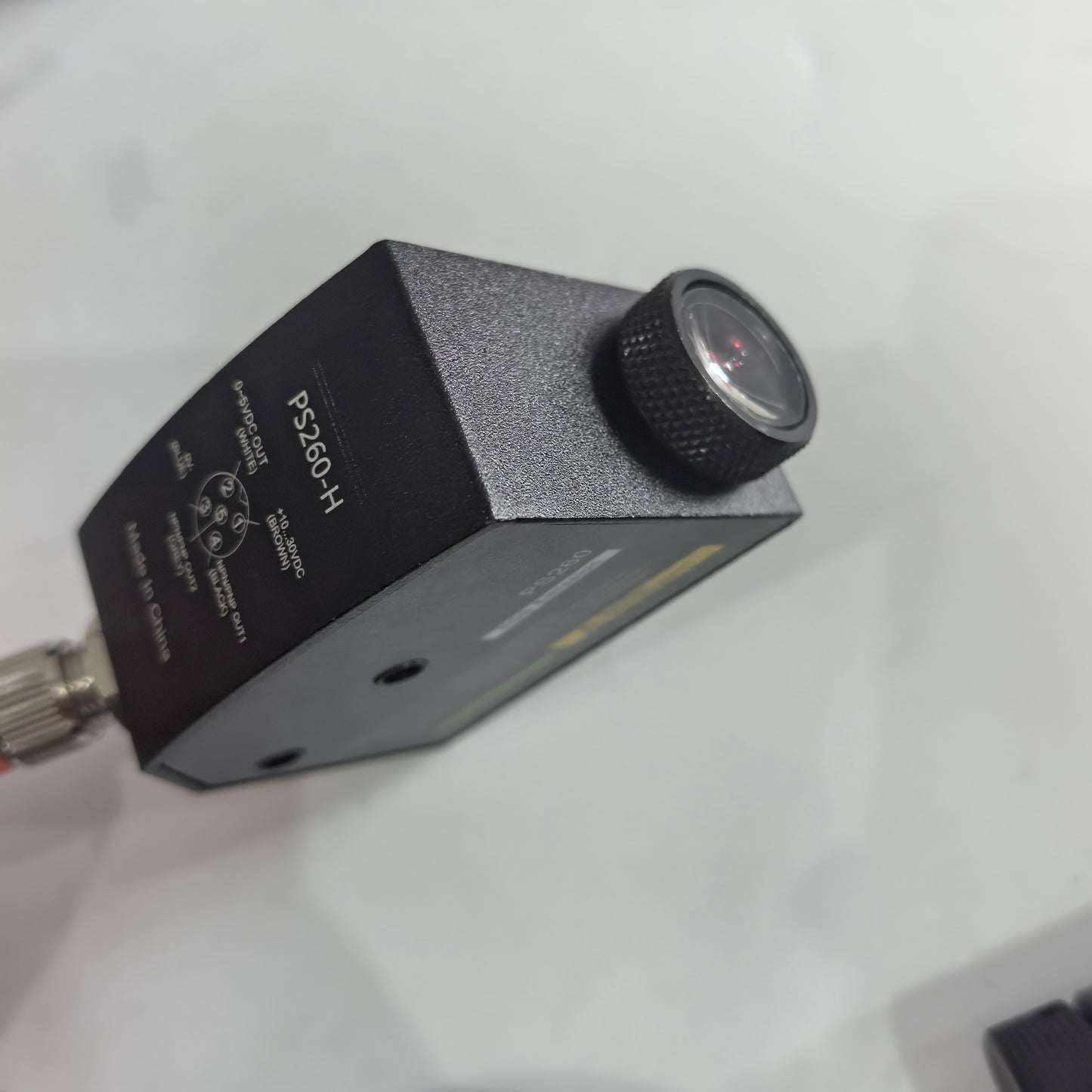

  • PS260-H RGB color mark sensor front lens for web guiding system

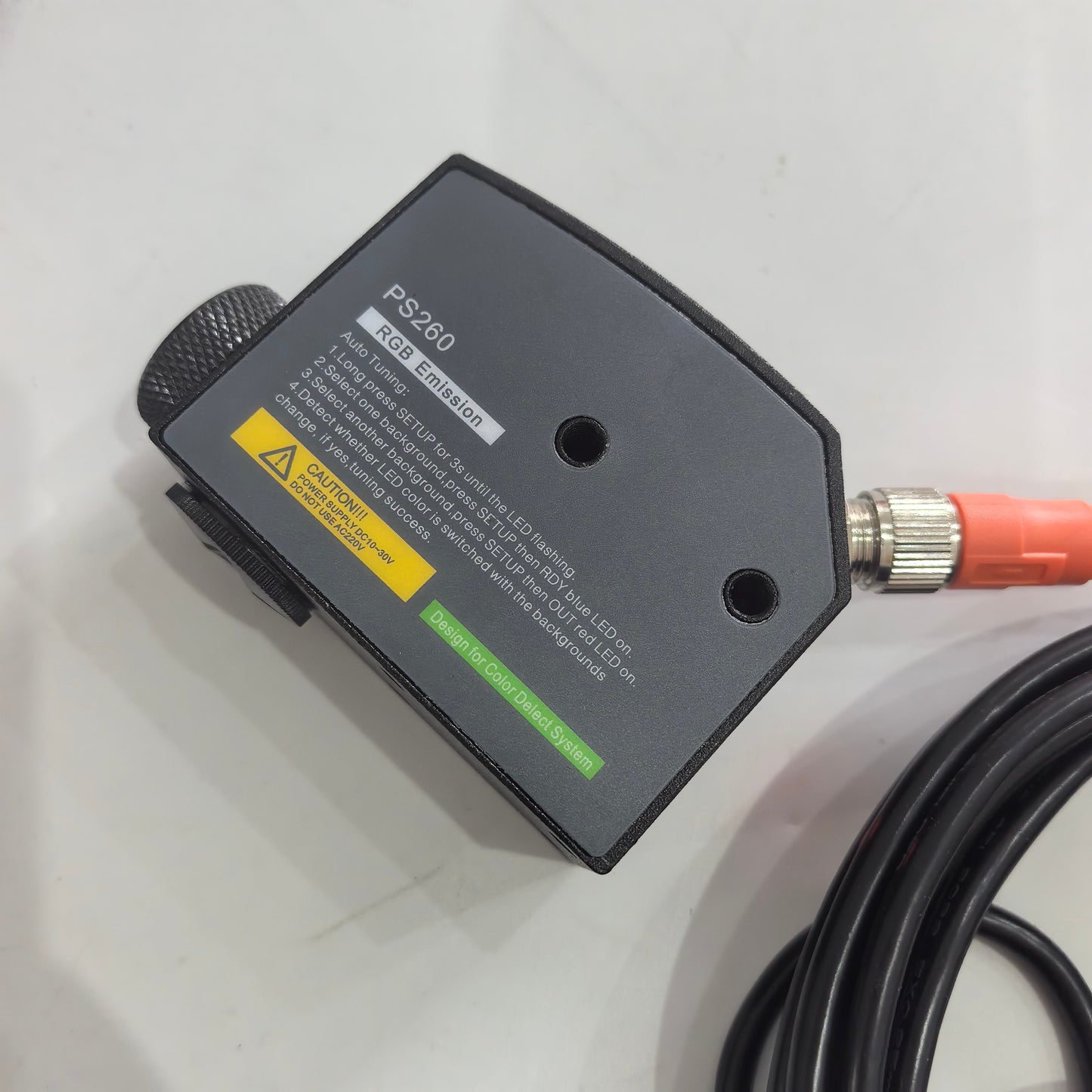

  • PS260 RGB emission color mark sensor label with auto tuning instructions

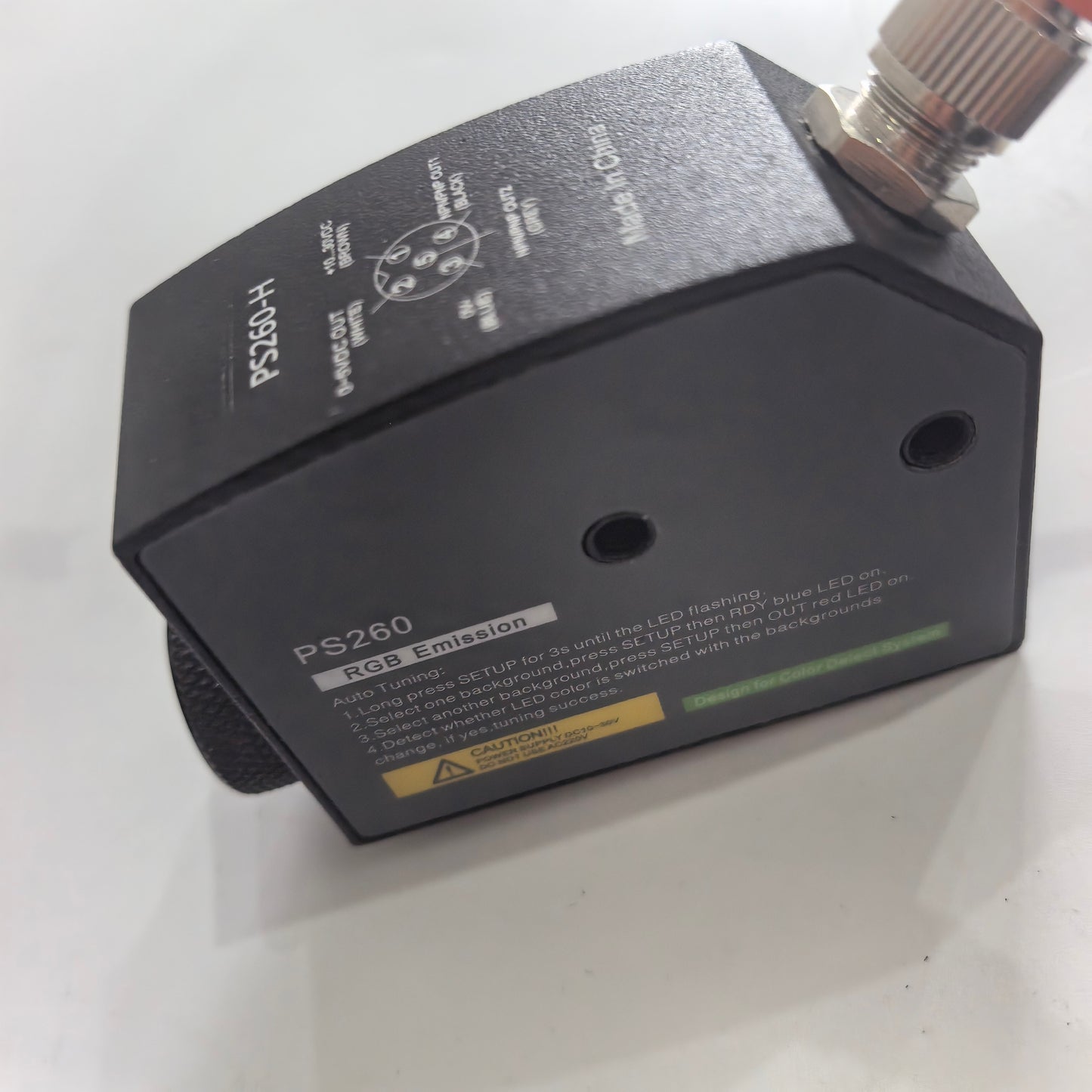

  • PS260-H color mark sensor side label and connector

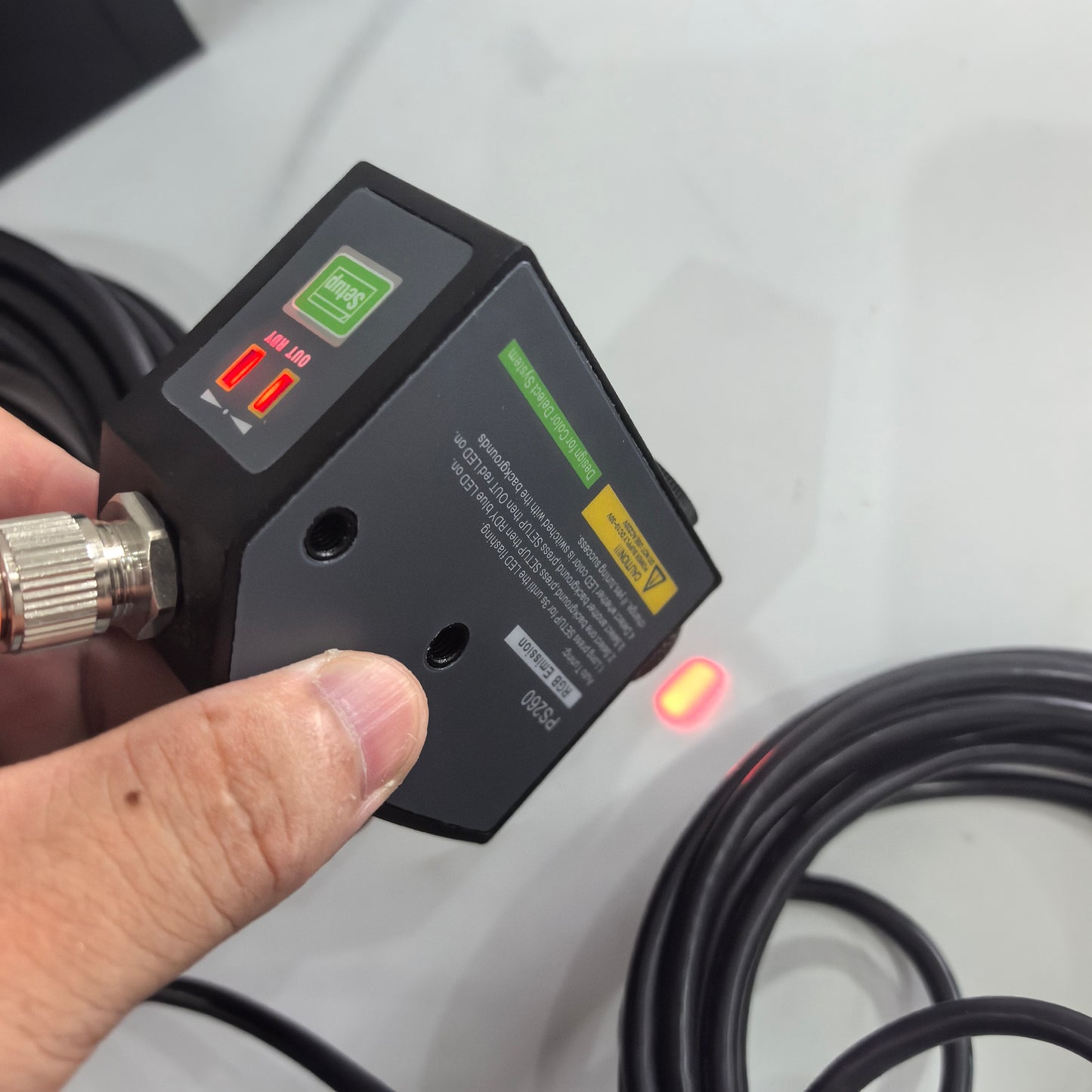

  • PS260 color mark sensor LED output indicator and cable connector
1 12

FMFPAX

Web Guiding System Kit EPC-A10, PS260 Color Mark Sensor for Line Tracking | FMFPAX

$695.00 USD
$695.00 USD
Price includes duties & taxes. Shipping calculated at checkout.
  • 1-year warranty on machinery core parts. Free replacement parts shipped to you — no need to return the machine.
  • Duties and import taxes included for delivery to United States (DDP). No extra customs charges on arrival. Details
  • Ships within 2 business days. Air express 7–15 days, land freight 20–30 days, sea freight 30–50 days after dispatch.
  • Questions before you buy? WhatsApp +86 158 1830 7991 or sales@fmfpack.com

Secure checkout with PayPal, major credit cards or bank transfer. PayPal Buyer Protection

Accepted secure payment methods

Mastercard Visa American Express PayPal Discover JCB Bank Transfer

Product Details

The EPC-A10 web guiding system kit is built for edge and line position control. The kit combines an EPC-A10 controller, PS260-H RGB color mark sensor, PD204L150T servo linear actuator, 24V power supply, connection cables, and mounting hardware.

Key Features

  • EPC-A10 servo edge position control system for edge-following, line-following, and center-alignment operation modes.
  • Controller supply: DC24V; controller power label: 100W.
  • Rear controller interfaces include Power DC24V, Servo Motor, Detector, EX Port, MC Port, RS485, 0-10V, and OUT terminals.
  • PS260-H RGB color mark sensor with auto tuning and DC10-30V sensor supply labeling.
  • PD204L150T precision linear actuator with 150 mm travel, 200 kg thrust, 40 mm/s speed, and linear position encoder labeling.

Specifications

Kit model EPC-A10 with PS260-H sensor and PD204L150T actuator
Controller model EPC-A10 edge/line position controller
Controller supply DC24V
Controller power 100W
Operation modes Edge-following, line-following, center-alignment
Controller ports Power DC24V, Servo Motor, Detector, EX Port
Terminal signals MC Port, RS485, 0-10V, OUT
Sensor model PS260-H / PS260 RGB emission color mark sensor
Sensor supply label DC10-30V
Actuator model PD204L150T
Actuator travel 150 mm
Actuator thrust 200 kg
Actuator speed 40 mm/s
Position feedback Linear position encoder
Product weight 12 kg

Package Contents

  • EPC-A10 controller
  • PS260-H RGB color mark sensor with cable
  • PD204L150T servo linear actuator with cable
  • 24V power supply
  • Mounting fixture and connection hardware
  • Connection cables

Manuals and Drawings

User Manual: Read the EPC-A10 controller user manual online or download the PDF. This kit includes the PS260-H RGB color mark sensor and the PD204L150T actuator.

FAQ

What actuator is included?

The kit includes a PD204L150T servo linear actuator with 150 mm travel, 200 kg thrust, and 40 mm/s speed.

What sensor is included?

The kit includes a PS260-H RGB color mark sensor for color mark detection in the web guiding system.

What controller supply voltage is required?

The EPC-A10 controller is labeled for DC24V supply.
