EPC-A10 Servo Web Guide System
This EPC-A10 servo web guiding system is supplied as a web position control kit for edge-following, line-following, and center-alignment applications. The set includes an EPC-A10 controller, PS-260 color mark sensor, PD-204L150T servo actuator, DC24V power supply, mounting accessories, cables, and user manual.

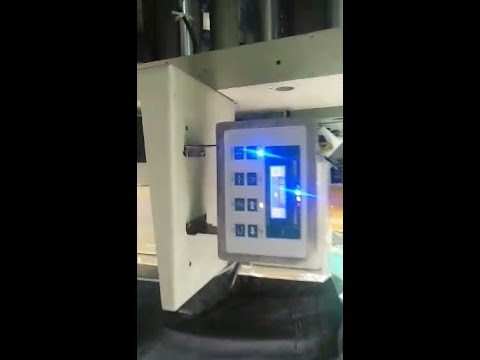

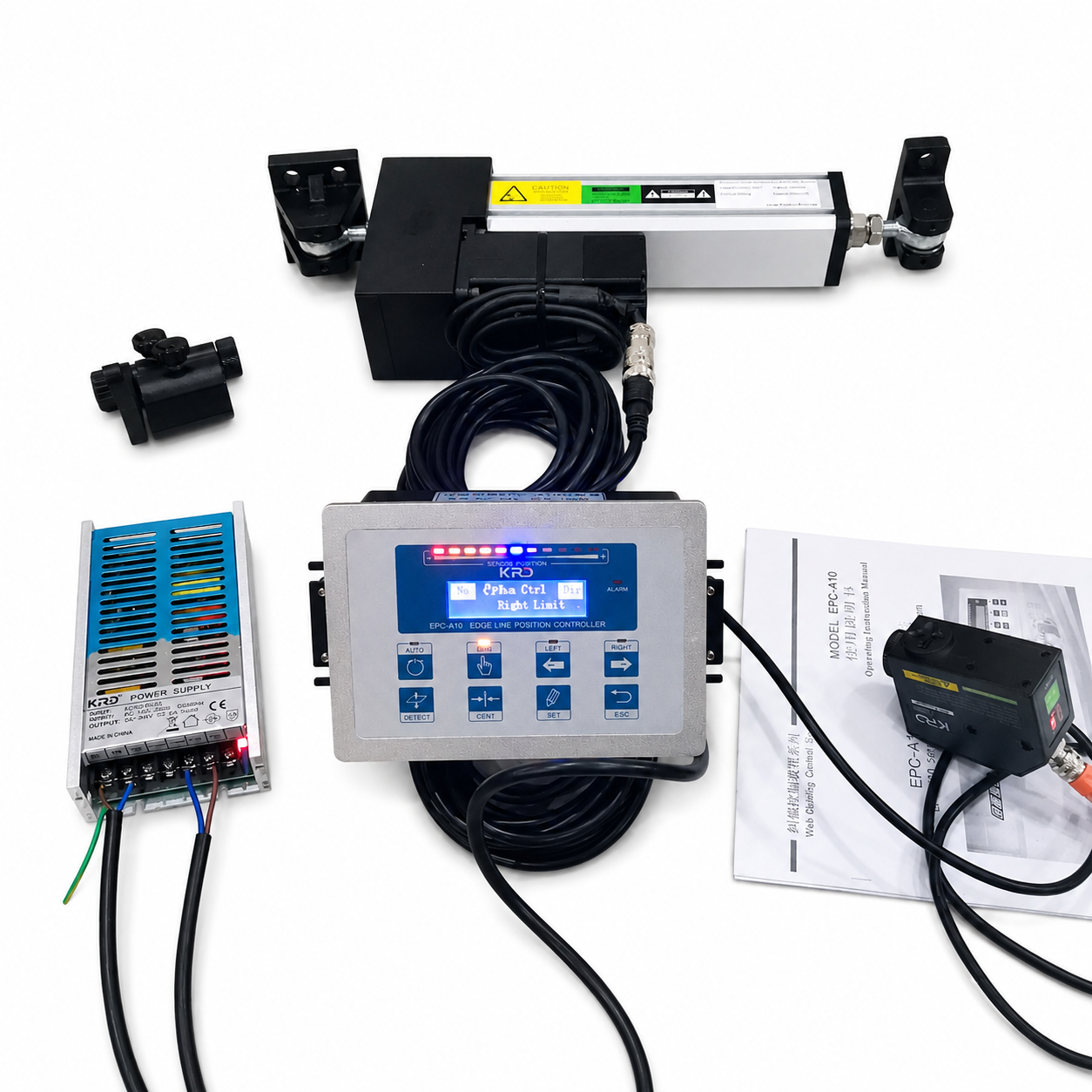

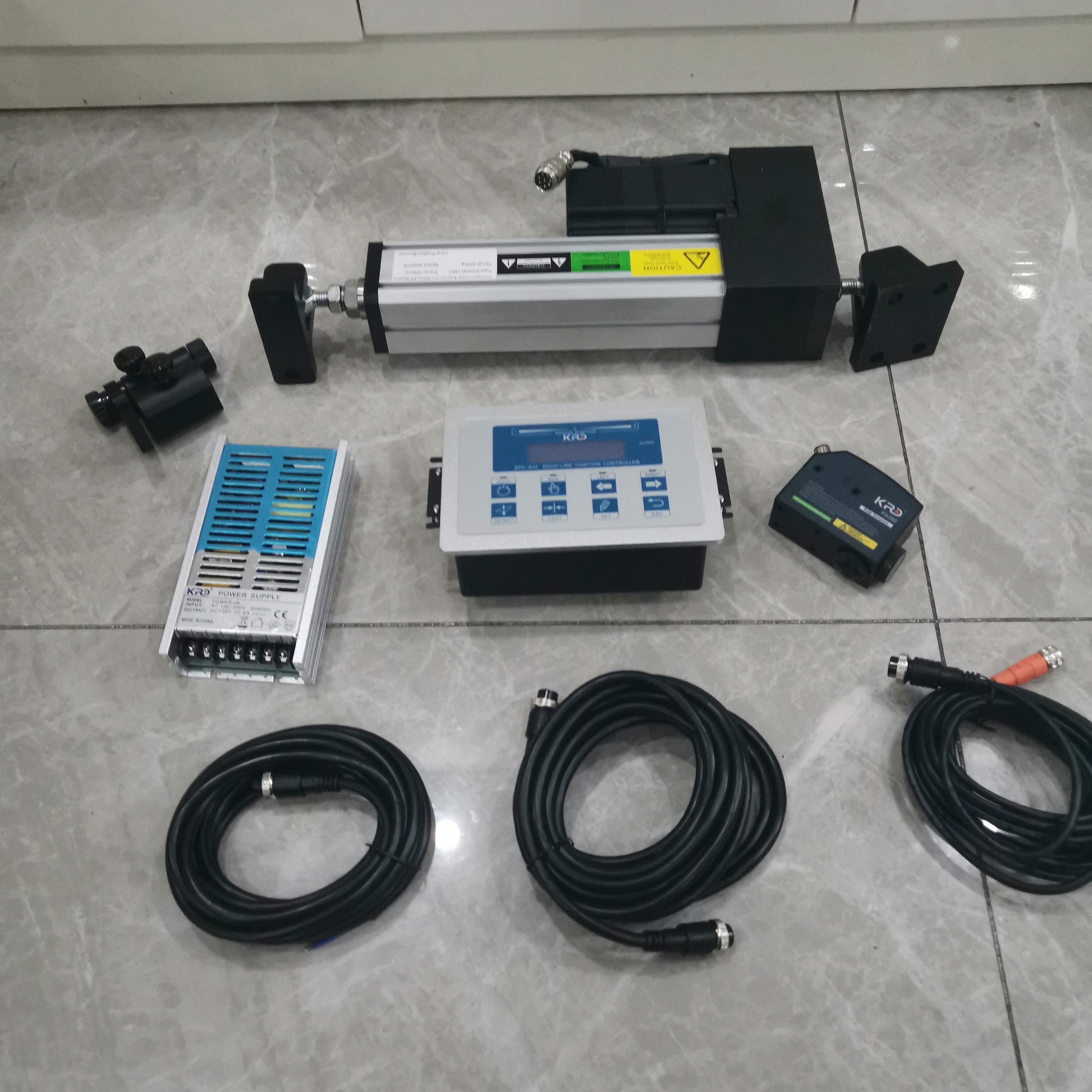

Included Components
- EPC-A10 servo web guide controller: 1 pc.
- PS-260 color mark sensor: 1 pc.
- PD-204L150T servo actuator with 150 mm stroke: 1 pc.
- DC switching power supply, AC 110-240V input to DC 24V output: 1 pc.
- Mounting accessories and cables: 1 set.
- User manual: 1 pc.
Key Functions
- Supports edge-following, line-following, and center-alignment guiding modes.
- Works with the included PS-260 color mark sensor and supports other sensor configurations such as photoelectric, ultrasonic, or CCD sensors when configured for the application.
- Designed for continuous web guiding where material edge, printed line, or color mark position needs correction during running.
- Uses a DC servo driver with no-overshoot integral variable PI control.
- Stores up to 10 groups of material parameters for changeover.
- Supports Simplified Chinese, Traditional Chinese, and English menu languages.
- Supports Modbus communication and PLC/HMI networking control.
Technical Specifications
| Part |
Verified specification |
| EPC-A10 controller |
DC servo driver, DC 24V / 5A power, 24V PWM output, 0.5 ms response time, 12-bit AD analog sampling, operating temperature -10°C to +60°C, weight 1.2 kg. |
| PS-260 color mark sensor |
10-30 VDC power, 15 mm operating distance, +/-3 mm depth of field with standard 15 mm lens, MARK/BKGD setting buttons, analog 0-5V output signal. |
| PD-204L150T actuator |
2000 N max thrust, 200 kg driving load, 150 mm stroke range (+/-75 mm), 40 mm/s max driving speed. |
Sensor And Material Notes
The included PS-260 color mark sensor is suitable for color mark, line, and contrast-based web guiding tasks. Other sensor types can be configured for different materials: ultrasonic sensors are often selected for transparent film or dusty environments, while CCD and photoelectric sensors may fit edge or line tracking depending on the material and installation.
Confirm the web material, guiding mode, sensor type, actuator load, stroke requirement, and controller wiring before ordering or replacing an existing EPC system.
Common Applications
This system is used in web handling equipment where moving material needs edge, line, or center position correction, including packaging, printing, paper, textile, metal sheet, film, and automated material handling applications.
FAQ
What is included in this EPC-A10 web guide system?
The kit includes the EPC-A10 controller, PS-260 color mark sensor, PD-204L150T servo actuator, DC24V power supply, mounting accessories, cables, and user manual.
Which guiding modes does it support?
It supports edge-following, line-following, and center-alignment modes.
What is the actuator stroke?
The included PD-204L150T actuator has a 150 mm stroke range, listed as +/-75 mm.
Can it use other sensors?
Yes. The product notes state that other sensors are also available, including photoelectric, ultrasonic, and CCD sensor configurations. Confirm the material and tracking requirement before selecting another sensor.
