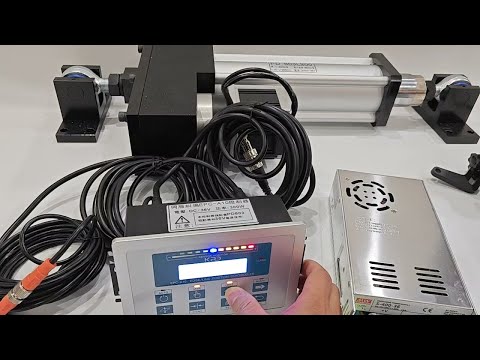

  • EPC-A10 servo web guide system PD-803L200 actuator demo
  • EPC-A10 Servo Web Guide System Line Edge Position Controller
  • EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm product detail image 3
  • EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm product detail image 4
  • EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm product detail image 5
  • EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm product detail image 6
1 7

FMF Supply

EPC-A10 Servo Web Guide System with PD-803L200 Actuator and US-500 Ultrasonic Sensor

EPC-A10 Servo Web Guide System with PD-803L200 Actuator and US-500 Ultrasonic Sensor

$1,152.21 USD
$0.00 USD $1,152.21 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

EPC-A10 Servo Web Guide System for Edge and Line Position Control

The EPC-A10 web guide system is supplied as a matched set for roll-to-roll edge or line position correction. This configuration includes the EPC-A10 controller, a PD-803L200 servo actuator with 800kg thrust and 200mm travel, and a US-500 ultrasonic sensor.

Package Includes

  • EPC-A10 correction controller: 1 pc
  • PD-803L200 servo actuator: 1 pc
  • US-500 ultrasonic sensor: 1 pc
  • 100-240V AC input power supply: 1 pc
  • Connecting cables: 3 pcs
  • Bracket mount: 1 pc

Best-Fit Use

Use this servo web guide controller set when a production line needs automatic edge-following, line-following, or center-alignment correction for moving web materials. The listed applications include paper and packaging converting systems such as bag-making machines, box-making machines, slitters, cutters, copy paper machines, rollers, winders, feeders, and conveyors.

Controller and System Features

  • Three operating modes: edge-following, line-following, and center-alignment.
  • Supports ultrasonic, photoelectric, color mark, and CCD sensor configurations. This set includes the US-500 ultrasonic sensor.
  • High-speed 32-bit CPU with DC servo driver control.
  • No-overshoot integral variable PI algorithm for fast deviation correction.
  • Automatic travel measurement, reducing the need for a mechanical limit switch.
  • 0.5 ms PWM response time.
  • 12-bit AD sampling at 700,000 samples per second.
  • FIR digital filtering and return difference filtering for more stable signal handling.
  • Stores 10 groups of parameters for material changeover.
  • Supports Modbus and PLC/HMI networking control.

Key Specifications

Controller model EPC-A10
Control method DC servo driver
Controller power DC 24V / 5A
Control input DC 0-5A
Control output 24V
PWM response time 0.5 ms
Environment -10 to 60C, below RH90%
Controller weight 1.2 kg

Included US-500 Ultrasonic Sensor

Model US-500
Power supply DC 12V
Power output DC 0-5V
Detection range 5mm
Detection accuracy 0.1mm
Detection method Ultrasonic exposure
Frequency 100kHz
Shell material Aluminum alloy

PD-803L200 Servo Actuator

Model PD-803L200
Travel 200mm
Thrust 800kg
Pushing load 8000kg
Maximum driving speed 30mm/s

Sensor Options

This product is standardly supplied with the US-500 ultrasonic sensor. Photoelectric sensor, color mark sensor, and CCD sensor configurations are optional. Contact FMF Supply before ordering if your line requires a different sensor configuration.

FAQ

What does this EPC-A10 web guide system control?

It controls web edge, printed line, or center position deviation by using the sensor signal, EPC-A10 controller, and PD-803L200 actuator to correct the moving material path.

Which sensor is included in this set?

The standard set includes one US-500 ultrasonic sensor. Other sensor types are optional and should be confirmed before ordering.

What actuator is included?

This configuration includes the PD-803L200 servo actuator with 200mm travel and 800kg thrust.

Can this be used for packaging converting lines?

Yes. The listed applications include paper and packaging converting equipment such as bag-making machines, box-making machines, slitters, cutters, rollers, winders, feeders, and conveyors.
