Force Gauge Test Stand 500N, ALX Screw and AST Lever Stand, for Push Pull Gauges | FMFPAX

The FMFPAX 500N manual force gauge test stand holds a push-pull gauge so you can apply load smoothly and repeatably. Choose from four models: the ALX vertical screw stand with top hand wheel and 150 mm test stroke, or the AST lever-operated stand with hand-press lever and 85 mm test stroke, each available with or without a digital travel scale.

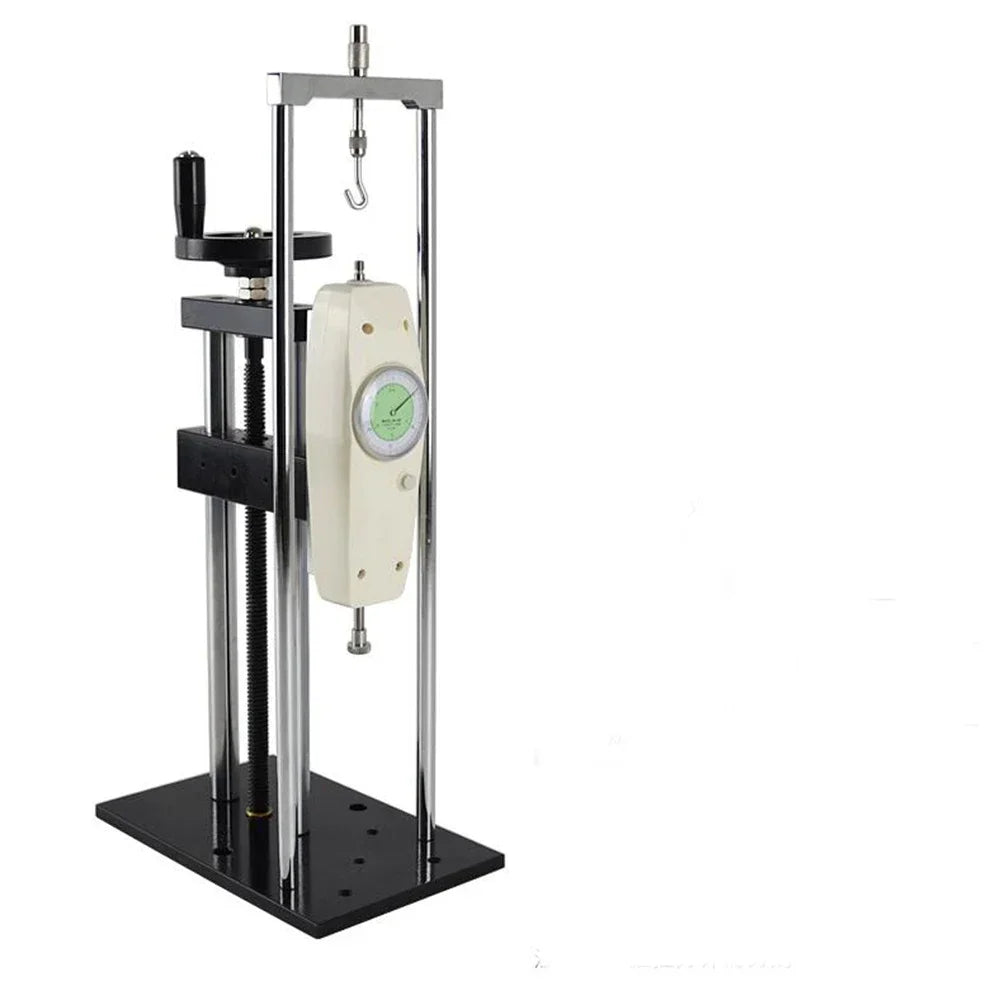

Important: this listing is for the test stand only. The force gauge shown in some photos is not included.

Choose Your Model

Need to read travel distance during the test? Choose an "-S" model with the digital scale. For general push-pull tests, the "-J" models keep the setup simple.

Key Features

• 500N maximum load on all four models.

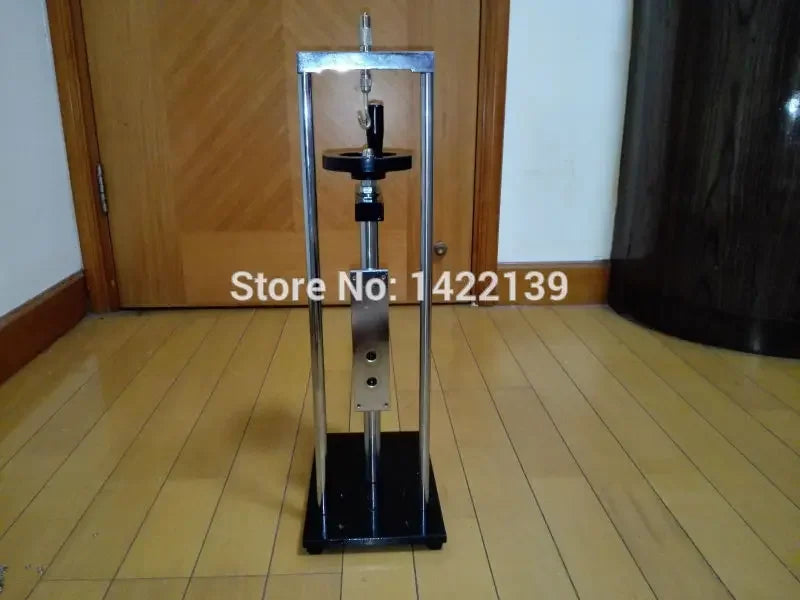

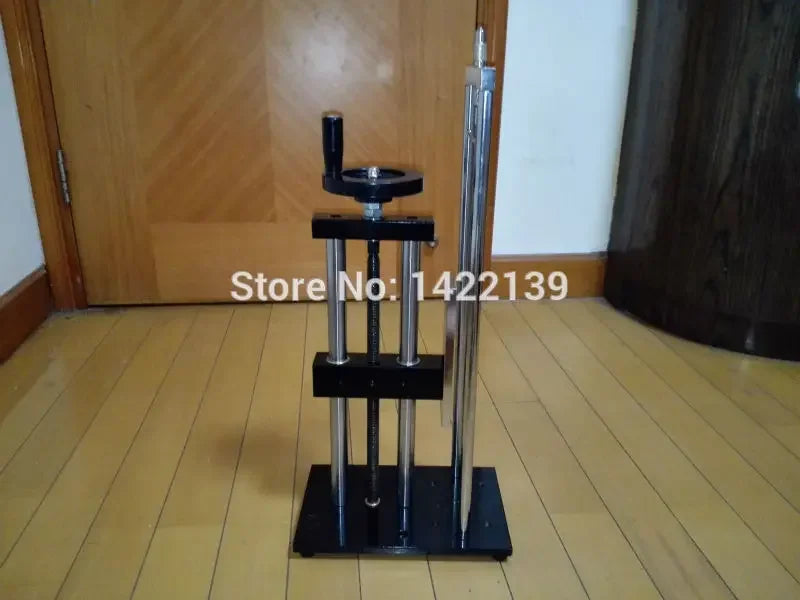

• ALX screw stand: top handwheel turns a trapezoidal lead screw for steady, controlled loading; gantry frame with hook on top and double chrome-plated steel support rods.
• AST lever stand: side hand-press lever for quick, repeated push-pull tests, with an ergonomic handle.
• Digital travel scale (ALX-S / AST-S): large LCD display on a stainless steel scale shows displacement during testing, with mm/in switching.
• Chrome-plated locking handle to hold the gauge carriage in position.
• Gauge mounting plate for NK, HP, SF, HF and ZP series push-pull gauges.

Force Gauge Mounting Hole Pattern

The gauge mounting plate fits force gauges with a four-hole M4 pattern: 40 mm horizontal x 90 mm vertical hole spacing. The reference photo shows this pattern on the back of an SF-500 gauge (body approx. 140 x 60 mm). Please check the back of your gauge against these dimensions before ordering.

Typical Applications

Push-pull force testing of terminals, buckles and clips, adhesive tape, ropes and chains, wires and fishing line, as well as wire and solder joint pull-off tests with a compatible force gauge and fixture.

Main Parts

• ALX models: gantry frame, top hook, handwheel, gauge mounting plate, digital scale (ALX-S only).
• AST models: test lever, gauge mounting plate, digital scale (AST-S only).

What's Included

• 1 x test stand of the selected model
• Not included: force gauge and test fixtures (sold separately)

FAQ

Does this test stand include a force gauge?

No. This listing is for the test stand only. The gauge in the photos is for reference and must be purchased separately.

Is this a manual or motorized test stand?

It is a manual test stand. The ALX models are driven by a hand wheel and lead screw, and the AST models by a hand-press lever. There is no motor.

Which force gauges fit this stand?

The mounting plate fits gauges with an M4 four-hole pattern of 40 x 90 mm, such as NK, HP, SF, HF and ZP series push-pull gauges. Compare the hole spacing on the back of your gauge before ordering.

What is the difference between the ALX and AST stands?

The ALX is a vertical screw stand loaded by a top handwheel, with a 150 mm test stroke. The AST is a lever stand loaded by a side hand-press lever, with an 85 mm test stroke and a shorter, 415 mm overall height.

What does the "S" in ALX-S and AST-S mean?

The S models add a digital travel scale with an LCD display: 150 mm on the ALX-S and 100 mm on the AST-S. The J models have no digital scale.

What is the maximum load?

All four models are rated for a maximum load of 500N.

How heavy is the stand?

The ALX models weigh approx. 11 kg net, and the AST models approx. 12 kg net.
