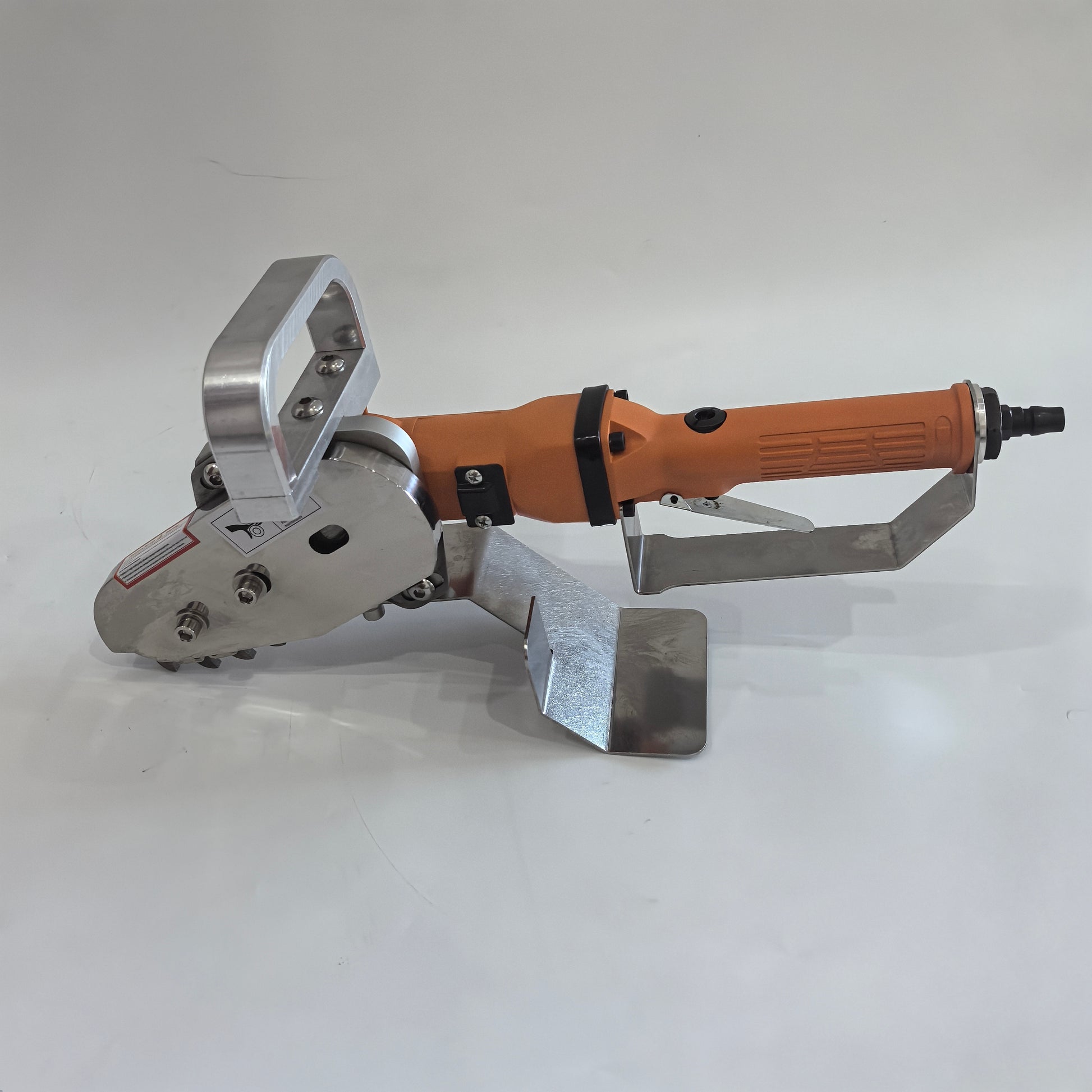

Pneumatic Waste Stripping Tool for Narrow Die-Cut Carton Edges
This 14 mm pneumatic carton waste stripper is used to remove narrow waste edges from die-cut cardboard, carton blanks, paperboard, and single-layer corrugated cartons. The air-powered chain stripping head helps clear narrow waste edge sections faster than manual hand stripping.
Choose this narrow-edge version when the waste strip is too small for a wider stripping head and the job needs a compact handheld pneumatic waste stripping machine for carton box factories, packaging workshops, or die-cutting production work.
Suitable Uses
- Removing narrow die-cut waste edges from cardboard and carton blanks.
- Clearing waste strips from paperboard and single-layer corrugated cartons.
- Reducing manual waste stripping work in carton factories, packaging workshops, and die-cutting production lines.
- Working on small carton box or label die-cut waste where a 14 mm stripping head is required.
Key Features

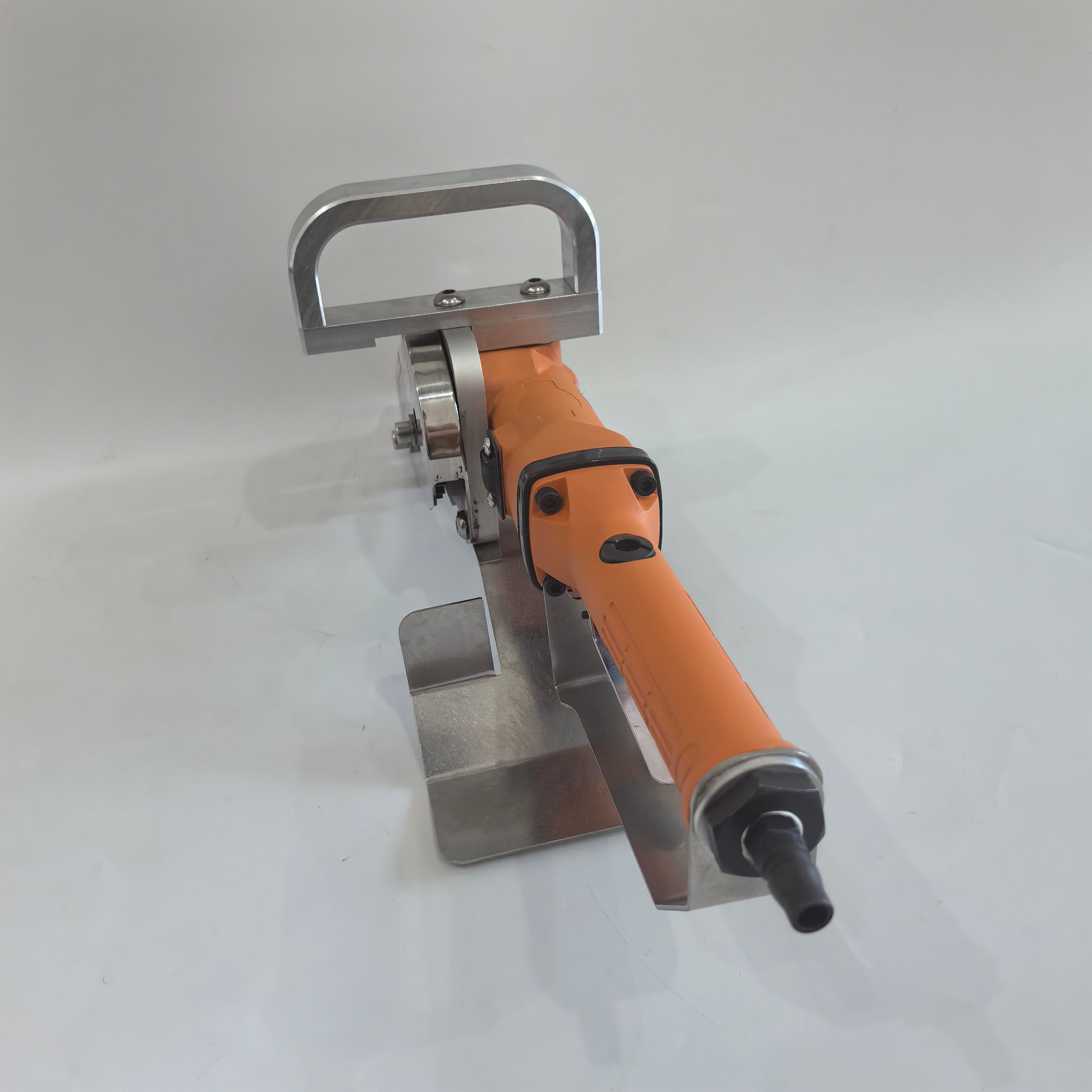

- 14 mm narrow-edge format for narrow carton waste stripping work.

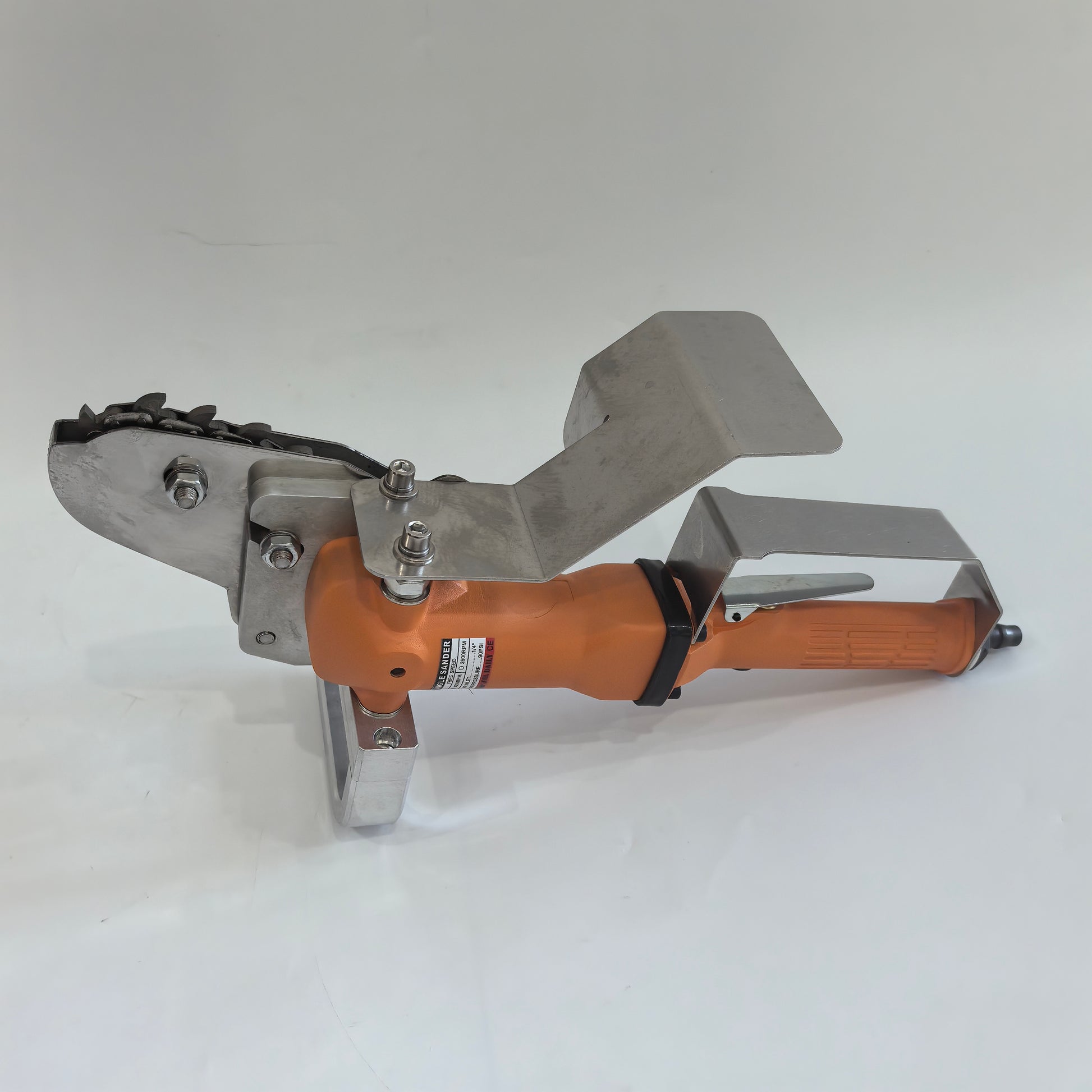

- Pneumatic operation for handheld use on packaging production lines.

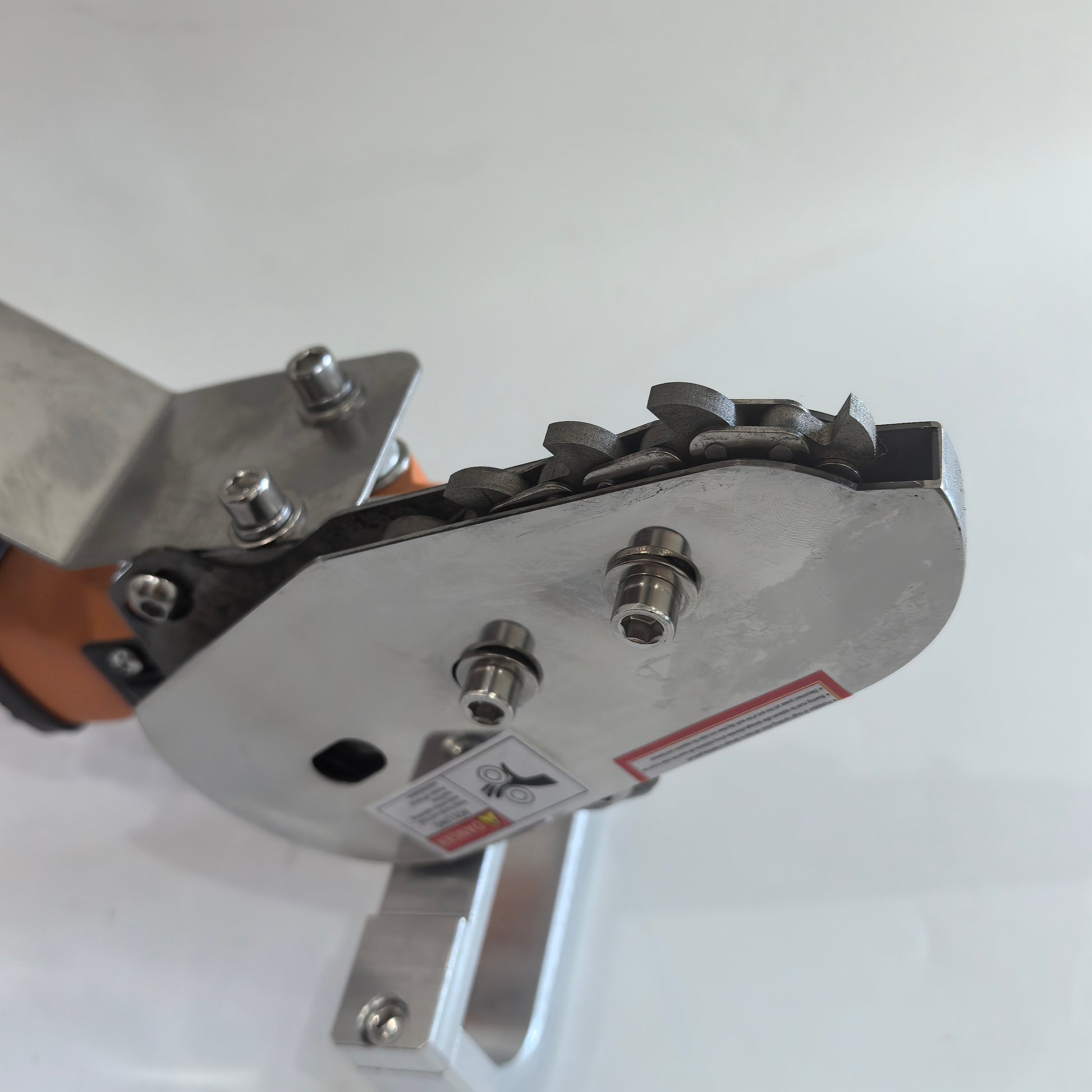

- Air-powered chain stripping head for die-cut waste edge removal.
- Alloy steel chain listed for durable waste-edge stripping.
- Designed as an alternative to hammer-knock waste removal methods when cleaner edge handling is needed.
Specifications
| Product type |
Pneumatic carton waste stripping machine |

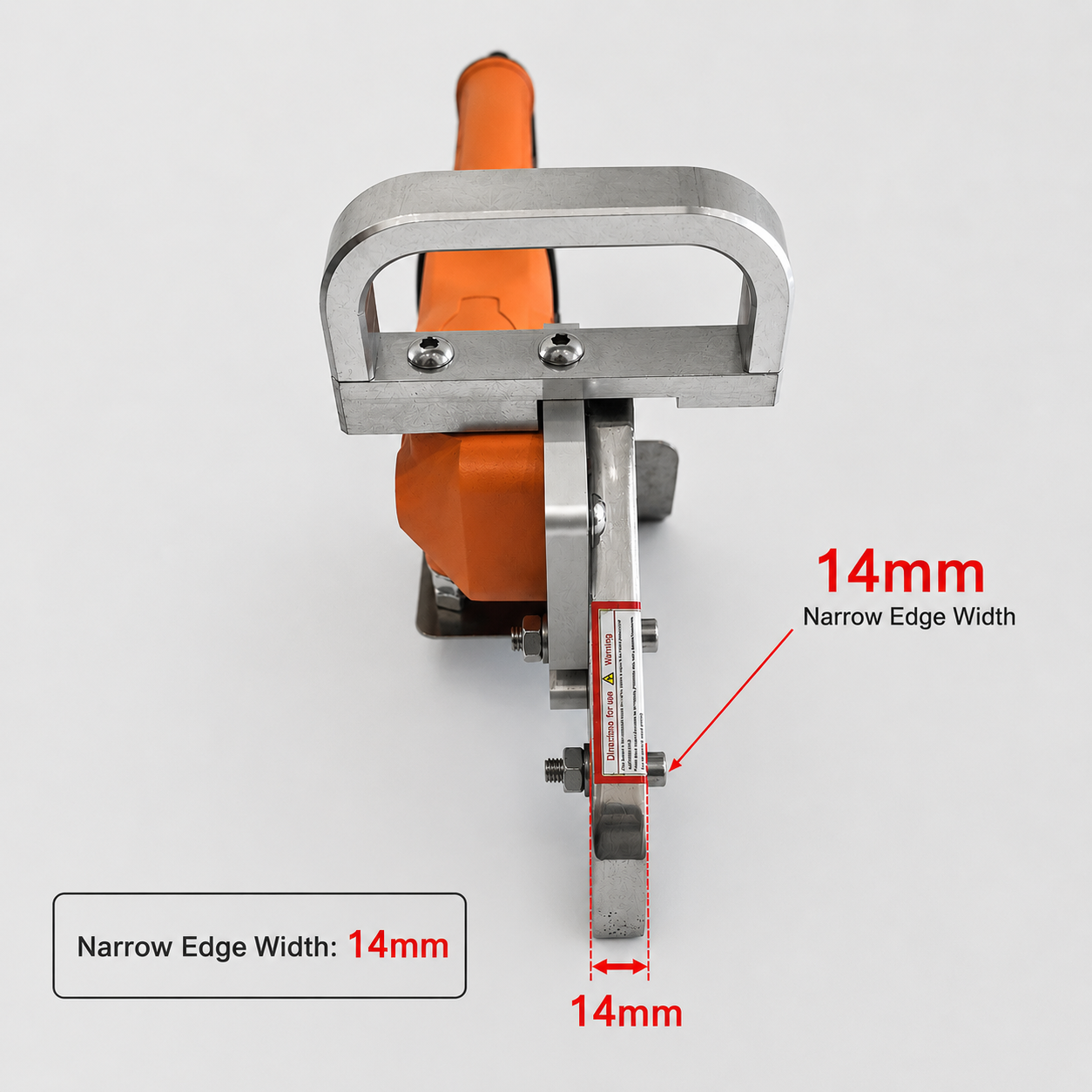

| Narrow edge width |
14 mm |
| Operation type |
Pneumatic / air powered |
| Air pressure |
6-8 kg |
| Running speed |
2500 rpm |

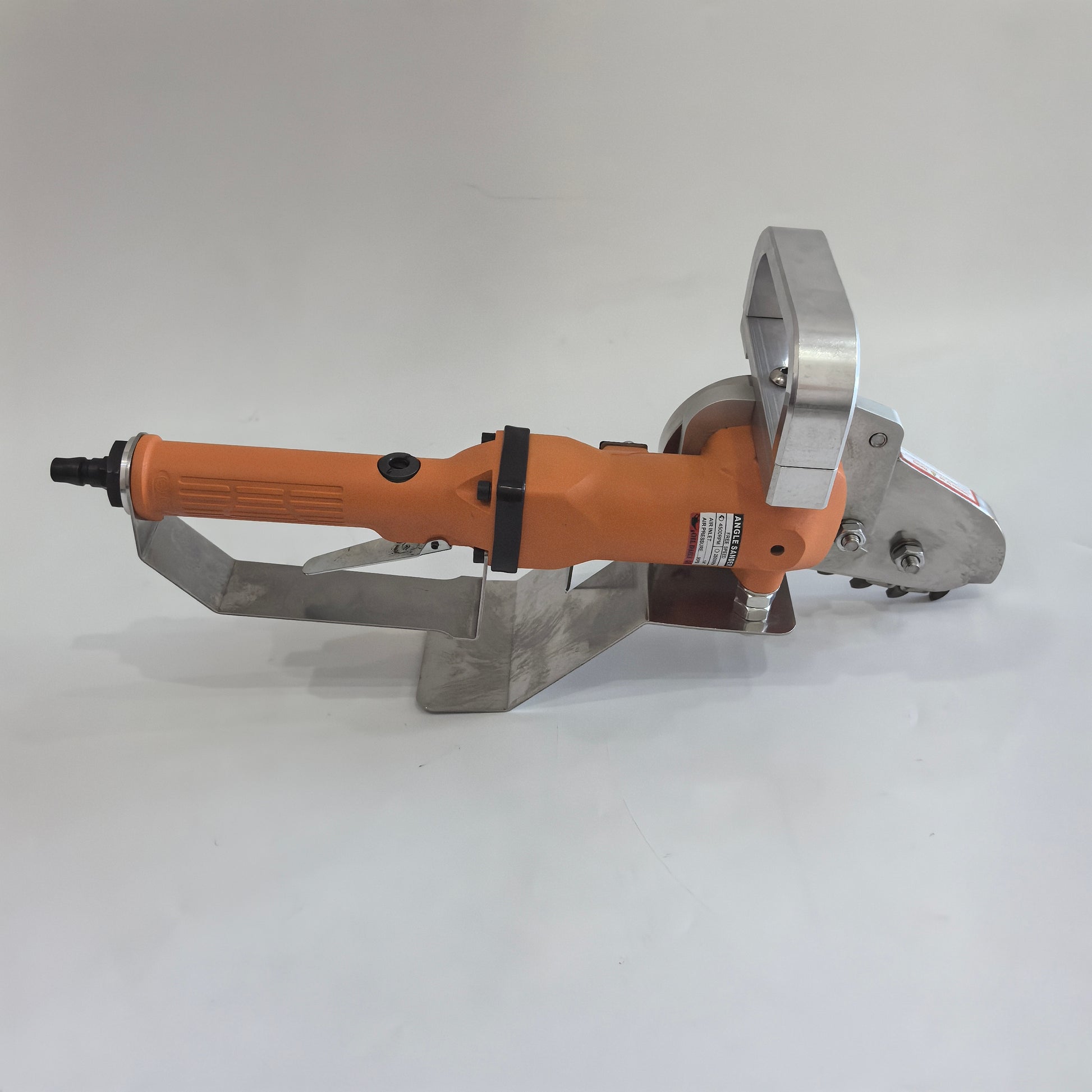

| Air inlet size |
8 x 12 mm |
| Air consumption |
0.4 m3/min |
| Listed weight |
Approx. 3.26 kg |
| SKU reference |
FMF-CWSM-55161 |
How It Works
- Connect the tool to a suitable compressed-air supply.
- Place the chain stripping head on the narrow waste edge of the die-cut carton stack.
- Run the pneumatic tool along the waste edge so the chain removes the waste strip section by section.
- Check the finished carton blanks before moving to the next stack or edge.
Selection Notes
- Select this 14 mm model for narrow waste edge stripping work.
- For wider or heavier waste sections, confirm whether a wider stripping head is required before ordering.
- Confirm your air pressure, air hose size, and carton material before use.
FAQ
What is this tool used for?
It is used to remove narrow waste edges from die-cut cardboard, carton blanks, paperboard, and single-layer corrugated cartons.

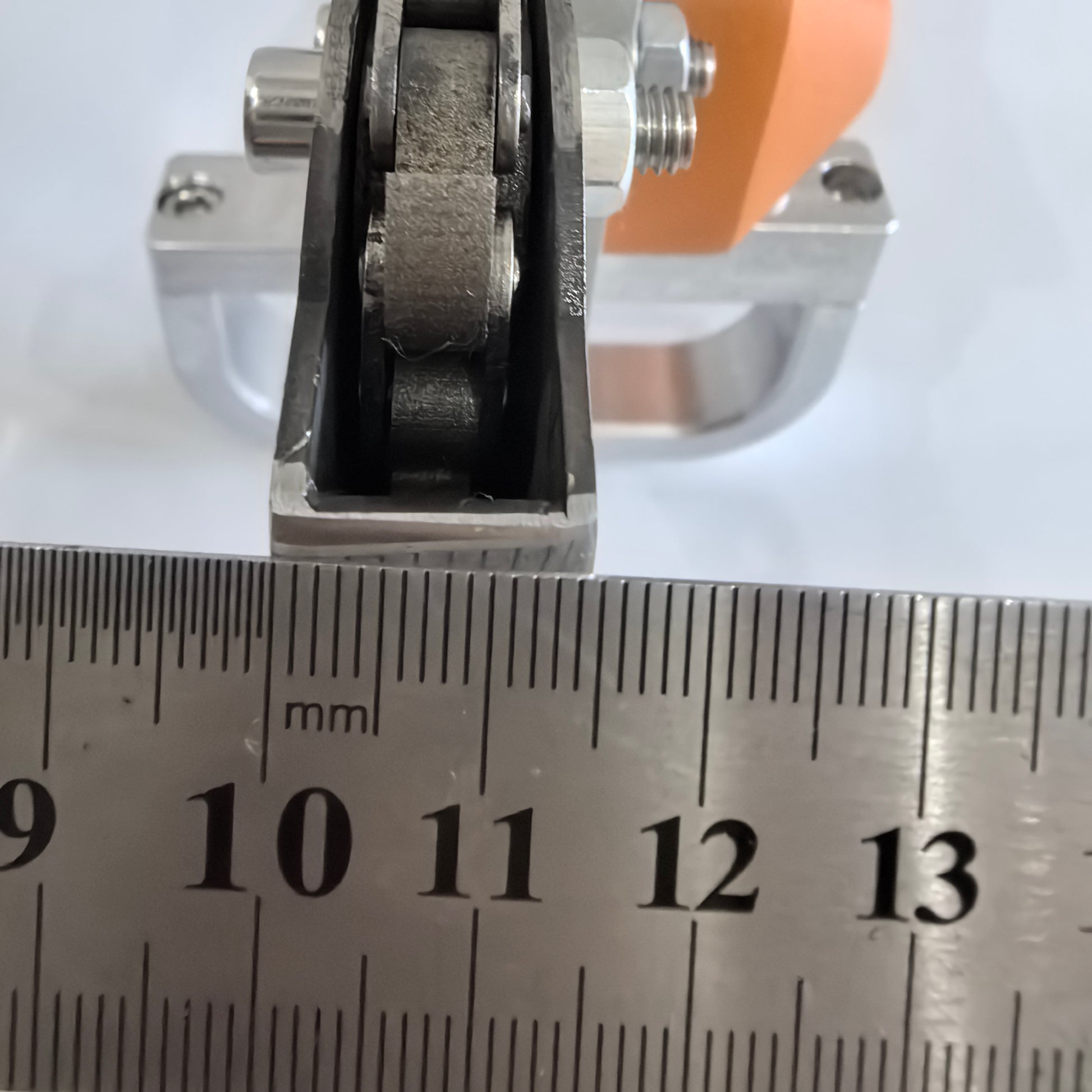

What does the 14 mm size mean?
The product image and listing identify this as a 14 mm narrow-edge waste stripper for narrow carton waste removal work.
Is this tool air powered?
Yes. It is a pneumatic carton waste stripper. The listed air pressure is 6-8 kg, with 0.4 m3/min air consumption.
What should I confirm before ordering?
Confirm the waste edge width, carton material, air pressure, air hose size, and whether a narrow 14 mm stripping head fits your die-cutting job.
