Maynuo M8811 DCソースメータープログラマブル電源 30V 5A 150W

Q: What output range does the Maynuo M8811 provide?

It provides 0-30V and 0-5A output with a 150W power rating.

Q: Can the M8811 be used in automated test systems?

Yes. The M88 series supports SCPI commands and RS232, RS485, and USB communication, so the M8811 can be integrated into programmable lab and production-line test setups.

Q: Does it include measurement functions?

The M8811 includes built-in 5 1/2 digit voltmeter and milliohmmeter functions for voltage and resistance measurement tasks within the specified ranges.

Q: What should be checked before purchase?

Check the AC input, plug requirement, communication interface, required cables, and any rack or accessory needs against your test bench setup.

$434.77 USD

~~$0.00 USD~~ $434.77 USD

セール売り切れ

税込。配送料はチェックアウト時に計算されます。

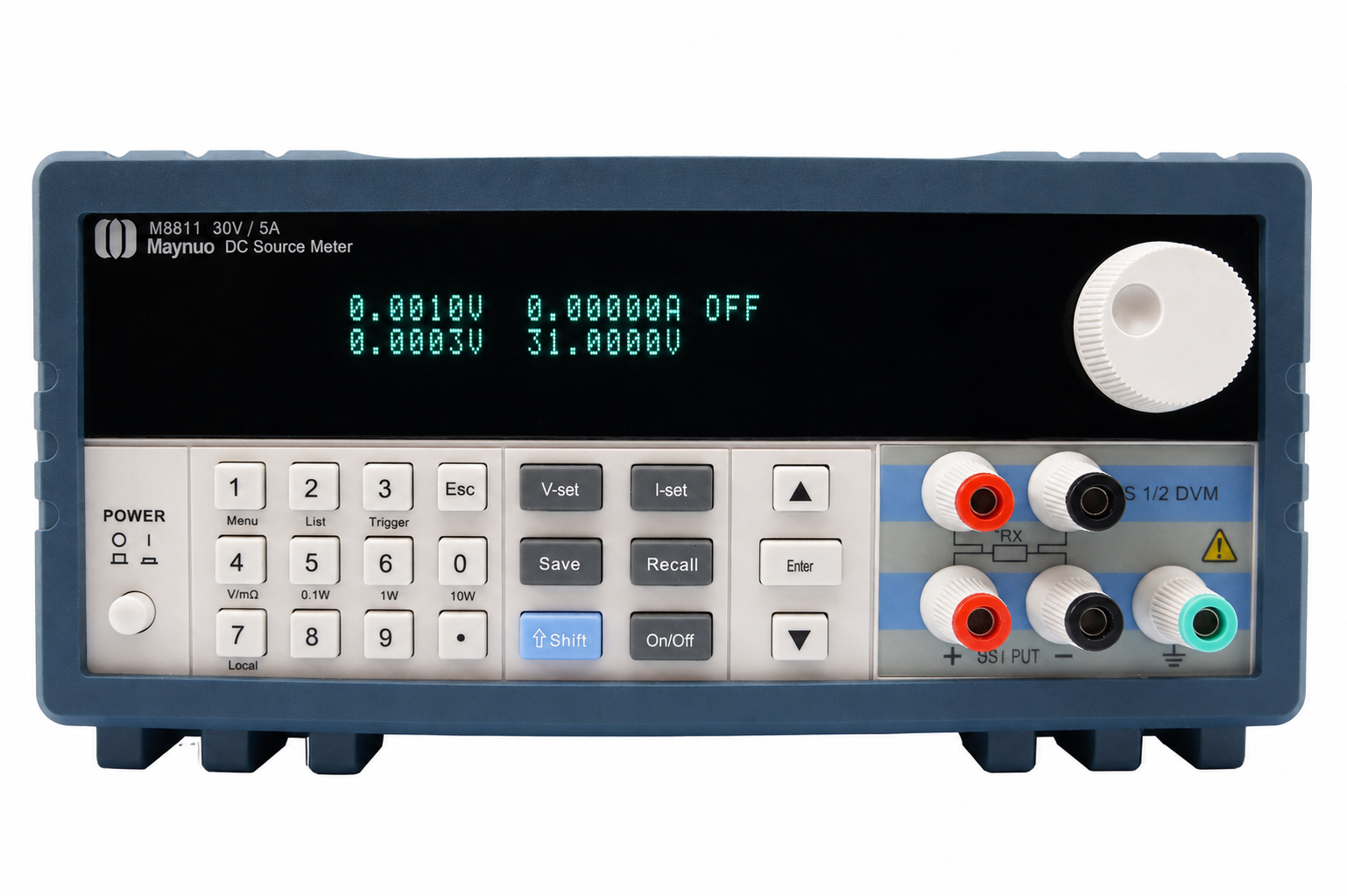

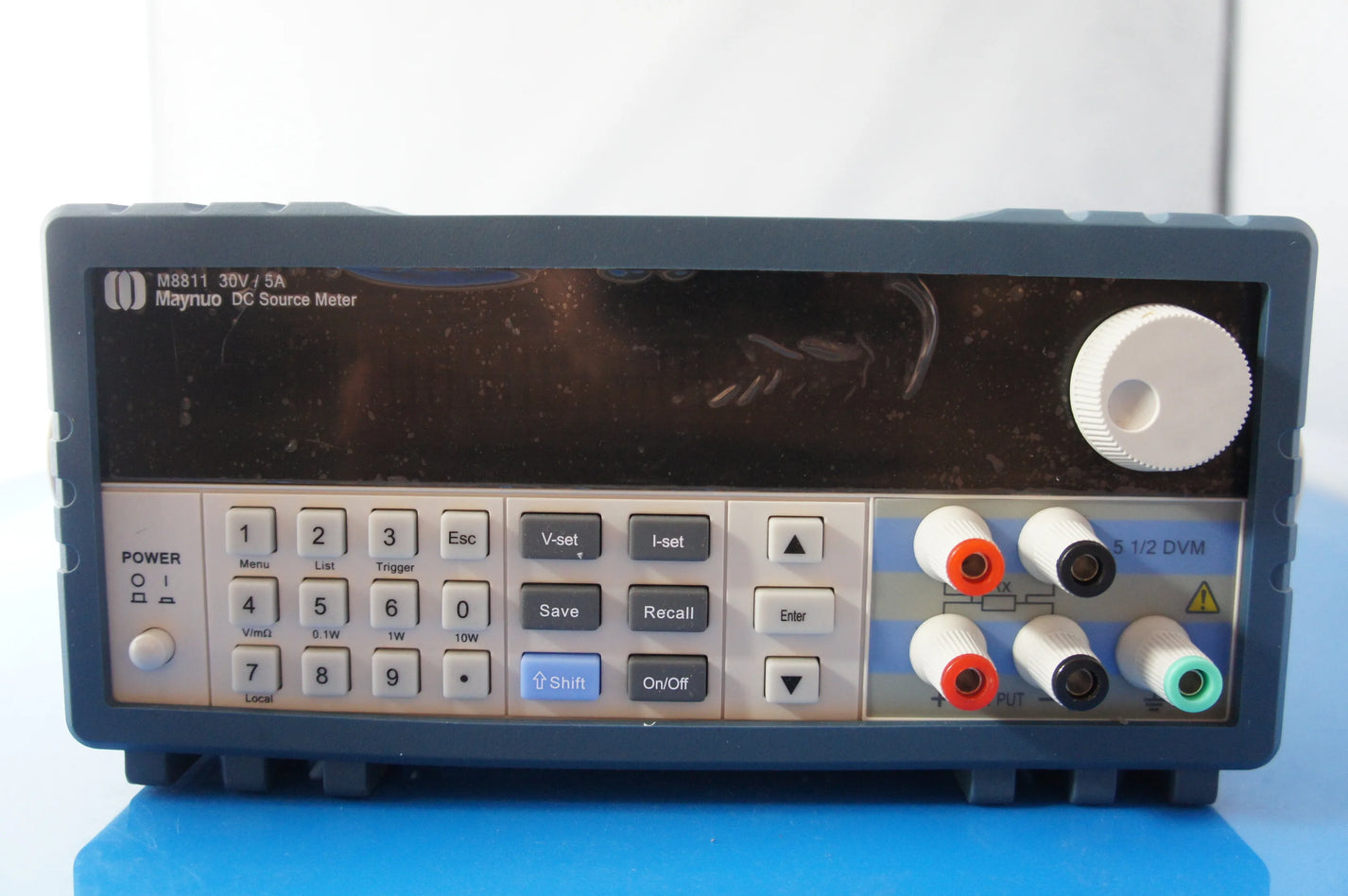

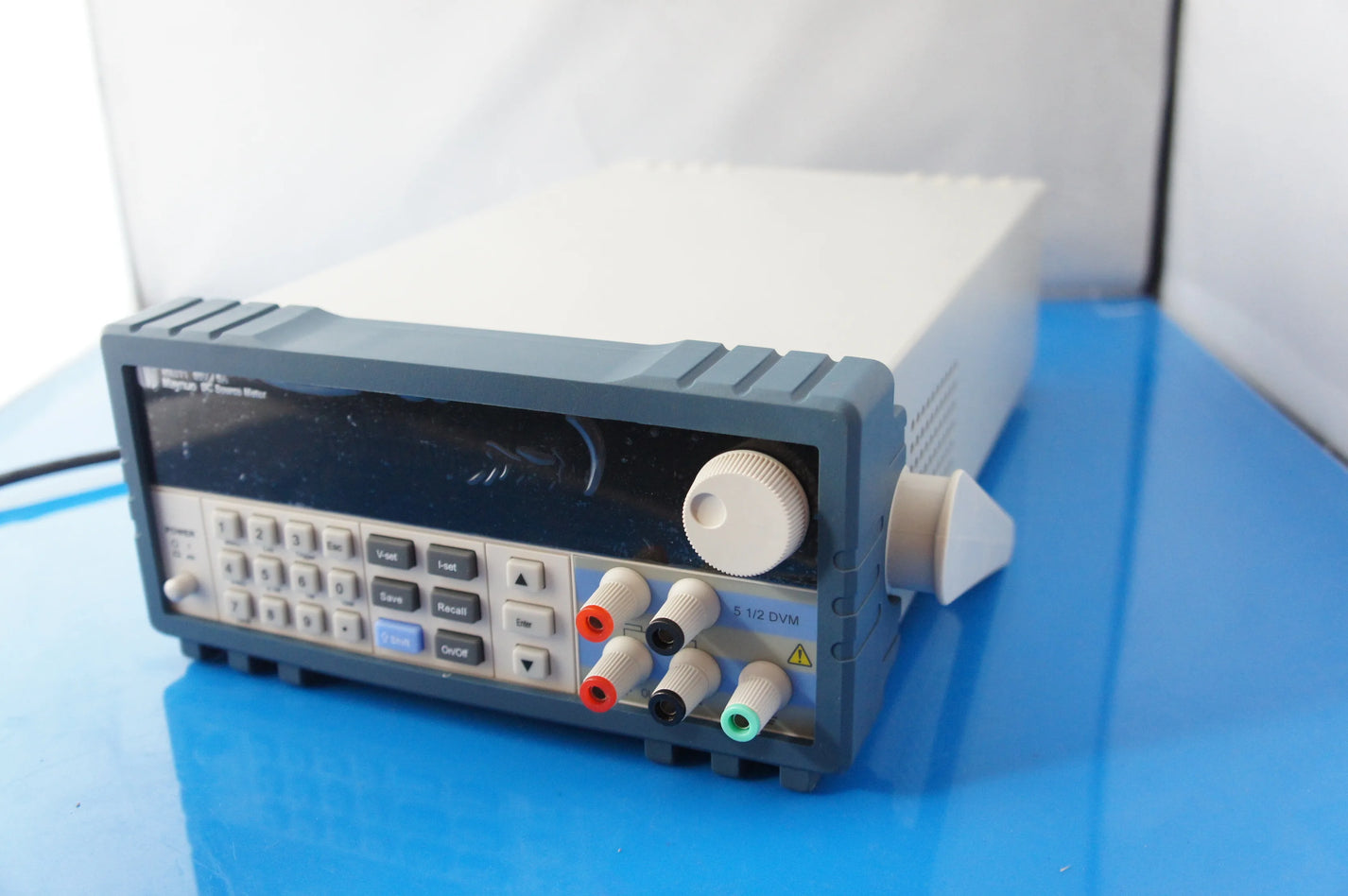

Maynuo M8811 DC Source Meter

The Maynuo M8811 is an M88 series single-output programmable DC power supply and DC source meter for laboratory testing, power electronics production-line testing, and automated test systems. It provides 0-30V, 0-5A, and 150W output, with front-panel programming and readback for voltage and current settings.

Key Capabilities

High-resolution readback: 0.1mV voltage resolution and 0.01mA current resolution.
Low ripple and low noise output for electronics test work.
Built-in 5 1/2 digit voltmeter and milliohmmeter functions.
High-luminance VFD display with two lines and four channels.
Remote voltage compensation, multi-data storage, external trigger input/output, and intelligent fan control.
SCPI command support with RS232, RS485, and USB communication modes.

Specifications

Model	Maynuo M8811
Series	M88 programmable DC power supply
Output rating	0-30V, 0-5A, 150W
Load regulation	Voltage: <0.01% + 0.5mV; Current: <0.01% + 0.1mA
Setting resolution	Voltage: 0.5mV; Current: 0.1mA
Readback resolution	Voltage: 0.1mV; Current: 0.01mA
Setting accuracy	Voltage: 0.01% + 2mV; Current: 0.05% + 1mA
Readback accuracy	Voltage: 0.02% + 5mV; Current: 0.1% + 5mA
Ripple	Voltage: 3mVp-p; Current: 2mA rms
Voltmeter accuracy	0-12V: 0.02% + 2mV; 0-58V: 0.02% + 5mV
Milliohmmeter accuracy	10W, 0-1000mΩ: 0.2% + 3mΩ; 1000-10000mΩ: 0.2% + 6mΩ
Working condition	0-40°C; 0-90%RH
Power required	AC 120V/220V ±10%, 50/60Hz
Weight	6.5kg
Dimensions	214mm W x 101.5mm H x 365mm D
SKU	FMF-M8811-67577

When to Choose This Model

Use it when your test setup needs a 30V/5A/150W programmable DC source with voltage and current readback.
Suitable for lab benches, power electronics production-line testing, and automated test systems.
Useful when SCPI control or RS232, RS485, or USB communication is required for repeatable test workflows.

Before Ordering

Confirm the AC input, plug requirement, communication interface, required cables, and any rack-mount or accessory needs before purchase.
Check that the 0-30V, 0-5A, and 150W range matches the device or circuit you plan to test.

FAQ

What output range does the Maynuo M8811 provide?

It provides 0-30V and 0-5A output with a 150W power rating.

Can the M8811 be used in automated test systems?

Yes. The M88 series supports SCPI commands and RS232, RS485, and USB communication, so the M8811 can be integrated into programmable lab and production-line test setups.

Does it include measurement functions?

The M8811 includes built-in 5 1/2 digit voltmeter and milliohmmeter functions for voltage and resistance measurement tasks within the specified ranges.
