Leadshine 3DM583 3相マイクロステップドライバ DC20-50V 8.3A CNCステッピングモーター用

$66.31 USD

~~$0.00 USD~~ $66.31 USD

セール売り切れ

税込。配送料はチェックアウト時に計算されます。

Product Overview

The Leadshine 3DM583 is a 3-phase microstep driver for CNC and industrial motion-control systems. This listing is for a DC20-50V driver with adjustable output current up to 8.3A peak / 5.9A RMS, PUL/DIR/ENA signal inputs, and DIP-switch pulse/rev settings for matching 3-phase stepper motor installations.

Verified Specifications

Model	3DM583
Brand marking	Leadshine
Driver type	3-phase microstep drive / stepper motor driver
Supply voltage	DC +20V to +50V
Output current setting	2.1A to 8.3A peak, 1.5A to 5.9A RMS
Pulse/rev settings	200, 400, 500, 1000, 2000, 4000, 5000, 10000
Signal terminals	PUL+, PUL-, DIR+, DIR-, ENA+, ENA-, PWR/Fault

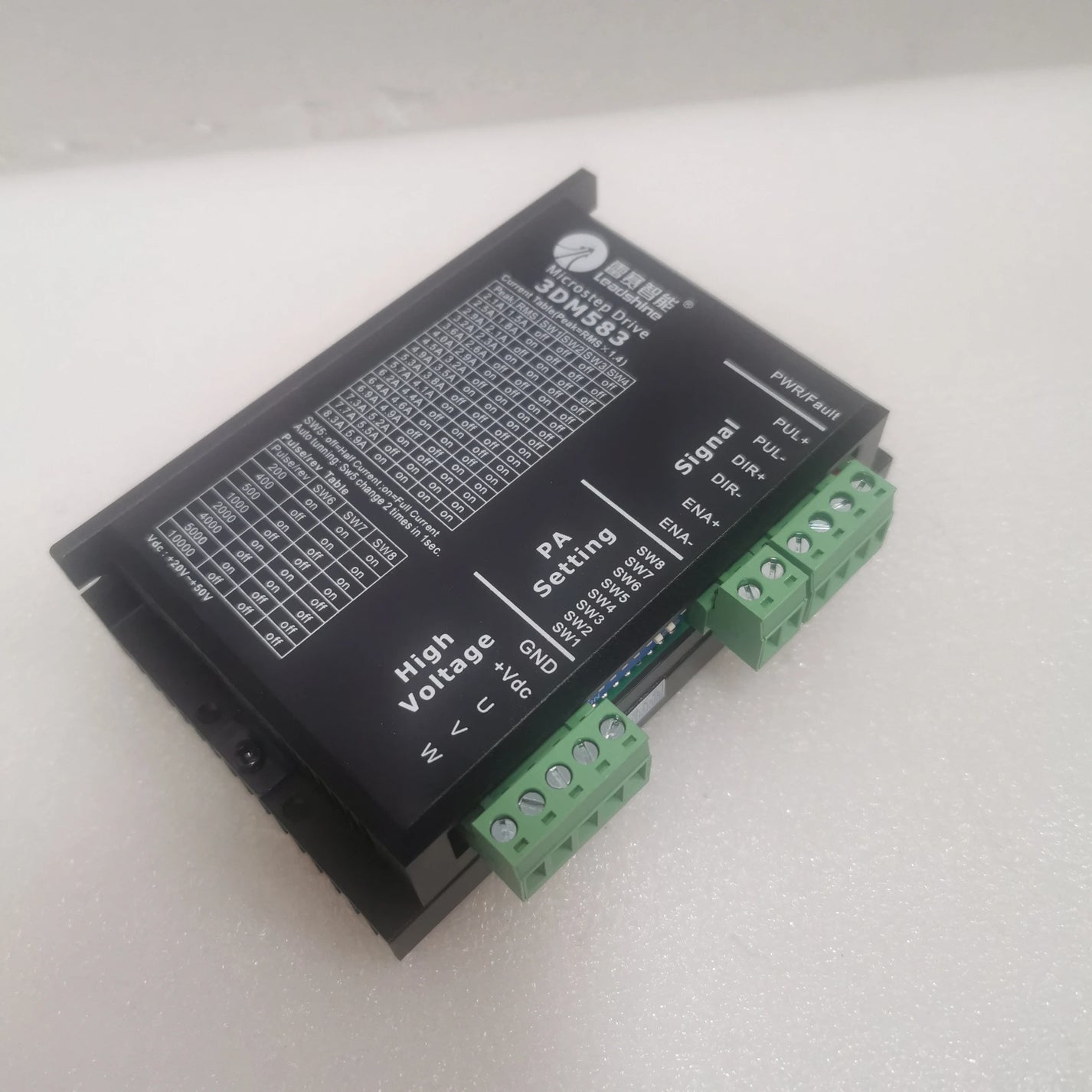

Power and motor terminals	GND, +Vdc, U, V, W
SKU	FMF-DC20-50V-93561

Control and Wiring Points

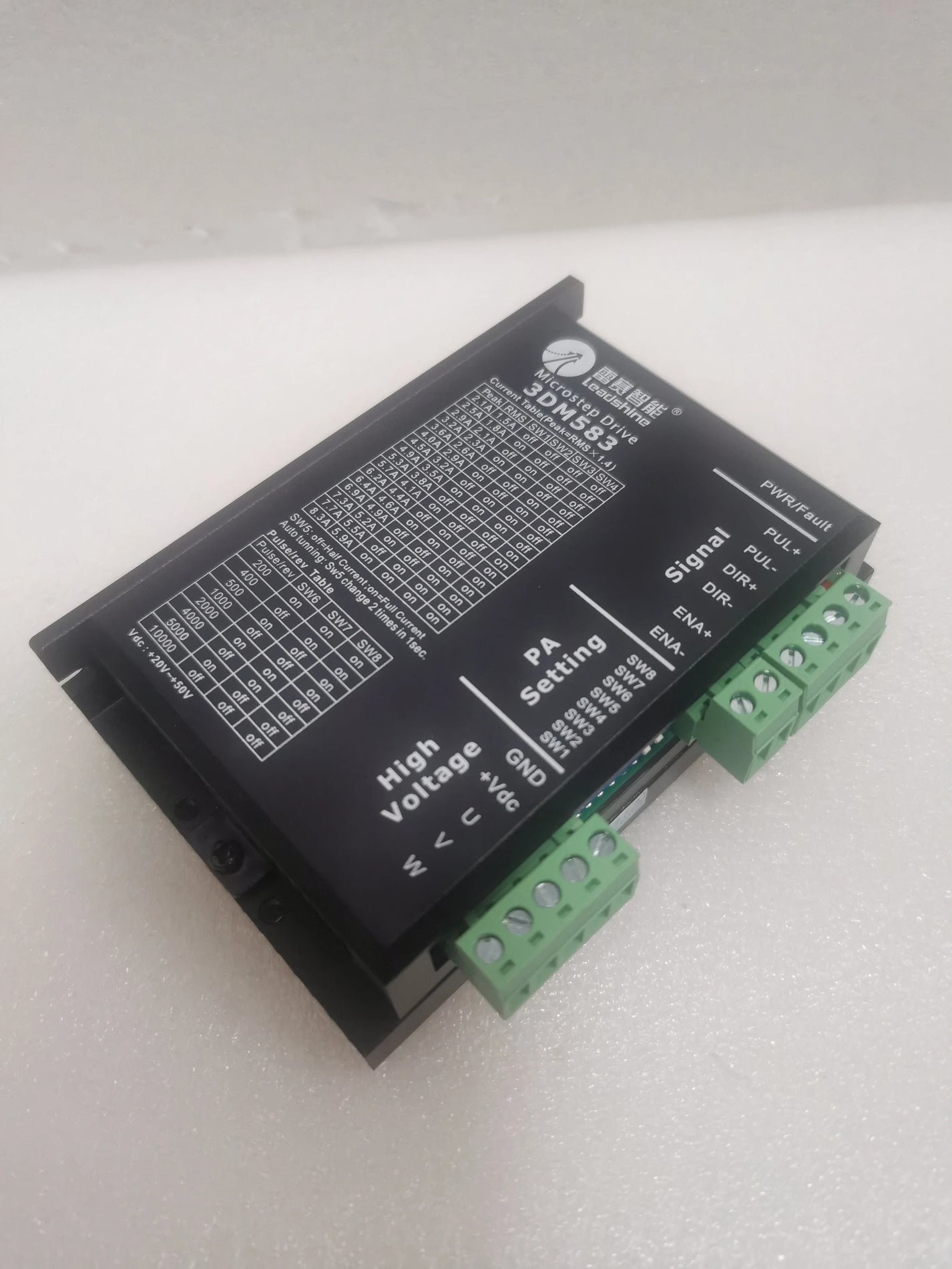

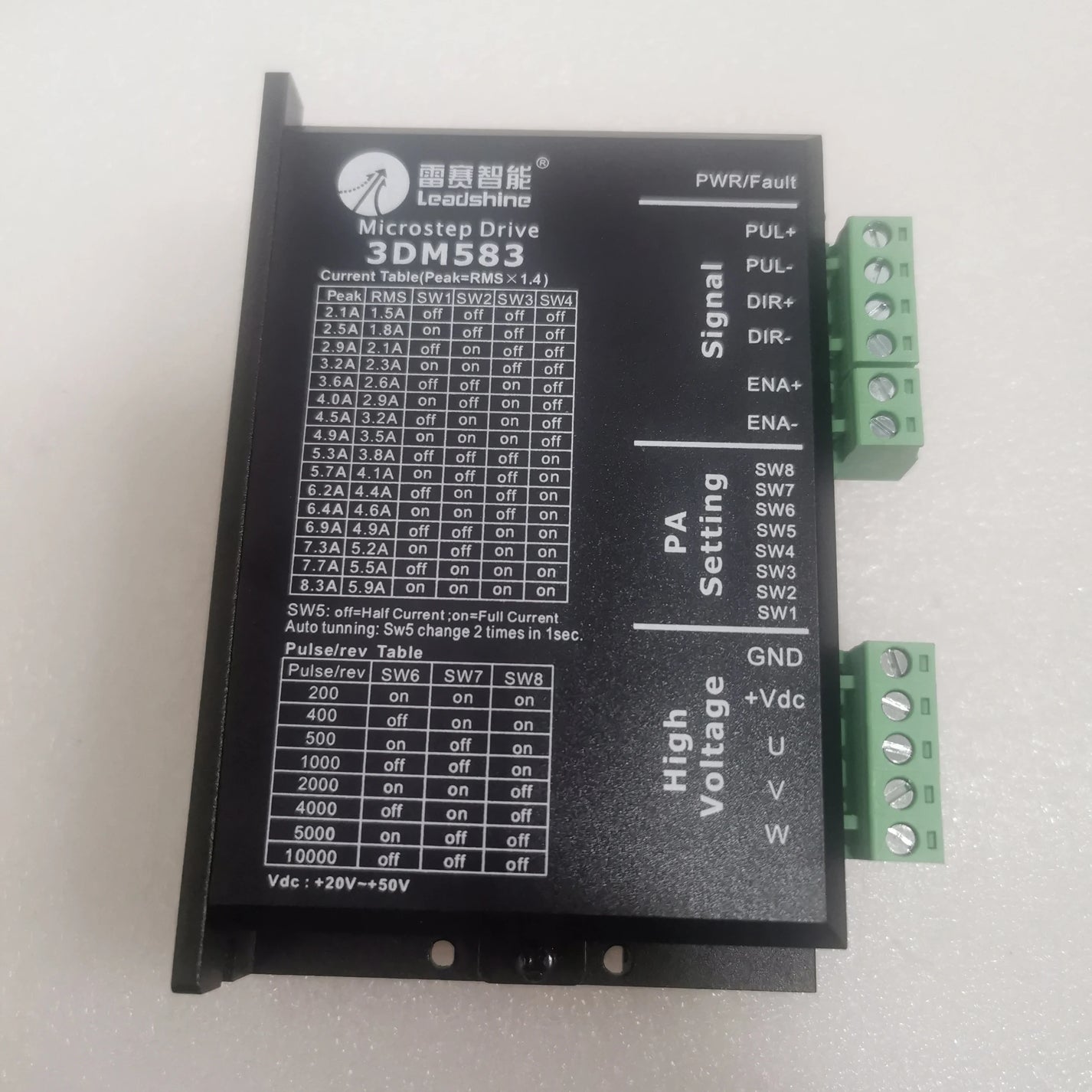

SW1-SW4 set the output current according to the current table printed on the driver body.
SW5 is marked for half-current / full-current behavior and auto-tuning operation.
SW6-SW8 select the pulse/rev setting from 200 to 10000.

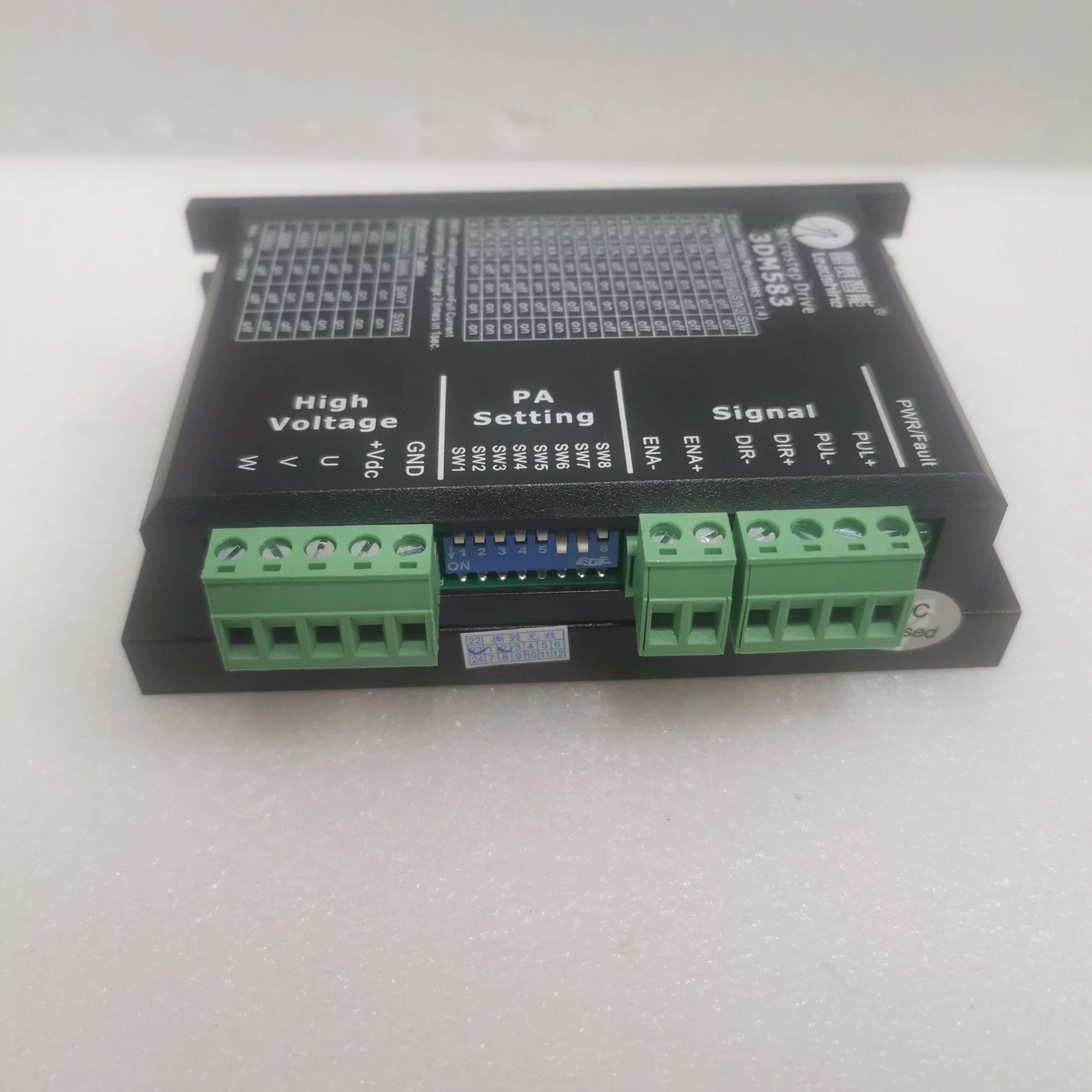

The front terminal markings separate high-voltage motor wiring, PA setting switches, and signal wiring for easier panel checks.

Fit Check

Use for matching 3-phase stepper motor systems that require a DC20-50V microstep driver.
For 3ND583 replacement, NEMA 23/24, or 573S09 CNC controller use, compare your existing driver wiring, supply voltage, current setting, and pulse/rev setting with the markings shown on this product.
The visible terminal layout supports PUL/DIR/ENA signal wiring and U/V/W motor output wiring.

FAQ

What power supply range is shown for this driver?

The driver body is marked Vdc: +20V to +50V.

What output current range can be selected?

The current table shows 2.1A to 8.3A peak output current, with the corresponding RMS range from 1.5A to 5.9A.

What pulse/rev settings are printed on the product?

The pulse/rev table shows 200, 400, 500, 1000, 2000, 4000, 5000, and 10000 settings through SW6-SW8.

Can this be used for CNC stepper motor control?

It can be used in matching CNC or industrial motion-control setups that require a 3-phase stepper driver with the listed voltage, current, signal, and motor terminal requirements.

What should I compare before replacing a 3ND583 driver?

Compare the DC supply range, U/V/W motor wiring, PUL/DIR/ENA signal wiring, current table, and pulse/rev setting table with your existing installation.
