CM-230 オンライン導電率モニター 4-20mA パネルメーター 0-2000μS/cm AC220V

CM-230 Online Conductivity Monitor for Water Treatment Panels

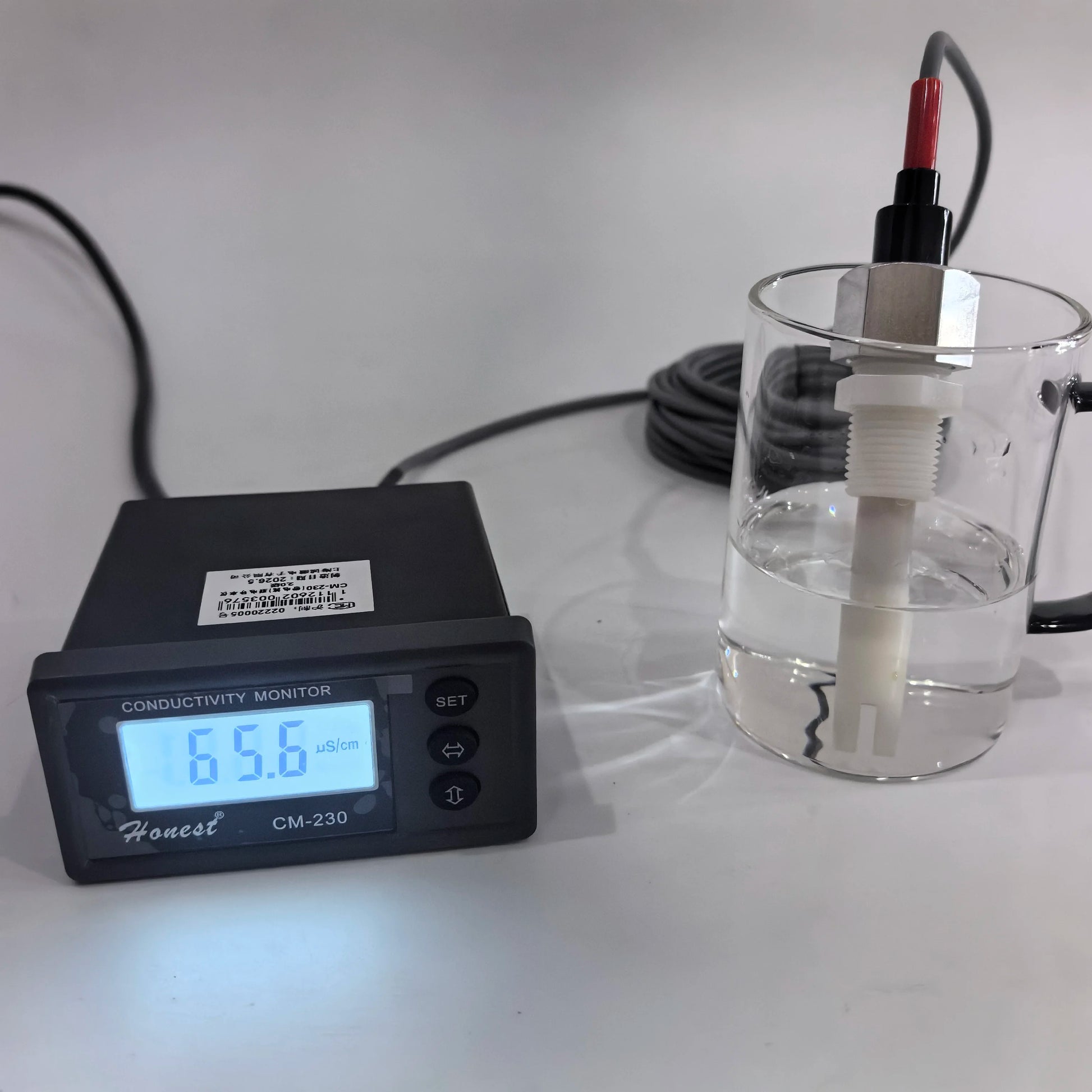

The CM-230 is a panel-mounted conductivity monitor for aqueous water systems. It gives a live conductivity reading, supports 4-20mA current output, and fits control cabinets used for water treatment, purified water, laboratory water systems and other aqueous-solution monitoring tasks.

Key Features

• Selectable conductivity ranges: 0-20.00uS/cm, 0-200.0uS/cm and 0-2000uS/cm
• 4-20mA current output for compatible external monitoring or control equipment
• Automatic temperature compensation with 25 degC reference
• K=1.00 electrode constant
• 3 1/2 digit 0.5 inch LCD display
• Panel-mount design for equipment cabinets and water treatment panels
• AC220V +/-10%, 50Hz power supply

Technical Parameters

Typical Applications

• Industrial water quality monitoring
• Pure water and purified water systems
• Laboratory water conductivity measurement
• Water treatment equipment panels
• Online conductivity supervision for aqueous solutions

Before Ordering

• Confirm that the required measuring range is within 0-20.00uS/cm, 0-200.0uS/cm or 0-2000uS/cm.
• This listing is for AC220V +/-10%, 50Hz power.
• The plug style is normally prepared according to the shipping country. Contact us before ordering if your installation needs a different power setup.
• Check the 91mm x 45mm mounting opening size before cutting or replacing a panel meter.
• Confirm that 4-20mA current output is suitable for the external monitoring or control equipment you plan to connect.

Basic Operation Notes

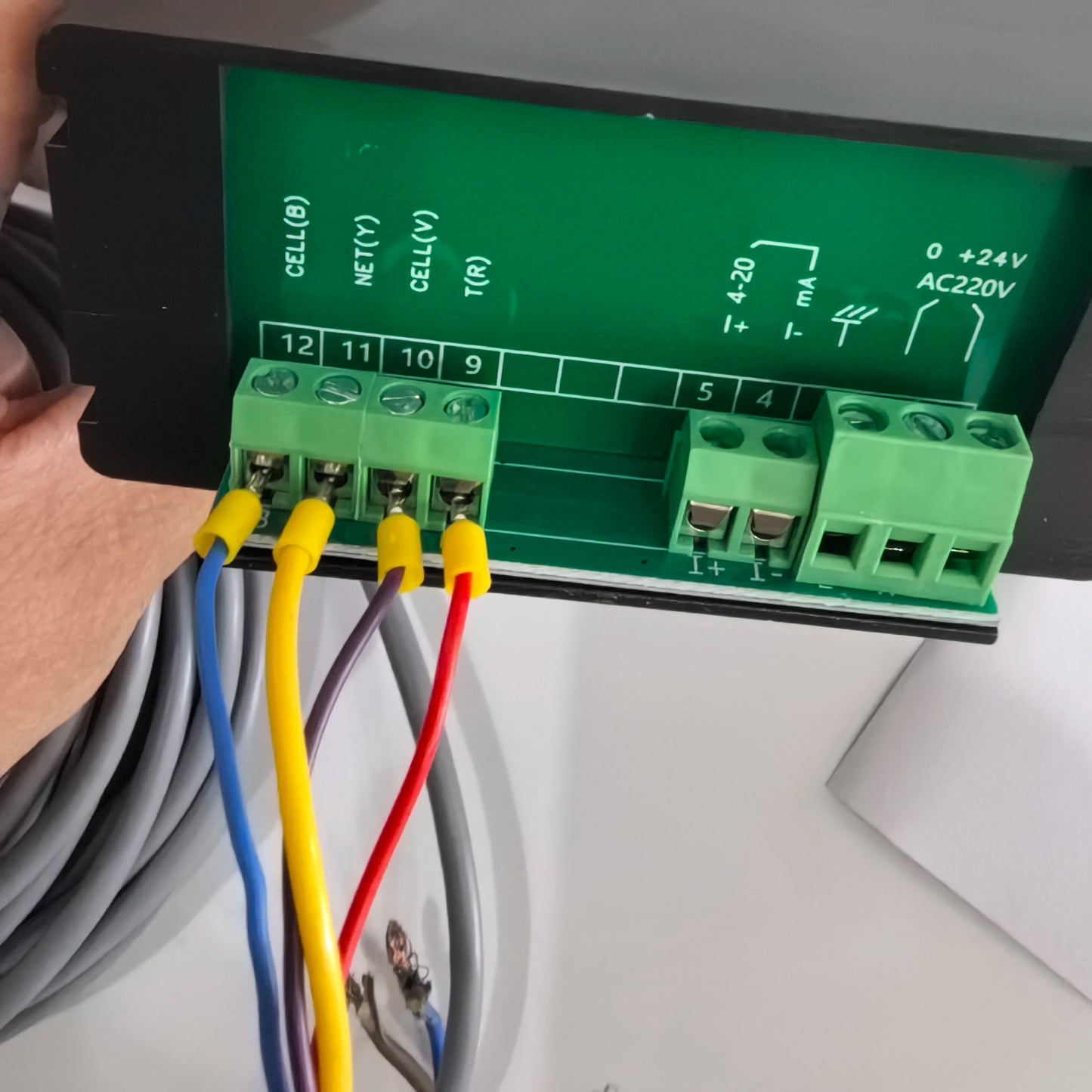

1. Connect the electrode wires before powering on the instrument.

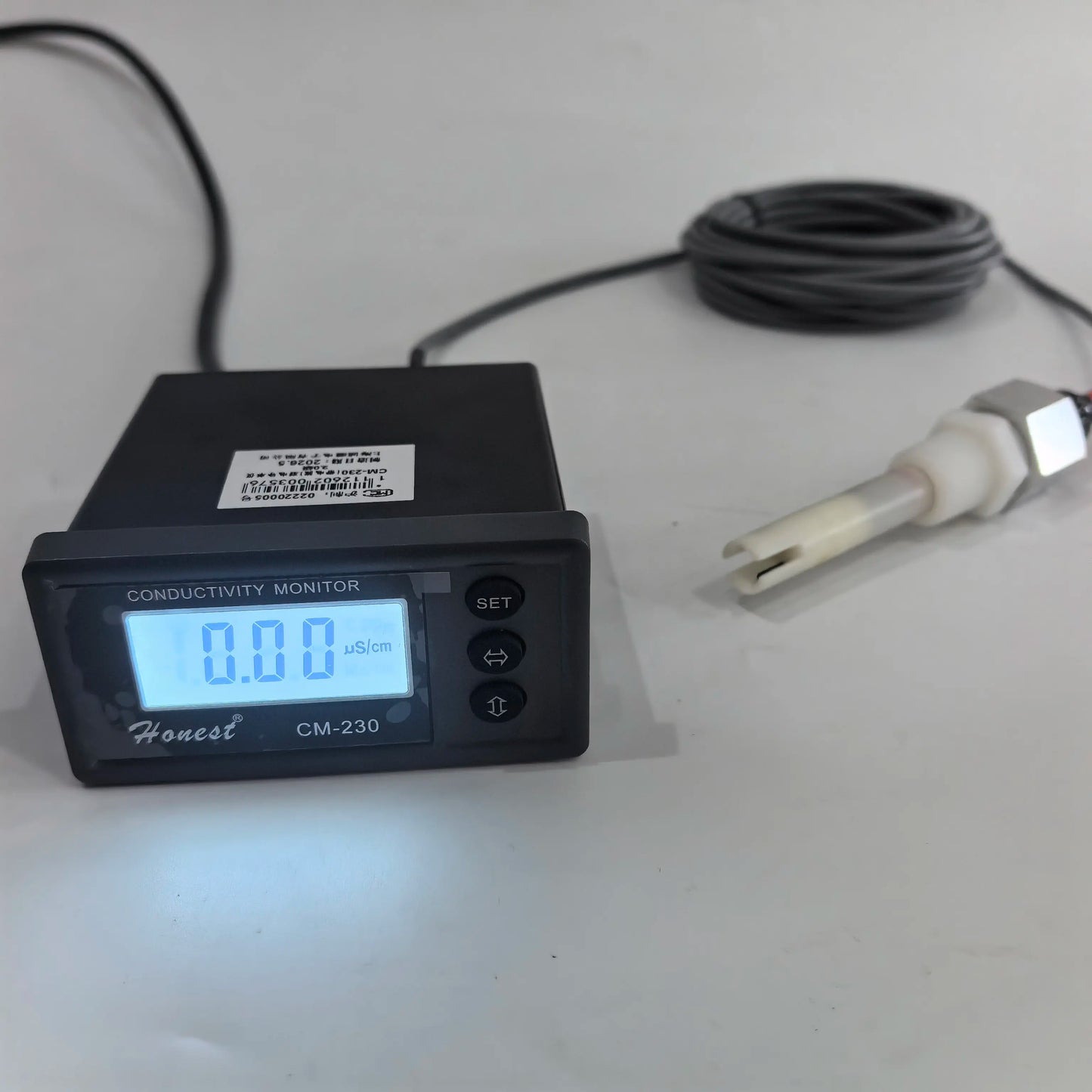

2. For zero adjustment, keep the electrode in the air and adjust the ZERO knob until the display shows 000.
3. Move the range selector to CHECK to check and adjust the electrode constant.
4. Install the electrode in the pipe or measured liquid position, then select the suitable measuring range.

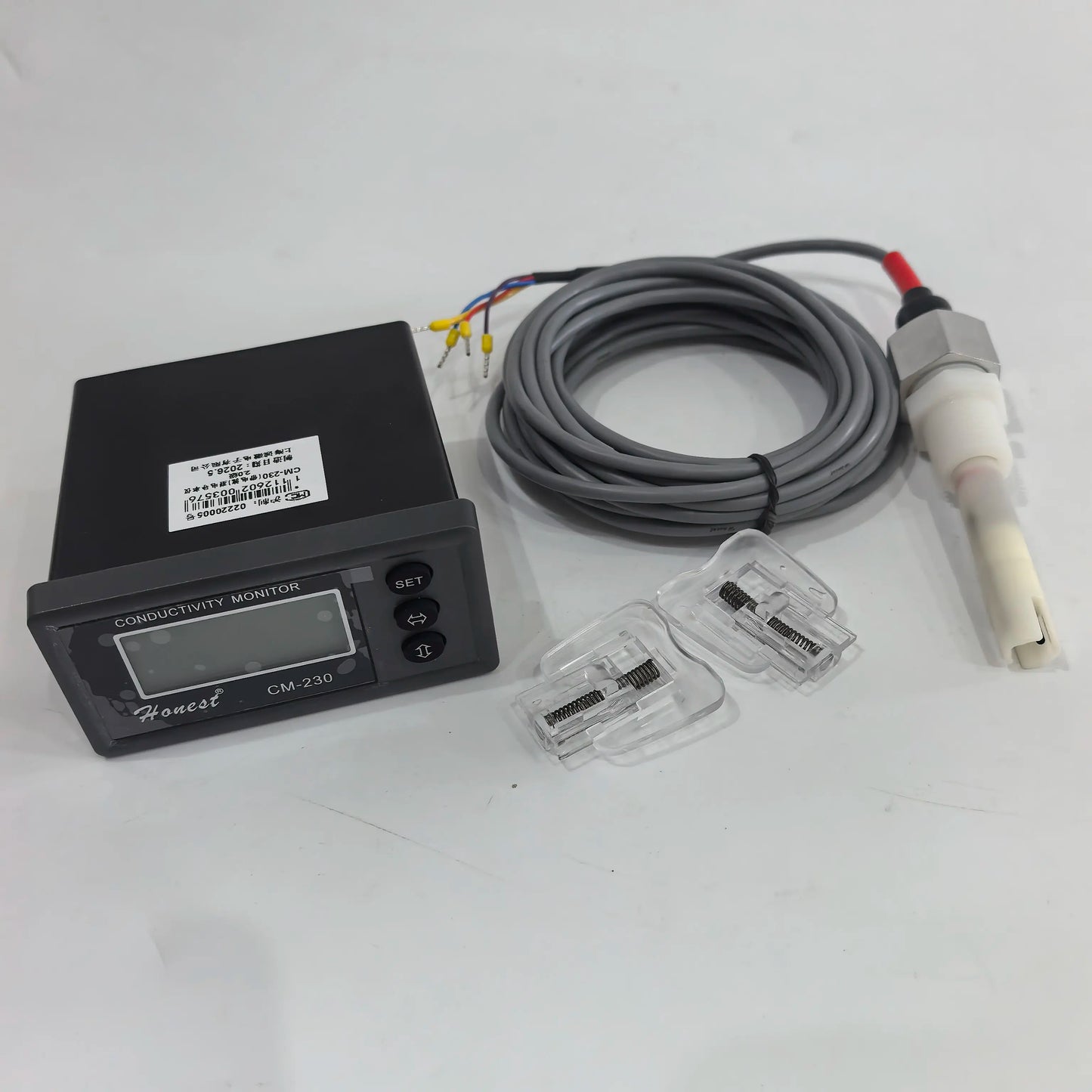

Package Includes

• 1 x CM-230 Conductivity Monitor

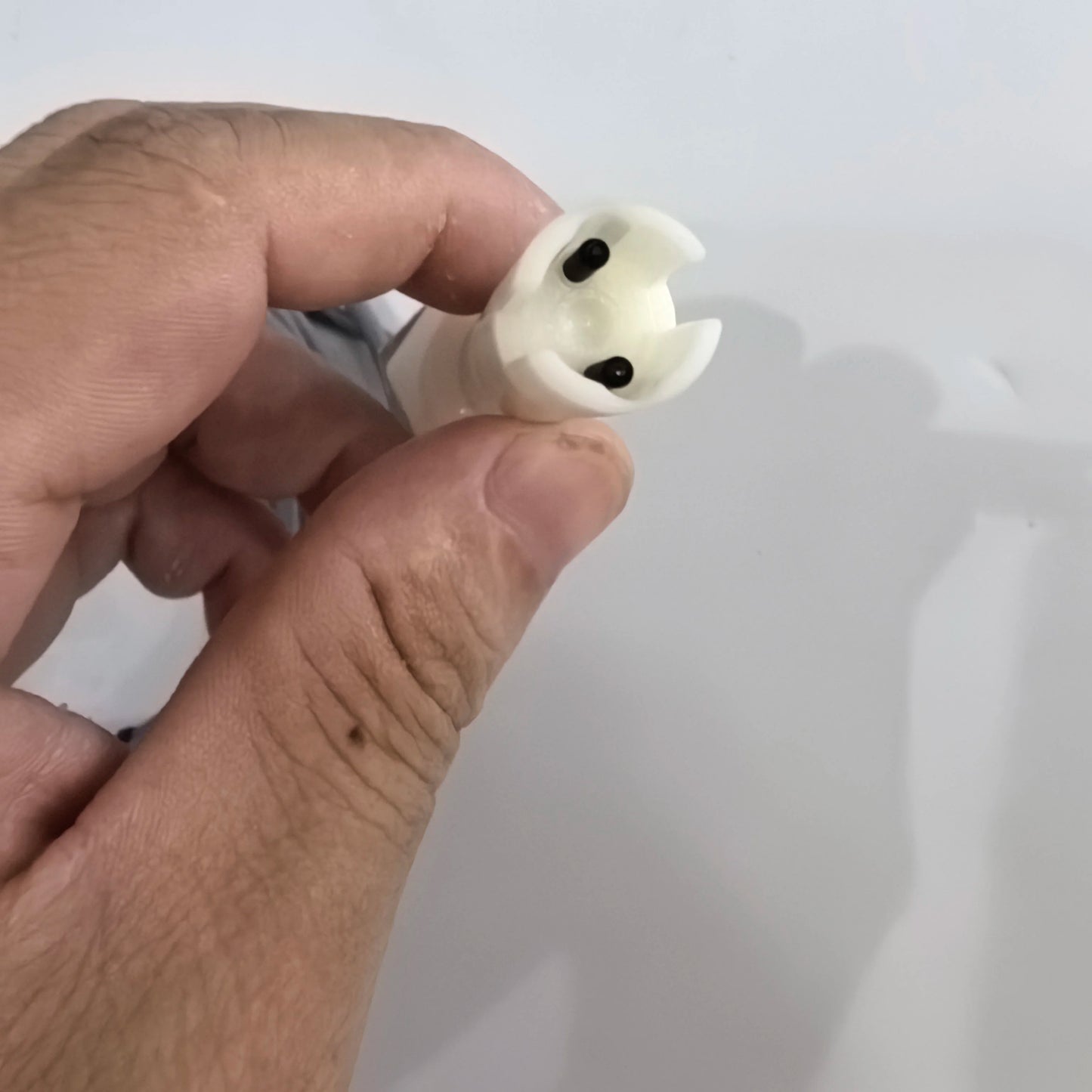

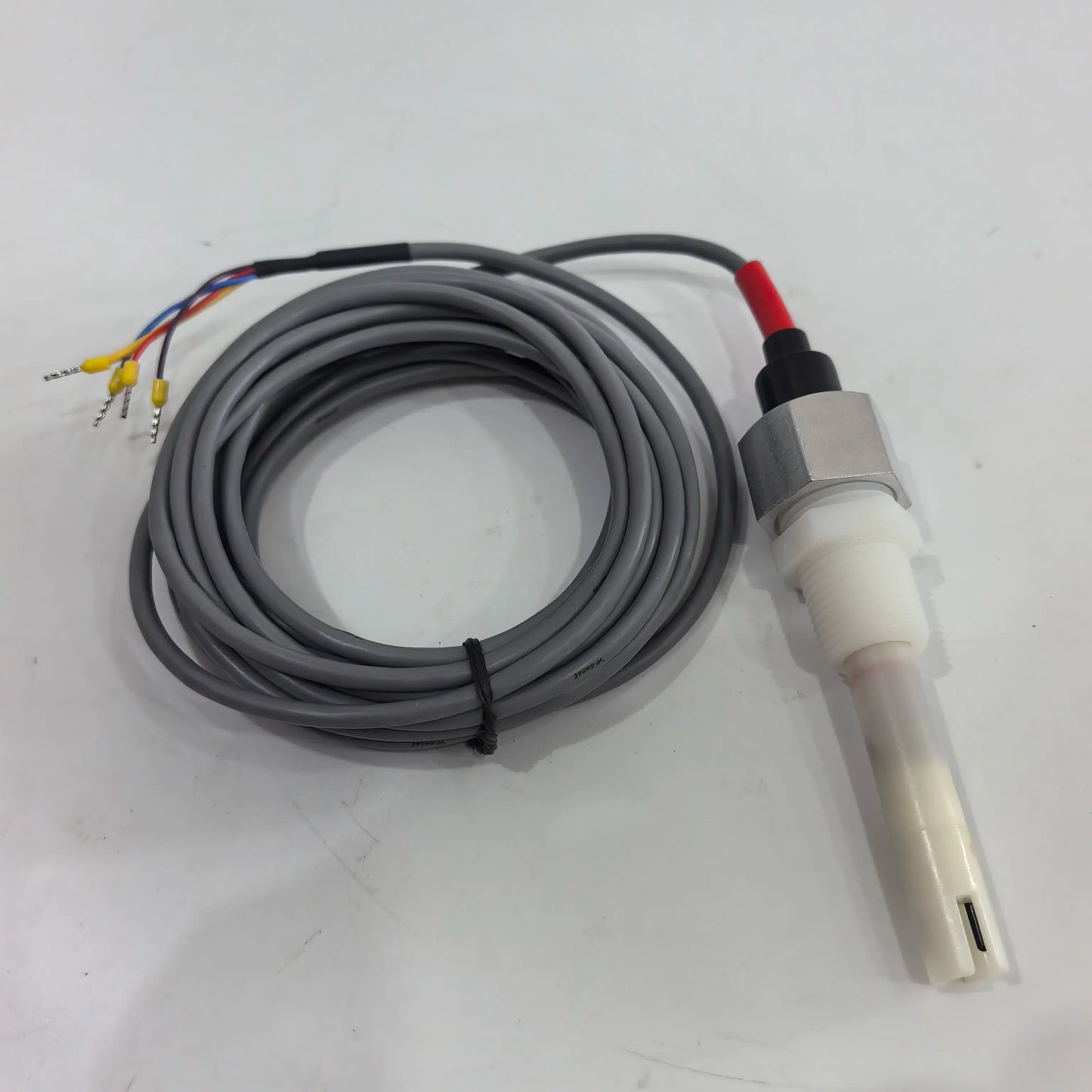

• 1 x Electrode
• 1 x Power Line
• 1 x Installation Frame
• 1 x Instruction Manual

FAQ

Does this monitor measure conductivity?

Yes. The CM-230 is an online conductivity monitor for aqueous water systems, with selectable ranges up to 0-2000uS/cm.

What conductivity range does the CM-230 cover?

It supports three selectable ranges: 0-20.00uS/cm, 0-200.0uS/cm and 0-2000uS/cm.

Does this conductivity monitor have 4-20mA output?

Yes. This model provides 4-20mA current output for compatible external monitoring or control equipment.

What power supply does this listing use?

This listing is for AC220V +/-10%, 50Hz power supply.

What panel opening is required?

The mounting opening size is 91mm x 45mm, with a listed panel size of 91mm x 48mm and 100mm depth.

Is an electrode included?

Yes. The package includes the CM-230 monitor, electrode, power line, installation frame and instruction manual.
