CENTER 301 デュアル入力 Kタイプ熱電対温度計

CENTER 301 Dual Input K-Type Thermocouple Thermometer

The CENTER 301 is a dual input digital thermometer for Type K thermocouple temperature measurement. It supports T1 and T2 probe inputs so users can compare two temperature points on the same handheld meter.

This contact temperature meter is listed with a K-type measuring range of -200 to 1370 °C (-328 to 2498 °F), 0.1 °C / 0.1 °F resolution, and ±0.3% + 1 °C accuracy.

Suitable Uses

• Dual-channel Type K thermocouple temperature checking.
• Comparing two probe readings with T1 and T2 inputs.
• Field temperature measurement where a handheld contact thermometer is required.
• Testing and maintenance work that needs °C/°F switching and HOLD or MAX/MIN readings.

Key Features

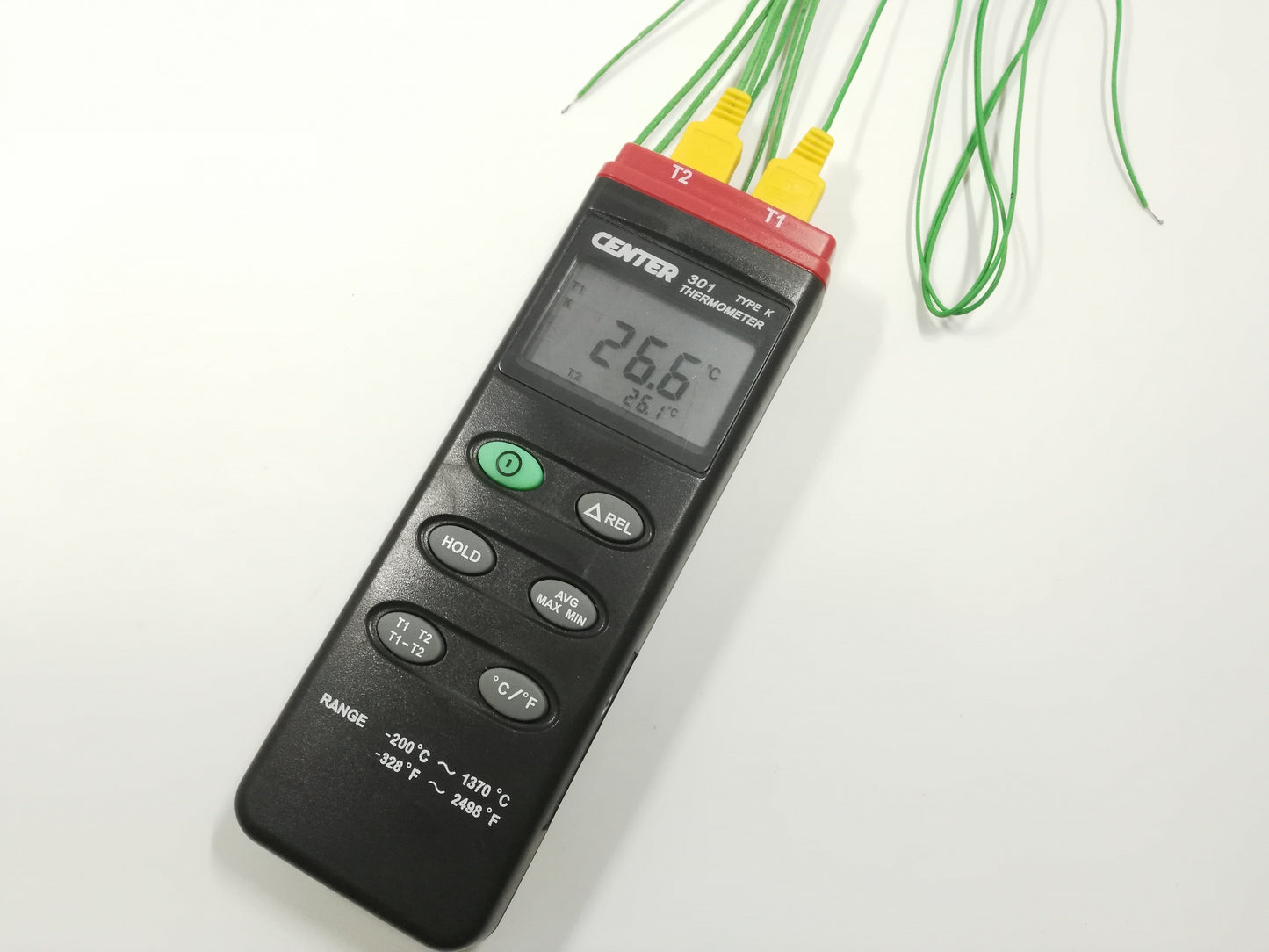

• Dual input and dual display layout for two Type K thermocouple probes.
• T1, T2, and T1-T2 buttons visible on the meter for comparison readings.
• 0.1 °C / 0.1 °F resolution for fine temperature reading.
• HOLD, REL, AVG, MAX, and MIN function buttons shown on the meter.

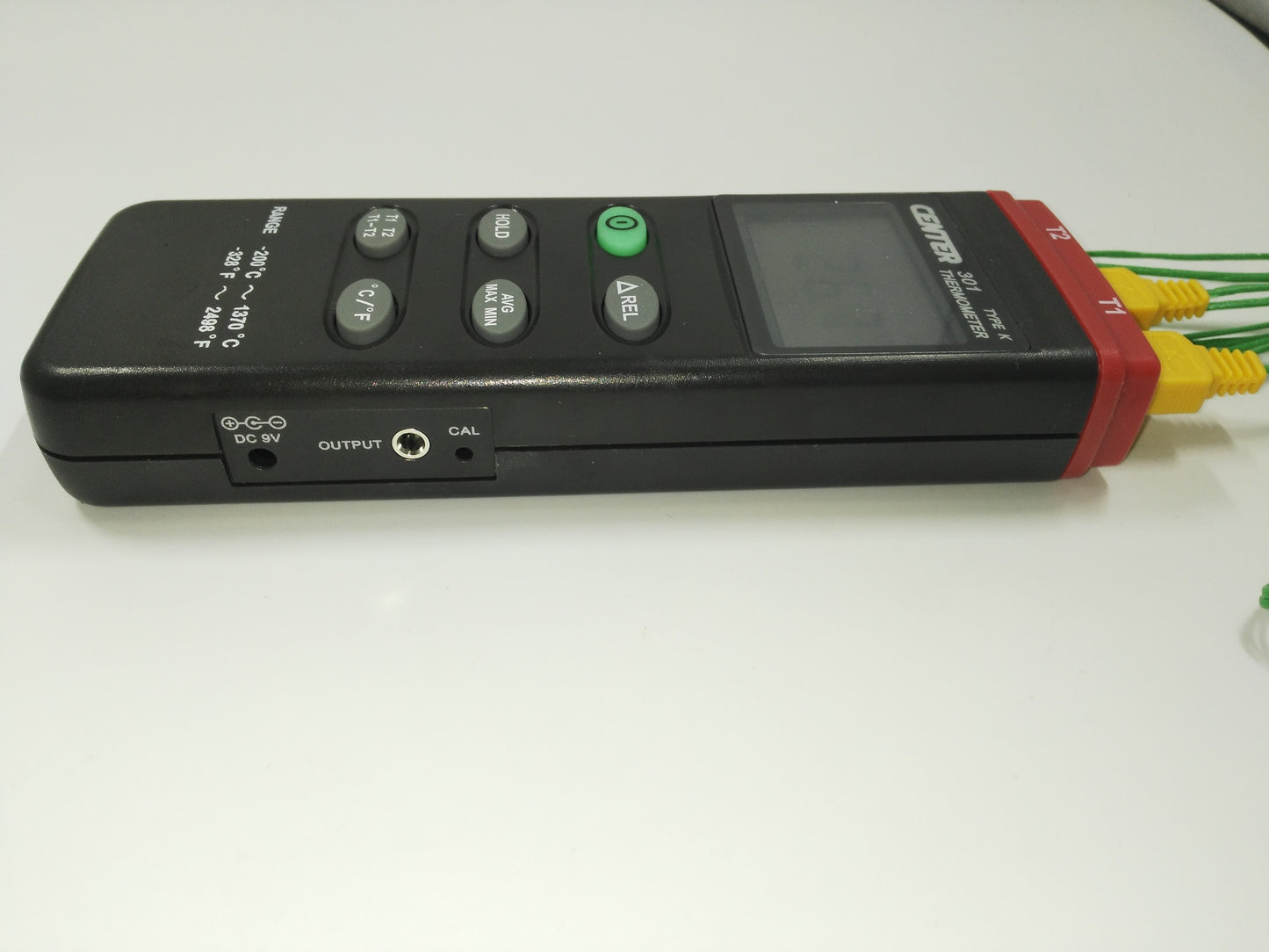

• Auto power off function listed for saving the 9V battery during field work.

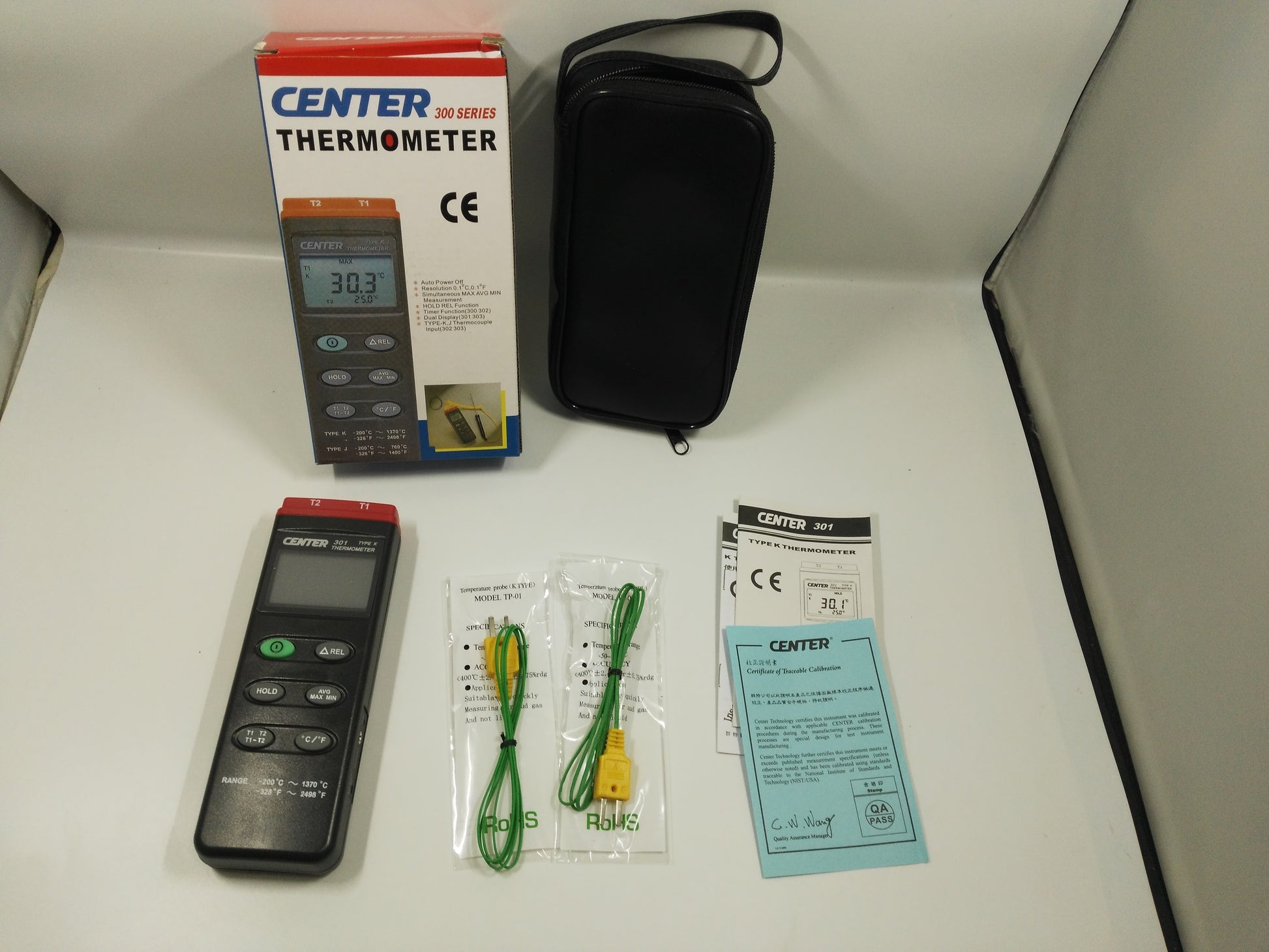

• Product images show the CENTER 301 meter, two Type K probe leads, packaging, manuals, and a soft carry case.

Specifications

How It Works

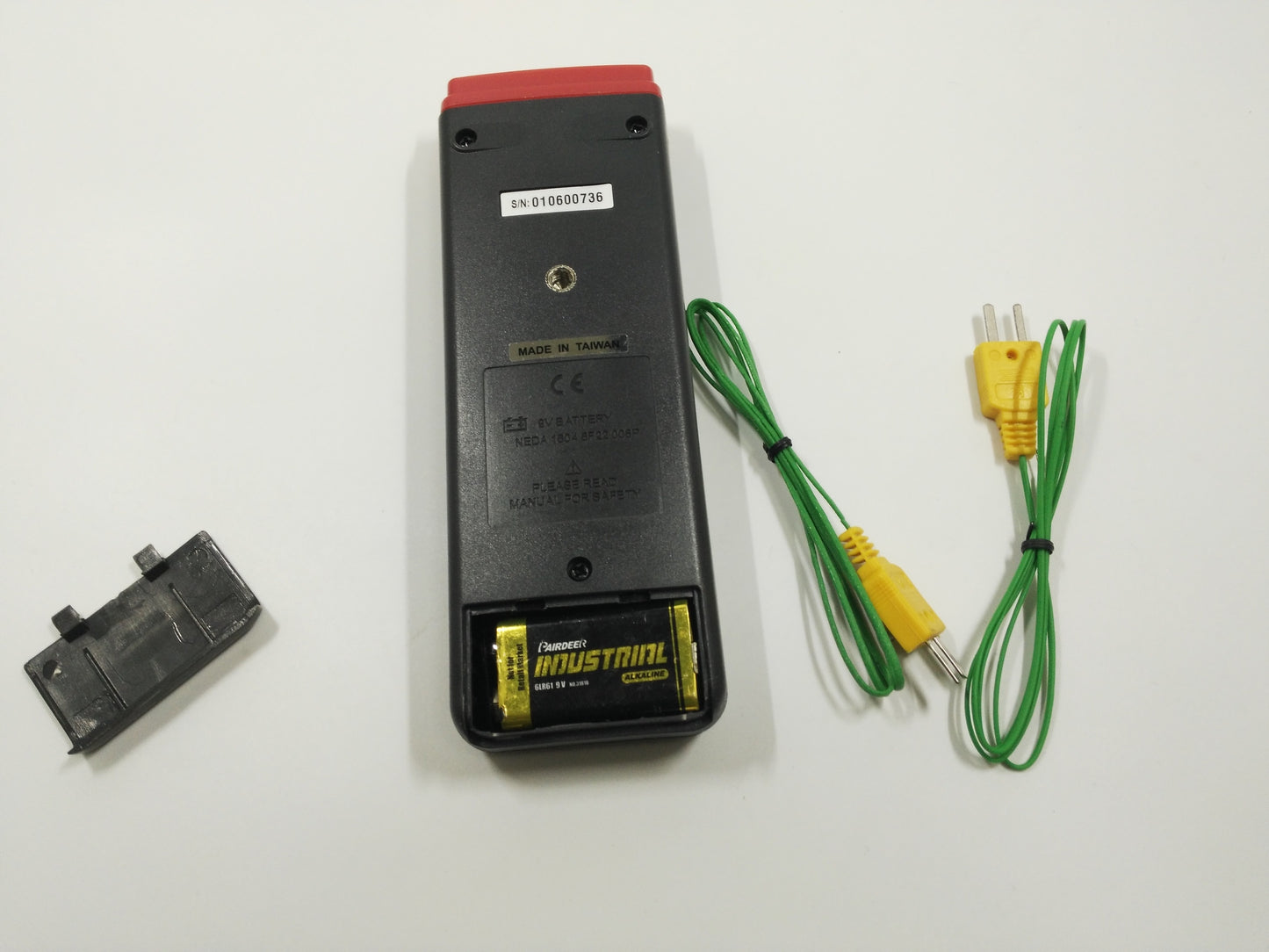

1. Install a 9V battery before use.

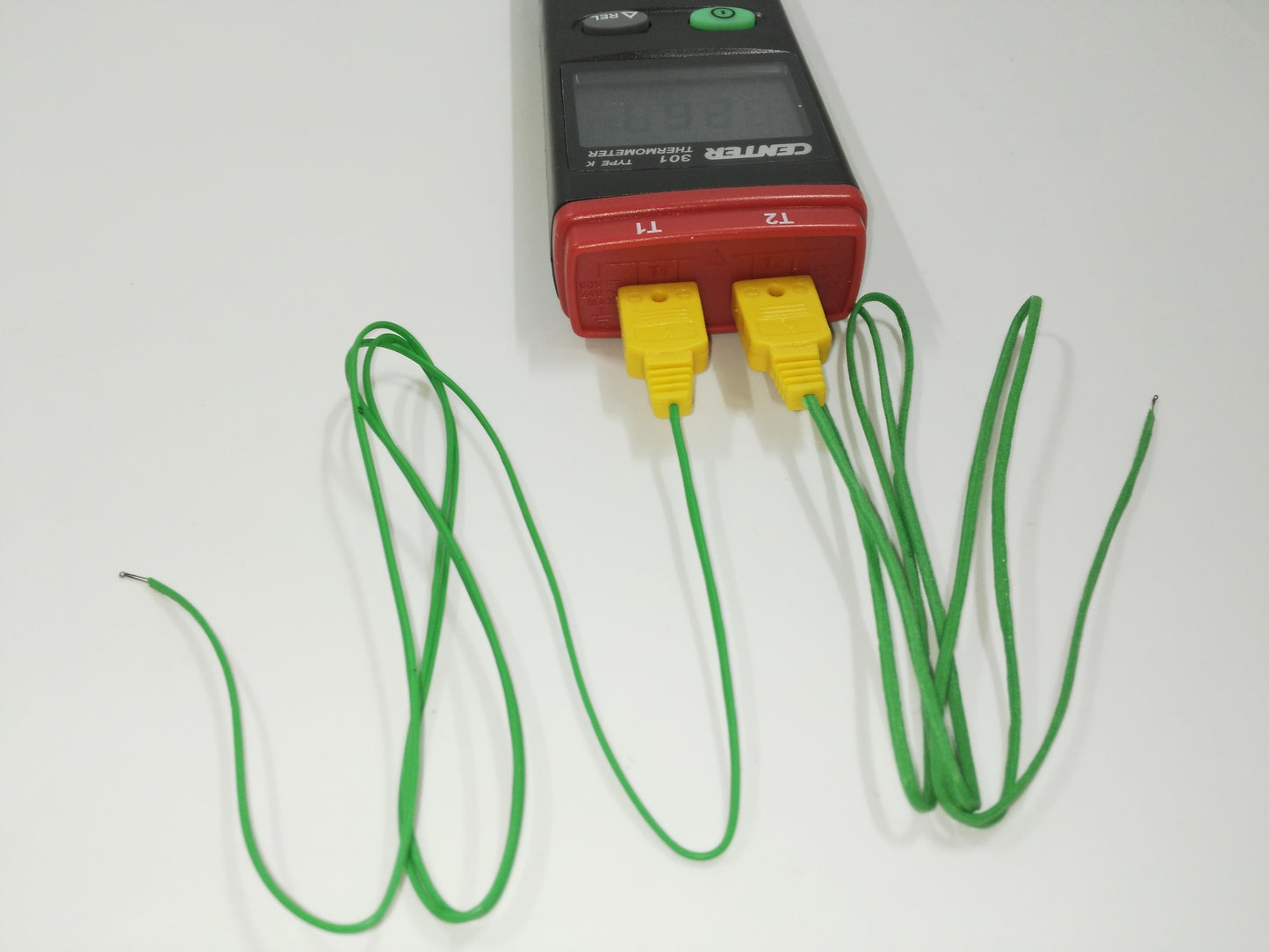

2. Connect one or two Type K thermocouple probes to the T1 and T2 inputs.
3. Select °C or °F as needed.
4. Use T1, T2, or T1-T2 mode to read one channel or compare two probe readings.
5. Use HOLD or MAX/MIN functions when a stable or peak reading needs to be checked.

Selection Notes

• Select this model when you need contact Type K thermocouple probe readings.
• Confirm that your probe type is Type K and that the temperature range fits your application.
• For functions not listed on this page, confirm the required model before ordering.

FAQ

What is the CENTER 301 used for?

It is used for contact temperature measurement with Type K thermocouple probes, including two-point T1/T2 readings.

Does it support two probes at the same time?

Yes. The product information and images show T1 and T2 inputs for dual-channel readings.

What temperature range is listed?

The listed K-type range is -200 to 1370 °C, or -328 to 2498 °F.

Can it switch between Celsius and Fahrenheit?

Yes. The product information lists 0.1 °C / 0.1 °F resolution, and the meter shows a °C/°F button.

What should I confirm before ordering?

Confirm the probe type, temperature range, battery requirement, and any function that is not listed on this page.
