Qers-SD Manual Vial Crimping Machine and Vial Cap Crimper for 13/15/20 mm Caps

$189.00 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Vial Mouth Diameter 13 mm, measured 12.8-13.0 mm 15 mm, measured 14.8-15.0 mm 20 mm, measured 19.5-20.0 mm

Cap Type Aluminum-plastic cap Pure aluminum cap

Product Overview

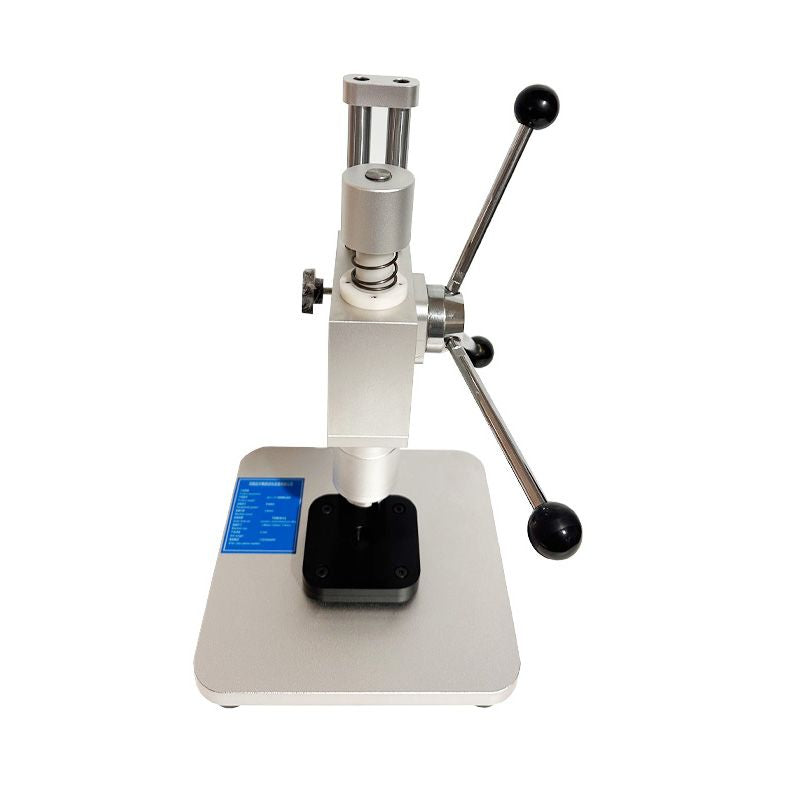

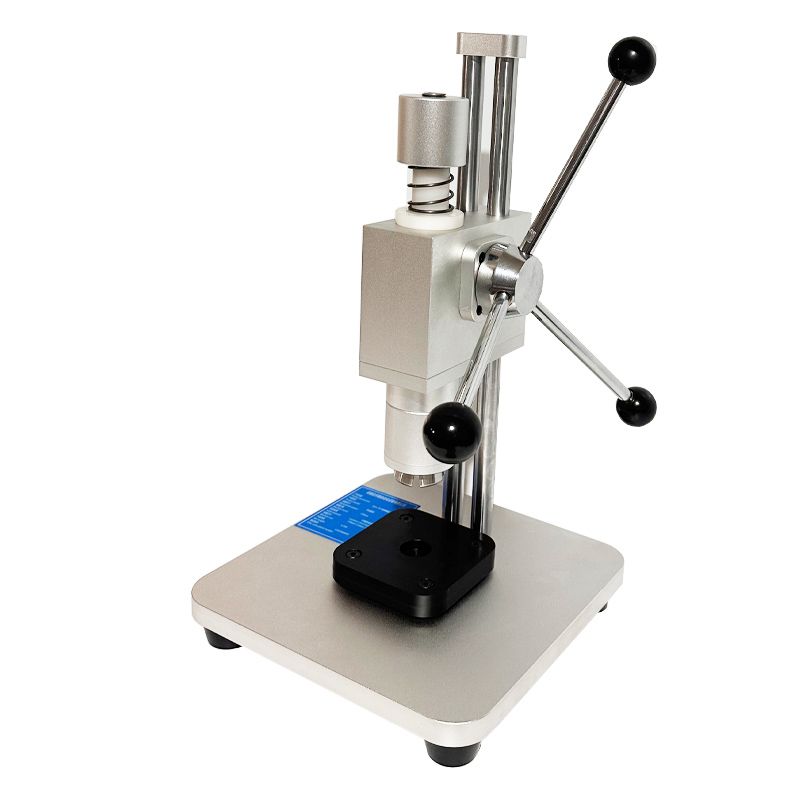

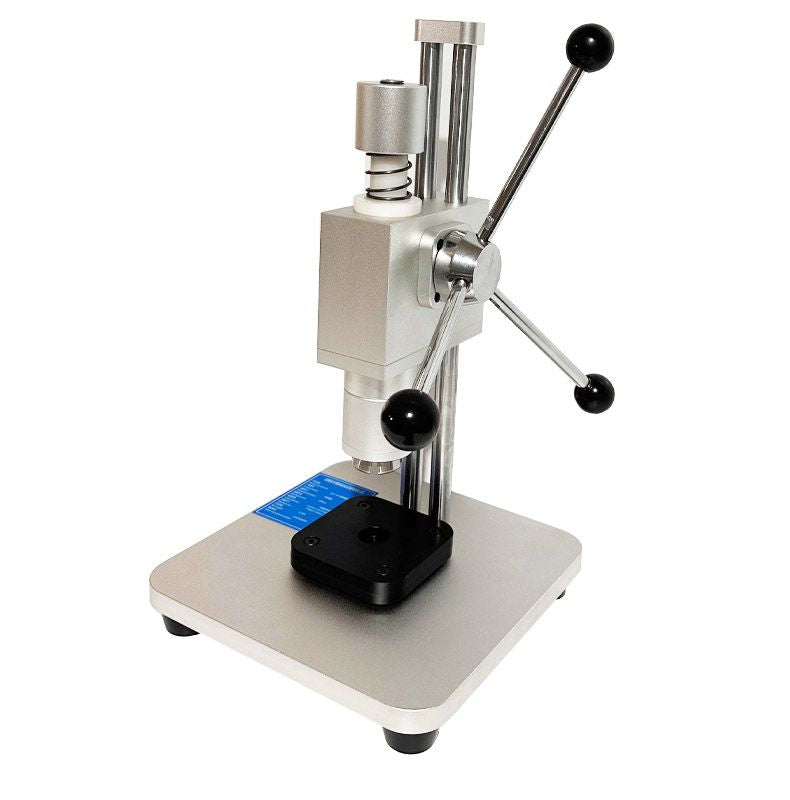

The Qers-SD manual vial crimping machine is a bench-top vial crimper and vial cap crimper for vials, oral liquid bottles, and similar vial sealing work. This manual vial crimper uses downward pressure with a selected crimping head to press aluminum-plastic or pure aluminum caps onto matched vial mouths.

Key Features

Manual vial crimper operation for bench-top vial cap crimping and sealing.
Qers-SD model with 130 mm machine travel.
Vial cap crimper setup supports 13 mm, 15 mm, and 20 mm vial-mouth selections through matching crimping heads.
Stainless steel / aluminum alloy body materials.
Crimping head options for aluminum-plastic caps and pure aluminum caps.
Spring base helps reduce excessive downward pressure on the bottle.
Rubber feet and a fixed base support stable bench-top operation.

Technical Specifications

Item	Specification
Product model	Qers-SD manual vial crimping machine / vial cap crimper
Operation / power	Manual press
Machine travel	130 mm
Body material	Stainless steel / aluminum alloy
Machine dimensions	230 mm x 230 mm x 370 mm
Net weight	6.5 kg
Use mode	Manual
Use scenario	Commercial

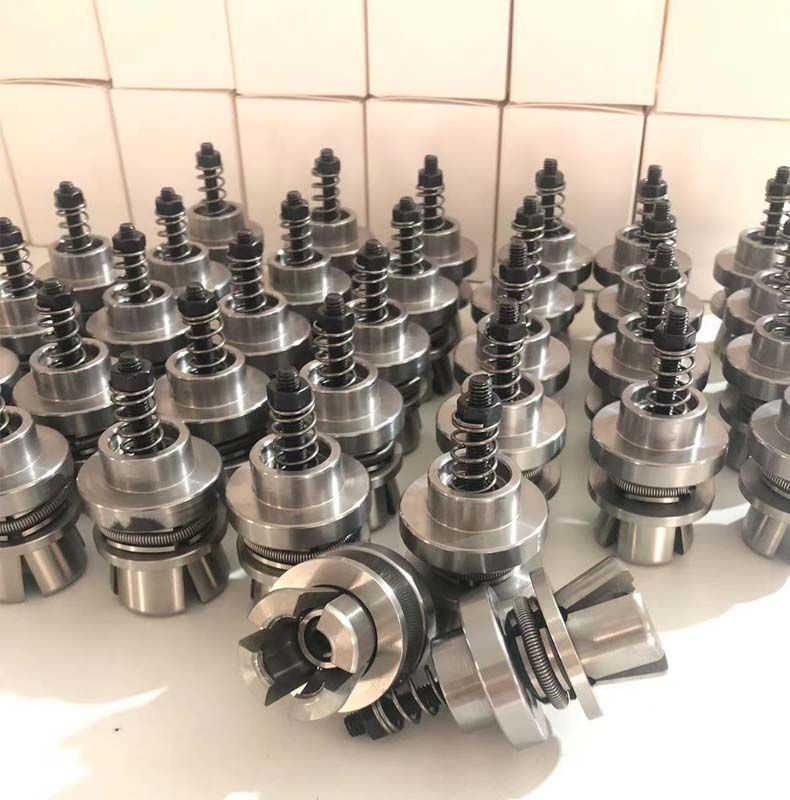

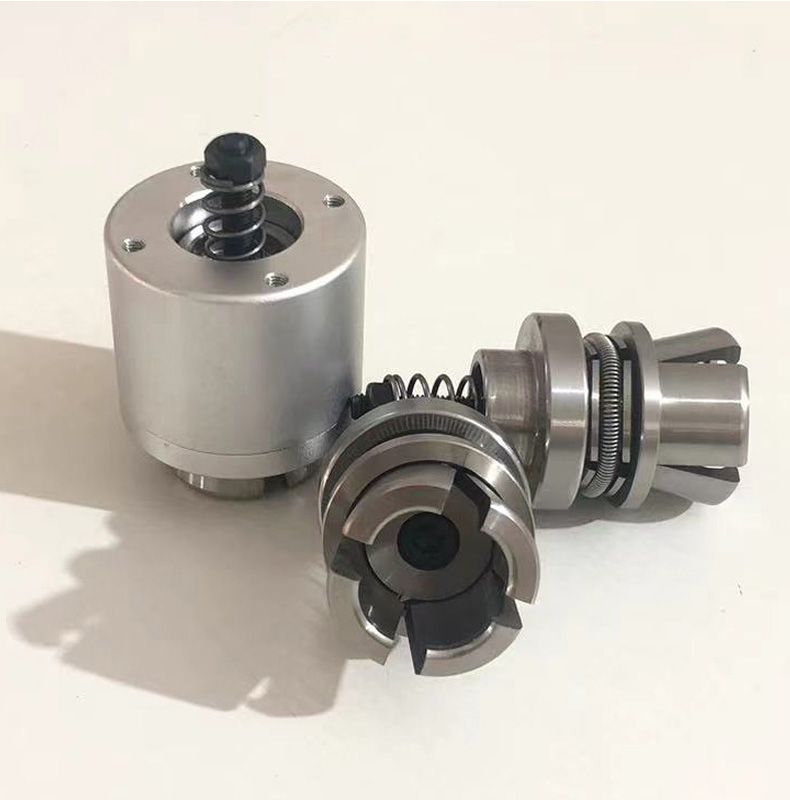

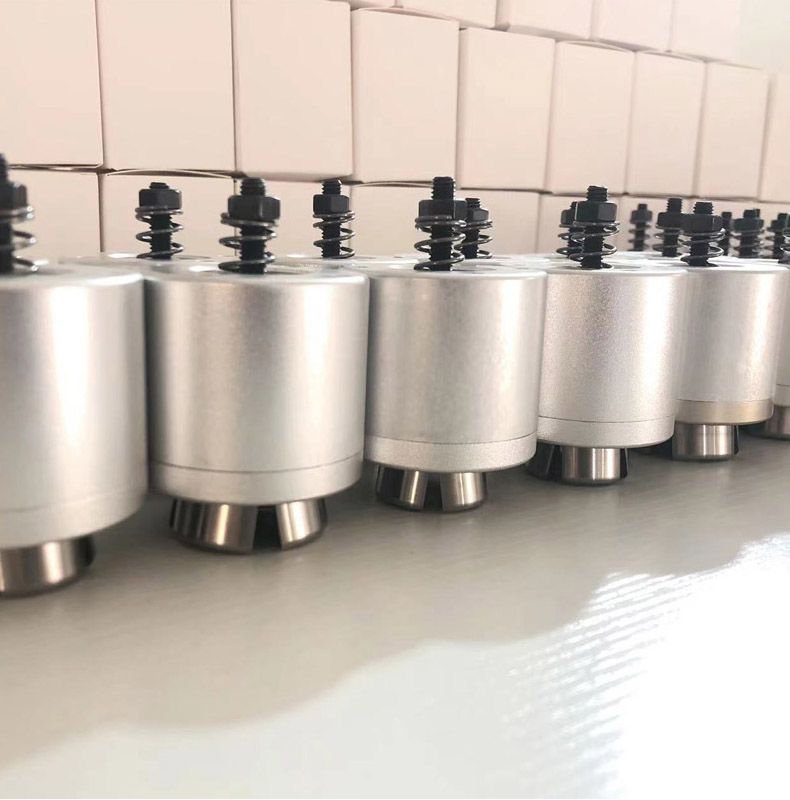

Crimping Head Selection Guide

Select the crimping head according to the measured vial mouth diameter and cap type.

Vial Mouth Diameter	Cap Type	Matching Crimping Head
13 mm, measured 12.8-13.0 mm	Aluminum-plastic cap	13A type
13 mm, measured 12.8-13.0 mm	Pure aluminum cap	13 type
15 mm, measured 14.8-15.0 mm	Aluminum-plastic cap	15A type
15 mm, measured 14.8-15.0 mm	Pure aluminum cap	15 type
20 mm, measured 19.5-20.0 mm	Aluminum-plastic cap	20A type
20 mm, measured 19.5-20.0 mm	Pure aluminum cap	20 type

Bottle Measurement Notes

b1: bottle mouth diameter, used to select the crimping head model.
b2: bottle body diameter, used for custom base-hole sizing. Provide this size when a custom base hole is needed.
h1: bottle body height.

Qers-SD vial mouth measurement guide for crimping head selection

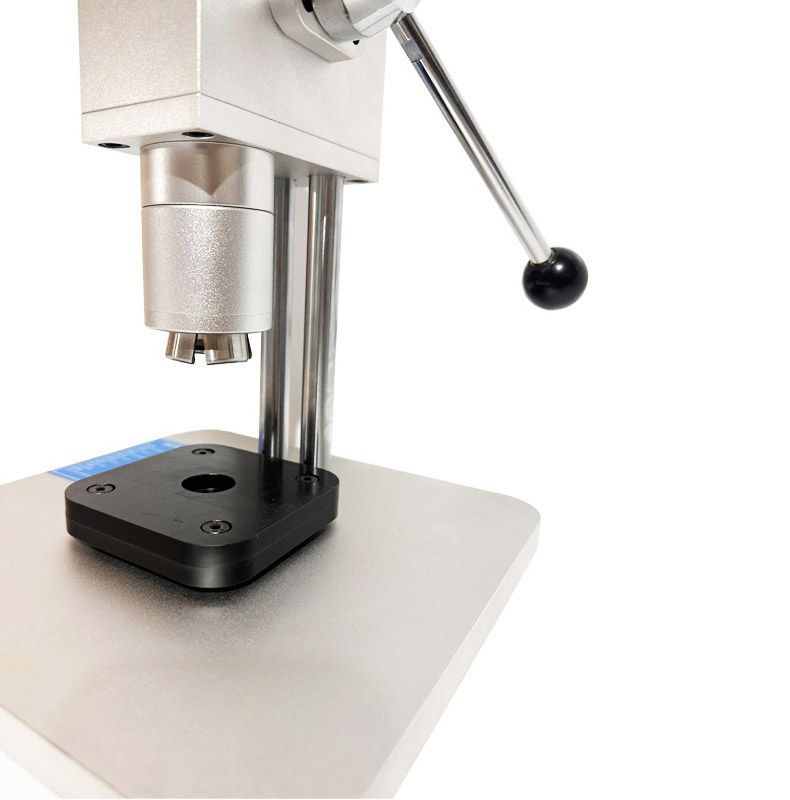

Structure Details

Limit nut: adjusts bottle cap tightness.
Star knob screw: fixes the machine body.

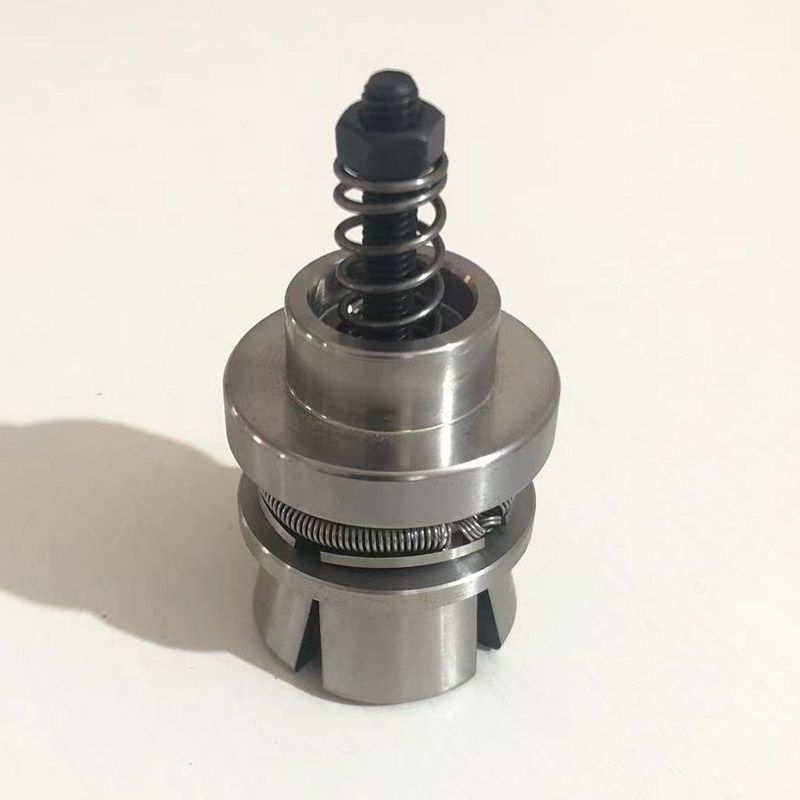

Vial crimping head: food-grade stainless steel.
Press handle: manual downward pressing.
Column: internal self-lubricating guide sleeve for smoother movement and accuracy.
Spring base: pressure-reducing base to help avoid excessive pressure on the bottle.
Fixed base and rubber feet: support bench-top operation.

Qers-SD manual vial crimping machine structure details

Selection Notes

Choose the crimping head according to the measured vial mouth diameter and cap type. For custom base-hole sizing, prepare the bottle body diameter and bottle height before ordering.
