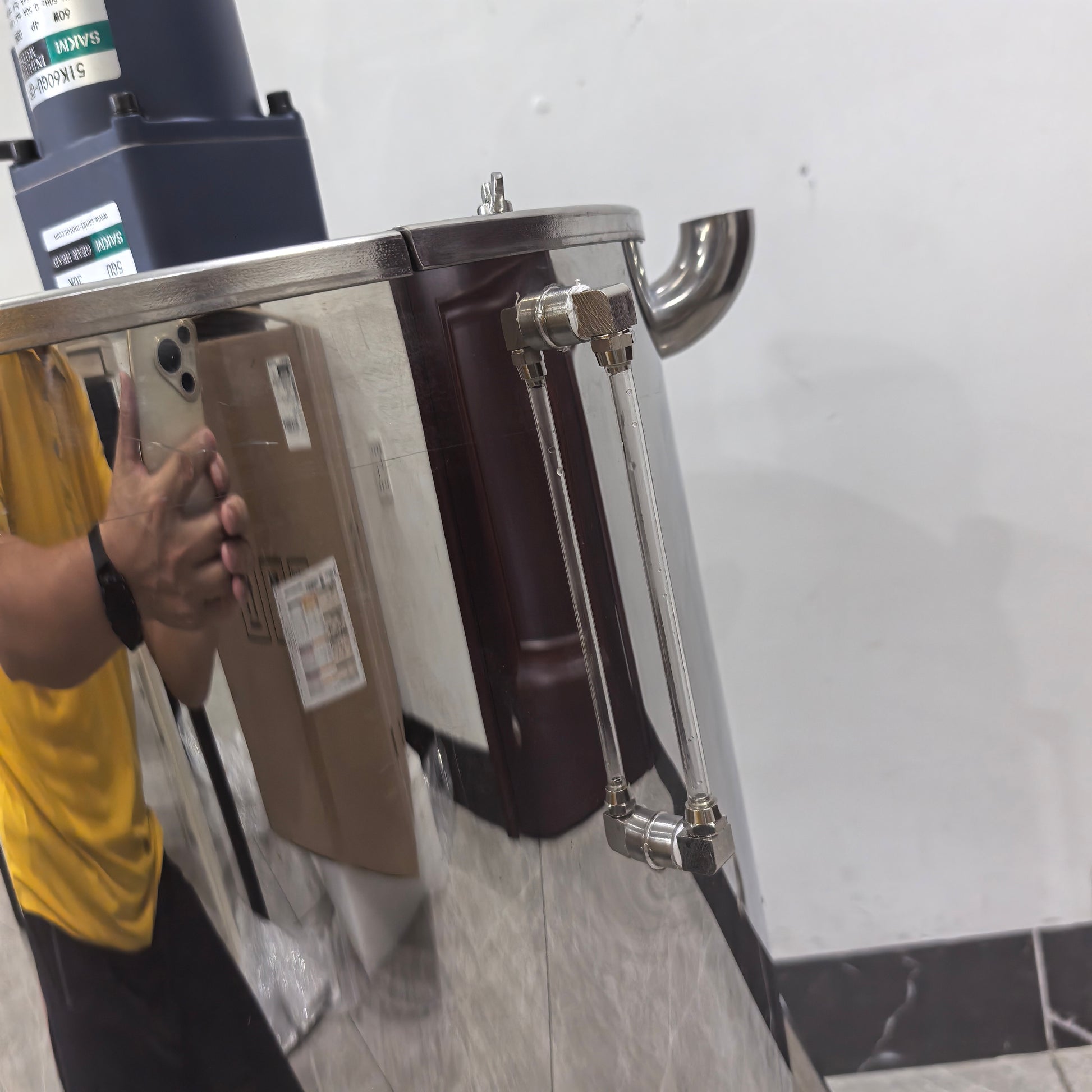

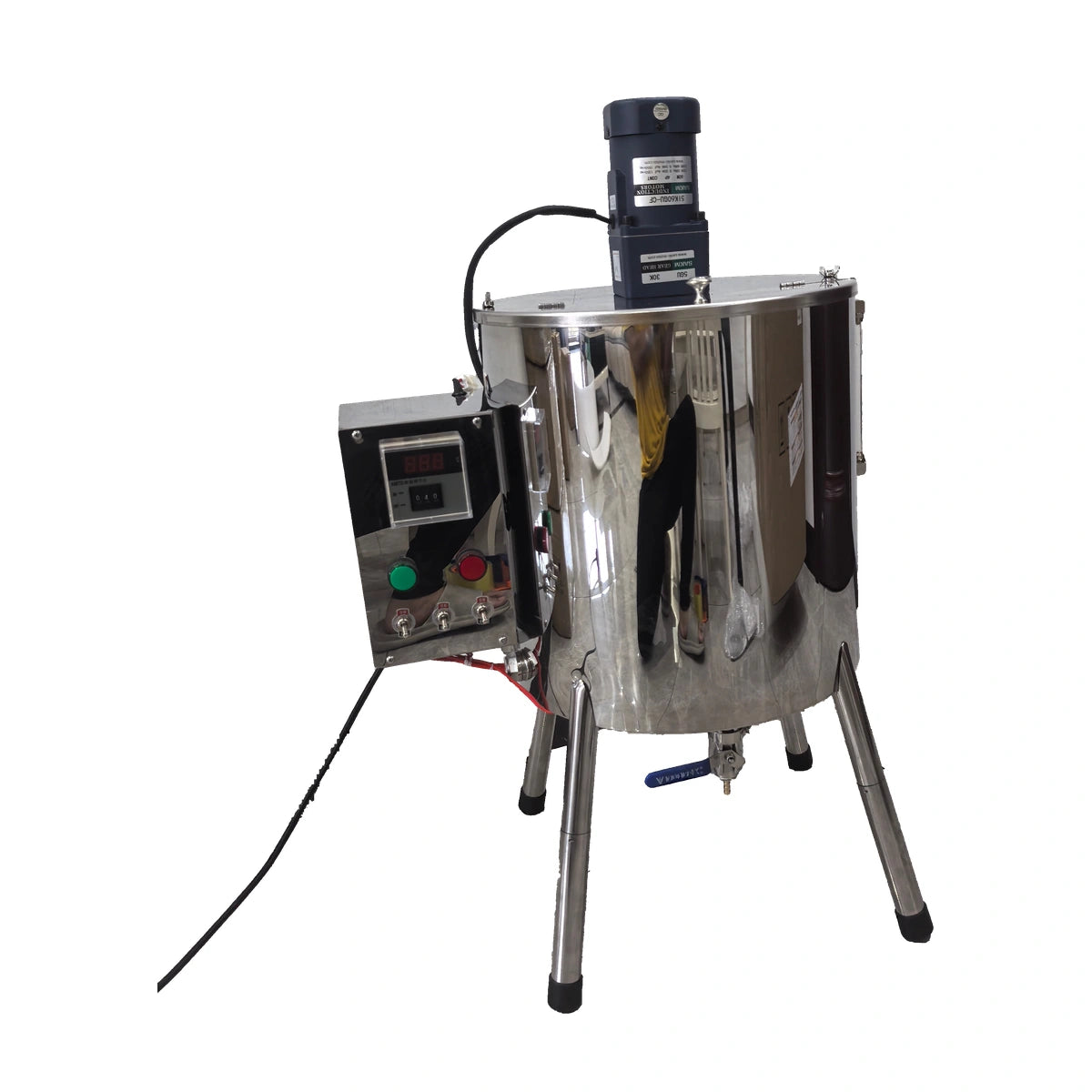

YK-30L 30L Heating Mixing Filling Machine for Paste and Liquid
The YK-30L is a 30L heated paste and liquid filling machine with a stirring tank, temperature control, heated outlet, and manual filling valve. Buyers may also search this type of equipment as a heating mixing filling machine, paste filling machine with stirrer, heated hopper filling machine, lipstick filling machine, wax filling machine, or small-batch liquid filling machine.
Use those search names carefully: this product is listed for manual dispensing work. It is intended for compatible liquid and paste materials that need to stay mixed or warmed during filling.
Listed materials include creams, lipstick materials, shoe polish, ointments, petroleum jelly, wax products, perfumes, honey, edible oils, juice, beer, beverages, and skincare liquids. Confirm the material viscosity, temperature tolerance, voltage, and cleaning requirements before production use.
Best For
- Small-batch liquid and paste filling that needs heating and stirring before dispensing.
- Cream, wax, honey, skincare liquid, lipstick material, and similar materials listed for this machine.

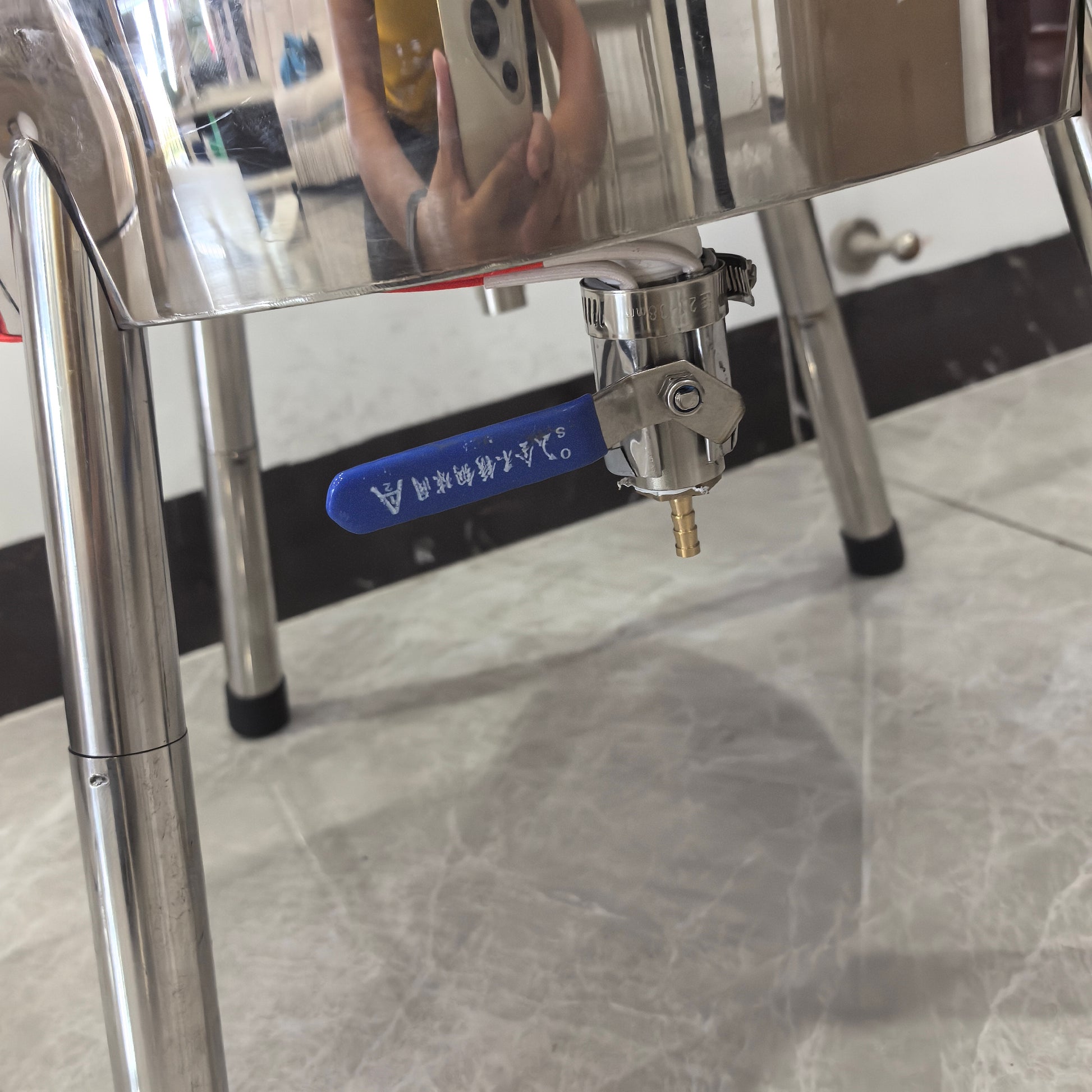

- Manual filling workflows where the operator controls dispensing and adjustment.
- Buyers comparing a heated mixing tank, heated hopper filling machine, heated paste filler, or 30L liquid filling machine.
Verified Features
- YK-30L model with 30L / 8 gallon listed capacity.

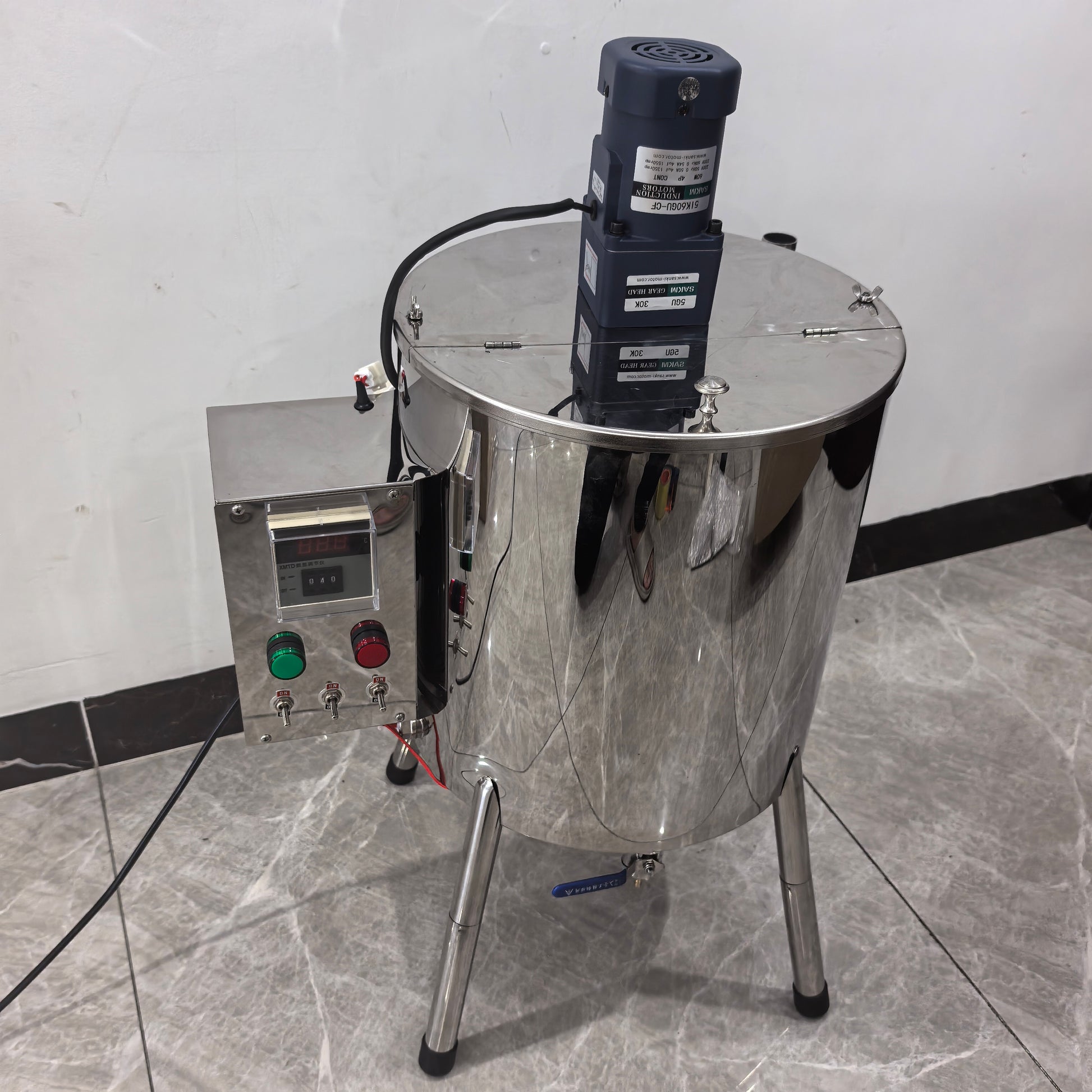

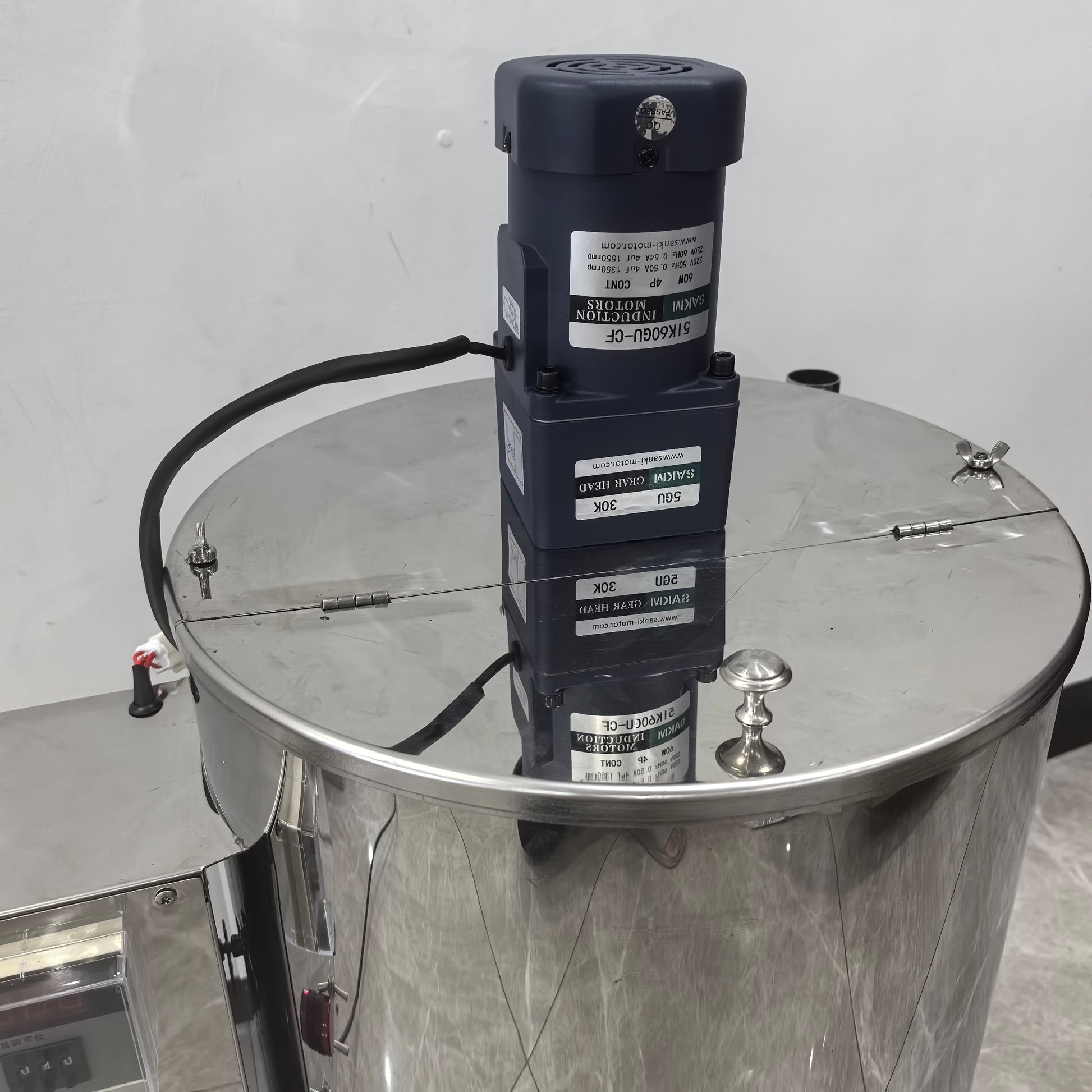

- Heating, stirring, and manual filling functions in one machine.
- Source listing states food-grade 304 stainless steel and copper material.
- 2 mm thick bucket wall listed for durability.

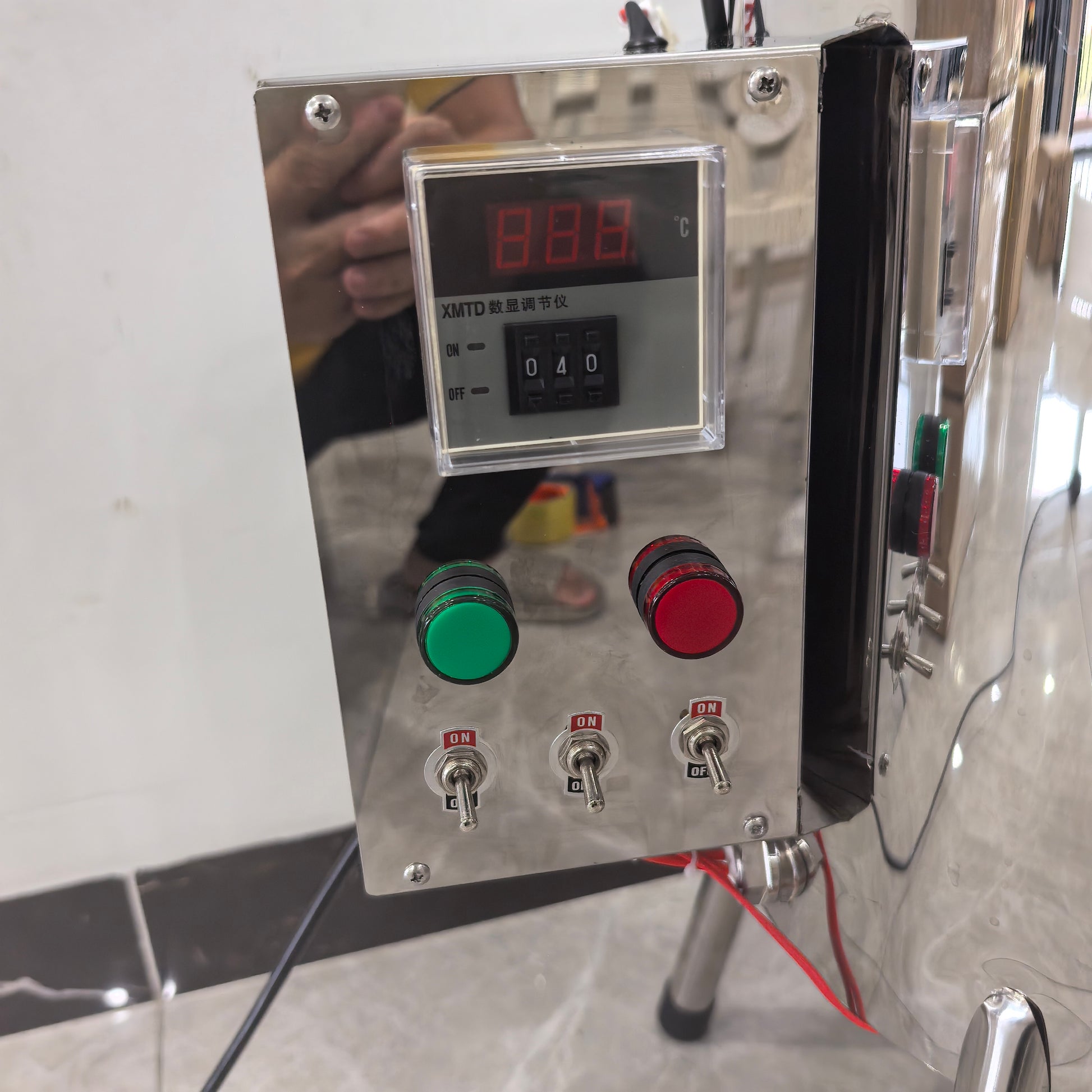

- 0-300°C / 32-572°F adjustable temperature range.
- 36 RPM maximum stirring speed.
- 120W outlet heating power to help keep material warm near the filling outlet.
- Listed filling accuracy is ±1% with manual adjustment.
Specifications
| Model |
YK-30L |
| Application |
Liquid and paste filling, melting, stirring, dispensing |
| Voltage |
110V / 220V |
| Capacity |
30L / 8 gallons |
| Heating power |
1.5kW, 2 x 0.75kW |
| Stirring power |
60W |
| Maximum stirring speed |
36 RPM |
| Total power |
2.1kW |
| Outlet heating power |
120W |
| Bucket wall thickness |
2 mm |
| Filling accuracy |
±1%, manual adjustment |
| Adjustable temperature |
0-300°C / 32-572°F |
| Filling speed |
20-45 bottles/min, depends on operator skill and material condition |
| Product size |
53 x 39 x 79 cm |
| Net weight |
25 kg / 55 lb |
Package Includes
- 1 x heating mixing filling machine (source listing describes it as a lipstick filling machine)
- 1 x stirrer
- 4 x support pillars
- 1 x English user manual
- Necessary accessories listed for use
Buyer Checks Before Ordering
- Confirm whether you need 110V or 220V before purchase.
- Confirm that your liquid or paste viscosity can be handled by a manual filling valve.
- Confirm that your material can tolerate the selected heating temperature.
- The water filling port also releases steam; do not block it.
- Clean the drum thoroughly before use and confirm material suitability for your process.
- Ask before ordering if your process requires a specific material test, certification, or compliance document.
FAQ
Can it be used as a paste filling machine with stirrer?
Yes, within the listed scope. The product includes heating, stirring, and manual filling functions for compatible liquid and paste materials.
Can it heat and stir material while filling?
Yes. The listed specifications include 0-300°C adjustable heating, 1.5kW heating power, 60W stirring power, 36 RPM maximum stirring speed, and 120W outlet heating power.
What products is it listed for?
The listing names creams, liquids, lipstick materials, shoe polish, ointments, petroleum jelly, wax products, perfumes, honey, edible oils, juice, beer, beverages, and skincare liquids. Confirm compatibility before filling your own product.
What is included in the package?
The package list includes one machine, one stirrer, four support pillars, one English user manual, and necessary accessories listed for use.
What should I confirm before ordering?
Confirm voltage, plug requirement, material viscosity, heating temperature, cleaning method, and whether your product needs any required documentation not shown on this page.
