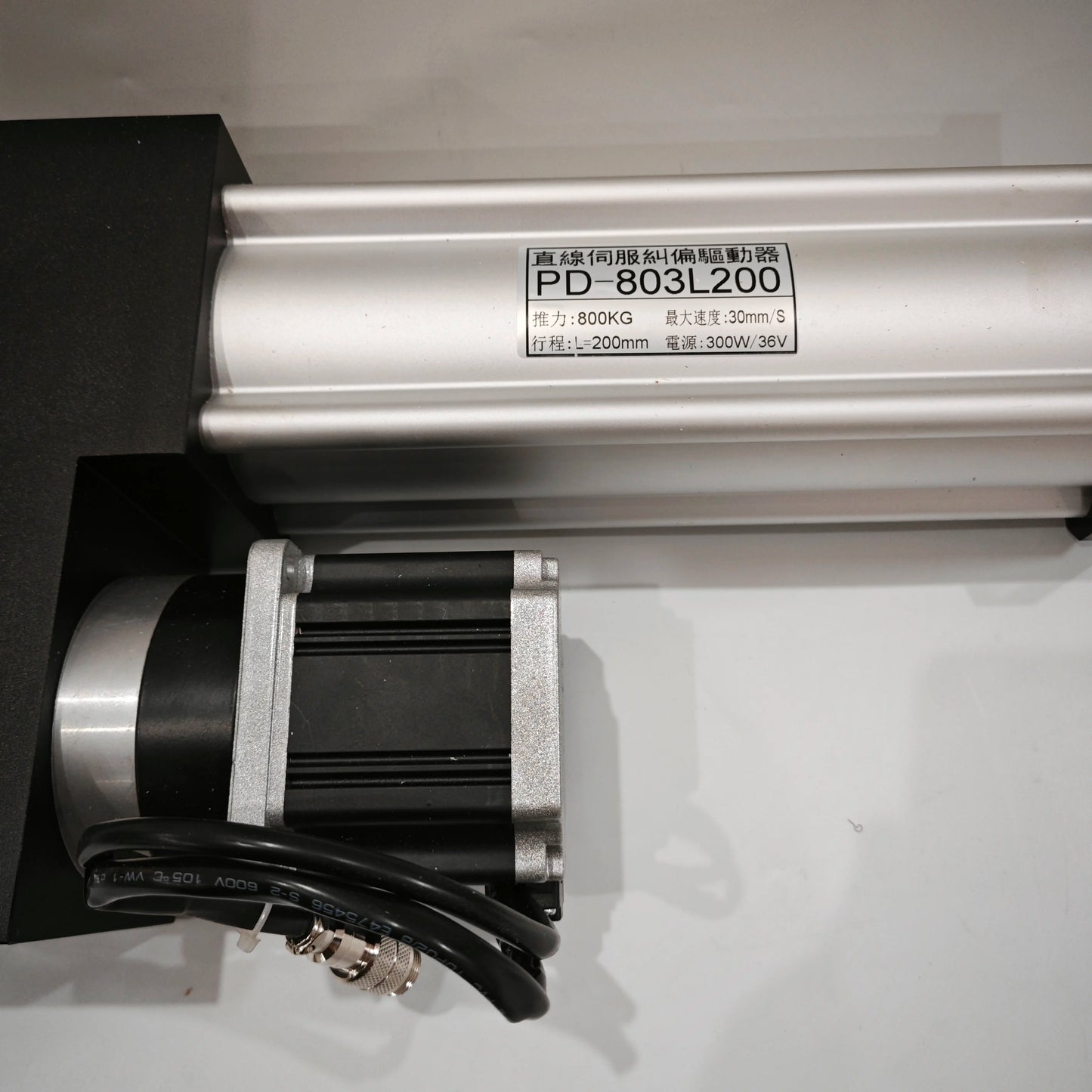

  • EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm product detail image 6
1 6

FMF Supply

EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm US-500 Ultrasonic Sensor

EPC-A10 Servo Web Guide System Line Edge Position Controller PD-803L200 Actuator 800kg 200mm US-500 Ultrasonic Sensor

$1,152.21 USD
$0.00 USD $1,152.21 USD
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

EPC-A10 Line/Edge Position Controller Web Guide System + PD-803L200 Actuator + US-500 Ultrasonic Sensor

Configuration: PD-803L200 servo actuator (800kg thrust, 200mm travel) + US-500 ultrasonic sensor.

Package Includes (1 Set)

  • Correction controller: EPC-A10 × 1 pc

  • Servo actuator: PD-803L200 × 1 pc

  • Ultrasonic sensor: US-500 × 1 pc(photoelectric sensor, color mark sensor, CCD sensor are optional)

  • Power supply (100–240V AC input) × 1 pc

  • Connecting cables × 3 pcs

  • Bracket mount × 1 pc

Overview

Servo web guide Controller EPC-A10 adopts the high-speed 32-bit CPU drive DC servo driver andno-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction.
In addition, it supports three operation modes: edge-following, line-following and centre-alignment.

Response time
0.5 ms
Sampling
12-bit AD / 700,000 times/s
Stroke & thrust
200mm / 800kg

Languages

Simplified Chinese / Traditional Chinese / English for menu operation.

Features

  1. Support three operation modes: edge-following, line-following and center-alignment.

  2. Support photoelectric sensor, ultrasonic transducer and CCD Sensor.

  3. Detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances.

  4. Automatic travel measurement, no need to limit the switch mechanically.

  5. No overshot integral variable PI algorithm, high accuracy, fast reaction and less error.

  6. 0.5msec super-speed of responding.

  7. Analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second.

  8. Adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal.

  9. DC servo motor to push the ball screw.

  10. Power-down memory of all the parameters at any states in the system.

  11. Store 10 groups of parameters from different material, convenient and efficient switchover of material.

  12. Simplified Chinese/ Traditional Chinese /English for menu operation.

  13. Humanized operation, fast, simple and convenient.

  14. Support Modbus and PLC/Human-computer networking control.

Specifications

Correction Controller

Item

Value

Model No

EPC-A10

Control Method

DC Servo Driver

Power

DC 24V / 5A

Control Input

DC 0~5A

Control output

24V

PWM Response time

0.5 ms

Environment temperature

-10~60C, below RH90%

Weight

1.2 kg

Sensor (Ultrasonic)

Item

Value

Model

US-500

Power supply

DC-12V

Power Output

DC 0-5V

Detective range

5mm

Detective accuracy

0.1mm

Detector methods

Ultrasonic exposure

Frequency

100KHZ

Shell material

Aluminum alloy

Servo Actuator

Model

Travel (mm)

Thrust

Pushing loading

Max. driving speed

PD-104L80

80

100kg

1000kg

40mm/S

PD-204L150

150

200kg

2000kg

40mm/S

PD-204L200

200

200kg

2000kg

40mm/S

PD-403L150

150

400kg

4000kg

30mm/S

PD-403L200

200

400kg

4000kg

30mm/S

PD-803L200

200

800kg

8000kg

30mm/S

Applications

Textile machinery:

fiber twisters, treatment machines, weaving machines

Metal processing & wire handling systems:

extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines

Machine tool systems:

lathes, milling machines, CNC lathes, CNC machining centers, specialized machinery

Material handling & conveying equipment:

hoists, feeders, conveyors, rollers, winders

Paper & packaging converting systems:

bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines


Note:
The system is standardly equipped with an ultrasonic sensor.
Photoelectric sensor, color mark sensor, and CCD sensor are optional.
If you require a different sensor configuration, please contact us before ordering.
