Designed to international safety standard IEC61010-1 CAT II 1000V/CAT III 600V |
• |
Sound & light warning for the incorrect inserting the input plug |
• |
Auto range/Manual range |
• |
Data hold |
• |
Maximum value measurement |
• |
Auto power off |
• |
Back light |
• |
Display: 3999 counts |
• |
DC voltage: 400m/4/40/400/1000V±0.7% |
• |
AC voltage: 400m/4/40/400V±0.8%, 750V±1.0% |
• |
DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0% |
• |
AC current: 400μ/4000μ/40m/400mA ±1.5%, 10A ±3.0% |
• |
Resistance: 400/4k/40k/400k/4M/40MΩ±1.0% |
• |
Capacitance: 50n/500n/5μ/50μ/200μF±3.0% |
• |
Frequency: 10/100/1k/10k/100kHz±2.0% |
• |
Duty cycle: 0.1% ~ 99.9%±3.0% |
• |
Temperature (thermocouple): -20°C ~ 1000°C±3.0% or ±2°C, 0°F ~ 1800°F ±3.0% or ±4°F |
• |
Temperature (NTC): 0°C ~ 40°C±2°C；32°F ~104°F±4°F |
• |
HUMIDITY：20% ~ 95%RH ±5.0%RH |
• |
Light: 4000Lux/40000Lux±5.0% |
• |
Sound level: 40 ~ 100dB±5dB |
• |
Continuity checking with buzzer |
• |
Diode test |
• |

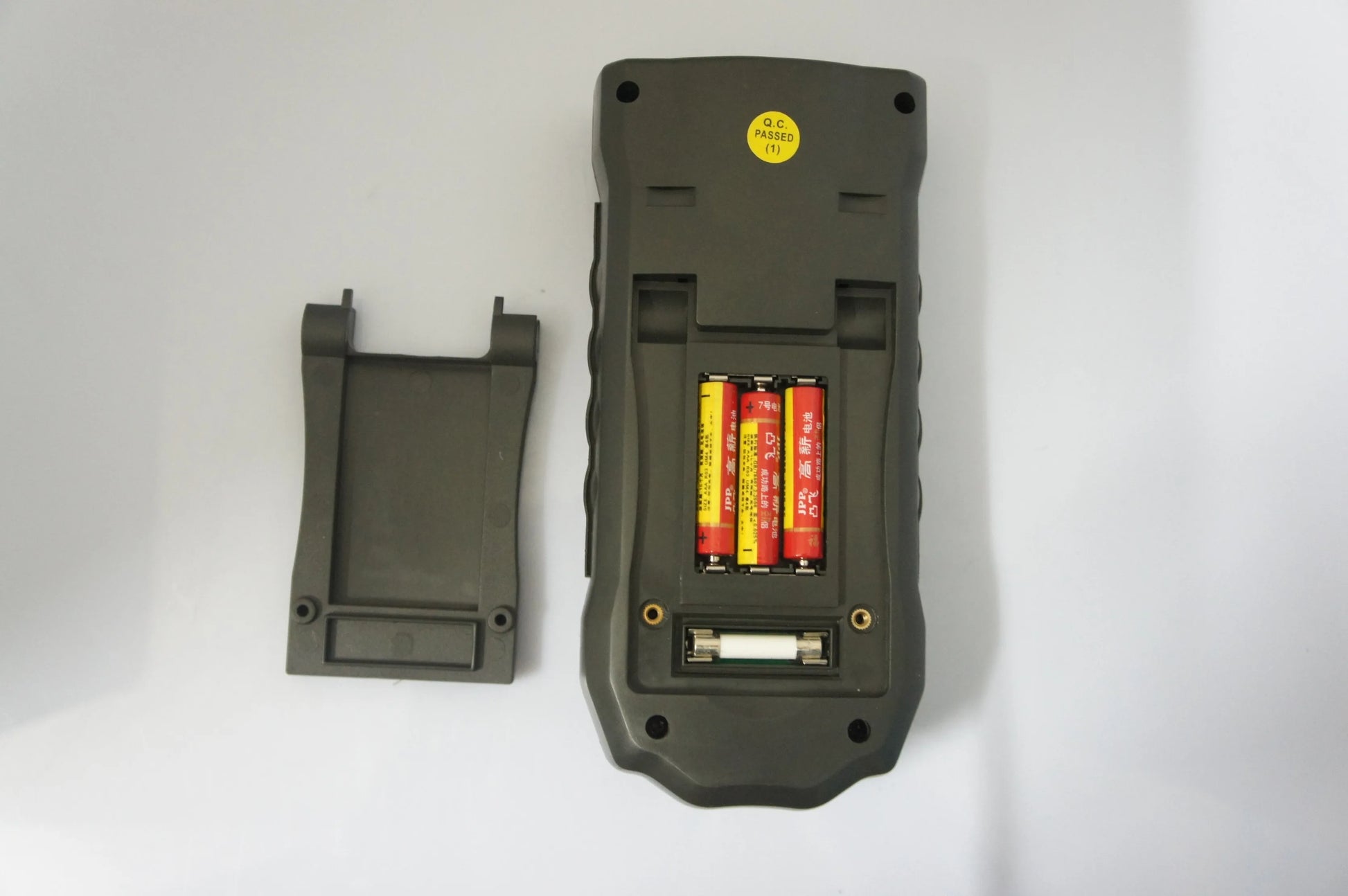

Power: 1.5V (AAA) X 3(not included ) |
• |
Size: 195 X 92 X 55mm |
• |
Weight: Approx. 400g |
