user's manual:
https://drive.google.com/file/d/11NTPFkeod7fcJSHEu_7U9_xFb6yf3Xxc/view?usp=sharing

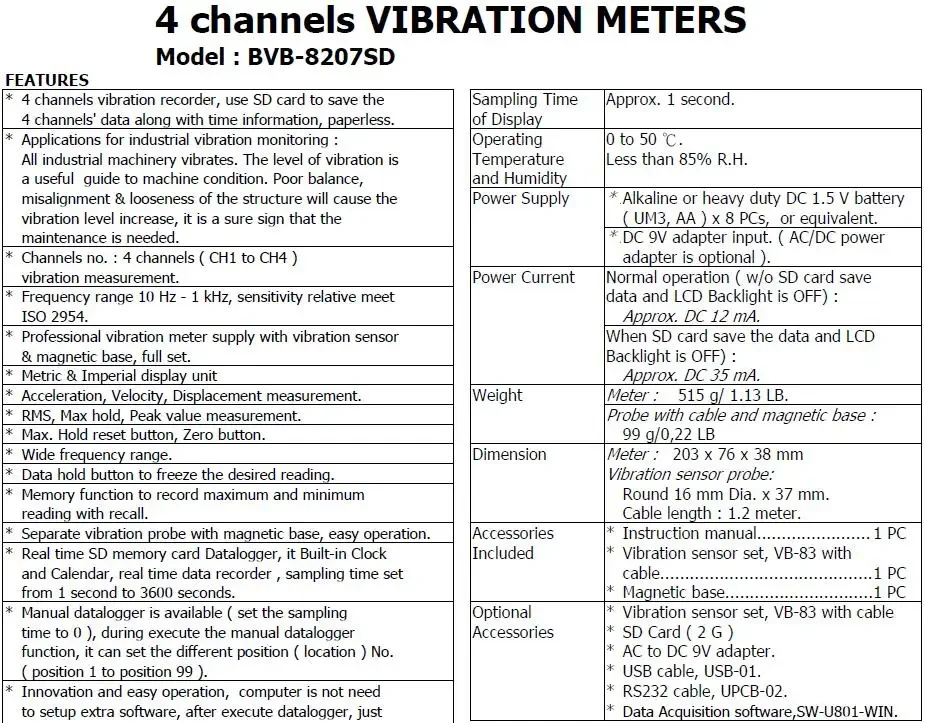

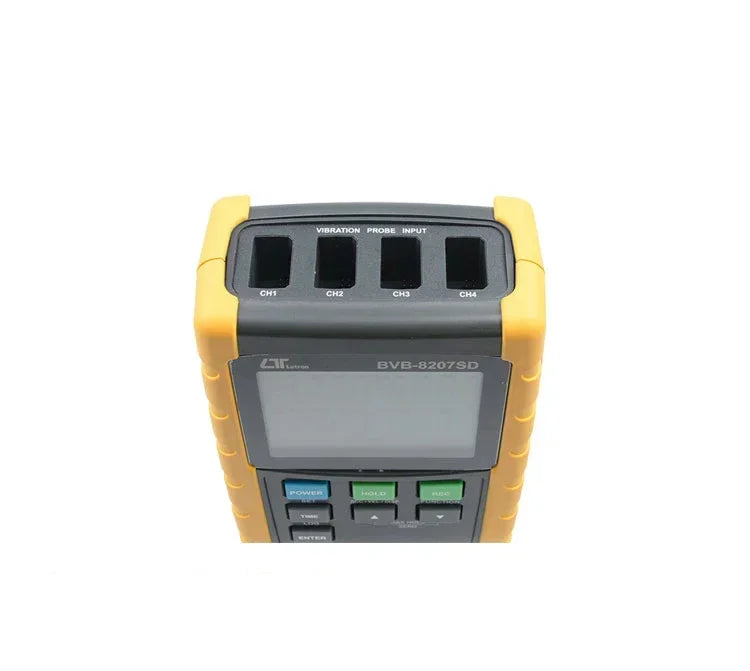

* 4 channels vibration recorder, use SD card to save the data along with time information, paperless.
* Real time data logger, save the measuring data along the time information (year, month, date,
hour, minute, second) into the SD memory card and can be downloaded to the Excel, extra
software is no need.

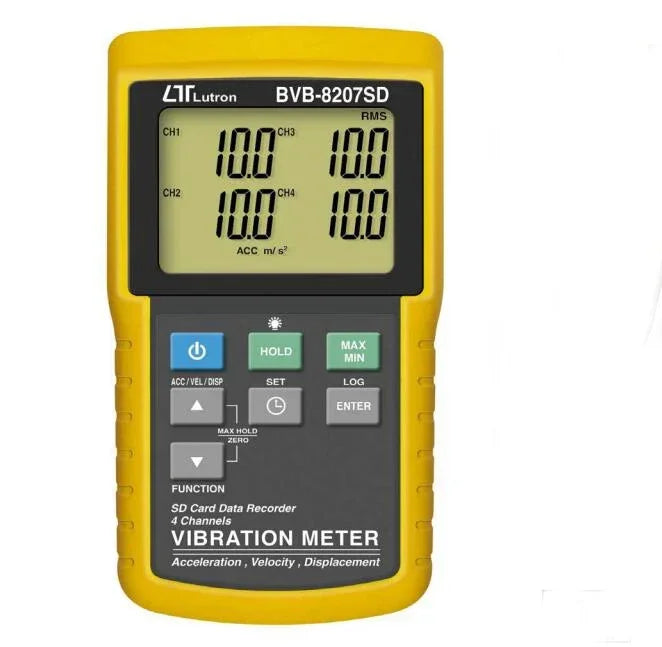

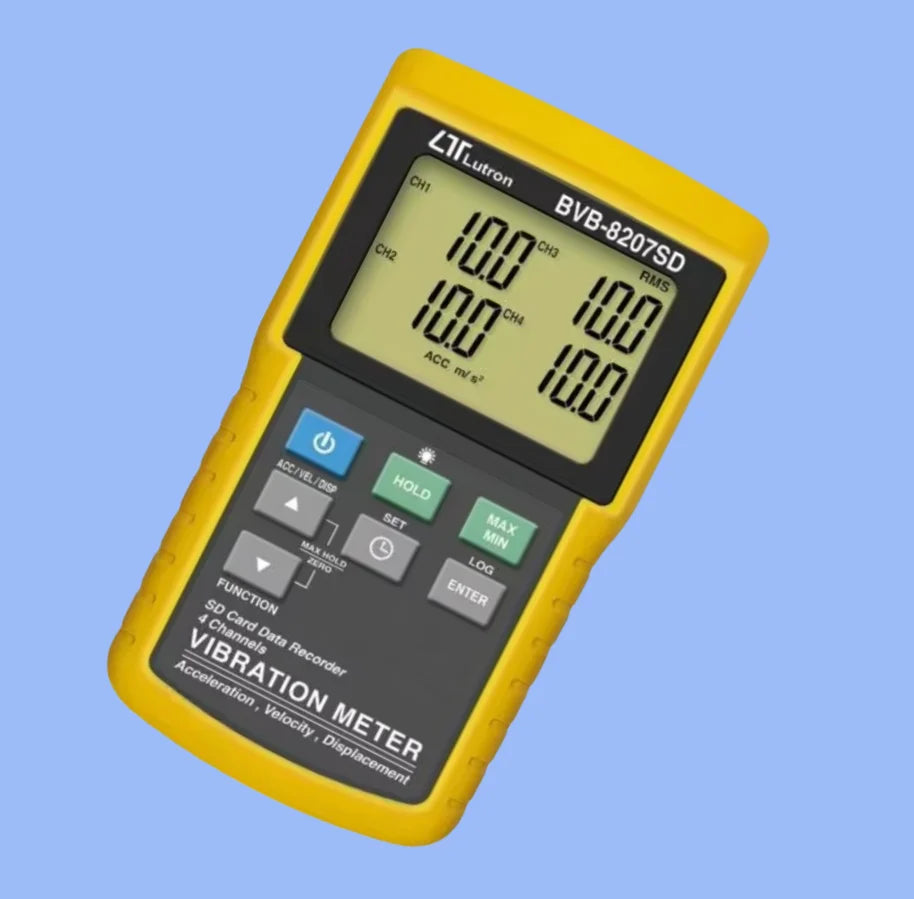

* Show CH1 to CH4 vibration values in the same LCD.
* Time information : Year, Month, Date, Hour, Minute and Second.

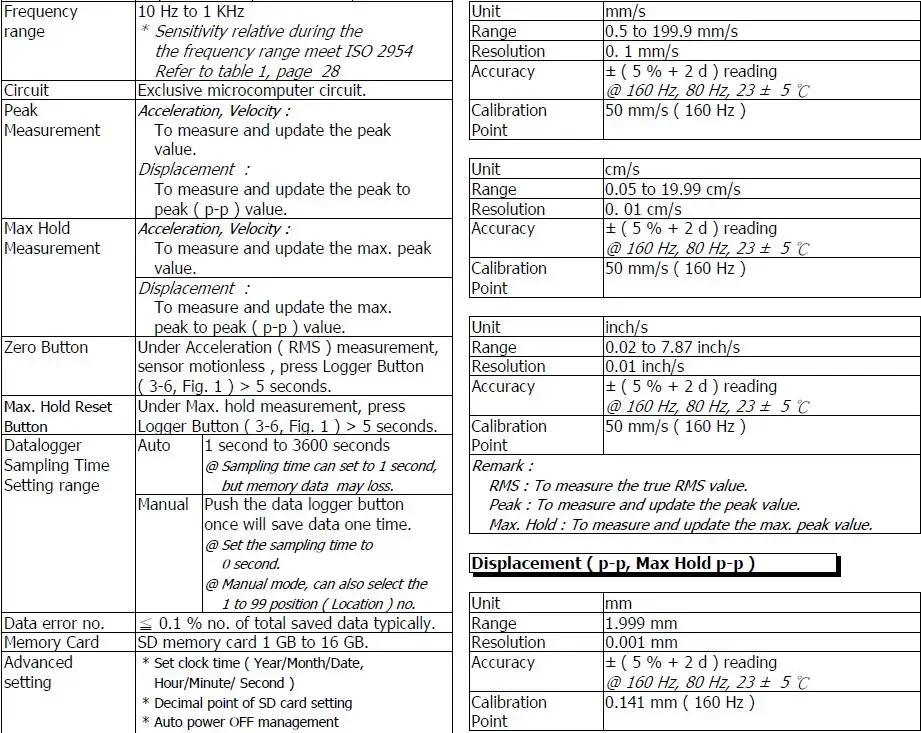

* Sampling setting : 1 to 3600 seconds.
* Function :
Acceleration/Velocity/Displacement.

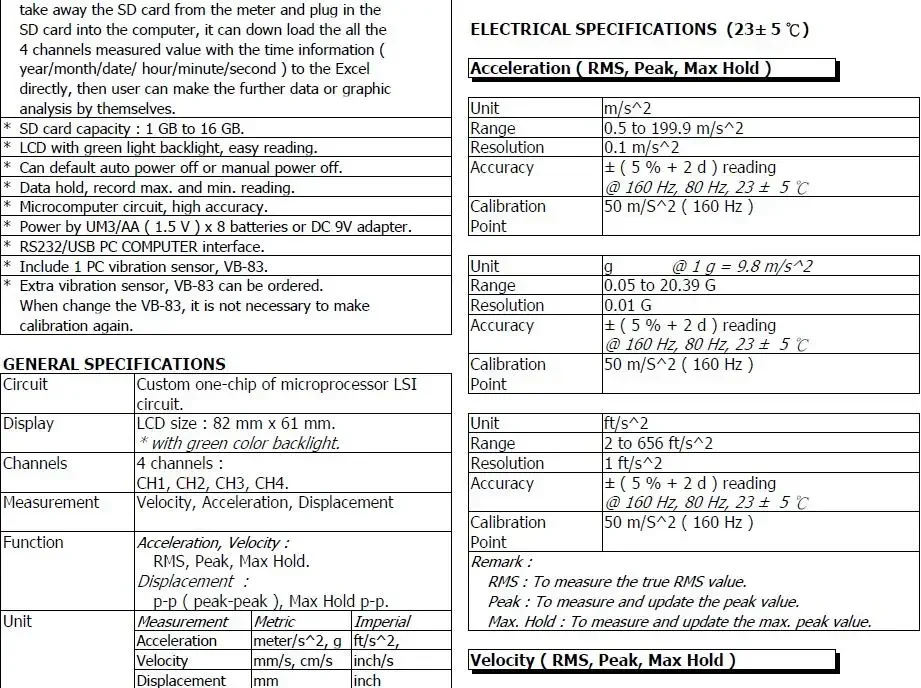

* Acceleration : 200 m/s2.
Velocity : 200 mm/s.
Displacement (p-p) : 2 mm.
* Max hold, peak value, data hold, Max./Min..

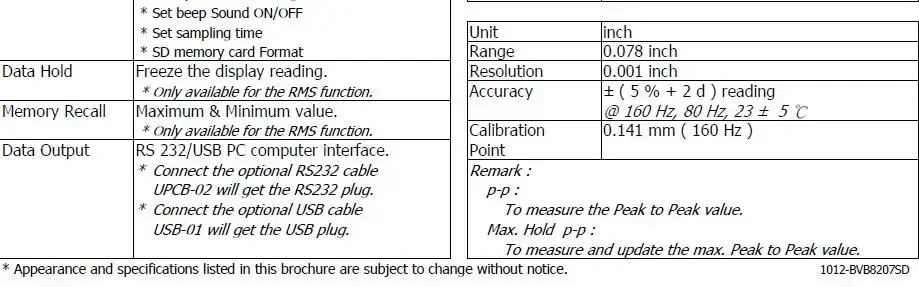

* RS232/USB computer interface.

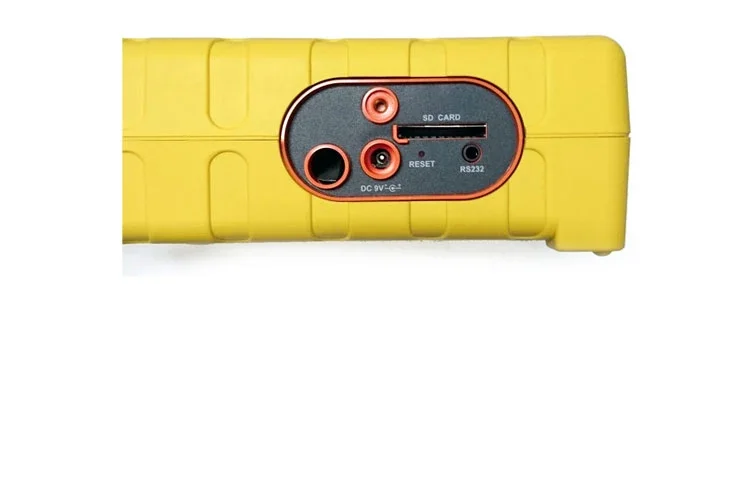

* Memory card size : 1 GB to 16 GB.
* Supper large LCD with backlight, easy reading.
* Data hold, Record (Max., Min.).
* RS232/USB computer interface.

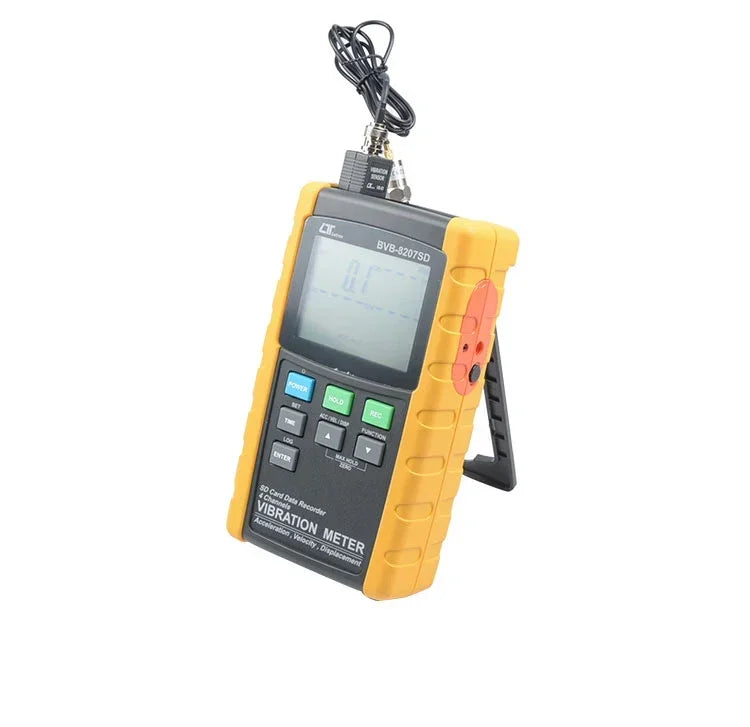

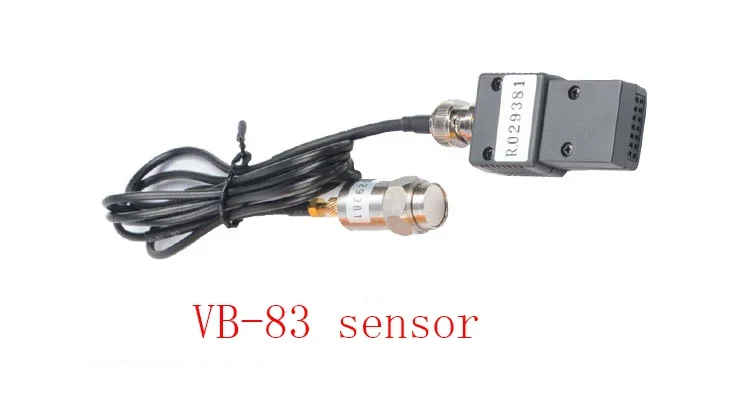

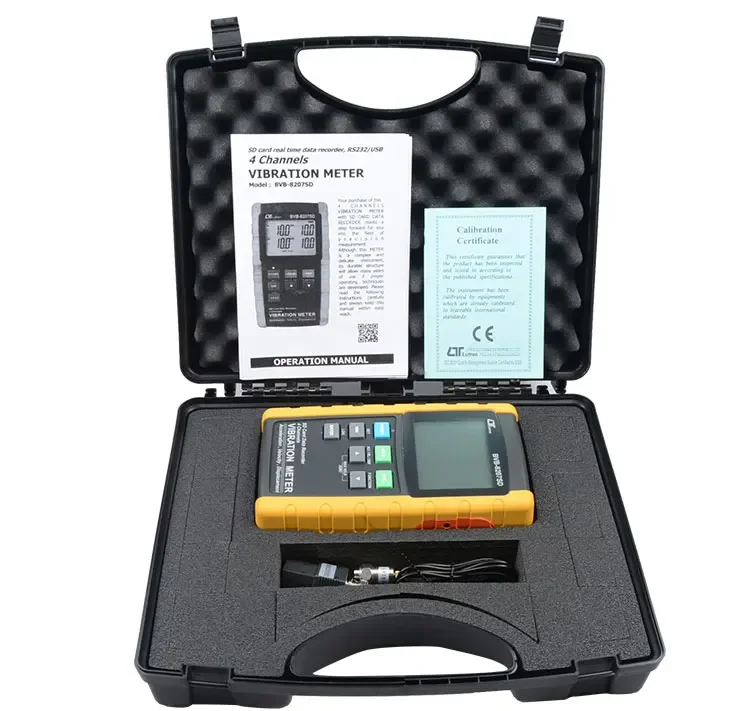

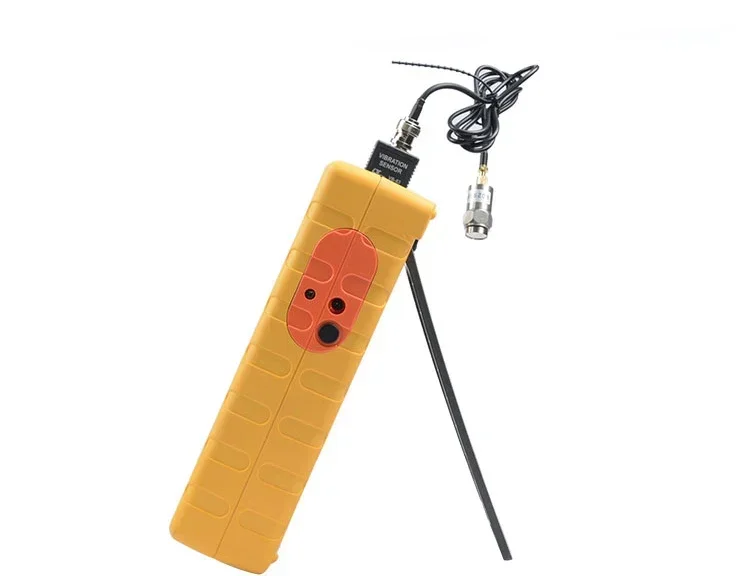

* Include 1 PC sensor vibration set, VB-83.
* Extra vibration sensor set, VB-83 can be ordered. When changing the VB-83, it is not necessary to
make the new calibration again.
* Optional Tip type vibration sensor set, VB-84.
* DC 1.5V (UM-3/AA) x 8 PCs or DC 9V adapter in.
* Patented.

|
