What This Tester Is
The DY5106A is a 5 kV digital insulation resistance tester, also known as a megohmmeter, for electrical insulation resistance checks that require selectable test voltages. It provides six test voltages from 100 V to 5000 V and measures insulation resistance from 0.1 MΩ to 200 GΩ.
Why Choose DY5106A
- Six selectable insulation test voltages: 100 V, 250 V, 500 V, 1000 V, 2500 V, and 5000 V.
- Wide insulation resistance measurement range from 0.1 MΩ to 200 GΩ.
- Auto range, data hold, low-battery warning, auto power off, and LCD backlight for easier field readings.
- 1999-count digital display with 0.01 MΩ resolution.
- Approximately 2 mA short-circuit current.
- Supplied with DY38 insulation test leads, a heavy-duty carry case, and eight 1.5 V AA batteries.
Specifications
| Model | DY5106A |
| Product type | 5 kV digital insulation resistance tester / megohmmeter |
| Test voltage | 100 / 250 / 500 / 1000 / 2500 / 5000 V |
| Insulation resistance range | 0.1 MΩ to 200 GΩ |
| Accuracy | 0.1 MΩ-200 MΩ: ±(3%+5); 200 MΩ-10 GΩ: ±(5%+5); 10 GΩ-200 GΩ: ±(10%+5) |
| Resolution | 0.01 MΩ |
| Short-circuit current | Approx. 2 mA |
| Auto range | Yes |
| Data hold | Yes |
| Low-battery warning | Yes |
| LCD backlight | Yes |
| Maximum display | 1999 |
| Dimensions | 190 x 155 x 75 mm |
| Weight | Approx. 900 g |
Standard Accessories
- DY38 insulation test leads

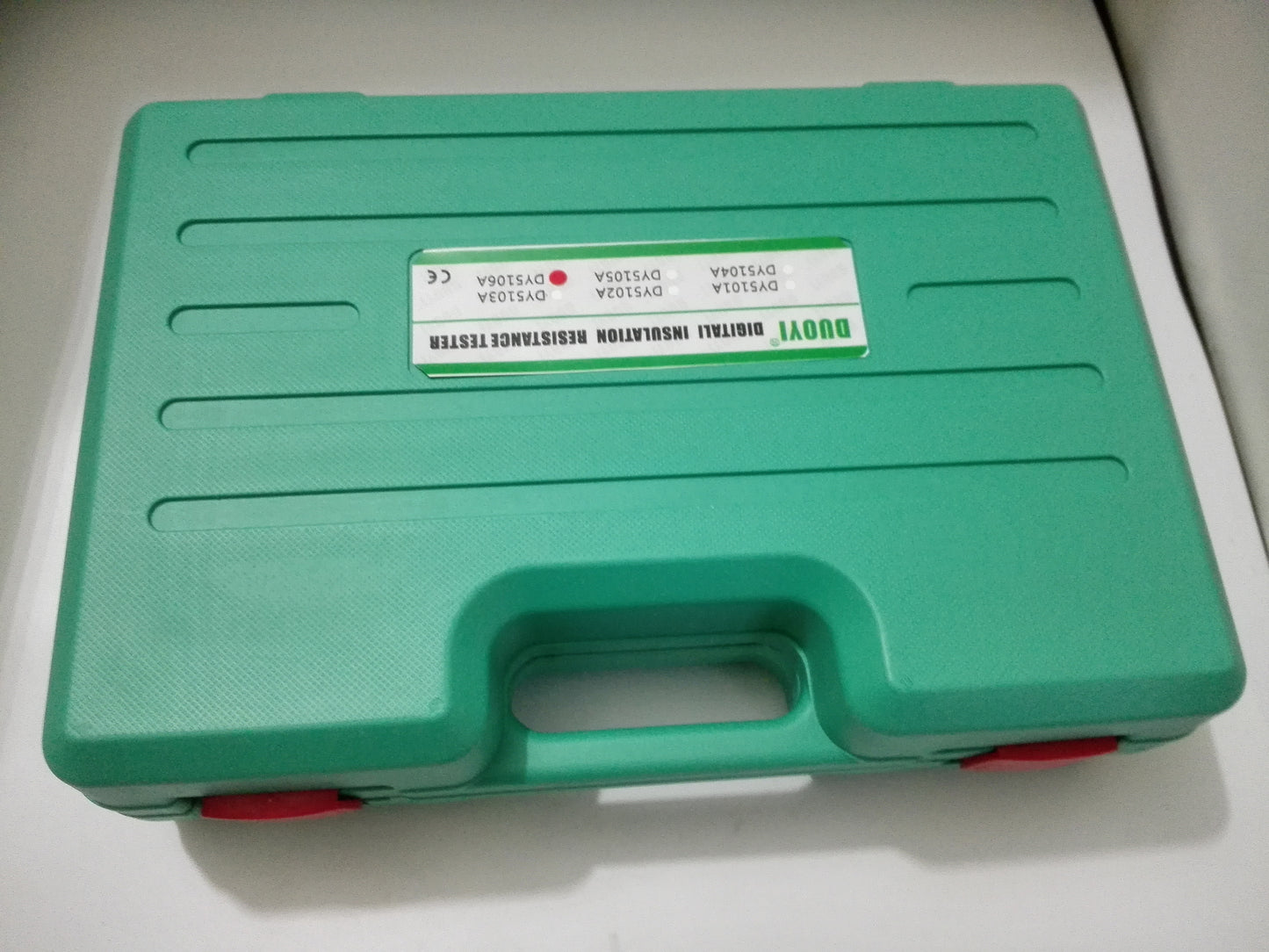

- Heavy-duty carry case
- Eight 1.5 V AA batteries
FAQ
Does the DY5106A support 5000 V insulation testing?
Yes. The DY5106A provides six selectable test voltages: 100 V, 250 V, 500 V, 1000 V, 2500 V, and 5000 V.
What insulation resistance range does it measure?
It measures insulation resistance from 0.1 MΩ to 200 GΩ, with 0.01 MΩ resolution.
What functions are included for field use?
The tester includes auto range, data hold, low-battery warning, auto power off, and an LCD backlight.
What comes with the tester?
The standard set includes DY38 insulation test leads, a heavy-duty carry case, and eight 1.5 V AA batteries.
What should I confirm before ordering?
Confirm that the DY5106A test voltage range, insulation resistance range, dimensions, weight, and included accessories match your testing requirements.
