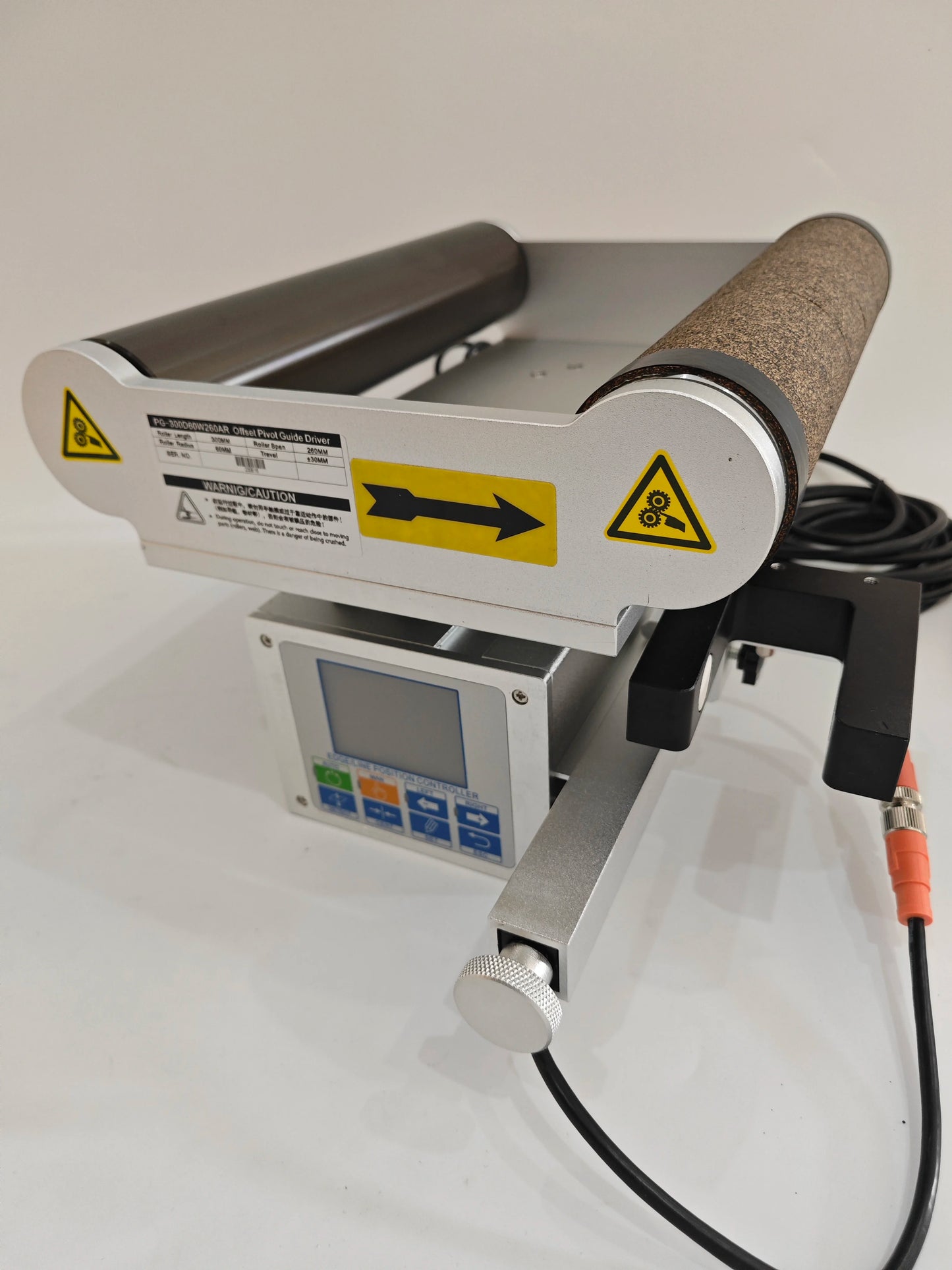

PG Series All-in-One Web Guide Controller
Compact integrated controller for accurate guiding of narrow web materials.
Introduction PG Series
The newly developed all-in-one web guide controller is designed for accurate correction of
a narrow web material range, especially suitable for label printing, packaging, and non-woven industries.
Its compact design enables easy installation and saves space. The controller, driver, and detector are integrated,
helping users improve efficiency during installation and debugging.
Key Features
Brushless DC servo motor driving, maintenance-free.
Precision ball screw mechanism for accurate positioning.
Large guiding travel.
Roller length and width can be custom-made.
Roller surface options: anodized, rubber, or cork leather.
Optional cutting-station fixture: manual or air (pneumatic).
Technical Data
Voltage |
AC220V / 110V, 80W |
Roller diameter |
50 mm / custom-made |
Roller length |
200 mm / custom-made |
Roller width |
230 mm / custom-made |
Max. speed |
40 mm/s |
Environment |
-10 to 60°C, below RH 90% |
Model Specifications
Model |
Roller Length A (mm) |
Roller Dia. B (mm) |
Roller Width C (mm) |
Base Length D (mm) |
Web Guide Range (°) |
Max. Tension (N) |
PG-200A |
200 |
50 |
230 |
255 |
±12 |
300 |
PG-250A |
250 |
50 |
230 |
255 |
±12 |
300 |
PG-300A |
300 |
60 |
260 |
300 |
±12 |
300 |
PG-350A |
350 |
60 |
260 |
350 |
±12 |
300 |
PG-400A |
400 |
60 |
310 |
410 |
±7 |
500 |
PG-450A |
450 |
60 |
310 |
460 |
±7 |
500 |
PG-500A |
500 |
60 |
310 |
510 |
±7 |
500 |
PG-600A |
600 |
60 |
310 |
610 |
±7 |
500 |
Ultrasonic Sensor Technical Parameters
Item |
Specification |
Ultrasonic Sensor |
US-400S |
Power Supply |
DC 12V |
Output Signal |
DC 0–5V |
Detection Range |
8 mm (±4 mm) |
Detection Accuracy |
0.1 mm |
Detection Method |
Ultrasonic Reflection |
Frequency |
100 kHz |
Housing Material |
Aluminum Alloy |
package
1 set PG200A （Ultrasonic Sensor）
Default configuration includes an ultrasonic sensor.
If you need to configure other types of sensors, please contact us.
