• EPC-A10 servo web guiding system kit with controller, color mark sensor, power supply, cables, manual and servo actuator
  • EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & product detail image 2
  • EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & product detail image 3
  • EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & product detail image 4
  • EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & product detail image 5
  • EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & product detail image 6
1 6

FMF Supply

EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & PD-204L150T Servo Actuator

EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & PD-204L150T Servo Actuator

$692.59 USD
$0.00 USD $692.59 USD
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

EPC-A10 Servo Web Guiding System | Edge Line Position Controller with Color Mark Sensor & PD-204L150T Servo Actuator

Packing List – EPC-A10 Servo Web Guide System

  • EPC-A10 Servo Web Guide Controller × 1 pc

  • Color Mark Sensor (PS-260) × 1 pc

  • Servo Actuator PD-204L150T (150 mm Stroke) × 1 pc

  • DC Switching Power Supply (AC 110–240V → DC 24V) × 1 pc

  • Mounting Accessories & Cables × 1 set

  • User Manual × 1 pc

Remark

Other sensors are also available (photoelectric / ultrasonic / CCD).
If you need to configure a different sensor, please contact us.


Sensor Selection Guide (Applicable Materials):

Legend: ✓ Suitable       — Not recommended / not supported.

Web Material

HCCD Sensor
(HCCD)

Color Mark Sensor
(PS-260)

Ultrasonic Sensor
(US-400/500)

Photoelectric Sensor
(PS-500)

Transparent Film

/

✓

✓

✓

Opaque Film

✓

✓

✓

✓

Paper

✓

✓

✓

✓

Carton / Paperboard

✓

✓

✓

✓

Metal Sheet

✓

✓

✓

✓

Textiles

✓

✓

—

✓

Cloth / Breathable Materials

✓

✓

—

✓

Photosensitive Film

✓

✓

✓

—

Dusty Environments

—

—

✓

—



Product Description

Servo Web Guide Controller EPC-A10 adopts a high-speed 32-bit CPU with a DC servo driver and a no-overshoot integral variable PI adjustable algorithm.
It provides high correction accuracy, fast response, and stable operation.
The system supports three guiding modes: Edge-Following, Line-Following, and Center-Alignment, meeting the requirements of various web-guiding applications.

Key Features

  1. Supports three operation modes:

    • Edge-Following

    • Line-Following

    • Center-Alignment

  2. Compatible with photoelectric sensors, ultrasonic sensors, and CCD sensors

  3. Intelligent sensor parameter detection; manual sensor calibration is generally unnecessary

  4. Automatic travel measurement, eliminating the need for mechanical limit switches

  5. No-overshoot integral variable PI control algorithm for high precision, fast response, and minimal deviation

  6. Ultra-fast response time: 0.5 ms

  7. 12-bit AD analog signal sampling, up to 700,000 samples per second

  8. Equipped with FIR digital filtering and differential return filtering for enhanced anti-interference and signal stability

  9. DC servo motor driving a ball screw mechanism

  10. Power-down memory retains all system parameters in any operating state

  11. Stores up to 10 groups of material parameters for fast and efficient material changeover

  12. Menu languages: Simplified Chinese / Traditional Chinese / English

  13. User-friendly operation: fast, simple, and intuitive

  14. Supports Modbus communication and PLC / HMI networking control

Technical Specifications

1. Correction Controller

Item

Specification

Model No.

EPC-A10

Control Method

DC Servo Driver

Power Supply

DC 24V / 5A

Control Input

DC 0–5A

Control Output

24V

PWM Response Time

0.5 ms

Operating Temperature

−10°C to +60°C

Ambient Humidity

≤ RH 90%

Weight

1.2 kg

2. Color Sensor

Item

Specification

Model No.

PS-260 Color Mark Sensor

Power Supply

10–30 VDC, reverse polarity protection

Operating Distance

15 mm

Depth of Field

±3 mm (with standard 15 mm lens)

Setting Buttons

MARK / BKGD

Indicators

Blue: OUTPUT LED
Red: READY LED
Green: DELAY LED

Voltage

12V

Output Signal

Analog 0–5V

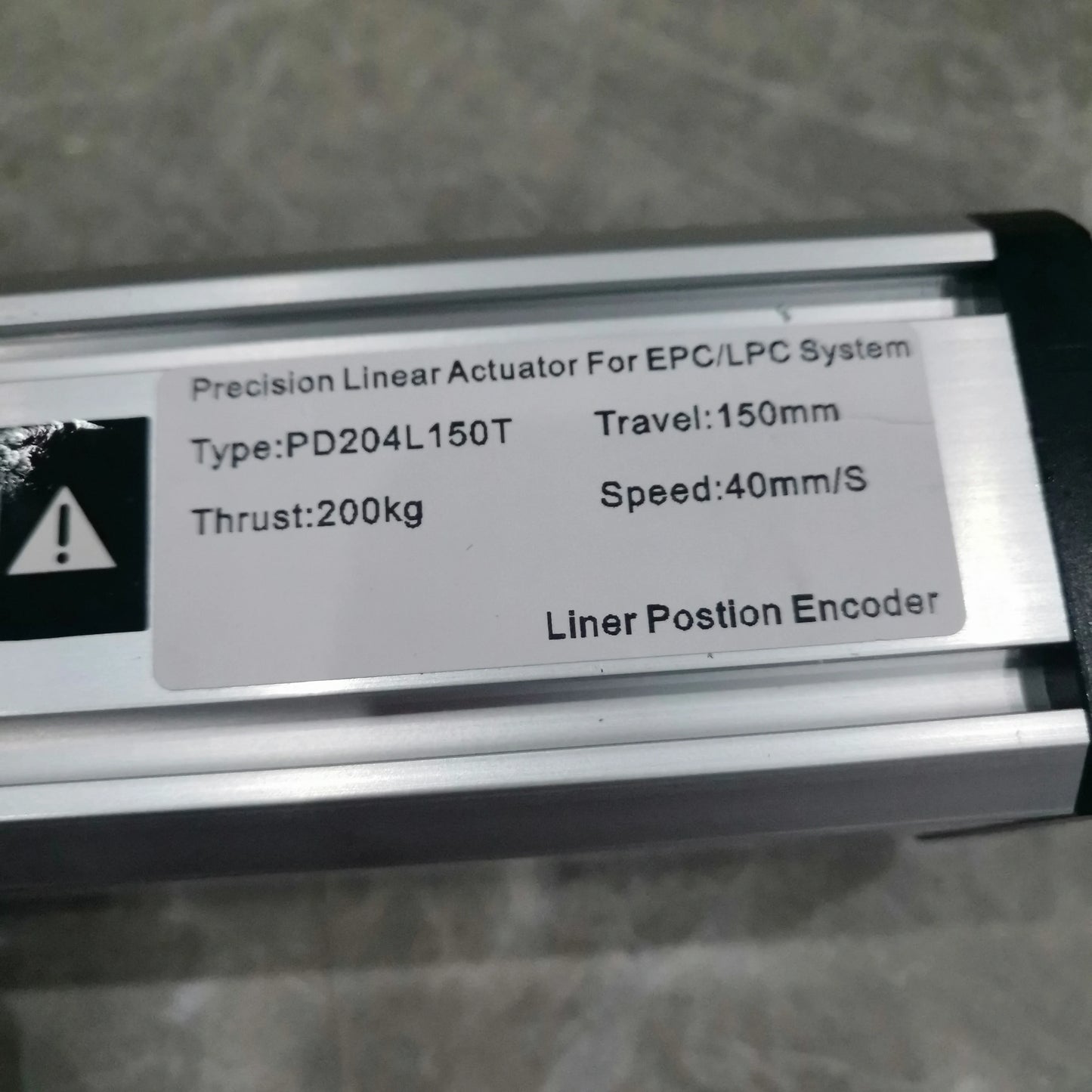

3. Servo Actuator

Item

Specification

Model No.

PD-204L150T

Max Thrust

2000 N

Driving Load

200 kg

Stroke Range

150 mm (±75 mm)

Max Driving Speed

40 mm/s


EPC-A10 is ideal for continuous web guiding applications requiring servo-driven edge, line, or color mark correction, especially in textile, metal processing, paper, packaging, and automated material handling systems.
