Tuning Fork Level Switch Vibrating Fork Liquid Level Sensor Point Level Detector DC24V AC220V for Industrial Applications

Product Overview

Tuning Fork Level Switch Vibrating Fork Liquid Level Sensor Point Level Detector DC24V AC220V for Industrial Applications is available from FMF Supply. Use the product details, images, and option selector on this page to confirm the exact model, size, and configuration before ordering.

Key Details

• Product name: Tuning Fork Level Switch Vibrating Fork Liquid Level Sensor Point Level Detector DC24V AC220V for Industrial Applications
• Product type: Sensor

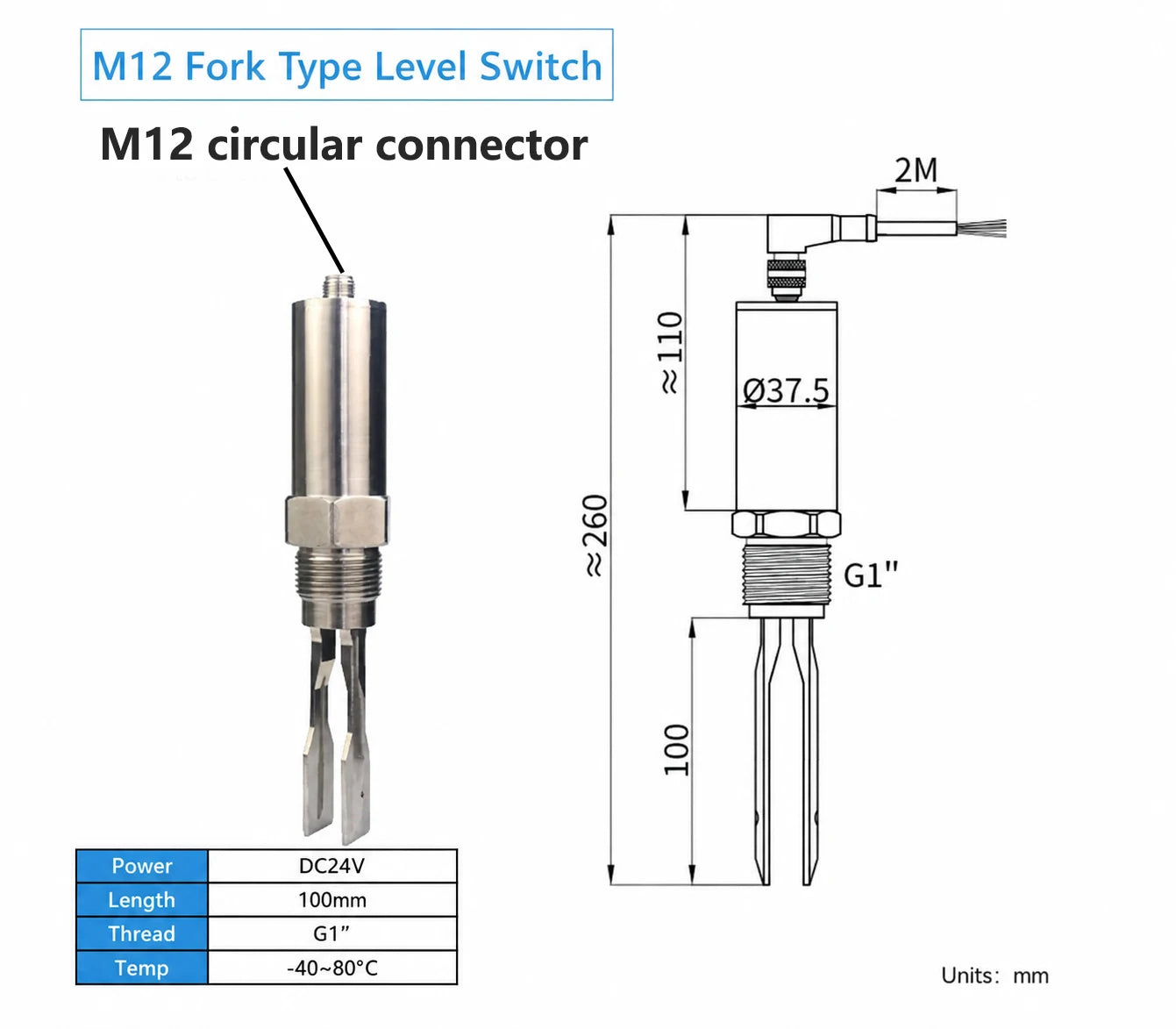

• SKU reference: FMF-DC24V-56185-STANDARD-G1-TYPE, FMF-DC24V-56185-250MM-G1-TYPE, FMF-DC24V-56185-HIGH-TEMP-G1-TYPE, FMF-DC24V-56185-PTFE-G1-TYPE, FMF-DC24V-56185-100MM-DN32F-TYPE, FMF-DC24V-56185-250MM-G1-1-2-TYPE, FMF-DC24V-56185-24V-MINI-TUNING-FO, FMF-DC24V-56185-HUISMAN-STANDARD
• Check the selected option and product images before purchase.

Specifications and Notes

• Working Principle The tuning fork level switch operates based on the principle that materials exert damping force on the vibrating tuning fork.
• It detects whether the material level has reached or exceeded a specified position and outputs a switching signal accordingly.
• The sensor’s tuning fork vibrates at its natural resonant frequency.
• When the fork comes into contact with liquid or other materials, the vibration frequency decreases, and vibration energy is absorbed through friction between material particles.
• This causes the vibration amplitude to rapidly decrease until the fork stops vibrating.
• The resulting frequency change activates the level switch and generates an ON/OFF output signal.

Available Options

FAQ

How do I choose the right option?

Match the option name, SKU, product images, and listed specifications with the model, size, or configuration you need.

What should I confirm before ordering?

Confirm the product model, dimensions, voltage or power requirements, capacity, material, and included accessories when those details are shown for this item.
