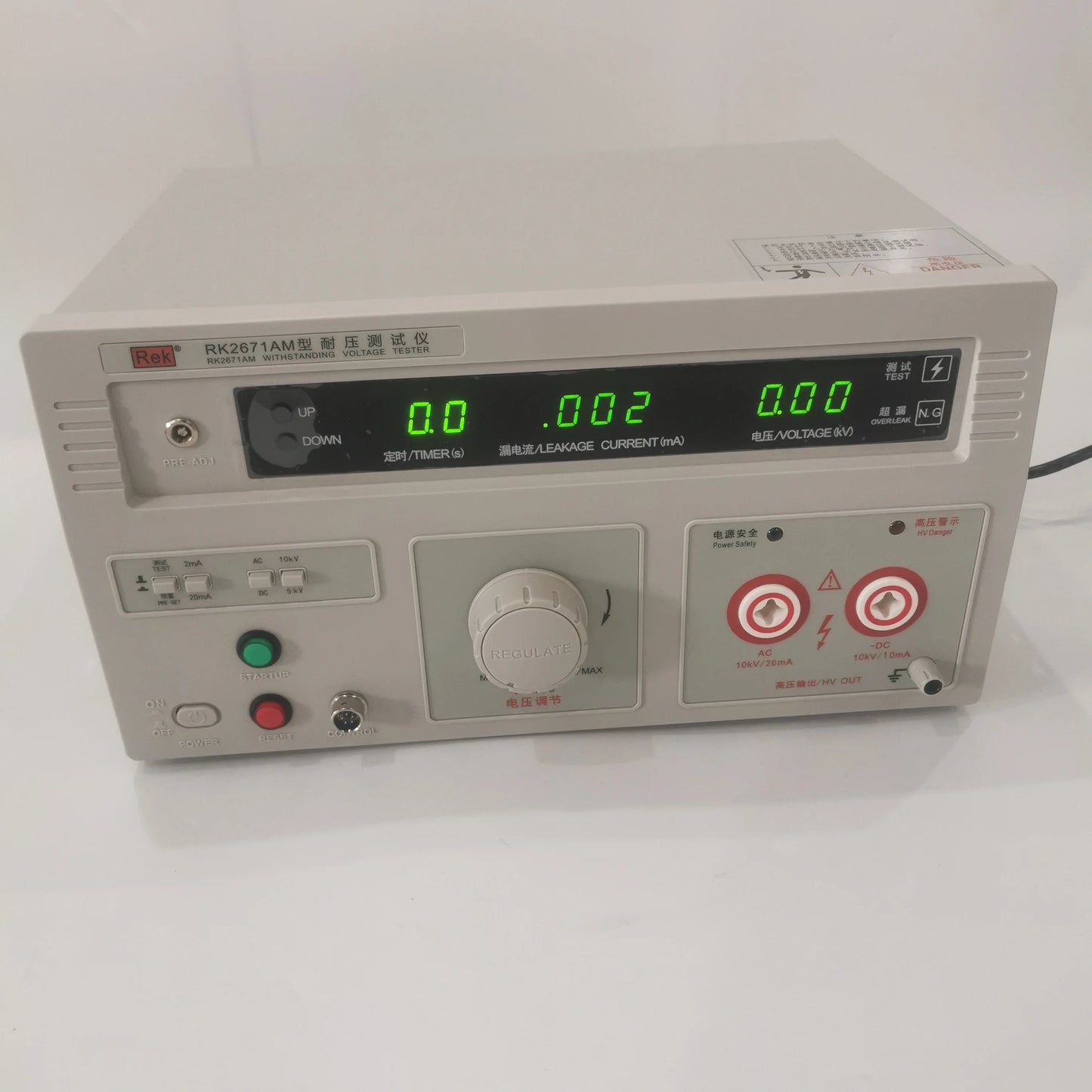

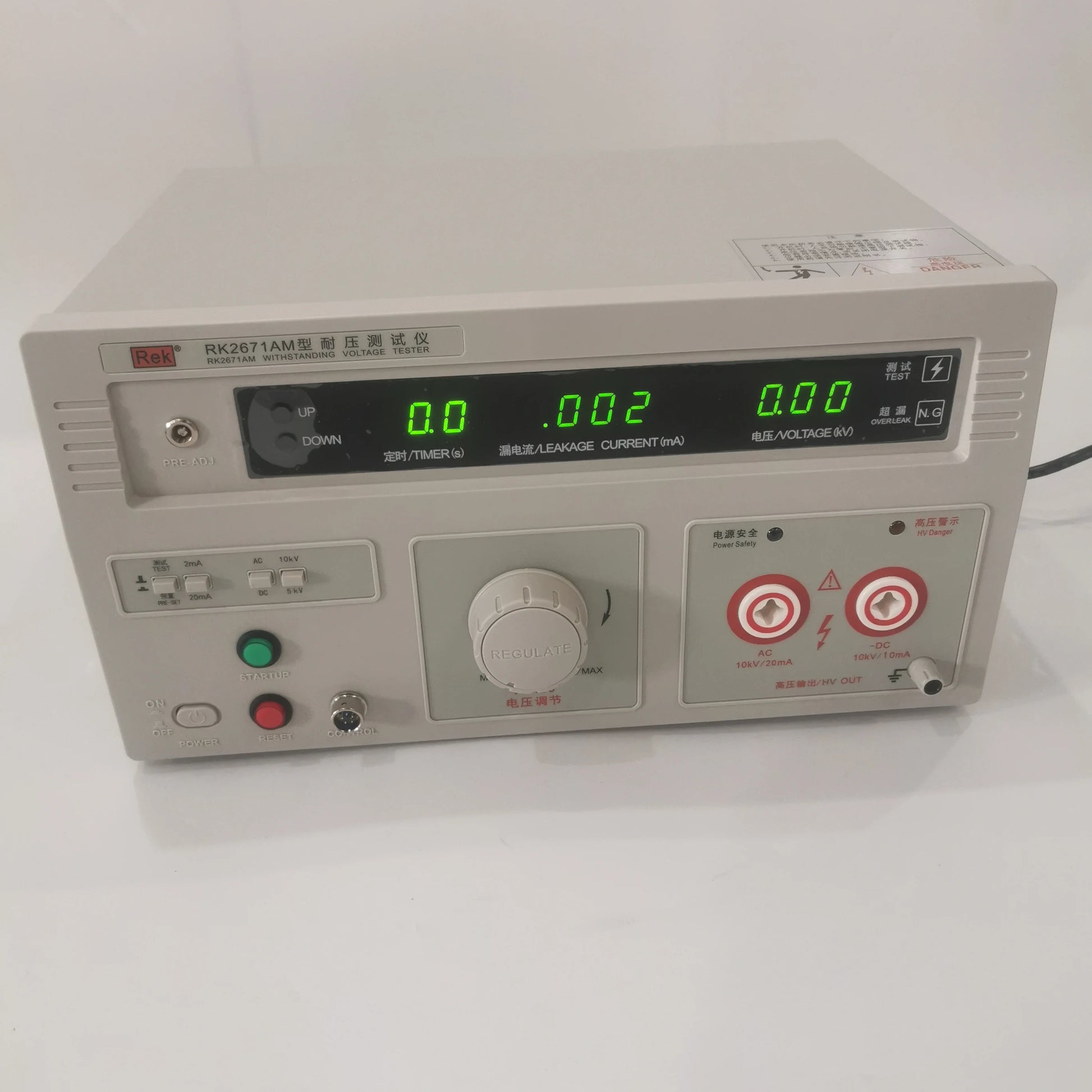

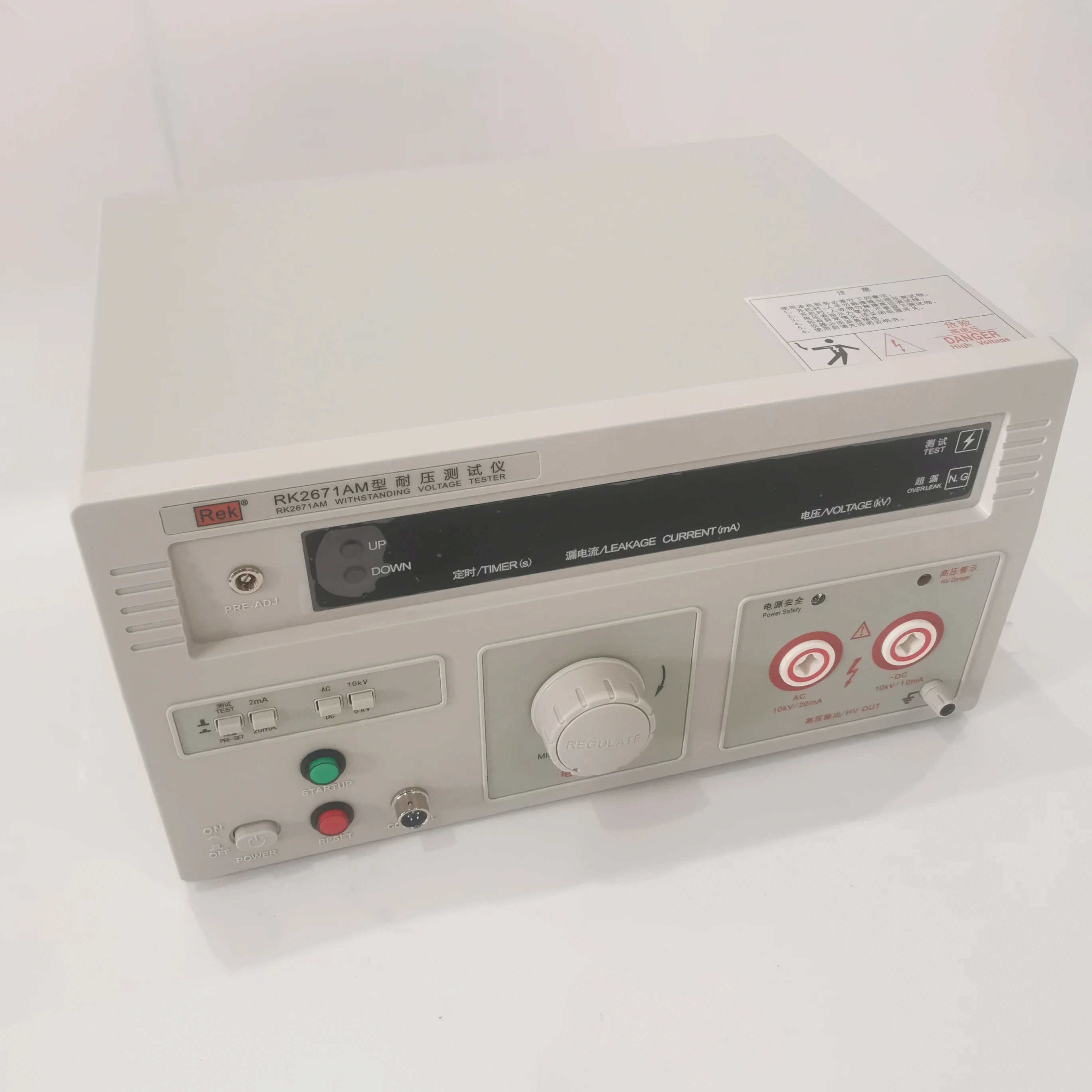

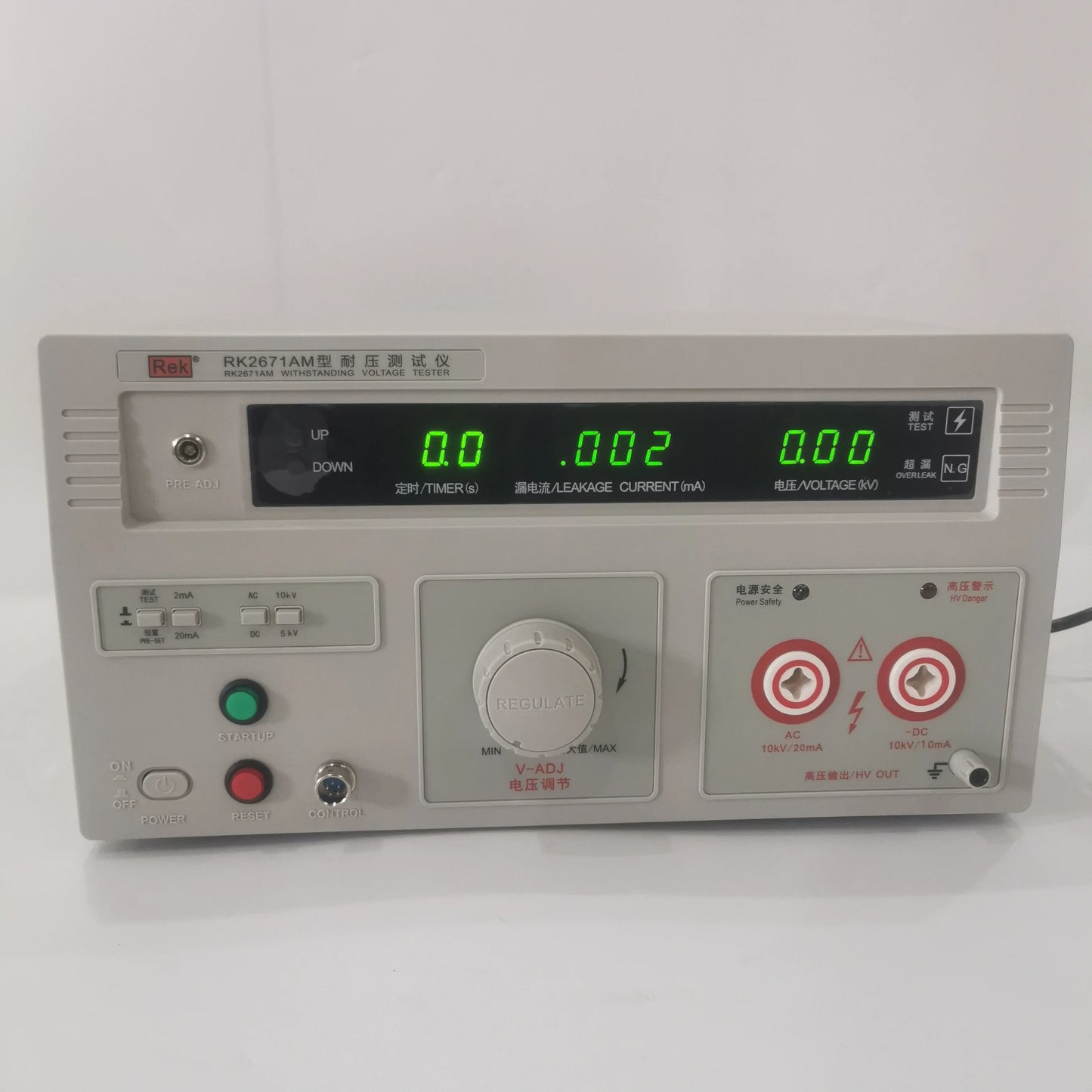

RK2671AM Withstand Voltage Tester
Product Introduction
The RK2671AM Withstand Voltage Tester of Meiruike is the measurement instrument for compressive strength.
It mainly used for insulation leakage safety test of product. It can test the electrical safety performance index
of breakdown voltage, current of which all kind of the measured object intuitive, accurate and fast,
and can be used for testing the components and overall performance as a high voltage source.
This series of tester according to the following standards: Standard for household electrical appliances
(IEC6035, GB4706.1-2001, GB4706.1-1998), Standard for lamp (IEC60598-1-1999, GB7000.1-2000),
Standard for information (GB8898-2001, GB12113, GB4943-2001, IEC60065, IEC60950) and so on.
Application Area
Components: diode, triode, high-voltage silicon stack, all kinds of electronic transformer,
connector assembly, high voltage electrical equipment.
Household Electric Appliances: TV, refrigerator, air conditioner, washing machine, dryer,
electric blanket, charger etc.
Insulation Material: heat shrinkable tube, capacitor film, high pressure tube, insulating paper,
insulated shoes, rubber insulating gloves, PCB circuit board etc.
Instruments and Meters: oscilloscope, signal generator, DC power supply, switching power supply
and other types of machine.
Lighting Appliances: ballast, road lights, stage lights, portable lamps and other types of lamps.
Electric Heating Appliances: electric drill, pistol drill, cutting machine, grinding machine,
electric welding machine etc.
Wire and Cable: high voltage cable, optical cable, electric cable, silicone rubber cable, etc.
Performance Characteristics
AC/DC Voltage 10kV Universal Withstand Voltage Tester.
The output voltage regulated output by the regulator, which has high reliability and high durability.

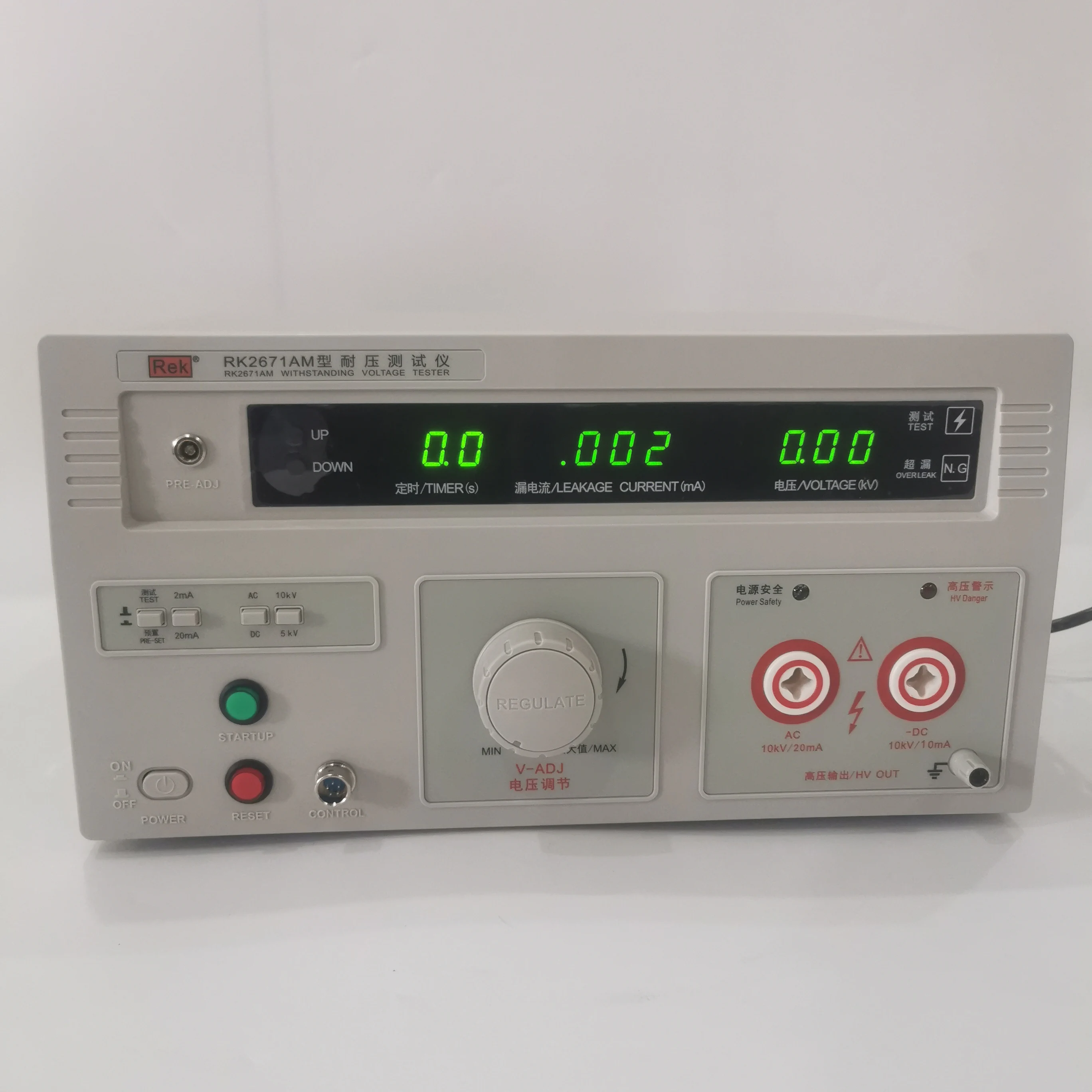

Using high brightness LED digital displaying test time, voltage, current, it can display the breakdown current value and voltage value in real time.
Alarm current value can be preset arbitrarily.
Test time using three digital tube display.
Equipped with PLC signal input, output interface, it can constitute easily integrated test system with PLC expediently. (Optional)
Parameter
Model |
RK2671AM |
RK2671BM |
RK2671CM |
Output Voltage (KV) |
AC: 0~5/10 |
||
DC: 0~5/10 |
|||
Output Current (MA) |
AC: 0~2/20 |
AC: 0~2/20/50 |
AC: 0~2/20/100 |
DC: 0~2/10 |
DC: 0~2/20 |
DC: 0~2/20 |
|
Test Accuracy |
±(5%+3 Words) |
||
Test Time |
(0.0~999)S 0.0=Continuous Test |
||
Transformer Capacity |
200VA |
500VA |
1000VA |
Interface Of PLC |
Optional |
||
Power Requirements |
AC:220V±10% 50Hz/60Hz±3Hz |
||
Working Environment |
Temperature:(0~40)℃ Humidity≤75%RH |
||
Exterior Dimension |
380*315*195mm |
443*390*195mm |
430*380*220mm |
Weight |
15.4kg |
24.5kg |
28kg |
Accessory |
High Voltage Test Line, Grounding Wire, High-Voltage Stick, Power Line (Standard) |
||

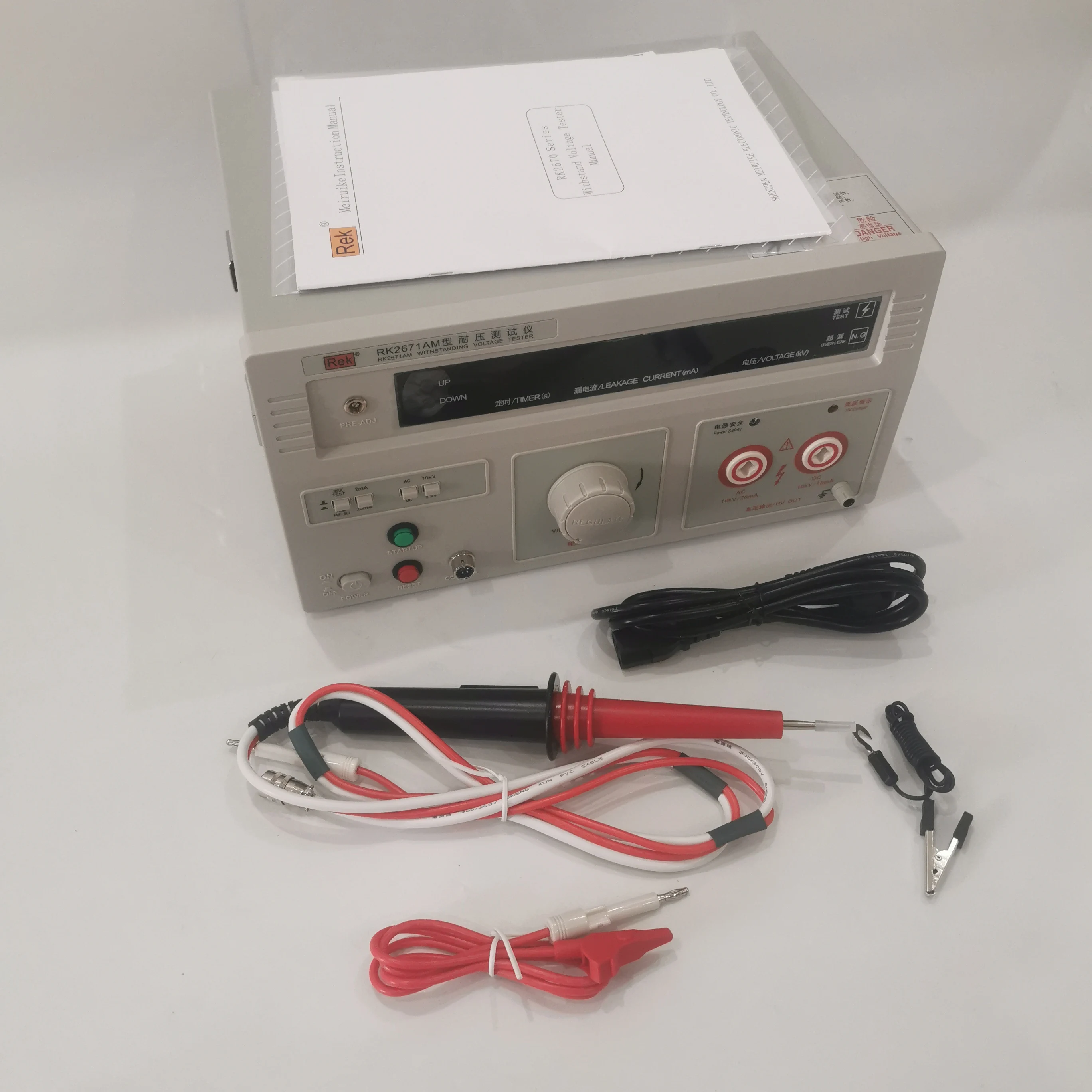

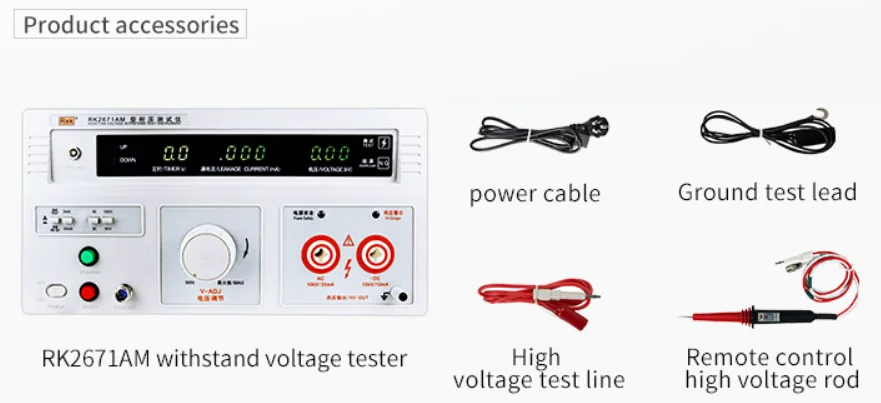

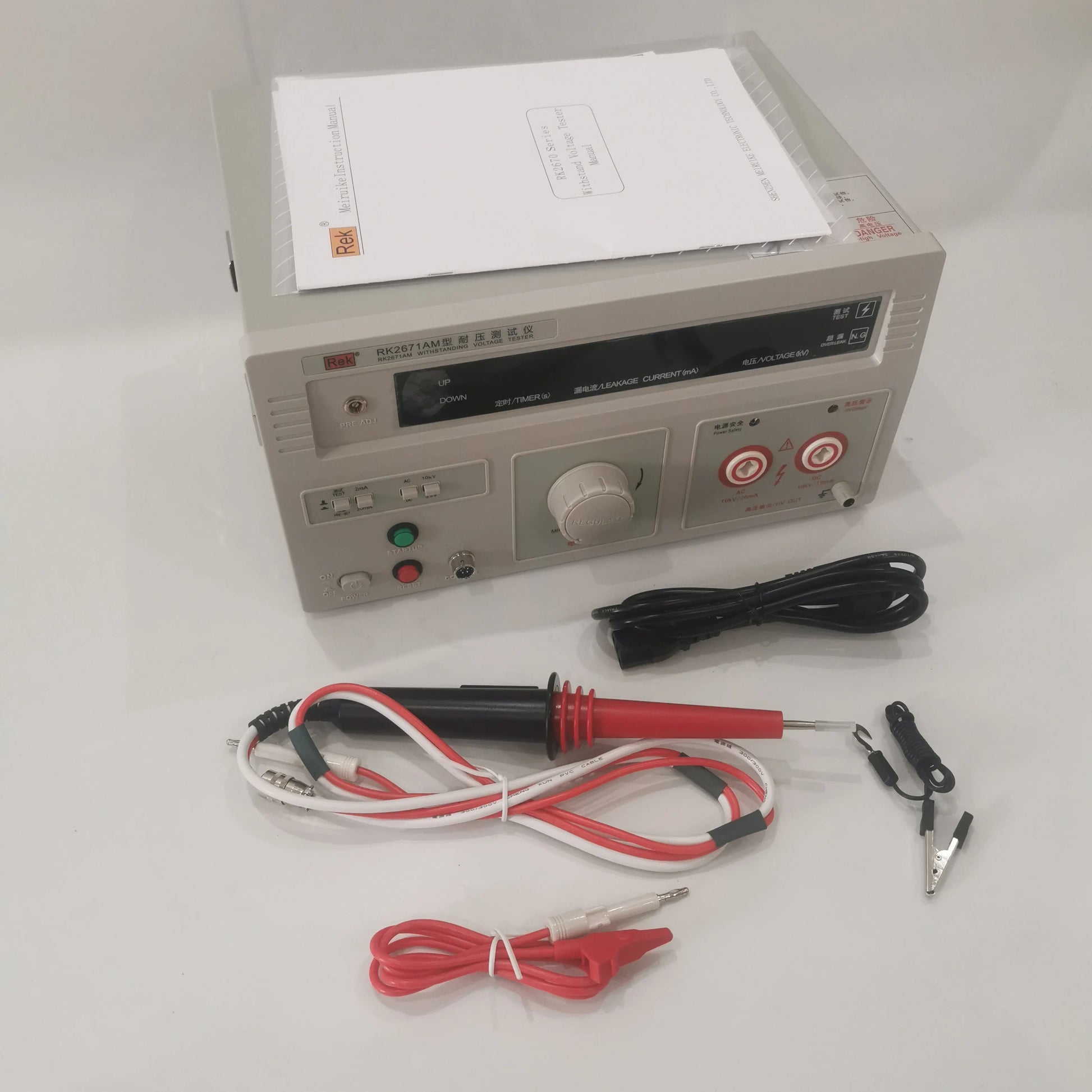

Product Accessories

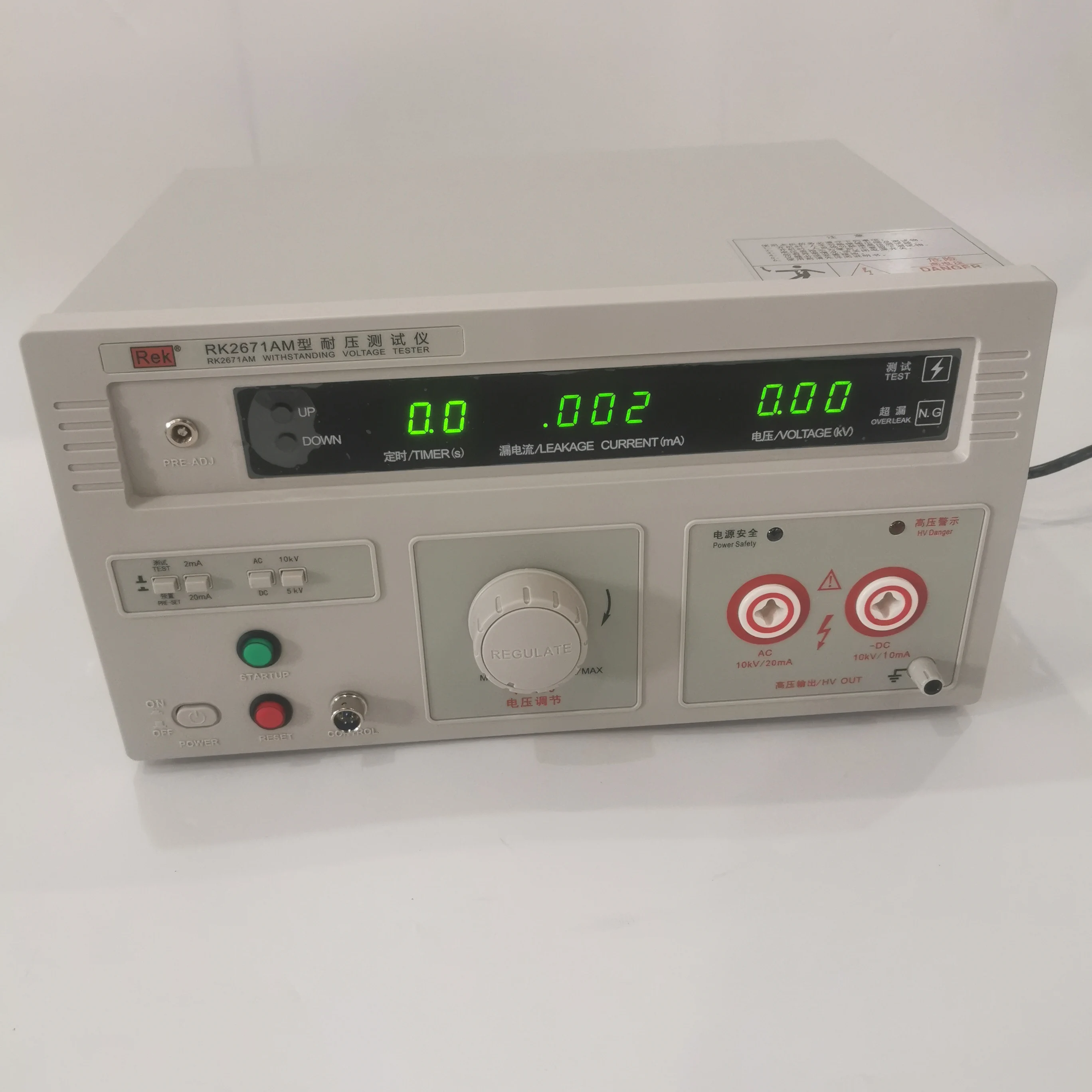

RK2671AM withstand voltage tester
Power cable
Ground test lead
High voltage test line
Remote control high voltage rod
