Bend coated metal panel around cylindrical mandrels of graded diameters; inspect coating for cracking/peeling to evaluate flexibility and adhesion.
Mandrel Diameters
2, 3, 4, 5, 6, 8, 10, 12, 16, 18, 20, 25,32 mm
Max Handle Travel
≤ 17 mm
Mandrel–Clamp Gap
≈ 0.1 mm (controlled)
Standard Panel
120 × 50 × 0.3 mm (tinplate).
Recommended Environment
23 ± 2 °C; 50 ± 5 % RH
Compliance
Cylindrical Mandrel Bend Test
Typical Industries
Paint & coating manufacturing, automotive, aerospace, home appliance, metal finishing, laboratories and universities.
How to Use
Prepare a clean, dry coated test panel. For aluminum panels, keep the long edge parallel to the rolling direction.

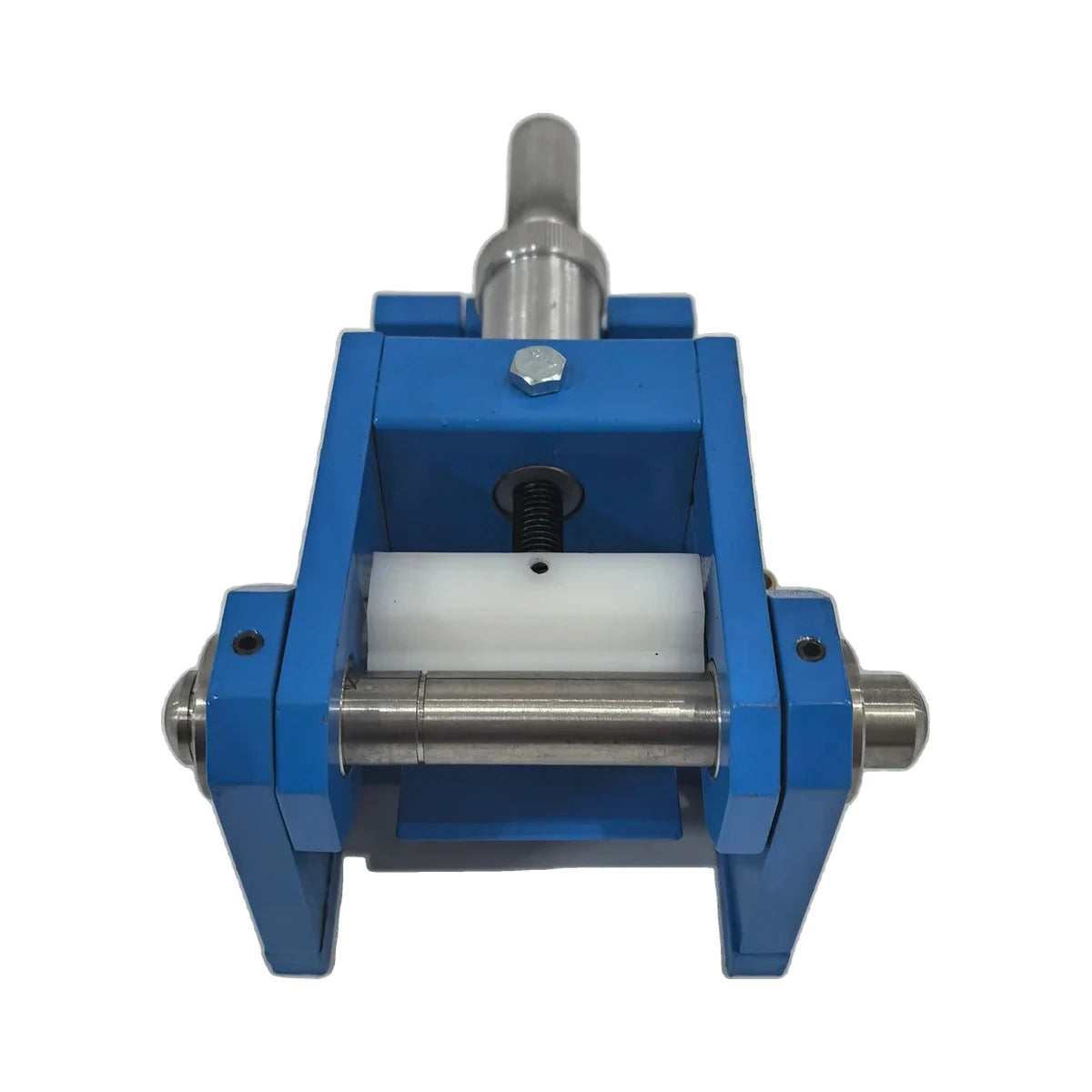

Select a mandrel diameter and fix the panel between the rotating handle and the support plate.
Rotate the handle smoothly to bend the panel up to 180°. Keep motion uniform (about 1–2 s).
Release and remove the panel; observe the bent area with a 10× magnifier.
Result: record the smallest mandrel diameter at which the coating shows no cracking or peeling. If even the smallest diameter has no defects, note that diameter accordingly.
Tip: For multi-coat systems, confirm after full curing. Compare both sides of the bend if needed.
Package Contents

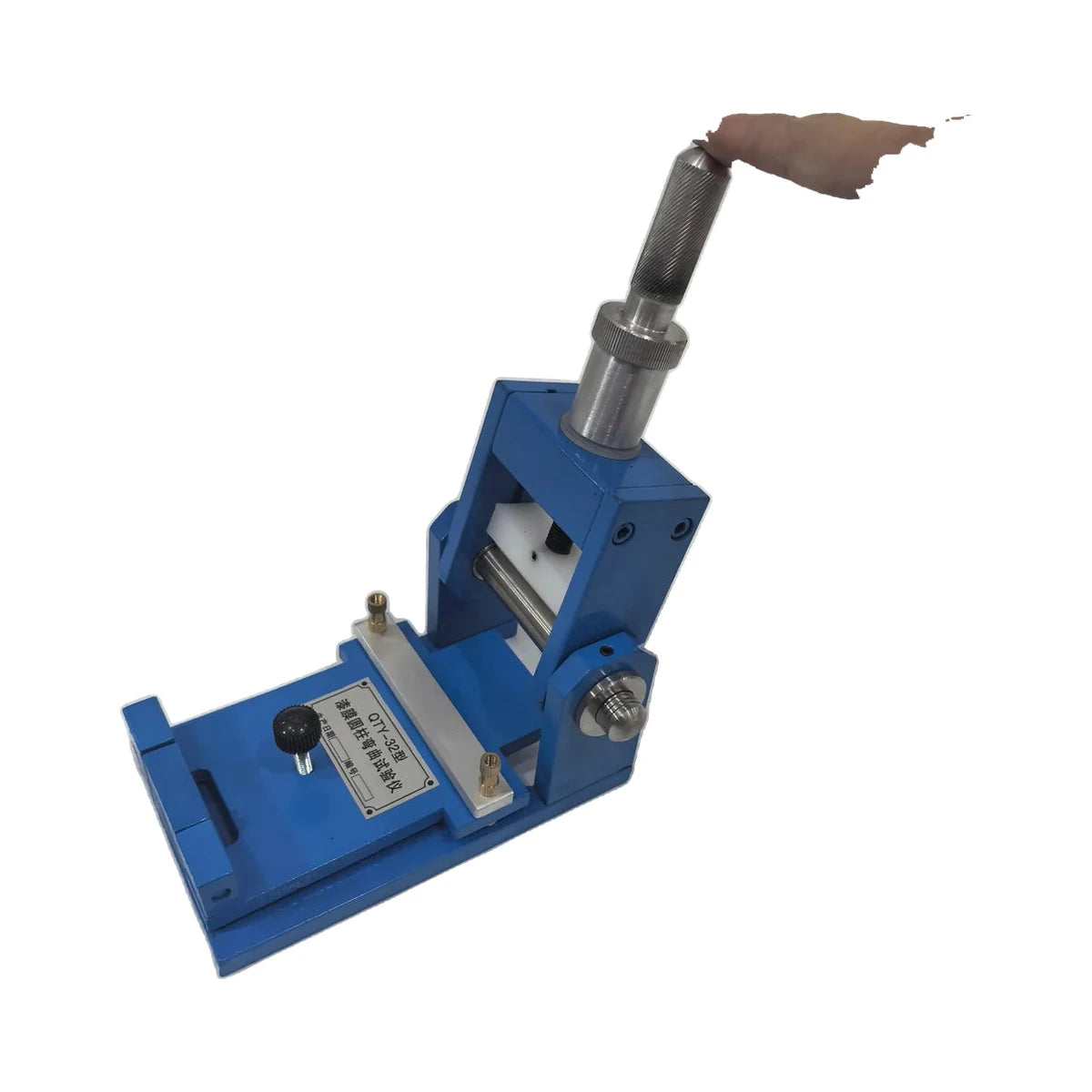

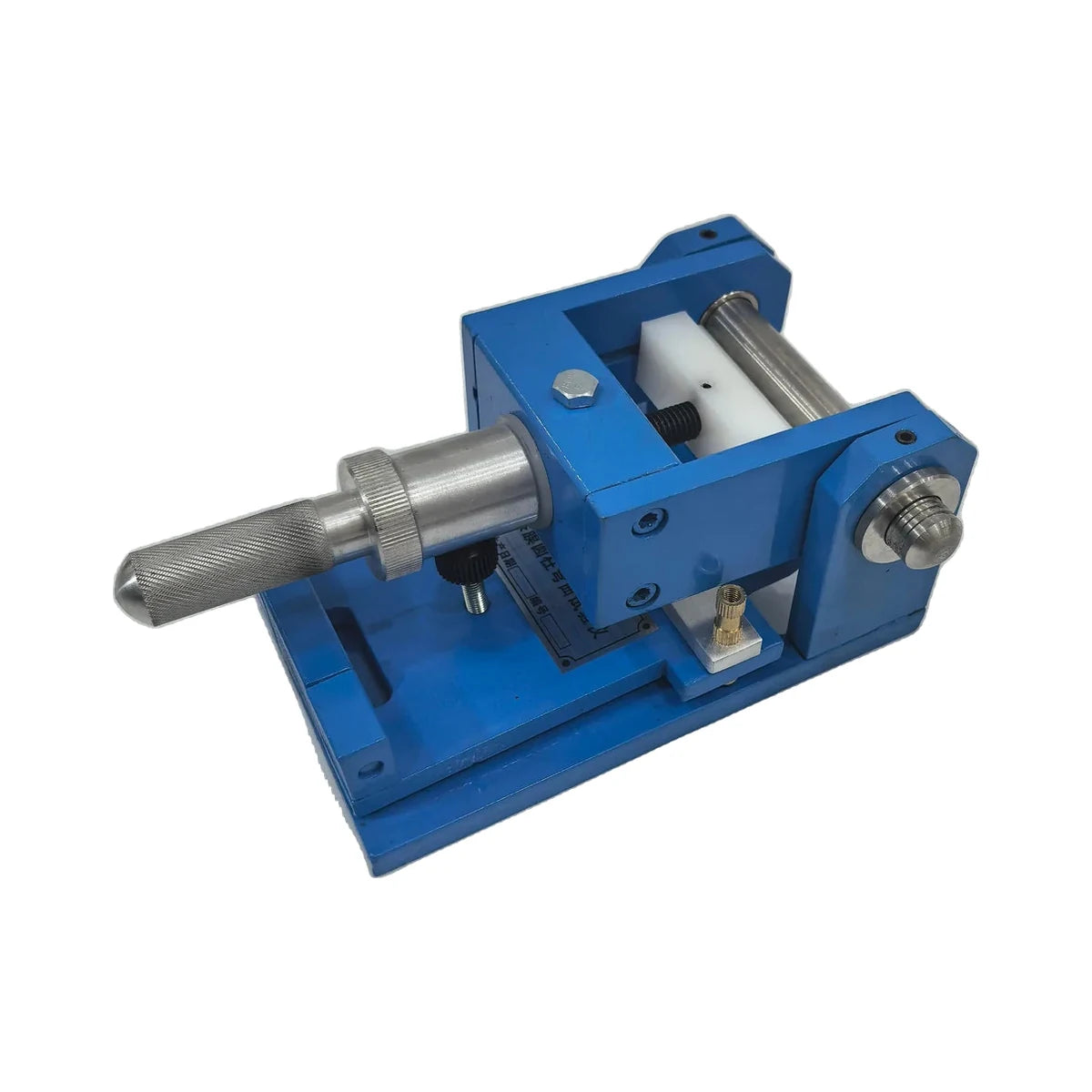

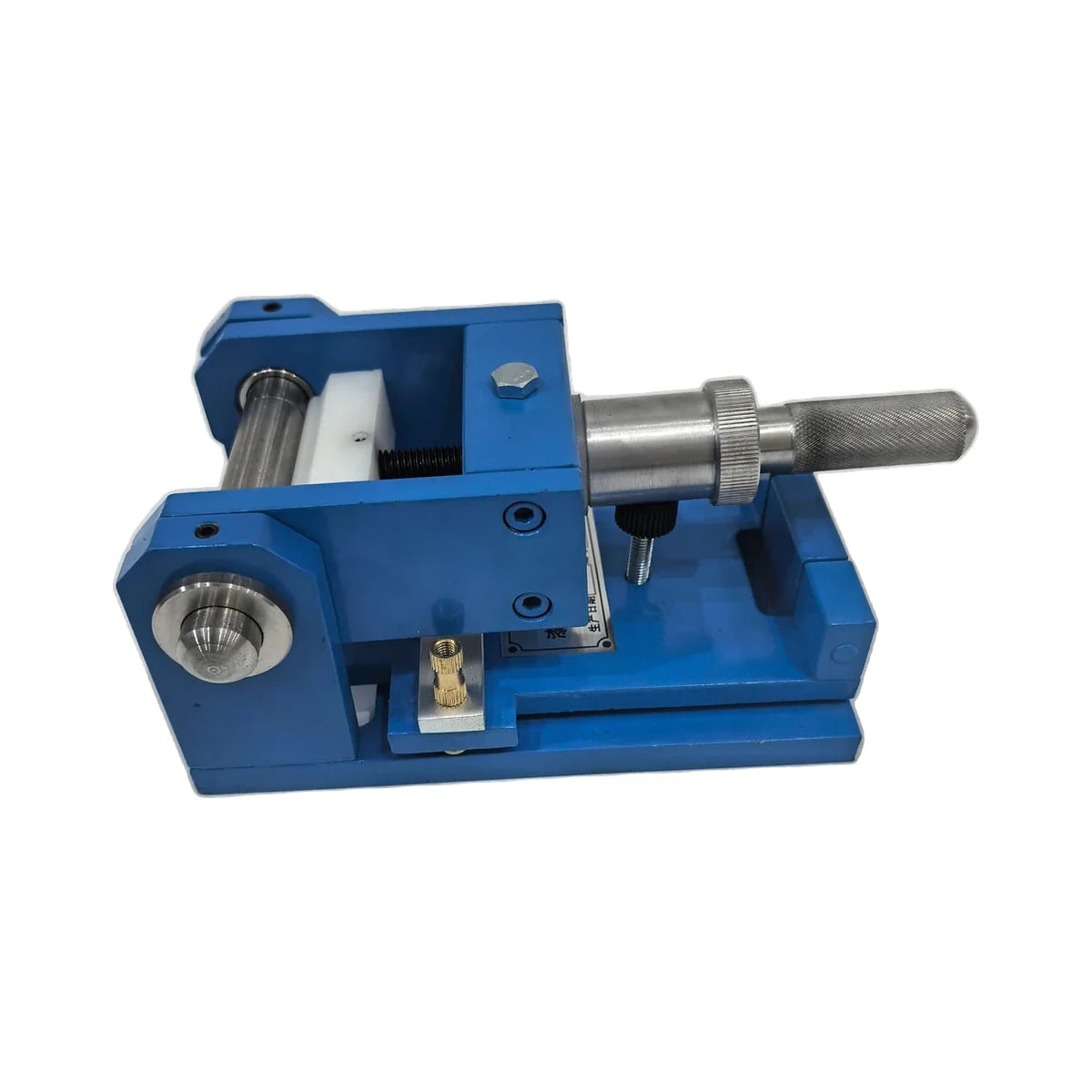

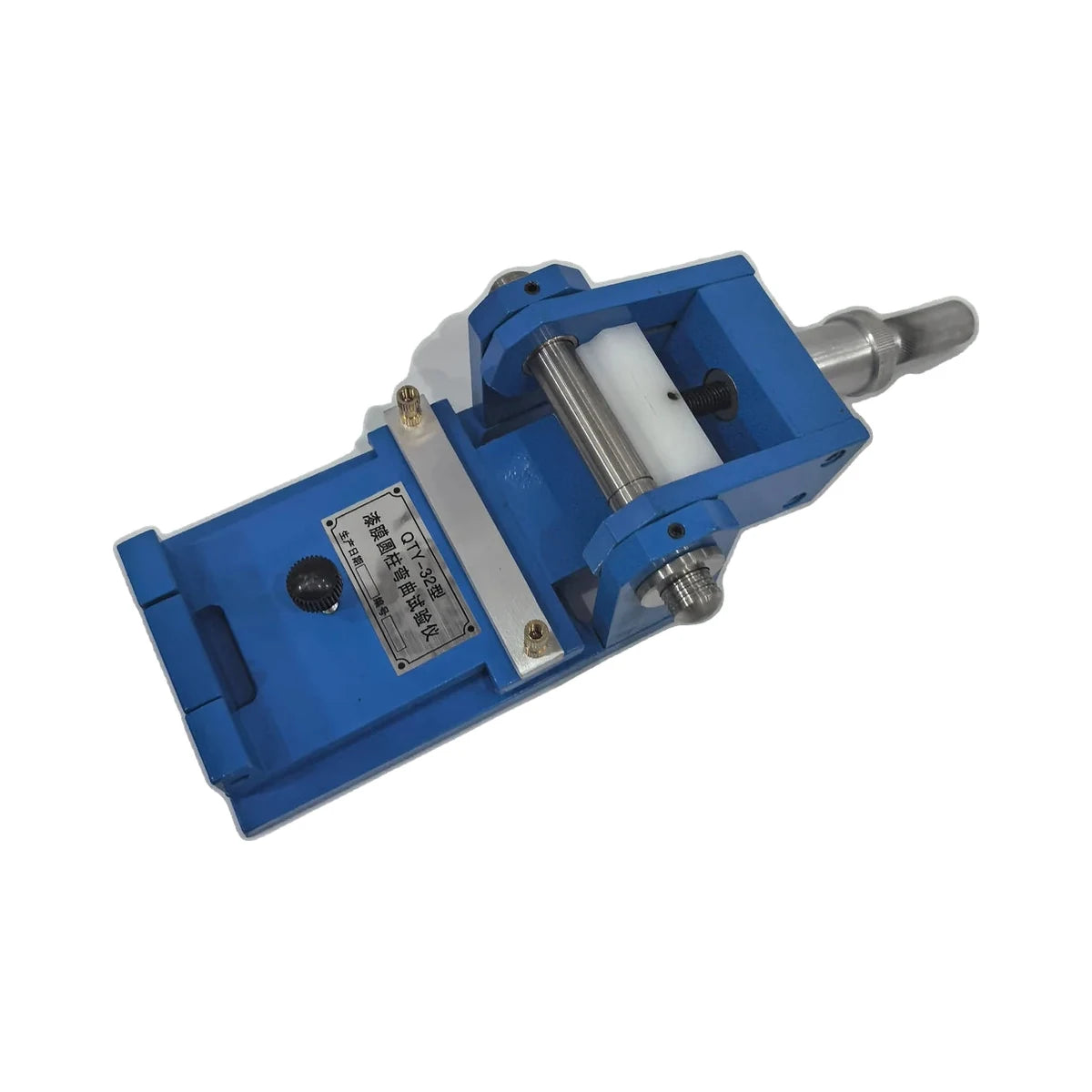

QTY-32 Paint Film Bending Tester (main unit)

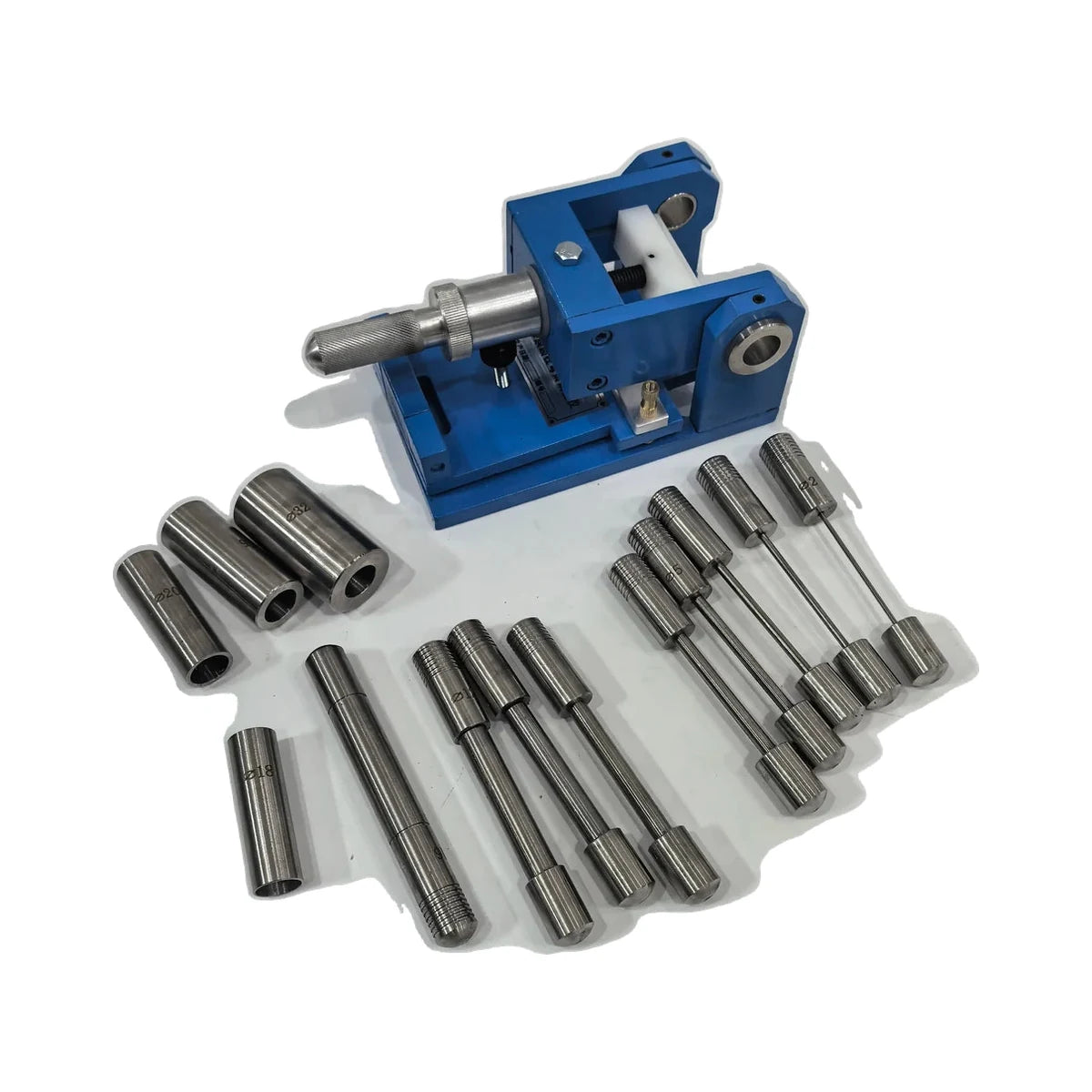

Mandrel set: 2–32 mm (13 pcs)
User manual (English/Chinese)
Maintenance & Notes
When not used for a long time, coat all mandrels with neutral anti-rust oil/grease.
Keep surfaces clean; avoid hard particles between the panel and mandrel.
For consistent results, test under the recommended environment (23±2 °C, 50±5% RH).
