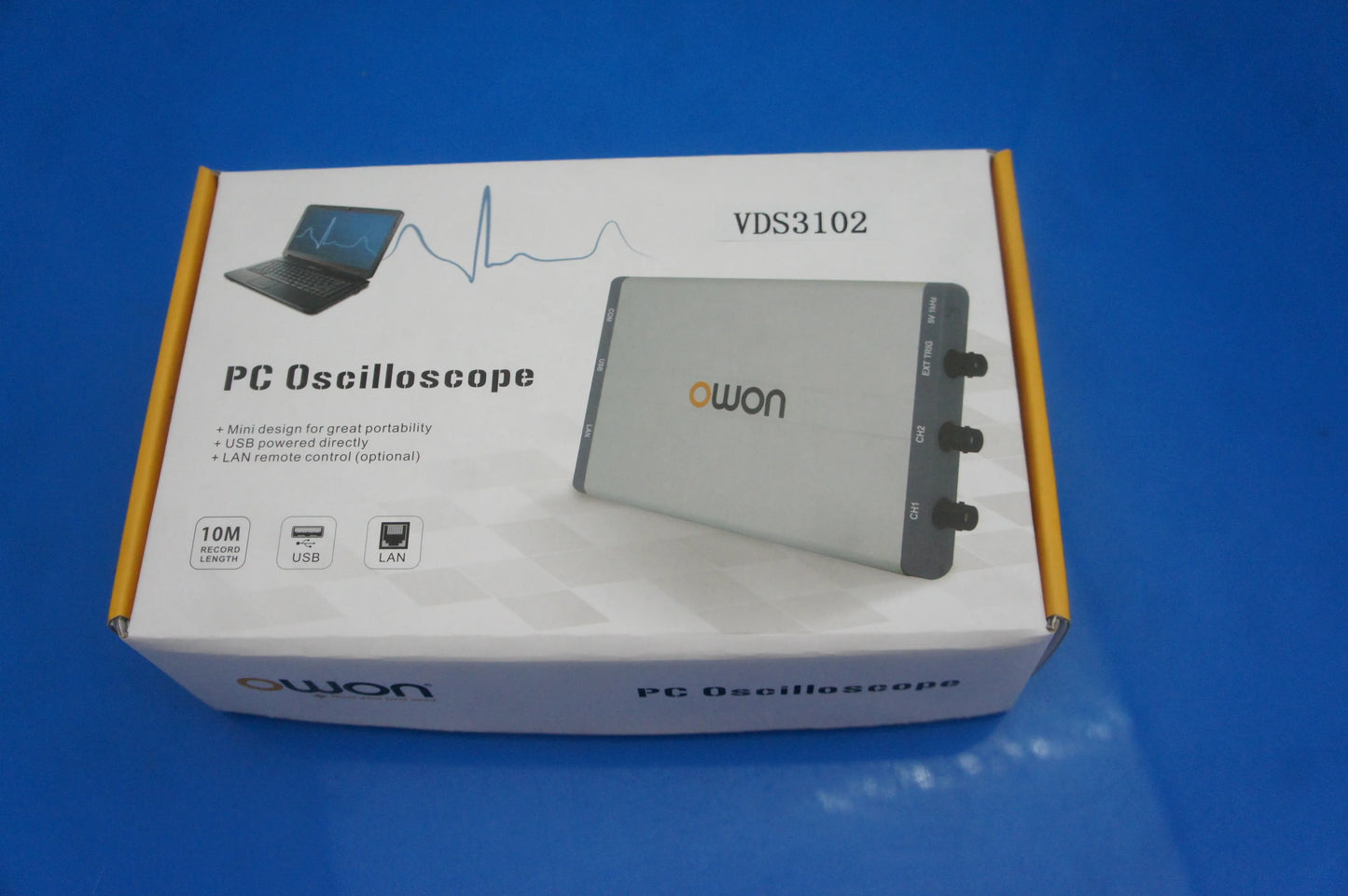

OWON VDS3102 100MHz 2+1 Channel USB PC Oscilloscope 1GS/s 10M Memory Depth FFT Trigger

OWON VDS3102 100MHz PC-based USB Oscilloscope, 2 channels, Memory depth of 10 million pt, 1 GS./Sec.

Overview

OWON witnesses the new-born USB oscilloscope working on PC - OWON VDS series oscilloscope in the new era. In contrast with bench type digital storage oscilloscope, the PC oscilloscopes in the current market equipped with either incomplete function, or lower performance, very inconvenient for users, especially for engineers. OWON VDS PC oscilloscope accommodates users with 100MHz bandwidth, 1GSa/s real-time sample rate, and multiple trigger modes - edge, video, slope, pulse, and alternate. OWON VDS PC oscilloscope attracts more eyesight from the market upon with its ultra-thin body design - only 18mm of body depth, which is much portable, and its USB powering facilitates mobile tests under powerless conditions to the largest degree.

Feature

Up to 100MHz bandwidth, and max 1GS/s real-time sample rate

10M record length

Friendly UI : FFT, or X-Y, and waveform 2 views displayed

on the same screen

Multi-trigger option : edge, video, slope, pulse, and alternate

USB isolation - less signal inference, more PC protenction

USB bus powering, and LAN remote control (optional)

Ultra-thin body design, easy portability

Application

Design and debug

Circuit function test

Education and training
