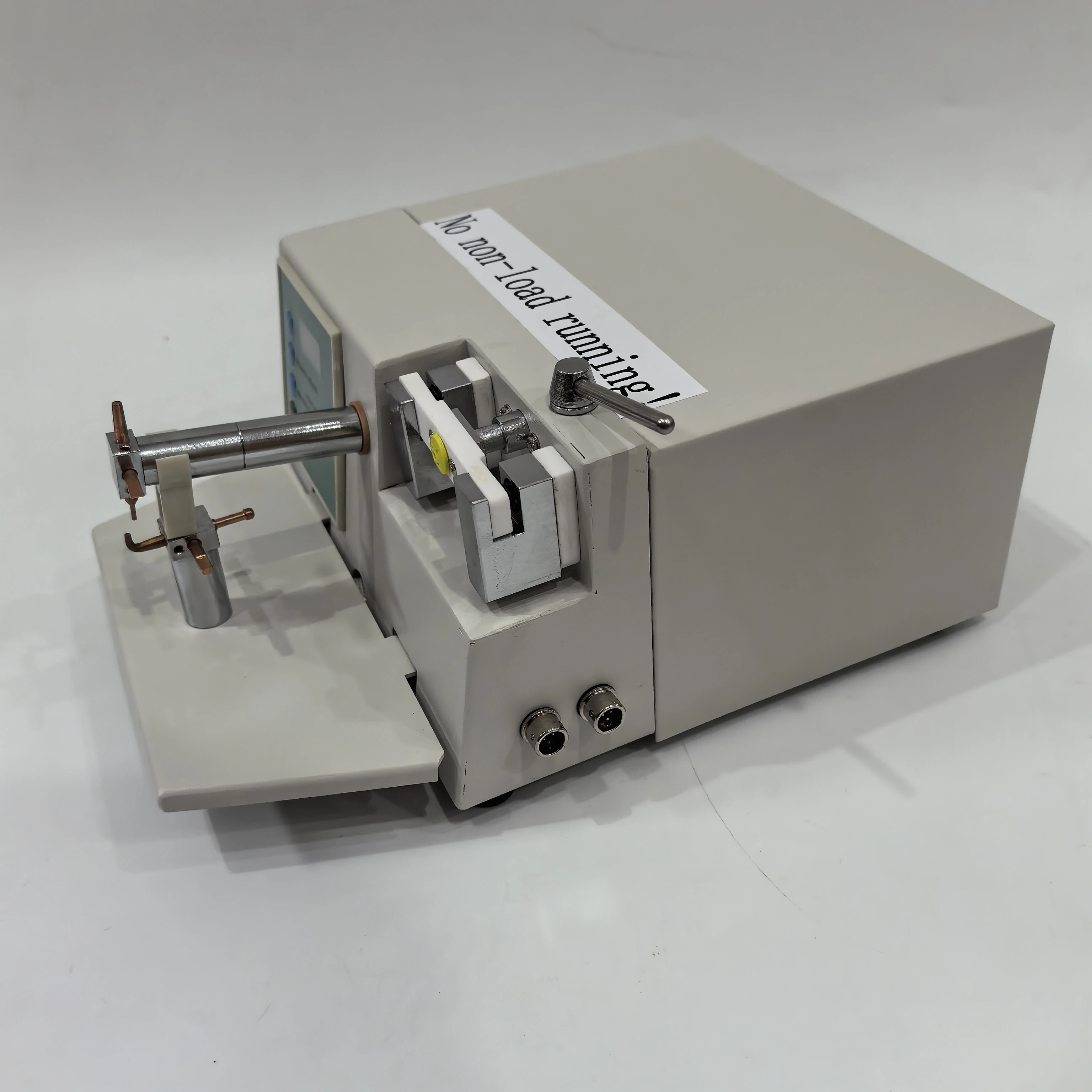

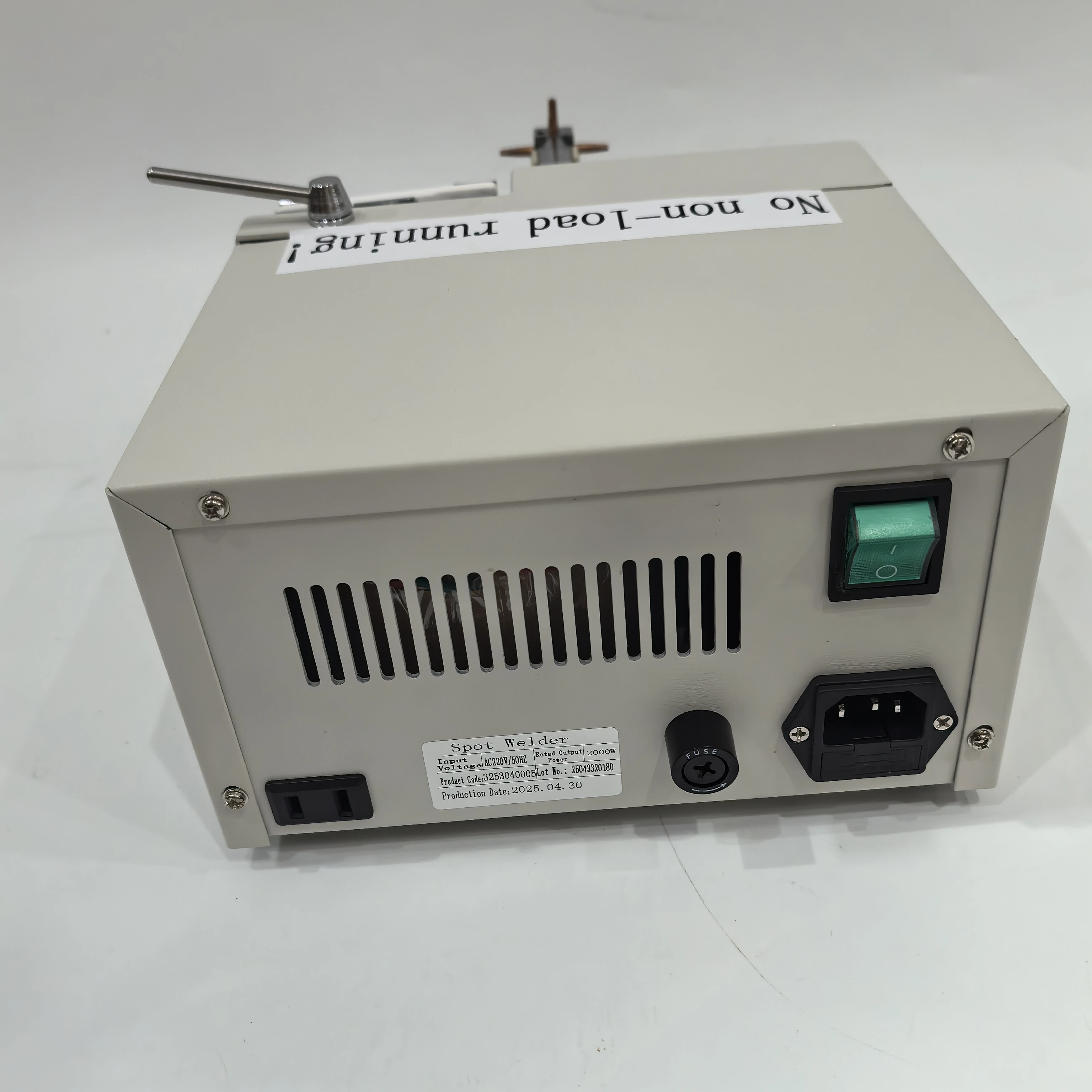

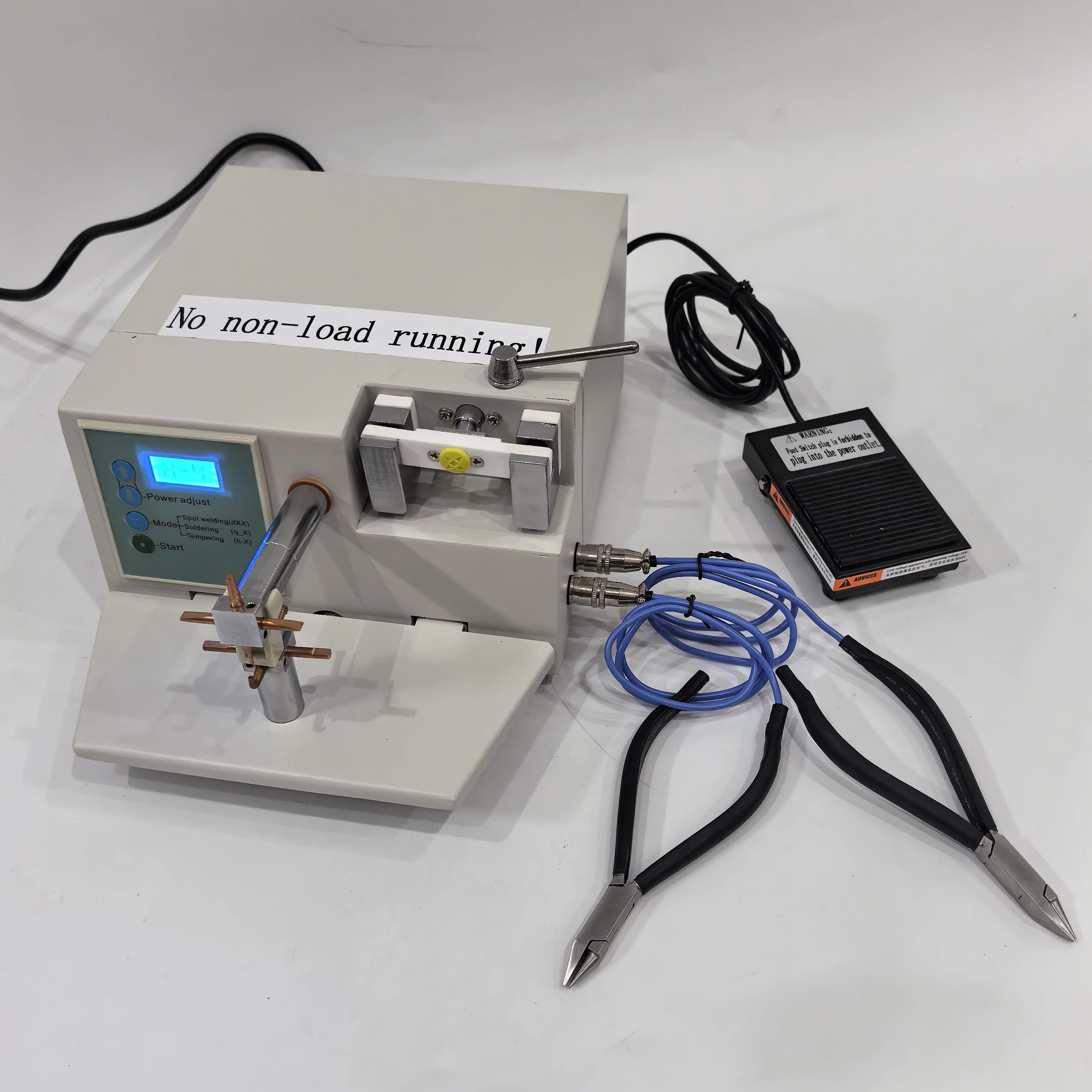

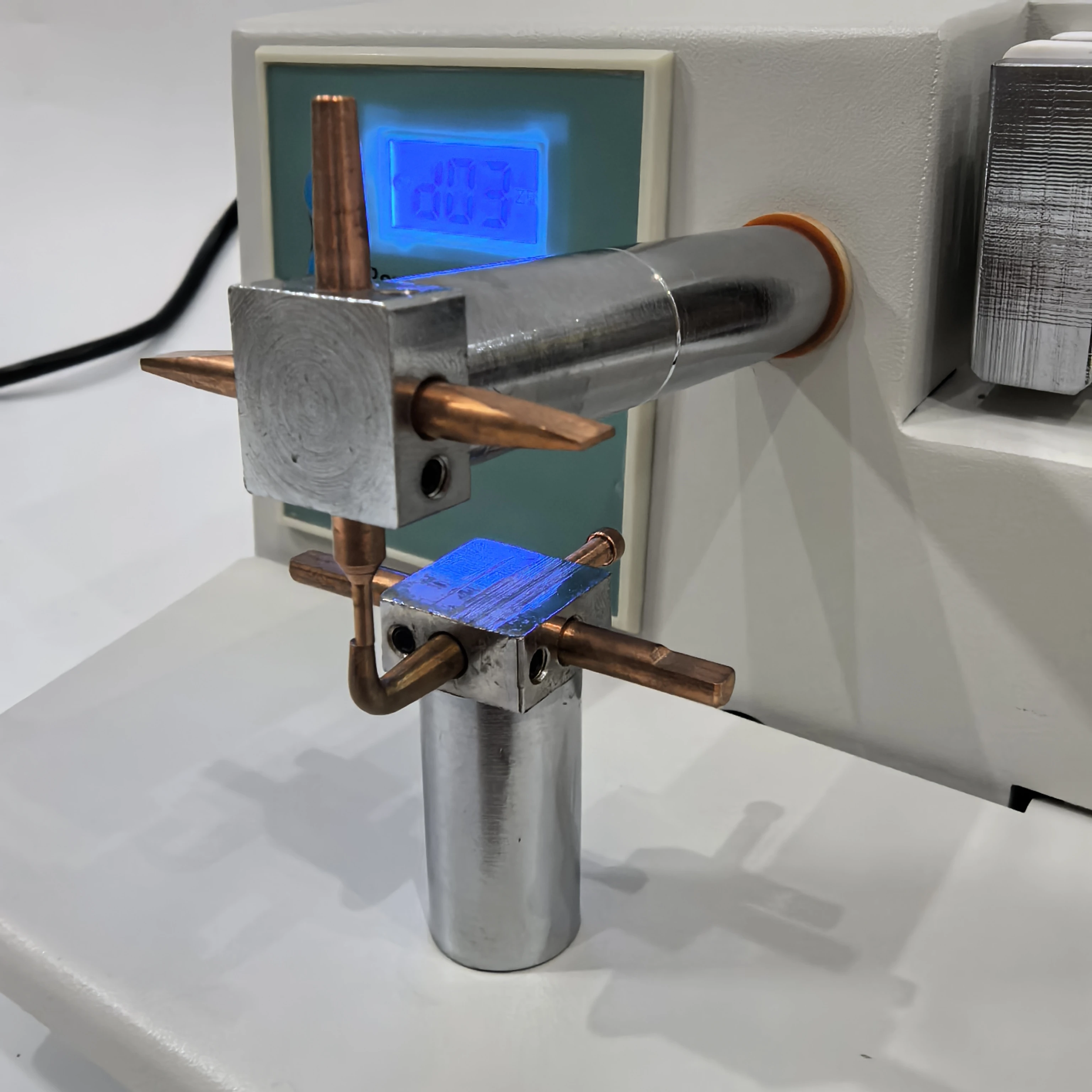

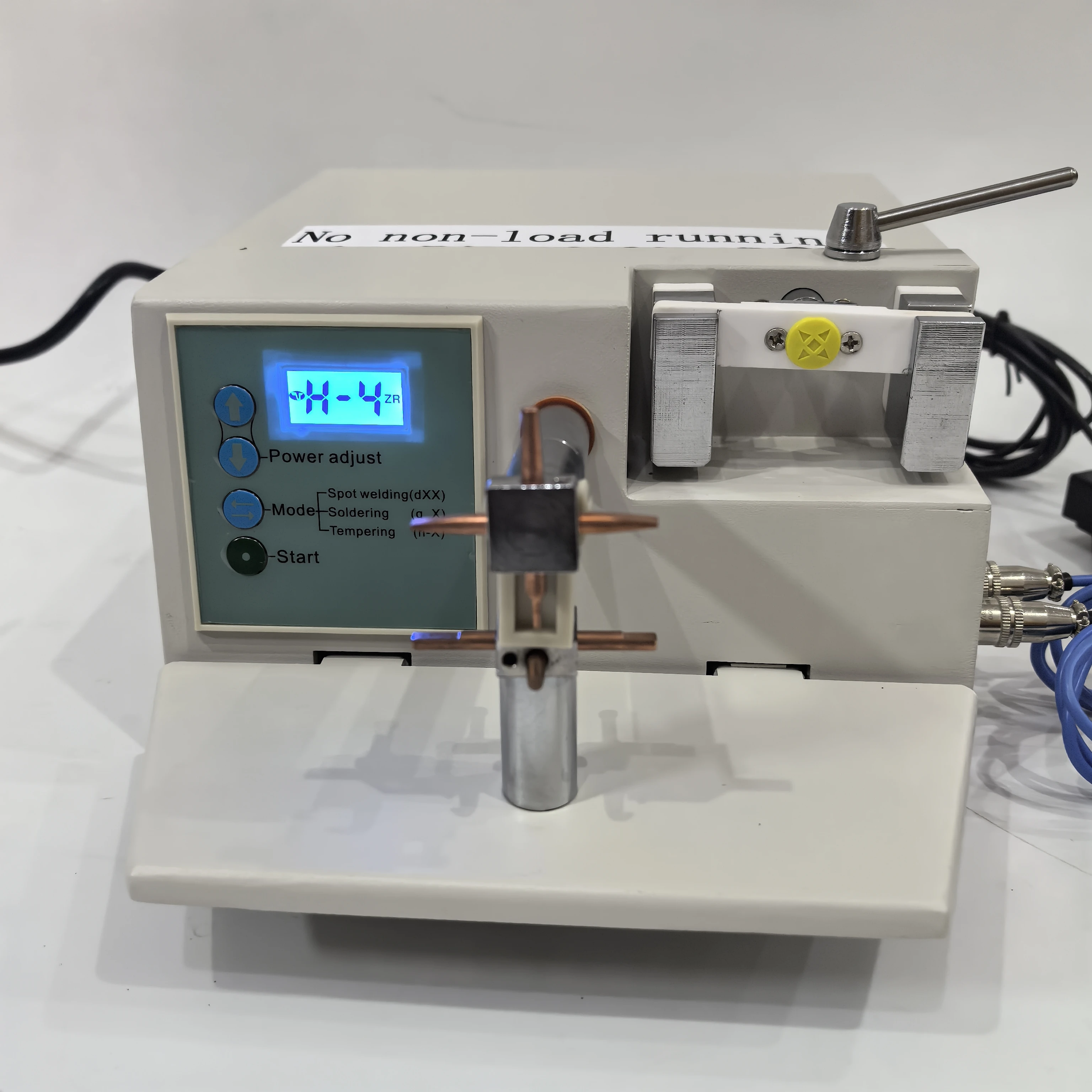

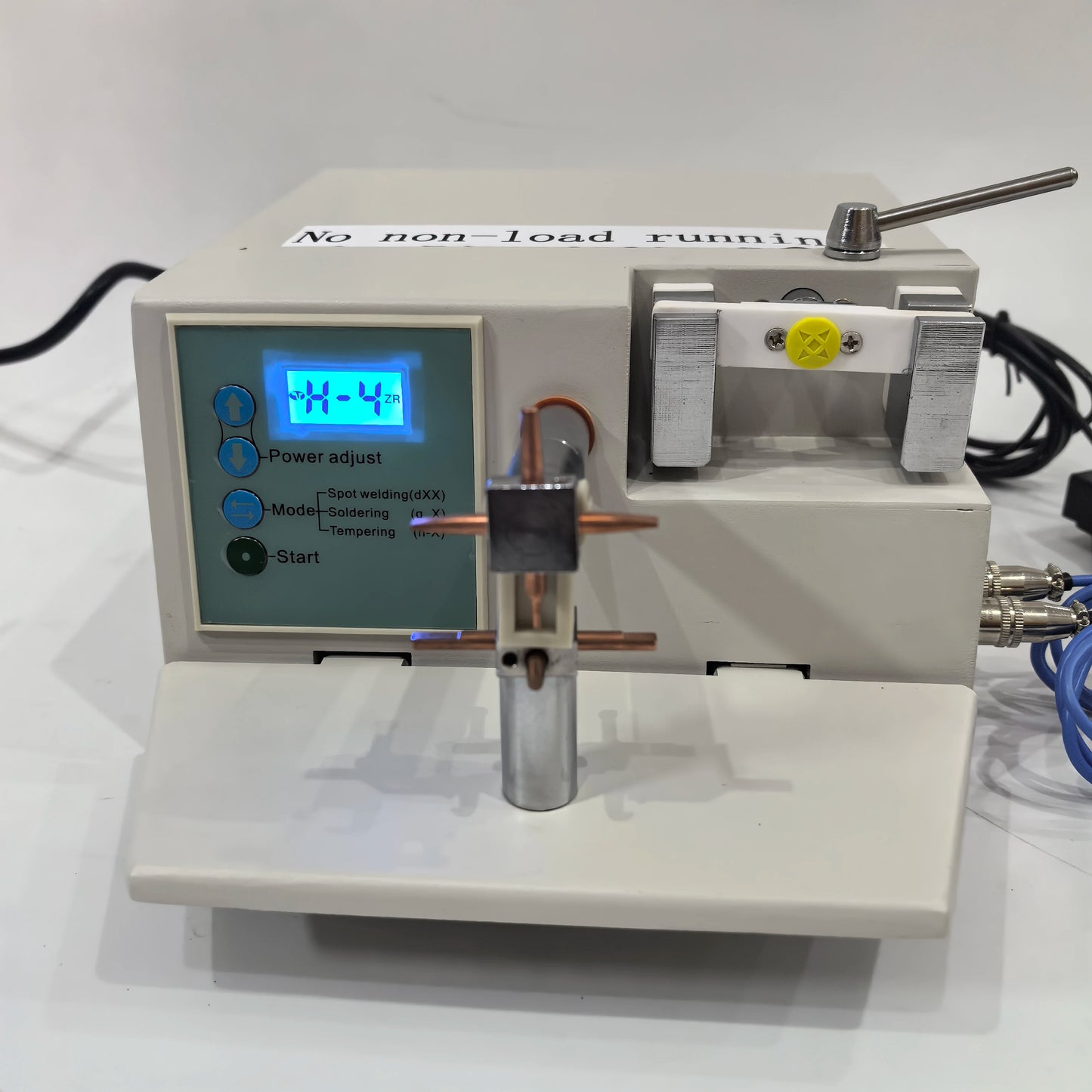

HL-WD III Dental Orthodontic Spot Welder Multi-Function Machine for Stainless Steel Wire Sheet and Arch Wire Heat Treatment

Spot Welder Welding Bracket & Arch Wire Forming Dental Machine HL-WDIII 110/220V

Introduction

Multi-functional spot welding used for welding stainless steel wire, stainless steel sheet, also be used for heat treatment of arch wire materials forming in dental orthodontics and treatment.

Technique Parameter

Power supply: AC 220V, 50 Hz /AC 110V, 60 Hz

Power: maximum instantaneous current 20A

Transformer output power: 2000W, output voltage: 5V

Incorrect operation alarm: when operation condition don’t accord with SET mode, the display shows Error beep.

Security type: belong to classⅠ, type B

Transformer overheating protection: 85°C

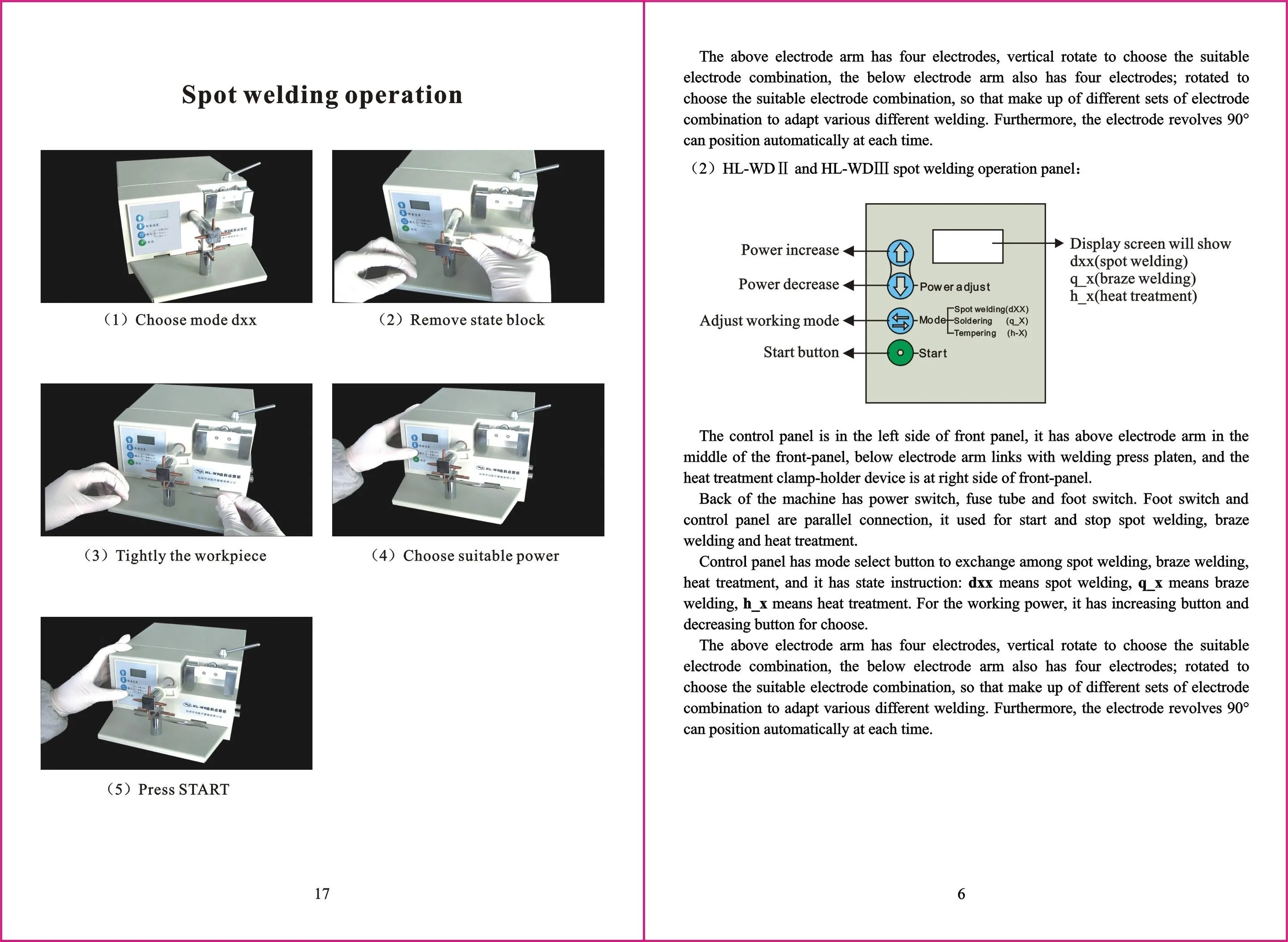

Energy regulation: Spot welding (dxx) 1~30

Braze welding (q_x) 1~9

Heat treatment (h_x) 1~9

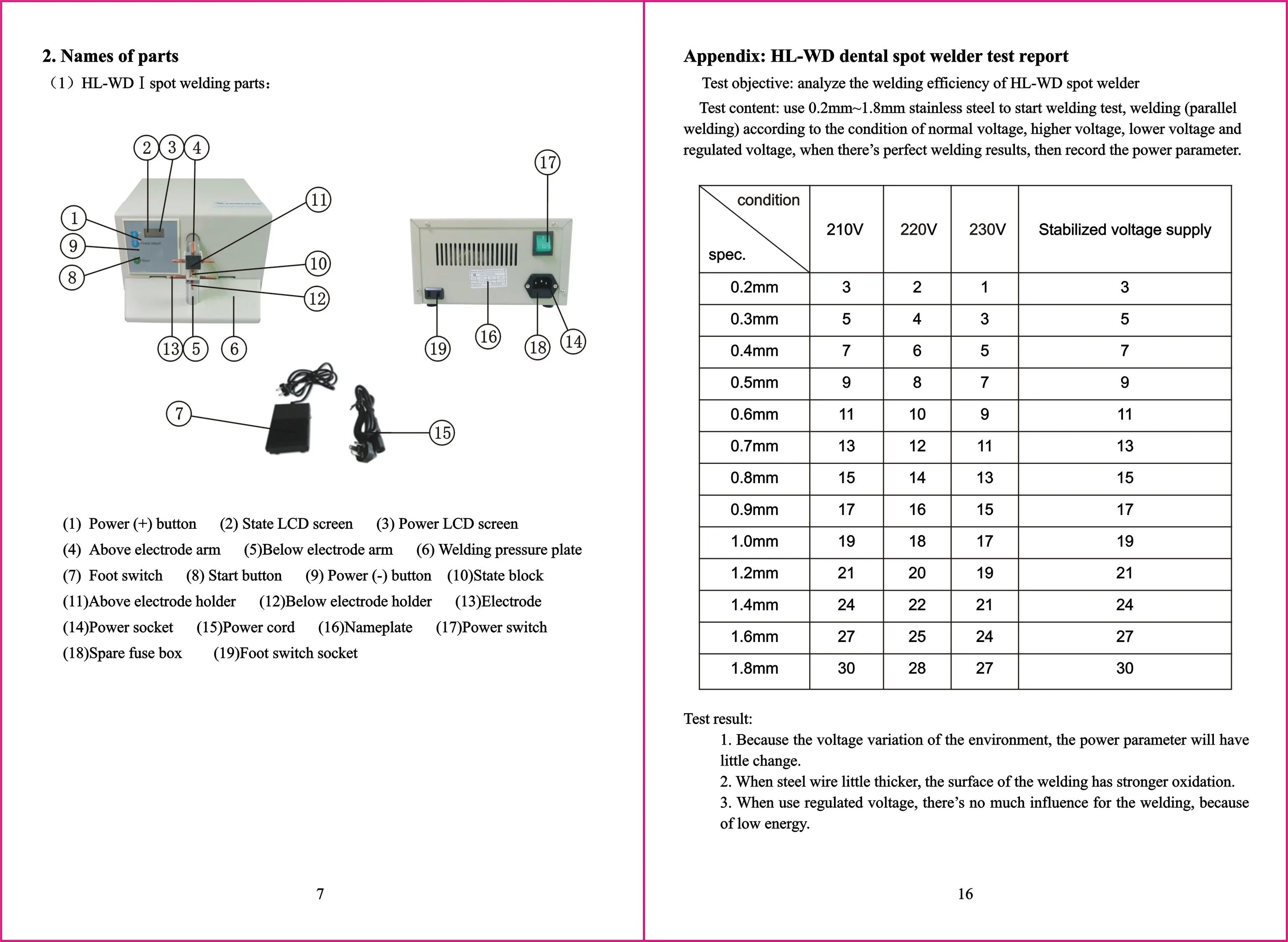

Dimensions of weldment: Diameter 0.2mm~1.8mm stainless steel wire

Fuse: Diameter 5×20mm, 20A

Environment conditions: temperature 5°C~40°C, Relative humidity ≤80%

Storage condition: temperature -10°C~55°C, Relative humidity ≤80%

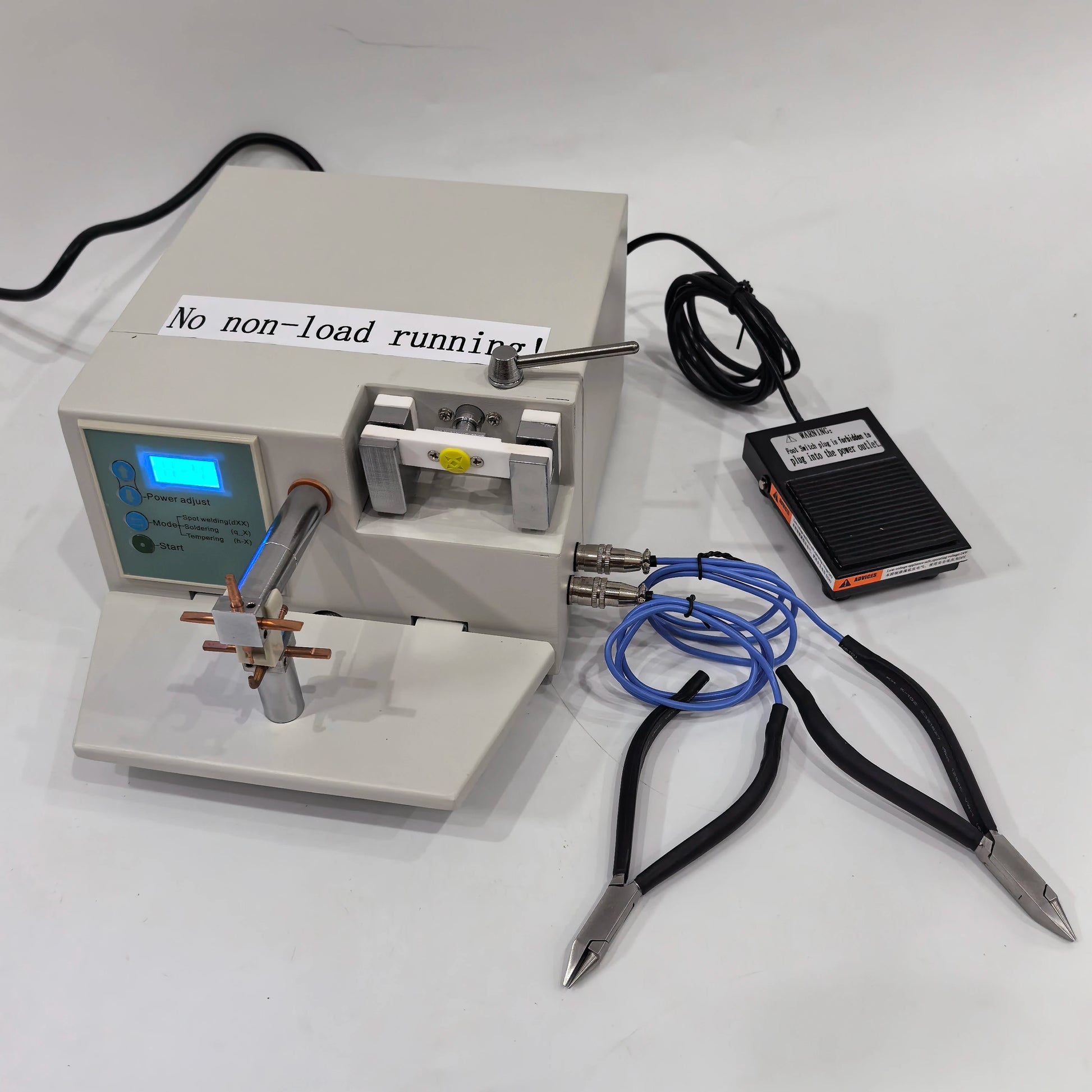

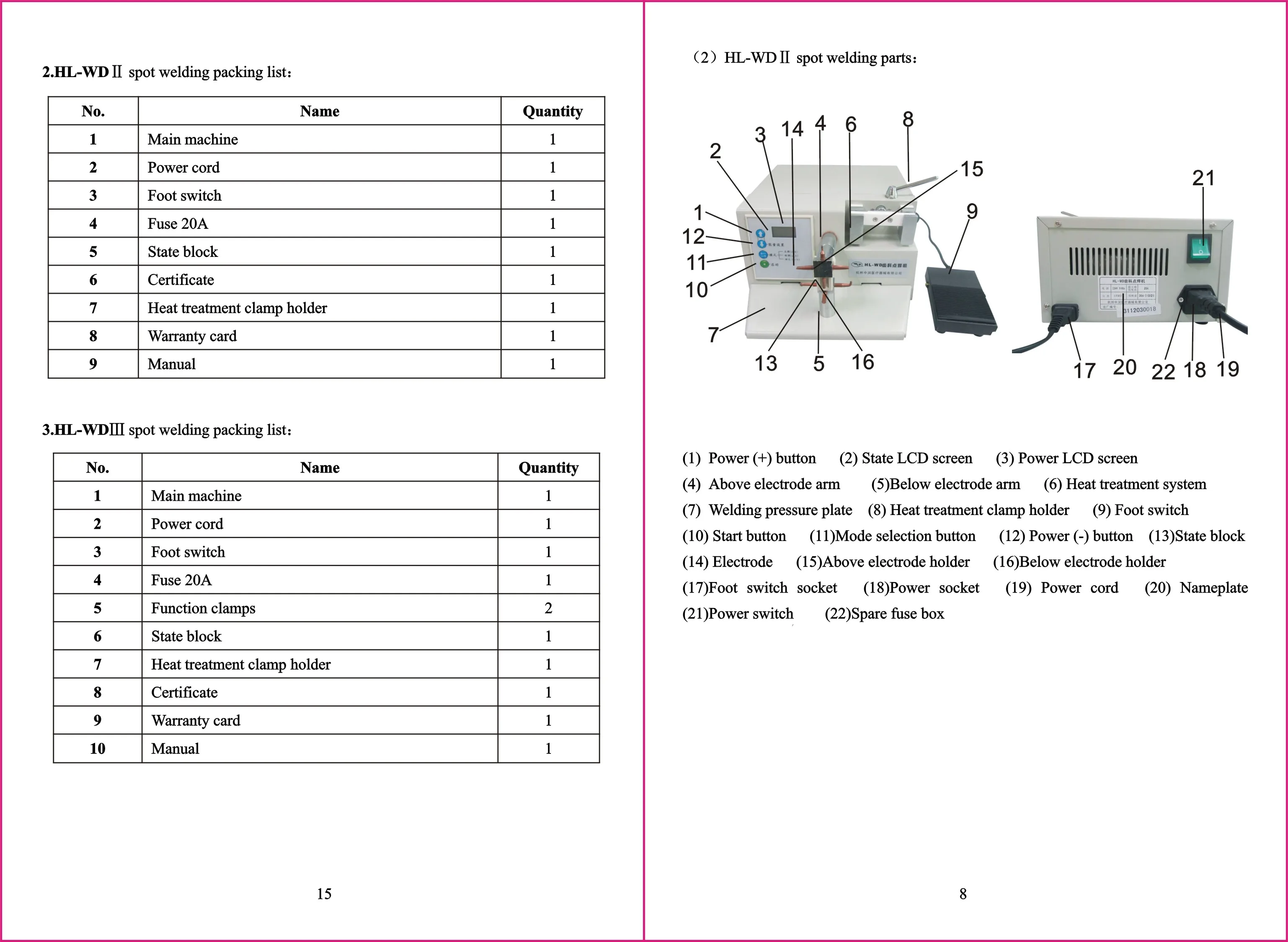

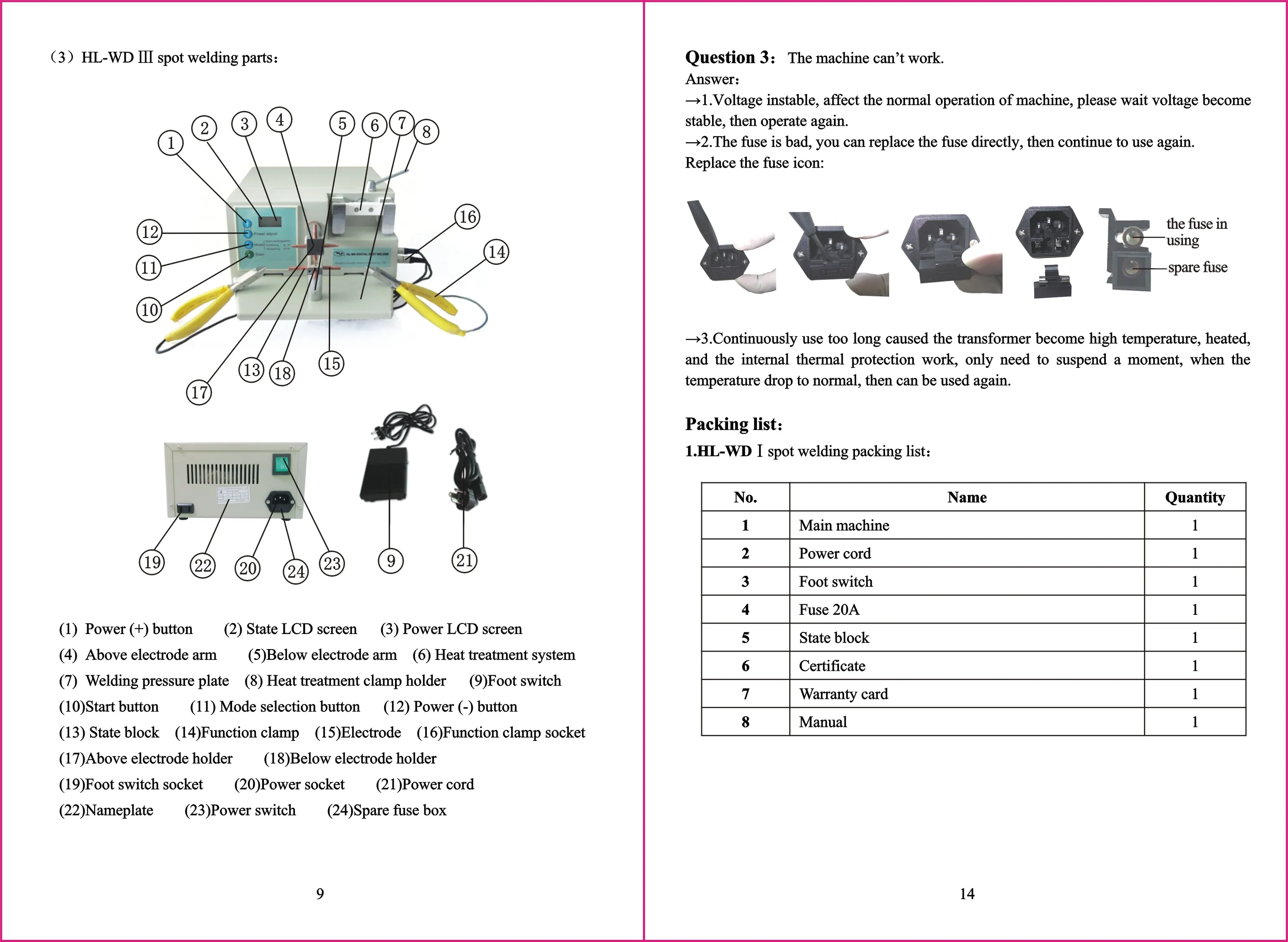

Packing list

1. Main machine

2. Power cord

3. Foot switch

4. Fuse 20A

5. Function clamps

6.State block

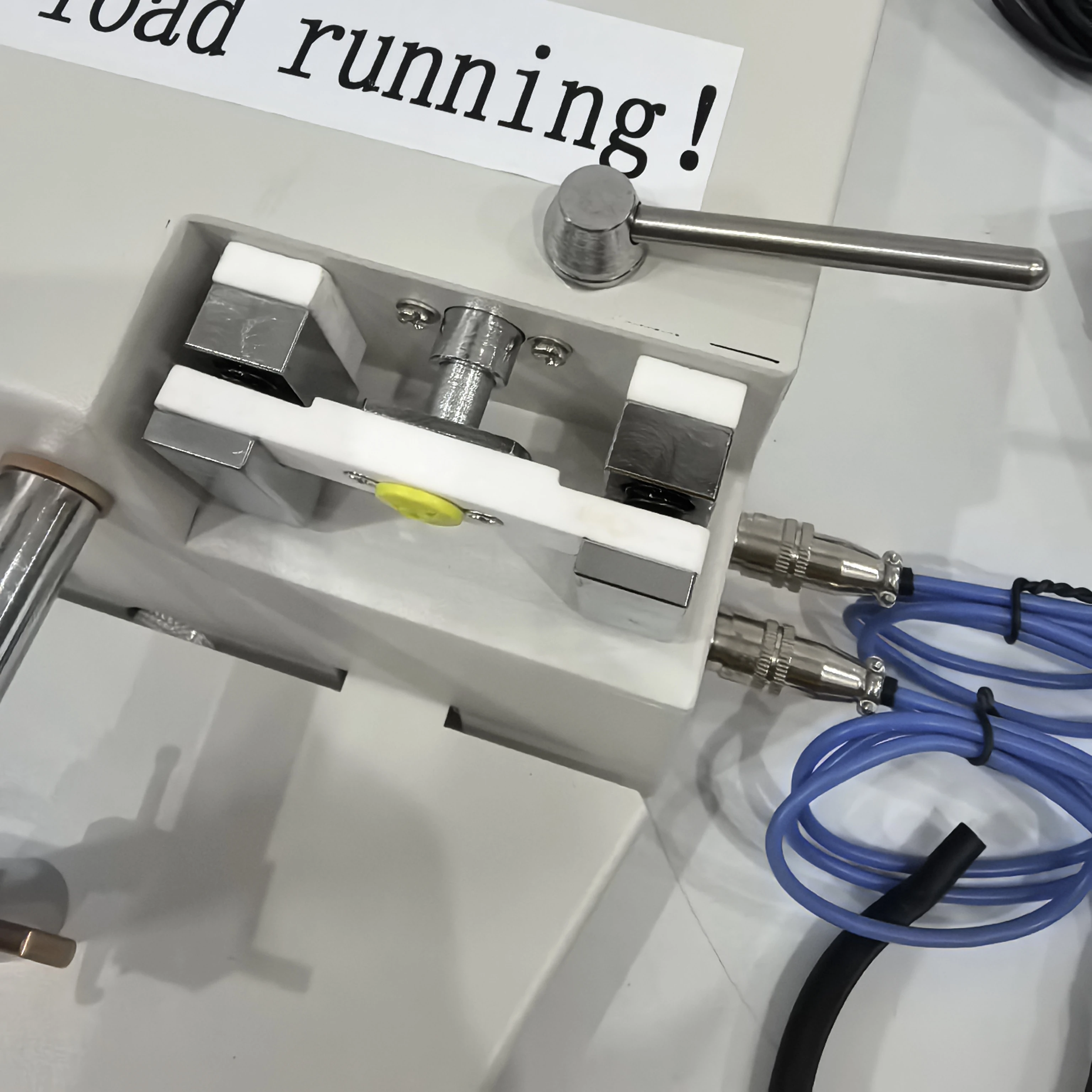

7. Heat treatment clamp holder

8. Manual
