High Precision Induction Pneumatic Wire Stripping Machine 0.03-2mm² Automatic Cable Peeling Tool for PVC PC Single Core 1-20mm W
High Precision Induction Pneumatic Wire Stripping Machine 0.03-2mm² Automatic Cable Peeling Tool for PVC PC Single Core 1-20mm W
Verfügbarkeit für Abholungen konnte nicht geladen werden
Pneumatic version:
Inductive (automatic sensing) control.
Pure pneumatic control, no power supply needed.
Precise setting resolution: 0.01 mm.
Strip length range: 1–20 mm.
Maximum outer diameter: Ø3.2 mm.
Blade: 90° V-type edge.
Typical processing speed: 0.3 s / piece.
PVC wires, stranded wires, solid-core wires.
Single-core cables, rubber cables, computer cables.
Electronic wires, PTFE (Teflon) wires, silicone wires.
Fiberglass wires, isolation/sleeved/tubing wires, etc.
Control Mode |
Automatic sensing |
Setting Precision |
0.01 mm |
Stroke |
20 mm |
Strip Length |
1–20 mm |
Applicable Conductor Section |
0.03–2.08 mm² / 32–14 AWG |
Maximum Outer Diameter |
Ø3.2 mm |
Blade |
90° V-type blade |
Air Supply |
0.5–0.8 MPa |
Processing Speed |
0.3 s/piece |
Product Size |
265 × 70 × 135 mm |

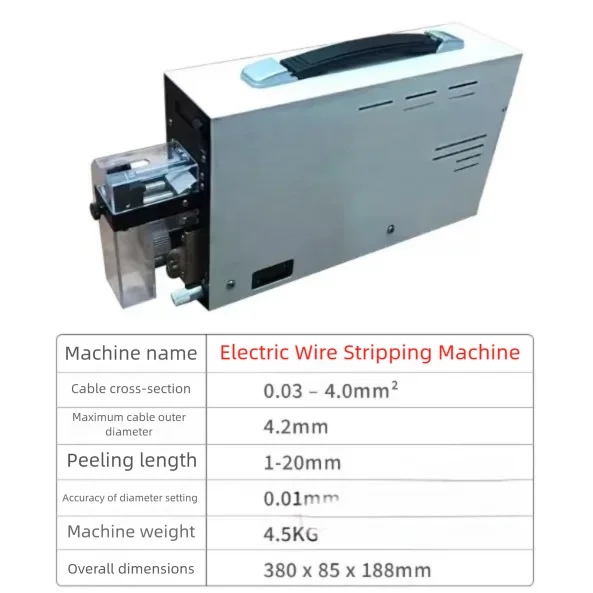

electric version:
Automatic Electric Wire Stripping Machine Specifications |
|
Maximum Wire Diameter |
4.2 mm |
Product Name |
Inductive Type Fully Automatic Electric Wire Stripping Machine |
Applicable Wire Types |
Scattered wires, solid core wires, single-stranded wires, single-core cables, power cables, electric wires, rubber wires, PUR, PVC |
Maximum Stripping Length |
20 mm |
Diameter Setting Precision |
0.01 mm |
Processing Time |
0.5 s/pc |
Voltage |
220V/50Hz or 110V/60Hz |
Wire Cross-sectional Area |
0.03 – 4.0 mm² |
Dimensions |
380 × 85 × 188 mm |
Net Weight |
4.5 kg |
