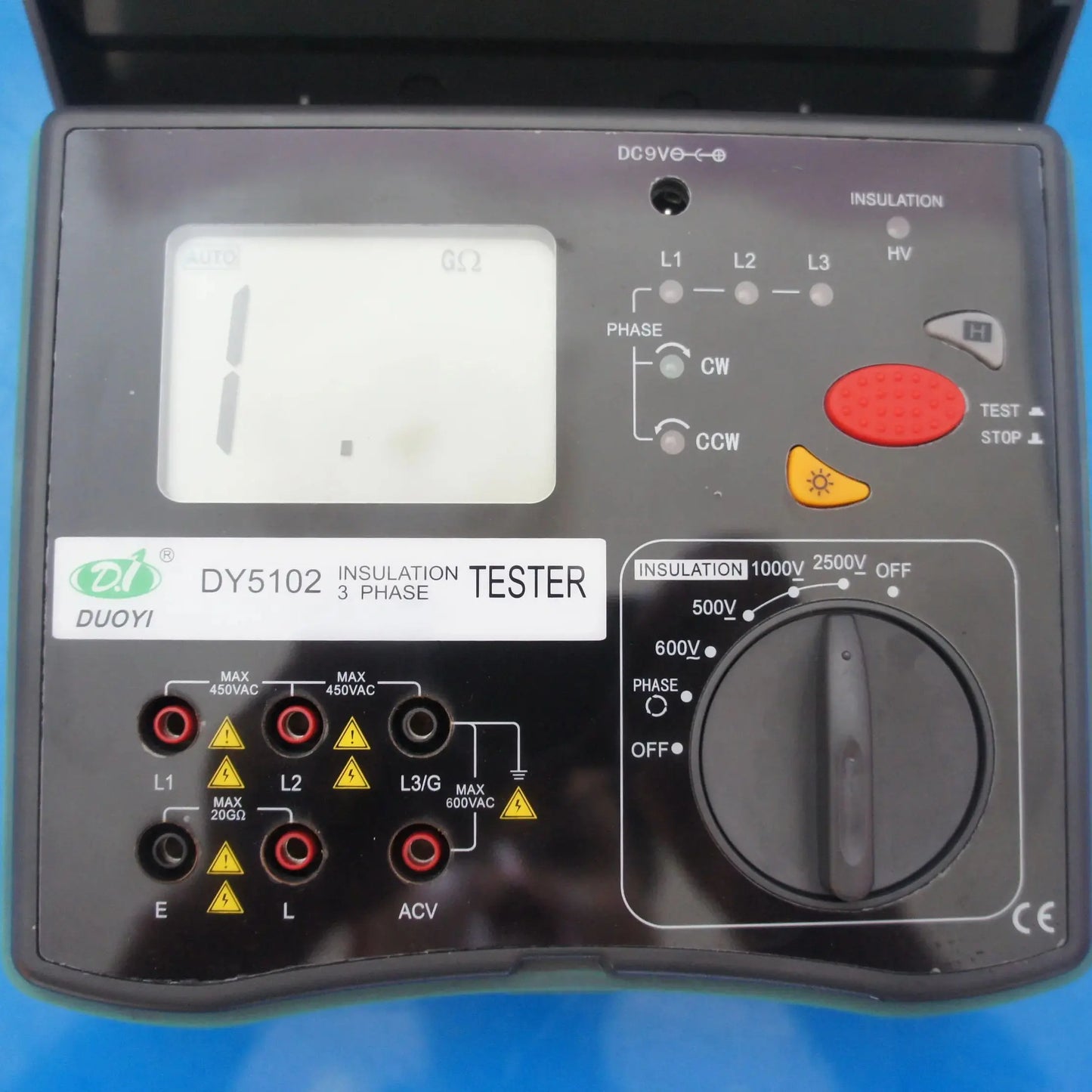

DY5102 3-in-1 Insulation Tester Megohmmeter 2500V with Voltmeter & Phase Indicator Digital Meter
DY5102 3-in-1 Insulation Tester Megohmmeter 2500V with Voltmeter & Phase Indicator Digital Meter
Verfügbarkeit für Abholungen konnte nicht geladen werden
DY5102 Insulation Tester Megohmmeter 2500V + Voltmeter + Phase Indicator 3 in 1
Features
Three test voltages, measure insulation resistance to 20GΩ
Measure insulation resistance to 200GΩ with 0.01mΩ resolution
AC voltage measurement to 600V
Check phase sequence and phase status
Data hold, auto range, auto power off, LCD background light
Complete with test leads, phase wire, heavy duty carry case and six 1.5V AA batteries
Specifications
Insulation 3 Phase Tester
MODEL |
DY5101 |
DY5102 |
Testing Voltage |
250/500/1000V |
500/1000/2500V |
Insulation Resistance |
0.1~20GΩ ±(3%+5) |
0.1~20GΩ ±(3%+5) |
Phase Rotation Check |
yes |
yes |
AC V |
700V ±(2%+5) |
700V ±(2%+5) |
Resolution |
0.01MΩ |
0.01MΩ |
Auto Range |
yes |
yes |
Function Symbol Display |
yes |
yes |
Data Hold |
yes |
yes |
Low Battery Warning |
yes |
yes |
Max. Displays |
1999 |
1999 |
LCD Backlight |
yes |
yes |
