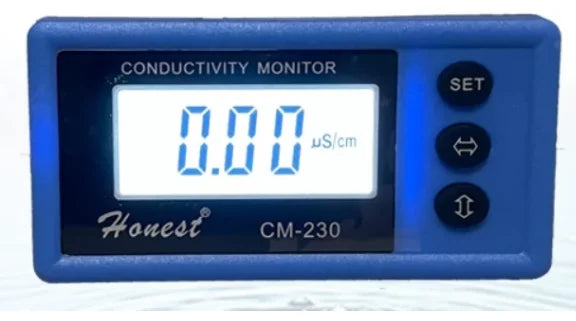

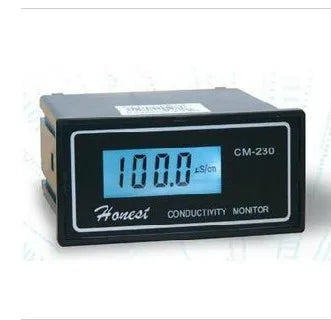

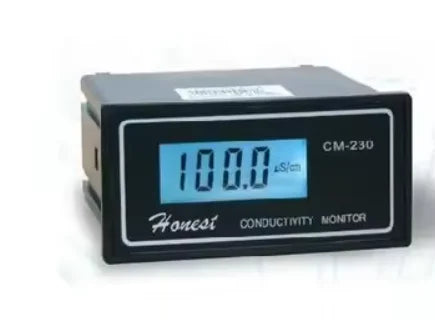

CM-230 Conductivity Monitor 4-20mA Output Industrial Water Quality Conductivity Meter 0-2000uS/cm

Product Overview

The CM-230 Conductivity Monitor is designed for industrial conductivity measurement and monitoring in aqueous solutions.
It is suitable for measuring and supervising water quality in industrial water treatment, pure water systems, laboratory water systems, and related applications.

Main Features

• Industrial conductivity monitoring for aqueous solutions

• Three selectable measuring ranges: 0-20.00uS/cm, 0-200.0uS/cm, 0-2000uS/cm

• 4-20mA current signal output for external control or monitoring systems

• Automatic temperature compensation with 25℃ reference

• 3 1/2 digit LCD display for clear reading

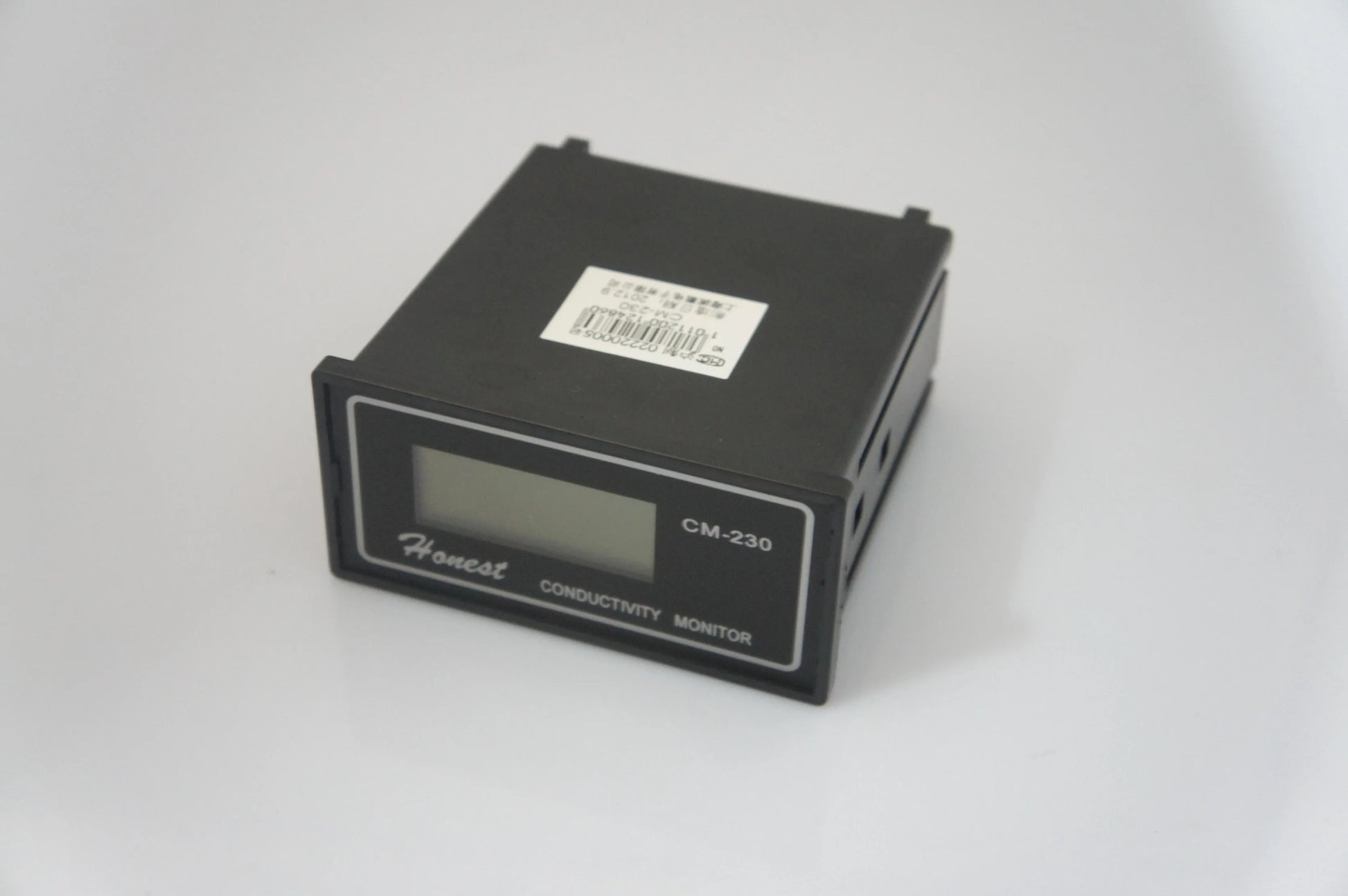

• Panel mounting design, compact and easy to install

• Stable numerical display and convenient operation

Technical Parameters

Applications

• Industrial water quality monitoring

• Pure water and purified water systems

• Laboratory water conductivity measurement

• Water treatment equipment

• Online conductivity supervision of aqueous solutions

Operation Notes

1. Connect the electrode wires correctly before powering on the instrument.

2. For zero adjustment, keep the electrode in the air and adjust the ZERO knob until the display shows 000.

3. Move the range selector to CHECK to check and adjust the electrode constant.

4. Install the electrode into the pipe or measured liquid position, then select the suitable measuring range.

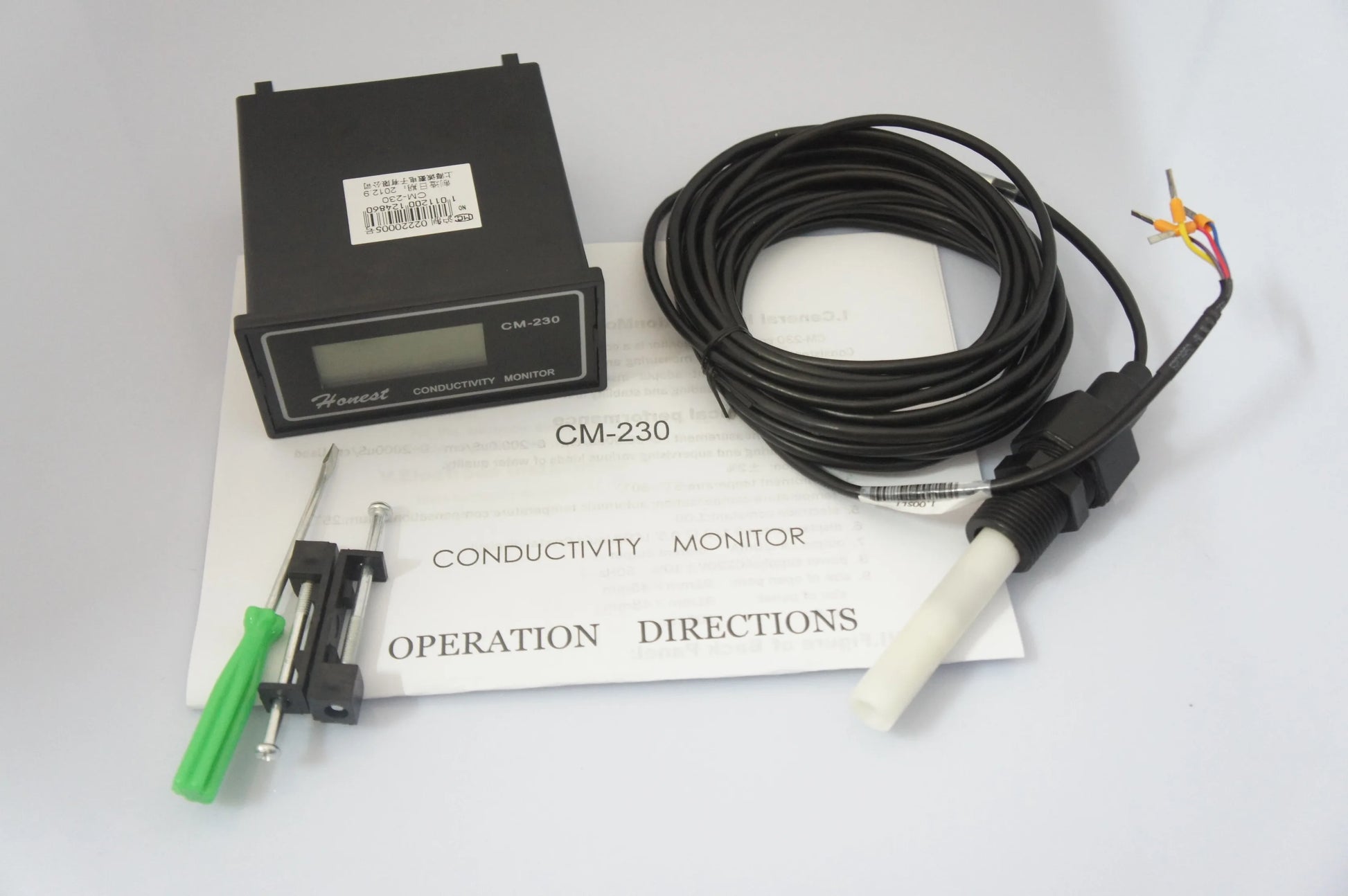

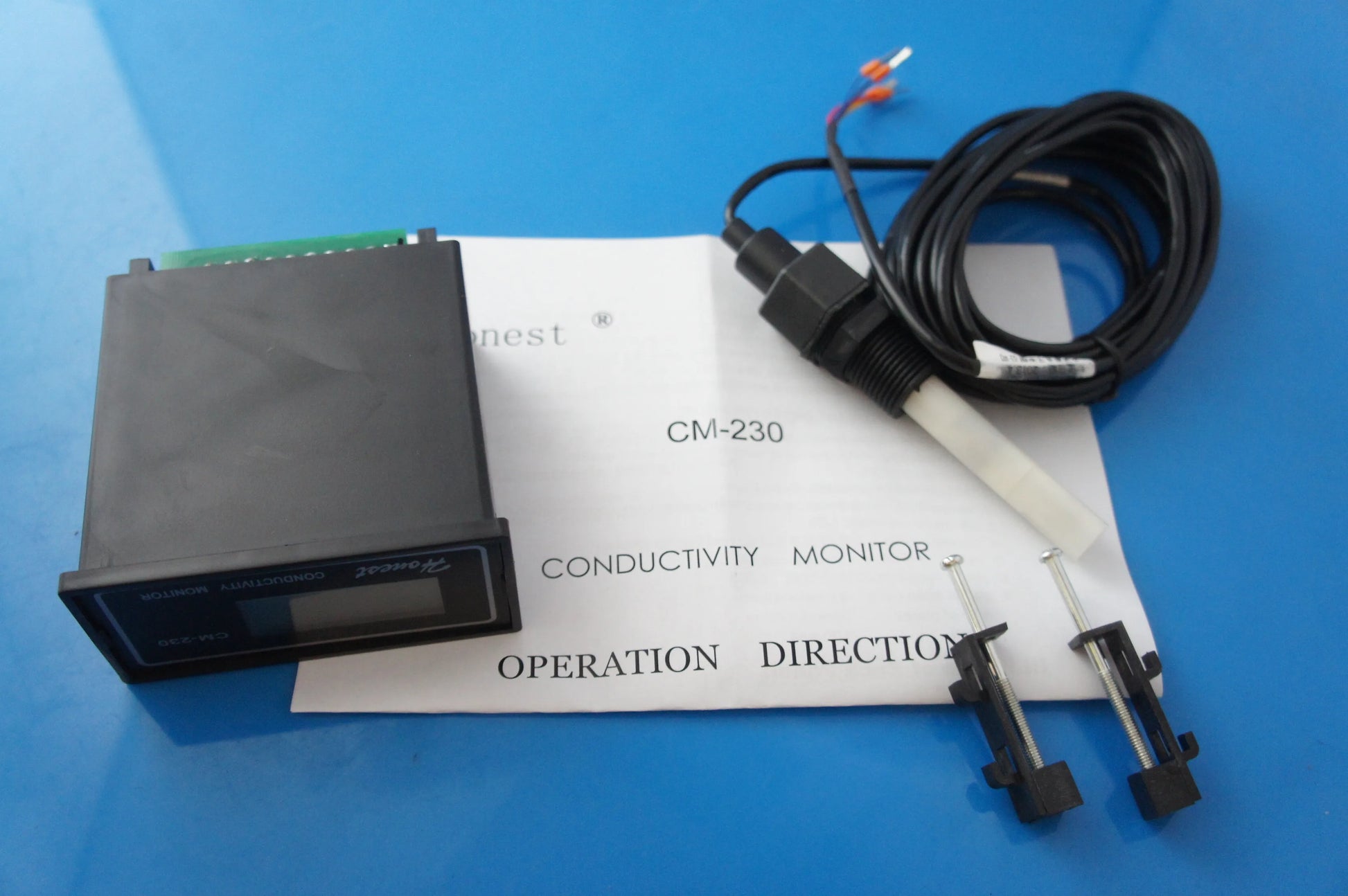

Package Includes

• 1 × CM-230 Conductivity Monitor

• 1 × Electrode

• 1 × Power Line

• 1 × Installation Frame

• 1 × Instruction Manual

• 1 × Quality Certificate

Important Notice

Please confirm the required measuring range, power supply voltage, installation size, and output signal before ordering.
This model uses AC 220V power supply and provides 4-20mA current output.

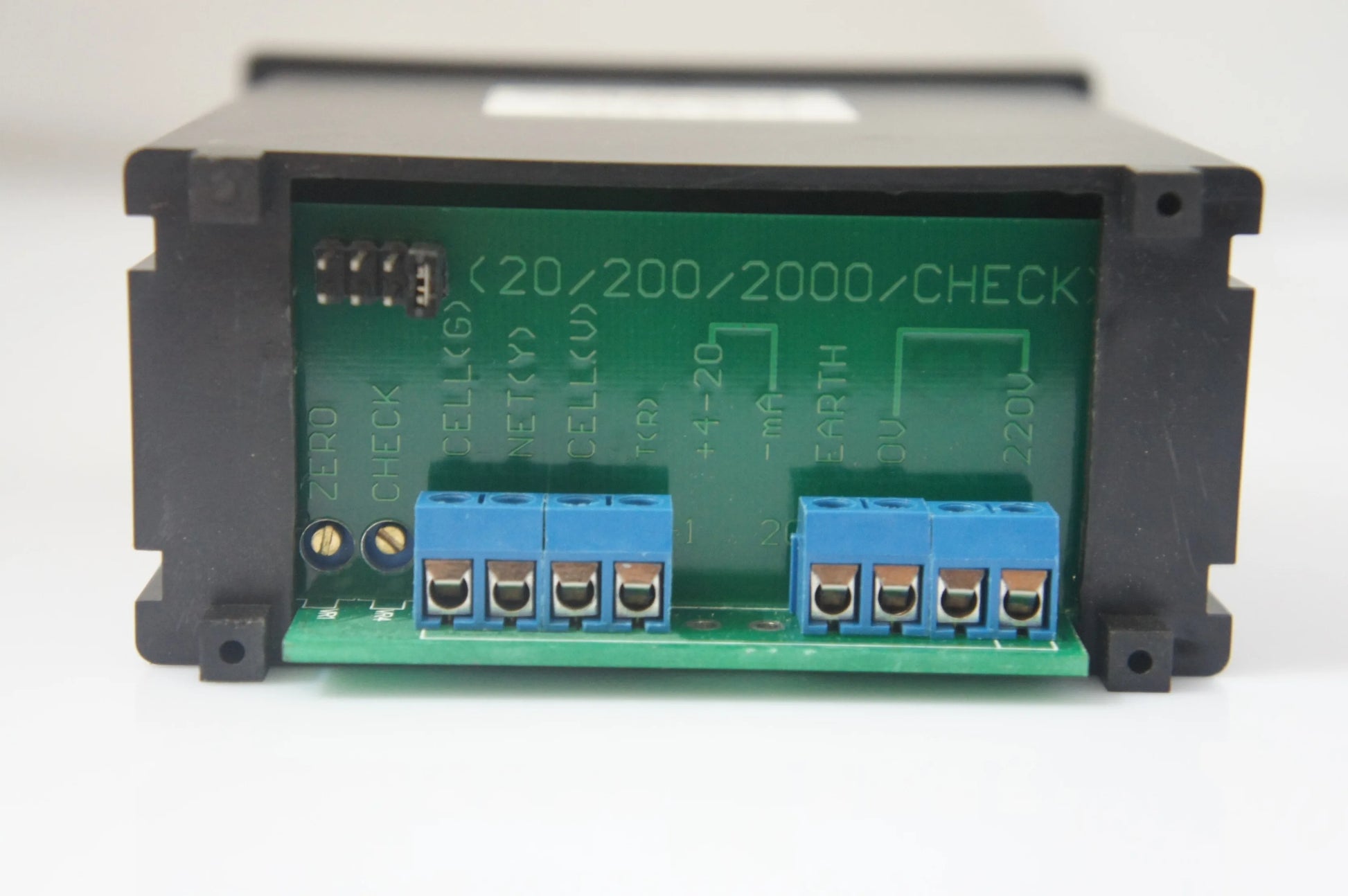

Figure of Back Panel:

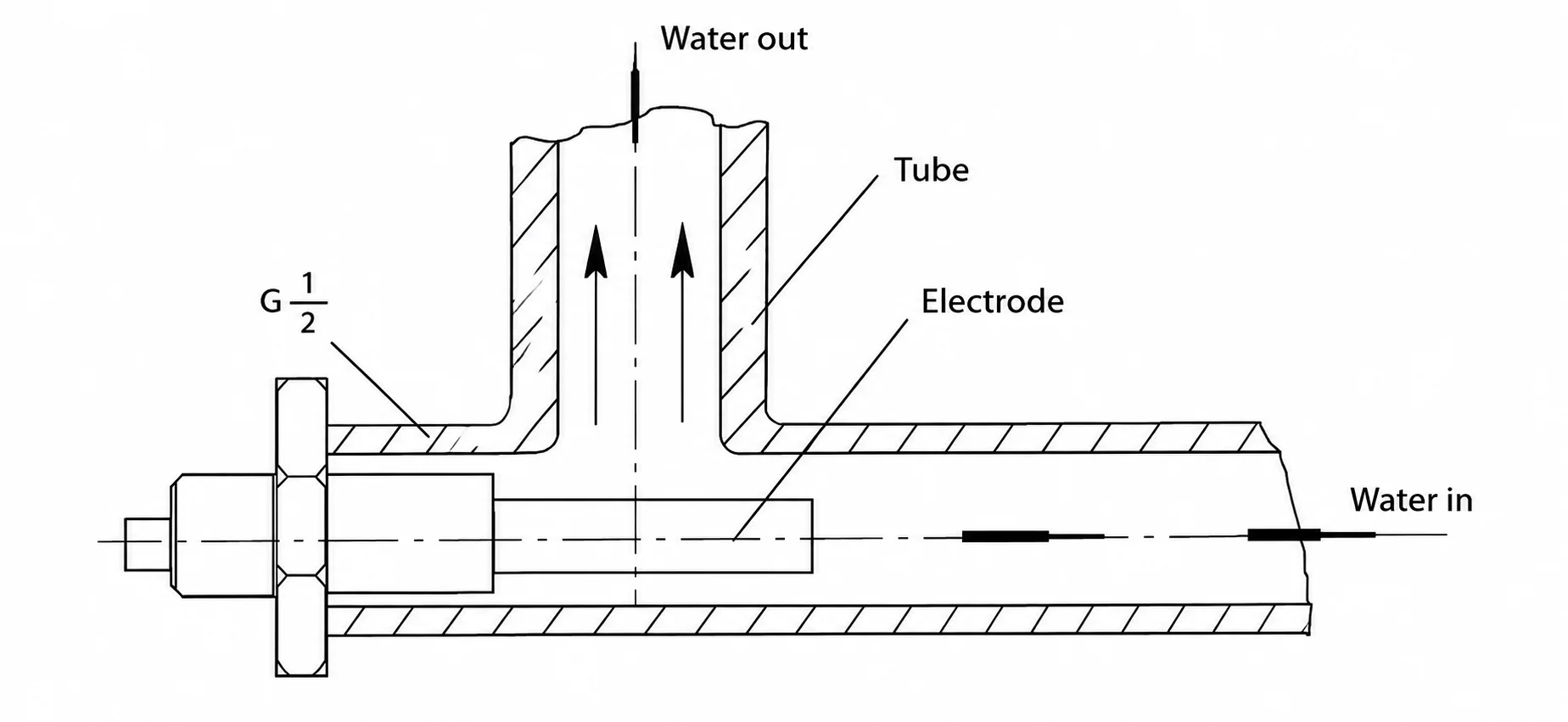

Electrode Installation
Insert the electrode directly into the threaded sealing port of the pipe spacer and tighten securely. To prevent leakage, ensure the connection area is properly sealed before operation.
