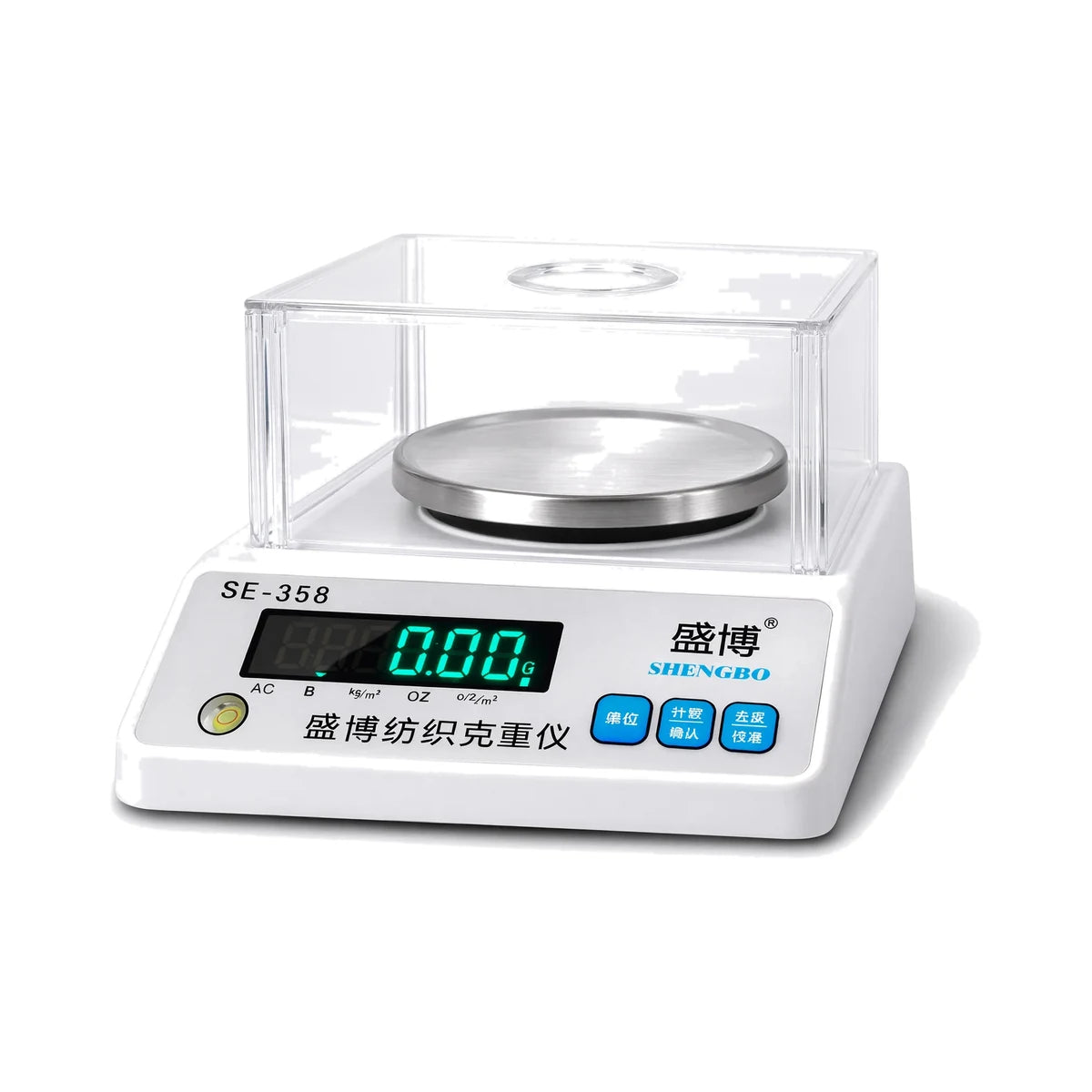

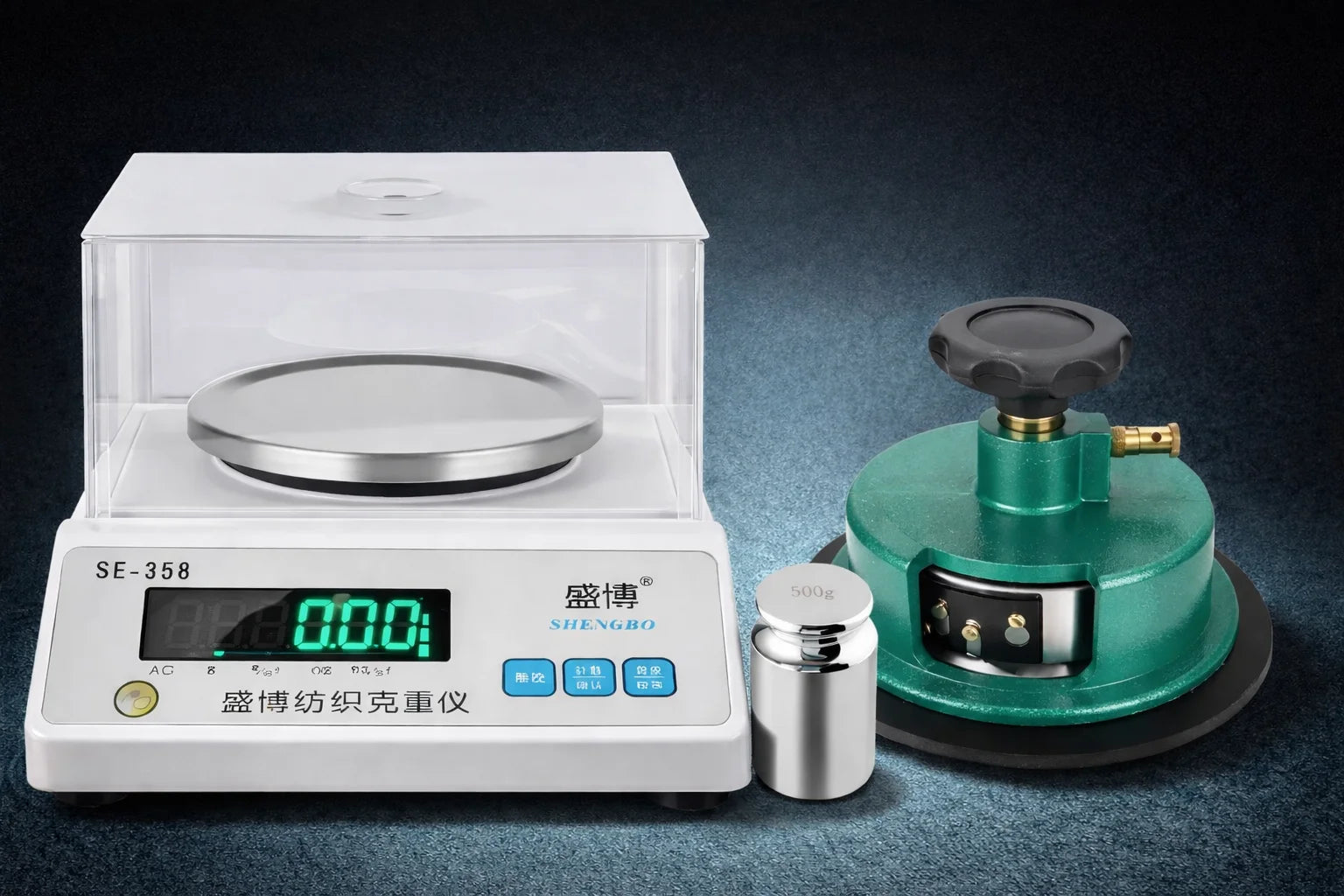

1000g x 0.01g Digital Balance with 100 cm2 GSM Fabric Cutter Set

Product Overview

This GSM fabric sampling set combines a 100 cm2 rotary fabric sample cutter with a 1000g x 0.01g digital electronic balance for measuring fabric weight per square meter.

The cutter produces a 100 cm2 (0.01 m2) sample. After weighing the sample, multiply the gram reading by 100 to calculate GSM. For example, a 3g sample equals 300g/m2.

Key Specifications

Applications

Suitable for GSM sampling and weighing of thin textile materials including cotton, wool, silk, linen and chemical fiber fabrics.

The set can also be used for one-time cutting of thin leather, thin cardboard and thin aluminum foil. For cardboard or other thick materials at 3 mm or thicker, use the manual press type GSM cutter instead; consult customer service for that version.

How GSM Measurement Works

1. Place the fabric flat on the rubber pad.
2. Position the GSM cutter on the material, release the safety lock and rotate the handle clockwise to cut the circular sample.
3. Return the safety lock after cutting and remove the waste material.
4. Weigh the 100 cm2 fabric sample on the electronic balance.
5. Multiply the gram reading by 100 to get the fabric GSM value.

Package Includes

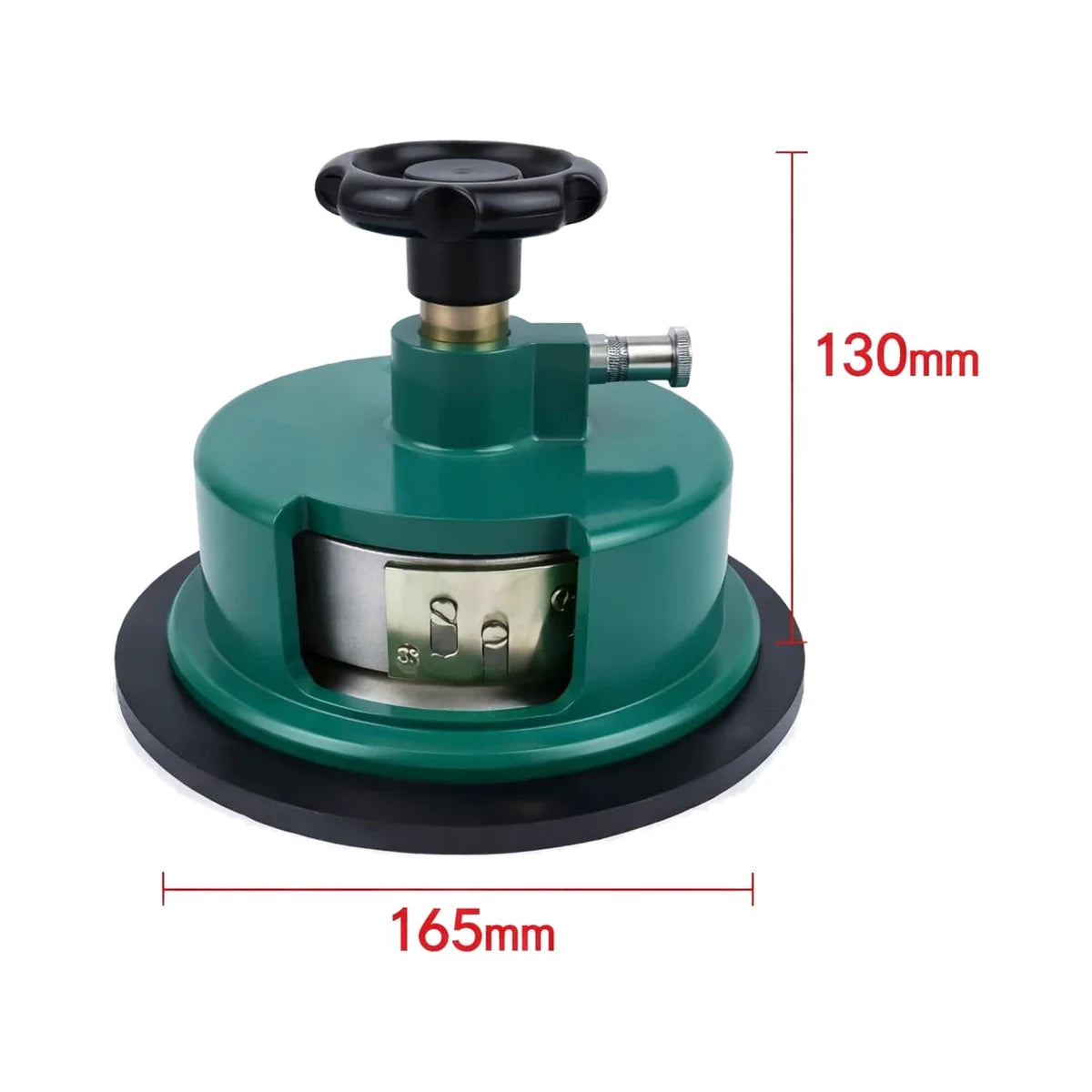

• GSM fabric cutter

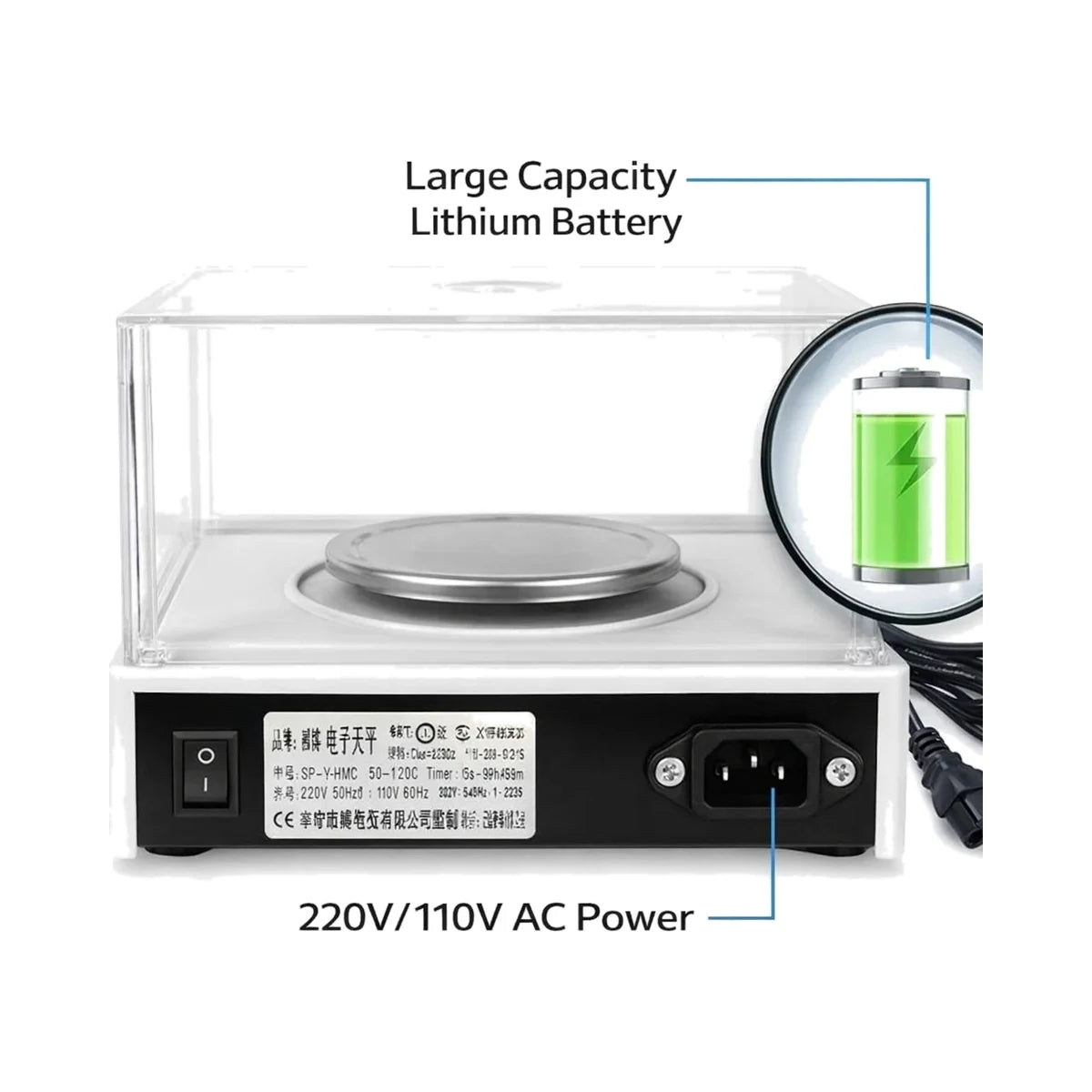

• 1000g / 0.01g digital electronic balance
• Wind shield
• Calibration weight
• Rubber pad
• Spare blade

Buyer Notes

This listing is for the electronic balance and classic GSM fabric cutter set shown. Use the thin-material guidance above before cutting cardboard or other thicker materials.
