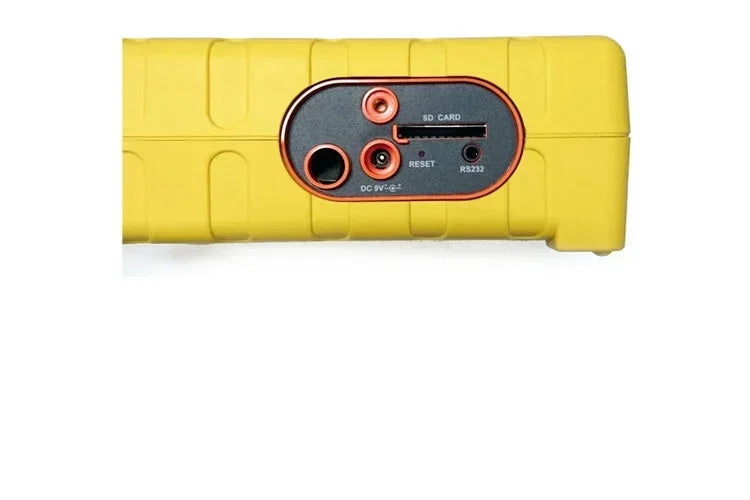

  • Lutron BVB-8207SD SD card vibration data logger interface detail
1 6

FMF

Lutron BVB-8207SD 4 Channel Vibration Meter Data Recorder

$1,412.64 USD
$0.00 USD $1,412.64 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.



Lutron BVB-8207SD 4 Channel Digital Vibration Meter

The Lutron BVB-8207SD is a 4 channel digital vibration meter and real-time data recorder for industrial vibration measurement work. It records vibration data with time information to an SD memory card and can show CH1 to CH4 vibration values on the same LCD.

Key Features

  • 4 channel vibration recorder for multi-point vibration measurement.
  • Real-time data logger with year, month, date, hour, minute and second time information.
  • SD memory card recording for paperless data storage.
  • Measurement data can be downloaded to Excel without extra software.
  • CH1 to CH4 vibration values shown on the same LCD.
  • Functions include acceleration, velocity and displacement measurement.
  • Max hold, peak value, data hold and Max./Min. recording functions.
  • RS232/USB computer interface.
  • Large LCD with backlight for easier reading.

Specifications

Model BVB-8207SD
Brand shown Lutron
Product type 4 channel digital vibration meter / data recorder
Channels CH1 to CH4
Sampling setting 1 to 3600 seconds
Measurement functions Acceleration, velocity and displacement
Acceleration range 200 m/s2
Velocity range 200 mm/s
Displacement range 2 mm peak-to-peak
Memory card size 1 GB to 16 GB
Computer interface RS232/USB
Power DC 1.5V UM-3/AA x 8 PCs or DC 9V adapter input
Included sensor information 1 PC VB-83 vibration sensor set
Optional sensor information Extra VB-83 vibration sensor set and VB-84 tip type vibration sensor set are listed as optional sensor options.
SKU FMF-BVB-8207SD-67385

Selection Notes

Choose the BVB-8207SD when the job needs 4 channel vibration measurement, time-stamped SD card recording and computer data transfer for industrial vibration analysis. Before ordering, check the channel count, measurement functions, sampling setting, memory card support, interface, power input, sensor information, current offer price and SKU.

The clear ordering information on this page includes the BVB-8207SD model, SKU FMF-BVB-8207SD-67385, current offer price, current availability and single default variant.

Buyer Questions

What is the BVB-8207SD used for?

It is used as a 4 channel digital vibration meter and real-time data recorder for industrial vibration measurement and analysis.

How does the BVB-8207SD record data?

It records measuring data with time information to an SD memory card, and the data can be downloaded to Excel without extra software.

What vibration functions are listed?

The listed functions are acceleration, velocity and displacement.

What sensor information is listed?

The page information lists 1 PC VB-83 vibration sensor set, with extra VB-83 and optional VB-84 tip type sensor options mentioned.

What should buyers check before ordering?

Buyers should check CH1 to CH4 channel support, 1 to 3600 second sampling setting, RS232/USB interface, memory card size, power input, sensor information, current offer price and SKU.
