ZHAOXIN RXN-605D 60V 5A Linear DC Bench Power Supply
ZHAOXIN RXN-605D 60V 5A Linear DC Bench Power Supply
Couldn't load pickup availability
ZHAOXIN RXN-605D 60V 5A Linear DC Bench Power Supply
The ZHAOXIN RXN-605D is a single-channel linear DC bench power supply for electronics testing, service benches, lab benches and workshop use. It provides continuously adjustable 0-60V voltage and 0-5A current output, with separate LED displays for voltage and current on the front panel.

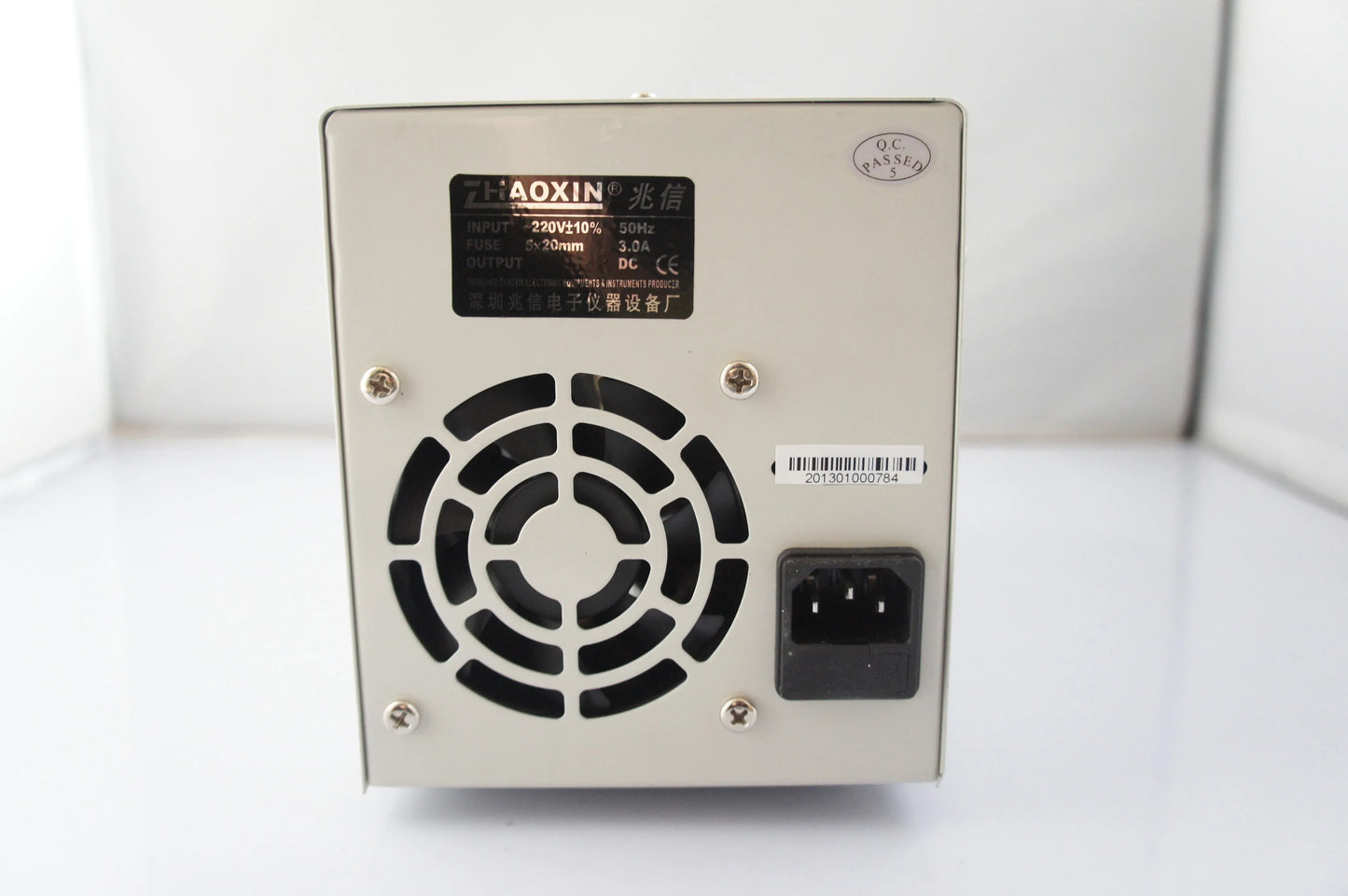

The front panel includes coarse and fine controls for both current and voltage, C.C. and C.V. indicator LEDs, a power switch and front output terminals marked negative, ground and positive. Product photos also show the ZHAOXIN RXN-605D label, rear cooling fan, rear AC inlet, packaging box and a power cord beside the unit.
Key Features
- Single-channel adjustable DC output for bench testing and circuit work.
- 0-60V voltage range and 0-5A current range.
- Linear regulated DC power supply design for lab and workshop use.
- Constant voltage and constant current operation with C.V. and C.C. front-panel indicators.
- Separate LED displays for output voltage and output current.
- Fine and coarse adjustment knobs for both current and voltage.
- Current-limiting protection and reverse polarity protection listed in the product specifications.
- Rear cooling fan and side ventilation for heat management during operation.
Specifications
| Brand | ZHAOXIN / Zhaoxin |
| Model | RXN-605D |
| Product type | Single-channel linear DC bench power supply |
| Voltage output | 0-60V adjustable |
| Current output | 0-5A adjustable |
| Input voltage | AC 220V +/-10%; confirm input version and plug before ordering |
| Operating temperature | -10 to 40 degrees C |
| Operating humidity | Up to 90% relative humidity |
| Storage humidity | Up to 80% relative humidity |
| Constant voltage stability | <= 0.01% + 2mV |
| Constant current stability | <= 0.1% + 3mA |
| Load stability | CV: <= 0.01% + 2mV; CC: <= 0.2% + 3mA |
| Recovery time | <= 100 us |
| Temperature coefficient | <= 200 ppm/degrees C |
| Display | 3-digit LED voltage and current display |
| Display precision | +/-1% +/-1 count for voltage and current display |
| Dimensions | 275 x 126 x 155 mm |
| Listed weight | 6.28 kg |
| SKU | FMF-RXN-605D-77497 |
Typical Uses
- Bench DC power supply for electronics testing and troubleshooting.
- Lab DC power supply for adjustable voltage and current experiments.
- Workshop power source for checking small DC circuits and components within the 0-60V / 0-5A range.
- Service bench supply where simultaneous voltage and current readout is useful.
Selection Notes
- Choose this model when you need a manually adjustable 60V 5A single-channel DC source for bench work.
- The rear label and product data indicate a 220V input version; confirm voltage, frequency and plug requirements before ordering.
- Product photos show a power cord beside the unit, but exact cable, plug and accessory details should be confirmed if they are important for your order.
- If you need extra paperwork for procurement or import review, confirm availability before purchasing.
FAQ
How is the RXN-605D adjusted?
Output voltage and current are adjusted from the front panel using separate fine and coarse knobs.
What output range does this model provide?
The RXN-605D provides adjustable 0-60V voltage output and 0-5A current output.
What should I confirm before ordering?
Confirm the input voltage, plug, included cable/accessories and any document requirements before placing an order.
