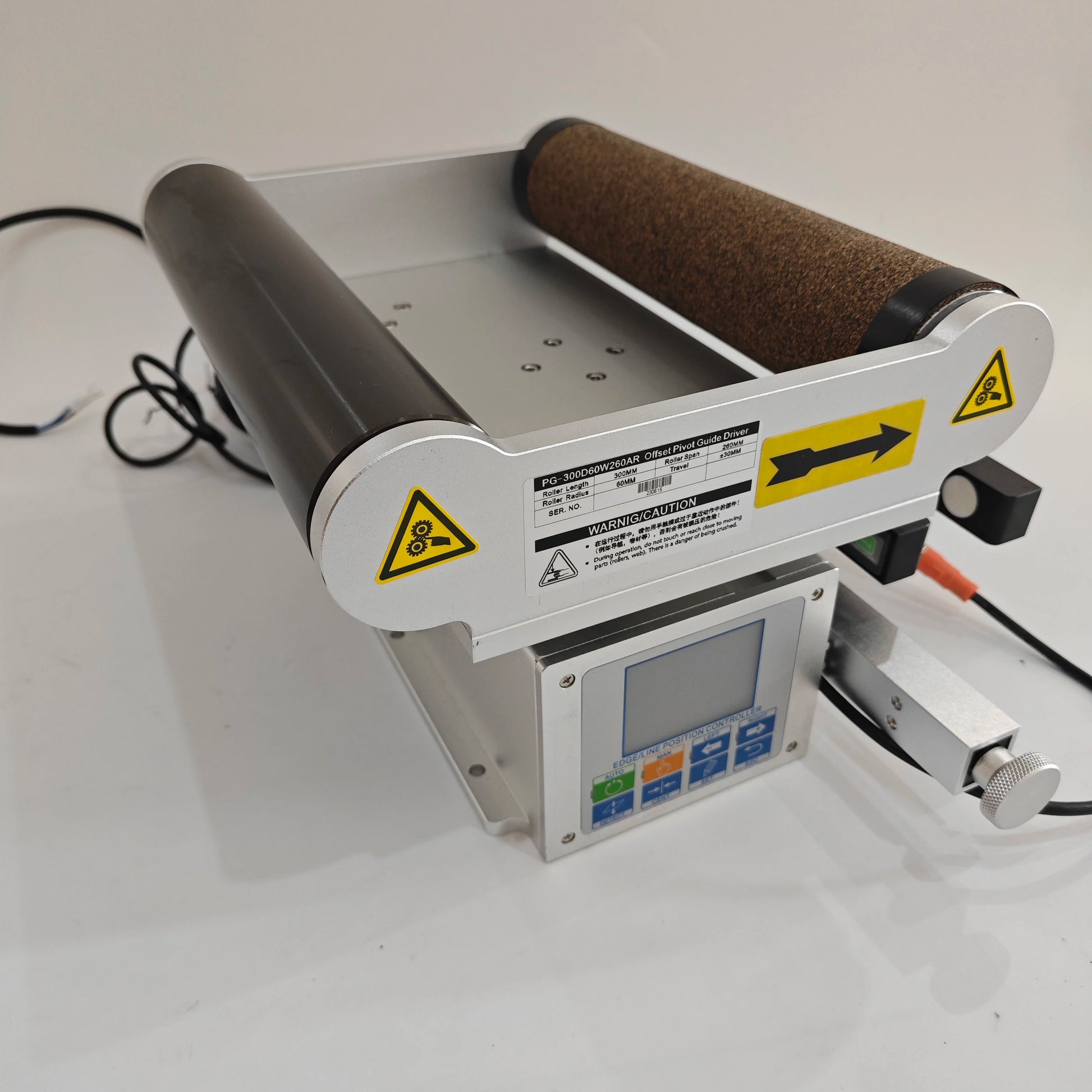

  • PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for product detail image 4
  • PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for product detail image 5
1 5

FMF Supply

PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging

PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging

$1,154.46 USD
$0.00 USD $1,154.46 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

PG Series All-In-One Web Guiding Control System

Introduction:
The newly developed all-in-one web guiding controller accurately corrects the position of narrow and wide-range materials. It is particularly suitable for the label printing, packaging, and non-woven industries. Featuring a compact, integrated design, this controller combines the controller, driver, and detector into one unit, facilitating quick installation, debugging, and efficient use of space.

Key Features:

  • Brushless DC Servo Motor: Maintenance-free and reliable operation.

  • Precision Ball Screw Bar: Ensures accurate positioning.

  • Large Guiding Travel: Offers flexibility for various applications.

  • Customizable Roller: Length and width can be tailored to specific requirements.

  • Roller Surface Options: Anodized, rubber-coated, or cork leather available.

  • Fixture Options: Manual or air fixtures at the cutting station.

Technical Specifications:

Parameter

Specification

Voltage

AC220V / 110V, 80W

Roller Diameter

50mm or Custom-made

Roller Length

600mm or Custom-made

Roller Width

310mm or Custom-made

Max. Speed

40mm/s

Environment Temperature

-10~60°C, RH below 90%

Product Models:


PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging detail image 1

Model

Roller Length A (mm)

Roller Dia. B (mm)

Roller Width C (mm)

Base Length D (mm)

Web Guide Range (°)

Max. Tension (N)

PG-200A

200

50

230

255

±12°

300

PG-250A

250

50

230

255

±12°

300

PG-300A

300

60

260

300

±12°

300

PG-350A

350

60

260

350

±12°

300

PG-400A

400

60

310

410

±7°

500

PG-450A

450

60

310

460

±7°

500

PG-500A

500

60

310

510

±7°

500

PG-600A

600

60

310

610

±7°

500

Purchasing Considerations:

When ordering, please consider the following to ensure compatibility:

  • Material Width: Specify the width of the material you wish to control.

  • Sensor Type: Select from Ultrasonic, Photoelectric, Color Mark, or CCD sensors based on your material type.

  • Sensor Position: Indicate if the sensor will be installed on the left or right.

All parameters, sizes, and specifications can be customized to your specific needs. Please feel free to contact us for further details.

package ：1 sets PG-600A （Ultrasonic sensor installed）

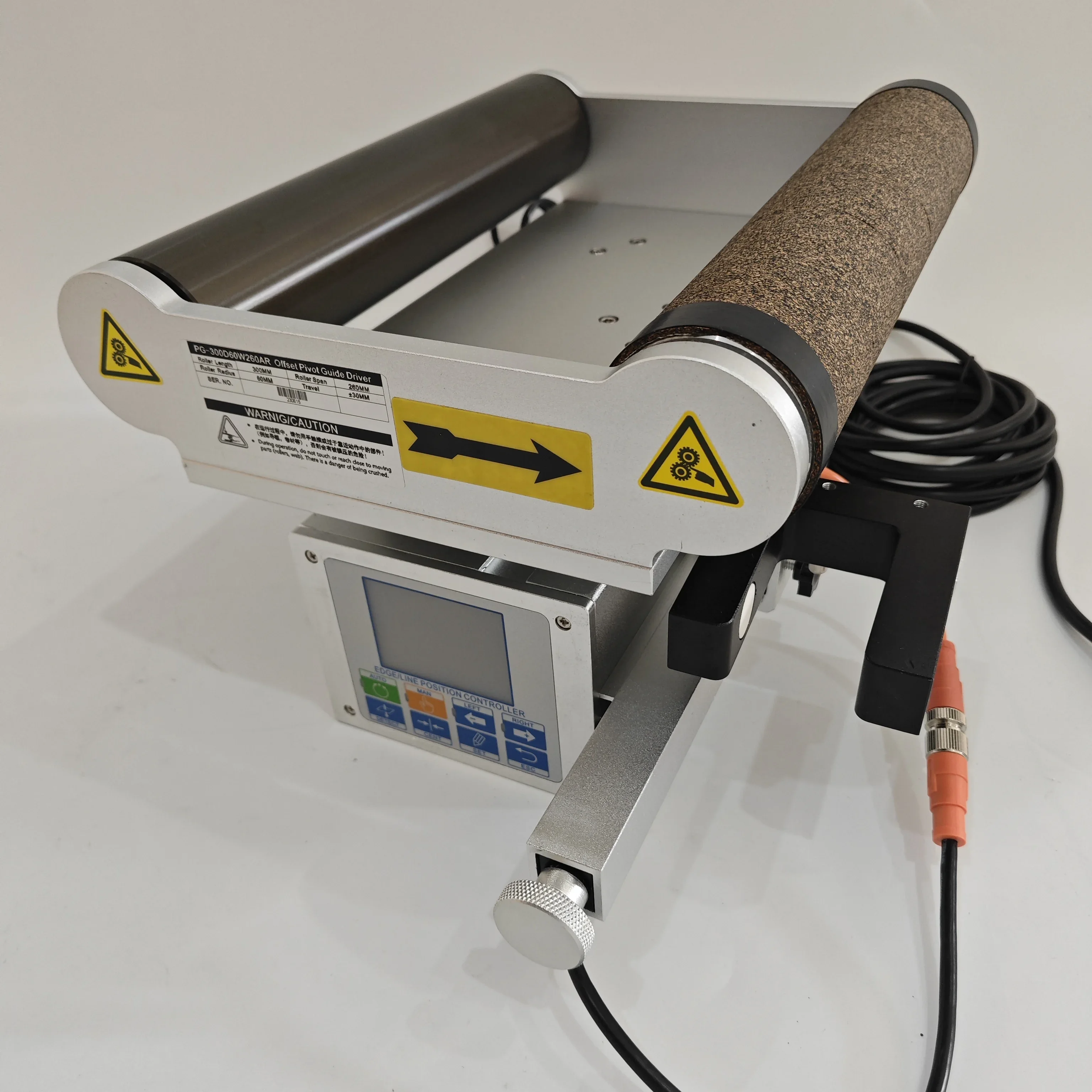

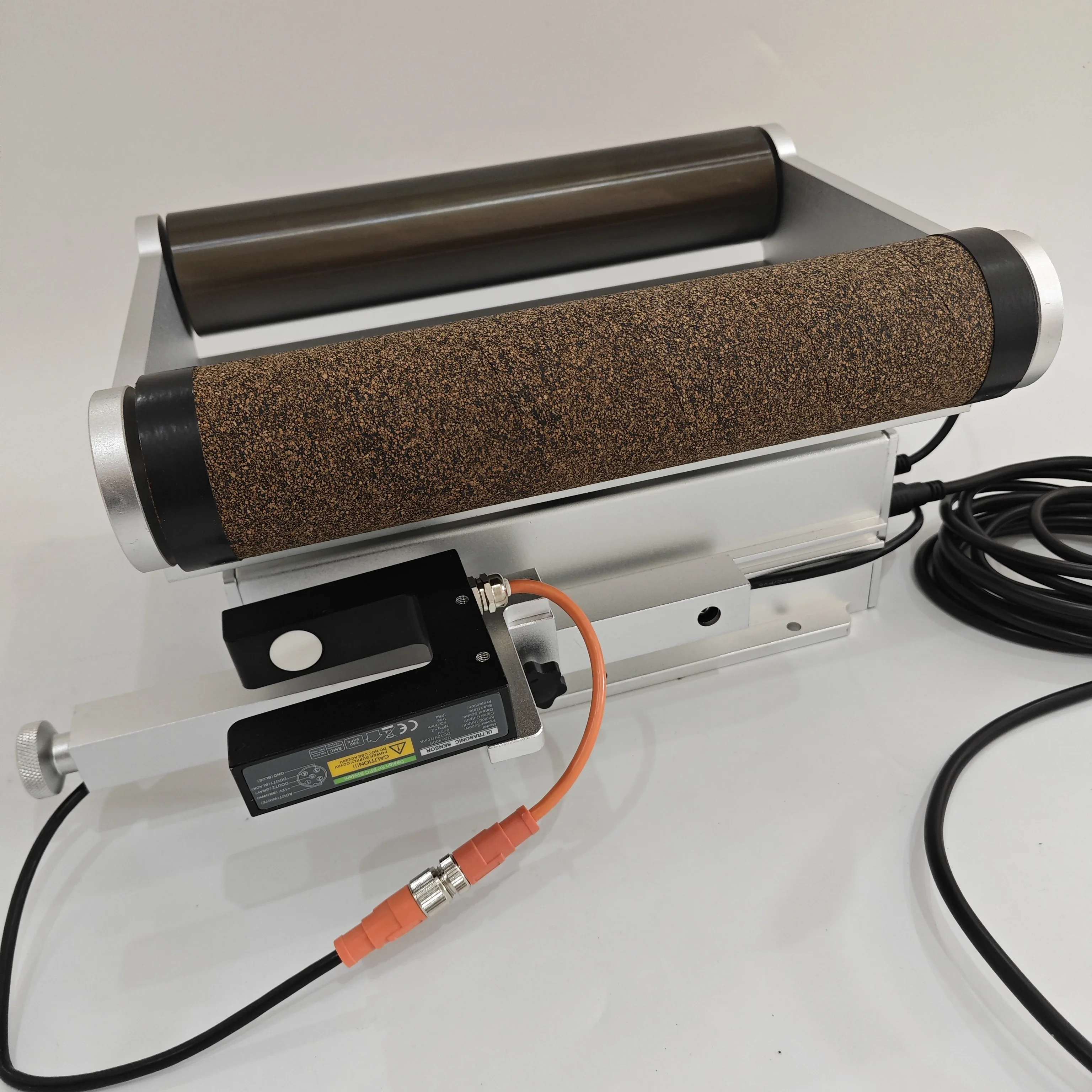

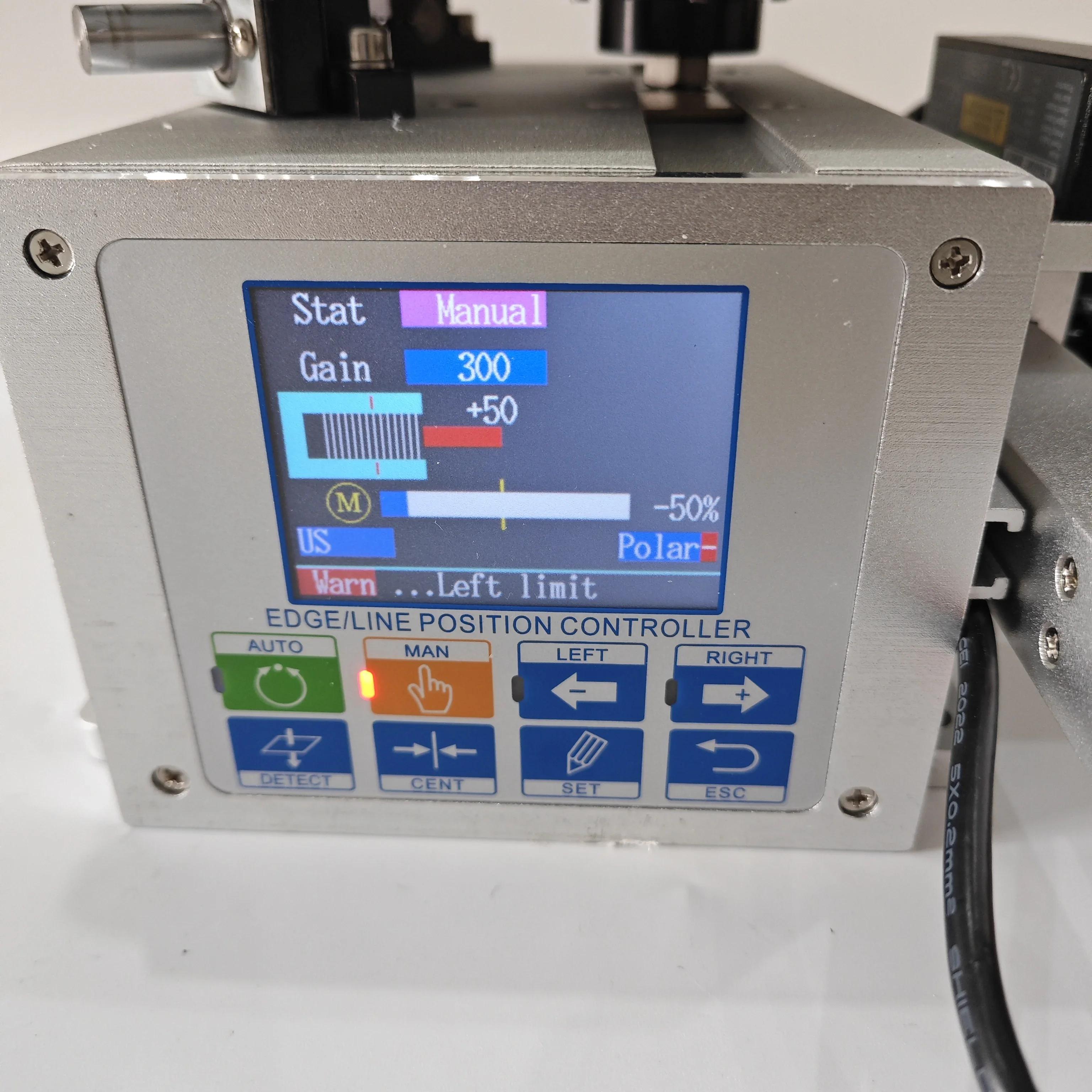

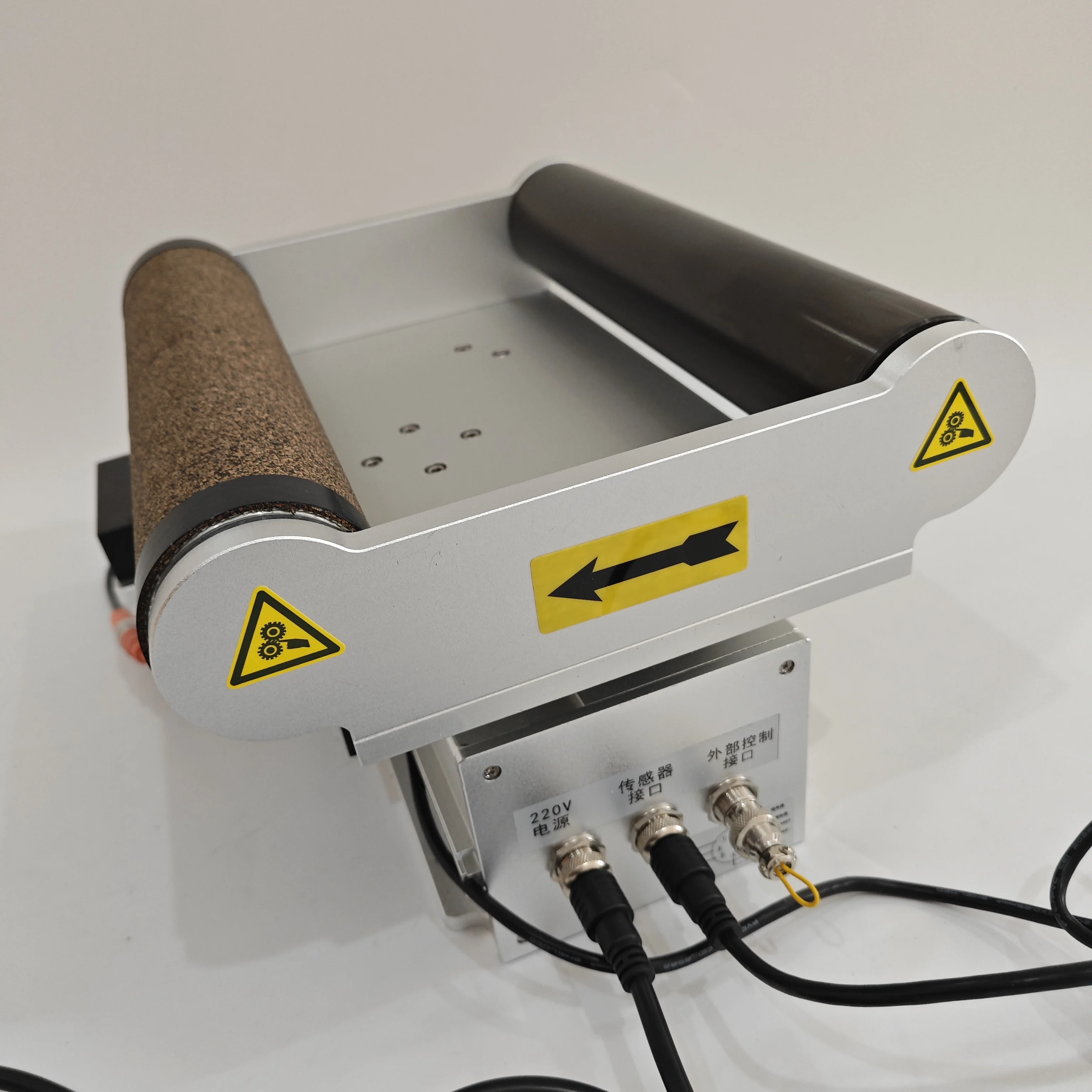

PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging detail image 2PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging detail image 3PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging detail image 4PG600A All-in-One Web Guiding Control System 600mm Line Edge Position Controller for Printing & Packaging detail image 5
