ITECH IT8510 Programmable DC Electronic Load 120W 120V 20A | Precision Battery Power Supply Tester

ITECH IT8510 Programmable DC Electronic Load 120W 120V 20A | Precision Battery Power Supply Tester

$261.56 USD
$0.00 USD $261.56 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

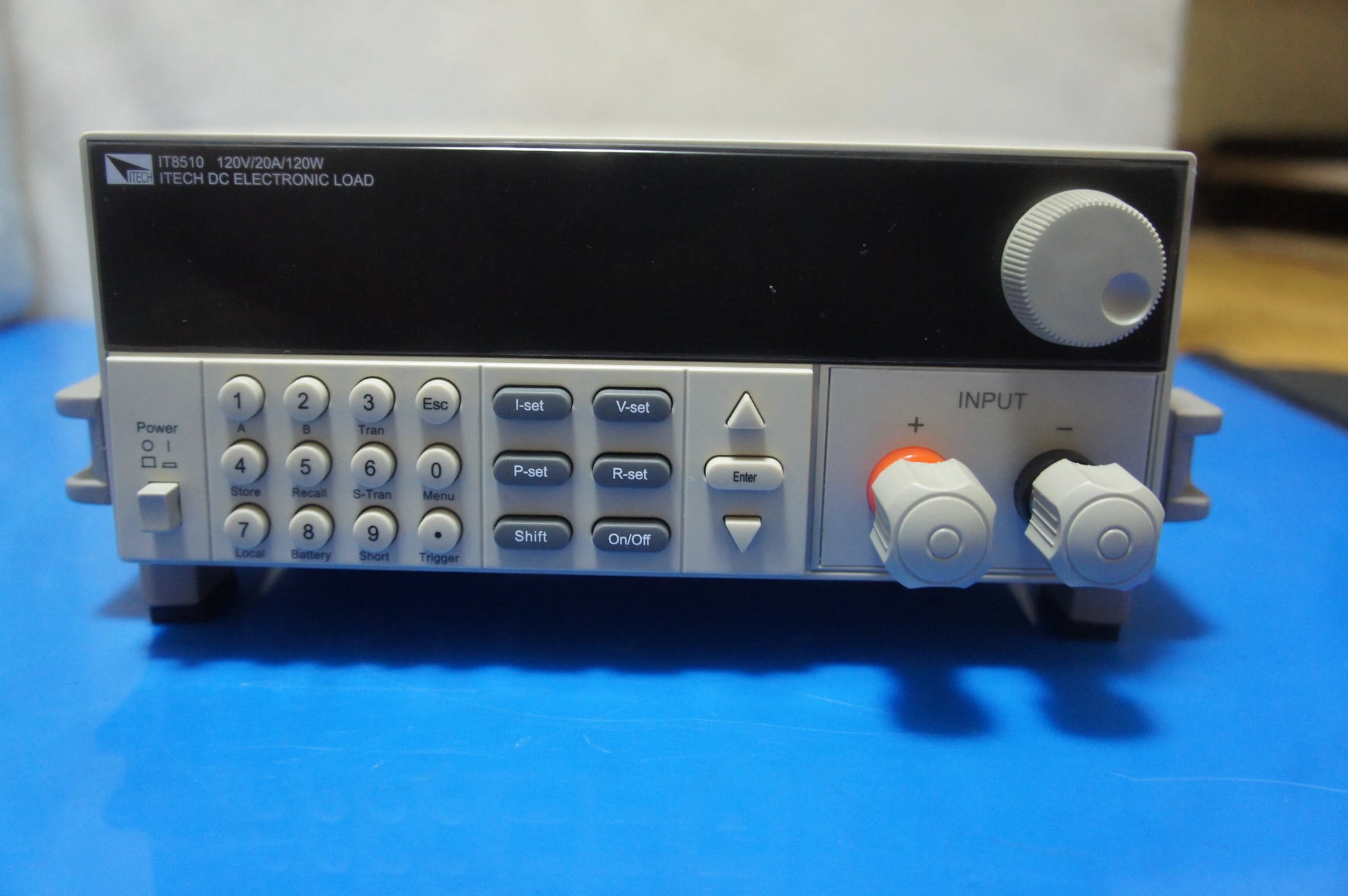

ITECH IT8510 Programmable DC Electronic Load

Model: IT8510 · 120V · 20A · 120W

120V

Max Voltage

20A

Max Current

120W

Max Power

High Accuracy 1 mV / 0.1 mAUSB / RS232 / GPIBVFD Display
Ready for Power & Battery Testing: Supports CV/CC/CR/CW modes, battery capacity test, dynamic load, remote sense, short‑circuit test and data monitoring with free PC software.

Highlights

  • Wide application range: power supply, battery charger and battery pack evaluation.

  • Precision measurement with 1 mV voltage and 0.1 mA current resolution.

  • Multiple operating modes: CV, CC, CR, CW.

  • Protection suite: OVP/ OCP/ OPP/ OTP and reverse polarity.

  • Interfaces: USB / RS232 / GPIB for easy system integration.

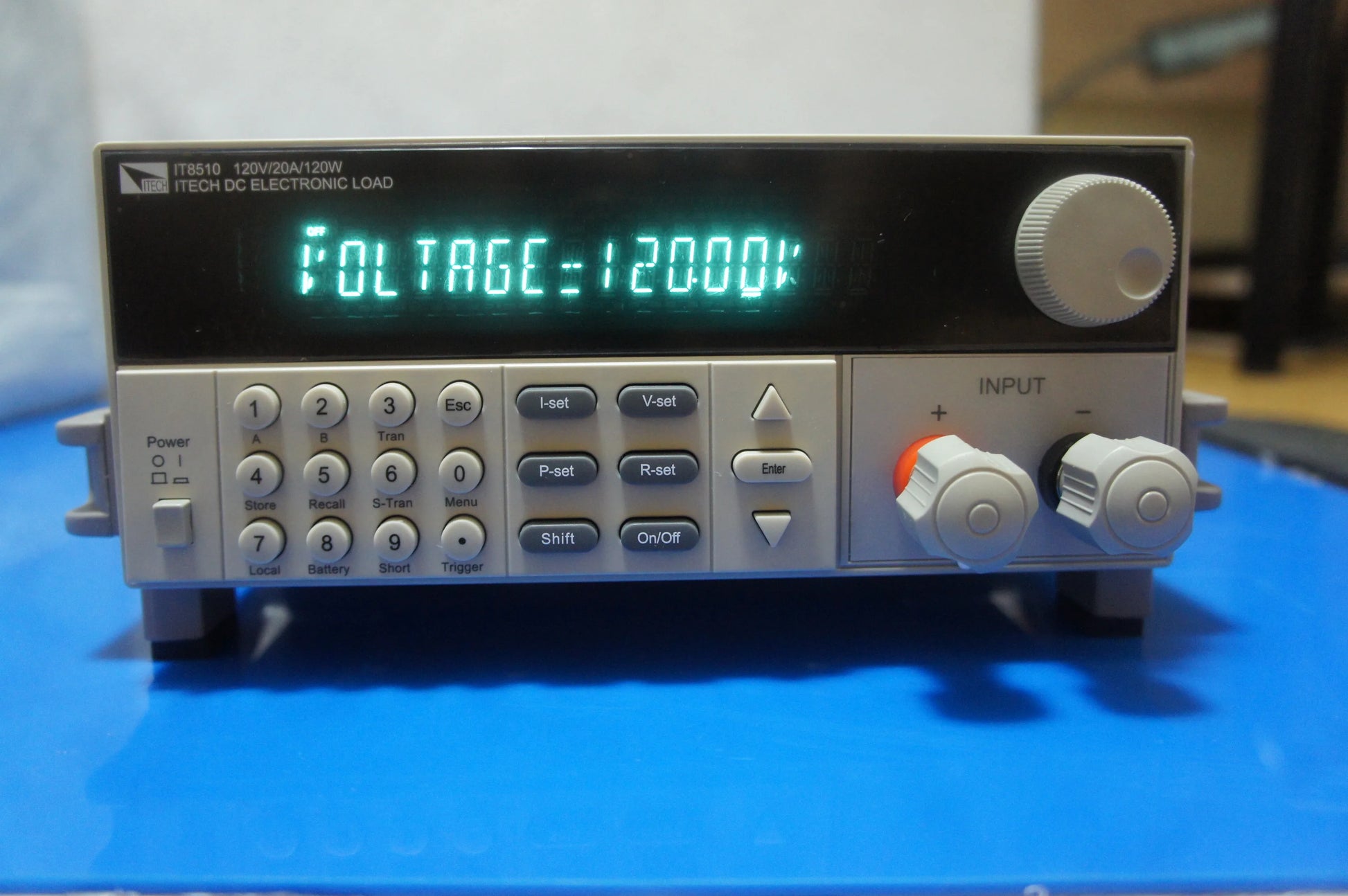

  • Bright VFD display and numeric keypad for quick operation.

  • Free PV8500 monitoring software. (PC)

Key Features

  • High accuracy & high resolution measurement: 1 mV / 0.1 mA.

  • Remote measurement (remote sense) compensates lead voltage drop.

  • Intelligent fan control for low noise and long life.

  • Automatic Test (List) function for step sequences.

  • Dynamic test for transient response of power supplies.

  • Battery testing function with cut‑off voltage setting.

  • Short‑circuit test mode.

  • POST (power‑on self test) function.

  • Over‑voltage / over‑current / over‑power / over‑temperature protections.

  • Free PC software for monitoring and data logging.

Operating Modes

  • CV – Constant Voltage

  • CC – Constant Current

  • CR – Constant Resistance

  • CW – Constant Power

Built‑in Functions

  • Remote sense (4‑wire) measurement

  • Battery capacity test

  • Dynamic load test

  • Short‑circuit test

  • Automatic test (list) sequences

Technical Specifications

Model

ITECH IT8510

Input Rating (0–40 °C)

0–120 V, 1 mA–20 A, 120 W

Resolution

Voltage: 1 mV · Current: 0.1 mA · Power: 1 mW

Operating Modes

CV / CC / CR / CW

Measurement Accuracy*

Typical ±(0.05% + 0.02%FS) for voltage; ±(0.1% + 0.1%FS) for current (see full datasheet for ranges)

Remote Sense

Yes

Protections

OVP, OCP, OPP, OTP, Reverse Polarity

Interfaces

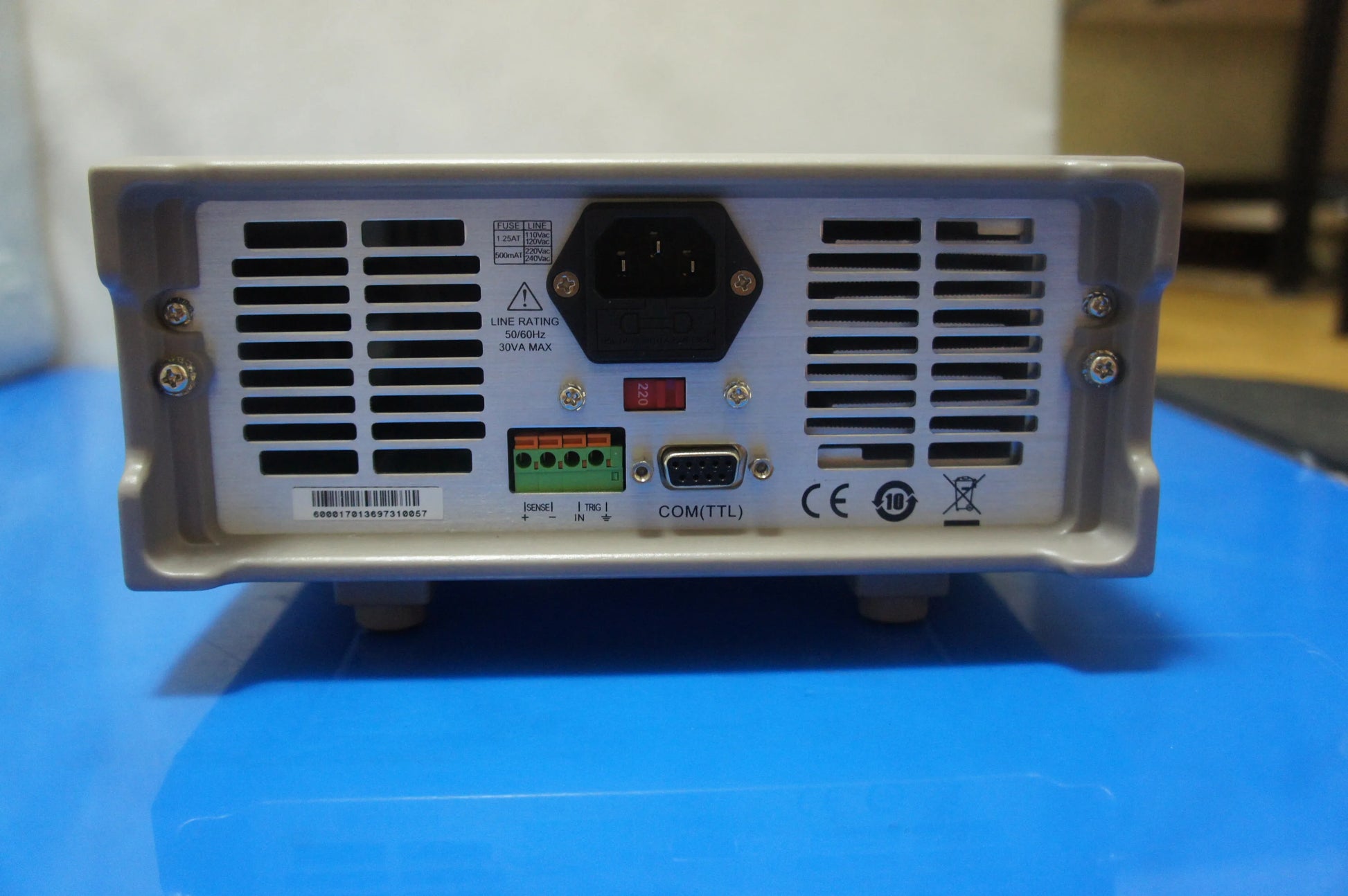

USB / RS232 / GPIB

Display

High‑visibility VFD

Software

PV8500 PC monitoring software (free)

Functions

Battery test, Short‑circuit test, Dynamic test, Automatic test (List), POST

Cooling

Intelligent fan control

* Accuracy varies by range; for full range‑by‑range accuracy and resolution, refer to the Specifications image or official datasheet included in the listing.

Typical Applications

  • Bench and production test of DC power supplies and adapters

  • Battery, charger and DC‑DC converter characterization

  • Automotive electronics, LED drivers and laboratory R&D

Package & Notes

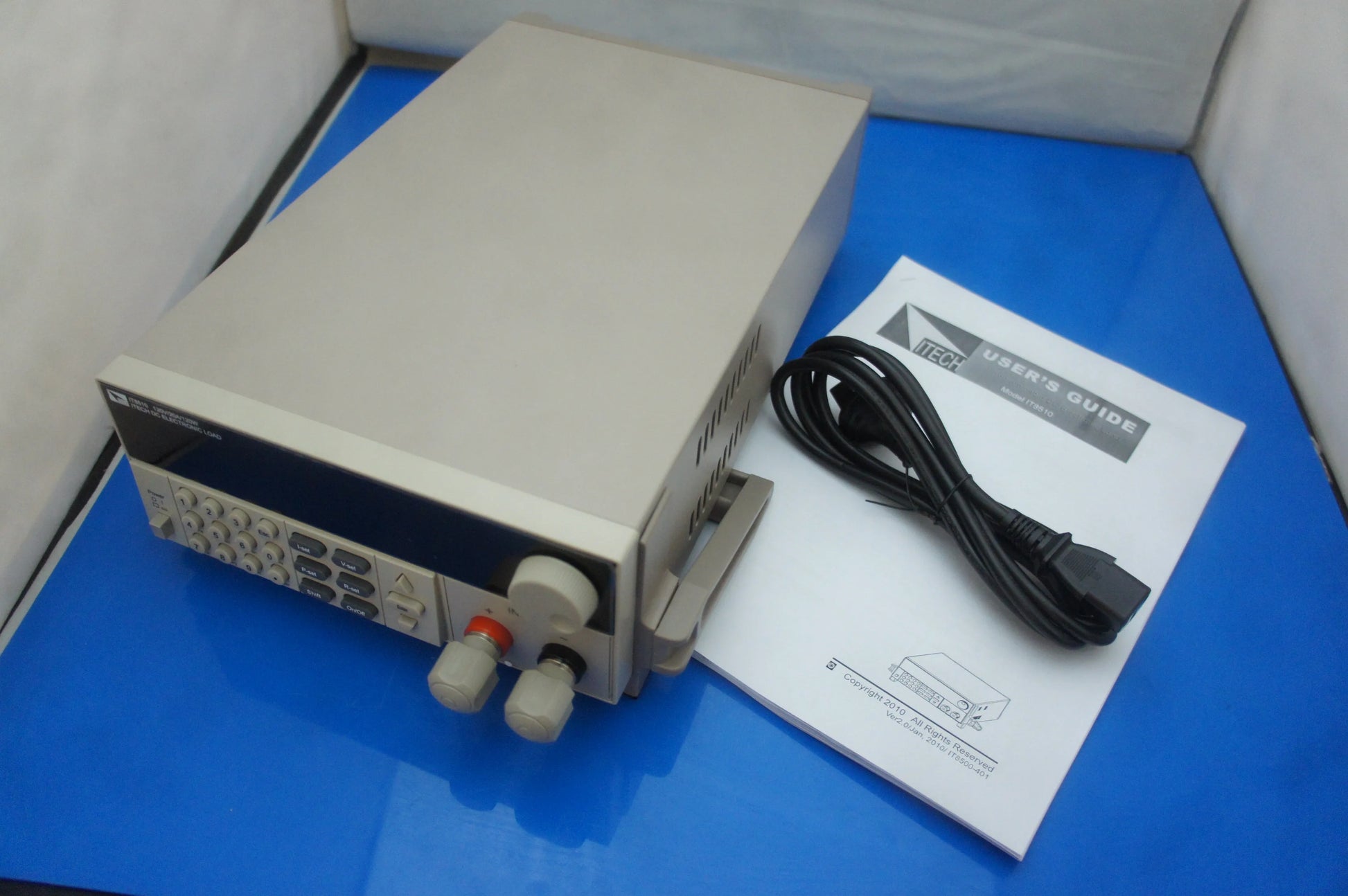

  • 1 × ITECH IT8510 Programmable DC Electronic Load

  • Power cable

  • The USB communication cable is not included and needs to be purchased separately.
