HEWLEE HL-400 Battery Hydraulic Crimping Tool, 16-400 mm²

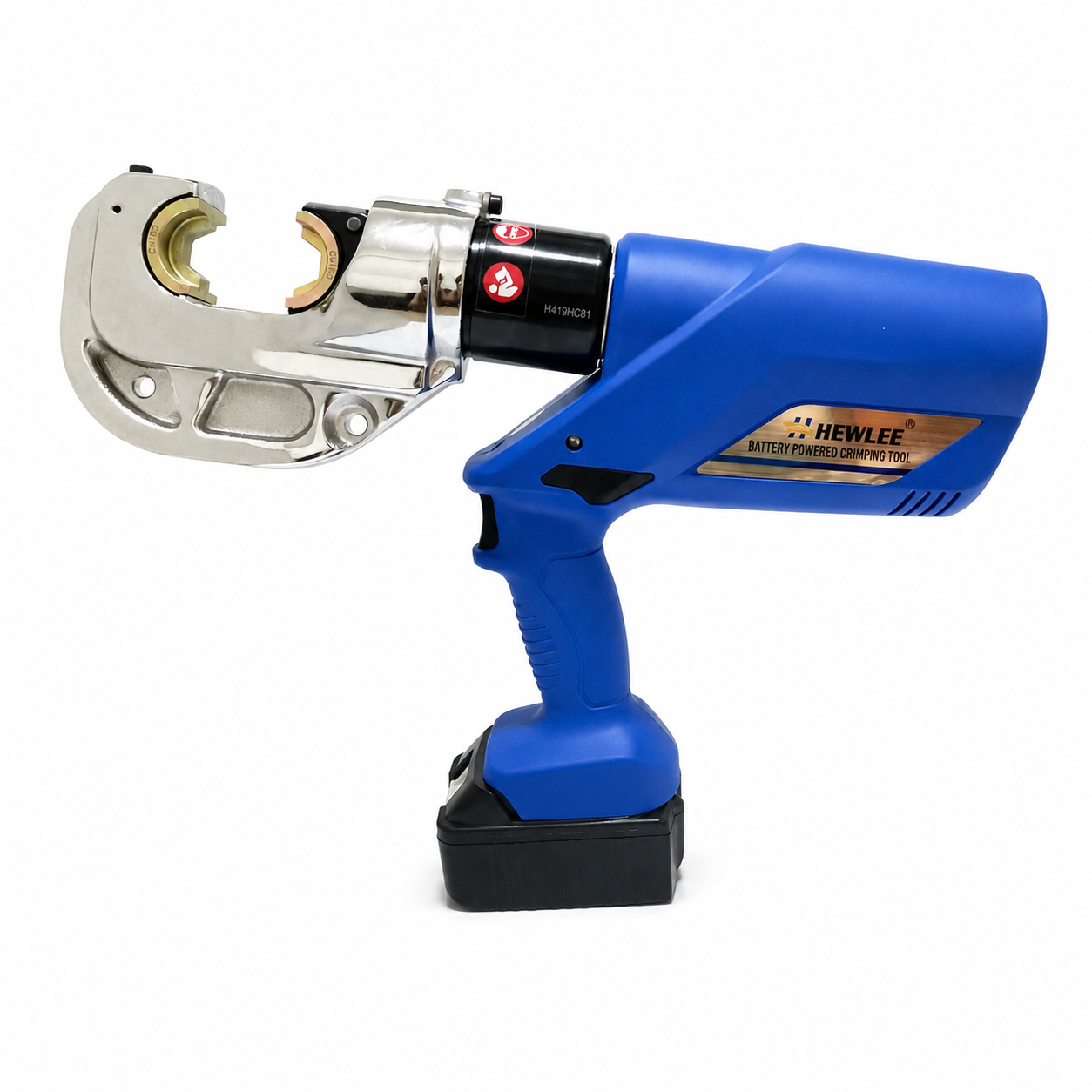

HEWLEE HL-400 Battery Hydraulic Crimping Tool

The HEWLEE HL-400 is a battery powered hydraulic crimping tool for cable lug and wire terminal crimping. The product label identifies the model as HL-400 with 18V DC power, 120 kN output force, 42 mm stroke, and crimping ranges for copper and aluminum conductors.

Verified Specifications

• Visible brand: HEWLEE

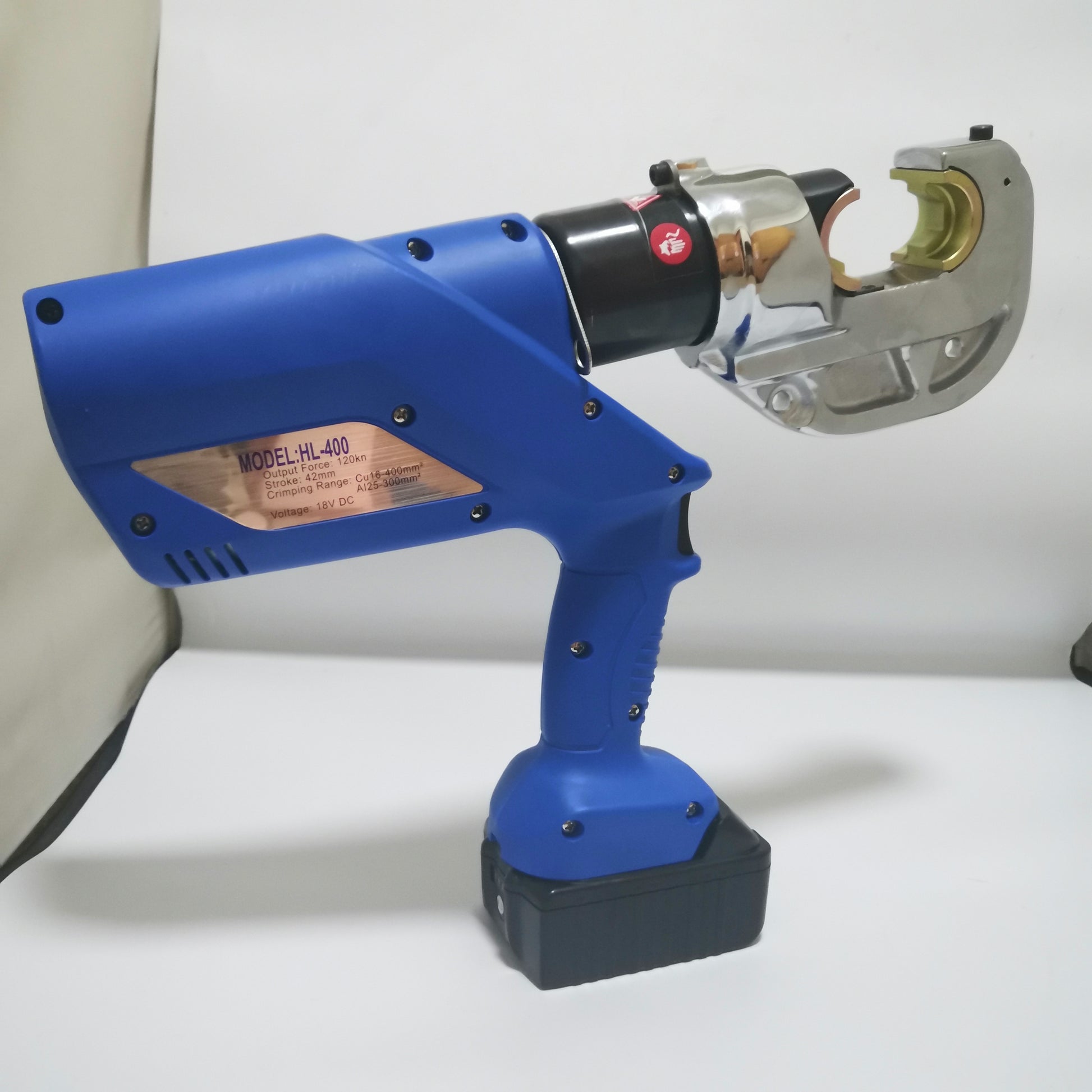

• Model on tool label: HL-400

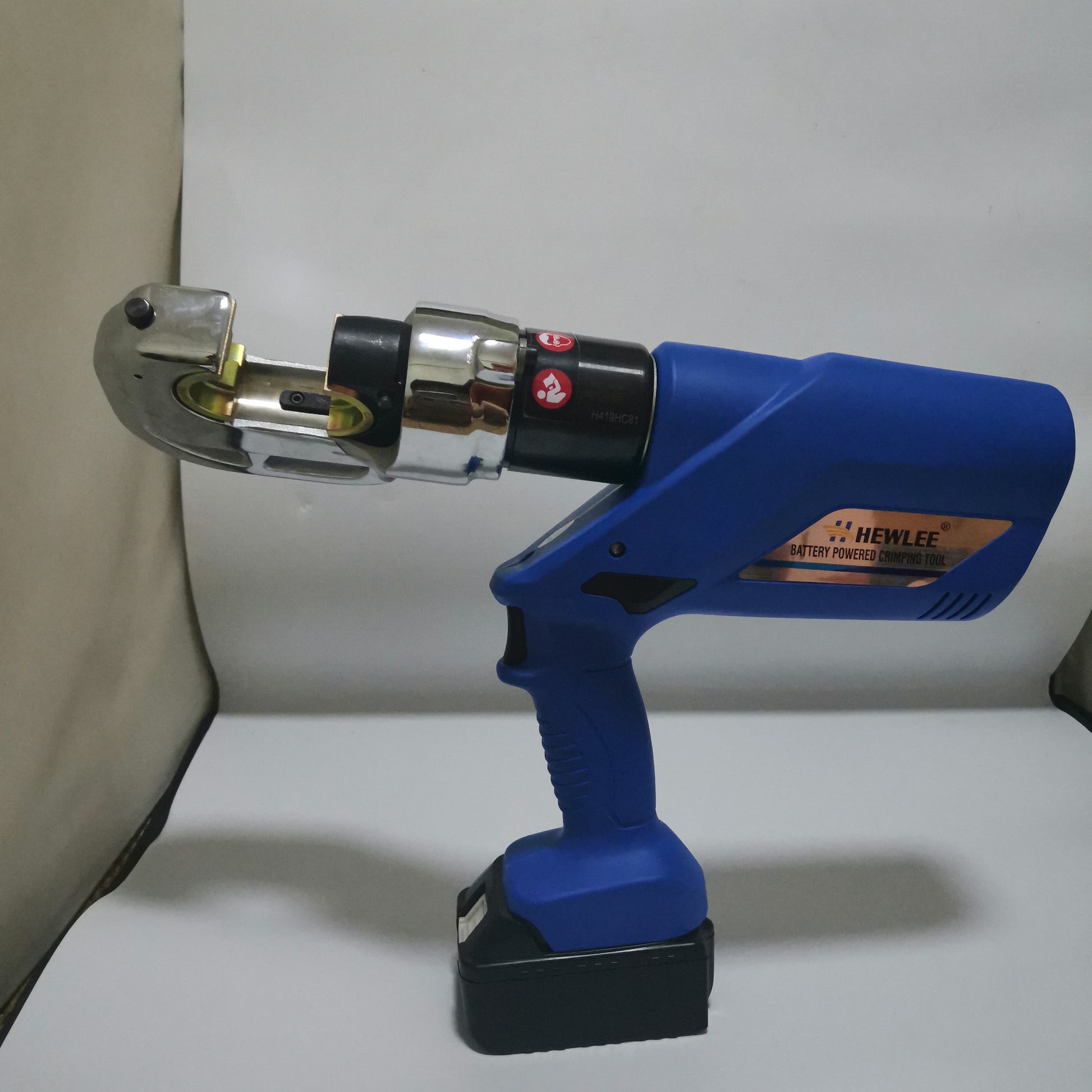

• Tool type: battery powered hydraulic crimping tool / electric wire crimper
• Output force: 120 kN
• Stroke: 42 mm
• Crimping range: Cu 16-400 mm²; Al 25-300 mm²

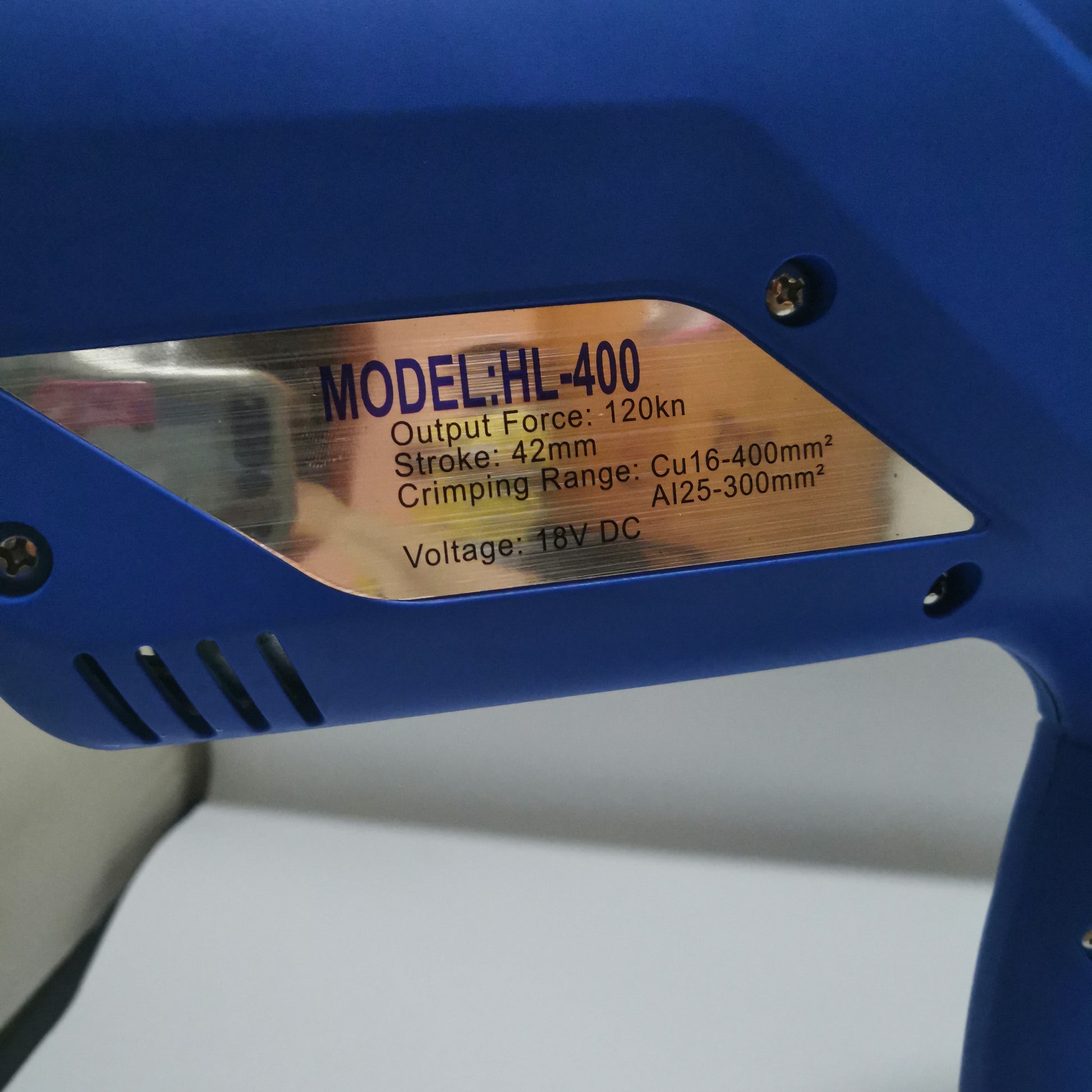

• Voltage shown on label: 18V DC

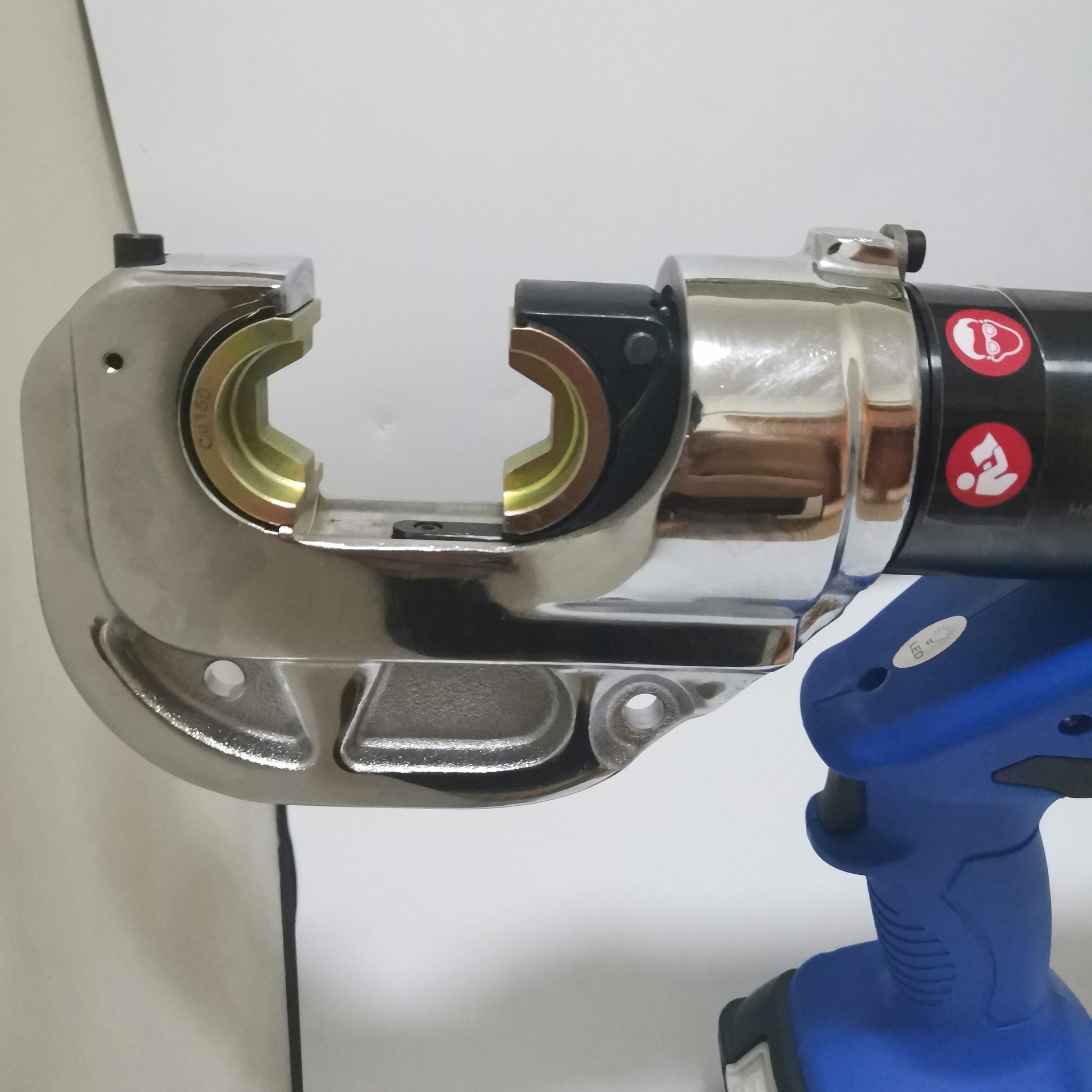

• Crimping head shown: C-style head with replaceable dies
• SKU: FMF-IT-83385

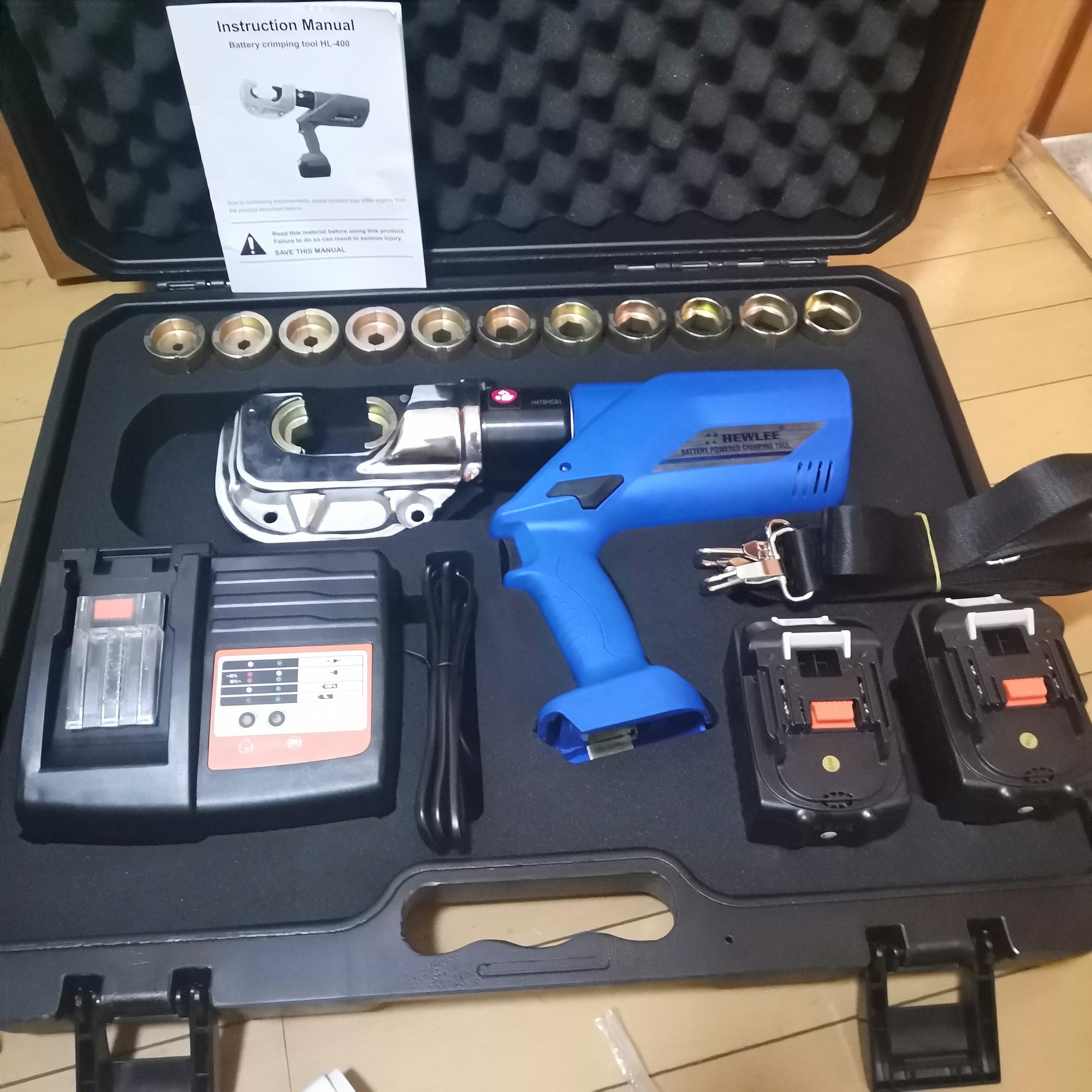

Kit Photo Shows

• HL-400 battery crimping tool
• Hard carrying case with foam insert
• Set of crimping dies shown in the case
• Two battery packs shown in the case photo
• Battery charger and power cable shown
• Instruction manual labeled Battery crimping tool HL-400
• Shoulder strap shown in the kit photo

Typical Use

• Crimp cable lugs and wire terminals on copper or aluminum conductors within the labeled range.
• Use a battery powered hydraulic crimper where hand-crimping force is not practical.
• Support wire processing, cable installation and maintenance tasks that match the tool range and die set.

Before Ordering

• Confirm your conductor material, cable cross-section and lug style match the tool range and die set.
• Confirm the exact die sizes, battery quantity, charger plug and accessory count before purchase if they are critical to your job.
• Confirm whether your project requires a specific certification, calibration record or electrical safety standard before use.

FAQ

What model is shown?

The tool label and instruction manual identify the product as model HL-400.

What crimping range is listed on the tool?

The visible label lists Cu 16-400 mm² and Al 25-300 mm².

What power system does it use?

The label shows 18V DC, and the product images show a battery powered crimping tool with battery packs in the kit photo.

Is this for cable lug crimping?

Yes. The listing and tool format match cable lug and wire terminal crimping within the stated conductor range.

Are all accessory details guaranteed from the images?

The kit photo shows dies, batteries, charger, power cable, manual, strap and case. Confirm exact accessory count and plug type before purchase if your job depends on them.
